SectionPage
1. Parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Preparations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. Connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. Installation and cabling diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5. To install the fan and module holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6. To install the connection cable and multimedia changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7. To install the fan cable (cars without an additional fan in the boot only) . . . . . . . . . . . . . . . . . . . 20
8. To install the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
9. To connect the seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
10. Concluding work and coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11. Fan wiring harness circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Downloaded from www.Manualslib.com manuals search engine 7 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
2. Preparations
TIS No.
Conduct a brief test---
Disconnect negative pole of battery
12 00 ...
The following components must be removed first of all
Sear, right and left
52 14 000
Rear panel on front seat backrest, right and/or left
52 14 198
Front right door sill strip
51 47 000
B pillar cover at bottom right and left
51 43 150
Door sill strip, rear right and left
51 47 030
Rear seat bench
52 24 005
Rear seat backrest, left, in cars with a split rear seat
52 24 015
Rear boot floor trim
51 47 101
Boot wheel arch trim on both sides
51 47 161
Left rear vent---
Release the rear fuse holder---

Downloaded from www.Manualslib.com manuals search engine 8 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
3. Connection diagram
Branch
/ItemDesignation Signal Cable colour /
Cross-sectionConnection/Installation site
in carAbbreviation
/ Slot
A Connection cable --- --- --- ---
A1 4-pin plug WS Pin 1
Te r m i n a l 3 1
Pin 2
Te r m i n a l V A
Pin 3
Te r m i n a l 3 0BR
0.75 mm²
VI/WS
0.75 mm²
RT
0.75 mm²To b r a n c h B1
---
A2 Cable eyelet A8 Terminal 30 RT
0.75 mm²To c a r b a t t e r y
---
A3 Cable eyelet A6 Terminal 31 BR
0.75 mm²To the earth post in the boot on the left X13094
A4 Open cable Terminal VA VI/WS
0.75 mm²With miniature connector AU to standard cable, terminal
VA, RT/GE cable, on rear fuse holder.X1856
Pin 17
A1
A3A4
A2
A



Downloaded from www.Manualslib.com manuals search engine 9 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
3. Connection diagram
Item Designation Signal Cable colour /
Cross-sectionConnection location in the car Abbreviation
/ Slot
I Fan cable --- --- For cars without an additional fan in the boot only ---
I1 Cable eyelet A6 Terminal 31 BR/SW
0.75 mm²To joint connector terminal 31 under the left tail light X13094
I2 3-pin SW socket casing To axial fan BDX2915
I3 4-pin SW socket casing To radial fan ADX14322
I4 Relay socket --- --- --- ---
I5 Socket contact Terminal 30 RT/BL
0.5 mm
2
To the rear fuse holder,
5-pin SW socket casingX4844
PIN 1

I6 Socket contact Terminal R GE/RT
0.5 mm
2
To p o w e r m o d u l e ,
SW 32-pin plugX1856
PIN 18

I
I3I4
I2
I1
I5
I6





Downloaded from www.Manualslib.com manuals search engine 13 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

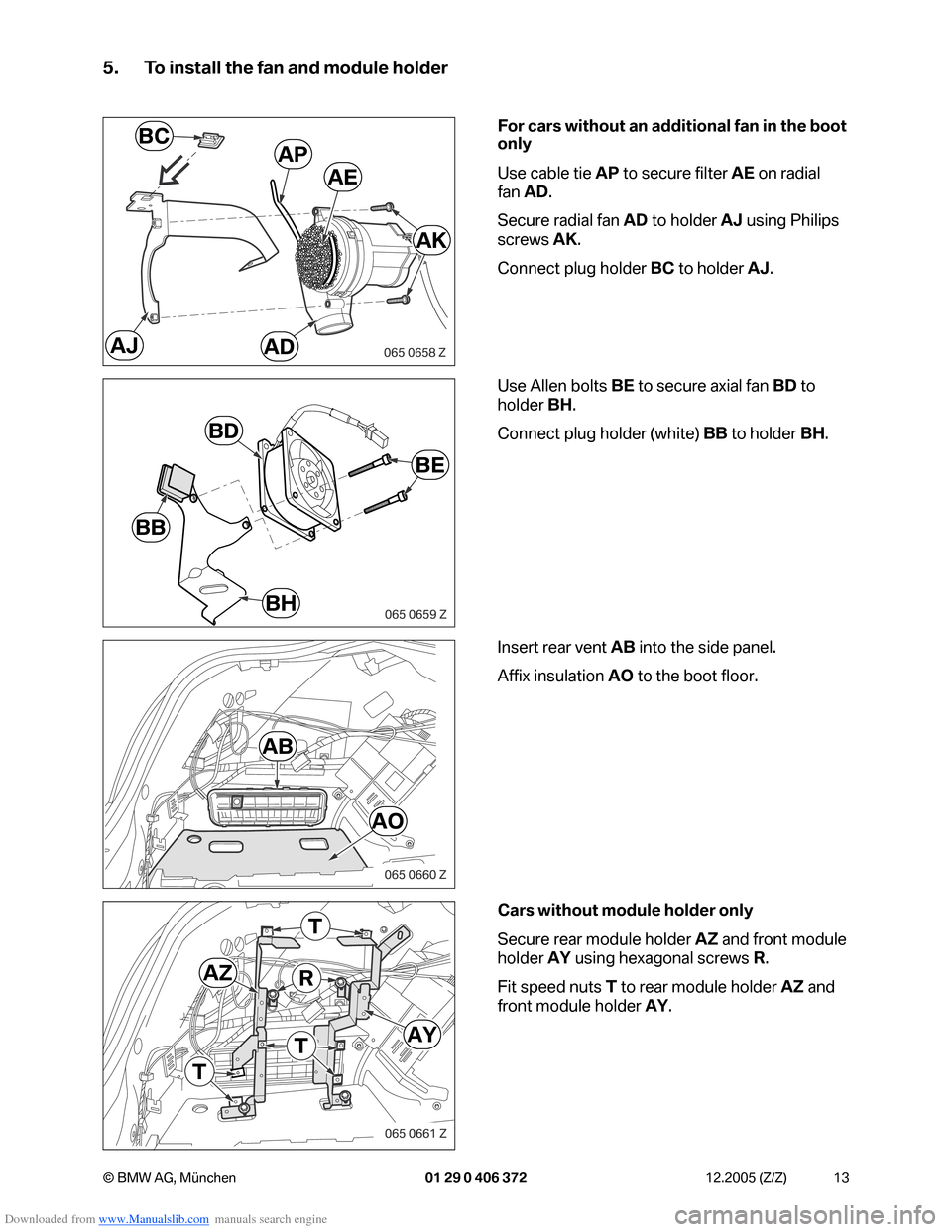

5. To install the fan and module holder
For cars without an additional fan in the boot
only
Use cable tie AP to secure filter AE on radial
fan AD.
Secure radial fan AD to holder AJ using Philips
screws AK.
Connect plug holder BC to holder AJ.
Use Allen bolts BE to secure axial fan BD to
holder BH.
Connect plug holder (white) BB to holder BH.
Insert rear vent AB into the side panel.
Affix insulation AO to the boot floor.
Cars without module holder only
Secure rear module holder AZ and front module
holder AY using hexagonal screws R.
Fit speed nuts T to rear module holder AZ and
front module holderAY.
AJAD
AK
AE
AP
BC



BB
BH
BE
BD



AB
AO




AZ
AY
T
T
T
R





Downloaded from www.Manualslib.com manuals search engine 14 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

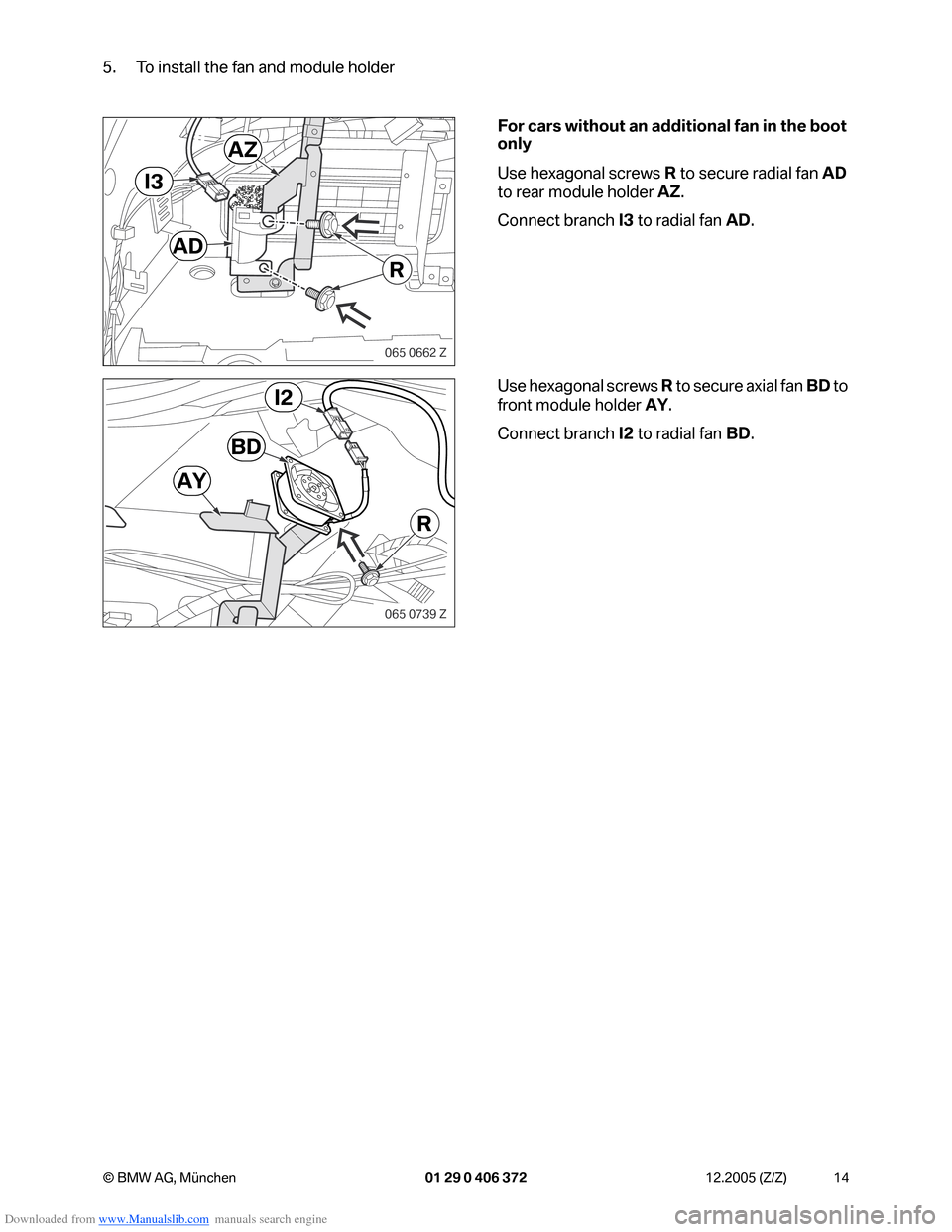

5. To install the fan and module holder
For cars without an additional fan in the boot
only
Use hexagonal screws R to secure radial fan AD
to rear module holder AZ.
Connect branch I3 to radial fan AD.
Use hexagonal screws R to secure axial fan BD to
front module holder AY.
Connect branch I2 to radial fan BD.
AD
I3
AZ
R
065 0662 Z
AY
BD
I2
R
065 0739 Z

Downloaded from www.Manualslib.com manuals search engine 15 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
6. To install the connection cable and multimedia changer
Push the fabric hose AF over branches D1 and
D2.
Route branches D1 and D2 parallel to plug X275
and secure them with a cable tie AP.
Route branches D3 and D4 to the boot at the rear
left.
Push the fabric hose AF over branches E1 and
E2.
Route branches E1 and E2 parallel to plug X279
and secure them with a cable tie AP.
Route branches E3 and E4 to the boot at the rear
left.
Remove the transport safety devices (1).
Close the openings with gluing points N.
Set the position of the multimedia changer L to
“H” using the setting screws (2).
Affix information sticker AM to the multimedia
changer L.
Tie back and insulate branch L5.
Connect branches C3, C4 and C5 to the same
coloured cables on branches L1, L2 and L3 on
the multimedia changer L.
Connect branch J1 to the multimedia changer L.APAF
D1
D2
X275
D3/D4


APAF
E1
E2
X279
E3/E4




V
1
N
N
L
2
2
AM



C4C3
L5
C5
L2
L1
J1
L3
L
060 0674 Z

Downloaded from www.Manualslib.com manuals search engine 18 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

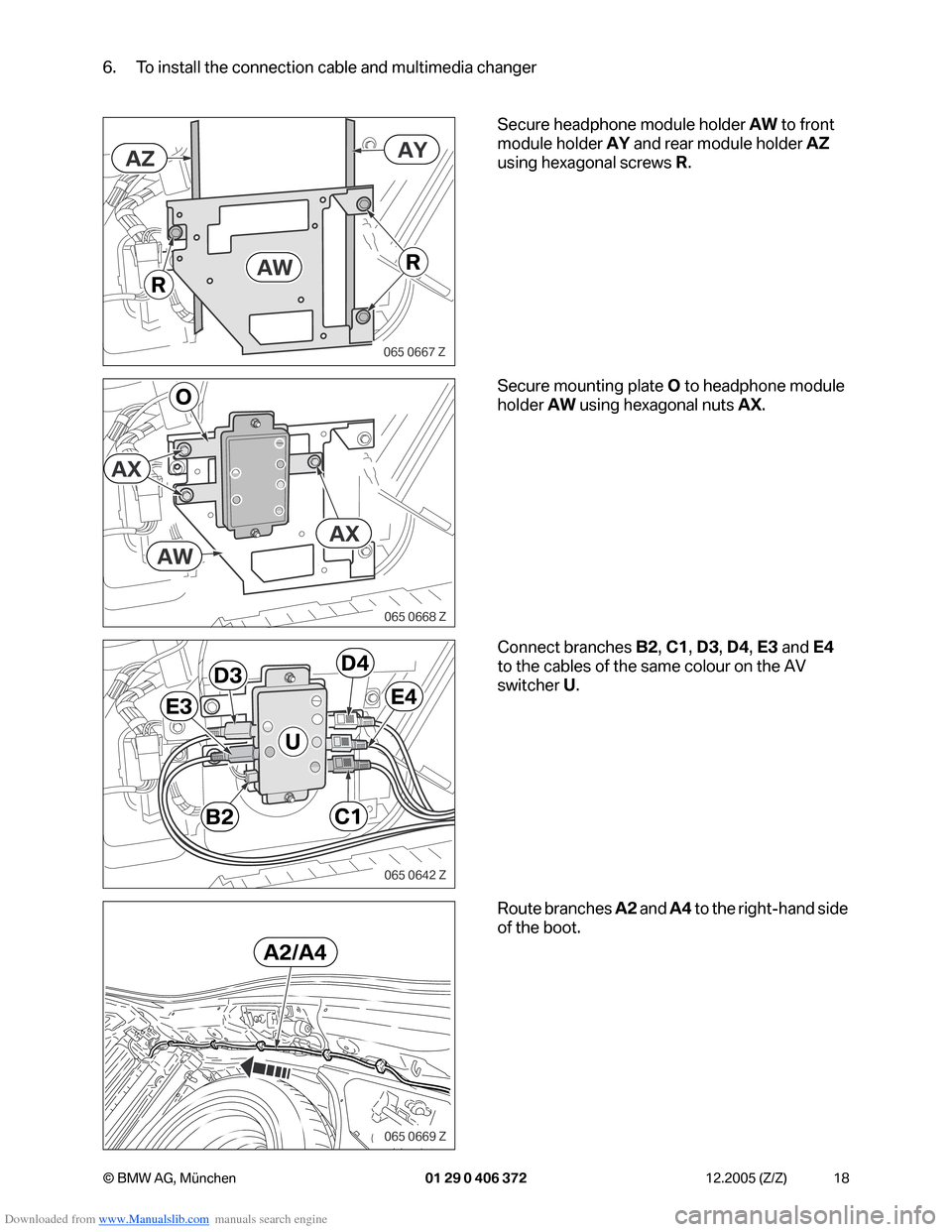

6. To install the connection cable and multimedia changer
Secure headphone module holder AW to front
module holder AY and rear module holder AZ
using hexagonal screws R.
Secure mounting plate O to headphone module
holder AW using hexagonal nuts AX.
Connect branches B2, C1, D3, D4, E3 and E4
to the cables of the same colour on the AV
switcher U.
Route branches A2 and A4 to the right-hand side
of the boot.
R
R
AW
AZAY
065 0667 Z
O
AX
AW
AX
065 0668 Z
U
D4
C1B2
D3
E3E4
065 0642 Z
A2/A4
065 0669 Z

Downloaded from www.Manualslib.com manuals search engine 20 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

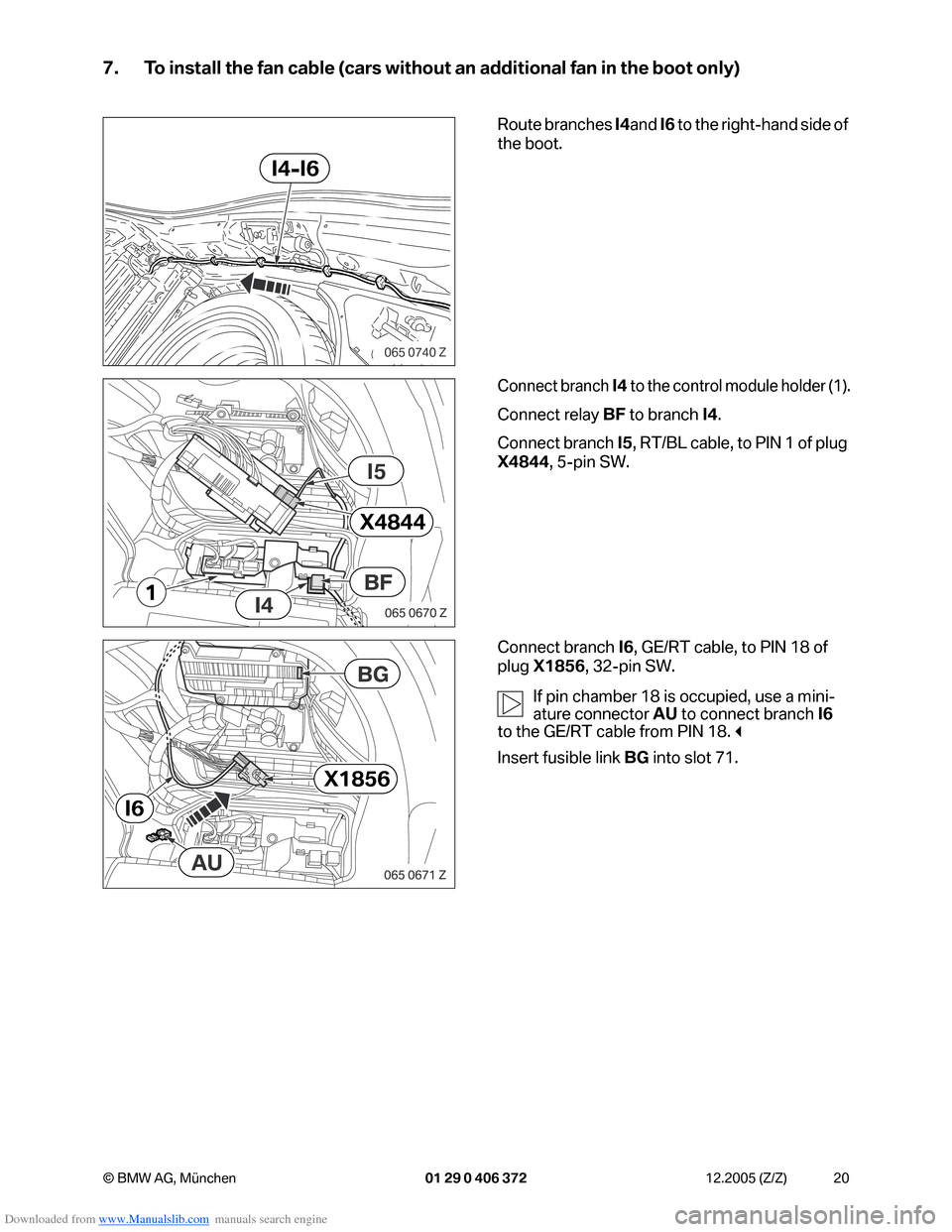

7. To install the fan cable (cars without an additional fan in the boot only)
Route branches I4and I6 to the right-hand side of
the boot.
Connect branch I4 to the control module holder (1).
Connect relay BF to branch I4.
Connect branch I5, RT/BL cable, to PIN 1 of plug
X4844, 5-pin SW.
Connect branch I6, GE/RT cable, to PIN 18 of
plug X1856, 32-pin SW.
If pin chamber 18 is occupied, use a mini-
ature connector AU to connect branch I6
to the GE/RT cable from PIN 18.

Insert fusible link BG into slot 71.
I4-I6
065 0740 Z
1I4
I5
BF
X4844



X1856
AU
BG
I6
