Page 1 of 30

Downloaded from www.Manualslib.com manuals search engine © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
Original BMW Accessory.
Installation Instructions.
1
Advanced DVD system with multimedia changer retrofit
BMW 7 Series Saloon (E 65 / E 66)
Retrofit kit No.65 12 0 406 359 DVD advanced monitors installation kit
65 12 0 406 362 DVD advanced MMC installation kit
Installation time
The installation time for the full system (multimedia changer and two rear monitors) is approx. 5.0 hours.
If you only install one rear monitor and the multimedia changer, the installation time will be
approx. 4.0 hours. The installation time may vary depending on condition of the car and the equipment
in it.
Important information
These installation instructions are primarily designed for use within the BMW dealership organisation
and by authorised BMW service companies.
In any event the target group for these installation instructions is specialist personnel trained on BMW
cars with the appropriate specialist knowledge.
All work must be completed using the latest BMW repair manuals, circuit diagrams, servicing manuals
and work instructions in a rational order using the prescribed tools (special tools) and observing current
health and safety regulations.
To avoid unnecessary extra work and/or costs, if any installation or function problems occur,
after a brief troubleshooting session (approx. 0.5 hours), contact the following:
1. Either your national sales company or your regional office or
2. The Support team via the Aftersales Assistance Portal (ASAP) using the optional technical
parts support application.
Quote the VIN and the part number of the retrofit kit and provide a detailed description of the
problem.
Do not archive the hard copy of these installation instructions since daily updates are made by ASAP.
See ASAP for details of the pictograms.
All the figures show LHD cars, proceed in exactly the same way on RHD cars.
Pictograms
sDenotes instructions that draw your attention to special features.
Denotes the end of the instruction or other text.
Subject to technical modifications.
Page 3 of 30

Downloaded from www.Manualslib.com manuals search engine 3 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
Contents
SectionPage
1. Parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Preparations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. Connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. Installation and cabling diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5. To install the fan and module holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6. To install the connection cable and multimedia changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7. To install the fan cable (cars without an additional fan in the boot only) . . . . . . . . . . . . . . . . . . . 20
8. To install the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
9. To connect the seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
10. Concluding work and coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11. Fan wiring harness circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Page 8 of 30

Downloaded from www.Manualslib.com manuals search engine 8 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
3. Connection diagram
Branch
/ItemDesignation Signal Cable colour /
Cross-sectionConnection/Installation site
in carAbbreviation
/ Slot
A Connection cable --- --- --- ---
A1 4-pin plug WS Pin 1
Te r m i n a l 3 1
Pin 2
Te r m i n a l V A
Pin 3
Te r m i n a l 3 0BR
0.75 mm²
VI/WS
0.75 mm²
RT
0.75 mm²To b r a n c h B1
---
A2 Cable eyelet A8 Terminal 30 RT
0.75 mm²To c a r b a t t e r y
---
A3 Cable eyelet A6 Terminal 31 BR
0.75 mm²To the earth post in the boot on the left X13094
A4 Open cable Terminal VA VI/WS
0.75 mm²With miniature connector AU to standard cable, terminal
VA, RT/GE cable, on rear fuse holder.X1856
Pin 17
A1
A3A4
A2
A
Page 9 of 30

Downloaded from www.Manualslib.com manuals search engine 9 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
3. Connection diagram
Item Designation Signal Cable colour /
Cross-sectionConnection location in the car Abbreviation
/ Slot
I Fan cable --- --- For cars without an additional fan in the boot only ---
I1 Cable eyelet A6 Terminal 31 BR/SW
0.75 mm²To joint connector terminal 31 under the left tail light X13094
I2 3-pin SW socket casing To axial fan BDX2915
I3 4-pin SW socket casing To radial fan ADX14322
I4 Relay socket --- --- --- ---
I5 Socket contact Terminal 30 RT/BL
0.5 mm
2
To the rear fuse holder,
5-pin SW socket casingX4844
PIN 1
I6 Socket contact Terminal R GE/RT
0.5 mm
2
To p o w e r m o d u l e ,
SW 32-pin plugX1856
PIN 18
I
I3I4
I2
I1
I5
I6
Page 10 of 30

Downloaded from www.Manualslib.com manuals search engine 10 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
3. Connection diagram
BVoltage supplyDConnection wiring harness (left seat)
B1WS 4-pin plugD18-pin round plug, SW
B2WS 4-pin plugD28-pin round plug, SW
B3WS 3-pin plugD38-pin round plug GE/BL
D48-pin round plug, BL
CMultimedia changer AV adapter
C18-pin round plug, GNEConnection wiring harness (right
seat)
C2Black 4-pin plugE18-pin round plug, SW
C3Cinch socket GEE28-pin round plug, SW
C4Cinch socket RTE38-pin round plug RT/GE
C5Cinch socket WSE48-pin round plug RT
J
C
D
HH
G
E
G
FF
U
L
D3E3
B2
L5 L1-L3 C3-C5
L4 C2
J2 J1
B3B1 E2
E1F3
F4F1F2
G2AA1
AA1 H2
G1
G2 G1H1
H2 H1
B
F2
F1
F3
D2
D1F4
AA AA
D4E4C1
Page 11 of 30

Downloaded from www.Manualslib.com manuals search engine 11 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
3. Connection diagram
FSeat wiring harnessLMultimedia changer
F18-pin round plug, SWL1Cinch plug, WS
F2WS 10-pin plugL2Cinch plug, RT
F38-pin round plug, SWL3Cinch plug, GE
F48-pin round plug, SWL4Black 4-pin plug
L5Black 4-pin plug
GAuxiliary cable
G1Auxiliary jack (2.5 mm)UAV switcher
G28-pin round plug, SW
AAMonitor
HHeadphone cableAA18-pin round plug RT
H1Headphone jack (3.5 mm)
H28-pin round plug RT
JMultimedia changer power supply
cable
J18-pin round plug, SW
J2WS 3-pin plug
J
C
D
HH
G
E
G
FF
U
L
D3E3
B2
L5 L1-L3 C3-C5
L4 C2
J2 J1
B3B1 E2
E1F3
F4F1F2
G2AA1
AA1 H2
G1
G2 G1H1
H2 H1
B
F2
F1
F3
D2
D1F4
AA AA
D4E4C1
Page 12 of 30

Downloaded from www.Manualslib.com manuals search engine 12 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

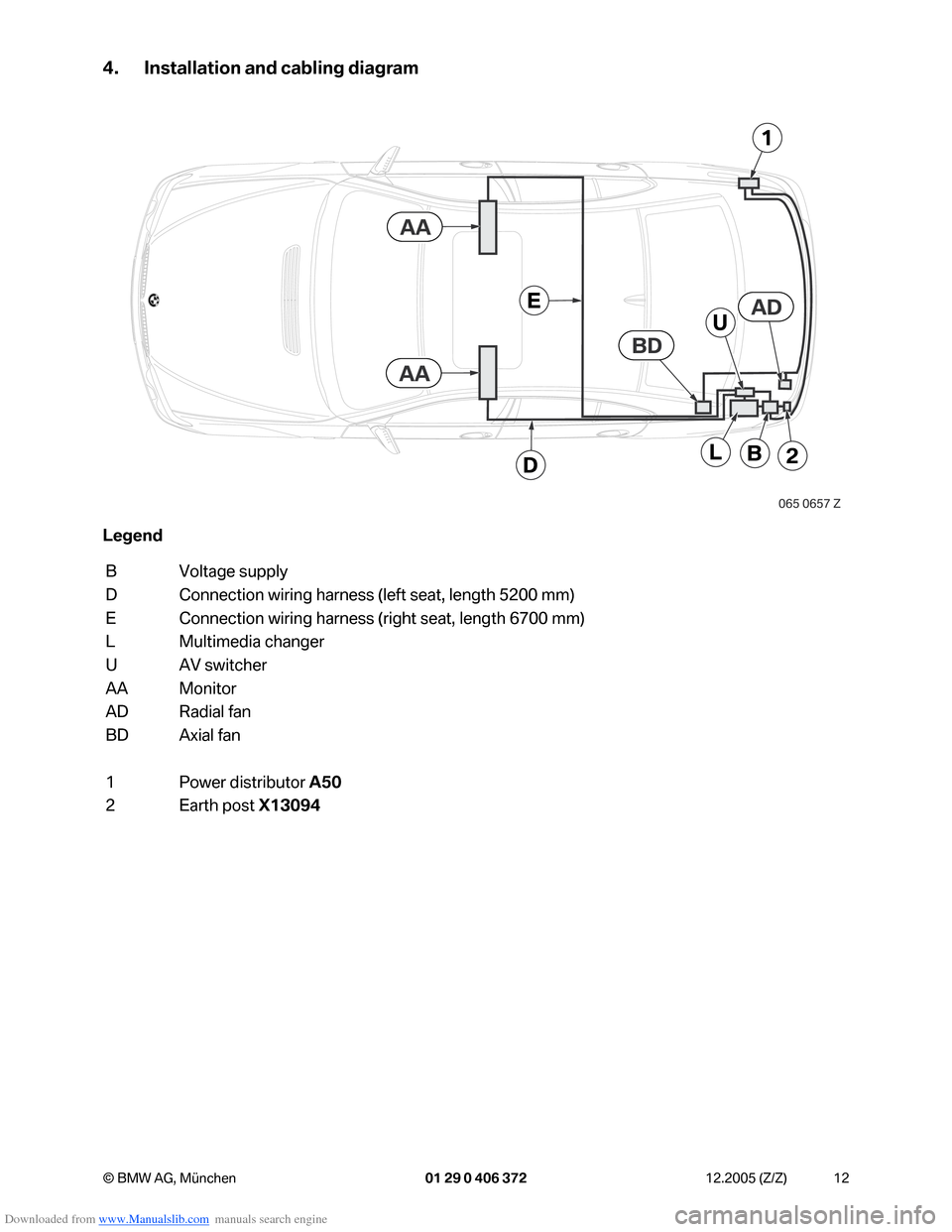

4. Installation and cabling diagram
Legend
BVoltage supply
D Connection wiring harness (left seat, length 5200 mm)
E Connection wiring harness (right seat, length 6700 mm)
L Multimedia changer
UAV switcher
AA Monitor
AD Radial fan
BD Axial fan
1 Power distributor A50
2Earth post X13094
E65E65
1
U
BL2D
E
BD
AD
AA
AA
Page 30 of 30

Downloaded from www.Manualslib.com manuals search engine 30 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

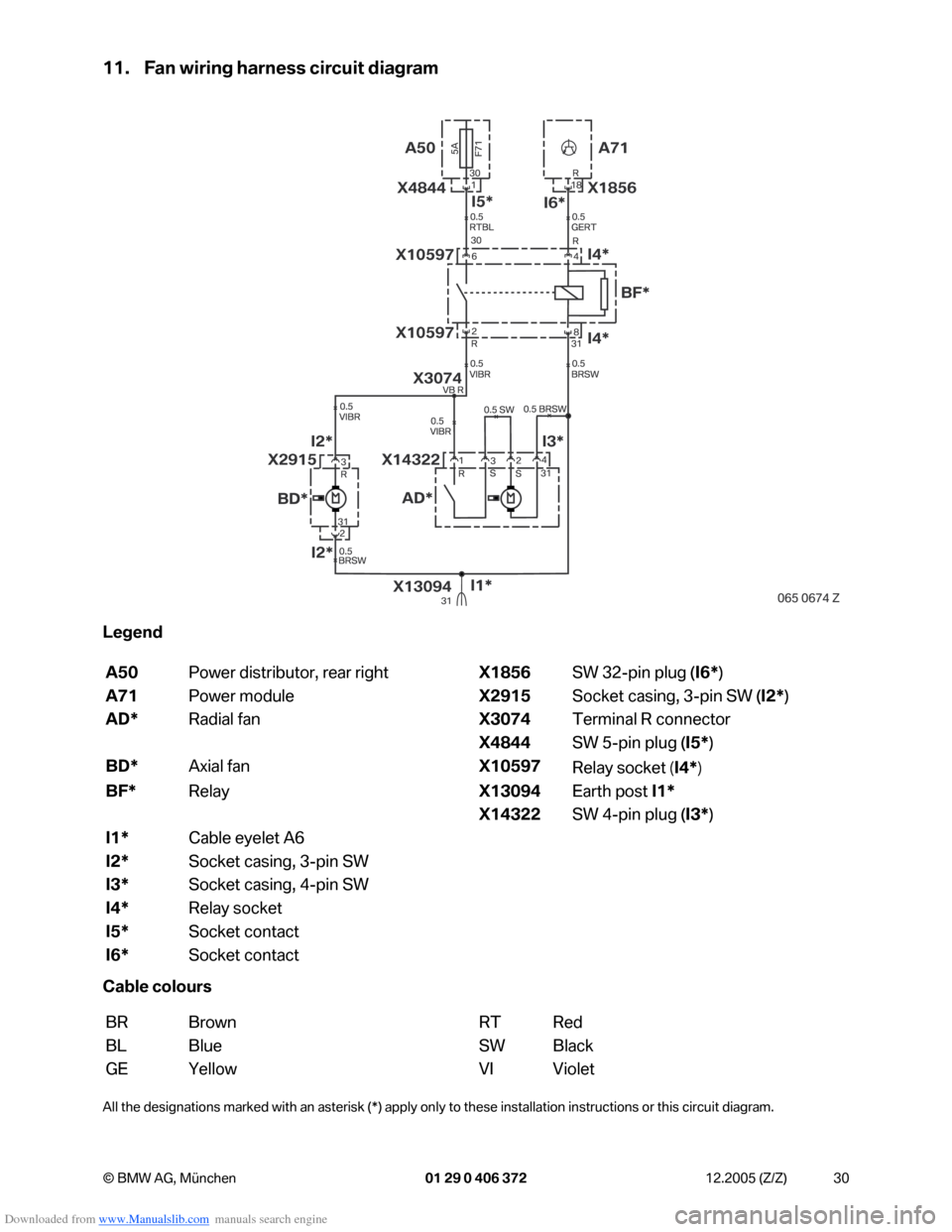

11. Fan wiring harness circuit diagram
Legend
Cable colours
All the designations marked with an asterisk (*) apply only to these installation instructions or this circuit diagram.
A50Power distributor, rear rightX1856SW 32-pin plug (I6*)
A71Power moduleX2915Socket casing, 3-pin SW (I2*)
AD*Radial fanX3074Terminal R connector
X4844SW 5-pin plug (I5*)
BD*Axial fanX10597
Relay socket (I4*)
BF*RelayX13094Earth post I1*
X14322SW 4-pin plug (I3*)
I1*Cable eyelet A6
I2*Socket casing, 3-pin SW
I3*Socket casing, 4-pin SW
I4*Relay socket
I5*Socket contact
I6*Socket contact
BR Brown RT Red
BL Blue SW Black
GE Yellow VI Violet
A50
X4844
I5*
I6*
I4*
I4*
BD*AD* X14322 X2915X3074
A71
X1856
X10597
X10597BF*
X13094I1*I3*
I2* I2*
