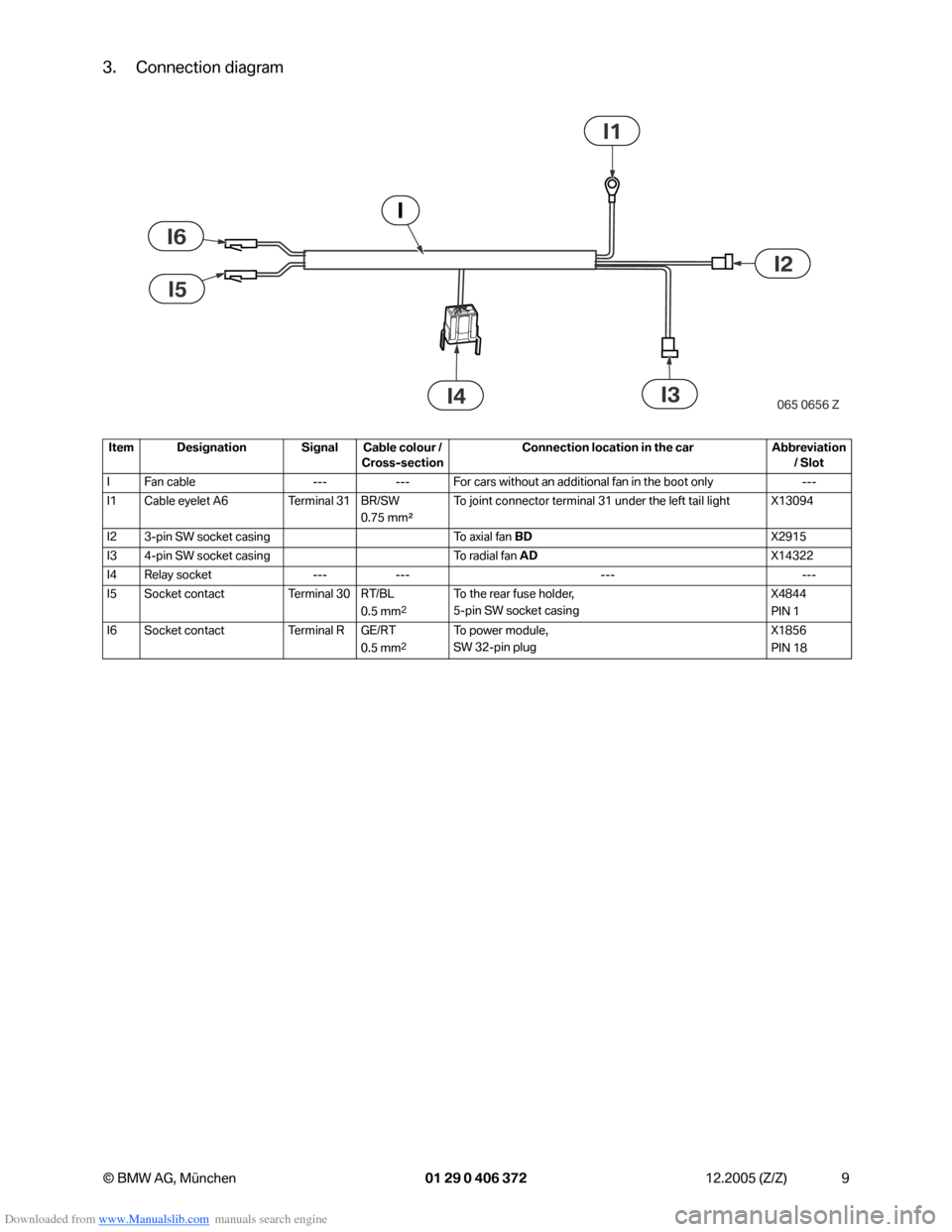

3. Connection diagram
Item Designation Signal Cable colour /
Cross-sectionConnection location in the car Abbreviation
/ Slot
I Fan cable --- --- For cars without an additional fan in the boot only ---
I1 Cable eyelet A6 Terminal 31 BR/SW
0.75 mm²To joint connector terminal 31 under the left tail light X13094
I2 3-pin SW socket casing To axial fan BDX2915
I3 4-pin SW socket casing To radial fan ADX14322
I4 Relay socket --- --- --- ---
I5 Socket contact Terminal 30 RT/BL
0.5 mm
2
To the rear fuse holder,
5-pin SW socket casingX4844
PIN 1

I6 Socket contact Terminal R GE/RT
0.5 mm
2
To p o w e r m o d u l e ,
SW 32-pin plugX1856
PIN 18

I
I3I4
I2
I1
I5
I6
