remote control BMW 7 SERIES 2006 E65 Advanced DVD System With Multimedia Changer Retrofit Instalation Instruction Manual

Downloaded from www.Manualslib.com manuals search engine 6 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
1. Parts list
Legend
AO Insulation
AP Cable tie 3 x 200 mm (35x)
AQ Headphones (2x)
AR Button cell (2x)
AS Remote control (2x)
AT Front monitor trim (not supplied with the retrofit kit)
AU Miniature connector
AV Batteries (4x)
AW Headphone module holder
AX Hexagonal nut with washer M5 (3x)
AY Front module holder
AZ Rear module holder
BA Cover
BB Plug holder (white)
BC Plug holder
BD Axial fan
BE Allen bolt M4 x 30 mm (2x)
BF Relay
BG Fusible link 5 A
BH Holder
AOAPAQARASATAUAV
AWAXAYAZBABB
BCBDBEBFBGBH
065 0650 Z

Downloaded from www.Manualslib.com manuals search engine 28 © BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)
10. Concluding work and coding

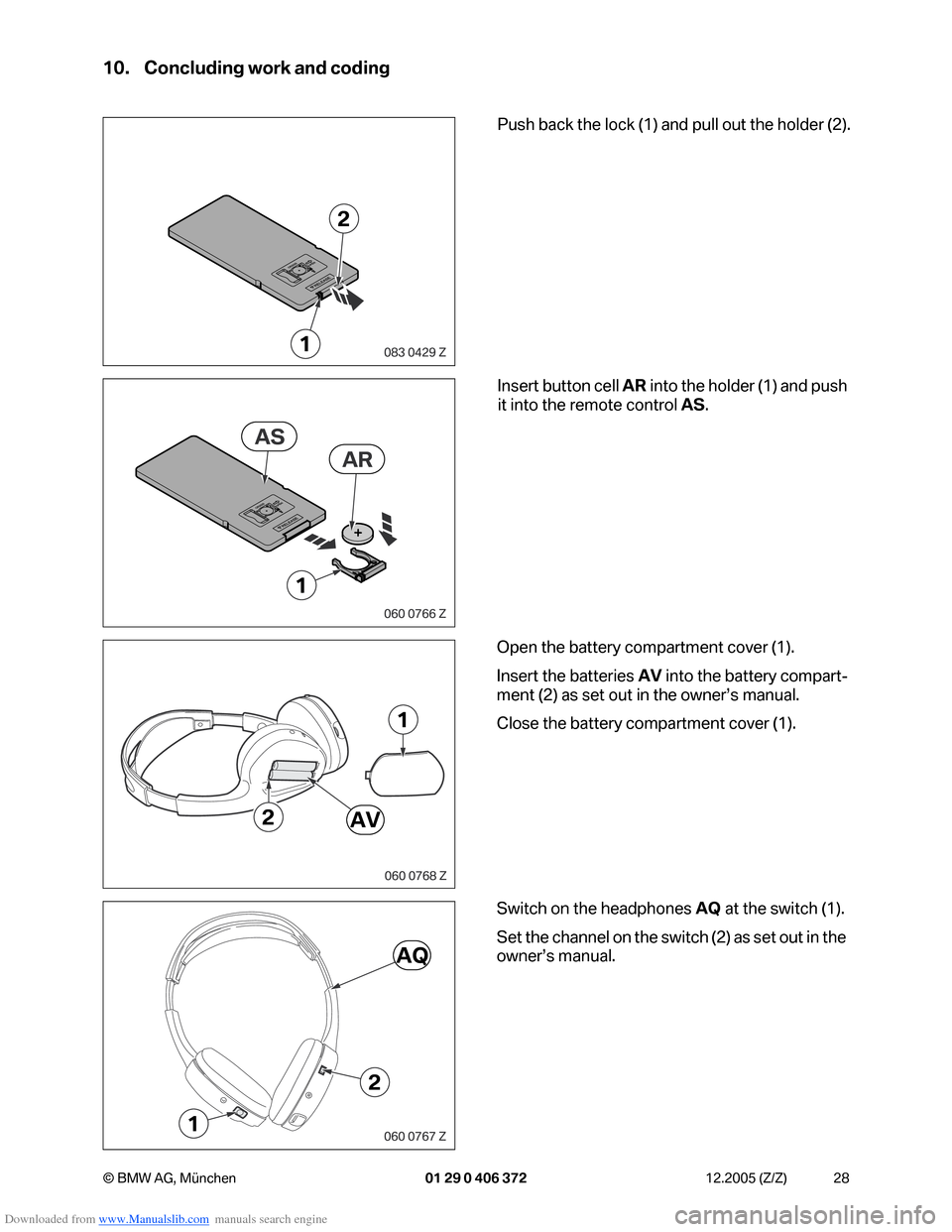

Push back the lock (1) and pull out the holder (2).
Insert button cell AR into the holder (1) and push
it into the remote control AS.
Open the battery compartment cover (1).
Insert the batteries AV into the battery compart-
ment (2) as set out in the owner’s manual.
Close the battery compartment cover (1).
Switch on the headphones AQ at the switch (1).
Set the channel on the switch (2) as set out in the
owner’s manual.

  1
2
1
AS
AR




2
1
AV



2
1
AQ
