Maintenance Program
The BMW Maintenance Program has been
devised with the following objectives: to maxi-
mize vehicle safety, reliability, and resale value by
minimizing breakdowns resulting from wear, and
minimizing cost and inconvenience by comput-
ing maintenance intervals based upon the spe-
cific manner in which each individual vehicle is
driven.
Maintenance intervals on motor vehicles have
conventionally been specified based upon accu-
mulated mileage. However, driving conditions
have a major influence on routine maintenance
requirements; distance traveled is only one of the
significant factors. A vehicle driven for 50,000
miles of short trips in the city with numerous cold
starts, prolonged periods of idling, stop-and-go
driving, and high engine speeds during accelera-
tion requires more frequent maintenance inter-
vals than a vehicle driven for 50,000 miles for
long distances at low engine speeds primarily at
operating temperature.
The advanced technologies at BMW have led to
the development of the unique BMW Condition
Based Service (CBS) system which computes
the actual optimum maintenance requirements
based not only upon the accumulated mileage,
but taking into account important factors such as
high or low engine speeds, short or long trip driv-
ing, and condition of the engine oil and brake
pads.
The BMW Maintenance Program
Condition Based Service (CBS)
CBS is a further development of the Service
Interval Indicator System. Sensors and sophisti-
cated algorithms take even more detailed
account of the various conditions of vehicle use.The remaining times for selected maintenance
tasks as well as any legally prescribed dates are
displayed to you individually:
Engine oil
Brakes - front and rear separately
Microfilter
Brake fluid
Spark plugs
Vehicle check
Required State Inspection(s)
CBS thus determines the current and future
maintenance requirements. This data can also be
read from the vehicle key by your BMW Service
Advisor and used to propose the optimum scope
of maintenance.
Have maintenance and repair work performed by
your BMW center. Make sure that the mainte-
nance work is stamped in this Service and War-
ranty Information Statement. These entries are
the evidence of regular maintenance of your vehi-
cle and a requirement for warranty claims.
Disconnecting the battery during periods
of long-term storage will interrupt the
calculation of time-based services. Have all items
requiring time-based maintenance, such as
brake fluid and coolant, and possibly also the
engine oil and microfilter, brought up to date by
your BMW center. Also see the section on bat-
tery care on page 15 of this statement.
Service Interval Display
Info Display screen contents
The distance remaining until your next service
briefly appears when you switch on the ignition.
2

Standard operations
Maintenance work
•Brief diagnostic test
•Verify Check Control messages
•Check indicator and warning lights
•Reset CBS display
Engine oil
Maintenance work
•Change the engine oil and oil filter. We recom-
mend BMW High Performance 5W-30 Syn-
thetic Oil P/N 07 51 0 017 866.
•After every 3rd engine oil change: Intake air
cleaner: replace air filter element (reduce
replacement interval in dusty operating
conditions).
•Parking brake: check function
Microfilter
Maintenance work
•Automatic air conditioning: Replace microfilter
Front brake
Maintenance work
•Replace brake pads, clean brake pad contact
points in calipers.
•Brake discs: Check surface and thickness, if
necessary replace at extra charge*
Rear brake
Maintenance work
•Replace brake pads, clean brake pad contact
points in calipers.
•Brake discs: Check surface and thickness, if
necessary replace at extra charge*
•Parking brake: Check condition, brake lining
thickness and function, if necessary replace at
extra charge*.
*Unless covered by Maintenance Program
Vehicle Check
Maintenance work
•Check operation of horn, headlight flasher and
hazard warning flashers.
•Check instrument and control lighting and
heater/air-conditioning blower.
•Check lighting system: turn signals, back-up,
license plate, interior (incl. map, reading lights),
glovebox, flashlight, luggage area lights.
•Safety belts: check condition and function.
•Check windshield wiper and washer jet
positions.
•Body: check for corrosion (except cavities).
•Tires: check tread depth, wear pattern, outer
condition, inflation pressure (also spare tire). If
necessary, correct pressure (also spare)
•Battery: check state of charge (magic eye) and
charge if required.
•Power steering reservoir: Check fluid level.
•Visually inspect all SRS airbag units for torn
covers, obvious damage or attachment of
stickers.
•Rear-view mirrors
•Coolant: check fluid level and concentration.
•Windshield washer and intensive cleaning sys-
tem: check protection level, fluid level, top if
necessary.
•Brake system connections and lines: check for
leaks, damage and correct positioning
•Underbody, incl. all visible parts (i.e. transmis-
sion, rear axle, fuel lines, exhaust system),
check for damage, leaks and corrosion
•Steering components: check for clearance,
leaks, damage and wear
•Final Inspection: Road test with check of
–Brakes
– Steering
– Shock absorbers (visual)
– Gearbox
5

Emission Control Maintenance
Schedule
The maintenance schedule as shown is required
for the proper functioning of the emission control
systems for optimum vehicle performance and
fuel economy.
Basic Engine
Engine oil As specified by CBS
Engine oil filter As specified by CBS
Fuel System
Air filter As specified by CBS
Ignition System
Spark plugs As specified by CBS
Emission Control
Components
Oxygen sensor Replace at intervals of
750i, 750Li: 120,000 miles
760Li: 100,000 miles
Oxygen Sensor Service: The oxygen sensor
deteriorates strictly on a mileage basis and must
therefore be replaced to maximize vehicle fuel
economy and minimize exhaust pollution.
Battery Care
If your car is driven only for short distances of
less than 10 miles over a prolonged period of
time, without an occasional drive at highway
speeds, the engines charging system will not
maintain the battery. Insufficient use of the vehi-
cle could result in short term starting problems
and in the long term could damage the battery.
In case the car is not operated for several weeks
it is advisable to:
a. slide battery switch to Off position. Refer to
Battery Switch in vehicle owners manual.
b. consider using a proper trickle charger, follow-
ing the charger manufacturers instructions, to
maintain the batterys state of charge; or
c. consult your BMW center regarding battery
removal. Once removed, the battery must be
charged and stored in a cool, dry place where
it can be protected from freezing. If the battery
will be stored for over 3 months, it must berecharged every 3 months, or else it will
become damaged and useless.
Please consult with your BMW center for further
guidance and information.
Corrosion Protection
Extensive corrosion protection measures imple-
mented by BMW now make it possible to offer a
twelve-year unlimited mileage anti-corrosion
warranty against rust perforation on your vehicle
provided that the vehicle is maintained in accor-
dance with the provisions of the New Vehicle
Limited Warranty as outlined in the Warranty
Section of this Booklet (page 31).
The major degree of corrosion protection is due
to the electrophoretic dip painting process which
cathodically deposits paint particles on all body
parts, attracting paint particles into the minutest
cavities or seams. Body parts are designed to
provide optimum corrosion protection.
During manufacture, exterior body parts receive
an additional corrosion protection coat. Hood,
trunk, doors and other body parts are coated with
PVC and sealed from the outside.
All floor panels receive a resilient coating of PVC
for maximum protection against damage due to
stones, etc.
Corrosion protection materials tested over many
years are applied to the surfaces of cavities and
to the entire underside of the vehicle during and
after assembly.
Requirements for maintaining the 12- year unlim-
ited mileage anti-corrosion warranty are outlined
in the Warranty Section of this Booklet (page 33).
Restoring corrosion protection
Please take care that anti-corrosion material is
replaced when your car is repaired after body or
chassis damage.
BMW will not accept any liability for any parts
and accessories not approved by BMW.
15

New Vehicle Limited Warranty -
2007 Models (Valid Only in the
U.S.A. and Puerto Rico)
Warrantor
BMW NA warrants 2007 U.S. specification vehi-
cles distributed by BMW NA or sold through the
BMW NA European Delivery Program against
defects in materials or workmanship to the first
retail purchaser, and each subsequent purchaser.
Warranty Period
The warranty period is 48 months or 50,000
miles, whichever occurs first.
Warranty Begins
This warranty begins on the date of first retail
sale, or the date the vehicle is first placed in
service as a demonstrator or company vehi-
cle, whichever is earlier.
Warranty Coverage
To obtain service under this warranty, the vehicle
must be brought, upon discovery of a defect in
material or workmanship, to the workshop of any
authorized BMW center, during normal business
hours. The BMW center will, without charge for
parts or labor, either repair or replace the defec-
tive part(s) using new or authorized remanufac-
tured parts. The decision to repair or replace said
part(s) is solely the prerogative of BMW NA. Parts
for which replacements are made become the
property of BMW NA.
In all cases, a reasonable time must be allowed
for warranty repairs to be completed after the
vehicle is received by the BMW center.
Safety Belt Warranty - Kansas
Safety belts are covered under the BMW New
Vehicle Limited Warranty for defects in material
or workmanship for a period of 10 years, unlim-
ited mileage from the date of purchase. In order
to be eligible for this coverage, the vehicle must
be a new car retailed in the State of Kansas and
the repair performed by an authorized BMW cen-
ter in Kansas.
Towing/Other Owner Benefits
A 24-hour Roadside Assistance Program is avail-
able to every BMW owner during the new vehicle
warranty period.
Roadside assistance and other owner benefits
are available by calling:
1 800 332-4269
For additional details on towing and other owner
benefits please refer to the BMW Roadside
Assistance section of this Statement (page 26).
Other Items
Wheel alignment, balancing and wiper blade
inserts are covered up to 2,000 miles.
Items which are subject to wear and tear or
deterioration due to driving habits or condi-
tions, such as brake pads/linings, brake
discs, clutch disc, pressure plate, filters,
upholstery, trim and chrome items, paint fin-
ish, drive belts, glass, and similar items, are
specifically limited to defects in material or
workmanship.
This warranty does not apply to the following:
Damage which results from negligence, improper
operation of the vehicle, improper repair, lack of
or improper maintenance, environmental influ-
ences, flood, accident or fire damage, road salt
corrosion, or use of improper or contaminated
fuel.
Damage to the engine, transmission or any
related component caused by improper shifting
of the transmission.
Maintenance services and parts when replaced
during maintenance such as spark plugs, lubri-
cants, fluids, engine tuneup parts, replacement
of filters, coolant, and refrigerant.
Failure to maintain the vehicle properly in accor-
dance with the instructions in the Owners Man-
ual or the Service section of this Statement, that
results in the failure of any part of the vehicle.
Modification of the vehicle or installation of any
performance accessories or components
attached to the vehicle which alters the original
engineering and/or operating specifications or
31

What is not covered
This warranty does not cover malfunctions
caused by any of the following: accident, flood,
misuse, improper adjustment, modification, alter-
ation, tampering, disconnection, improper or
inadequate maintenance, use of leaded fuel or
fuels containing more than 10% ethanol, or other
oxygenates with more than 2.8% oxygen by
weight (i.e., more than 15% MTBE or more than
3% methanol plus an equivalent amount of
co-solvent).
The replacement of maintenance parts, such as
spark plugs, filters and similar items used in
required maintenance services, the repair or
replacement of maintenance parts beyond the
first required inspection/maintenance, or if the
part has been replaced earlier for reasons other
than it being defective.
The car or any part of the car unless a failure
causes the car to fail to conform to applicable
emission regulations.
Any car on which the odometer has been
replaced or altered and the true mileage cannot
be determined.
The car, if the vehicle identification number is
altered or cannot be read, or if the car has been
declared a total loss or sold for salvage purposes.
General
These warranties give you specific legal rights,
and you may also have other rights which vary
from state to state.
THE DURATION OF ANY IMPLIED WARRAN-
TIES, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY, IS LIMITED TO THE
DURATION OF THE EXPRESS WARRANTIES
HEREIN.
BMW NA HEREBY EXCLUDES INCIDENTAL
AND CONSEQUENTIAL DAMAGES, INCLUD-
ING LOSS OF TIME, INCONVENIENCE, OR
LOSS OF USE OF THE VEHICLE, FOR ANY
BREACH OF ANY EXPRESS OR IMPLIED WAR-
RANTY, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY, APPLICABLE TO THIS
PRODUCT.
Some states do not allow limitations on how long
an implied warranty lasts, or the exclusion or lim-
itation of incidental or consequential damages,
so the above limitations and exclusions may not
apply to you. Additionally, if you are a California,
Maine, Massachusetts or Vermont resident and
your vehicle is registered in that state, your vehi-
cle is eligible for California Emissions Warranty
coverage.
These federal warranty provisions also apply to
all vehicles sold in all U.S. states and territories
regardless of whether a state has enacted state
warranty provisions that differ from the federal
provisions.
35

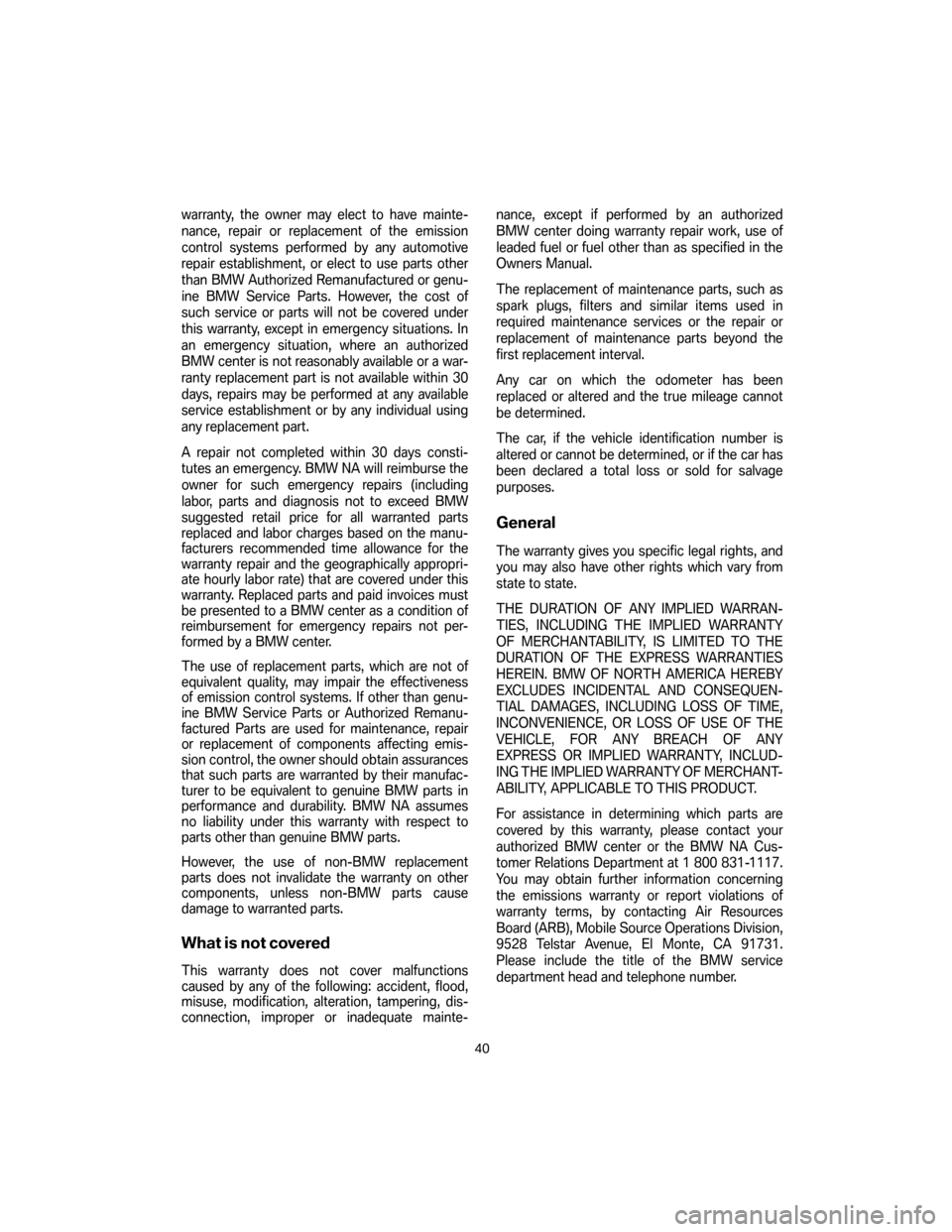

warranty, the owner may elect to have mainte-
nance, repair or replacement of the emission
control systems performed by any automotive
repair establishment, or elect to use parts other
than BMW Authorized Remanufactured or genu-
ine BMW Service Parts. However, the cost of
such service or parts will not be covered under
this warranty, except in emergency situations. In
an emergency situation, where an authorized
BMW center is not reasonably available or a war-
ranty replacement part is not available within 30
days, repairs may be performed at any available
service establishment or by any individual using
any replacement part.
A repair not completed within 30 days consti-
tutes an emergency. BMW NA will reimburse the
owner for such emergency repairs (including
labor, parts and diagnosis not to exceed BMW
suggested retail price for all warranted parts
replaced and labor charges based on the manu-
facturers recommended time allowance for the
warranty repair and the geographically appropri-
ate hourly labor rate) that are covered under this
warranty. Replaced parts and paid invoices must
be presented to a BMW center as a condition of
reimbursement for emergency repairs not per-
formed by a BMW center.
The use of replacement parts, which are not of
equivalent quality, may impair the effectiveness
of emission control systems. If other than genu-
ine BMW Service Parts or Authorized Remanu-
factured Parts are used for maintenance, repair
or replacement of components affecting emis-
sion control, the owner should obtain assurances
that such parts are warranted by their manufac-
turer to be equivalent to genuine BMW parts in
performance and durability. BMW NA assumes
no liability under this warranty with respect to
parts other than genuine BMW parts.
However, the use of non-BMW replacement
parts does not invalidate the warranty on other
components, unless non-BMW parts cause
damage to warranted parts.
What is not covered
This warranty does not cover malfunctions
caused by any of the following: accident, flood,
misuse, modification, alteration, tampering, dis-
connection, improper or inadequate mainte-nance, except if performed by an authorized
BMW center doing warranty repair work, use of
leaded fuel or fuel other than as specified in the
Owners Manual.
The replacement of maintenance parts, such as
spark plugs, filters and similar items used in
required maintenance services or the repair or
replacement of maintenance parts beyond the
first replacement interval.
Any car on which the odometer has been
replaced or altered and the true mileage cannot
be determined.
The car, if the vehicle identification number is
altered or cannot be determined, or if the car has
been declared a total loss or sold for salvage
purposes.
General
The warranty gives you specific legal rights, and
you may also have other rights which vary from
state to state.
THE DURATION OF ANY IMPLIED WARRAN-
TIES, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY, IS LIMITED TO THE
DURATION OF THE EXPRESS WARRANTIES
HEREIN. BMW OF NORTH AMERICA HEREBY
EXCLUDES INCIDENTAL AND CONSEQUEN-
TIAL DAMAGES, INCLUDING LOSS OF TIME,
INCONVENIENCE, OR LOSS OF USE OF THE
VEHICLE, FOR ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY, INCLUD-
ING THE IMPLIED WARRANTY OF MERCHANT-
ABILITY, APPLICABLE TO THIS PRODUCT.
For assistance in determining which parts are
covered by this warranty, please contact your
authorized BMW center or the BMW NA Cus-
tomer Relations Department at 1 800 831-1117.
You may obtain further information concerning
the emissions warranty or report violations of
warranty terms, by contacting Air Resources
Board (ARB), Mobile Source Operations Division,
9528 Telstar Avenue, El Monte, CA 91731.
Please include the title of the BMW service
department head and telephone number.
40
