maintenance schedule BMW 7 SERIES LONG 2007 E66 Service and warranty information

Table of Contents
Page
The BMW Maintenance Program - 2007 750i, 750Li, 760Li................... 1
Coverage ......................................................1
Maintenance Intervals..............................................1
Exclusions from coverage...........................................1
Maintenance Upgrade Option.........................................1
Maintenance Program.............................................. 2
The BMW Maintenance Program...................................... 2
Condition Based Service (CBS).......................................2
Service Interval Display............................................ 2
Info Display screen contents.........................................2
Control Display screen contents.......................................3
Red Sectors....................................................3
Yellow Sectors...................................................3
Green lamps....................................................3
Quality Certification I...............................................4
Special Note....................................................4
Maintenance summary............................................. 4
Standard operations...............................................5
Engine oil......................................................5
Microfilter......................................................5
Frontbrake .....................................................5
Rearbrake......................................................5
Vehicle Check...................................................5
Brake fluid......................................................6
Spark plugs.....................................................6
Automatic Transmission............................................6
Evidence of maintenance work....................................... 7
Emission Control Maintenance Schedule............................... 15
BatteryCare .................................................... 15
Corrosion Protection............................................. 15
Restoring corrosion protection.......................................15
Underbody maintenance...........................................16
Body Inspection................................................. 17
Customer Assistance Information.................................... 23
Customer Assistance - Notification ................................... 23
BBB Auto Line..................................................24
California Residents..............................................24
Special Programs................................................ 26
BMW Import Processing Centers..................................... 26

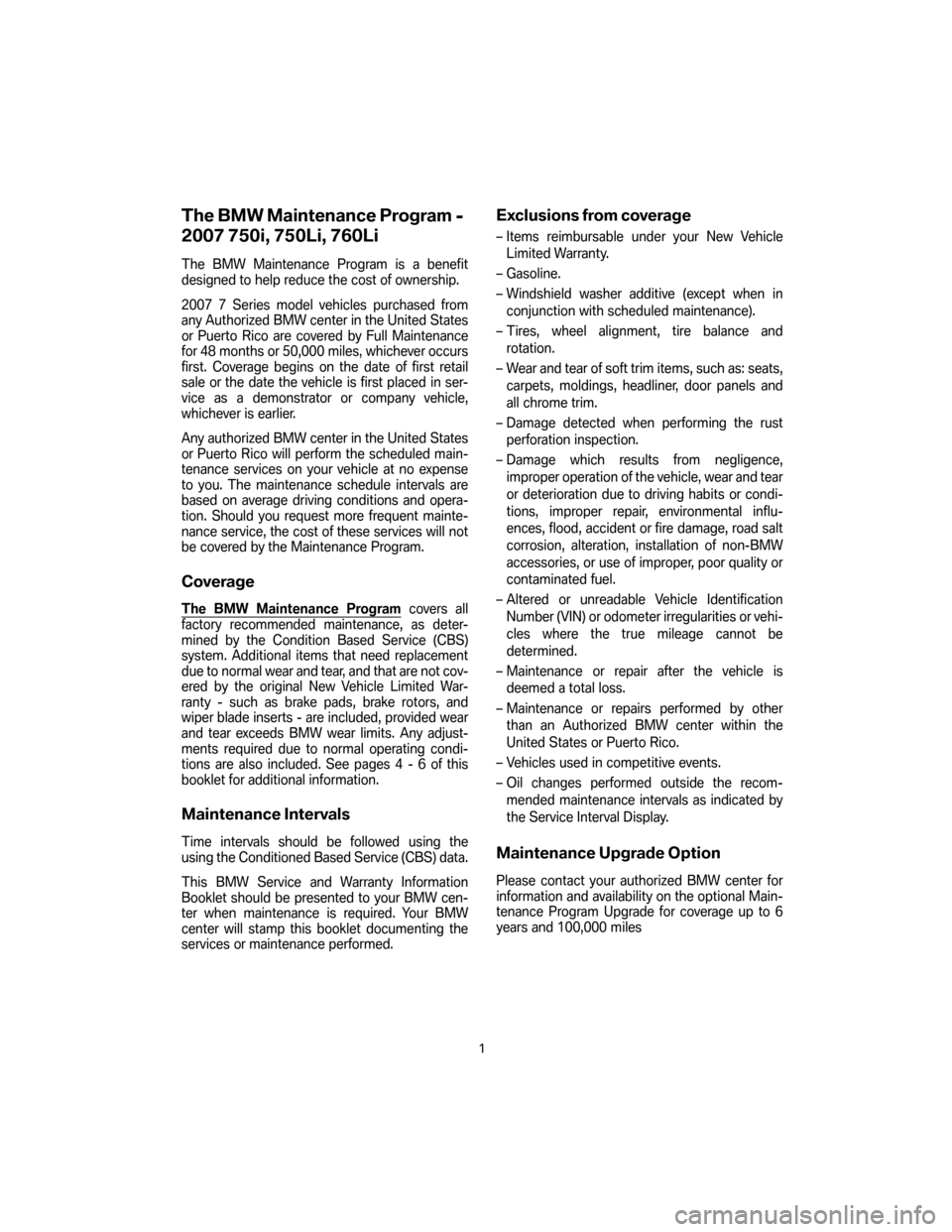

The BMW Maintenance Program -
2007 750i, 750Li, 760Li
The BMW Maintenance Program is a benefit
designed to help reduce the cost of ownership.
2007 7 Series model vehicles purchased from
any Authorized BMW center in the United States
or Puerto Rico are covered by Full Maintenance
for 48 months or 50,000 miles, whichever occurs
first. Coverage begins on the date of first retail
sale or the date the vehicle is first placed in ser-
vice as a demonstrator or company vehicle,
whichever is earlier.
Any authorized BMW center in the United States
or Puerto Rico will perform the scheduled main-
tenance services on your vehicle at no expense
to you. The maintenance schedule intervals are
based on average driving conditions and opera-
tion. Should you request more frequent mainte-
nance service, the cost of these services will not
be covered by the Maintenance Program.
Coverage
The BMW Maintenance Programcovers allfactory recommended maintenance, as deter-
mined by the Condition Based Service (CBS)
system. Additional items that need replacement
due to normal wear and tear, and that are not cov-
ered by the original New Vehicle Limited War-
ranty - such as brake pads, brake rotors, and
wiper blade inserts - are included, provided wear
and tear exceeds BMW wear limits. Any adjust-
ments required due to normal operating condi-
tions are also included. See pages4-6ofthis
booklet for additional information.
Maintenance Intervals
Time intervals should be followed using the
using the Conditioned Based Service (CBS) data.
This BMW Service and Warranty Information
Booklet should be presented to your BMW cen-
ter when maintenance is required. Your BMW
center will stamp this booklet documenting the
services or maintenance performed.
Exclusions from coverage
– Items reimbursable under your New Vehicle
Limited Warranty.
– Gasoline.
– Windshield washer additive (except when in
conjunction with scheduled maintenance).
– Tires, wheel alignment, tire balance and
rotation.
– Wear and tear of soft trim items, such as: seats,
carpets, moldings, headliner, door panels and
all chrome trim.
– Damage detected when performing the rust
perforation inspection.
– Damage which results from negligence,
improper operation of the vehicle, wear and tear
or deterioration due to driving habits or condi-
tions, improper repair, environmental influ-
ences, flood, accident or fire damage, road salt
corrosion, alteration, installation of non-BMW
accessories, or use of improper, poor quality or
contaminated fuel.
– Altered or unreadable Vehicle Identification
Number (VIN) or odometer irregularities or vehi-
cles where the true mileage cannot be
determined.
– Maintenance or repair after the vehicle is
deemed a total loss.
– Maintenance or repairs performed by other
than an Authorized BMW center within the
United States or Puerto Rico.
– Vehicles used in competitive events.
– Oil changes performed outside the recom-
mended maintenance intervals as indicated by
the Service Interval Display.
Maintenance Upgrade Option
Please contact your authorized BMW center for
information and availability on the optional Main-
tenance Program Upgrade for coverage up to 6
years and 100,000 miles
1

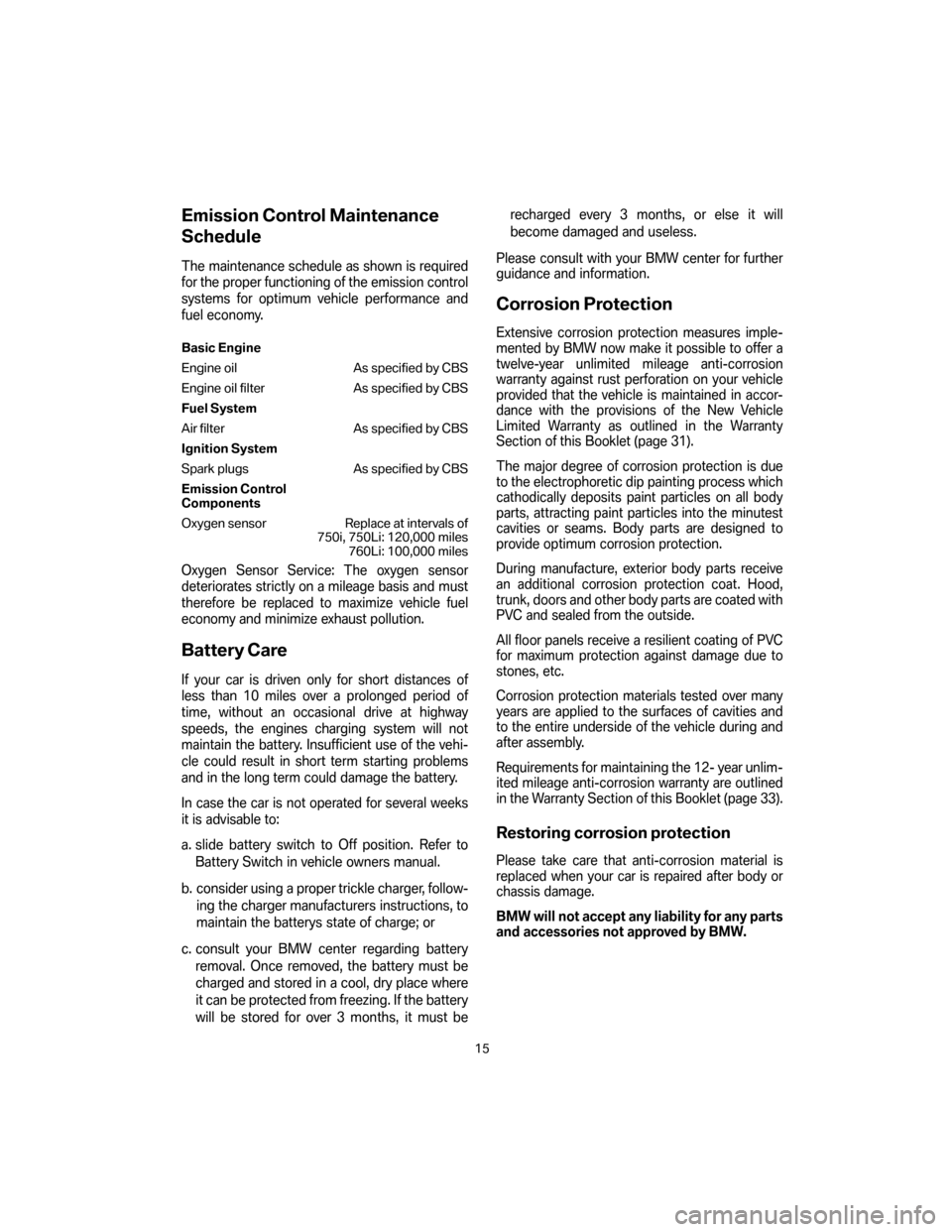

Emission Control Maintenance
Schedule
The maintenance schedule as shown is required
for the proper functioning of the emission control
systems for optimum vehicle performance and
fuel economy.
Basic Engine
Engine oil As specified by CBS
Engine oil filter As specified by CBS
Fuel System
Air filter As specified by CBS
Ignition System
Spark plugs As specified by CBS
Emission Control
Components
Oxygen sensor Replace at intervals of
750i, 750Li: 120,000 miles
760Li: 100,000 miles
Oxygen Sensor Service: The oxygen sensor
deteriorates strictly on a mileage basis and must
therefore be replaced to maximize vehicle fuel
economy and minimize exhaust pollution.
Battery Care
If your car is driven only for short distances of
less than 10 miles over a prolonged period of
time, without an occasional drive at highway
speeds, the engines charging system will not
maintain the battery. Insufficient use of the vehi-
cle could result in short term starting problems
and in the long term could damage the battery.
In case the car is not operated for several weeks
it is advisable to:
a. slide battery switch to Off position. Refer to
Battery Switch in vehicle owners manual.
b. consider using a proper trickle charger, follow-
ing the charger manufacturers instructions, to
maintain the batterys state of charge; or
c. consult your BMW center regarding battery
removal. Once removed, the battery must be
charged and stored in a cool, dry place where
it can be protected from freezing. If the battery
will be stored for over 3 months, it must berecharged every 3 months, or else it will
become damaged and useless.
Please consult with your BMW center for further
guidance and information.
Corrosion Protection
Extensive corrosion protection measures imple-
mented by BMW now make it possible to offer a
twelve-year unlimited mileage anti-corrosion
warranty against rust perforation on your vehicle
provided that the vehicle is maintained in accor-
dance with the provisions of the New Vehicle
Limited Warranty as outlined in the Warranty
Section of this Booklet (page 31).
The major degree of corrosion protection is due
to the electrophoretic dip painting process which
cathodically deposits paint particles on all body
parts, attracting paint particles into the minutest
cavities or seams. Body parts are designed to
provide optimum corrosion protection.
During manufacture, exterior body parts receive
an additional corrosion protection coat. Hood,
trunk, doors and other body parts are coated with
PVC and sealed from the outside.
All floor panels receive a resilient coating of PVC
for maximum protection against damage due to
stones, etc.
Corrosion protection materials tested over many
years are applied to the surfaces of cavities and
to the entire underside of the vehicle during and
after assembly.
Requirements for maintaining the 12- year unlim-
ited mileage anti-corrosion warranty are outlined
in the Warranty Section of this Booklet (page 33).
Restoring corrosion protection
Please take care that anti-corrosion material is
replaced when your car is repaired after body or
chassis damage.
BMW will not accept any liability for any parts
and accessories not approved by BMW.
15

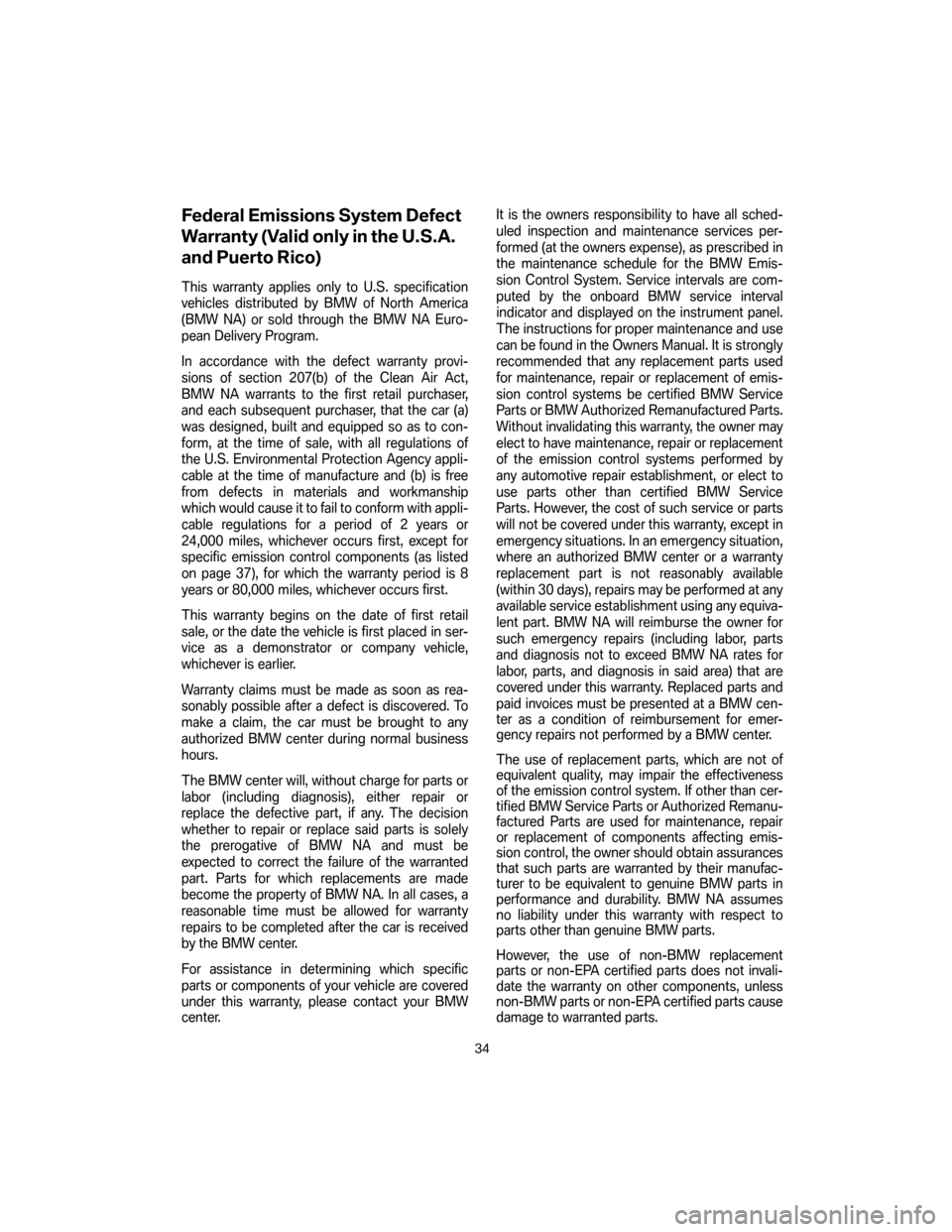

Federal Emissions System Defect
Warranty (Valid only in the U.S.A.
and Puerto Rico)
This warranty applies only to U.S. specification
vehicles distributed by BMW of North America
(BMW NA) or sold through the BMW NA Euro-
pean Delivery Program.
In accordance with the defect warranty provi-
sions of section 207(b) of the Clean Air Act,
BMW NA warrants to the first retail purchaser,
and each subsequent purchaser, that the car (a)
was designed, built and equipped so as to con-
form, at the time of sale, with all regulations of
the U.S. Environmental Protection Agency appli-
cable at the time of manufacture and (b) is free
from defects in materials and workmanship
which would cause it to fail to conform with appli-
cable regulations for a period of 2 years or
24,000 miles, whichever occurs first, except for
specific emission control components (as listed
on page 37), for which the warranty period is 8
years or 80,000 miles, whichever occurs first.
This warranty begins on the date of first retail
sale, or the date the vehicle is first placed in ser-
vice as a demonstrator or company vehicle,
whichever is earlier.
Warranty claims must be made as soon as rea-
sonably possible after a defect is discovered. To
make a claim, the car must be brought to any
authorized BMW center during normal business
hours.
The BMW center will, without charge for parts or
labor (including diagnosis), either repair or
replace the defective part, if any. The decision
whether to repair or replace said parts is solely
the prerogative of BMW NA and must be
expected to correct the failure of the warranted
part. Parts for which replacements are made
become the property of BMW NA. In all cases, a
reasonable time must be allowed for warranty
repairs to be completed after the car is received
by the BMW center.
For assistance in determining which specific
parts or components of your vehicle are covered
under this warranty, please contact your BMW
center.It is the owners responsibility to have all sched-
uled inspection and maintenance services per-
formed (at the owners expense), as prescribed in
the maintenance schedule for the BMW Emis-
sion Control System. Service intervals are com-
puted by the onboard BMW service interval
indicator and displayed on the instrument panel.
The instructions for proper maintenance and use
can be found in the Owners Manual. It is strongly
recommended that any replacement parts used
for maintenance, repair or replacement of emis-
sion control systems be certified BMW Service
Parts or BMW Authorized Remanufactured Parts.
Without invalidating this warranty, the owner may
elect to have maintenance, repair or replacement
of the emission control systems performed by
any automotive repair establishment, or elect to
use parts other than certified BMW Service
Parts. However, the cost of such service or parts
will not be covered under this warranty, except in
emergency situations. In an emergency situation,
where an authorized BMW center or a warranty
replacement part is not reasonably available
(within 30 days), repairs may be performed at any
available service establishment using any equiva-
lent part. BMW NA will reimburse the owner for
such emergency repairs (including labor, parts
and diagnosis not to exceed BMW NA rates for
labor, parts, and diagnosis in said area) that are
covered under this warranty. Replaced parts and
paid invoices must be presented at a BMW cen-
ter as a condition of reimbursement for emer-
gency repairs not performed by a BMW center.
The use of replacement parts, which are not of
equivalent quality, may impair the effectiveness
of the emission control system. If other than cer-
tified BMW Service Parts or Authorized Remanu-
factured Parts are used for maintenance, repair
or replacement of components affecting emis-
sion control, the owner should obtain assurances
that such parts are warranted by their manufac-
turer to be equivalent to genuine BMW parts in
performance and durability. BMW NA assumes
no liability under this warranty with respect to
parts other than genuine BMW parts.
However, the use of non-BMW replacement
parts or non-EPA certified parts does not invali-
date the warranty on other components, unless
non-BMW parts or non-EPA certified parts cause
damage to warranted parts.
34

California Emission Control
Warranty Statement* Your
Warranty Rights and Obligations
The California Air Resources Board and BMW of
North America (BMW NA) are pleased to explain
the emission control system warranty on your
2007 vehicle. In California, new motor vehicles
must be designed, built and equipped to meet
the States stringent anti-smog standards. BMW
NA must warrant the emission control system on
your vehicle for the periods of time listed below
provided there has been no abuse, neglect or
improper maintenance of your vehicle.
Your emission control system may include parts
such as the fuel injection system, the ignition
system, catalytic converter, and engine com-
puter. Also included may be hoses, belts, con-
nectors and other emission-related assemblies.
Where a warrantable condition exists, BMW NA
will repair your vehicle at no cost to you including
diagnosis, parts and labor.
Manufacturers Warranty Coverage:
– For 3 years or 50,000 miles whichever occurs
first:
1. If your vehicle fails a Smog Check inspection,
all necessary repairs and adjustments will be
made by BMW NA to ensure that your vehicle
passes the inspection. This is your emission
control system PERFORMANCE
WARRANTY.
2. If any emission-related part on your vehicle is
defective, the part will be repaired or replaced
by BMW NA. This is your short-term emis-
sion control system DEFECTS WARRANTY.
– For 7 years or 70,000 miles whichever occurs
first:
If an emission-related part specially noted on
page 41 as having coverage for 7 years or
70,000 miles is defective, the part will be
repaired or replaced by BMW NA. This is your
long-term emission control system DEFECTS
WARRANTY.
Owners Warranty Responsibilities:
– As the vehicle owner, you are responsible for
the performance of the required maintenance
listed in your Owners Manual. BMW NA recom-
mends that you retain all receipts covering
maintenance on your vehicle, but BMW NA
cannot deny warranty solely for the lack of
receipts or for your failure to ensure the perfor-
mance of all scheduled maintenance.
– You are responsible for presenting your vehicle
to an authorized BMW center as soon as a
problem exists. The warranty repairs should be
completed in a reasonable amount of time, not
to exceed 30 days.
– As the vehicle owner, you should also be aware
that BMW NA may deny your warranty cover-
age if your vehicle or part has failed due to
abuse, neglect, improper maintenance or unap-
proved modifications.
If you have any questions regarding your war-
ranty rights and responsibilities, you should
contact:
BMW of North America, LLC
Customer Relations and Services Department
PO. Box 1227
Westwood, N.J. 07675-1227
Telephone: 1 800 831-1117
Website: www.bmwusa.com
or the
California Air Resources Board
9528 Telstar Avenue
El Monte, CA 91731
*-The California Emissions Control System Lim-
ited Warranty applies to all 2007 U.S. specifica-
tion BMW vehicles sold, leased, and/or registered
in California, Maine, Massachusetts or Vermont.
38

California Emission Control
System Limited Warranty*
This warranty applies to California certified vehi-
cles distributed by BMW of North America (BMW
NA) or sold through the BMW NA European
Delivery Program, registered and operated pri-
marily in California.
BMW NA warrants to the original purchaser and
each subsequent owner that the vehicle is:
a. designed, built and equipped so as to con-
form with the applicable California Air
Resources Board emission standards.
b. free from defects in materials and workman-
ship which cause any part that can affect
emissions to fail to conform with applicable
requirements or to fail a California Smog
Check test or EPA approved short test for a
period of 3 years or 50,000 miles, whichever
occurs first.
c. free from defects in materials and workman-
ship in emission related parts, which are con-
tained in the California Emission Warranty
Parts List on page 41, for a period of 7 years
or 70,000 miles, whichever occurs first.
This warranty begins on the date of first retail
sale, or the date the vehicle is first placed in ser-
vice as a demonstrator or company vehicle,
whichever is earlier.
To obtain service under this warranty, the vehicle
must be brought, upon failure of a Smog Check
test or upon discovery of the defect, to the work-
shop of any authorized BMW center, during nor-
mal business hours. The BMW center will honor
or deny your claim within 30 days. If the claim is
denied, the BMW center will notify you in writing
of the reason(s). The BMW center is required by
law to honor the claim if notice is not given to the
owner within 30 days.
The BMW center will, without charge for parts or
labor (including diagnosis), either adjust, repair or
replace the defective part and other parts
affected by the failure of the warranted part, if
any. If your vehicle failed the California Smog
Check test or an EPA approved short test, then
BMW NA will repair your vehicle so that it willpass this test. Items that require scheduled
replacement are warranted up to the replace-
ment interval specified in the Service section of
this Statement. BMW NA may repair a part in lieu
of replacing it when performing warranty repairs.
Parts for which replacements are made become
the property of BMW NA. After 3 years or 50,000
miles, and in accordance with paragraph (c)
above, such repairs are limited to the repair or
replacement of those parts identified in the Cali-
fornia Emissions Warranty List.
If your California registered vehicle is between 7
and 8 years old and has been driven less than
80,000 miles, then your vehicle is eligible for
additional warranty coverage under the Federal
Emissions Warranty.
A repair performed as the result of a smog check
test failure due to a defect in a part, which is war-
ranted for 7 years/70,000 miles, is covered.
In all cases, a reasonable time, not to exceed 30
days, must be allowed for a warranty repair to be
completed, after the car is received by the BMW
center.
It is the owners responsibility to have all required
maintenance services performed (at the owners
expense), as prescribed in the maintenance
schedule for the BMW Emission Control System.
Service intervals are computed by the service
interval indicator and displayed on the instrument
panel.
However, BMW NA will not deny your warranty
repair claims solely because you do not have
maintenance records or you did not perform the
required maintenance unless BMW NA demon-
strates that such lack of required maintenance is
a direct cause of the emission control system
failure. The instructions for required maintenance
and use can be found in the Owners Manual and
in the Service section of this Statement.
*The California Emissions Control System Lim-
ited Warranty applies to all 2007 U.S. specifica-
tion BMW vehicles sold, leased, and/or registered
in California, Maine, Massachusetts, or Vermont.
It is strongly recommended that any replacement
parts used for maintenance, repair or replace-
ment of emission control systems be genuine
BMW Service Parts or BMW Authorized
Remanufactured Parts. Without invalidating this
39
