Page 11 of 314
Seite 11Information11
Online Edition for Part no. 0140 2 964 330 - VI/15
Page 12 of 314
Online Edition for Part no. 0140 2 964 330 - VI/15
Page 13 of 314
At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 0140 2 964 330 - VI/15
Page 14 of 314
CockpitVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due tothe selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
All around the steering wheel
1Seating comfort featuresGentleman function 78Seat, mirror, and steering wheel
memory 87Massage function 882Roller sunblind in the rear win‐
dow 723Safety switch for the windows
and roller sunblinds 714Power windows 705Exterior mirror operation 856LightsFront fog lights 132Night Vision 147Seite 14At a glanceCockpit14
Online Edition for Part no. 0140 2 964 330 - VI/15

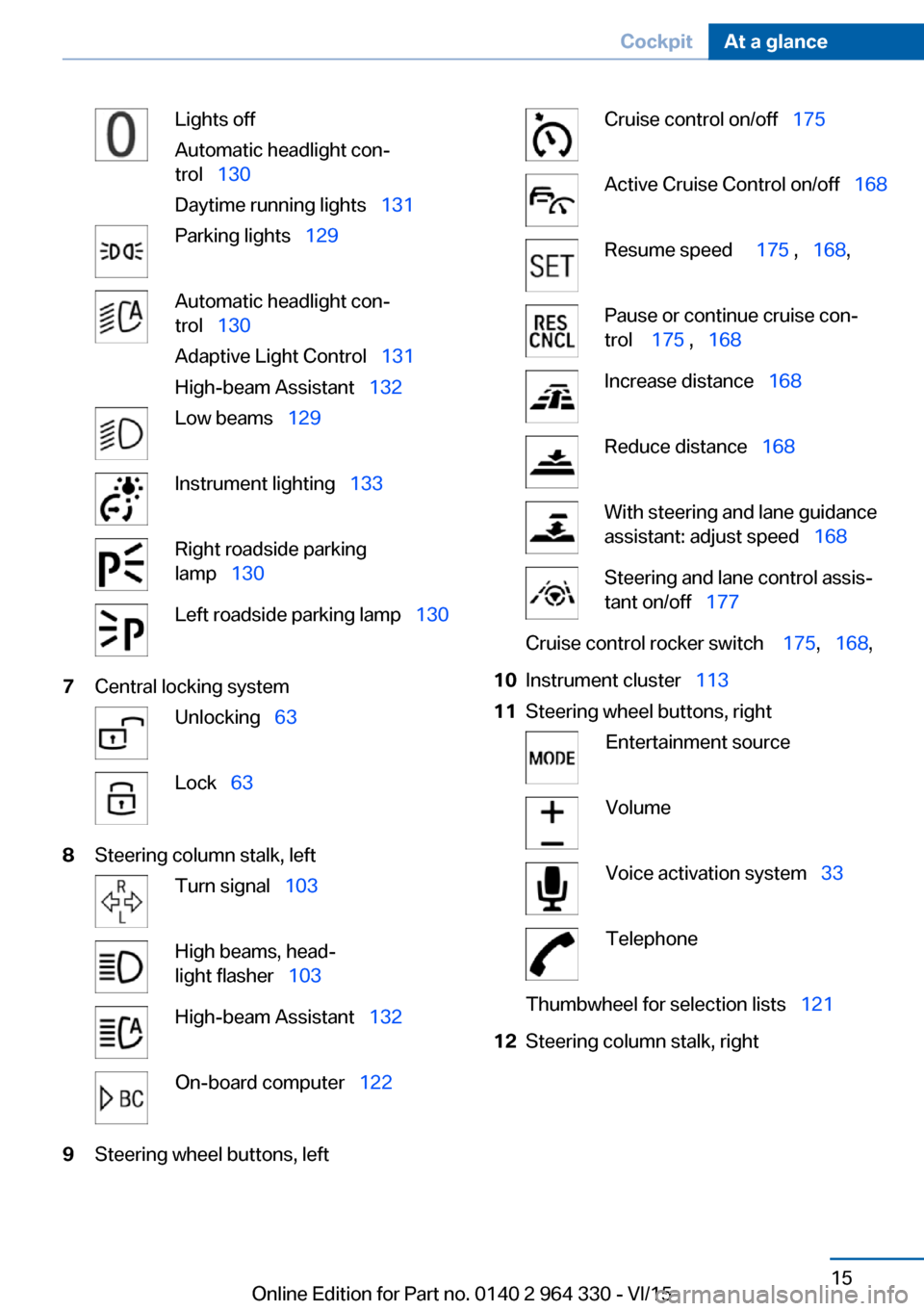

Page 15 of 314
Lights off
Automatic headlight con‐
trol 130
Daytime running lights 131Parking lights 129Automatic headlight con‐
trol 130
Adaptive Light Control 131
High-beam Assistant 132Low beams 129Instrument lighting 133Right roadside parking
lamp 130Left roadside parking lamp 1307Central locking systemUnlocking 63Lock 638Steering column stalk, leftTurn signal 103High beams, head‐
light flasher 103High-beam Assistant 132On-board computer 1229Steering wheel buttons, leftCruise control on/off 175Active Cruise Control on/off 168Resume speed 175 , 168 ,Pause or continue cruise con‐
trol 175 , 168Increase distance 168Reduce distance 168With steering and lane guidance
assistant: adjust speed 168Steering and lane control assis‐
tant on/off 177Cruise control rocker switch 175, 168 ,10Instrument cluster 11311Steering wheel buttons, rightEntertainment sourceVolumeVoice activation system 33TelephoneThumbwheel for selection lists 12112Steering column stalk, rightSeite 15CockpitAt a glance15
Online Edition for Part no. 0140 2 964 330 - VI/15
Page 16 of 314
Wiper 103Rain sensor 104Cleaning the windshield and
headlights 10513Start/stop engine 97Auto Start/Stop function 9814Horn15Steering wheel heating 8716Adjust steering wheel 8717Unlock hood 27218Open/close trunk lid 6419Glove compartment 226
All around the center console
1Control Display 212Fan 2063Hazard warning system 286Intelligent Safety 139NFC antenna 43Seite 16At a glanceCockpit16
Online Edition for Part no. 0140 2 964 330 - VI/15

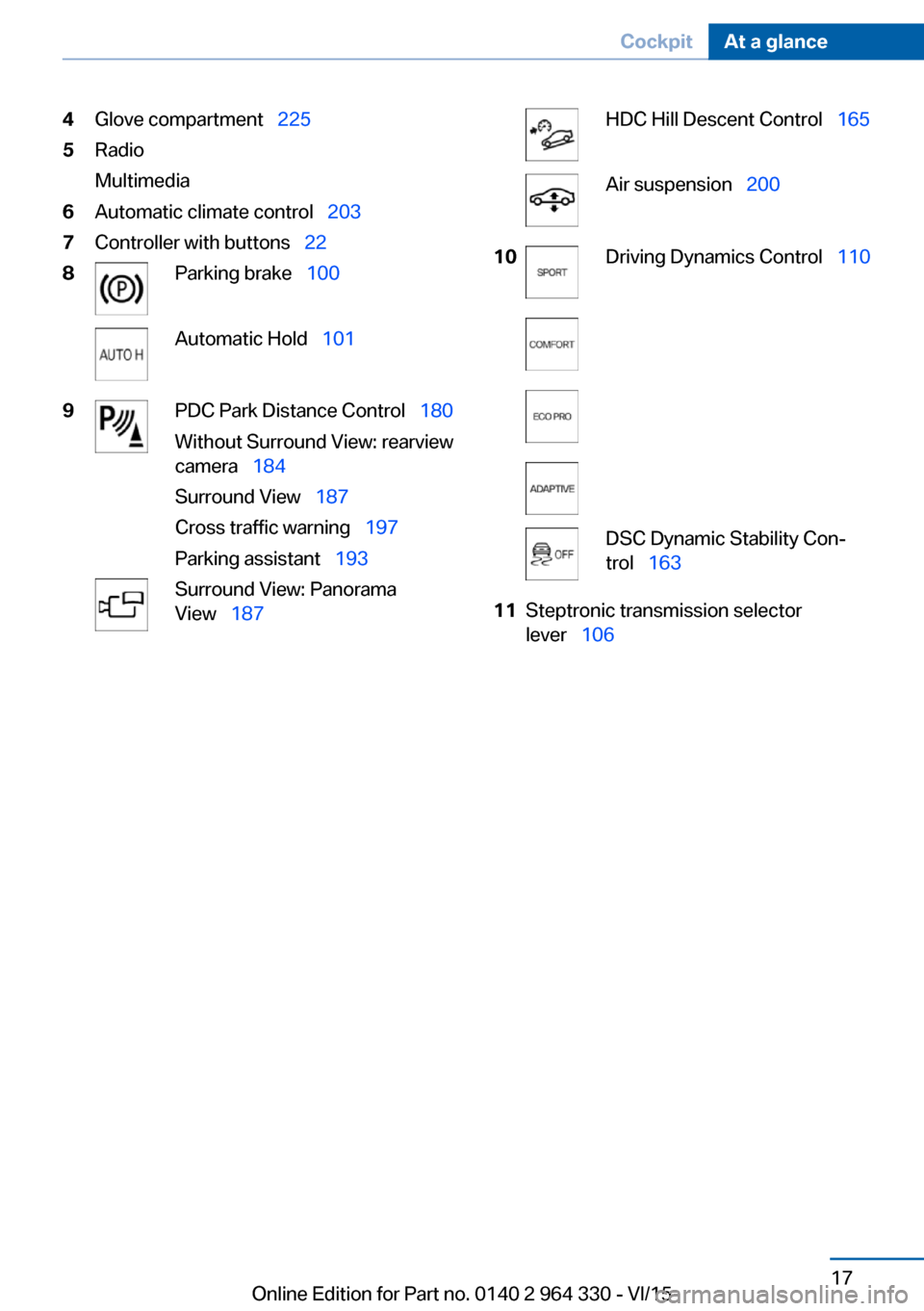

Page 17 of 314
4Glove compartment 2255Radio
Multimedia6Automatic climate control 2037Controller with buttons 228Parking brake 100Automatic Hold 1019PDC Park Distance Control 180
Without Surround View: rearview
camera 184
Surround View 187
Cross traffic warning 197
Parking assistant 193Surround View: Panorama
View 187HDC Hill Descent Control 165Air suspension 20010Driving Dynamics Control 110DSC Dynamic Stability Con‐
trol 16311Steptronic transmission selector
lever 106Seite 17CockpitAt a glance17
Online Edition for Part no. 0140 2 964 330 - VI/15

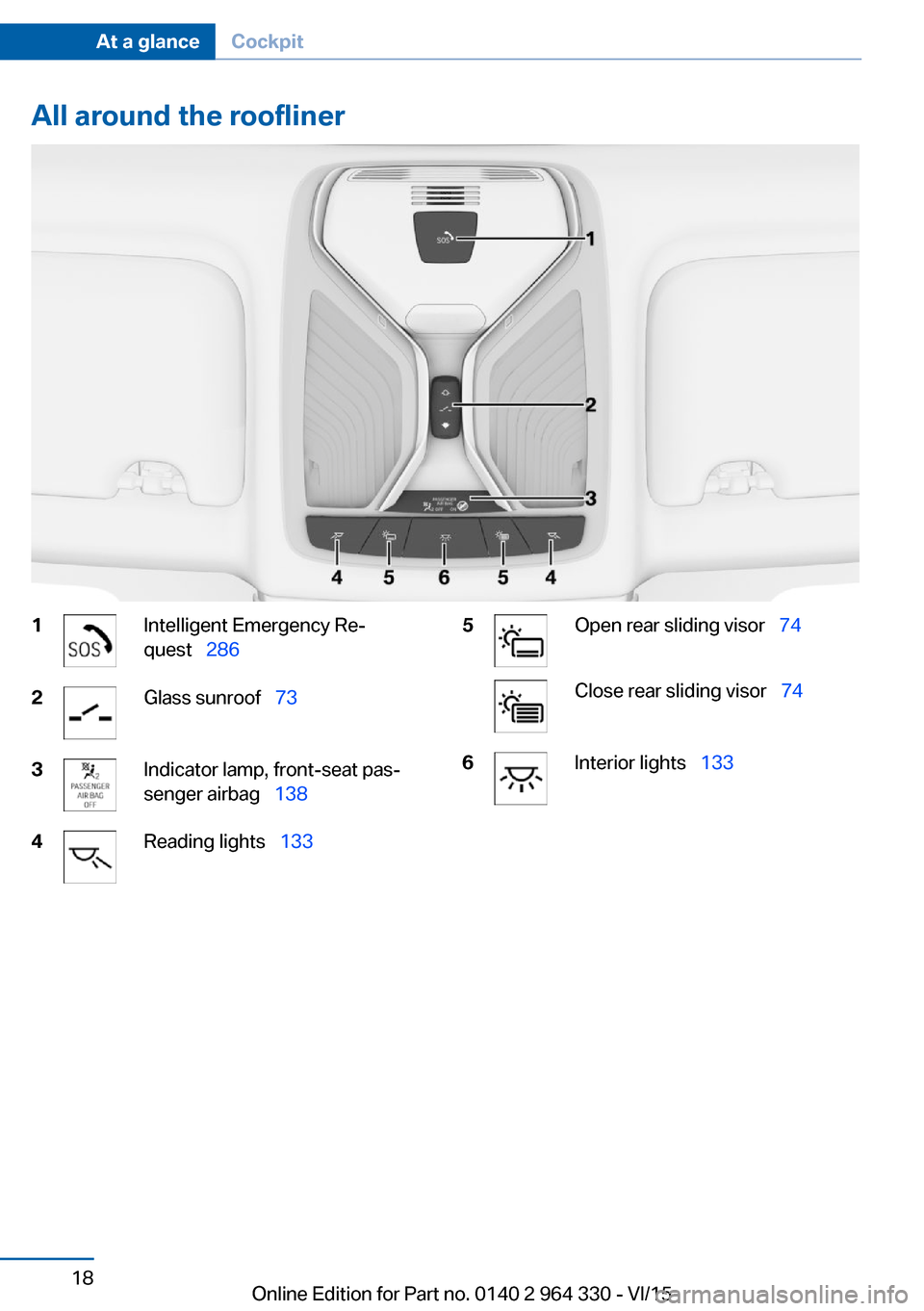

Page 18 of 314
All around the roofliner1Intelligent Emergency Re‐
quest 2862Glass sunroof 733Indicator lamp, front-seat pas‐
senger airbag 1384Reading lights 1335Open rear sliding visor 74Close rear sliding visor 746Interior lights 133Seite 18At a glanceCockpit18
Online Edition for Part no. 0140 2 964 330 - VI/15

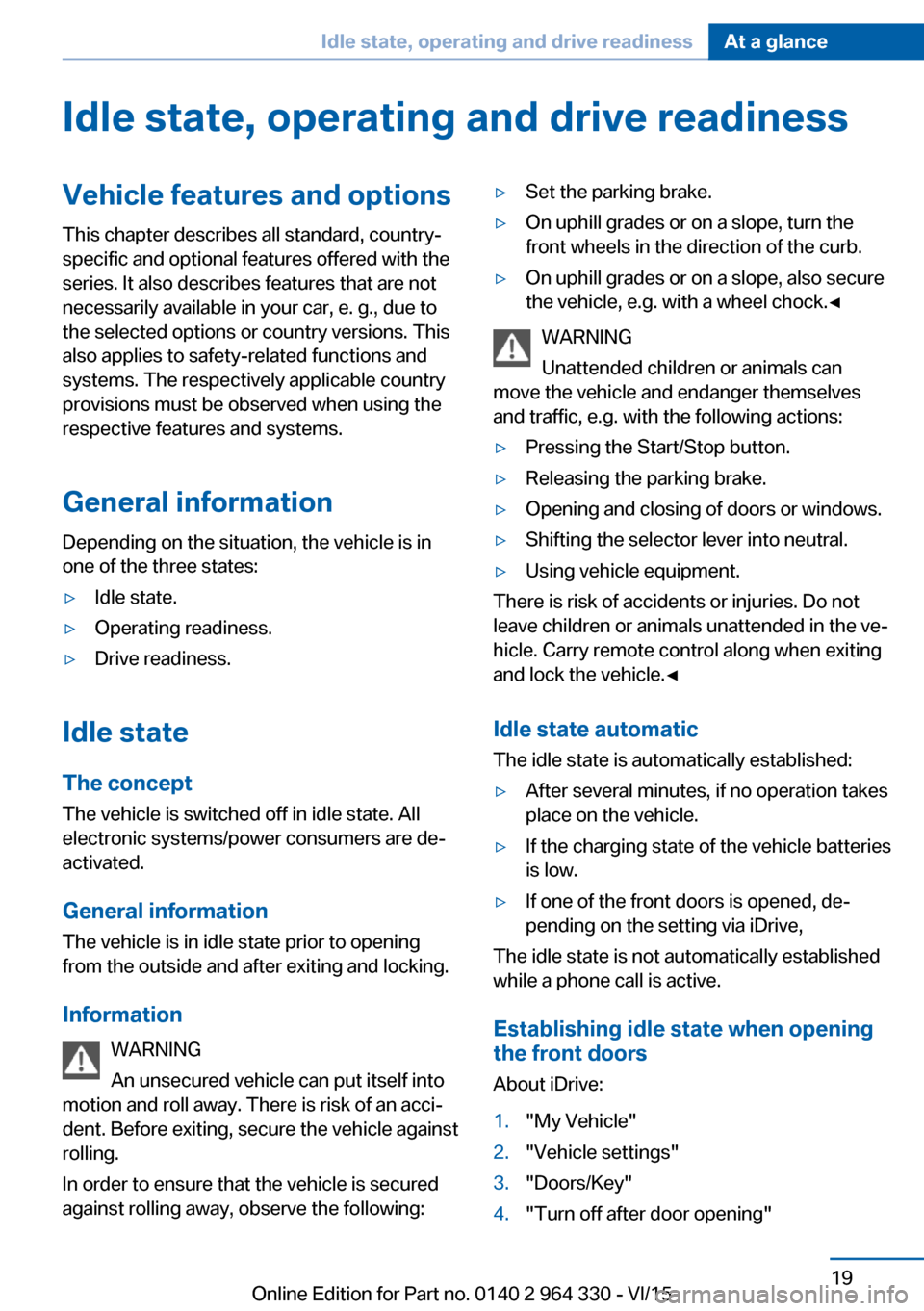

Page 19 of 314
Idle state, operating and drive readinessVehicle features and optionsThis chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
General information Depending on the situation, the vehicle is in
one of the three states:▷Idle state.▷Operating readiness.▷Drive readiness.
Idle state
The concept The vehicle is switched off in idle state. All
electronic systems/power consumers are de‐
activated.
General information
The vehicle is in idle state prior to opening
from the outside and after exiting and locking.
Information WARNING
An unsecured vehicle can put itself into
motion and roll away. There is risk of an acci‐
dent. Before exiting, secure the vehicle against
rolling.
In order to ensure that the vehicle is secured
against rolling away, observe the following:
▷Set the parking brake.▷On uphill grades or on a slope, turn the
front wheels in the direction of the curb.▷On uphill grades or on a slope, also secure
the vehicle, e.g. with a wheel chock.◀
WARNING
Unattended children or animals can
move the vehicle and endanger themselves
and traffic, e.g. with the following actions:
▷Pressing the Start/Stop button.▷Releasing the parking brake.▷Opening and closing of doors or windows.▷Shifting the selector lever into neutral.▷Using vehicle equipment.
There is risk of accidents or injuries. Do not
leave children or animals unattended in the ve‐
hicle. Carry remote control along when exiting
and lock the vehicle.◀
Idle state automatic
The idle state is automatically established:
▷After several minutes, if no operation takes
place on the vehicle.▷If the charging state of the vehicle batteries
is low.▷If one of the front doors is opened, de‐
pending on the setting via iDrive,
The idle state is not automatically established
while a phone call is active.
Establishing idle state when opening
the front doors
About iDrive:
1."My Vehicle"2."Vehicle settings"3."Doors/Key"4."Turn off after door opening"Seite 19Idle state, operating and drive readinessAt a glance19
Online Edition for Part no. 0140 2 964 330 - VI/15

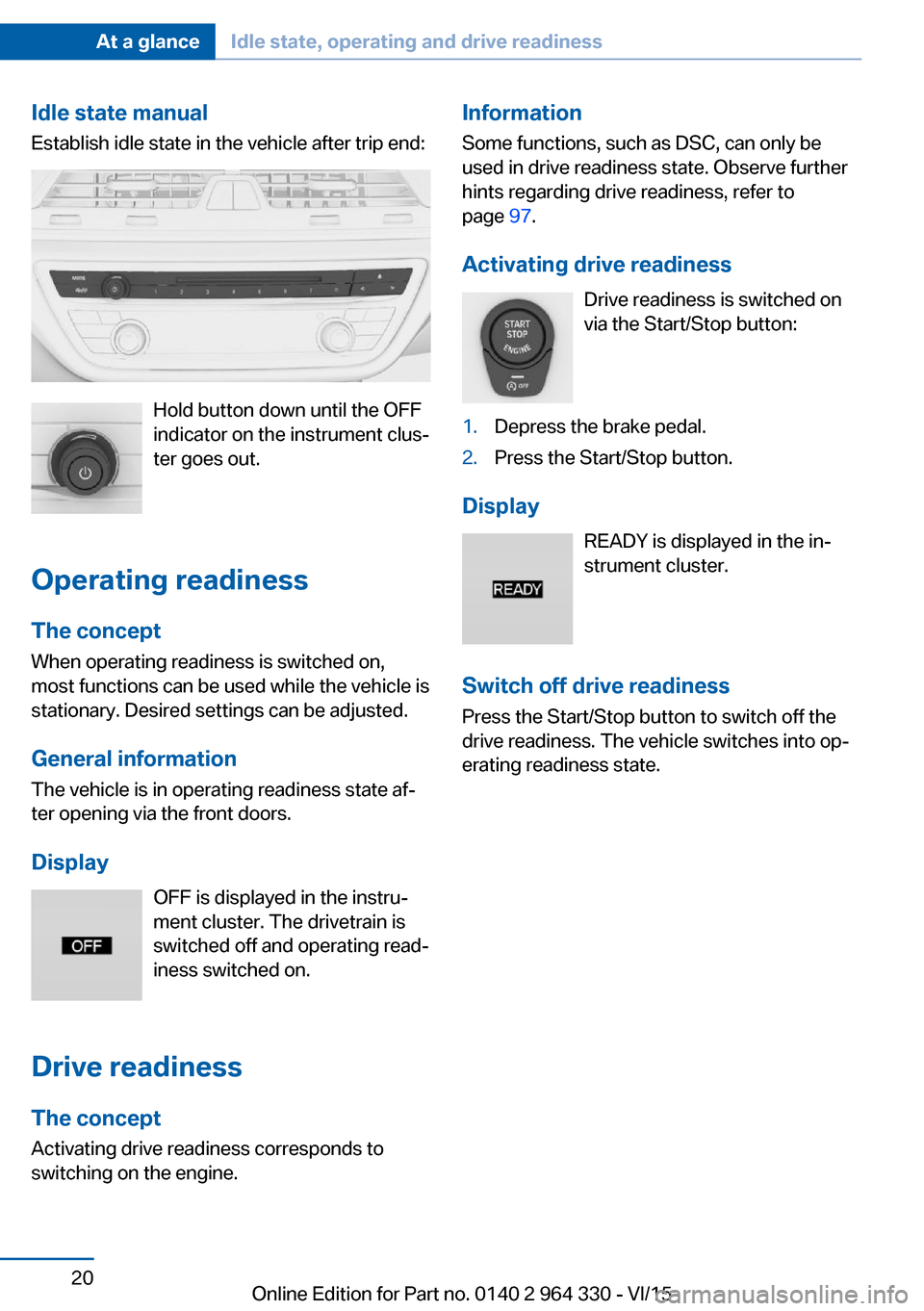

Page 20 of 314
Idle state manual
Establish idle state in the vehicle after trip end:
Hold button down until the OFF
indicator on the instrument clus‐
ter goes out.
Operating readiness
The concept When operating readiness is switched on,
most functions can be used while the vehicle is
stationary. Desired settings can be adjusted.
General information The vehicle is in operating readiness state af‐
ter opening via the front doors.
Display OFF is displayed in the instru‐
ment cluster. The drivetrain is
switched off and operating read‐
iness switched on.
Drive readiness The conceptActivating drive readiness corresponds to
switching on the engine.
Information
Some functions, such as DSC, can only be
used in drive readiness state. Observe further
hints regarding drive readiness, refer to
page 97.
Activating drive readiness Drive readiness is switched on
via the Start/Stop button:1.Depress the brake pedal.2.Press the Start/Stop button.
Display
READY is displayed in the in‐
strument cluster.
Switch off drive readiness Press the Start/Stop button to switch off the
drive readiness. The vehicle switches into op‐
erating readiness state.
Seite 20At a glanceIdle state, operating and drive readiness20
