service BMW 735i 2001 E38 M62TU Engine Workshop Manual

VANOS TRANSMISSION:The primary and secondary timing chain sprockets are inte-
grated with the VANOS transmission. The transmission is a self contained unit.
The controlled adjustment of the
camshaft occurs inside the “transmis-
sion”. Similar in principle to the six
cylinder engine VANOS systems, con-
trolled oil pressure moves the piston
axially.
The helical gear cut of the piston acts
on the helical gears on the inside sur-
face of the transmission and rotates
the camshaft to the specific advanced
or retarded angle position.
Three electrical pin contacts are locat-
ed on the front surface to verify the
default maximum retard position using
an ohmmeter. This is required during
assembly and adjustment. (see service
notes further on).
OIL DISTRIBUTION FLANGES:The oil distribution flanges are bolted to the front surface
of each cylinder head. They provide a mounting location for the VANOS solenoids as well
as the advance-retard oil ports from the solenoids to the intake camshafts.
CAMSHAFTS: Each intake camshaft has
two oil ports separated by three sealing rings
on their forward ends.
The ports direct pressurized oil from the oil
distribution flange to the inner workings of
the VANOS transmission.
Each camshaft has REVERSEthreaded
bores in their centers for the attachment of
the timing chain sprockets on the exhaust
cams and the VANOS transmissions for
each intake camshaft as shown.
CAMSHAFT POSITION IMPULSE WHEELS:The camshaft position impulse wheels pro-
vide camshaft position status to the engine control module via the camshaft position sen-
sors. The asymmetrical placement of the sensor wheel pulse plates provides the engine
control module with cylinder specific position ID in conjunction with crankshaft position.

11
VANOS SERVICE NOTES
VALVE TIMING PROCEDURES
Refer to TIS for complete Valve Timing Procedures.M62 TU valve timing adjustment is sim-
ilar to the previous non VANOS M62 engine with the exceptionof setting the VANOS
transmissions to their max retard positions with an ohmmeter and attaching the camshaft
gears to each camshaft with single reverse threaded bolts.
• After locking the crankshaft at TDC, the camshaft alignment tools (P/N 90 88 6 112 440)
are placed on the square blocks on the rear of the camshafts locking them in place.
• The exhaust camshaft sprockets and VANOS transmission units with timing chains are
placed onto their respective camshafts.
• The exhaust camshaft sprockets and VANOS transmissions are secured to the
camshafts with their respective single, reverse threaded bolt. Finger tighten only at this
point. Install the chain tensioner into the timing chain case and tension the chain.
• Connect an ohmmeter across two of the three pin contacts on the front edge of one of
the VANOS transmissions. Twist the inner hub of transmission to the left (counter clock-
wise). Make sure the ohmmeter indicates closed circuit. This verifies that the trans-
mission in the default max retard position.
• Using an open end wrench on the camshaft to hold it in place, torque the VANOS trans-
mission center bolt to specification.
CAMSHAFT IMPULSE WHEEL POSITION TOOLS
The camshaft impulse wheels require a special tool set
to position them correctly prior to torquing the retaining
nuts.
The impulse wheels are identical for each cylinder
bank. The alignment hole in each wheel must align
with the tool’s alignment pin. Therefore the tools are
different and must be used specifically for their bank.
The tool rests on the upper edge of the cylinder head
and is held in place by the timing case bolts.
Refer to the TIS repair manual section for complete
information.
BANK I TOOL
BANK I TOOL
BANK II TOOL
ALIGNMENT
IMPULSE

12

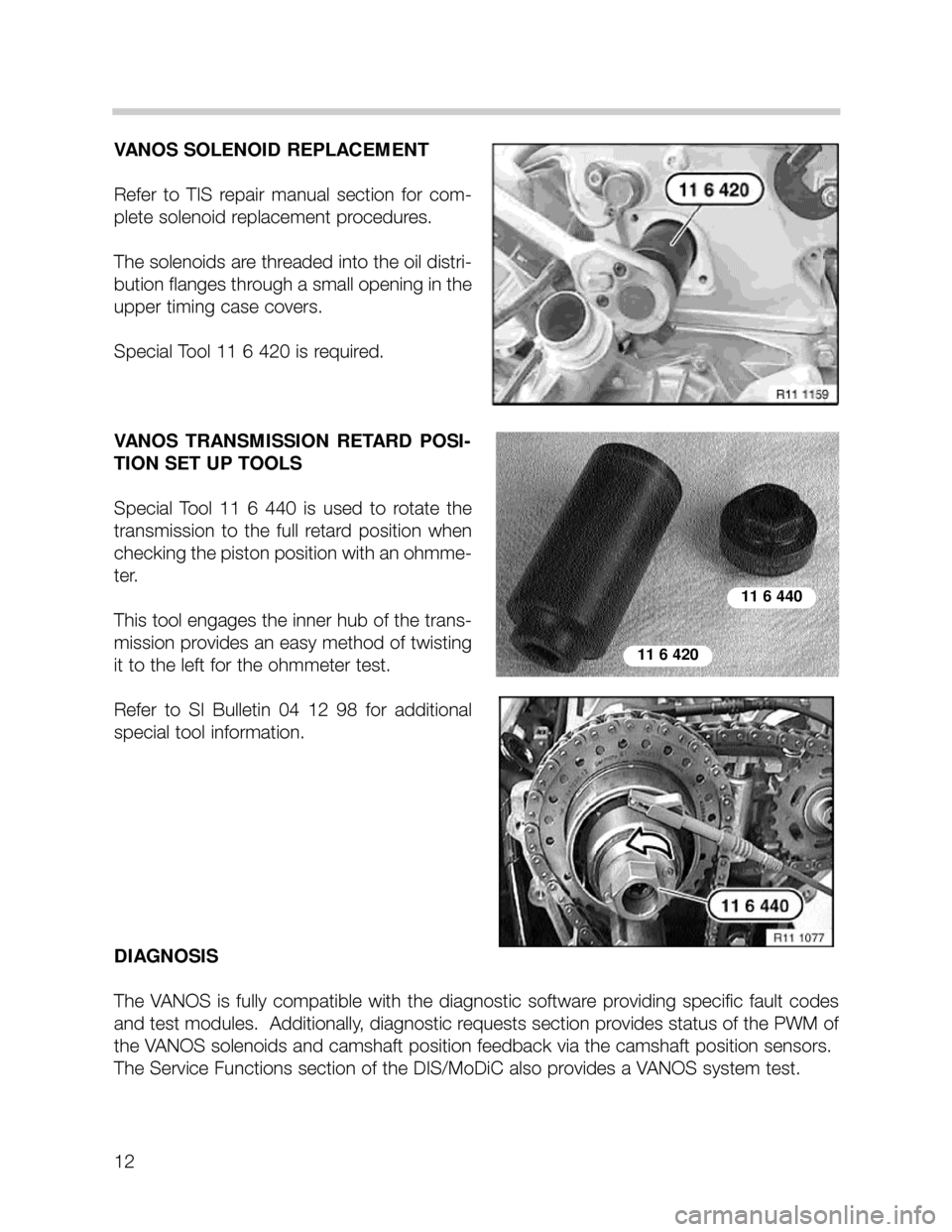

VANOS SOLENOID REPLACEMENT
Refer to TIS repair manual section for com-
plete solenoid replacement procedures.
The solenoids are threaded into the oil distri-
bution flanges through a small opening in the
upper timing case covers.
Special Tool 11 6 420 is required.
VANOS TRANSMISSION RETARD POSI-
TION SET UP TOOLS
Special Tool 11 6 440 is used to rotate the
transmission to the full retard position when
checking the piston position with an ohmme-
ter.
This tool engages the inner hub of the trans-
mission provides an easy method of twisting
it to the left for the ohmmeter test.
Refer to SI Bulletin 04 12 98 for additional
special tool information.
DIAGNOSIS
The VANOS is fully compatible with the diagnostic software providing specific fault codes
and test modules. Additionally, diagnostic requests section provides status of the PWM of
the VANOS solenoids and camshaft position feedback via the camshaft position sensors.
The Service Functions section of the DIS/MoDiC also provides a VANOS system test.
11 6 440
11 6 420

11

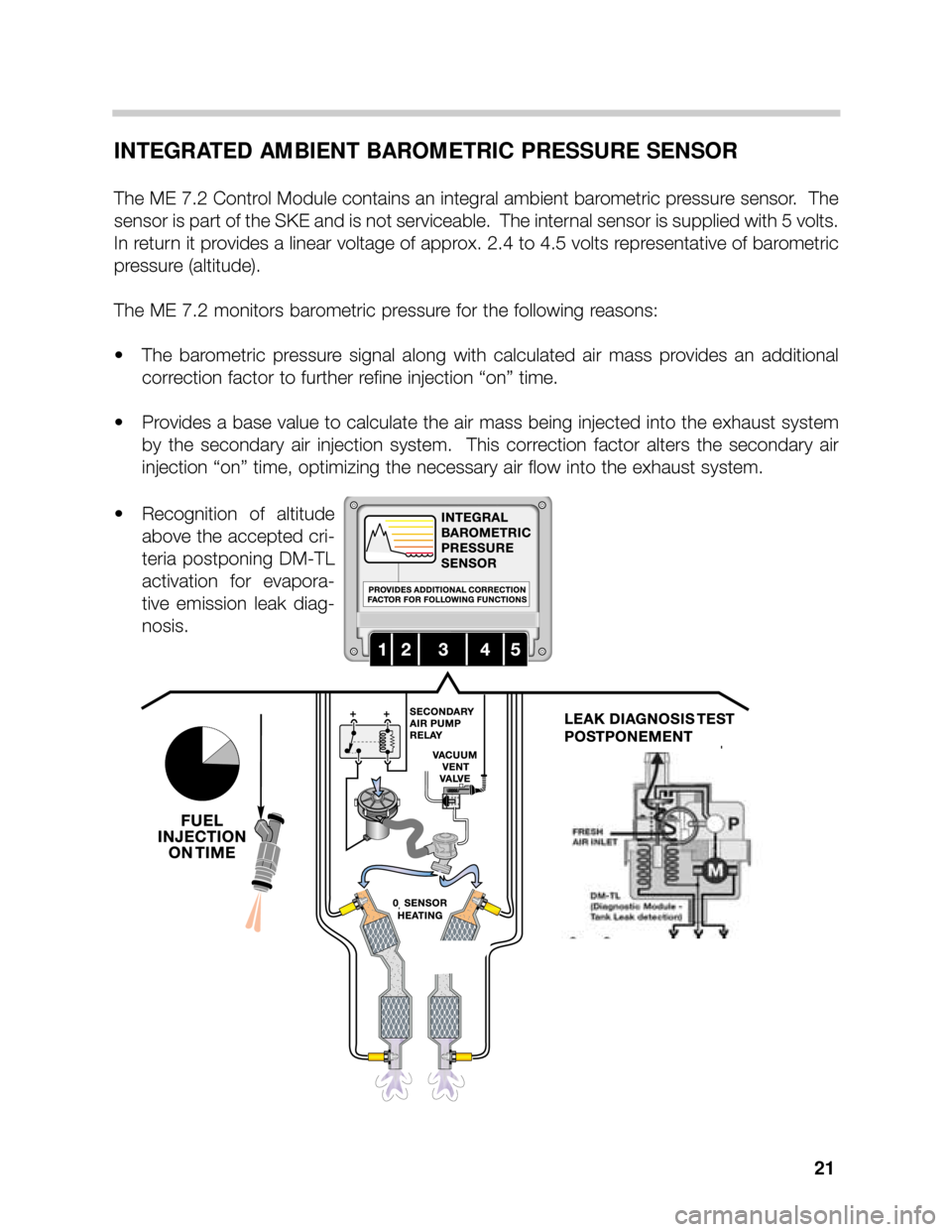

INTEGRATED AMBIENT BAROMETRIC PRESSURE SENSOR
The ME 7.2 Control Module contains an integral ambient barometric pressure sensor. The
sensor is part of the SKE and is not serviceable. The internal sensor is supplied with 5 volts.
In return it provides a linear voltage of approx. 2.4 to 4.5 volts representative of barometric
pressure (altitude).
The ME 7.2 monitors barometric pressure for the following reasons:
• The barometric pressure signal along with calculated air mass provides an additional
correction factor to further refine injection “on” time.
• Provides a base value to calculate the air mass being injected into the exhaust system
by the secondary air injection system. This correction factor alters the secondary air
injection “on” time, optimizing the necessary air flow into the exhaust system.
• Recognition of altitude
above the accepted cri-
teria postponing DM-TL
activation for evapora-
tive emission leak diag-
nosis.
21

27

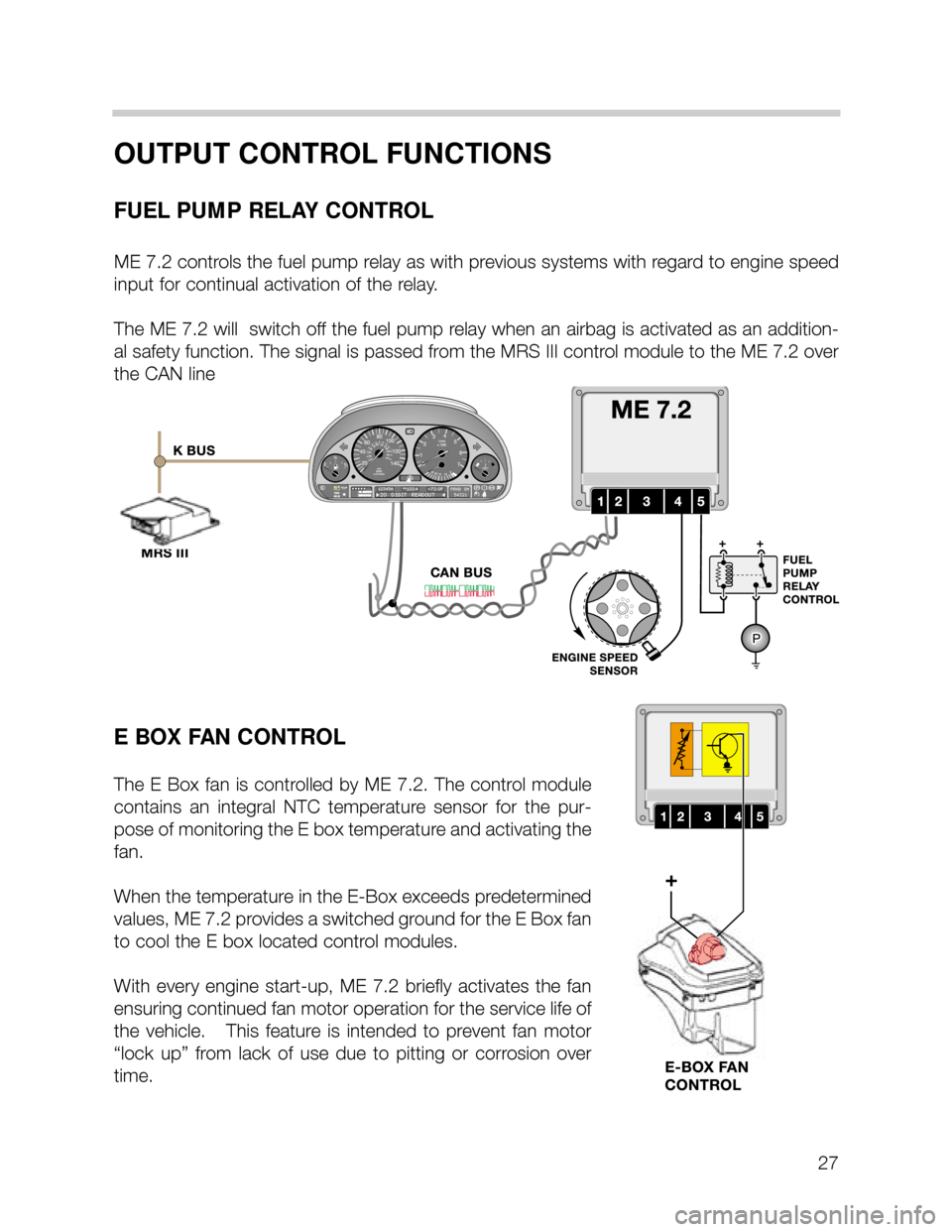

OUTPUT CONTROL FUNCTIONS
FUEL PUMP RELAY CONTROL
ME 7.2 controls the fuel pump relay as with previous systems with regard to engine speed
input for continual activation of the relay.
The ME 7.2 will switch off the fuel pump relay when an airbag is activated as an addition-
al safety function. The signal is passed from the MRS III control module to the ME 7.2 over
the CAN line
E BOX FAN CONTROL
The E Box fan is controlled by ME 7.2. The control module
contains an integral NTC temperature sensor for the pur-
pose of monitoring the E box temperature and activating the
fan.
When the temperature in the E-Box exceeds predetermined
values, ME 7.2 provides a switched ground for the E Box fan
to cool the E box located control modules.
With every engine start-up, ME 7.2 briefly activates the fan
ensuring continued fan motor operation for the service life of
the vehicle. This feature is intended to prevent fan motor
“lock up” from lack of use due to pitting or corrosion over
time.

30
ELECTRIC THROTTLE VALVE (EDK) CONTROL
• The throttle valve assembly of the M62 TU is an
electric throttle valve (EDK) controlled by an inte-
gral EML function of the ME 7.2.
• The throttle plate is positioned by a gear reduction
DC motor drive.
• The motor is controlled by proportionately
switched high/low PWM signals at a basic fre-
quency of 2000 Hz.
• Engine idle speed control is a function of the EDK.
Therefore, the M62 TU does not require a separate
idle control valve.
HARNESS
CONNECTORMOTOR
REDUCTION
GEARS
POTENTIOMETER WIRES
THROTTLE
PLATE
EDK ADAPTATION
PROCEDURE:
When a replacement EDK
is installed the adaptation
values of the previous EDK
must be cleared from the
ME 7.2 control module.
1. From the Service
Function Menu of the
DIS/MoDiC, clear
adaptation values.
2. Switch the ignition OFF
for 10 seconds.
3. Switch the ignition ON
(KL 15). At approxi-
mately 30 seconds the
EDK is briefly activated
allowing the ME 7.2 to
“electrically learn” the
new component.
This procedure is also necessary after replacing an ME 7.2 control module. However, the
adaptation values do not require clearing since they have not yet been established.
