M62 TU VANOS COMPONENTS
M62 TU VANOS components include the following
for each cylinder bank:
•New cylinder heads with oil ports for VANOS
•VANOS transmission with sprockets
•Oil distribution flange
•PWM controlled solenoid valve
•Oil check valve
•Camshaft position impulse
VANOS CONTROL SOLENOID & CHECK VALVE:The VANOS solenoid is a two wire,
pulse width modulated, oil pressure control valve. The valve has four ports;
1. Input Supply Port - Engine Oil Pressure
2. Output Retard Port - To rear of piston/helical gear (retarded camshaft position)
3. Output Advance Port - To front of piston/helical gear (advanced camshaft position)
4. Vent - Released oil pressure
A check valve is positioned forward of the solenoid in the cylinder head oil gallery. The
check valve maintains an oil supply in the VANOS transmission and oil circuits after the
engine is turned off. This prevents the possibility of piston movement (noise) within the
VANOS transmission system on the next engine start.

VANOS TRANSMISSION:The primary and secondary timing chain sprockets are inte-
grated with the VANOS transmission. The transmission is a self contained unit.
The controlled adjustment of the
camshaft occurs inside the “transmis-
sion”. Similar in principle to the six
cylinder engine VANOS systems, con-
trolled oil pressure moves the piston
axially.
The helical gear cut of the piston acts
on the helical gears on the inside sur-
face of the transmission and rotates
the camshaft to the specific advanced
or retarded angle position.
Three electrical pin contacts are locat-
ed on the front surface to verify the
default maximum retard position using
an ohmmeter. This is required during
assembly and adjustment. (see service
notes further on).
OIL DISTRIBUTION FLANGES:The oil distribution flanges are bolted to the front surface
of each cylinder head. They provide a mounting location for the VANOS solenoids as well
as the advance-retard oil ports from the solenoids to the intake camshafts.
CAMSHAFTS: Each intake camshaft has
two oil ports separated by three sealing rings
on their forward ends.
The ports direct pressurized oil from the oil
distribution flange to the inner workings of
the VANOS transmission.
Each camshaft has REVERSEthreaded
bores in their centers for the attachment of
the timing chain sprockets on the exhaust
cams and the VANOS transmissions for
each intake camshaft as shown.
CAMSHAFT POSITION IMPULSE WHEELS:The camshaft position impulse wheels pro-
vide camshaft position status to the engine control module via the camshaft position sen-
sors. The asymmetrical placement of the sensor wheel pulse plates provides the engine
control module with cylinder specific position ID in conjunction with crankshaft position.

11
VANOS SERVICE NOTES
VALVE TIMING PROCEDURES
Refer to TIS for complete Valve Timing Procedures.M62 TU valve timing adjustment is sim-
ilar to the previous non VANOS M62 engine with the exceptionof setting the VANOS
transmissions to their max retard positions with an ohmmeter and attaching the camshaft
gears to each camshaft with single reverse threaded bolts.
• After locking the crankshaft at TDC, the camshaft alignment tools (P/N 90 88 6 112 440)
are placed on the square blocks on the rear of the camshafts locking them in place.
• The exhaust camshaft sprockets and VANOS transmission units with timing chains are
placed onto their respective camshafts.
• The exhaust camshaft sprockets and VANOS transmissions are secured to the
camshafts with their respective single, reverse threaded bolt. Finger tighten only at this
point. Install the chain tensioner into the timing chain case and tension the chain.
• Connect an ohmmeter across two of the three pin contacts on the front edge of one of
the VANOS transmissions. Twist the inner hub of transmission to the left (counter clock-
wise). Make sure the ohmmeter indicates closed circuit. This verifies that the trans-
mission in the default max retard position.
• Using an open end wrench on the camshaft to hold it in place, torque the VANOS trans-
mission center bolt to specification.
CAMSHAFT IMPULSE WHEEL POSITION TOOLS
The camshaft impulse wheels require a special tool set
to position them correctly prior to torquing the retaining
nuts.
The impulse wheels are identical for each cylinder
bank. The alignment hole in each wheel must align
with the tool’s alignment pin. Therefore the tools are
different and must be used specifically for their bank.
The tool rests on the upper edge of the cylinder head
and is held in place by the timing case bolts.
Refer to the TIS repair manual section for complete
information.
BANK I TOOL
BANK I TOOL
BANK II TOOL
ALIGNMENT
IMPULSE

12
VANOS SOLENOID REPLACEMENT
Refer to TIS repair manual section for com-
plete solenoid replacement procedures.
The solenoids are threaded into the oil distri-
bution flanges through a small opening in the
upper timing case covers.
Special Tool 11 6 420 is required.
VANOS TRANSMISSION RETARD POSI-
TION SET UP TOOLS
Special Tool 11 6 440 is used to rotate the
transmission to the full retard position when
checking the piston position with an ohmme-
ter.
This tool engages the inner hub of the trans-
mission provides an easy method of twisting
it to the left for the ohmmeter test.
Refer to SI Bulletin 04 12 98 for additional
special tool information.
DIAGNOSIS
The VANOS is fully compatible with the diagnostic software providing specific fault codes
and test modules. Additionally, diagnostic requests section provides status of the PWM of
the VANOS solenoids and camshaft position feedback via the camshaft position sensors.
The Service Functions section of the DIS/MoDiC also provides a VANOS system test.
11 6 440
11 6 420

13

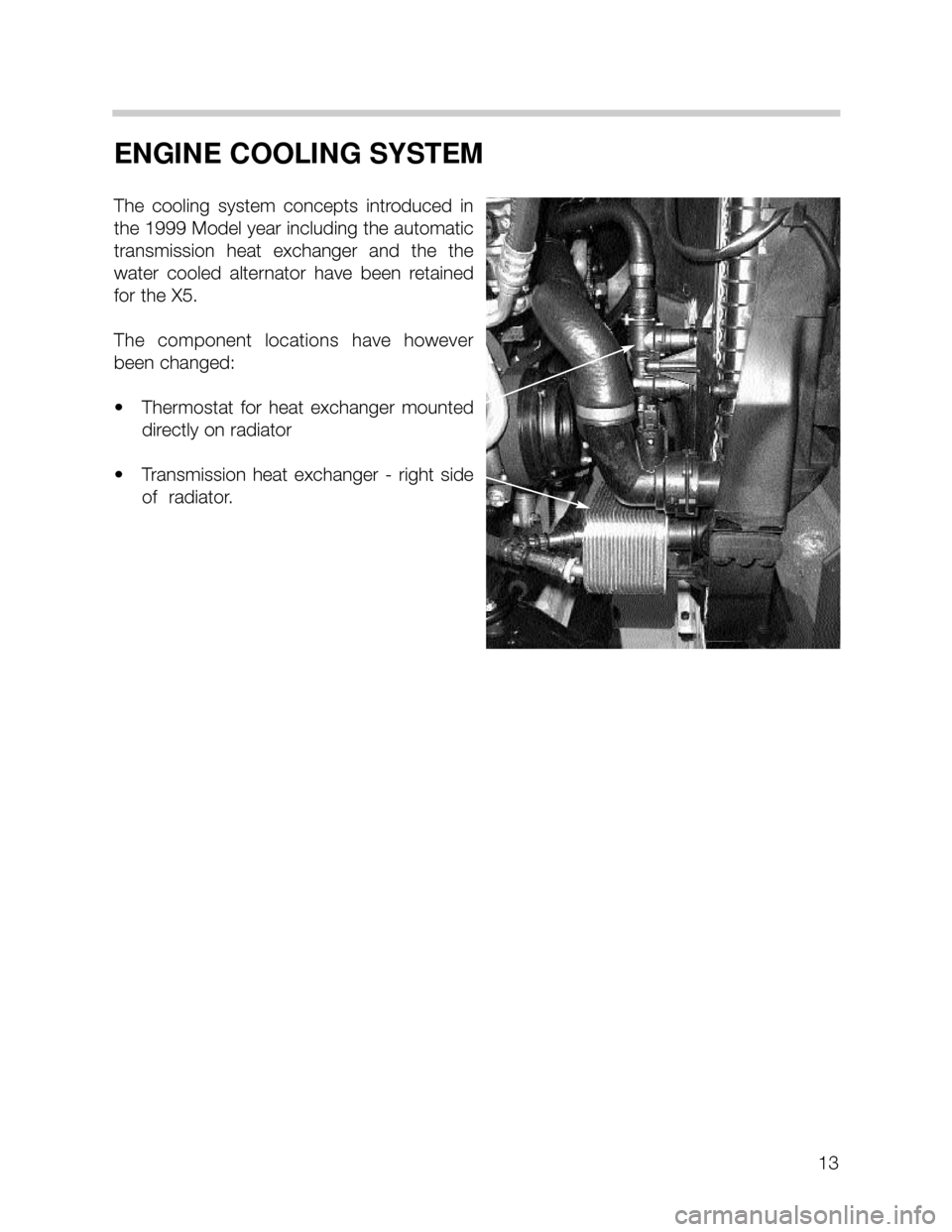

ENGINE COOLING SYSTEM
The cooling system concepts introduced in
the 1999 Model year including the automatic
transmission heat exchanger and the the
water cooled alternator have been retained
for the X5.
The component locations have however
been changed:
• Thermostat for heat exchanger mounted
directly on radiator
• Transmission heat exchanger - right side
of radiator.

23
ACCELERATOR PEDAL SENSOR (PWG)
The driver's application of the accelerator pedal is monitored by a PWG sensor in the dri-
ver's footwell as with previous non-bowden cable EML systems.
The PWG provides two separate variable voltage signals to the ME 7.2 control module for
determining the request for operating the Electric Throttle Valve (EDK) as well as providing
a kickdown request with automatic transmission vehicles.
The ME 7.2 monitors the changing signal
ranges of both circuits as the pedal is pressed
from LL to VL.
• In vehicles equipped with an automatic transmission (A5S 440Z), the ME 7.2 recognizes
the max pedal value (4.5V) as a kickdown request and signals the AGS via CAN bus.
PWG SIGNAL MONITORING & PWG FAILSAFE OPERATION:
• If the monitored PWG potentiometer signals are not plausible, ME 7.2 will only use the
lower of the two signals as the driver’s pedal request input providing failsafe operation.
Throttle response will be slower and maximum throttle position will be reduced.
• When in PWG failsafe operation, ME 7.2 sets the EDK throttle plate and injection time
to idle (LL) whenever the brake pedal is depressed.
• When the system is in PWG failsafe operation, the instrument cluster matrix display will
post “Engine Emergency Program” and PWG specific fault(s) will be stored in memory.
