BMW 740LI SEDAN 2015 Owners Manual

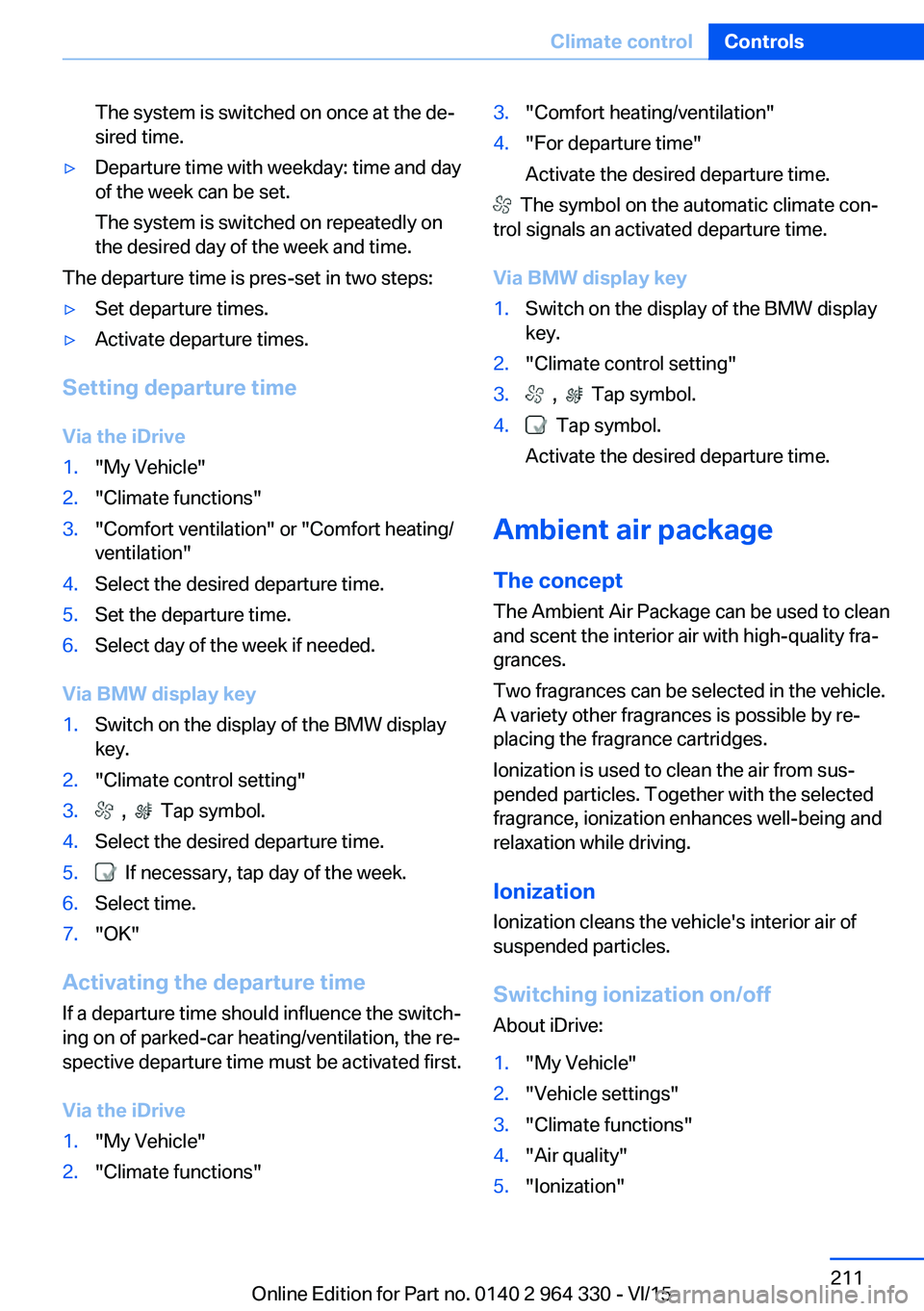

The system is switched on once at the de‐
sired time.▷Departure time with weekday: time and day
of the week can be set.
The system is switched on repeatedly on
the desired day of the week and time.
The departure time is pres-set in two steps:
▷Set departure times.▷Activate departure times.
Setting departure time
Via the iDrive
1."My Vehicle"2."Climate functions"3."Comfort ventilation" or "Comfort heating/
ventilation"4.Select the desired departure time.5.Set the departure time.6.Select day of the week if needed.
Via BMW display key
1.Switch on the display of the BMW display
key.2."Climate control setting"3. , Tap symbol.4.Select the desired departure time.5. If necessary, tap day of the week.6.Select time.7."OK"
Activating the departure time
If a departure time should influence the switch‐
ing on of parked-car heating/ventilation, the re‐ spective departure time must be activated first.
Via the iDrive
1."My Vehicle"2."Climate functions"3."Comfort heating/ventilation"4."For departure time"
Activate the desired departure time.
The symbol on the automatic climate con‐
trol signals an activated departure time.
Via BMW display key
1.Switch on the display of the BMW display
key.2."Climate control setting"3. , Tap symbol.4. Tap symbol.
Activate the desired departure time.
Ambient air package
The concept The Ambient Air Package can be used to clean
and scent the interior air with high-quality fra‐
grances.
Two fragrances can be selected in the vehicle.
A variety other fragrances is possible by re‐
placing the fragrance cartridges.
Ionization is used to clean the air from sus‐
pended particles. Together with the selected
fragrance, ionization enhances well-being and
relaxation while driving.
Ionization
Ionization cleans the vehicle's interior air of
suspended particles.
Switching ionization on/off
About iDrive:
1."My Vehicle"2."Vehicle settings"3."Climate functions"4."Air quality"5."Ionization"Seite 211Climate controlControls211
Online Edition for Part no. 0140 2 964 330 - VI/15

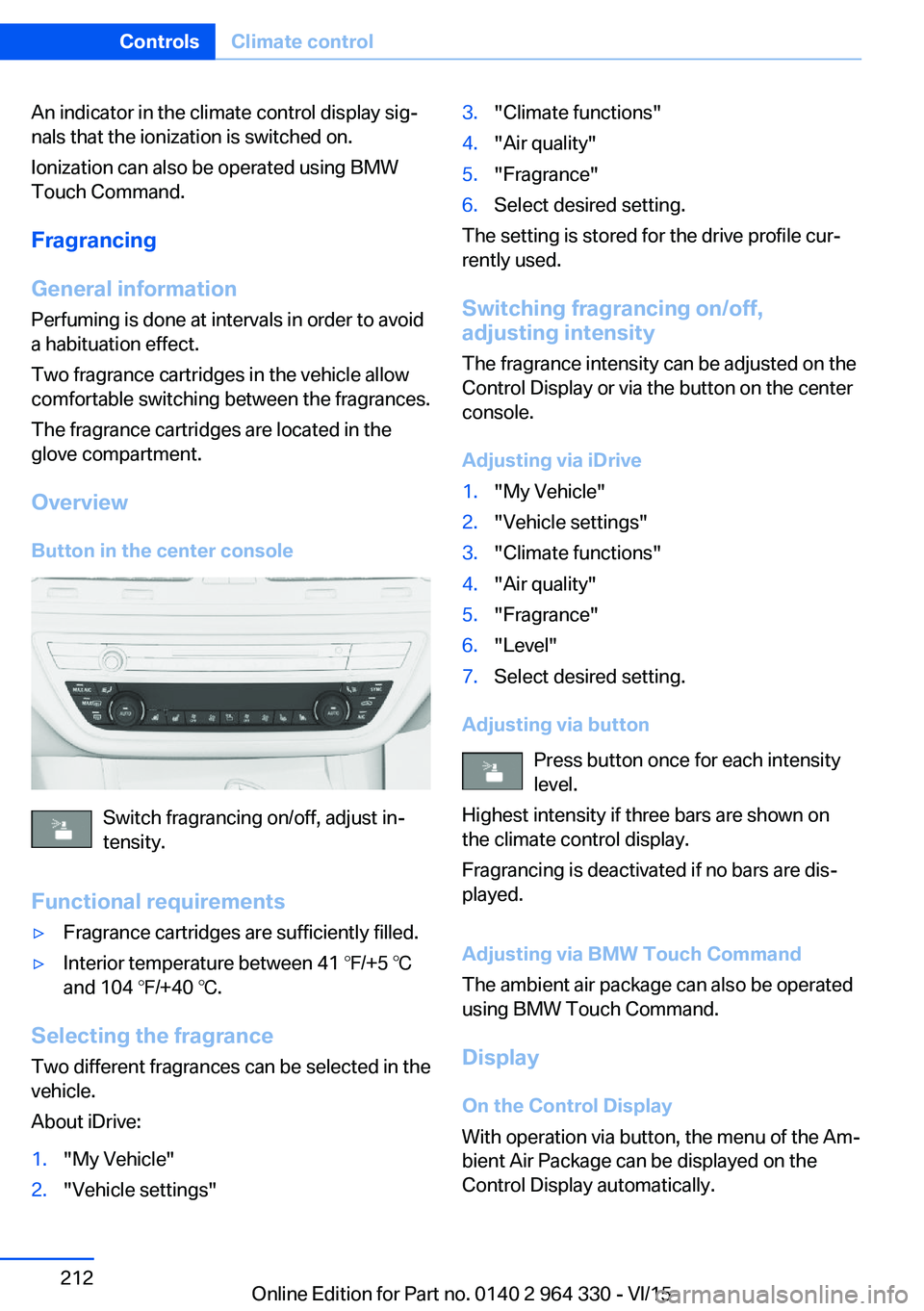

An indicator in the climate control display sig‐
nals that the ionization is switched on.
Ionization can also be operated using BMW
Touch Command.
Fragrancing
General information
Perfuming is done at intervals in order to avoid
a habituation effect.
Two fragrance cartridges in the vehicle allow
comfortable switching between the fragrances.
The fragrance cartridges are located in the
glove compartment.
Overview Button in the center console
Switch fragrancing on/off, adjust in‐
tensity.
Functional requirements
▷Fragrance cartridges are sufficiently filled.▷Interior temperature between 41 ℉/+5 ℃
and 104 ℉/+40 ℃.
Selecting the fragrance
Two different fragrances can be selected in the
vehicle.
About iDrive:
1."My Vehicle"2."Vehicle settings"3."Climate functions"4."Air quality"5."Fragrance"6.Select desired setting.
The setting is stored for the drive profile cur‐
rently used.
Switching fragrancing on/off,
adjusting intensity
The fragrance intensity can be adjusted on the
Control Display or via the button on the center
console.
Adjusting via iDrive
1."My Vehicle"2."Vehicle settings"3."Climate functions"4."Air quality"5."Fragrance"6."Level"7.Select desired setting.
Adjusting via button Press button once for each intensity
level.
Highest intensity if three bars are shown on
the climate control display.
Fragrancing is deactivated if no bars are dis‐
played.
Adjusting via BMW Touch Command
The ambient air package can also be operated
using BMW Touch Command.
Display
On the Control Display
With operation via button, the menu of the Am‐
bient Air Package can be displayed on the
Control Display automatically.
Seite 212ControlsClimate control212
Online Edition for Part no. 0140 2 964 330 - VI/15

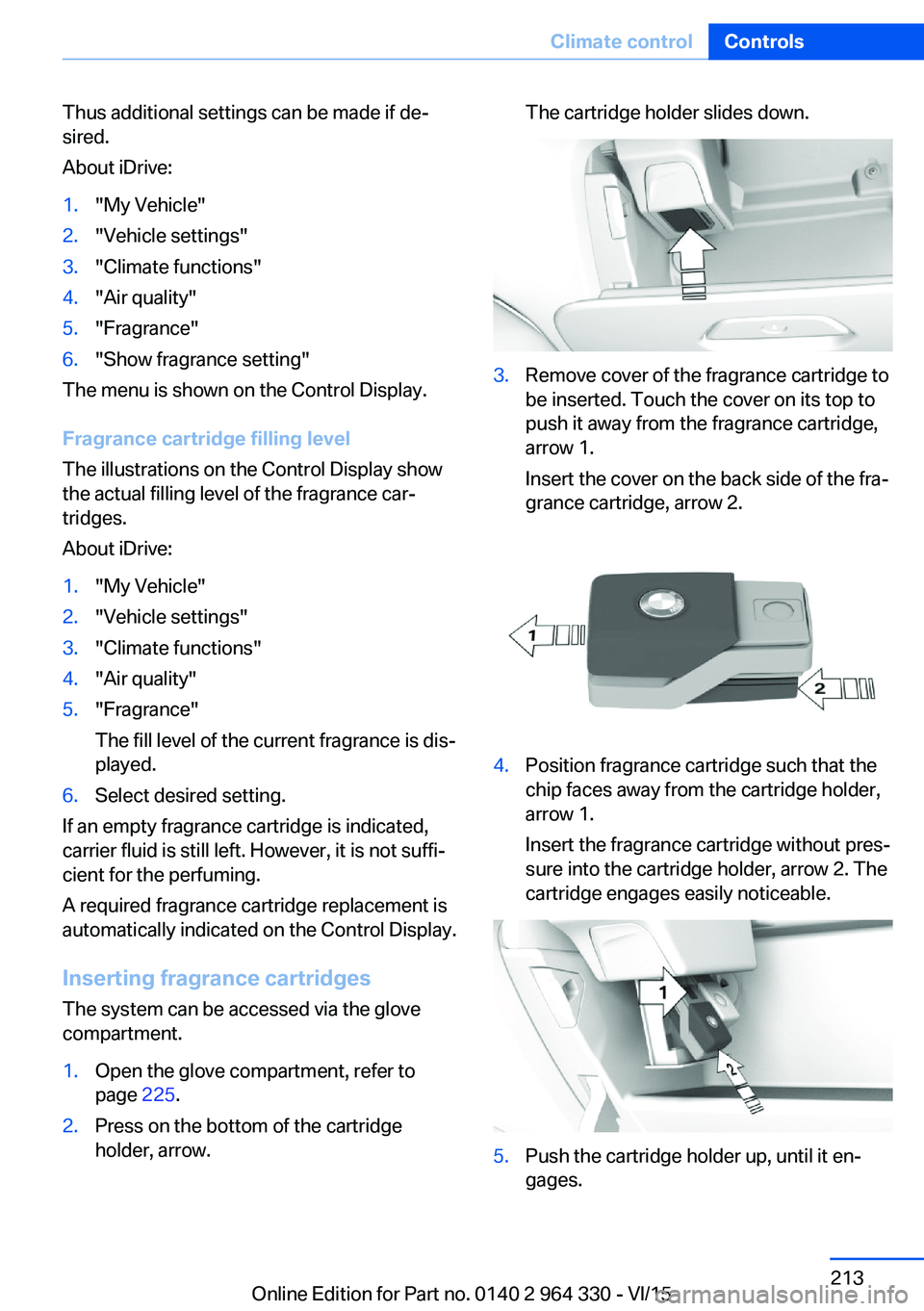

Thus additional settings can be made if de‐
sired.
About iDrive:1."My Vehicle"2."Vehicle settings"3."Climate functions"4."Air quality"5."Fragrance"6."Show fragrance setting"
The menu is shown on the Control Display.
Fragrance cartridge filling level
The illustrations on the Control Display show
the actual filling level of the fragrance car‐
tridges.
About iDrive:
1."My Vehicle"2."Vehicle settings"3."Climate functions"4."Air quality"5."Fragrance"
The fill level of the current fragrance is dis‐
played.6.Select desired setting.
If an empty fragrance cartridge is indicated,
carrier fluid is still left. However, it is not suffi‐
cient for the perfuming.
A required fragrance cartridge replacement is
automatically indicated on the Control Display.
Inserting fragrance cartridges The system can be accessed via the glove
compartment.
1.Open the glove compartment, refer to
page 225.2.Press on the bottom of the cartridge
holder, arrow.The cartridge holder slides down.3.Remove cover of the fragrance cartridge to
be inserted. Touch the cover on its top to
push it away from the fragrance cartridge,
arrow 1.
Insert the cover on the back side of the fra‐
grance cartridge, arrow 2.4.Position fragrance cartridge such that the
chip faces away from the cartridge holder,
arrow 1.
Insert the fragrance cartridge without pres‐
sure into the cartridge holder, arrow 2. The
cartridge engages easily noticeable.5.Push the cartridge holder up, until it en‐
gages.Seite 213Climate controlControls213
Online Edition for Part no. 0140 2 964 330 - VI/15

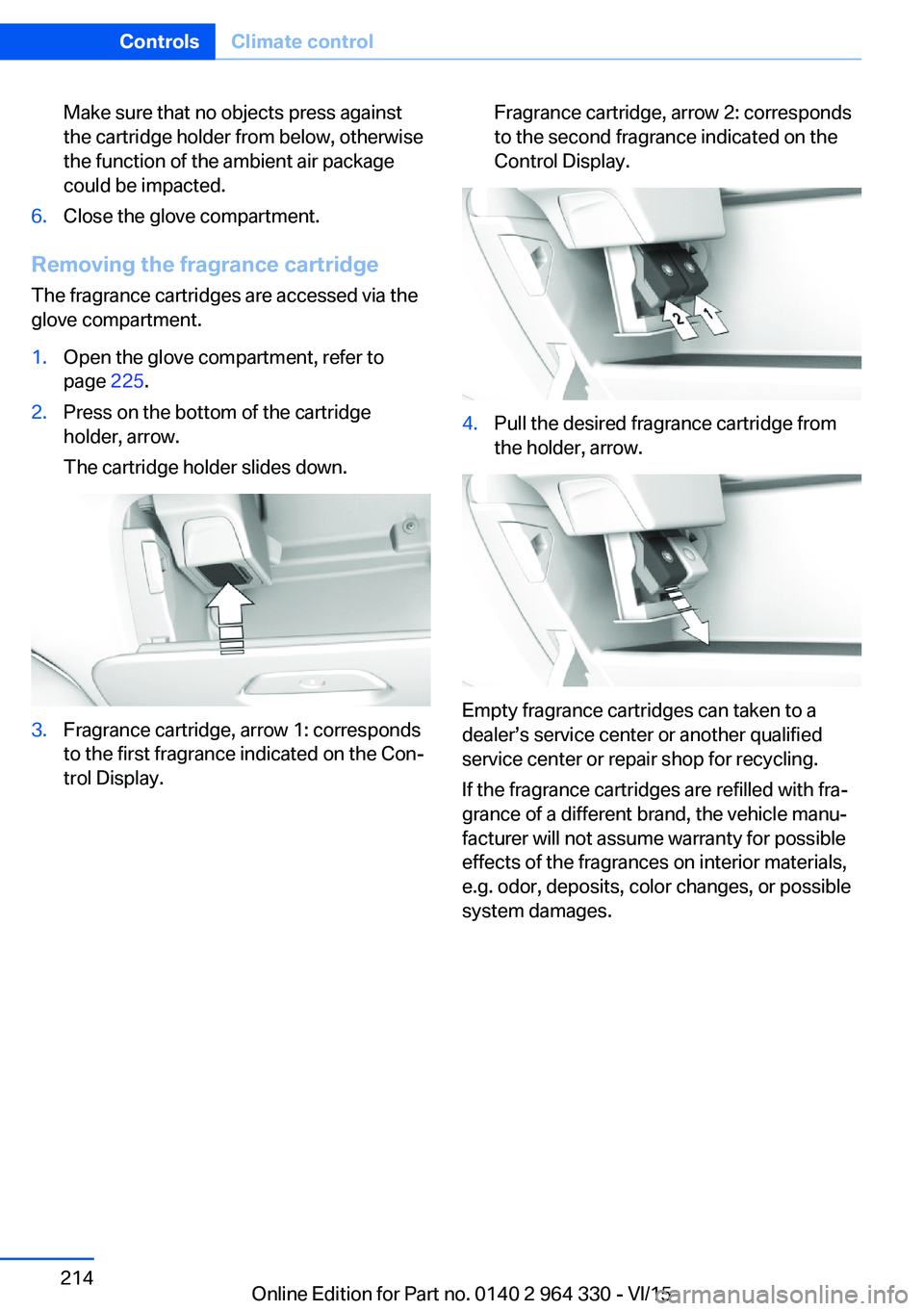

Make sure that no objects press against
the cartridge holder from below, otherwise
the function of the ambient air package
could be impacted.6.Close the glove compartment.
Removing the fragrance cartridge
The fragrance cartridges are accessed via the
glove compartment.
1.Open the glove compartment, refer to
page 225.2.Press on the bottom of the cartridge
holder, arrow.
The cartridge holder slides down.3.Fragrance cartridge, arrow 1: corresponds
to the first fragrance indicated on the Con‐
trol Display.Fragrance cartridge, arrow 2: corresponds
to the second fragrance indicated on the
Control Display.4.Pull the desired fragrance cartridge from
the holder, arrow.
Empty fragrance cartridges can taken to a
dealer’s service center or another qualified
service center or repair shop for recycling.
If the fragrance cartridges are refilled with fra‐
grance of a different brand, the vehicle manu‐
facturer will not assume warranty for possible
effects of the fragrances on interior materials,
e.g. odor, deposits, color changes, or possible
system damages.
Seite 214ControlsClimate control214
Online Edition for Part no. 0140 2 964 330 - VI/15

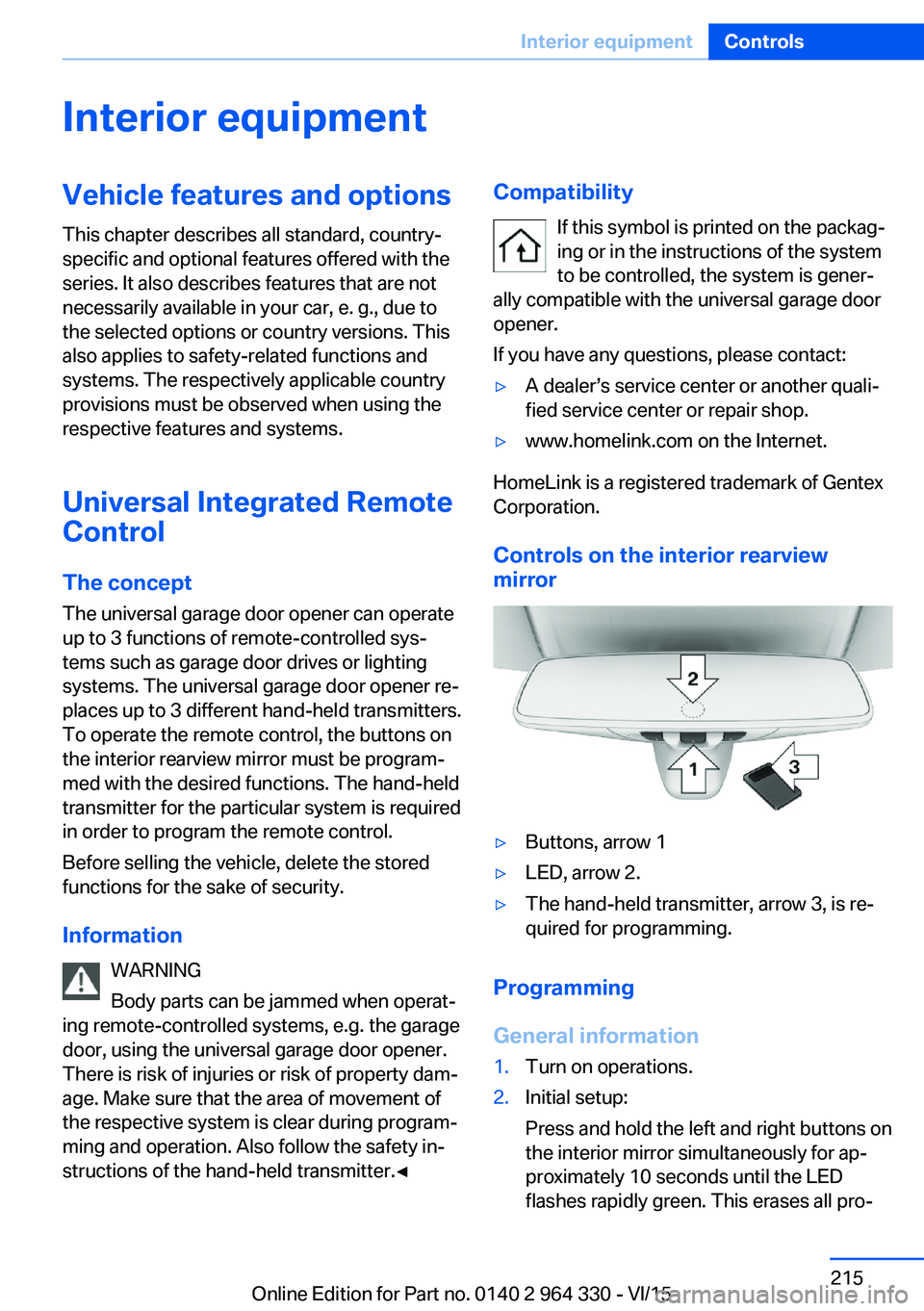

Interior equipmentVehicle features and optionsThis chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
Universal Integrated Remote Control
The concept The universal garage door opener can operate
up to 3 functions of remote-controlled sys‐
tems such as garage door drives or lighting
systems. The universal garage door opener re‐
places up to 3 different hand-held transmitters.
To operate the remote control, the buttons on
the interior rearview mirror must be program‐
med with the desired functions. The hand-held
transmitter for the particular system is required
in order to program the remote control.
Before selling the vehicle, delete the stored
functions for the sake of security.
Information WARNING
Body parts can be jammed when operat‐
ing remote-controlled systems, e.g. the garage
door, using the universal garage door opener.
There is risk of injuries or risk of property dam‐
age. Make sure that the area of movement of
the respective system is clear during program‐
ming and operation. Also follow the safety in‐
structions of the hand-held transmitter.◀Compatibility
If this symbol is printed on the packag‐
ing or in the instructions of the system
to be controlled, the system is gener‐
ally compatible with the universal garage door opener.
If you have any questions, please contact:▷A dealer’s service center or another quali‐
fied service center or repair shop.▷www.homelink.com on the Internet.
HomeLink is a registered trademark of Gentex
Corporation.
Controls on the interior rearview
mirror
▷Buttons, arrow 1▷LED, arrow 2.▷The hand-held transmitter, arrow 3, is re‐
quired for programming.
Programming
General information
1.Turn on operations.2.Initial setup:
Press and hold the left and right buttons on
the interior mirror simultaneously for ap‐
proximately 10 seconds until the LED
flashes rapidly green. This erases all pro‐Seite 215Interior equipmentControls215
Online Edition for Part no. 0140 2 964 330 - VI/15

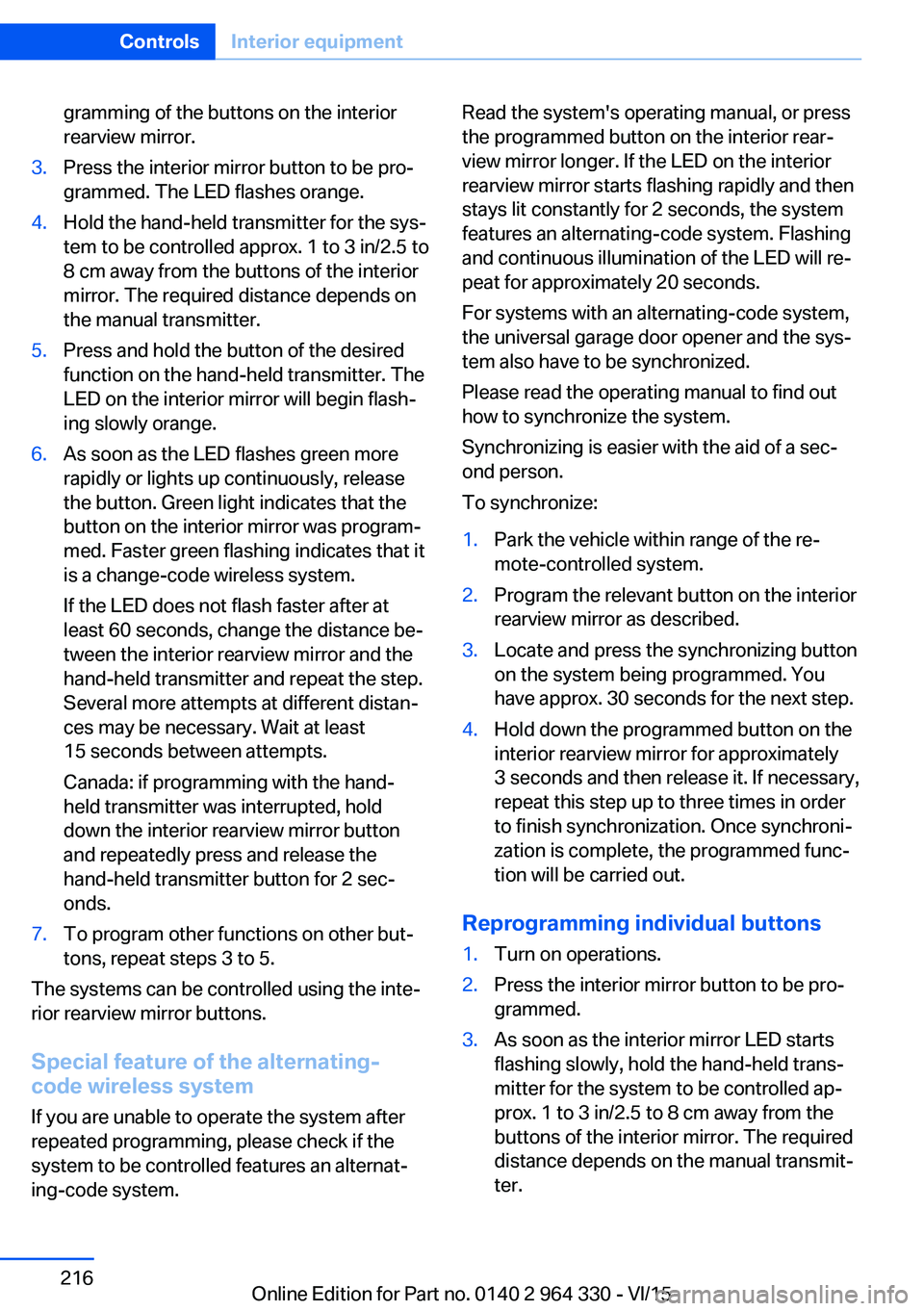

gramming of the buttons on the interior
rearview mirror.3.Press the interior mirror button to be pro‐
grammed. The LED flashes orange.4.Hold the hand-held transmitter for the sys‐
tem to be controlled approx. 1 to 3 in/2.5 to
8 cm away from the buttons of the interior
mirror. The required distance depends on
the manual transmitter.5.Press and hold the button of the desired
function on the hand-held transmitter. The
LED on the interior mirror will begin flash‐
ing slowly orange.6.As soon as the LED flashes green more
rapidly or lights up continuously, release
the button. Green light indicates that the
button on the interior mirror was program‐
med. Faster green flashing indicates that it
is a change-code wireless system.
If the LED does not flash faster after at
least 60 seconds, change the distance be‐
tween the interior rearview mirror and the
hand-held transmitter and repeat the step.
Several more attempts at different distan‐
ces may be necessary. Wait at least
15 seconds between attempts.
Canada: if programming with the hand-
held transmitter was interrupted, hold
down the interior rearview mirror button
and repeatedly press and release the
hand-held transmitter button for 2 sec‐
onds.7.To program other functions on other but‐
tons, repeat steps 3 to 5.
The systems can be controlled using the inte‐
rior rearview mirror buttons.
Special feature of the alternating-
code wireless system
If you are unable to operate the system after
repeated programming, please check if the
system to be controlled features an alternat‐
ing-code system.
Read the system's operating manual, or press
the programmed button on the interior rear‐
view mirror longer. If the LED on the interior
rearview mirror starts flashing rapidly and then
stays lit constantly for 2 seconds, the system
features an alternating-code system. Flashing
and continuous illumination of the LED will re‐
peat for approximately 20 seconds.
For systems with an alternating-code system,
the universal garage door opener and the sys‐
tem also have to be synchronized.
Please read the operating manual to find out how to synchronize the system.
Synchronizing is easier with the aid of a sec‐
ond person.
To synchronize:1.Park the vehicle within range of the re‐
mote-controlled system.2.Program the relevant button on the interior
rearview mirror as described.3.Locate and press the synchronizing button
on the system being programmed. You
have approx. 30 seconds for the next step.4.Hold down the programmed button on the
interior rearview mirror for approximately
3 seconds and then release it. If necessary,
repeat this step up to three times in order
to finish synchronization. Once synchroni‐
zation is complete, the programmed func‐
tion will be carried out.
Reprogramming individual buttons
1.Turn on operations.2.Press the interior mirror button to be pro‐
grammed.3.As soon as the interior mirror LED starts
flashing slowly, hold the hand-held trans‐
mitter for the system to be controlled ap‐
prox. 1 to 3 in/2.5 to 8 cm away from the
buttons of the interior mirror. The required
distance depends on the manual transmit‐
ter.Seite 216ControlsInterior equipment216
Online Edition for Part no. 0140 2 964 330 - VI/15

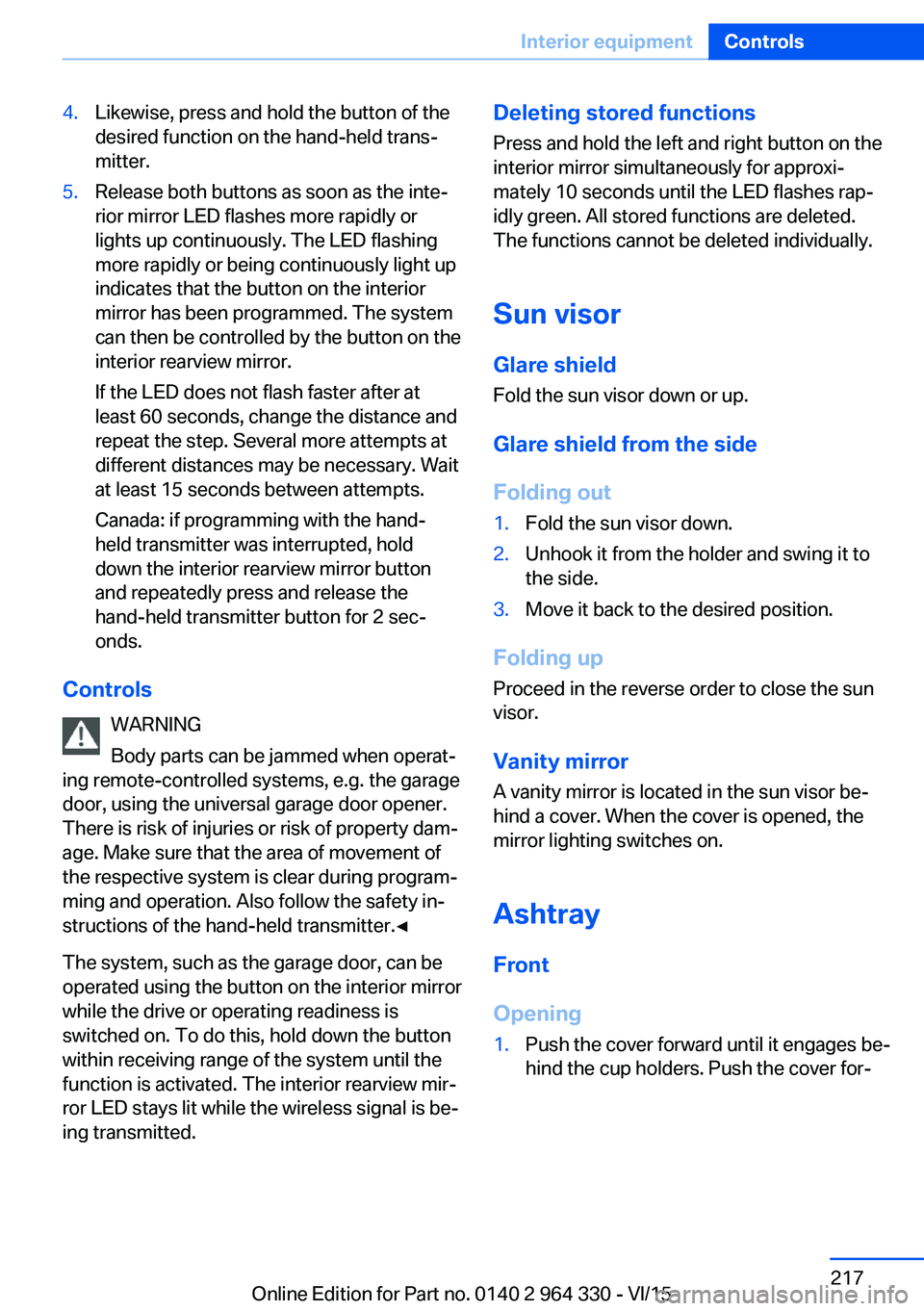

4.Likewise, press and hold the button of the
desired function on the hand-held trans‐
mitter.5.Release both buttons as soon as the inte‐
rior mirror LED flashes more rapidly or
lights up continuously. The LED flashing
more rapidly or being continuously light up
indicates that the button on the interior
mirror has been programmed. The system
can then be controlled by the button on the
interior rearview mirror.
If the LED does not flash faster after at
least 60 seconds, change the distance and
repeat the step. Several more attempts at
different distances may be necessary. Wait
at least 15 seconds between attempts.
Canada: if programming with the hand-
held transmitter was interrupted, hold
down the interior rearview mirror button
and repeatedly press and release the
hand-held transmitter button for 2 sec‐
onds.
Controls
WARNING
Body parts can be jammed when operat‐
ing remote-controlled systems, e.g. the garage
door, using the universal garage door opener. There is risk of injuries or risk of property dam‐
age. Make sure that the area of movement of
the respective system is clear during program‐
ming and operation. Also follow the safety in‐
structions of the hand-held transmitter.◀
The system, such as the garage door, can be
operated using the button on the interior mirror
while the drive or operating readiness is
switched on. To do this, hold down the button
within receiving range of the system until the
function is activated. The interior rearview mir‐
ror LED stays lit while the wireless signal is be‐
ing transmitted.
Deleting stored functions
Press and hold the left and right button on the
interior mirror simultaneously for approxi‐ mately 10 seconds until the LED flashes rap‐
idly green. All stored functions are deleted.
The functions cannot be deleted individually.
Sun visor Glare shield
Fold the sun visor down or up.
Glare shield from the side
Folding out1.Fold the sun visor down.2.Unhook it from the holder and swing it to
the side.3.Move it back to the desired position.
Folding up
Proceed in the reverse order to close the sun
visor.
Vanity mirror A vanity mirror is located in the sun visor be‐
hind a cover. When the cover is opened, the
mirror lighting switches on.
Ashtray
Front
Opening
1.Push the cover forward until it engages be‐
hind the cup holders. Push the cover for‐Seite 217Interior equipmentControls217
Online Edition for Part no. 0140 2 964 330 - VI/15

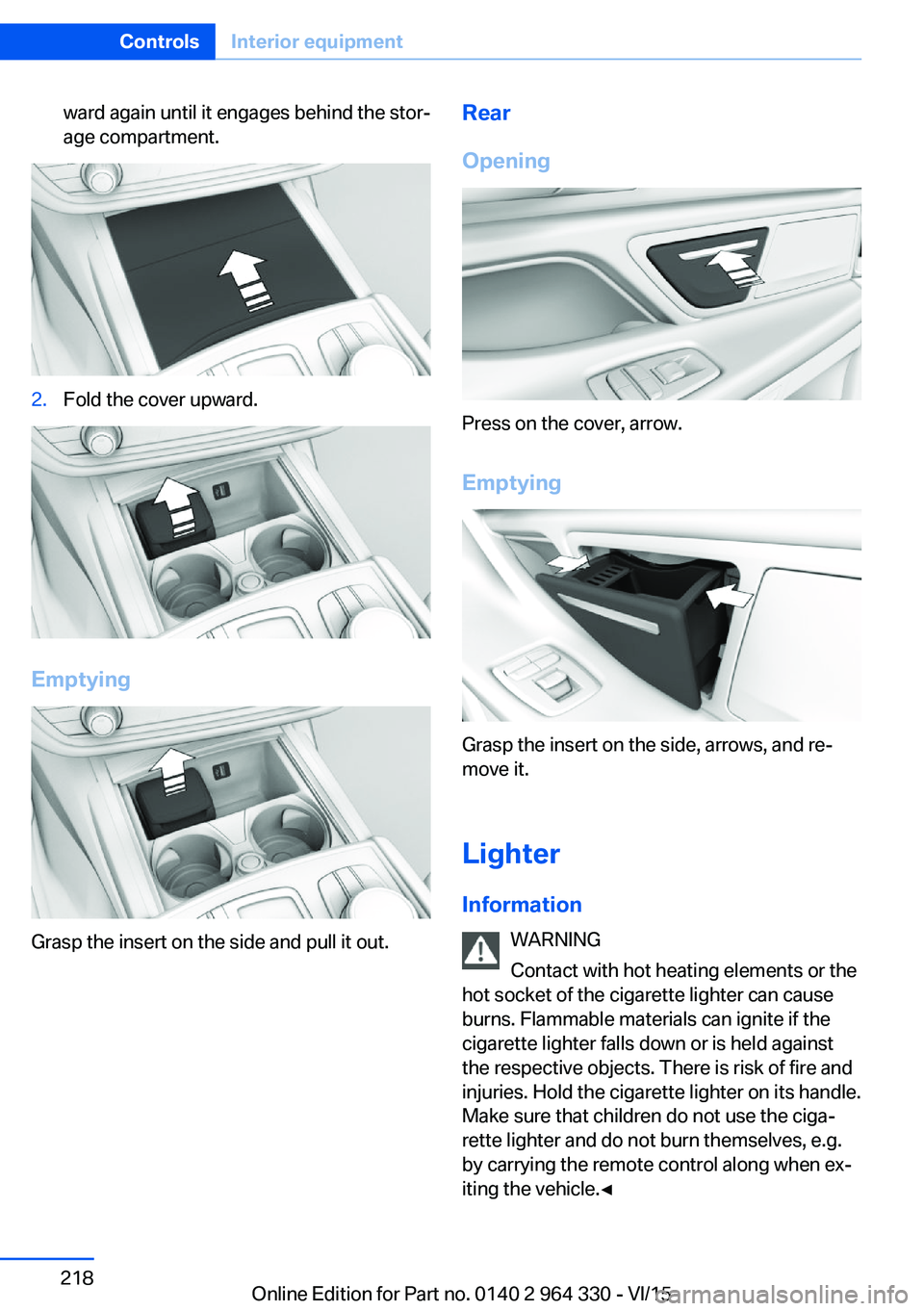

ward again until it engages behind the stor‐
age compartment.2.Fold the cover upward.
Emptying
Grasp the insert on the side and pull it out.
Rear
Opening
Press on the cover, arrow.
Emptying
Grasp the insert on the side, arrows, and re‐
move it.
Lighter Information WARNING
Contact with hot heating elements or the
hot socket of the cigarette lighter can cause
burns. Flammable materials can ignite if the
cigarette lighter falls down or is held against
the respective objects. There is risk of fire and
injuries. Hold the cigarette lighter on its handle.
Make sure that children do not use the ciga‐
rette lighter and do not burn themselves, e.g.
by carrying the remote control along when ex‐
iting the vehicle.◀
Seite 218ControlsInterior equipment218
Online Edition for Part no. 0140 2 964 330 - VI/15

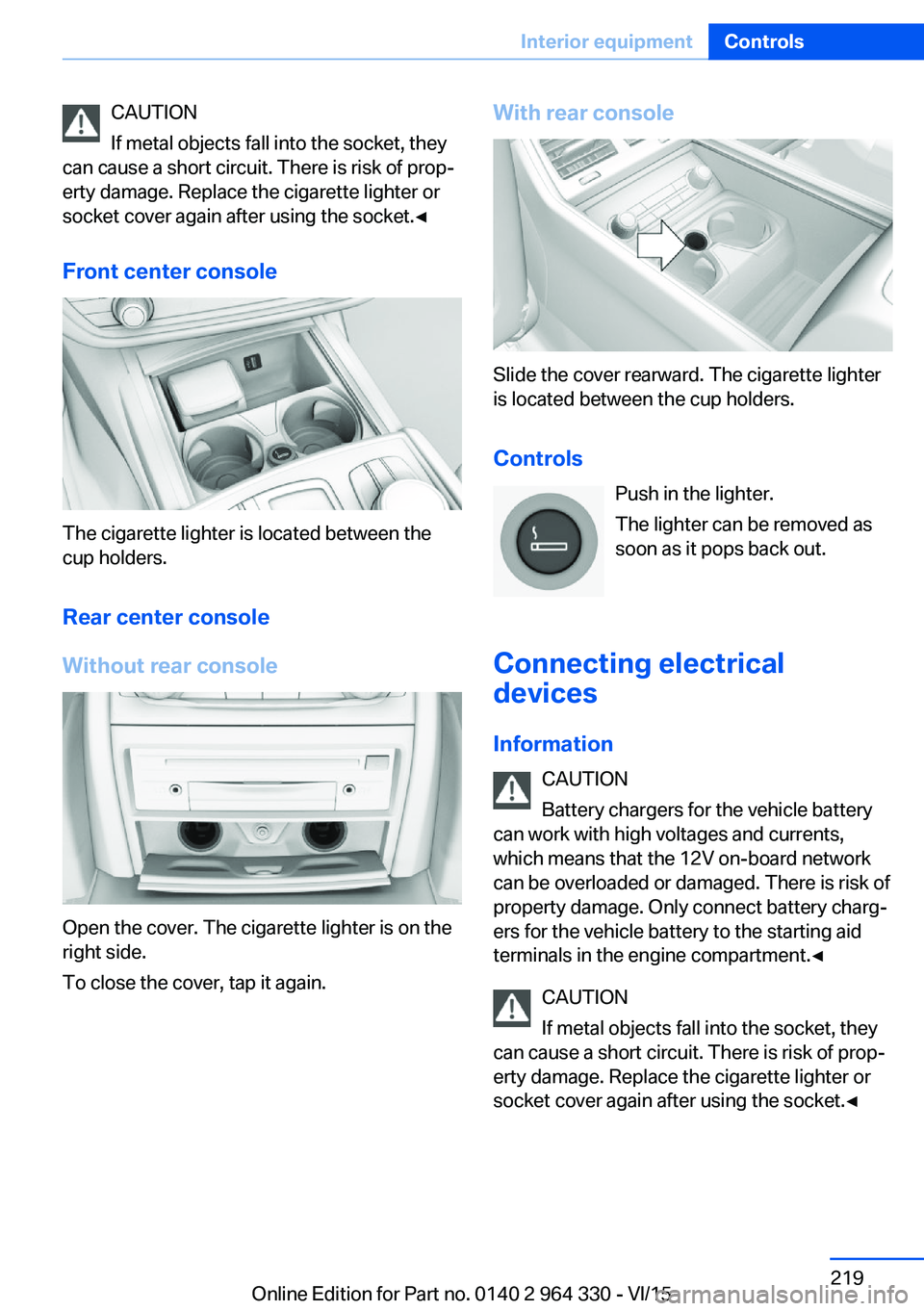

CAUTION
If metal objects fall into the socket, they
can cause a short circuit. There is risk of prop‐
erty damage. Replace the cigarette lighter or
socket cover again after using the socket.◀
Front center console
The cigarette lighter is located between the
cup holders.
Rear center console
Without rear console
Open the cover. The cigarette lighter is on the
right side.
To close the cover, tap it again.
With rear console
Slide the cover rearward. The cigarette lighter
is located between the cup holders.
Controls Push in the lighter.
The lighter can be removed as
soon as it pops back out.
Connecting electrical devices
Information CAUTION
Battery chargers for the vehicle battery
can work with high voltages and currents,
which means that the 12V on-board network
can be overloaded or damaged. There is risk of
property damage. Only connect battery charg‐
ers for the vehicle battery to the starting aid
terminals in the engine compartment.◀
CAUTION
If metal objects fall into the socket, they
can cause a short circuit. There is risk of prop‐
erty damage. Replace the cigarette lighter or
socket cover again after using the socket.◀
Seite 219Interior equipmentControls219
Online Edition for Part no. 0140 2 964 330 - VI/15

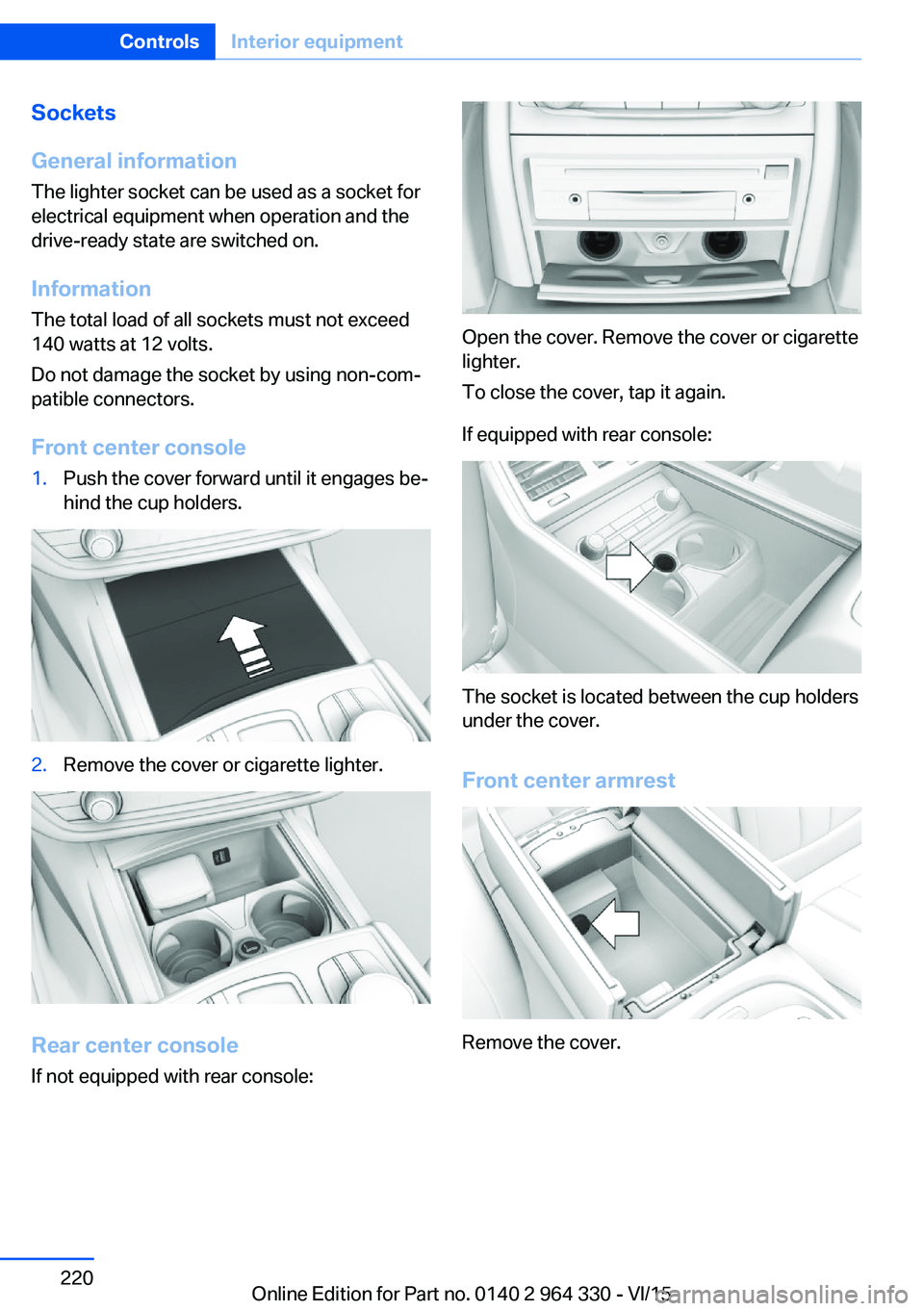

Sockets
General information
The lighter socket can be used as a socket for
electrical equipment when operation and the
drive-ready state are switched on.
Information
The total load of all sockets must not exceed
140 watts at 12 volts.
Do not damage the socket by using non-com‐
patible connectors.
Front center console1.Push the cover forward until it engages be‐
hind the cup holders.2.Remove the cover or cigarette lighter.
Rear center console
If not equipped with rear console:
Open the cover. Remove the cover or cigarette
lighter.
To close the cover, tap it again.
If equipped with rear console:
The socket is located between the cup holders
under the cover.
Front center armrest
Remove the cover.
Seite 220ControlsInterior equipment220
Online Edition for Part no. 0140 2 964 330 - VI/15
