Page 201 of 253

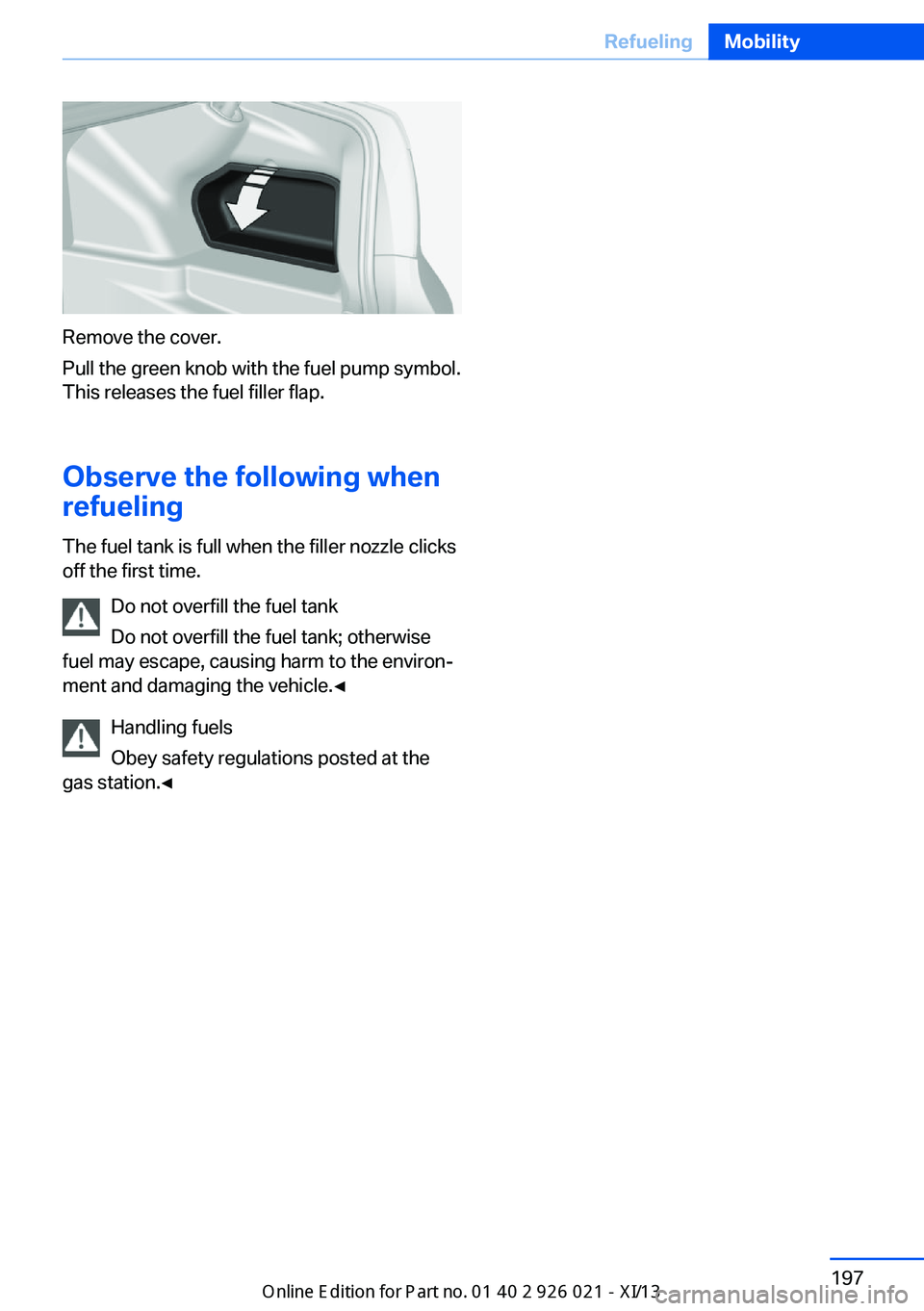

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual Remove the cover.
Pull the green knob with the fuel pump symbol.
This releases the fuel filler flap.
Observe the following when
refueling
The fuel tank is full when the filler nozzle clicks
off the fi

Page 202 of 253

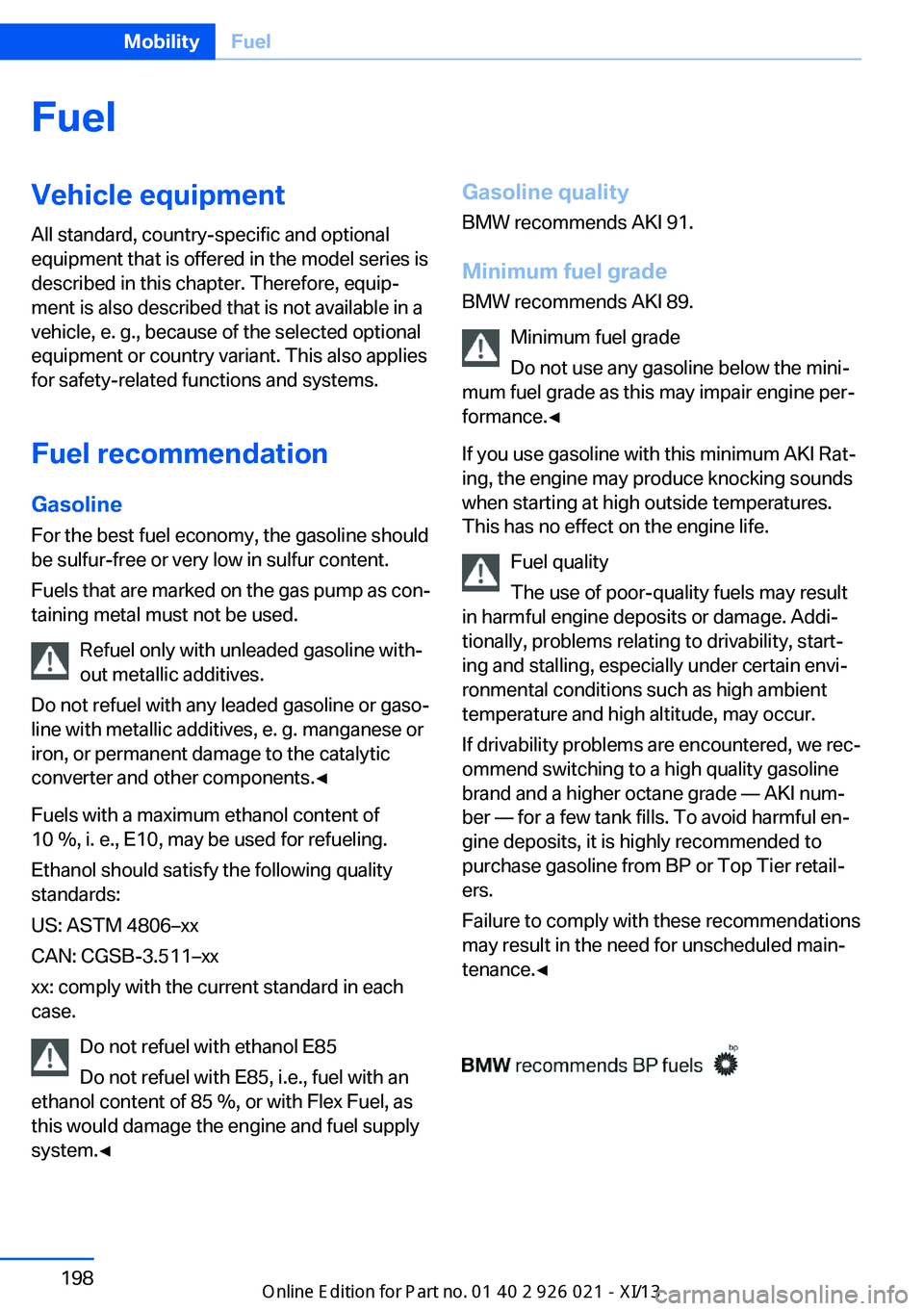

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual FuelVehicle equipmentAll standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described that is not avai

Page 203 of 253

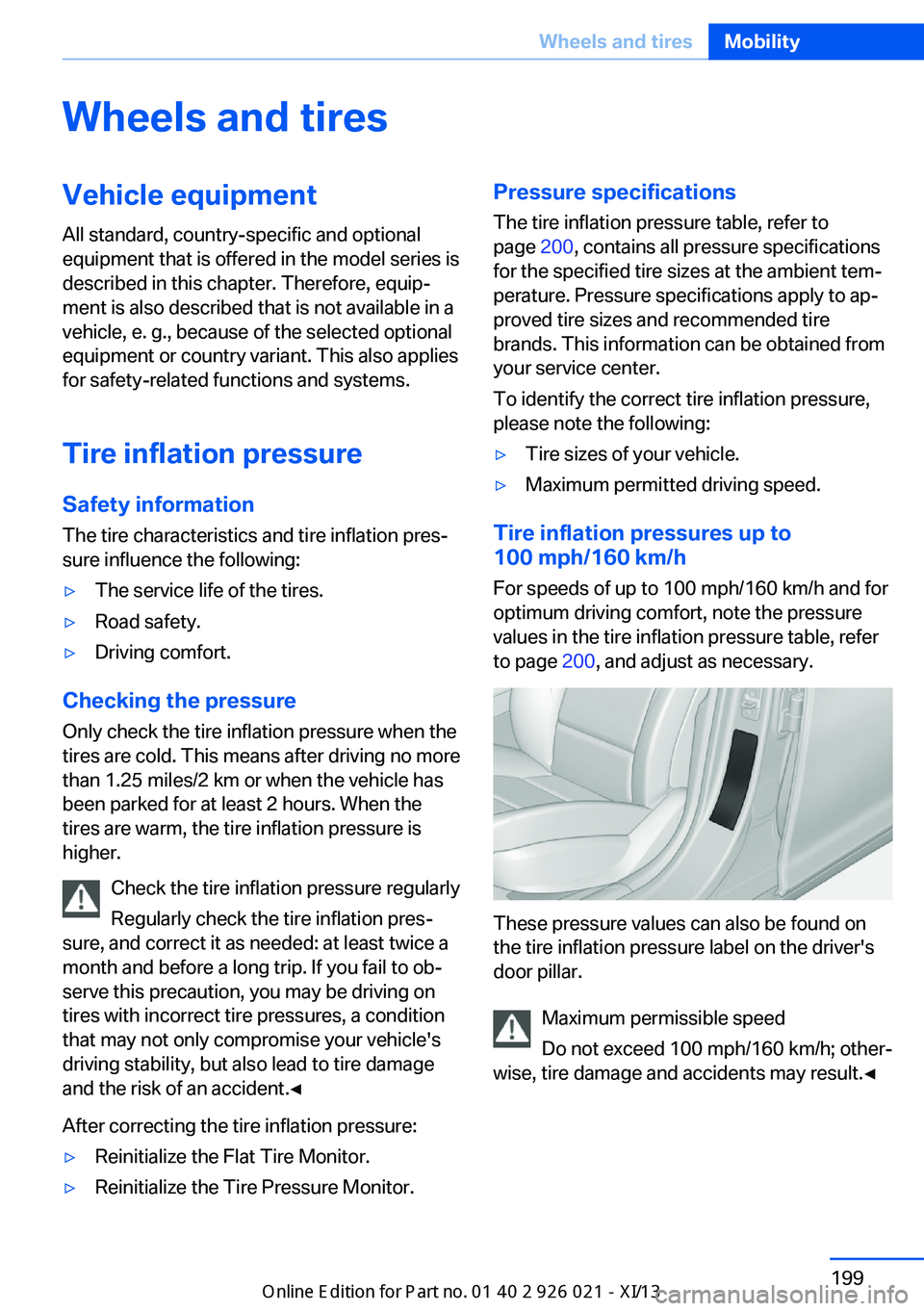

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual Wheels and tiresVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐
ment is also described tha

Page 204 of 253

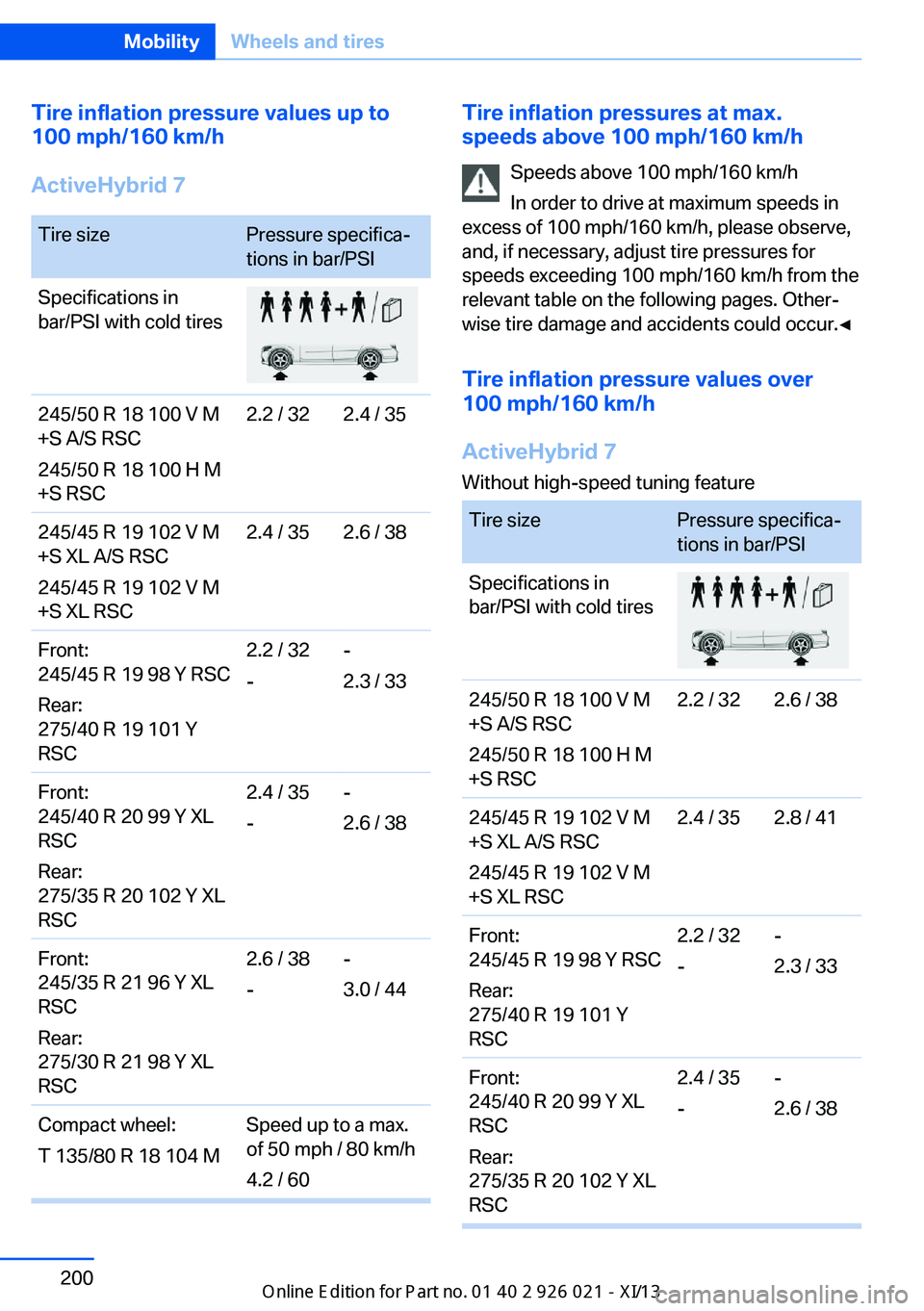

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual Tire inflation pressure values up to
100 mph/160 km/h
ActiveHybrid 7Tire sizePressure specifica‐
tions in bar/PSISpecifications in
bar/PSI with cold tires245/50 R 18 100 V M
+S A/S RSC
245/50 R 18 1

Page 205 of 253

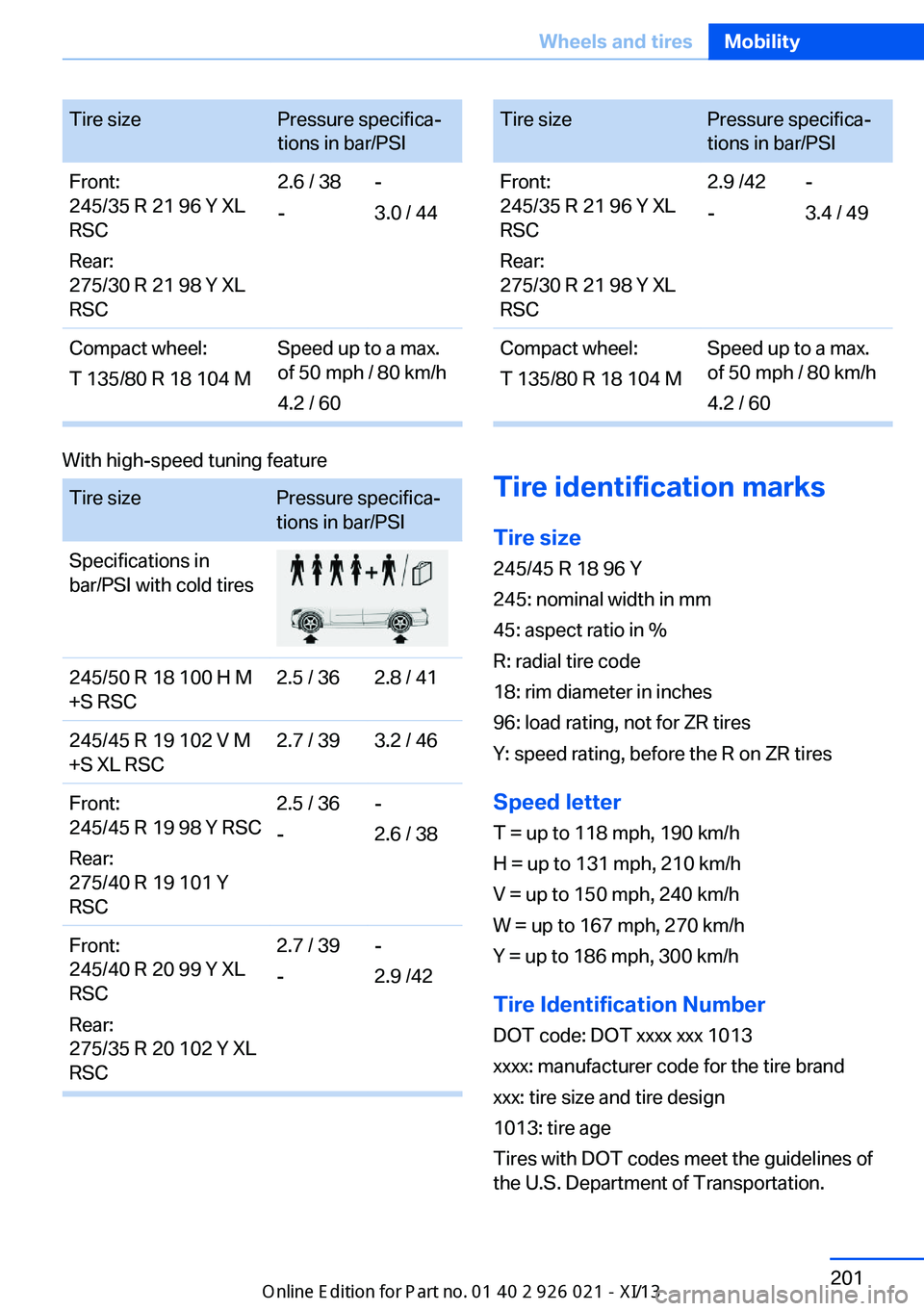

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual Tire sizePressure specifica‐
tions in bar/PSIFront:
245/35 R 21 96 Y XL
RSC
Rear:
275/30 R 21 98 Y XL
RSC2.6 / 38
--
3.0 / 44Compact wheel:
T 135/80 R 18 104 MSpeed up to a max.
of 50 mph / 80 km/h

Page 206 of 253

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual Tire age
DOT … 1013: the tire was manufactured in the
10th week 2013.
Recommendation
Regardless of wear, replace tires at least every
6 years.
Uniform Tire Quality GradingQuality grades can be found

Page 207 of 253

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual Tire treadSummer tires
Do not drive with a tire tread depth of less than
0.12 in/3 mm.
There is an increased danger of hydroplaning if
the tread depth is less than 0.12 in/3 mm.
Winter tires Do not dr

Page 208 of 253

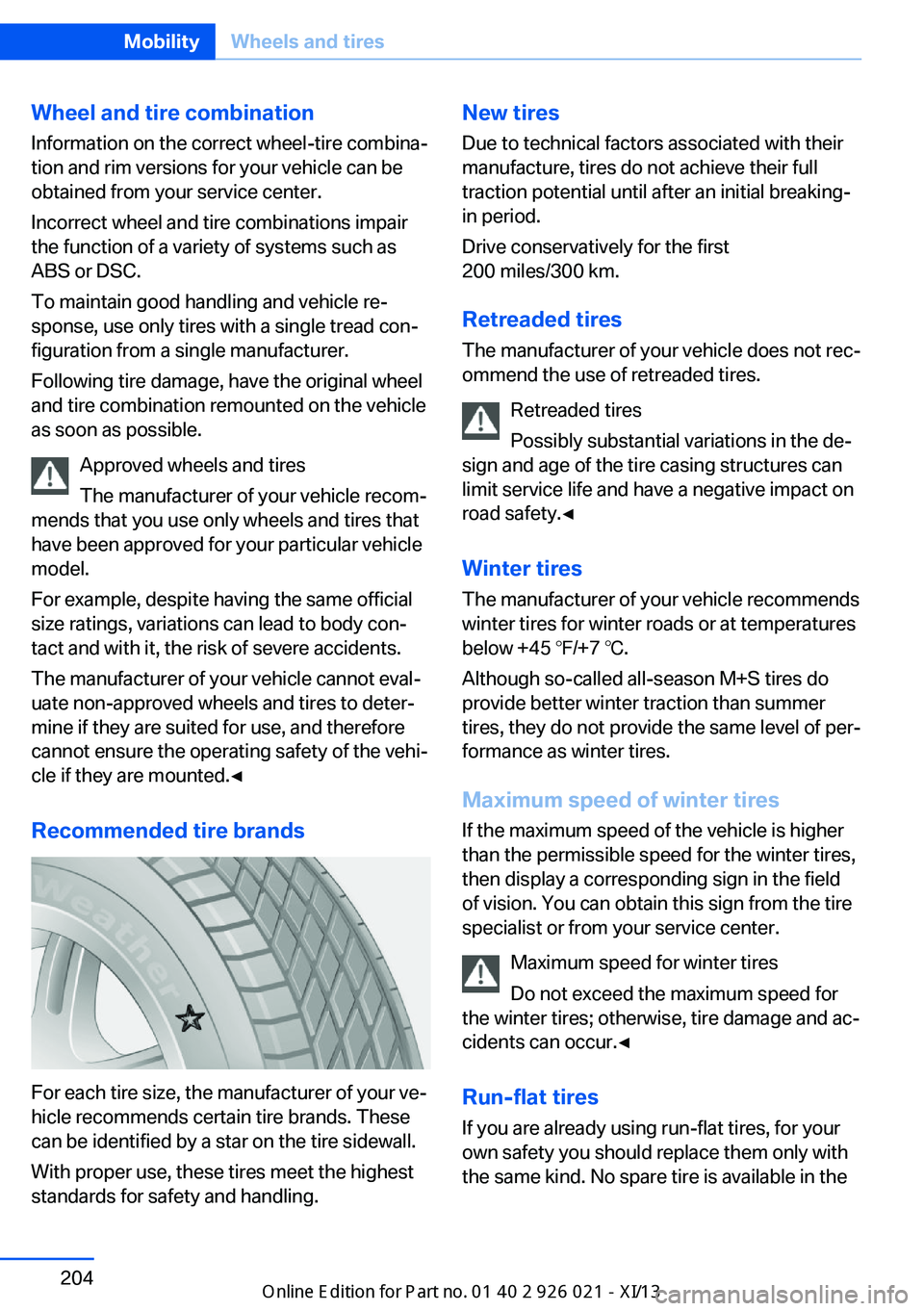

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual Wheel and tire combination
Information on the correct wheel-tire combina‐
tion and rim versions for your vehicle can be
obtained from your service center.
Incorrect wheel and tire combinations impai

Page 209 of 253

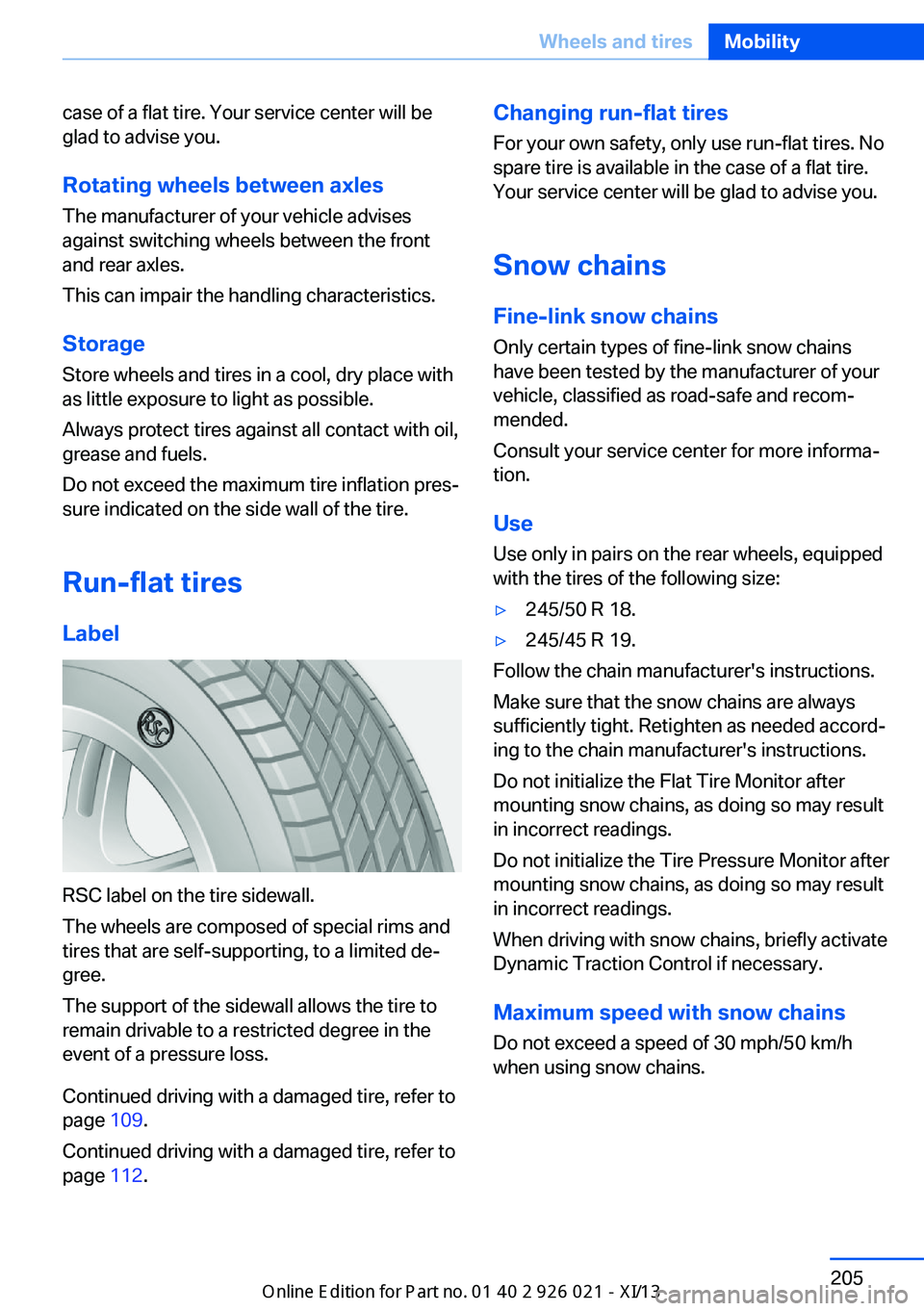

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual case of a flat tire. Your service center will be
glad to advise you.
Rotating wheels between axles The manufacturer of your vehicle advises
against switching wheels between the front
and rear axles.
T

Page 210 of 253

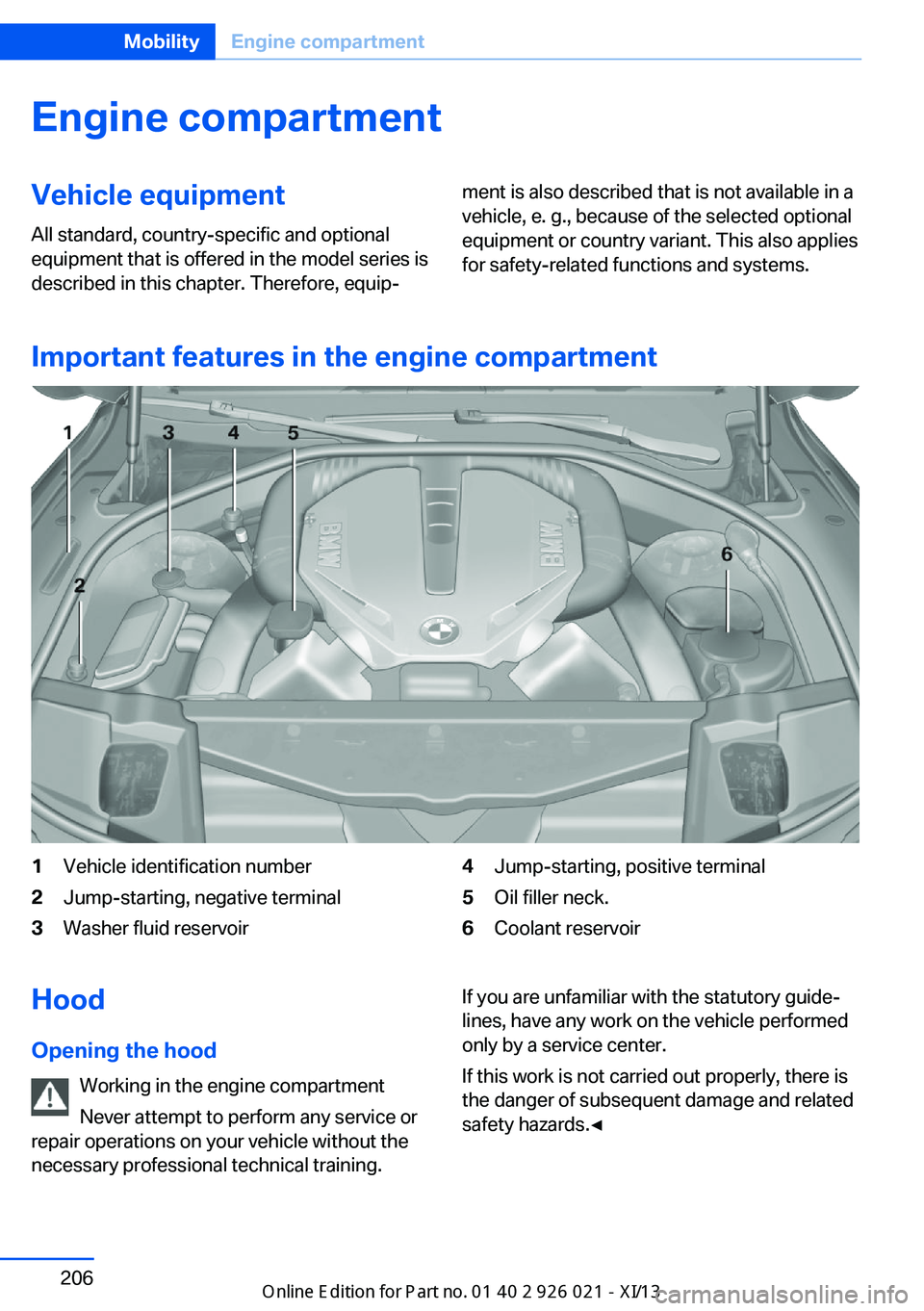

BMW ACTIVE HYBRID 7 2013 F04 Owners Manual Engine compartmentVehicle equipmentAll standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equip‐ment is also described tha
