bols for wet road conditions, etc. are also de‐
tected and compared with the vehicle's
onboard data, such as for the rain sensor, and
will be displayed depending on the situation.
The system takes into account the information
stored in the navigation system and also dis‐
plays speed limits present on routes without
signs.
Hints Personal judgment
The system cannot serve as a substitute
for the driver's personal judgment of the traffic
situation.
The system assists the driver and does not re‐
place the human eye.◀
At a glance
Camera
The camera is found near the interior rearview
mirror.
Keep the windshield in the area behind the in‐
terior rearview mirror clean and clear.
Switching on/offOn the Control Display:
1."Settings"2."Instrument cluster"3."Speed limit information"
If speed limit detection is switched on, it can
be displayed on the info display in the instru‐
ment cluster via the computer.
Display
The following is displayed in the instrument
cluster:
Speed limit detection Current speed limit.
Speed limit detection is not
available.
Speed limit detection can also be displayed in
the Head-up Display.
System limits
The system may not be fully functional and
may provide incorrect information in the fol‐
lowing situations:▷In heavy fog, rain or snowfall.▷When signs are concealed by objects.▷When driving very close to the vehicle in
front of you.▷When driving toward bright lights.▷When the windshield behind the interior
rearview mirror is fogged over, dirty or cov‐
ered by a sticker, etc.▷In the event of incorrect detection by the
camera.▷If the speed limits stored in the navigation
system are incorrect.▷In areas not covered by the navigation sys‐
tem.▷When roads differ from the navigation,
such as due to changes in road routing.▷When passing buses or trucks with a
speed sticker.▷If the traffic signs are non-conforming.Seite 100ControlsDisplays100
Online Edition for Part no. 01 40 2 956 056 - X/14

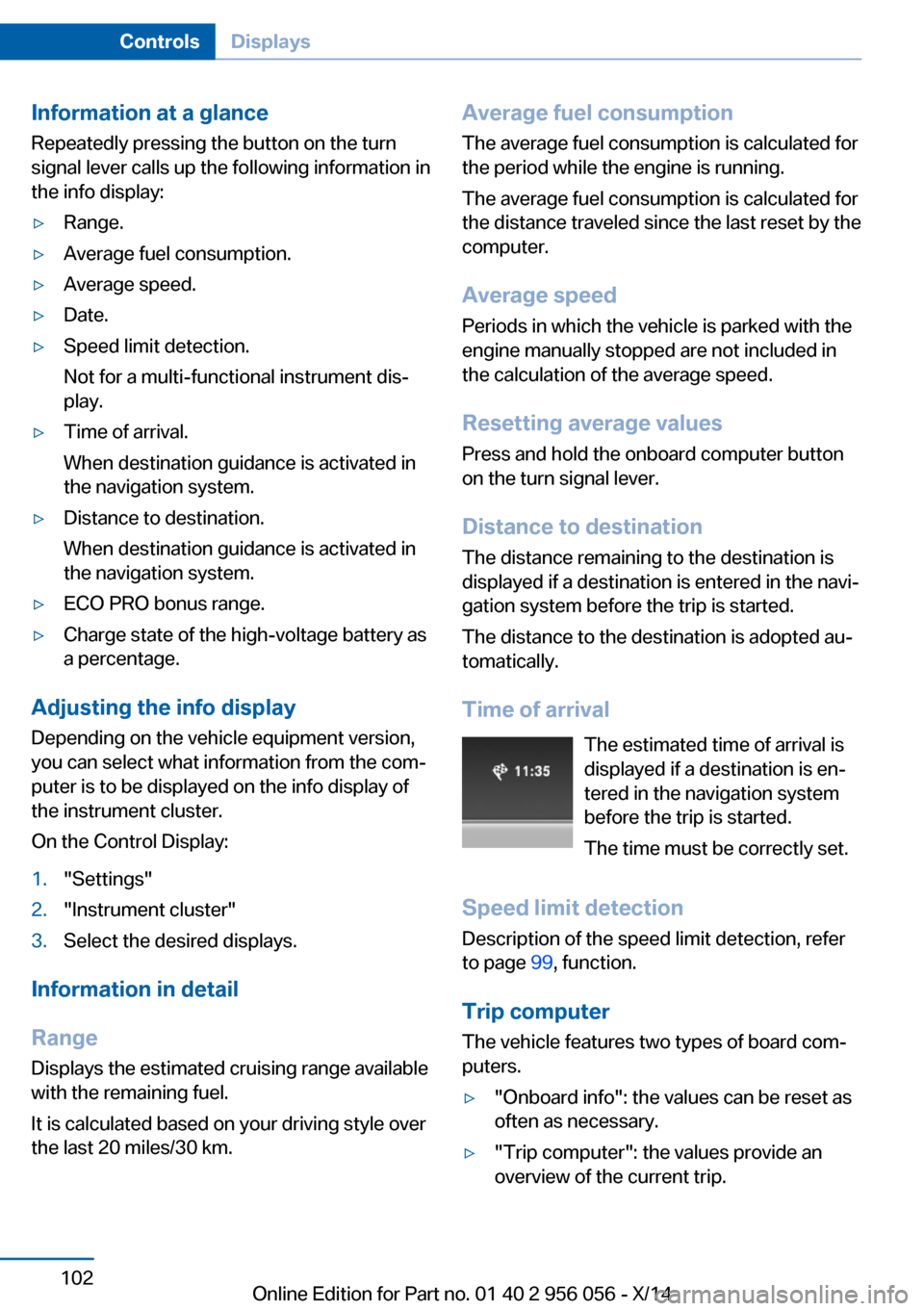

Information at a glanceRepeatedly pressing the button on the turn
signal lever calls up the following information in
the info display:▷Range.▷Average fuel consumption.▷Average speed.▷Date.▷Speed limit detection.
Not for a multi-functional instrument dis‐
play.▷Time of arrival.
When destination guidance is activated in
the navigation system.▷Distance to destination.
When destination guidance is activated in
the navigation system.▷ECO PRO bonus range.▷Charge state of the high-voltage battery as
a percentage.
Adjusting the info display
Depending on the vehicle equipment version,
you can select what information from the com‐
puter is to be displayed on the info display of
the instrument cluster.
On the Control Display:
1."Settings"2."Instrument cluster"3.Select the desired displays.
Information in detail
Range
Displays the estimated cruising range available
with the remaining fuel.
It is calculated based on your driving style over
the last 20 miles/30 km.
Average fuel consumption
The average fuel consumption is calculated for
the period while the engine is running.
The average fuel consumption is calculated for
the distance traveled since the last reset by the
computer.
Average speed
Periods in which the vehicle is parked with the
engine manually stopped are not included in
the calculation of the average speed.
Resetting average values Press and hold the onboard computer button
on the turn signal lever.
Distance to destination
The distance remaining to the destination is
displayed if a destination is entered in the navi‐
gation system before the trip is started.
The distance to the destination is adopted au‐
tomatically.
Time of arrival The estimated time of arrival is
displayed if a destination is en‐
tered in the navigation system
before the trip is started.
The time must be correctly set.
Speed limit detection
Description of the speed limit detection, refer
to page 99, function.
Trip computer
The vehicle features two types of board com‐
puters.▷"Onboard info": the values can be reset as
often as necessary.▷"Trip computer": the values provide an
overview of the current trip.Seite 102ControlsDisplays102
Online Edition for Part no. 01 40 2 956 056 - X/14

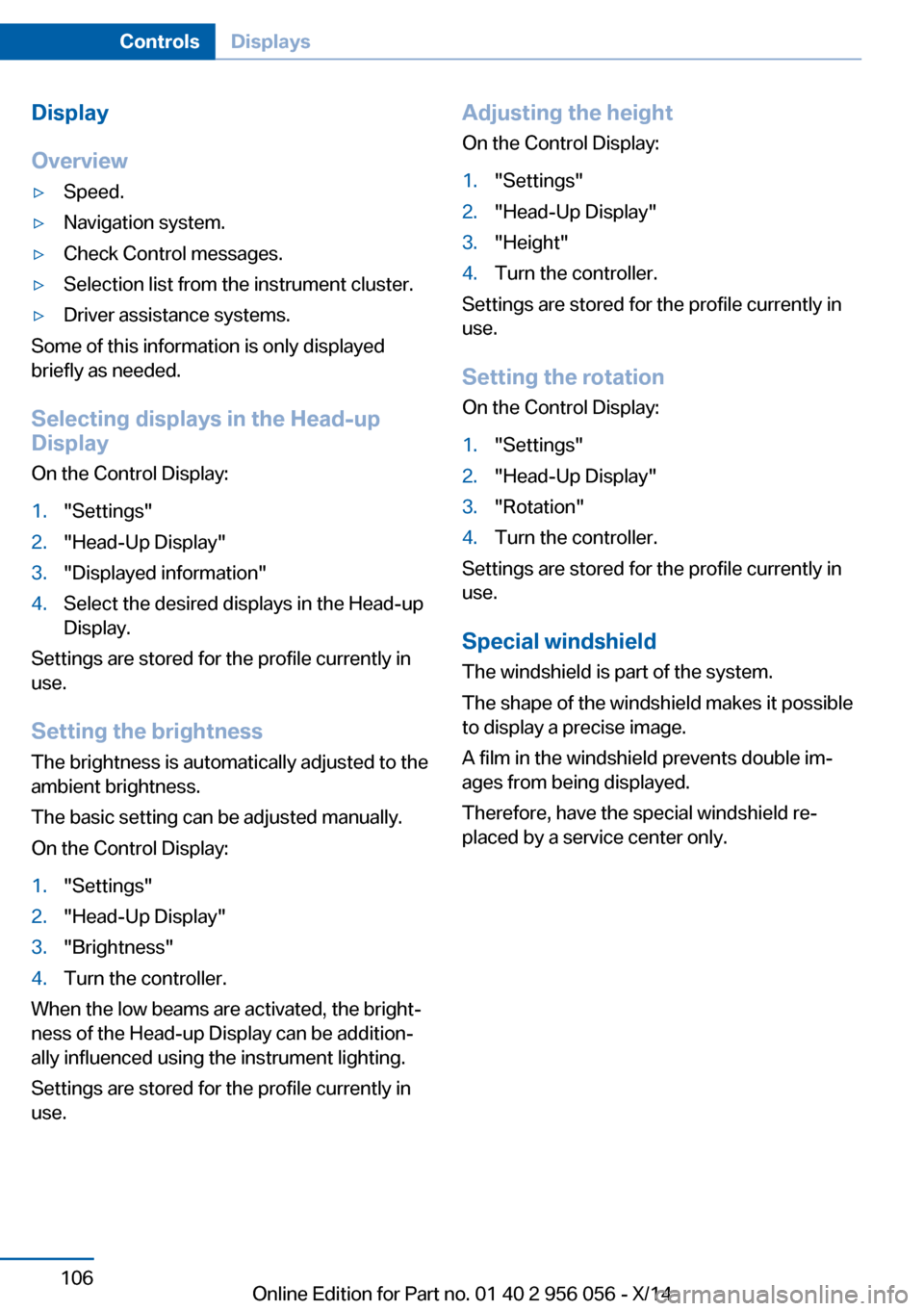

Display
Overview▷Speed.▷Navigation system.▷Check Control messages.▷Selection list from the instrument cluster.▷Driver assistance systems.
Some of this information is only displayed
briefly as needed.
Selecting displays in the Head-up
Display
On the Control Display:
1."Settings"2."Head-Up Display"3."Displayed information"4.Select the desired displays in the Head-up
Display.
Settings are stored for the profile currently in
use.
Setting the brightness
The brightness is automatically adjusted to the
ambient brightness.
The basic setting can be adjusted manually.
On the Control Display:
1."Settings"2."Head-Up Display"3."Brightness"4.Turn the controller.
When the low beams are activated, the bright‐
ness of the Head-up Display can be addition‐
ally influenced using the instrument lighting.
Settings are stored for the profile currently in
use.
Adjusting the height
On the Control Display:1."Settings"2."Head-Up Display"3."Height"4.Turn the controller.
Settings are stored for the profile currently in
use.
Setting the rotation
On the Control Display:
1."Settings"2."Head-Up Display"3."Rotation"4.Turn the controller.
Settings are stored for the profile currently in
use.
Special windshield
The windshield is part of the system.
The shape of the windshield makes it possible
to display a precise image.
A film in the windshield prevents double im‐
ages from being displayed.
Therefore, have the special windshield re‐
placed by a service center only.
Seite 106ControlsDisplays106
Online Edition for Part no. 01 40 2 956 056 - X/14

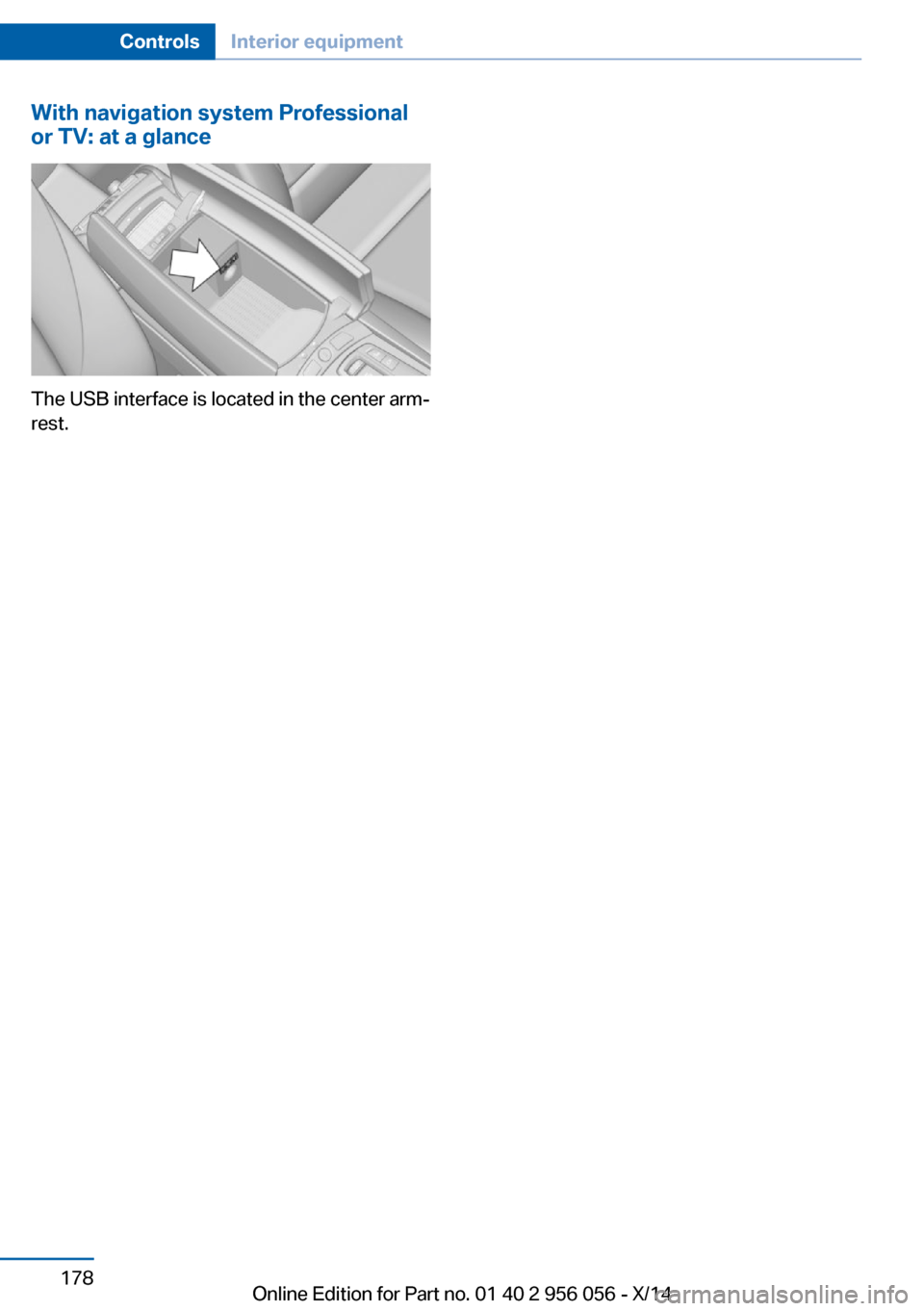

With navigation system Professional
or TV: at a glance
The USB interface is located in the center arm‐
rest.
Seite 178ControlsInterior equipment178
Online Edition for Part no. 01 40 2 956 056 - X/14

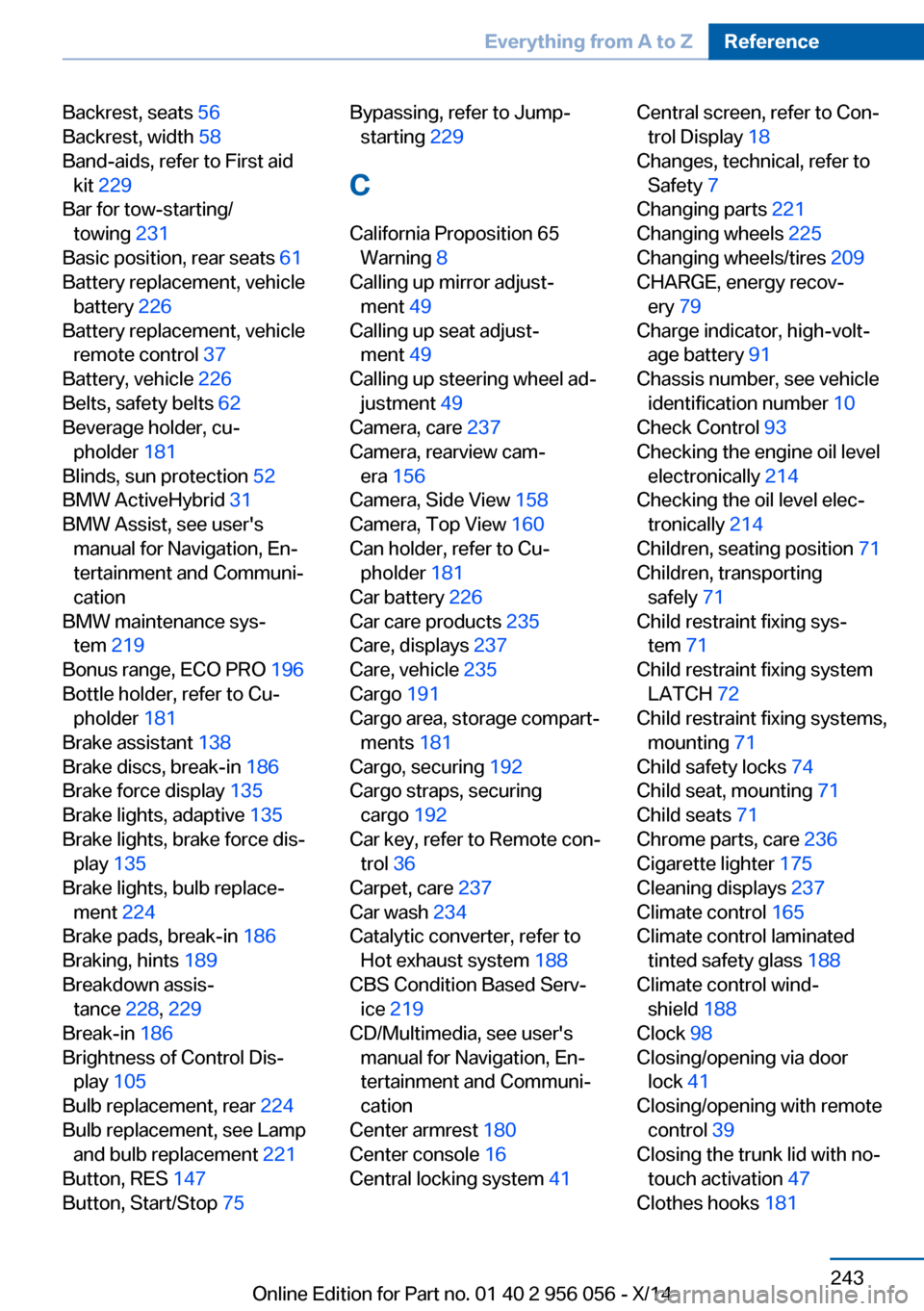

Backrest, seats 56
Backrest, width 58
Band-aids, refer to First aid kit 229
Bar for tow-starting/ towing 231
Basic position, rear seats 61
Battery replacement, vehicle battery 226
Battery replacement, vehicle remote control 37
Battery, vehicle 226
Belts, safety belts 62
Beverage holder, cu‐ pholder 181
Blinds, sun protection 52
BMW ActiveHybrid 31
BMW Assist, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
BMW maintenance sys‐ tem 219
Bonus range, ECO PRO 196
Bottle holder, refer to Cu‐ pholder 181
Brake assistant 138
Brake discs, break-in 186
Brake force display 135
Brake lights, adaptive 135
Brake lights, brake force dis‐ play 135
Brake lights, bulb replace‐ ment 224
Brake pads, break-in 186
Braking, hints 189
Breakdown assis‐ tance 228, 229
Break-in 186
Brightness of Control Dis‐ play 105
Bulb replacement, rear 224
Bulb replacement, see Lamp and bulb replacement 221
Button, RES 147
Button, Start/Stop 75 Bypassing, refer to Jump-
starting 229
C
California Proposition 65 Warning 8
Calling up mirror adjust‐ ment 49
Calling up seat adjust‐ ment 49
Calling up steering wheel ad‐ justment 49
Camera, care 237
Camera, rearview cam‐ era 156
Camera, Side View 158
Camera, Top View 160
Can holder, refer to Cu‐ pholder 181
Car battery 226
Car care products 235
Care, displays 237
Care, vehicle 235
Cargo 191
Cargo area, storage compart‐ ments 181
Cargo, securing 192
Cargo straps, securing cargo 192
Car key, refer to Remote con‐ trol 36
Carpet, care 237
Car wash 234
Catalytic converter, refer to Hot exhaust system 188
CBS Condition Based Serv‐ ice 219
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center armrest 180
Center console 16
Central locking system 41 Central screen, refer to Con‐
trol Display 18
Changes, technical, refer to Safety 7
Changing parts 221
Changing wheels 225
Changing wheels/tires 209
CHARGE, energy recov‐ ery 79
Charge indicator, high-volt‐ age battery 91
Chassis number, see vehicle identification number 10
Check Control 93
Checking the engine oil level electronically 214
Checking the oil level elec‐ tronically 214
Children, seating position 71
Children, transporting safely 71
Child restraint fixing sys‐ tem 71
Child restraint fixing system LATCH 72
Child restraint fixing systems, mounting 71
Child safety locks 74
Child seat, mounting 71
Child seats 71
Chrome parts, care 236
Cigarette lighter 175
Cleaning displays 237
Climate control 165
Climate control laminated tinted safety glass 188
Climate control wind‐ shield 188
Clock 98
Closing/opening via door lock 41
Closing/opening with remote control 39
Closing the trunk lid with no- touch activation 47
Clothes hooks 181 Seite 243Everything from A to ZReference243
Online Edition for Part no. 01 40 2 956 056 - X/14

Coasting 78
Combination reel, refer to Turn signals 83
Combination reel, refer to Wiper system 84
Combustion engine, start‐ ing 76
COMFORT+ program, Driving Dynamics Control 142
Comfort Access 45
COMFORT program, Driving Dynamics Control 142
Computer 101
Condensation on win‐ dows 166
Condensation under the vehi‐ cle 190
Condition Based Service CBS 219
Confirmation signal 49
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Contact with water, hybrid system 233
Continued driving with a flat tire 116 , 119
Control Display 18
Control Display, settings 104
Controller 18
Control systems, driving sta‐ bility 138
Convenient opening with the remote control 39
Coolant 217
Coolant level 217
Coolant temperature 97
Cooling function 167
Cooling, maximum 167
Cooling system 217
Corrosion on brake discs 190
Cosmetic mirror 175
Cruise control 151 Cruise control, active with
Stop & Go 144
Cruise Control, refer to Active Cruise Control 144
Cruising range 98
Cupholder 181
Curb weight 241
D
Damage, tires 208
Damping control, dy‐ namic 140
Data, technical 240
Date 98
Daytime running lights 108
Deactivating drive readi‐ ness 77
Defrosting, refer to Windows, defrosting 166
Dehumidifying, air 167
Deleting personal data 24
Deletion of personal data 24
Departure time, parked-car ventilation 171
Destination distance 102
Digital clock 98
Dimensions 240
Dimmable exterior mirrors 68
Dimmable interior rearview mirror 69
Direction indicator, refer to Turn signals 83
Display, electronic, instru‐ ment cluster 90
Display in windshield 105
Display lighting, refer to In‐ strument lighting 110
Displays, cleaning 237
Displays, hybrid system 91
Disposal, coolant 218
Disposal, vehicle battery 227
Distance control, refer to PDC 153
Distance to destination 102 Divided screen view, split
screen 23
Door lock 41
Door lock, refer to Remote control 36
Doors, Automatic Soft Clos‐ ing 42
DRIVE, Driving with combus‐ tion engine 79
Drive-off assistant 138
Drive-off assistant, refer to DSC 138
Driver assistance, refer to In‐ telligent Safety 120
Drive readiness in detail 76
Drive readiness states 75
Driving Assistant, refer to In‐ telligent Safety 120
Driving Dynamics Con‐ trol 140
Driving instructions, break- in 186
Driving instructions, hybrid system 186
Driving mode 140
Driving notes, general 188
Driving stability control sys‐ tems 138
Driving tips 188
Driving with combustion en‐ gine, DRIVE 79
DSC Dynamic Stability Con‐ trol 138
DTC Dynamic Traction Con‐ trol 139
Dynamic Damping Con‐ trol 140
Dynamic Stability Control DSC 138
Dynamic Traction Control DTC 139
E
eBOOST, assistance for the combustion engine 79 Seite 244ReferenceEverything from A to Z244
Online Edition for Part no. 01 40 2 956 056 - X/14

Monitor, refer to Control Dis‐play 18
Mounting of child restraint systems 71
Multifunction steering wheel, buttons 14
N Navigation, see user's manual for Navigation, Entertain‐
ment and Communication
Neck restraints, front, refer to Head restraints 63
Neck restraints, rear, refer to Head restraints 64
Neutral cleaner, see wheel cleaner 236
New wheels and tires 209
Night Vision 129
Night Vision device, see Night Vision 129
Nylon rope for tow-starting/ towing 231
O OBD Onboard Diagnosis 219
OBD, see OBD Onboard Di‐ agnosis 219
Object detection, see Night Vision 129
Obstacle marking, rearview camera 157
Octane rating, refer to Rec‐ ommended fuel grade 202
Odometer 97
Office, see user's manual for Navigation, Entertainment
and Communication
Officially use hybrid sys‐ tem 186
Oil 214
Oil, adding 215
Oil additives 215
Oil change 216 Oil change interval, service
requirements 98
Oil filler neck 215
Oil types, alternative 216
Oil types, approved 216
Old batteries, disposal 227
Onboard monitor, refer to Control Display 18
Onboard vehicle tool kit 221
Opening/closing via door lock 41
Opening and closing 36
Opening and closing, without remote control 41
Opening and closing, with re‐ mote control 39
Opening the trunk lid with no- touch activation 46, 47
Operating concept, iDrive 18
Optional equipment, standard equipment 6
Outside air, refer to Auto‐ matic recirculated-air con‐
trol 167
Overheating of engine, refer to Coolant temperature 97
P Paint, vehicle 235
Parallel parking assistant 161
Park Distance Control PDC 153
Parked-car ventilation 171
Parked vehicle, condensa‐ tion 190
Parking aid, refer to PDC 153
Parking assistant 161
Parking brake 79
Parking lights 107
Parking lights and roadside parking lights, refer to Light-
emitting diodes, LEDs 223
Parking with Automatic Hold 80 Passenger side mirror, tilting
downward 68
Pathway lines, rearview cam‐ era 156
PDC Park Distance Con‐ trol 153
Pedestrian detection, see Night Vision 129
Pedestrian warning with city braking function 127
Personal Profile 37
Personal Profile, exporting profiles 38
Pinch protection system, glass sunroof 54
Pinch protection system, win‐ dows 52
Plastic, care 236
Power failure 226
Power sunroof, glass 53
Power windows 51
Pressure, tire air pres‐ sure 204
Pressure warning FTM, tires 115
Profile, refer to Personal Pro‐ file 37
Programmable memory but‐ tons, iDrive 23
Protective function, glass sunroof 54
Protective function, win‐ dows 52
Push-and-turn reel, refer to Controller 18
R Radiator fluid 217
Radio-operated key, refer to Remote control 36
Radio ready state 75
Radio, see user's manual for Navigation, Entertainment
and Communication
Rain sensor 85 Seite 248ReferenceEverything from A to Z248
Online Edition for Part no. 01 40 2 956 056 - X/14

Slide/tilt glass roof 53
Smallest turning radius 240
Smoker's package 175
Snow chains 210
Socket 176
Socket, OBD Onboard Diag‐ nostics 219
SOS button 228
Spare fuse 227
Speaker lighting 111
Specified engine oil types 216
Speed, average 102
Speed limit detection, com‐ puter 102
Speed limiter, display 99
Speed Limit Information 99
Speed warning 103
Split screen 23
SPORT+ - program, Dynamic Driving Control 141
Sport displays, torque dis‐ play, performance dis‐
play 103
SPORT program, driving dy‐ namics 142
Sport program, transmis‐ sion 88
Stability control systems 138
Standing air conditioning, re‐ mote control 49
Start/Stop button 75
Start function during malfunc‐ tion 37
Starting the combustion en‐ gine 76
Status control display, tires 117
Status information, iDrive 22
Status of Owner's Manual 7
Steering wheel, adjusting 69
Steering wheel heating 70
Steering wheel memory 66
Steptronic Sport transmis‐ sion 88
Steptronic transmission 87 Storage compartments 179
Storage compartments, loca‐ tions 179
Storage, tires 210
Storing the vehicle 237
Summer tires, tread 208
Sun visor 175
Supplementary text mes‐ sage 96
Surround View 155
Suspension settings 140
Switch for Dynamic Driving Control 140
Switch, refer to Cockpit 14
Symbols 6
Symbols in the status field 22
SYNC program, automatic cli‐ mate control 167
T Tachometer 97
Tail and brake lights 224
Tail lights 224
Tail lights, bulb replace‐ ment 224
Technical changes, refer to Safety 7
Technical data 240
Telephone, see user's manual for Navigation, Entertain‐
ment and Communication
Temperature, automatic cli‐ mate control 166
Temperature display for ex‐ ternal temperature 97
Temperature, engine oil 97
Terminal, starting aid 230
Text message, supplemen‐ tary 96
Theft alarm system, refer to Alarm system 50
Theft protection, lug bolts 226
Thermal camera, see Night Vision 129 Thigh support 57
Tilt alarm sensor 50
Time of arrival 102
Tire damage 208
Tire identification marks 206
Tire inflation pressure 204
Tire inflation pressure moni‐ tor, refer to FTM 115
Tire Pressure Monitor TPM 117
Tires, changing 209
Tires, everything on wheels and tires 204
Tires, run-flat tires 210
Tire tread 208
Tone, see user's manual for Navigation, Entertainment
and Communication
Tool 221
Top View 159
Total vehicle weight 241
Touchpad 21
Tow fitting 232
Towing 231
Tow lug, see tow fitting 232
Tow-starting 231
TPM Tire Pressure Moni‐ tor 117
Traction control 139
TRACTION, driving dynam‐ ics 139
TRACTION program, Dy‐ namic Driving Control 141
Transmission lock, electronic unlocking 89
Transmission, see Steptronic transmission 87
Transporting children safely 71
Tread, tires 208
Trip computer 102
Triple turn signal activa‐ tion 83
Trip odometer 97
Trunk lid, automatic 43
Trunk lid closing 43 Seite 250ReferenceEverything from A to Z250
Online Edition for Part no. 01 40 2 956 056 - X/14
