fuel additives BMW ACTIVE HYBRID 7 2014 F01H Owner's Manual

FuelVehicle features and optionsThis chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.

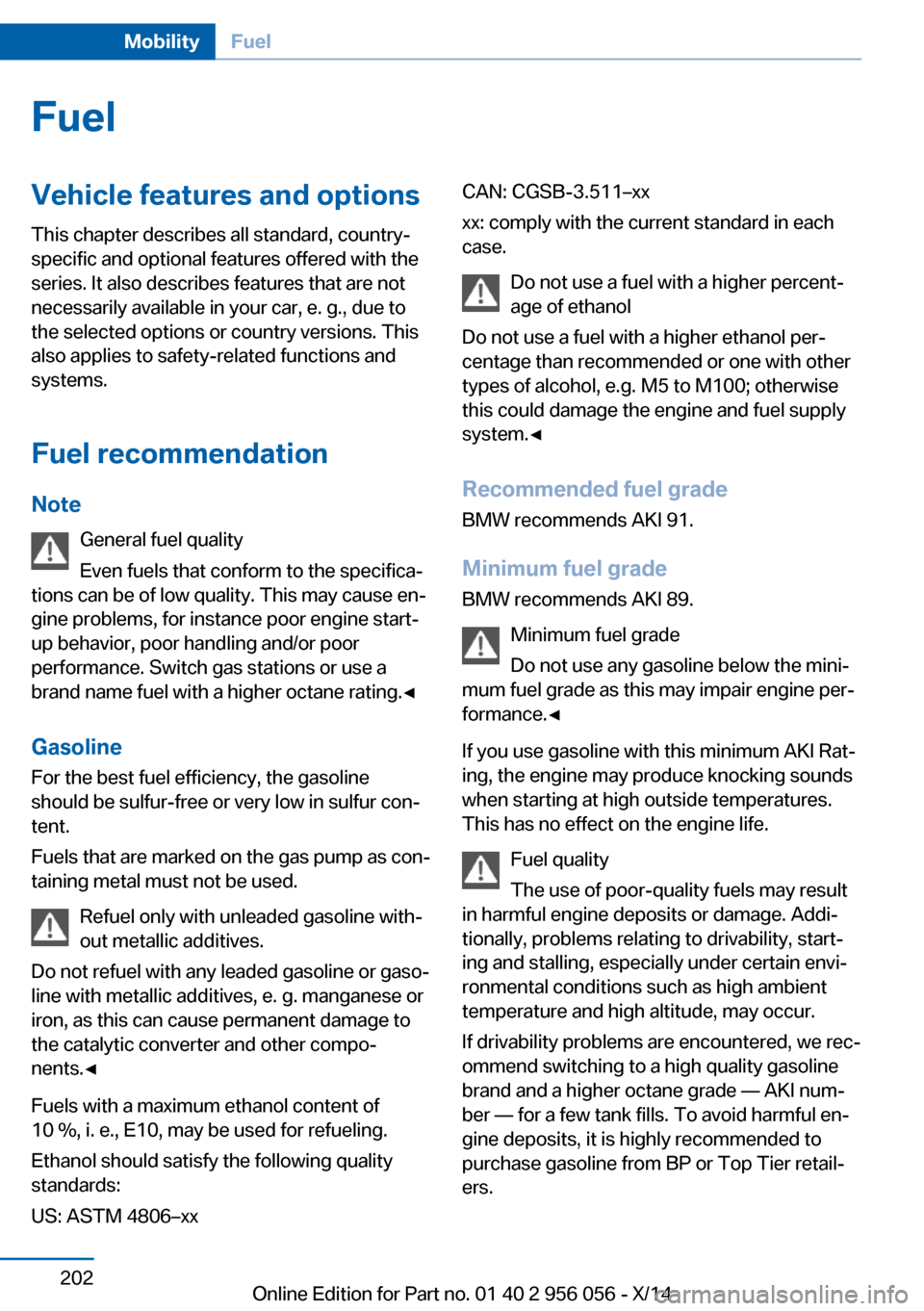

Fuel recommendation
Note General fuel quality
Even fuels that conform to the specifica‐
tions can be of low quality. This may cause en‐
gine problems, for instance poor engine start-
up behavior, poor handling and/or poor
performance. Switch gas stations or use a
brand name fuel with a higher octane rating.◀
Gasoline
For the best fuel efficiency, the gasoline
should be sulfur-free or very low in sulfur con‐
tent.
Fuels that are marked on the gas pump as con‐
taining metal must not be used.
Refuel only with unleaded gasoline with‐
out metallic additives.
Do not refuel with any leaded gasoline or gaso‐
line with metallic additives, e. g. manganese or
iron, as this can cause permanent damage to
the catalytic converter and other compo‐
nents.◀
Fuels with a maximum ethanol content of
10 %, i. e., E10, may be used for refueling.
Ethanol should satisfy the following quality
standards:
US: ASTM 4806–xxCAN: CGSB-3.511–xx
xx: comply with the current standard in each
case.
Do not use a fuel with a higher percent‐
age of ethanol
Do not use a fuel with a higher ethanol per‐
centage than recommended or one with other
types of alcohol, e.g. M5 to M100; otherwise
this could damage the engine and fuel supply
system.◀
Recommended fuel grade BMW recommends AKI 91.
Minimum fuel grade
BMW recommends AKI 89.
Minimum fuel grade
Do not use any gasoline below the mini‐
mum fuel grade as this may impair engine per‐
formance.◀
If you use gasoline with this minimum AKI Rat‐
ing, the engine may produce knocking sounds
when starting at high outside temperatures.
This has no effect on the engine life.
Fuel quality
The use of poor-quality fuels may result
in harmful engine deposits or damage. Addi‐
tionally, problems relating to drivability, start‐
ing and stalling, especially under certain envi‐
ronmental conditions such as high ambient
temperature and high altitude, may occur.
If drivability problems are encountered, we rec‐
ommend switching to a high quality gasoline
brand and a higher octane grade — AKI num‐
ber — for a few tank fills. To avoid harmful en‐
gine deposits, it is highly recommended to
purchase gasoline from BP or Top Tier retail‐
ers.Seite 202MobilityFuel202
Online Edition for Part no. 01 40 2 956 056 - X/14

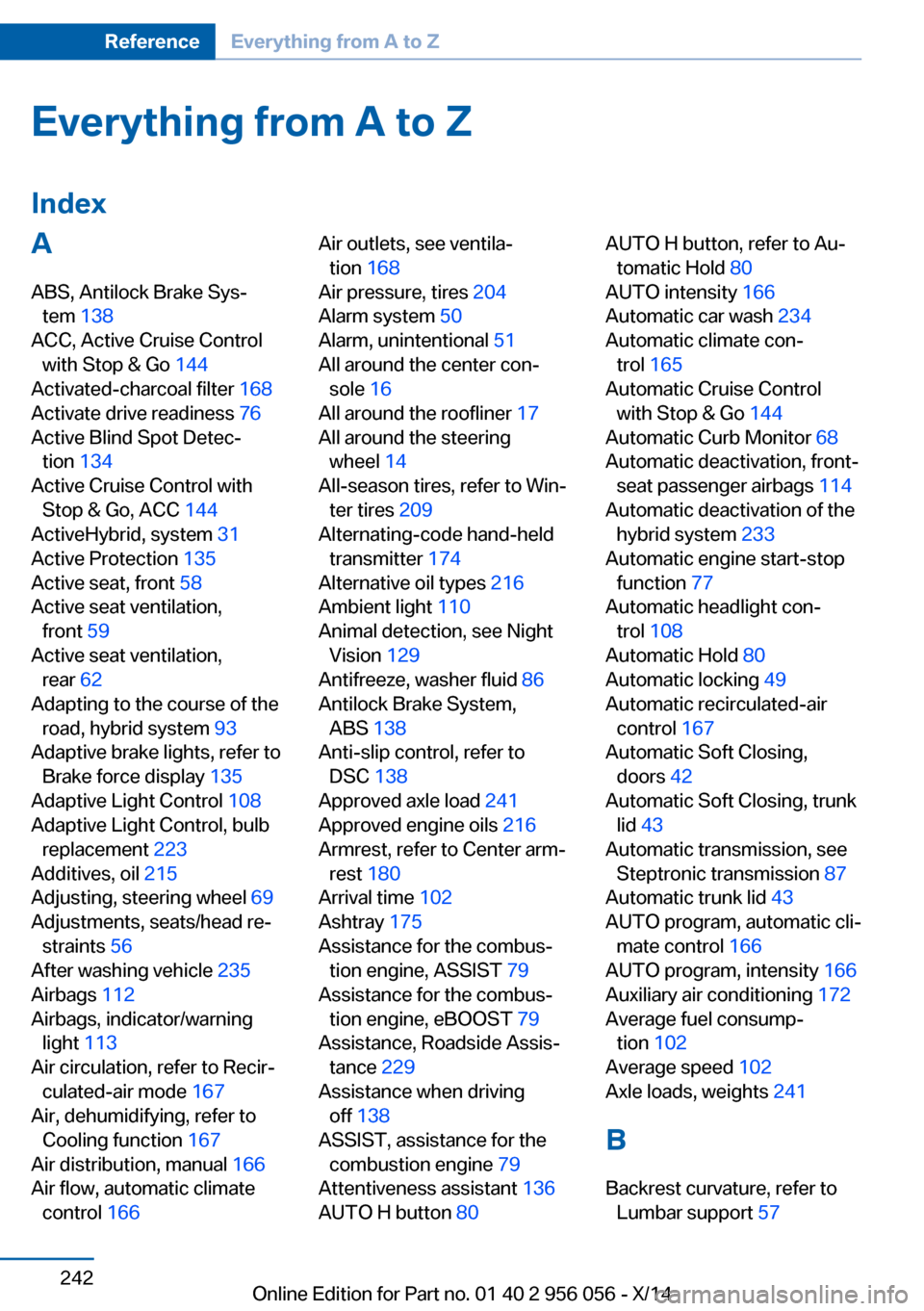

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 138
ACC, Active Cruise Control with Stop & Go 144
Activated-charcoal filter 168
Activate drive readiness 76
Active Blind Spot Detec‐ tion 134
Active Cruise Control with Stop & Go, ACC 144
ActiveHybrid, system 31
Active Protection 135
Active seat, front 58
Active seat ventilation, front 59
Active seat ventilation, rear 62
Adapting to the course of the road, hybrid system 93
Adaptive brake lights, refer to Brake force display 135
Adaptive Light Control 108
Adaptive Light Control, bulb replacement 223
Additives, oil 215
Adjusting, steering wheel 69
Adjustments, seats/head re‐ straints 56
After washing vehicle 235
Airbags 112
Airbags, indicator/warning light 113
Air circulation, refer to Recir‐ culated-air mode 167
Air, dehumidifying, refer to Cooling function 167
Air distribution, manual 166
Air flow, automatic climate control 166 Air outlets, see ventila‐
tion 168
Air pressure, tires 204
Alarm system 50
Alarm, unintentional 51
All around the center con‐ sole 16
All around the roofliner 17
All around the steering wheel 14
All-season tires, refer to Win‐ ter tires 209
Alternating-code hand-held transmitter 174
Alternative oil types 216
Ambient light 110
Animal detection, see Night Vision 129
Antifreeze, washer fluid 86
Antilock Brake System, ABS 138
Anti-slip control, refer to DSC 138
Approved axle load 241
Approved engine oils 216
Armrest, refer to Center arm‐ rest 180
Arrival time 102
Ashtray 175
Assistance for the combus‐ tion engine, ASSIST 79
Assistance for the combus‐ tion engine, eBOOST 79
Assistance, Roadside Assis‐ tance 229
Assistance when driving off 138
ASSIST, assistance for the combustion engine 79
Attentiveness assistant 136
AUTO H button 80 AUTO H button, refer to Au‐
tomatic Hold 80
AUTO intensity 166
Automatic car wash 234
Automatic climate con‐ trol 165
Automatic Cruise Control with Stop & Go 144
Automatic Curb Monitor 68
Automatic deactivation, front- seat passenger airbags 114
Automatic deactivation of the hybrid system 233
Automatic engine start-stop function 77
Automatic headlight con‐ trol 108
Automatic Hold 80
Automatic locking 49
Automatic recirculated-air control 167
Automatic Soft Closing, doors 42
Automatic Soft Closing, trunk lid 43
Automatic transmission, see Steptronic transmission 87
Automatic trunk lid 43
AUTO program, automatic cli‐ mate control 166
AUTO program, intensity 166
Auxiliary air conditioning 172
Average fuel consump‐ tion 102
Average speed 102
Axle loads, weights 241
B Backrest curvature, refer to Lumbar support 57 Seite 242ReferenceEverything from A to Z242
Online Edition for Part no. 01 40 2 956 056 - X/14

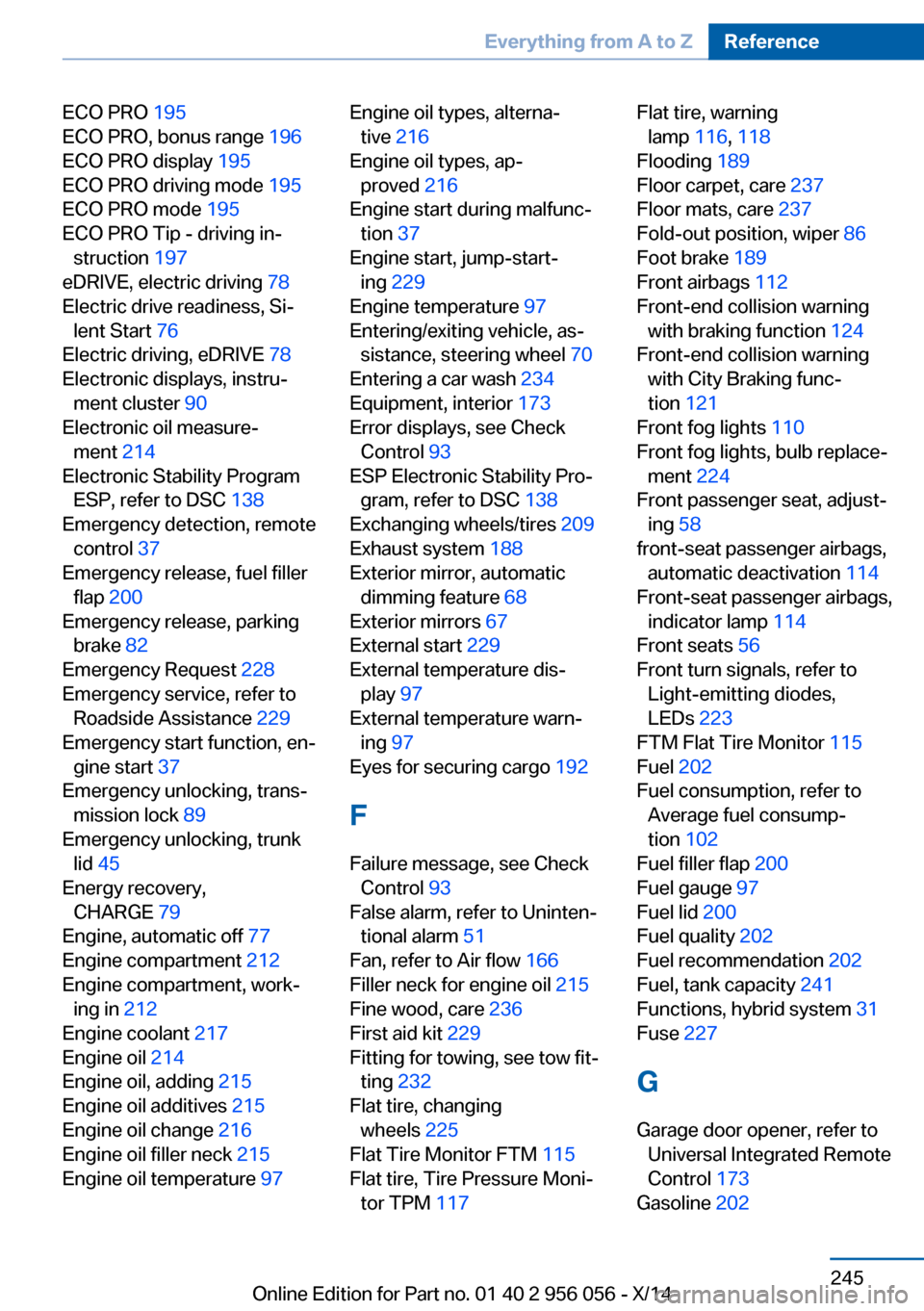

ECO PRO 195
ECO PRO, bonus range 196
ECO PRO display 195
ECO PRO driving mode 195
ECO PRO mode 195
ECO PRO Tip - driving in‐ struction 197
eDRIVE, electric driving 78
Electric drive readiness, Si‐ lent Start 76
Electric driving, eDRIVE 78
Electronic displays, instru‐ ment cluster 90
Electronic oil measure‐ ment 214
Electronic Stability Program ESP, refer to DSC 138
Emergency detection, remote control 37
Emergency release, fuel filler flap 200
Emergency release, parking brake 82
Emergency Request 228
Emergency service, refer to Roadside Assistance 229
Emergency start function, en‐ gine start 37
Emergency unlocking, trans‐ mission lock 89
Emergency unlocking, trunk lid 45
Energy recovery, CHARGE 79
Engine, automatic off 77
Engine compartment 212
Engine compartment, work‐ ing in 212
Engine coolant 217
Engine oil 214
Engine oil, adding 215
Engine oil additives 215
Engine oil change 216
Engine oil filler neck 215
Engine oil temperature 97 Engine oil types, alterna‐
tive 216
Engine oil types, ap‐ proved 216
Engine start during malfunc‐ tion 37
Engine start, jump-start‐ ing 229
Engine temperature 97
Entering/exiting vehicle, as‐ sistance, steering wheel 70
Entering a car wash 234
Equipment, interior 173
Error displays, see Check Control 93
ESP Electronic Stability Pro‐ gram, refer to DSC 138
Exchanging wheels/tires 209
Exhaust system 188
Exterior mirror, automatic dimming feature 68
Exterior mirrors 67
External start 229
External temperature dis‐ play 97
External temperature warn‐ ing 97
Eyes for securing cargo 192
F
Failure message, see Check Control 93
False alarm, refer to Uninten‐ tional alarm 51
Fan, refer to Air flow 166
Filler neck for engine oil 215
Fine wood, care 236
First aid kit 229
Fitting for towing, see tow fit‐ ting 232
Flat tire, changing wheels 225
Flat Tire Monitor FTM 115
Flat tire, Tire Pressure Moni‐ tor TPM 117 Flat tire, warning
lamp 116, 118
Flooding 189
Floor carpet, care 237
Floor mats, care 237
Fold-out position, wiper 86
Foot brake 189
Front airbags 112
Front-end collision warning with braking function 124
Front-end collision warning with City Braking func‐
tion 121
Front fog lights 110
Front fog lights, bulb replace‐ ment 224
Front passenger seat, adjust‐ ing 58
front-seat passenger airbags, automatic deactivation 114
Front-seat passenger airbags, indicator lamp 114
Front seats 56
Front turn signals, refer to Light-emitting diodes,
LEDs 223
FTM Flat Tire Monitor 115
Fuel 202
Fuel consumption, refer to Average fuel consump‐
tion 102
Fuel filler flap 200
Fuel gauge 97
Fuel lid 200
Fuel quality 202
Fuel recommendation 202
Fuel, tank capacity 241
Functions, hybrid system 31
Fuse 227
G
Garage door opener, refer to Universal Integrated Remote
Control 173
Gasoline 202 Seite 245Everything from A to ZReference245
Online Edition for Part no. 01 40 2 956 056 - X/14

Monitor, refer to Control Dis‐play 18
Mounting of child restraint systems 71
Multifunction steering wheel, buttons 14
N Navigation, see user's manual for Navigation, Entertain‐
ment and Communication
Neck restraints, front, refer to Head restraints 63
Neck restraints, rear, refer to Head restraints 64
Neutral cleaner, see wheel cleaner 236
New wheels and tires 209
Night Vision 129
Night Vision device, see Night Vision 129
Nylon rope for tow-starting/ towing 231
O OBD Onboard Diagnosis 219
OBD, see OBD Onboard Di‐ agnosis 219
Object detection, see Night Vision 129
Obstacle marking, rearview camera 157
Octane rating, refer to Rec‐ ommended fuel grade 202
Odometer 97
Office, see user's manual for Navigation, Entertainment
and Communication
Officially use hybrid sys‐ tem 186
Oil 214
Oil, adding 215
Oil additives 215
Oil change 216 Oil change interval, service
requirements 98
Oil filler neck 215
Oil types, alternative 216
Oil types, approved 216
Old batteries, disposal 227
Onboard monitor, refer to Control Display 18
Onboard vehicle tool kit 221
Opening/closing via door lock 41
Opening and closing 36
Opening and closing, without remote control 41
Opening and closing, with re‐ mote control 39
Opening the trunk lid with no- touch activation 46, 47
Operating concept, iDrive 18
Optional equipment, standard equipment 6
Outside air, refer to Auto‐ matic recirculated-air con‐
trol 167
Overheating of engine, refer to Coolant temperature 97
P Paint, vehicle 235
Parallel parking assistant 161
Park Distance Control PDC 153
Parked-car ventilation 171
Parked vehicle, condensa‐ tion 190
Parking aid, refer to PDC 153
Parking assistant 161
Parking brake 79
Parking lights 107
Parking lights and roadside parking lights, refer to Light-
emitting diodes, LEDs 223
Parking with Automatic Hold 80 Passenger side mirror, tilting
downward 68
Pathway lines, rearview cam‐ era 156
PDC Park Distance Con‐ trol 153
Pedestrian detection, see Night Vision 129
Pedestrian warning with city braking function 127
Personal Profile 37
Personal Profile, exporting profiles 38
Pinch protection system, glass sunroof 54
Pinch protection system, win‐ dows 52
Plastic, care 236
Power failure 226
Power sunroof, glass 53
Power windows 51
Pressure, tire air pres‐ sure 204
Pressure warning FTM, tires 115
Profile, refer to Personal Pro‐ file 37
Programmable memory but‐ tons, iDrive 23
Protective function, glass sunroof 54
Protective function, win‐ dows 52
Push-and-turn reel, refer to Controller 18
R Radiator fluid 217
Radio-operated key, refer to Remote control 36
Radio ready state 75
Radio, see user's manual for Navigation, Entertainment
and Communication
Rain sensor 85 Seite 248ReferenceEverything from A to Z248
Online Edition for Part no. 01 40 2 956 056 - X/14
