BMW ACTIVEHYBRID X6 2010 Service Manual

Reference
At a glance
Controls
Driving tips
Mobility
39

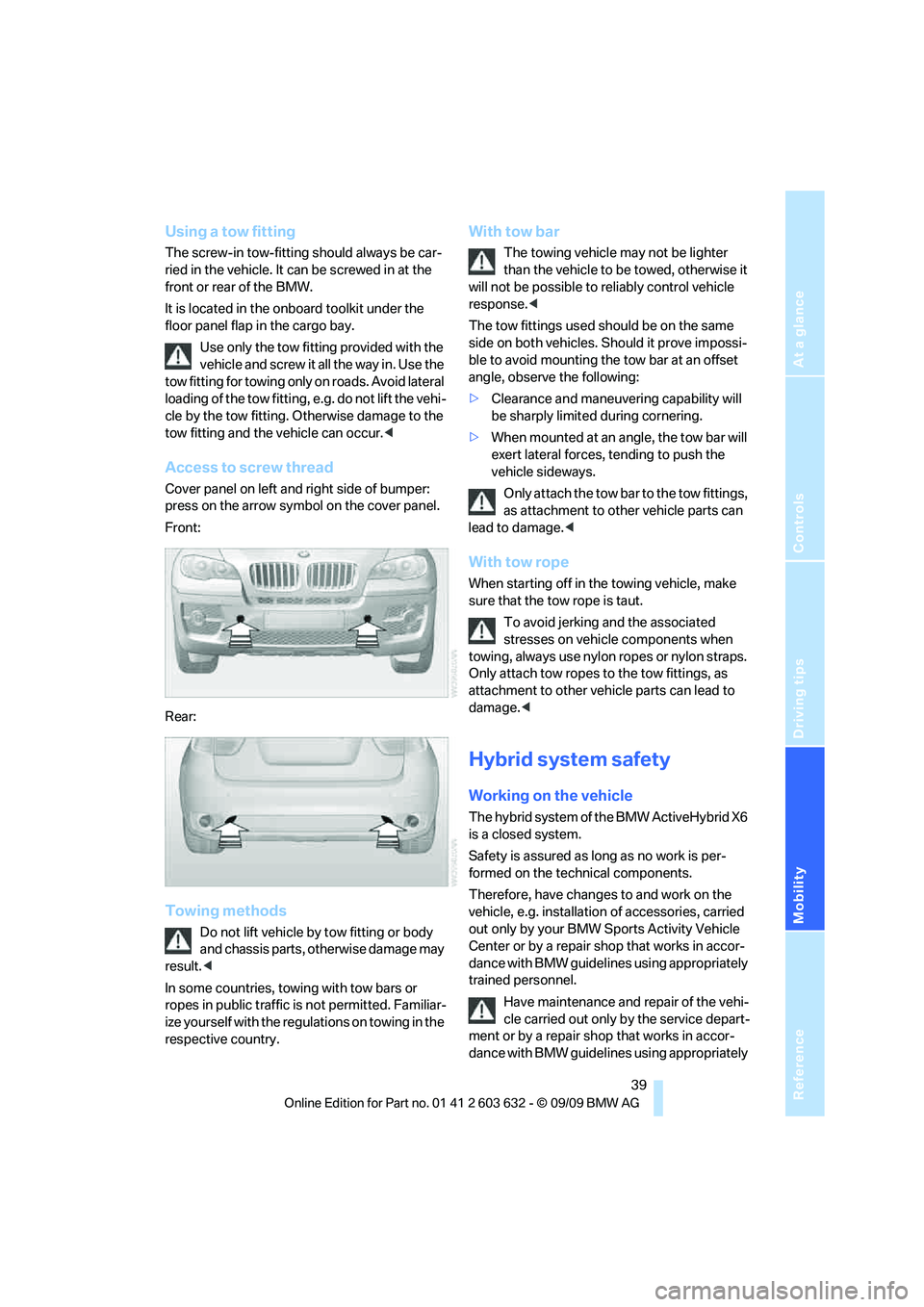

Using a tow fitting
The screw-in tow-fitting should always be car-
ried in the vehicle. It can be screwed in at the
front or rear of the BMW.
It is located in the onboard toolkit under the
floor panel flap in the cargo bay.
Use only the tow fitting provided with the
vehicle and screw it all the way in. Use the
tow fitting for towing only on roads. Avoid lateral
loading of the tow fitting, e.g. do not lift the vehi-
cle by the tow fitting. Otherwise damage to the
tow fitting and the vehicle can occur.<
Access to screw thread
Cover panel on left and right side of bumper:
press on the arrow symbol on the cover panel.
Front:
Rear:
Towing methods
Do not lift vehicle by tow fitting or body
and chassis parts, otherwise damage may
result.<
In some countries, towing with tow bars or
ropes in public traffic is not permitted. Familiar-
ize yourself with the regulations on towing in the
respective country.
With tow bar
The towing vehicle may not be lighter
than the vehicle to be towed, otherwise it
will not be possible to reliably control vehicle
response.<
The tow fittings used should be on the same
side on both vehicles. Should it prove impossi-
ble to avoid mounting the tow bar at an offset
angle, observe the following:
>Clearance and maneuvering capability will
be sharply limited during cornering.
>When mounted at an angle, the tow bar will
exert lateral forces, tending to push the
vehicle sideways.
Only attach the tow bar to the tow fittings,
as attachment to other vehicle parts can
lead to damage.<
With tow rope
When starting off in the towing vehicle, make
sure that the tow rope is taut.
To avoid jerking and the associated
stresses on vehicle components when
towing, always use nylon ropes or nylon straps.
Only attach tow ropes to the tow fittings, as
attachment to other vehicle parts can lead to
damage.<
Hybrid system safety
Working on the vehicle
The hybrid system of the BMW ActiveHybrid X6
is a closed system.
Safety is assured as long as no work is per-
formed on the technical components.
Therefore, have changes to and work on the
vehicle, e.g. installation of accessories, carried
out only by your BMW Sports Activity Vehicle
Center or by a repair shop that works in accor-
dance with BMW guidelines using appropriately
trained personnel.
Have maintenance and repair of the vehi-
cle carried out only by the service depart-
ment or by a repair shop that works in accor-
dance with BMW guidelines using appropriately

Giving and receiving assistance
40 trained personnel. Otherwise, there is the risk of
life-threatening injury by electrocution due to
the high voltage of the hybrid system.<
Hybrid system: Contact with water
The hybrid system is generally safe, even in the
following sample situations:
>Water in the footwell, e.g. when rain show-
ers occur with an open glass roof.
>The vehicle is in water, e.g. in a flood.
>Fluid escapes in the cargo bay.
In these cases, there is no danger of being
injured by electrocution. Other types of damage
to the vehicle are possible.
Hybrid system: Automatic deactivation
In the event of an accident, the hybrid system is
switched off automatically in order to protect
passengers and other road users from injury.
The high-voltage system is automatically
switched off in the following sample situations:
>Sensors of the airbag system detect an
accident
>Obstacles on the road damage the under-
body and high-voltage cables
After an accident, do not touch any
exposed high-voltage components. Oth-
erwise, there is the risk of life-threatening injury
by electrocution due to the high voltage of the
hybrid system.<
Also follow the instructions for what to do after
an accident.
What to do after an accident
If you should get into an accident with your
vehicle, the following safety precautions must
be taken with regard to the hybrid system:
>Secure the accident site.
>Immediately inform the paramedics, police,
o r f ir e d e p a r t m e n t o f t h e f a c t t h a t i t i s a v e h i-
cle equipped with a hybrid system.>Move the selector lever into position P, set
the parking brake, and switch off drive
readiness.
>Do not touch any orange high-voltage
cables and connectors or high-voltage
components. Otherwise, there is the risk of
life-threatening injury by electrocution.
>Do not inhale gases emanating from the
high-voltage battery. Stay away from the
vehicle if necessary.
>Contact a service center in order to ascer-
tain the damage.

Reference
At a glance
Controls
Driving tips
Mobility
41

Reference
This chapter contains technical data and the
index that is the fastest way to find the
information you are looking for.
Reference

Technical data
44
Technical data
Drive system
Combustion engine
Hybrid system
Simultaneous operation of combustion engine
and electric motors.
High-voltage battery
BMW ActiveHybrid X6
Displacement cu in/cmμ268.2/4,395
No. of cylinders8
Maximum output hp 400
at engine speed rpm 5,500-6,400
Maximum torque lb ft/Nm 450/610
at engine speed rpm 1,750-4,500
BMW ActiveHybrid X6
Maximum output hp 480
Maximum torque lb ft/Nm 575/780
BMW ActiveHybrid X6
TypeNiMH
Output kW 57

Reference
At a glance
Controls
Driving tips
Mobility
45

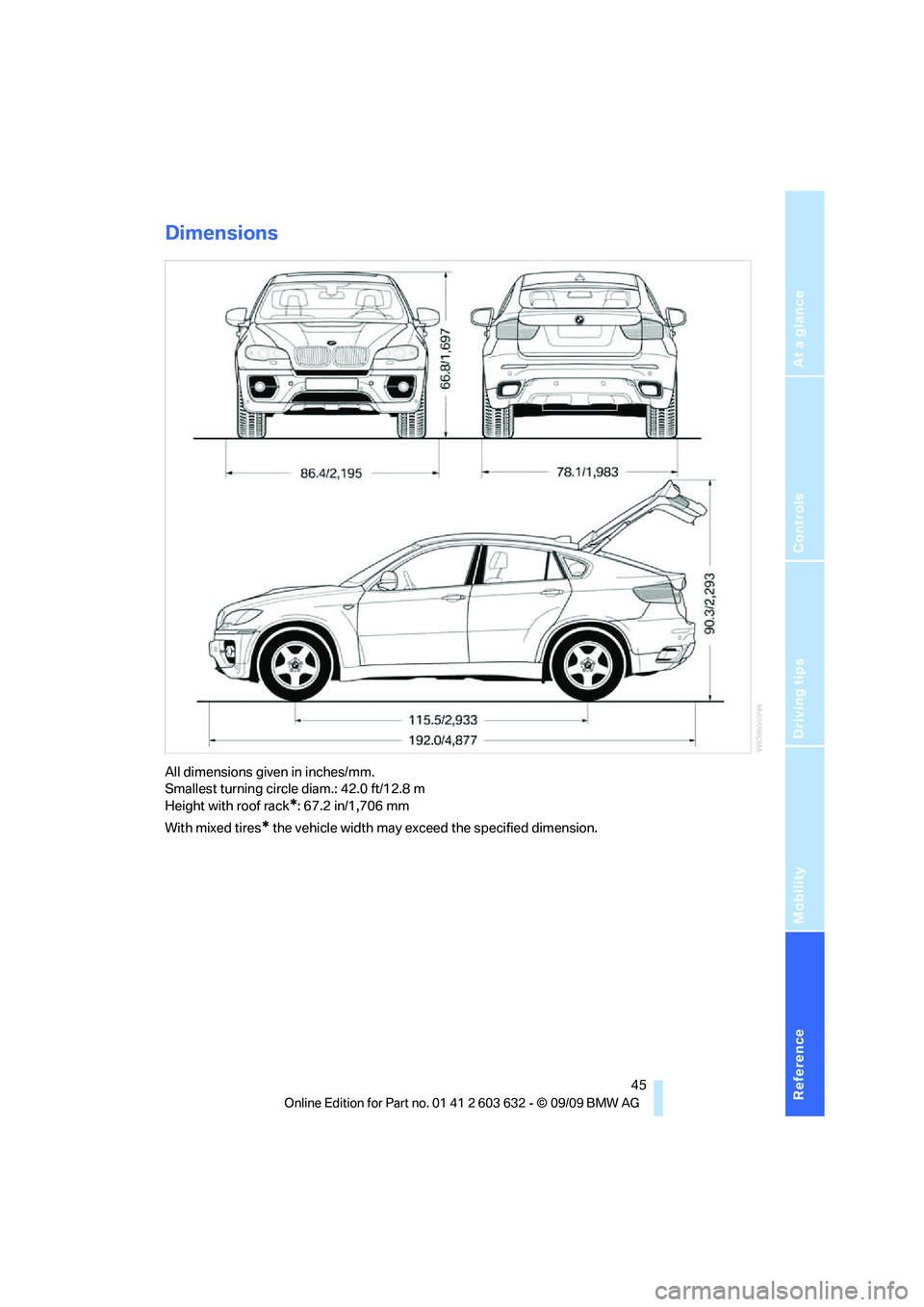

Dimensions
All dimensions given in inches/mm.
Smallest turning circle diam.: 42.0 ft/12.8 m
Height with roof rack
*: 67.2 in/1,706 mm
With mixed tires
* the vehicle width may exceed the specified dimension.

Technical data
46

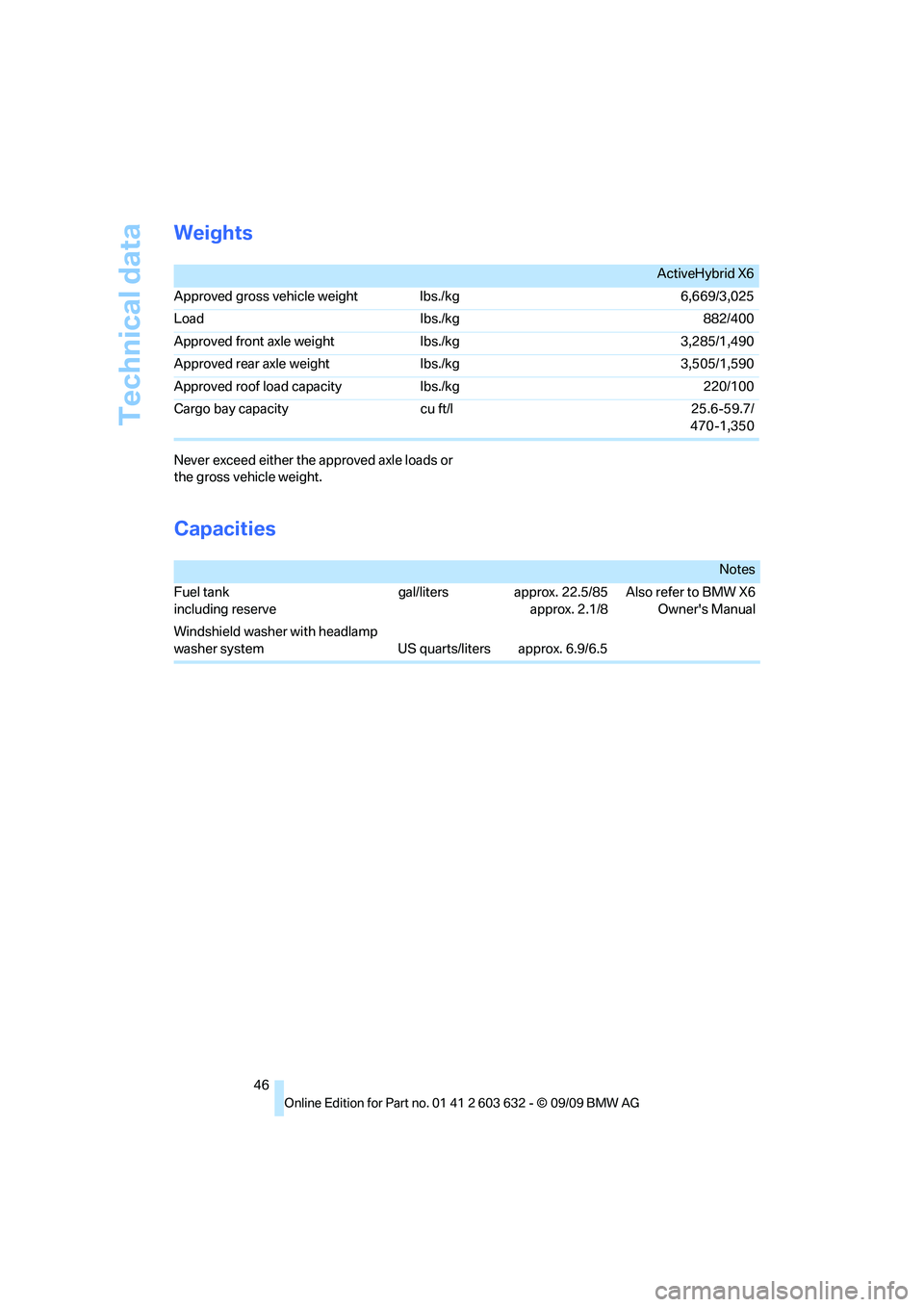

Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
ActiveHybrid X6
Approved gross vehicle weight Ibs./kg 6,669/3,025
Load Ibs./kg 882/400
Approved front axle weight Ibs./kg 3,285/1,490
Approved rear axle weight Ibs./kg 3,505/1,590
Approved roof load capacity Ibs./kg 220/100
Cargo bay capacity cu ft/l 25.6-59.7/
470-1,350
Notes
Fuel tank
including reservegal/liters approx. 22.5/85
approx. 2.1/8Also refer to BMW X6
Owner's Manual
Windshield washer with headlamp
washer system US quarts/liters approx. 6.9/6.5

Reference
At a glance
Controls
Driving tips
Mobility
47

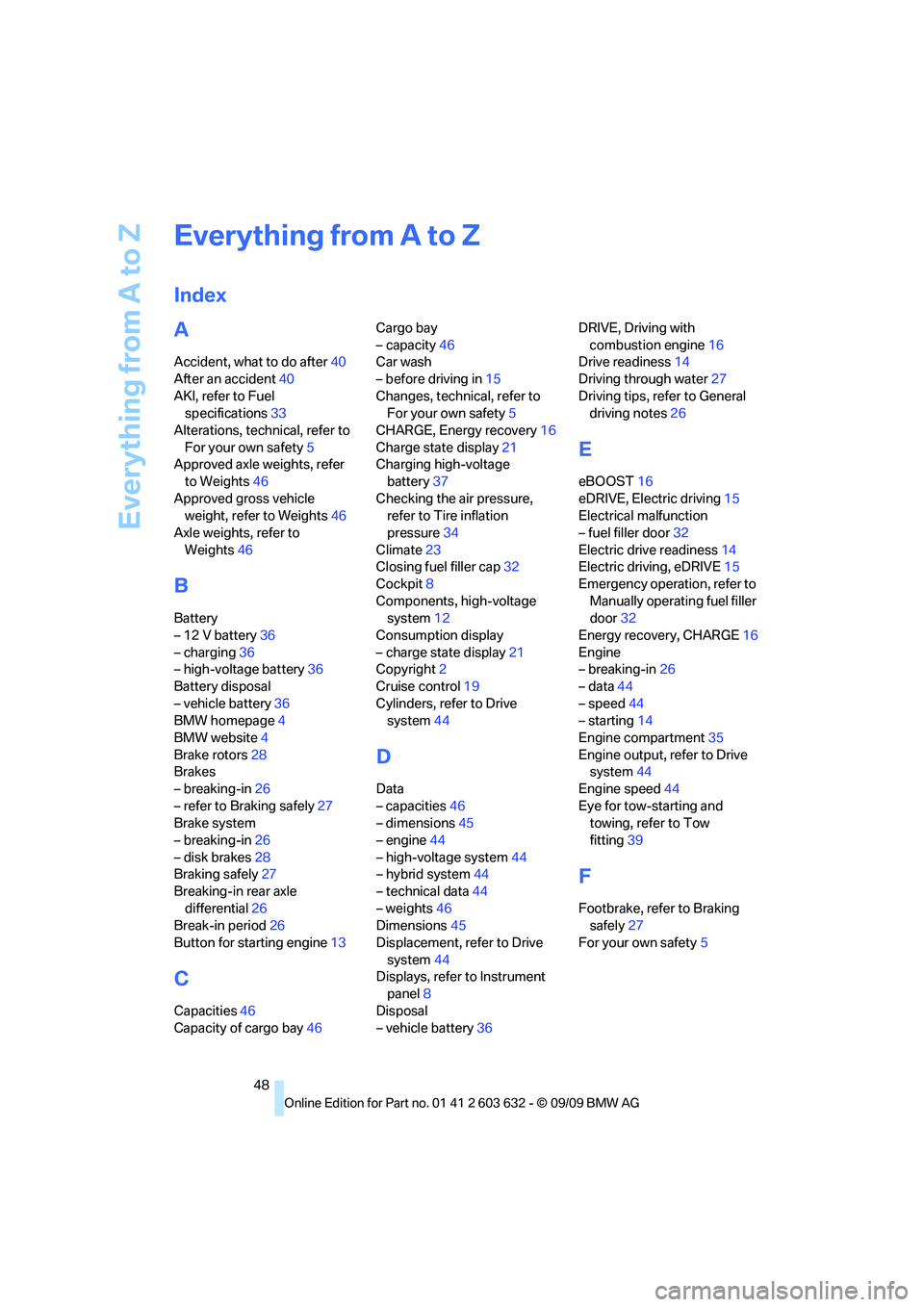

Everything from A to Z
48
Everything from A to Z
Index
A
Accident, what to do after40
After an accident40
AKI, refer to Fuel
specifications33
Alterations, technical, refer to
For your own safety5
Approved axle weights, refer
to Weights46
Approved gross vehicle
weight, refer to Weights46
Axle weights, refer to
Weights46
B
Battery
– 12 V battery36
– charging36
– high-voltage battery36
Battery disposal
– vehicle battery36
BMW homepage4
BMW website4
Brake rotors28
Brakes
– breaking-in26
– refer to Braking safely27
Brake system
– breaking-in26
– disk brakes28
Braking safely27
Breaking-in rear axle
differential26
Break-in period26
Button for starting engine13
C
Capacities46
Capacity of cargo bay46Cargo bay
– capacity46
Car wash
– before driving in15
Changes, technical, refer to
For your own safety5
CHARGE, Energy recovery16
Charge state display21
Charging high-voltage
battery37
Checking the air pressure,
refer to Tire inflation
pressure34
Climate23
Closing fuel filler cap32
Cockpit8
Components, high-voltage
system12
Consumption display
– charge state display21
Copyright2
Cruise control19
Cylinders, refer to Drive
system44
D
Data
– capacities46
– dimensions45
– engine44
– high-voltage system44
– hybrid system44
– technical data44
– weights46
Dimensions45
Displacement, refer to Drive
system44
Displays, refer to Instrument
panel8
Disposal
– vehicle battery36DRIVE, Driving with
combustion engine16
Drive readiness14
Driving through water27
Driving tips, refer to General
driving notes26
E
eBOOST16
eDRIVE, Electric driving15
Electrical malfunction
– fuel filler door32
Electric drive readiness14
Electric driving, eDRIVE15
Emergency operation, refer to
Manually operating fuel filler
door32
Energy recovery, CHARGE16
Engine
– breaking-in26
– data44
– speed44
– starting14
Engine compartment35
Engine output, refer to Drive
system44
Engine speed44
Eye for tow-starting and
towing, refer to Tow
fitting39
F
Footbrake, refer to Braking
safely27
For your own safety5
