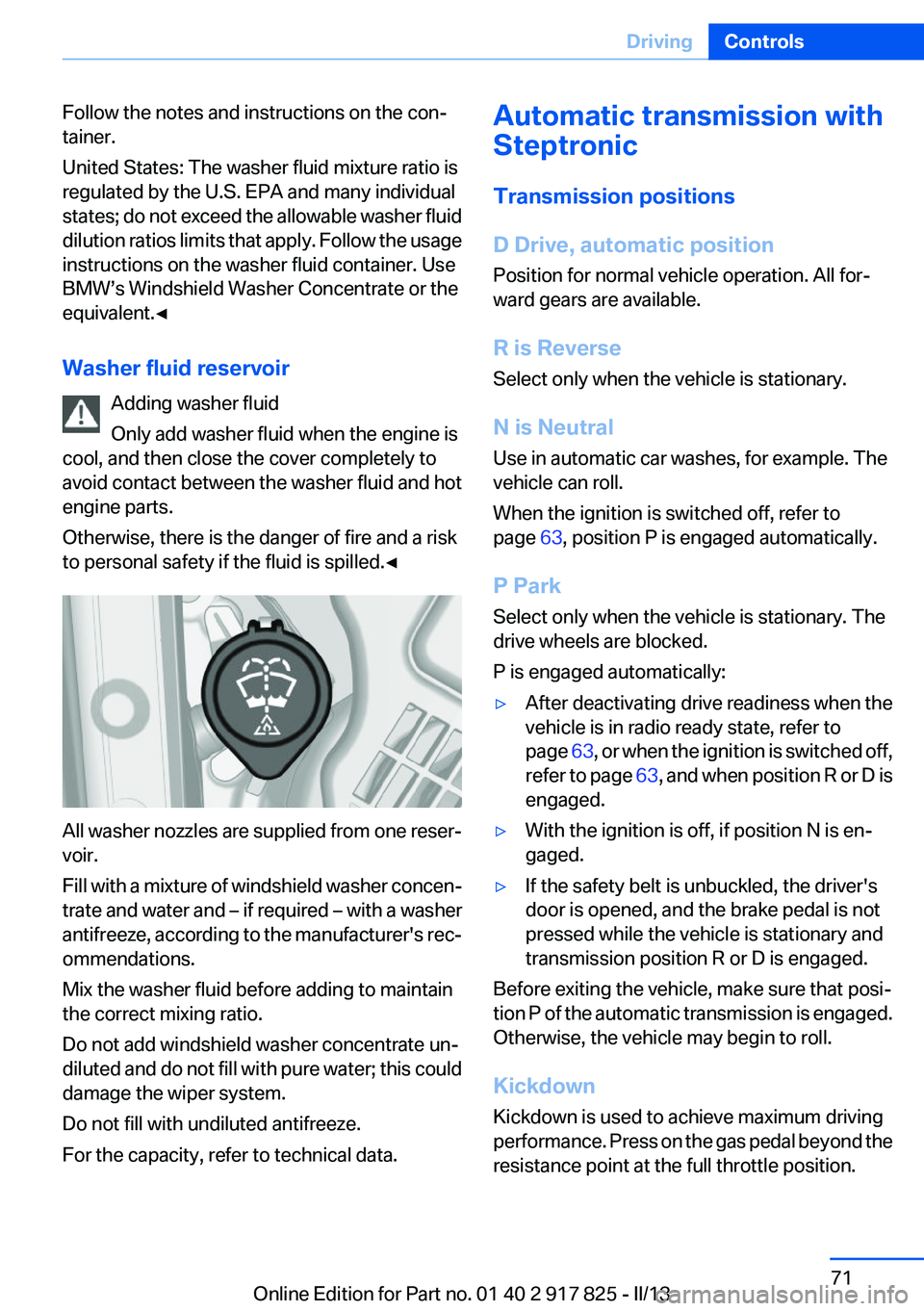

Page 71 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF Follow the notes and instructions on the con‐
tainer.
United States: The washer fluid mixture ratio is
regulated by the U.S. EPA and many individual
states; do not exceed the allowable washer fluid

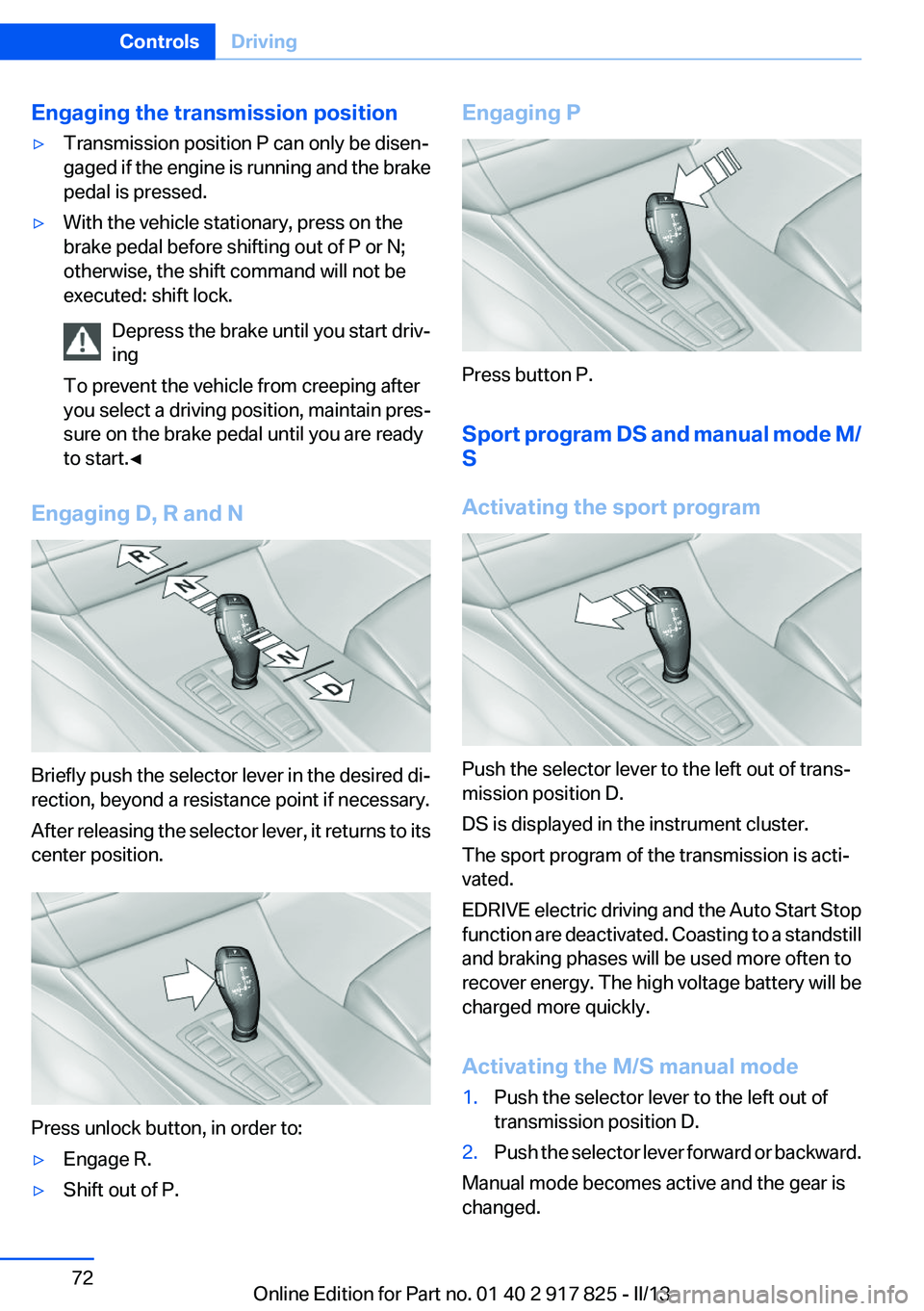

Page 72 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF Engaging the transmission position▷Transmission position P can only be disen‐
gaged if the engine is running and the brake
pedal is pressed.▷With the vehicle stationary, press on the
brake pedal

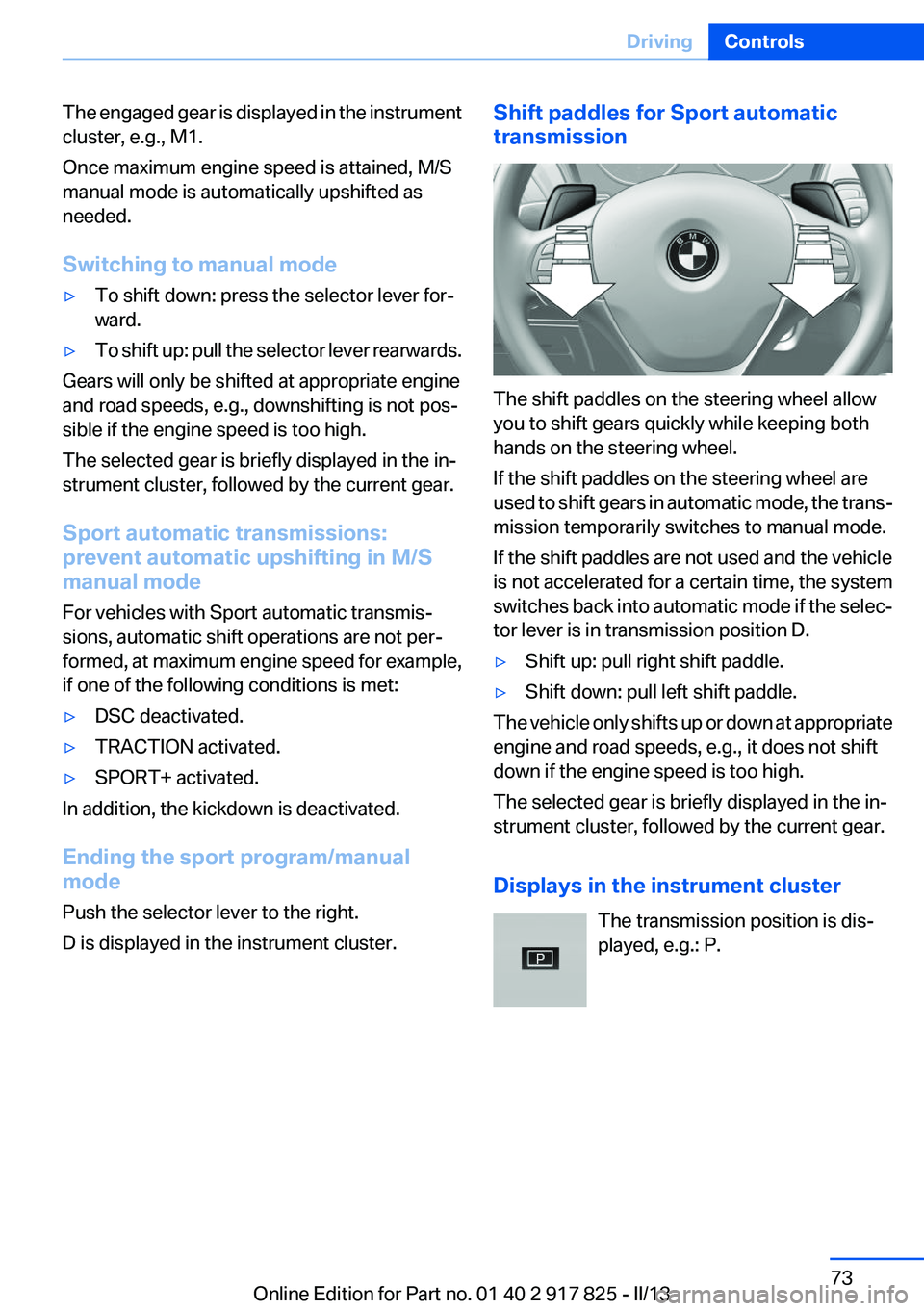

Page 73 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF The engaged gear is displayed in the instrument
cluster, e.g., M1.
Once maximum engine speed is attained, M/S
manual mode is automatically upshifted as
needed.
Switching to manual mode▷To shift down

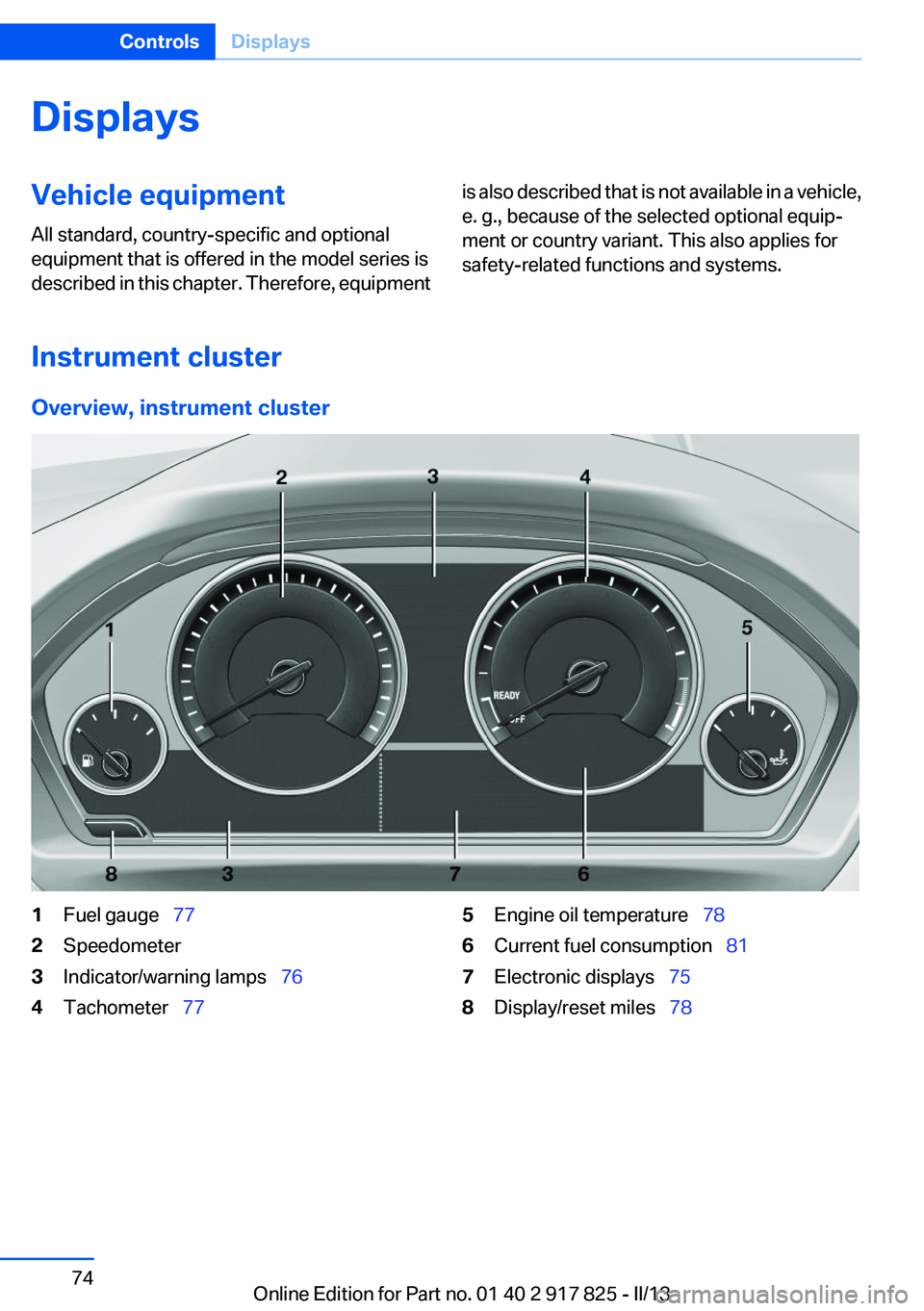

Page 74 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF DisplaysVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipmentis also described that is not avai

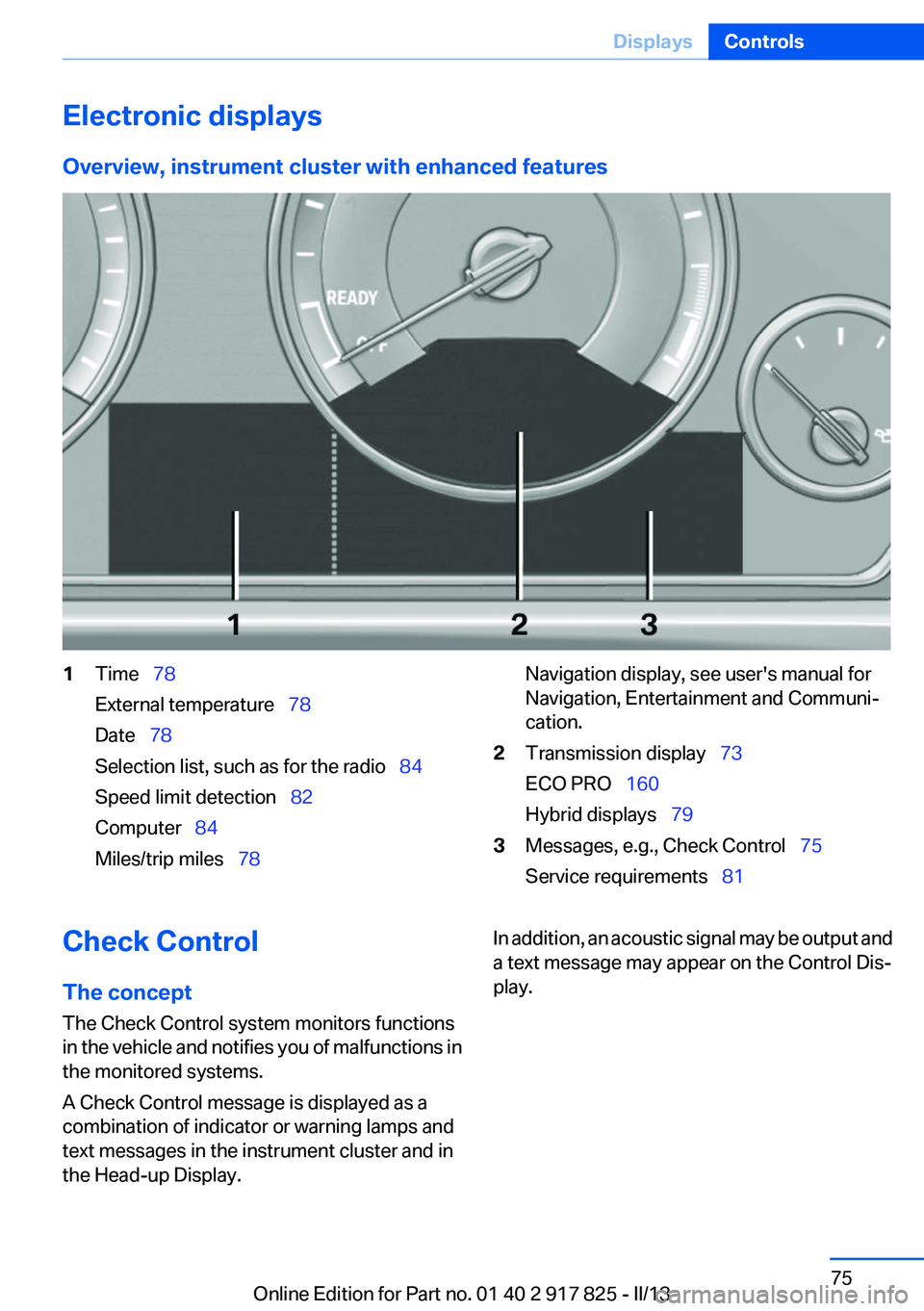

Page 75 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF Electronic displays
Overview, instrument cluster with enhanced features1Time   78
External temperature   78
Date   78
Selection list, such as for the radio   84
Speed limit detection

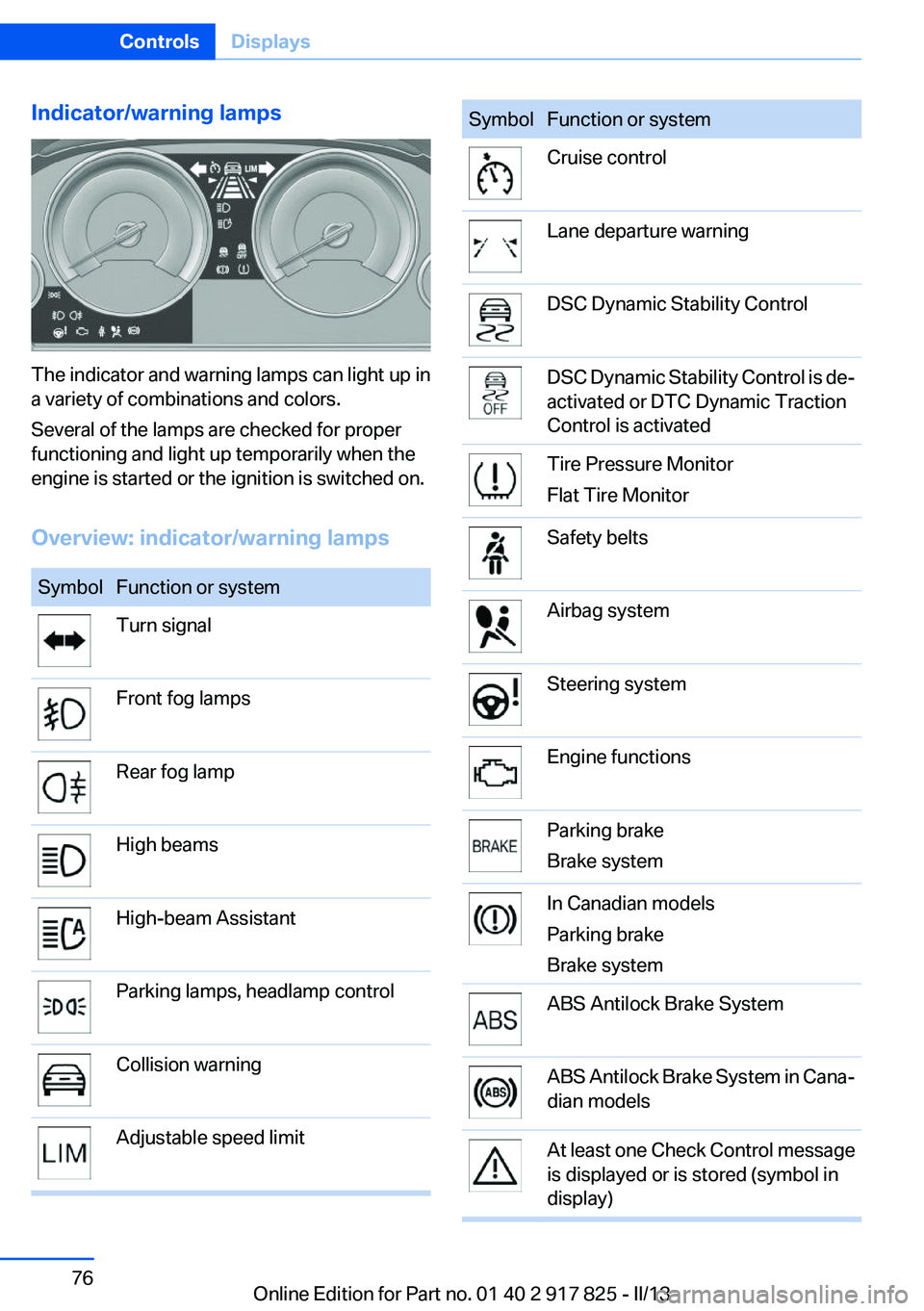

Page 76 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF Indicator/warning lamps
The indicator and warning lamps can light up in
a variety of combinations and colors.
Several of the lamps are checked for proper
functioning and light up temporarily when the

Page 77 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF Text messages
Text messages in combination with a symbol in
the instrument cluster explain a Check Control
message and the meaning of the indicator and
warning lamps.
Supplementary text messages
Addit

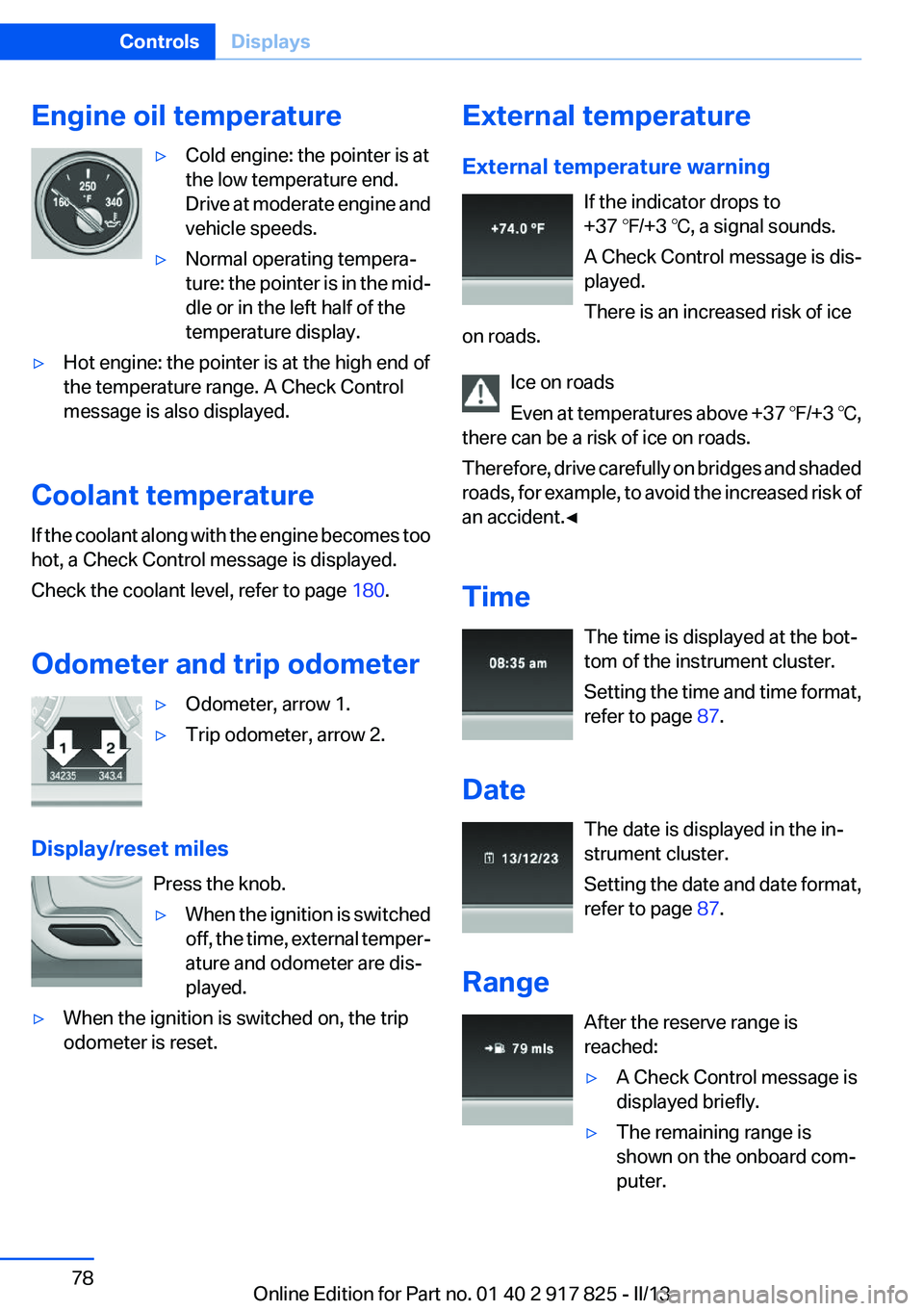

Page 78 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF Engine oil temperature▷Cold engine: the pointer is at
the low temperature end.
Drive at moderate engine and
vehicle speeds.▷Normal operating tempera‐
ture: the pointer is in the mid‐
dle or in

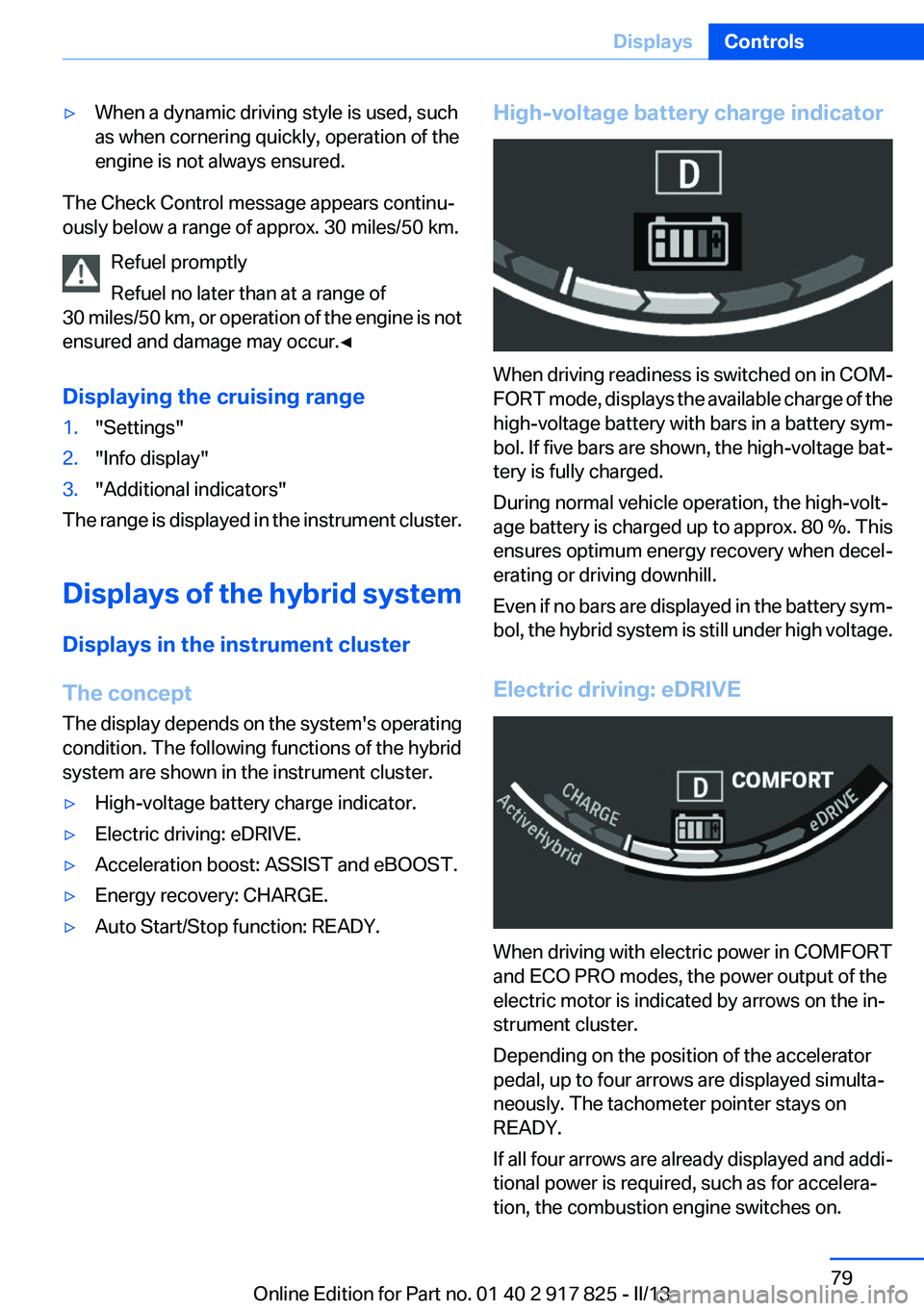

Page 79 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF ▷When a dynamic driving style is used, such
as when cornering quickly, operation of the
engine is not always ensured.
The Check Control message appears continu‐
ously below a range of approx. 30 m

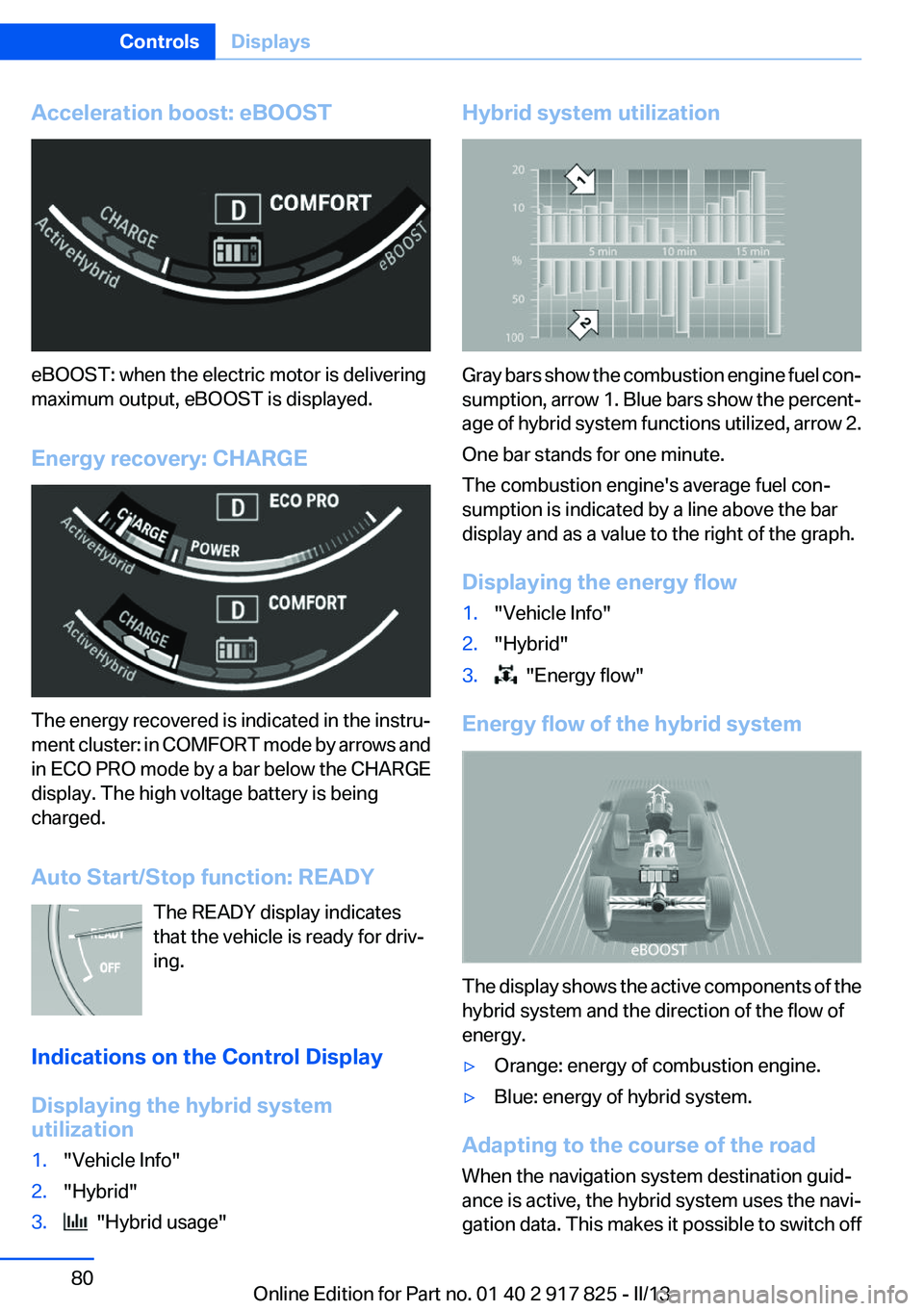

Page 80 of 220

BMW ACTIVEHYBRID3 2013 Manual PDF Acceleration boost: eBOOST
eBOOST: when the electric motor is delivering
maximum output, eBOOST is displayed.
Energy recovery: CHARGE
The energy recovered is indicated in the instru‐
ment cluster: i
