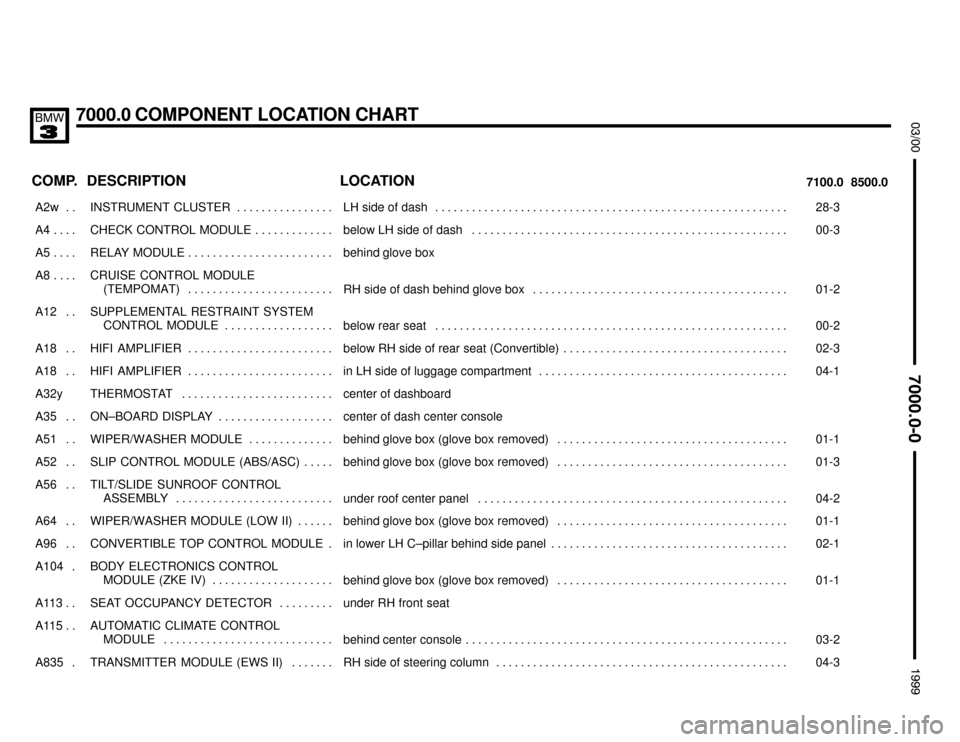

7000.0 COMPONENT LOCATION CHART








COMP. DESCRIPTION LOCATION7100.0 8500.0
A2w . . INSTRUMENT CLUSTER . . . . . . . . . . . . . . . . LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-3

A4 . . . .
CHECK CONTROL MODULE . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-3

A5 . . . . RELAY MODULE . . . . . . . . . . . . . . . . . . . . . . . . behind glove box


A8 . . . .

CRUISE CONTROL MODULE
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . . . . .
RH side of dash behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

01-2




A12 . .

SUPPLEMENTAL RESTRAINT SYSTEM
CONTROL MODULE . . . . . . . . . . . . . . . . . .
below rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

00-2


A18 . . HIFI AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . . . below RH side of rear seat (Convertible) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-3
A18 . . HIFI AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . . . in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04-1
A32y THERMOSTAT . . . . . . . . . . . . . . . . . . . . . . . . . center of dashboard

A35 . .
ON–BOARD DISPLAY . . . . . . . . . . . . . . . . . . .
center of dash center console



A51 . . WIPER/WASHER MODULE . . . . . . . . . . . . . . behind glove box (glove box removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-1
A52 . . SLIP CONTROL MODULE (ABS/ASC) . . . . . behind glove box (glove box removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-3


A56 . .

TILT/SLIDE SUNROOF CONTROL
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . .
under roof center panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

04-2


A64 . . WIPER/WASHER MODULE (LOW II) . . . . . . behind glove box (glove box removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-1
A96 . . CONVERTIBLE TOP CONTROL MODULE . in lower LH C–pillar behind side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-1

A104 .
BODY ELECTRONICS CONTROL
MODULE (ZKE IV) . . . . . . . . . . . . . . . . . . . .
behind glove box (glove box removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

01-1



A113 . .
SEAT OCCUPANCY DETECTOR . . . . . . . . .
under RH front seat





A115 . .

AUTOMATIC CLIMATE CONTROL
MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . .
behind center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03-2

A835 . TRANSMITTER MODULE (EWS II) . . . . . . . RH side of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04-3

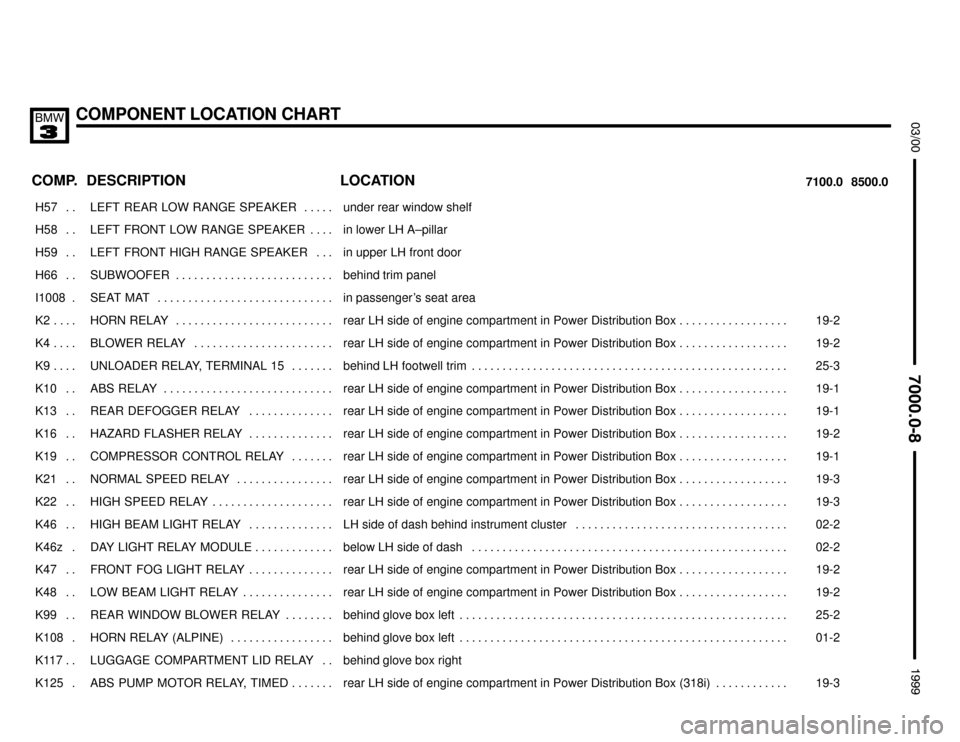

COMPONENT LOCATION CHART







COMP.8500.0 7100.0LOCATION DESCRIPTION
H57 . . LEFT REAR LOW RANGE SPEAKER . . . . . under rear window shelf

H58 . .
LEFT FRONT LOW RANGE SPEAKER . . . .
in lower LH A–pillar



H59 . . LEFT FRONT HIGH RANGE SPEAKER . . . in upper LH front door
H66 . . SUBWOOFER . . . . . . . . . . . . . . . . . . . . . . . . . . behind trim panel
I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . in passenger’s seat area
K2 . . . . HORN RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-2

K4 . . . .
BLOWER RELAY . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
19-2

K9 . . . . UNLOADER RELAY, TERMINAL 15 . . . . . . . behind LH footwell trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-3
K10 . . ABS RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-1
K13 . . REAR DEFOGGER RELAY . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-1
K16 . . HAZARD FLASHER RELAY . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-2

K19 . .

COMPRESSOR CONTROL RELAY . . . . . . .

rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .

19-1


K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-3
K22 . . HIGH SPEED RELAY . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-3
K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . . . . . LH side of dash behind instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-2

K46z .
DAY LIGHT RELAY MODULE . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
02-2

K47 . . FRONT FOG LIGHT RELAY . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-2
K48 . . LOW BEAM LIGHT RELAY . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-2
K99 . . REAR WINDOW BLOWER RELAY . . . . . . . . behind glove box left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-2
K108 . HORN RELAY (ALPINE) . . . . . . . . . . . . . . . . . behind glove box left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-2

K117 . .

LUGGAGE COMPARTMENT LID RELAY . .

behind glove box right




K125 . ABS PUMP MOTOR RELAY, TIMED . . . . . . . rear LH side of engine compartment in Power Distribution Box (318i) . . . . . . . . . . . . 19-3

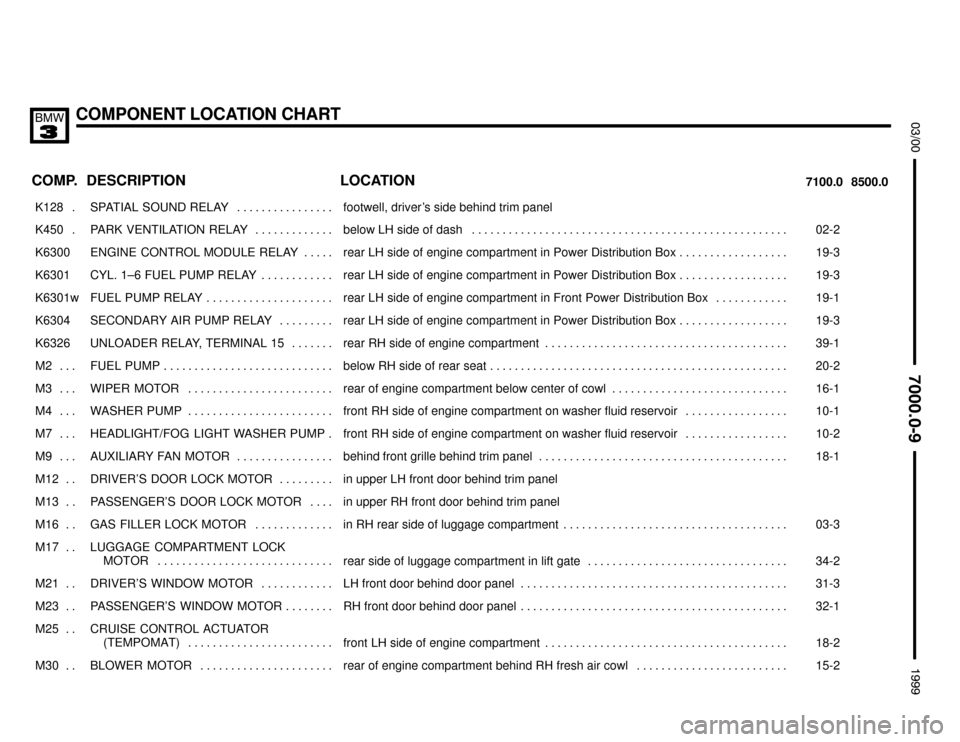

COMPONENT LOCATION CHART







COMP.8500.0 7100.0LOCATION DESCRIPTION
K128 . SPATIAL SOUND RELAY . . . . . . . . . . . . . . . . footwell, driver’s side behind trim panel

K450 .
PARK VENTILATION RELAY . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
02-2

K6300 ENGINE CONTROL MODULE RELAY . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-3
K6301 CYL. 1–6 FUEL PUMP RELAY . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-3
K6301w FUEL PUMP RELAY . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Front Power Distribution Box . . . . . . . . . . . . 19-1
K6304 SECONDARY AIR PUMP RELAY . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-3

K6326
UNLOADER RELAY, TERMINAL 15 . . . . . . .
rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
39-1

M2 . . . FUEL PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . below RH side of rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-2
M3 . . . WIPER MOTOR . . . . . . . . . . . . . . . . . . . . . . . . rear of engine compartment below center of cowl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1
M4 . . . WASHER PUMP . . . . . . . . . . . . . . . . . . . . . . . . front RH side of engine compartment on washer fluid reservoir . . . . . . . . . . . . . . . . . 10-1
M7 . . . HEADLIGHT/FOG LIGHT WASHER PUMP . front RH side of engine compartment on washer fluid reservoir . . . . . . . . . . . . . . . . . 10-2

M9 . . .

AUXILIARY FAN MOTOR . . . . . . . . . . . . . . . .

behind front grille behind trim panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18-1


M12 . . DRIVER’S DOOR LOCK MOTOR . . . . . . . . . in upper LH front door behind trim panel
M13 . . PASSENGER’S DOOR LOCK MOTOR . . . . in upper RH front door behind trim panel
M16 . . GAS FILLER LOCK MOTOR . . . . . . . . . . . . . in RH rear side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03-3

M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear side of luggage compartment in lift gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34-2



M21 . .
DRIVER’S WINDOW MOTOR . . . . . . . . . . . .
LH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31-3

M23 . . PASSENGER’S WINDOW MOTOR . . . . . . . . RH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-1


M25 . .

CRUISE CONTROL ACTUATOR
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18-2


M30 . . BLOWER MOTOR . . . . . . . . . . . . . . . . . . . . . . rear of engine compartment behind RH fresh air cowl . . . . . . . . . . . . . . . . . . . . . . . . . 15-2




COMPONENT LOCATION VIEWS
ELECTRICAL CONTROL MODULE LOCATIONS









A64
WIPER/WASHER
MODULE (LOW II)
A52
SLIP CONTROL
MODULE
(ABS/ASC)
N12w
ANTI–THEFT
CONTROL MODULE
(ALPINE)
X1170
X1171X13025
X13252X13253X13254

A51
WIPER/WASHER
MODULE
X22
X10193
A8
CRUISE CONTROL
MODULE
(TEMPOMAT)
K108
HORN RELAY
(ALPINE)
A104
BODY
ELECTRONICS
CONTROL MODULE
(ZKE IV)






COMPONENT LOCATION VIEWS
ELECTRICAL CONTROL MODULE LOCATIONS









A96
CONVERTIBLE TOP
CONTROL MODULE
A18
HIFI AMPLIFIER K46
HIGH BEAM LIGHT
RELAY
K46z
DAY LIGHT RELAY
MODULE
K450
PARK VENTILATION
RELAYX13044
X13159
X13156X13157
N24
ROLLOVER
SENSOR
Y85
LH ROLLOVER
PROTECTION
ACTUATORX605X606
CONVERTIBLE



CONVERTIBLE CONVERTIBLEX11390
Y86
RH ROLLOVER
PROTECTION
ACTUATOR


P97
AUXILIARY FUSE
BOX N17
CRASH CONTROL
MODULE
X607


K21
NORMAL SPEED
RELAY




COMPONENT LOCATION VIEWS






K2
HORN RELAY
K4
BLOWER RELAY
K16
HAZARD FLASHER
RELAYK47
FRONT FOG LIGHT
RELAY
K48
LOW BEAM LIGHT
RELAYK22
HIGH SPEED
RELAY
K125
ABS PUMP MOTOR
RELAY, TIMEDK6300
ENGINE CONTROL
MODULE RELAY
K6301
CYL. 1–6 FUEL
PUMP RELAY K10
ABS RELAY
K13
REAR DEFOGGER
RELAY
K19
COMPRESSOR
CONTROL RELAYK6301w
FUEL PUMP RELAY


K6304
SECONDARY AIR
PUMP RELAY






COMPONENT LOCATION VIEWS








E42
GLOVE BOX LIGHT
K9
UNLOADER RELAY,
TERMINAL 15 K99
REAR WINDOW
BLOWER RELAY
X10092X10226X13258
X285
X542X779X18336








COMPONENT LOCATION VIEWS







K6326
UNLOADER RELAY,
TERMINAL 15
X6326
X494
GROUND
X498
GROUND B78
DRIVER’S SIDE IM-
PACT SENSOR
X1885G14
LEFT SIDE AIR BAG
GAS GENERATOR
X11335
