OBD port BMW M3 CONVERTIBLE 2006 E46 Owner's Manual

Contents

9

Passenger safety systems:

Airbags55
Transporting children safely58
Rollover protection system62
Vehicle Memory, Key
Memory64

Driving:

Ignition lock65
Starting the engine and driving
off66
Switching off the engine68
Parking brake68
Manual transmission69
Sequential M gearbox with
Drivelogic*70
Turn signal indicator/Headlamp
flasher75
Washer/wiper system/Rain
sensor*76
Cruise control77

Everything under control:

Odometer79
Tachometer79
Engine oil temperature79
Fuel gauge80
Engine coolant temperature
gauge80
Service interval display81
Check Control81
Clock82
Computer83

Technology for safety and
driving convenience:

Park Distance Control (PDC)*85
Dynamic Stability Control
DSC86
Flat Tire Monitor87
M Engine dynamics control89
Brake force display89

Lamps:

Parking lamps/Low beams90
Instrument lighting91
High beams/Standing lamps91
Front fog lamps92
Interior lamps92
Reading lamps92

Controlling the climate for
pleasant driving:

Automatic climate control94

Interior conveniences:

Glove compartment99
Storage compartments99
Microphone*100
Ashtray, front*100
Ashtray, rear*101

Loading and transporting:

Ski bag*102
Cargo loading104
Roof-mounted luggage rack for
the hardtop*107

Operation, maintenance

Special operating instructions:

Break-in procedures110
General driving notes111
Antilock Brake System
(ABS)113
Hardtop*113

Wheels and tires:

Tire inflation pressure116
Tire code118
Tire condition119
New wheels and tires120
Snow chains*122

In the engine compartment:

Hood123
Engine compartment
essentials124
Washer fluids126
Engine oil126
Coolant128
Brake fluid129

Maintenance:

BMW Maintenance System130
OBD interface socket132

Controls and features

132Laws and regulations

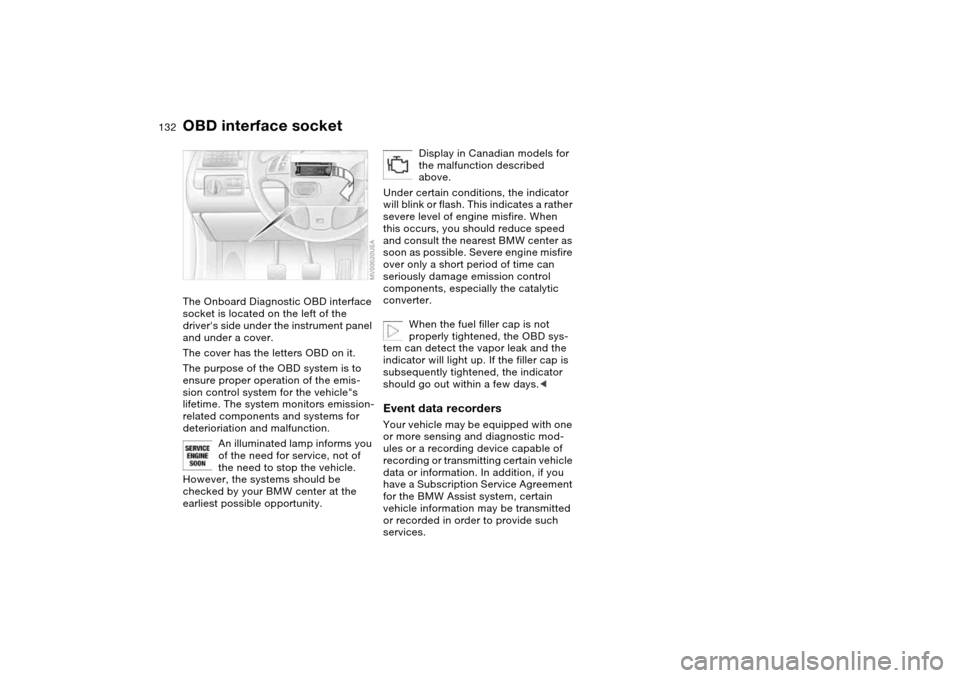

OBD interface socketThe Onboard Diagnostic OBD interface
socket is located on the left of the
driver's side under the instrument panel
and under a cover.
The cover has the letters OBD on it.
The purpose of the OBD system is to
ensure proper operation of the emis-
sion control system for the vehicle"s
lifetime. The system monitors emission-
related components and systems for
deterioriation and malfunction.
An illuminated lamp informs you
of the need for service, not of
the need to stop the vehicle.
However, the systems should be
checked by your BMW center at the
earliest possible opportunity.
Display in Canadian models for
the malfunction described
above.
Under certain conditions, the indicator
will blink or flash. This indicates a rather
severe level of engine misfire. When
this occurs, you should reduce speed
and consult the nearest BMW center as
soon as possible. Severe engine misfire
over only a short period of time can
seriously damage emission control
components, especially the catalytic
converter.
When the fuel filler cap is not
properly tightened, the OBD sys-
tem can detect the vapor leak and the
indicator will light up. If the filler cap is
subsequently tightened, the indicator
should go out within a few days.<
Event data recordersYour vehicle may be equipped with one
or more sensing and diagnostic mod-
ules or a recording device capable of
recording or transmitting certain vehicle
data or information. In addition, if you
have a Subscription Service Agreement
for the BMW Assist system, certain
vehicle information may be transmitted
or recorded in order to provide such
services.
