BMW M3 CONVERTIBLE 2008 E93 Owner's Manual

Reference
At a glance
Controls
Driving tips
Mobility
149

Reference
This chapter contains technical data and an
index that will help you find information most
quickly.
Reference

Technical data
152
Technical data
Engine data
M3
Displacement cu in/cmμ244/3,999
Number of cylinders 8
Maximum power output hp 414
at engine speed rpm 8,300
Maximum torque lb ft/Nm 295/400
at engine speed rpm 3,900

Reference
At a glance
Controls
Driving tips
Mobility
153

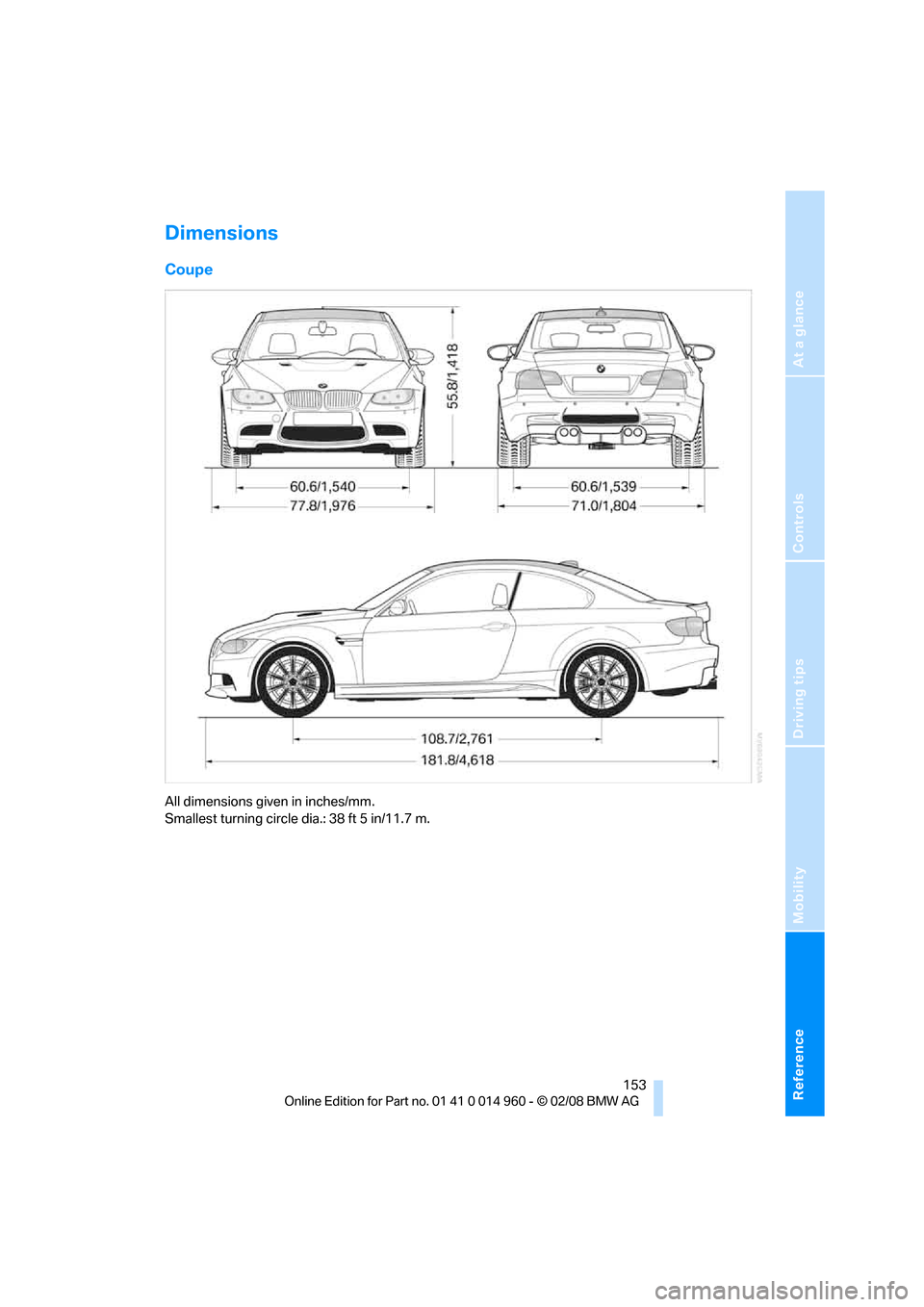

Dimensions
Coupe
All dimensions given in inches/mm.
Smallest turning circle dia.: 38 ft 5 in/11.7 m.

Technical data
154
Convertible
All dimensions given in inches/mm.
Smallest turning circle dia.: 38 ft 5 in/11.7 m.

Reference
At a glance
Controls
Driving tips
Mobility
155

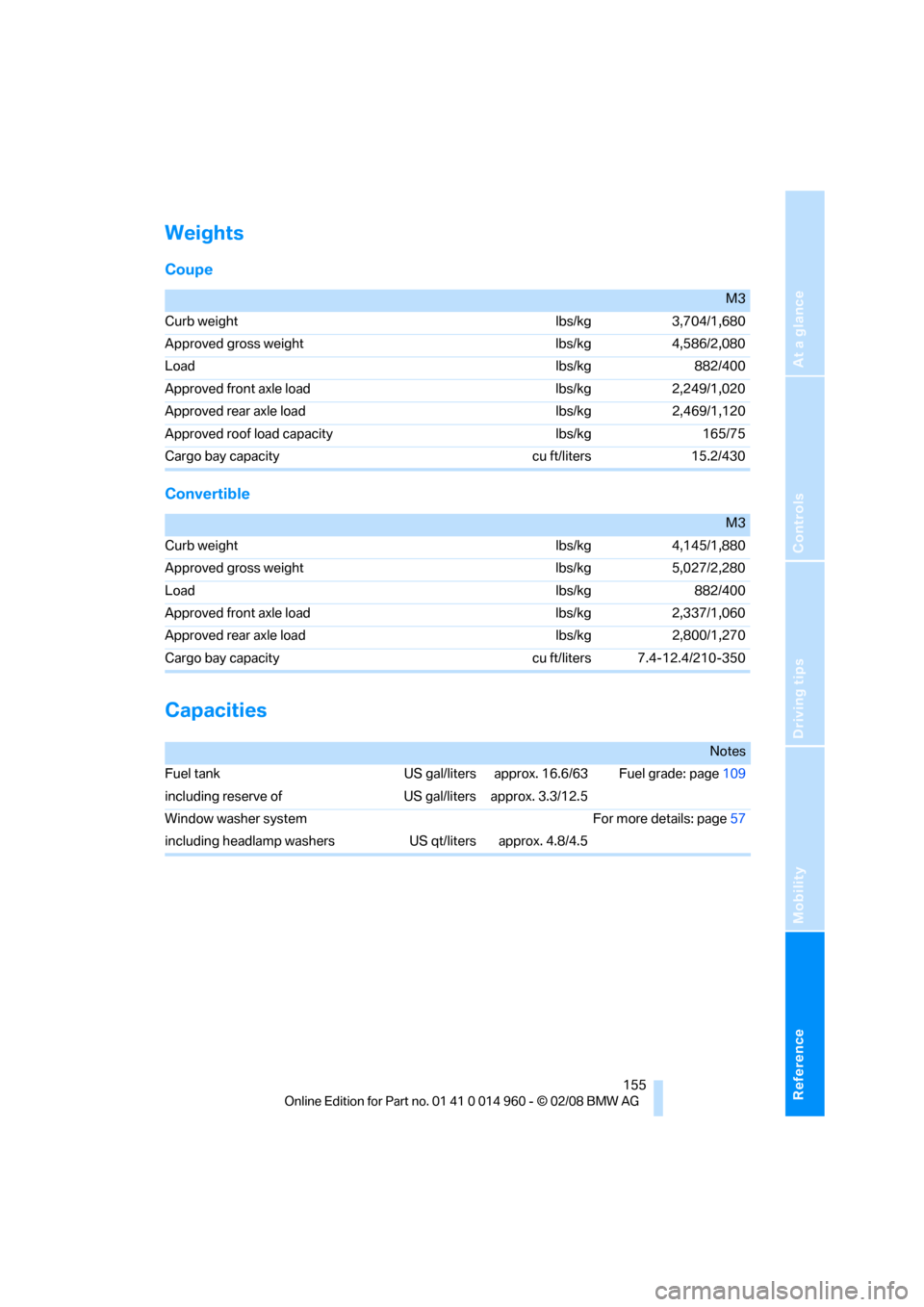

Weights
Coupe
Convertible
Capacities
M3
Curb weight lbs/kg 3,704/1,680
Approved gross weight lbs/kg 4,586/2,080
Load lbs/kg 882/400
Approved front axle load lbs/kg 2,249/1,020
Approved rear axle load lbs/kg 2,469/1,120
Approved roof load capacity lbs/kg 165/75
Cargo bay capacity cu ft/liters 15.2/430
M3
Curb weight lbs/kg 4,145/1,880
Approved gross weight lbs/kg 5,027/2,280
Load lbs/kg 882/400
Approved front axle load lbs/kg 2,337/1,060
Approved rear axle load lbs/kg 2,800/1,270
Cargo bay capacity cu ft/liters 7.4-12.4/210-350
Notes
Fuel tank US gal/liters approx. 16.6/63 Fuel grade: page109
including reserve of US gal/liters approx. 3.3/12.5
Window washer system For more details: page57
including headlamp washers US qt/liters approx. 4.8/4.5

Everything from A to Z
156
Everything from A to Z
Index
A
ABS Antilock Brake
System67
Acceleration assistant, refer to
Launch Control53
Accident, refer to Sending an
Emergency Request135
Activated-charcoal filter for
automatic climate control83
Adaptive Head Light77
Additives
– coolant119
Adjusting temperature inside
the car, refer to Automatic
climate control81
Adjusting the thigh support36
Airbags72
– indicator/warning lamp74
– sitting safely35
Air conditioning mode
– automatic climate control81
– ventilation83
Air distribution
– automatic81
Air flow rate81
Airing, refer to Ventilation83
Air pressure, refer to Tire
inflation pressure110
Air recirculation, refer to
Recirculated-air mode82
Air supply
– automatic climate control81
– ventilation83
Air vents80
AKI, refer to Fuel
specifications109
Alarm system25
– avoiding unintentional
alarms26
– interior motion sensor26
– switching off an alarm26
– tilt alarm sensor26All-season tires, refer to
Winter tires114
Ambient air, refer to
Recirculated-air mode82
Antifreeze
– coolant119
– washer fluid57
Antilock Brake System
ABS67
Anti-theft alarm system, refer
to Alarm system25
Anti-theft system19
Approved axle loads, refer to
Weights155
Approved gross vehicle
weight, refer to Weights155
Armrest, refer to Center
armrest88
Ashtray
– front90
– rear90
Assistance systems, refer to
Driving stability control
systems67
AUC Automatic recirculated-
air control82
Audio device, external88
Automatic
– air distribution81
– air flow rate81
– cruise control57
– headlamp control76
Automatic car washes123
Automatic climate control80
– automatic air distribution81
Automatic curb monitor42
Automatic recirculated-air
control AUC82
Automatic transmission with
Steptronic
– towing137
– tow-starting137AUTO program for automatic
climate control81
AUX-In port88
Average fuel consumption61
– setting the units62
Avoiding unintentional
alarms26
Axle loads, refer to
Weights155
B
Backrest contour, refer to
Lumbar support36
Backrests, refer to Seat
adjustment36
Backrest width adjustment37
Back seats
– refer to Rear seats38
Backup lamps
– replacing bulb129
Backup lamps, refer to Tail
lamps129
Bag holder92
Band-aids, refer to First-aid
pouch136
Bar, refer to Towing
methods138
Base plate for telephone or
mobile phone
– refer to Snap-in adapter in
the center armrest storage
compartment88
Battery133
– charging133
– disposal28,133
– jump starting136
– remote control18
– temporary power failure133
Battery renewal
– remote control28
– remote control for vehicle28
Being towed138

Reference
At a glance
Controls
Driving tips
Mobility
157
Belt hand-over41
Belts, refer to Safety belts40
Belt tensioner, refer to Safety
belts40
Beverage holders, refer to
Cup holders89
Blinds, refer to Roller sun
blinds87
Blower, refer to Air flow
rate81
Bluetooth, refer to separate
Owner's Manual
BMW
– car shampoo125
BMW Homepage4
BMW Maintenance
System121
BMW webpage4
Bottle holders, refer to Cup
holders89
Brake assist68
Brake fluid, refer to Service
requirements63
Brake Force Display72
– bulb change130
Brake lamps
– replacing bulb129
– two-stage72
Brake pads98
– breaking in98
Brake rotors99
– brakes98
– breaking in98
Brakes
– ABS68
– BMW Maintenance
System121
– breaking in98
– parking brake48
– service requirements63
Brakes, refer to Braking
safely99
Brake system98
– BMW Maintenance
System121
– breaking in98
– disc brakes99
Breakdown services, refer to
Roadside Assistance135Breaking in the clutch98
Breaking in the differential,
refer to Engine and
differential98
Break-in period98
Bulb changing, refer to Lamps
and bulbs127
Button for starting the engine,
refer to Start/stop button46
Buttons on the steering
wheel11
C
California Proposition 65
warning6
Can holders, refer to Cup
holders89
Capacities155
Capacity of the cargo bay155
Car battery, refer to Vehicle
battery133
Car care, refer to Care123
Care123
– automatic car washes123
– care products123
– carpets125
– CD/DVD drives126
– chrome parts124
– displays125
– exterior123
– fine wood parts125
– headlamps124
– high-pressure washer123
– interior125
– leather125
– light-alloy wheels125
– paintwork124
– plastic parts125
– retractable hardtop124
– rubber seals124
– safety belts125
– sensors and cameras125
– upholstery and cloth
trim125
– washing the car
manually124
– windows124
– wiper blades124Cargo, securing101
Cargo bay
– capacity155
– convenient access27
– folding up the floor panel93
– lamp, refer to Interior
lamps79
– opening from inside24
– opening from outside24
Cargo loading
– securing cargo101
– stowing cargo101
– vehicle100
Car jack
– jacking points133
Car key, refer to Remote
control18
Car phone
– installation location, refer to
Center armrest88
– refer to separate Owner's
Manual
Car shampoo125
Car wash
– before driving into48
Catalytic converter, refer to
Hot exhaust system98
CBS Condition Based
Service121
Center armrest88
Center brake lamp
– replacing bulb131
Center console, refer to
Around the center
console14
Central locking
– from inside23
– from outside19
Central locking system19
– convenient access27
– hotel function25
Changes, technical, refer to
For your own safety5
Changing bulbs, refer to
Lamps and bulbs127
Changing wheels133
Chassis number, refer to
Engine compartment117
Check Control65

Everything from A to Z
158 Child-restraint fixing system
LATCH45
Child-restraint systems44
Child seats, refer to
Transporting children
safely44
Chrome parts125
Chrome polish125
Cigarette lighter, refer to
Lighter90
Cleaning headlamps56
– washer fluid57
Cleaning your BMW, refer to
Care123
Clock59
– 12h/24h format62
– setting time64
Closing
– from inside23
– from outside19
Clothes hooks89
Cockpit10
Cold start, refer to Starting the
engine47
Combined instrument, refer to
Instrument cluster12
Comfort access, refer to
Convenient access27
Comfort area, refer to Around
the center console14
"Comfort" with EDC69
Compartment for remote
control, refer to Ignition
lock46
Compass86
Computer60
Condensation, refer to When
the vehicle is parked100
Condition Based Service
CBS121
Configuring settings, refer to
Personal Profile18
Confirmation signals for
locking/unlocking the
vehicle21
Connecting vacuum cleaner,
refer to Connecting
electrical appliances90Consumption, refer to
Average consumption61
Consumption indicator, refer
to Average consumption61
Controls and displays10
Convenient access27
– replacing the battery28
Convenient loading in
convertible21
Convenient operation
– glass roof20
– glass roof with convenient
access27
– retractable hardtop20
– windows20
– windows with convenient
access27
Convertible
– bag holder92
– convenient loading21
– enlarging cargo bay91
– folding down rear
backrest92
– retractable hardtop31
– rollover protection
system74
– securing cargo101
Coolant119
– checking level119
Coolant temperature60
Cooling, maximum81
Cooling fluid, refer to
Coolant119
Cooling system, refer to
Coolant119
Copyright2
Corner-illuminating lamps,
refer to Adaptive Head
Light77
Cornering lamps, refer to
Adaptive Head Light77
Correct tires114
Courtesy lamps, refer to
Interior lamps79
Cruise control57
Cruising range61
Cup holders89
Curb weight, refer to
Weights155
D
Dashboard, refer to
Cockpit10
Dashboard, refer to
Instrument cluster12
Dashboard lighting, refer to
Instrument lighting78
Data, technical152
– dimensions153
– engine152
– weights155
Date
– setting64
Daytime running lamps77
Deactivating front passenger
airbags73
Deadlocking, refer to
Locking20
Defect
– door lock22
– fuel filler door108
– glass roof30
Digital clock59
Digital compass86
Dimensions153
Directional indicators, refer to
Turn signals55
Displacement, refer to Engine
data152
Display lighting, refer to
Instrument lighting78
Displays, refer to Instrument
cluster12
Displays and controls10
Disposal
– coolant119
– remote control battery28
– vehicle battery133
Distance remaining to service,
refer to Service
requirements63
Distance warning, refer to
Park Distance Control
PDC67
Door key, refer to Remote
control18
Door lock22
