BMW M3 CONVERTIBLE 2012 Owners Manual

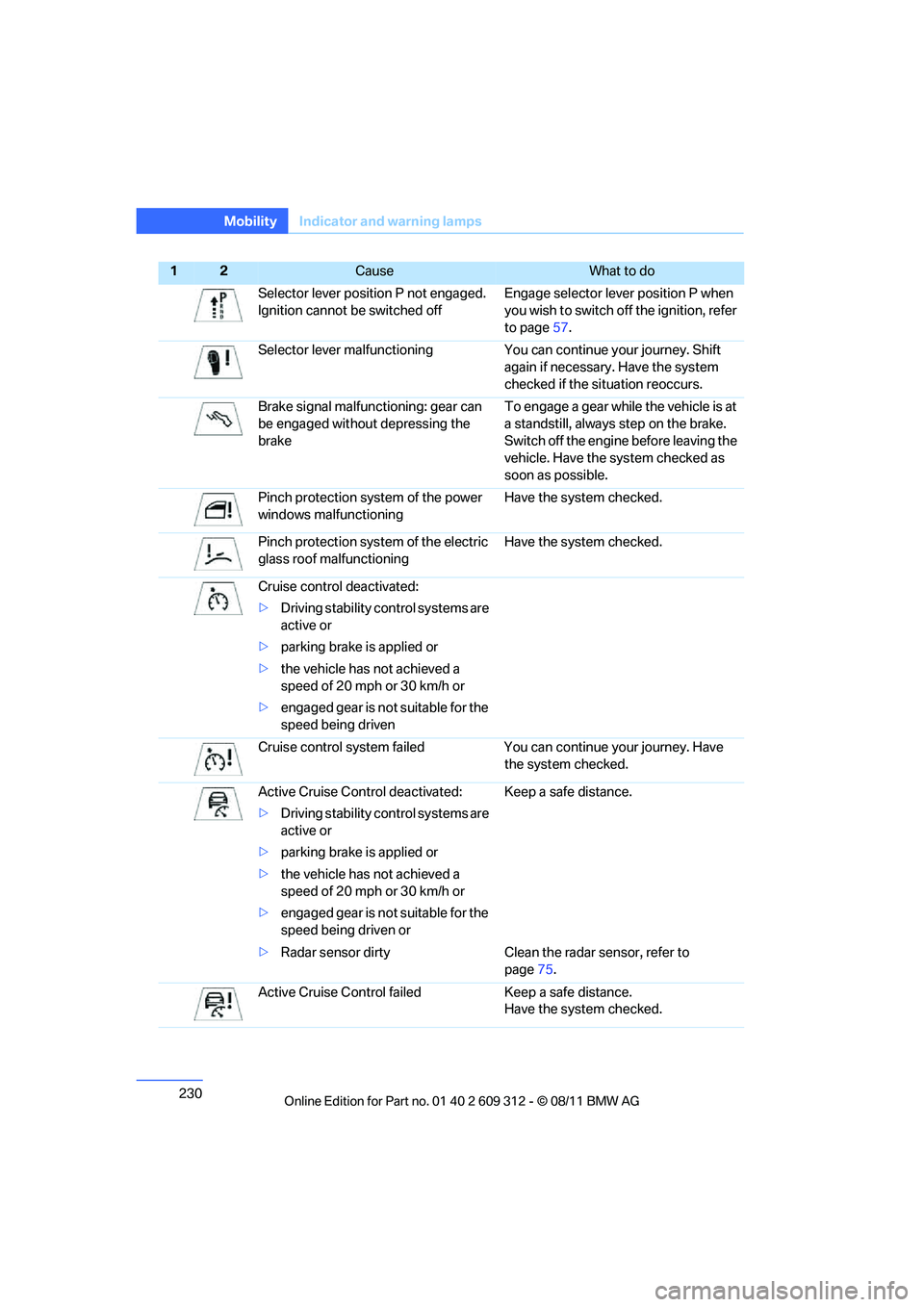

230
MobilityIndicator and warning lamps
Selector lever positi on P not engaged.
Ignition cannot be switched off Engage selector lever position P when
you wish to switch o
ff the ignition, refer
to page 57.
Selector lever malfunctioning You ca n continue your journey. Shift
again if necessary. Have the system
checked if the situation reoccurs.
Brake signal malfunctioning: gear can
be engaged without depressing the
brake To engage a gear while the vehicle is at
a standstill, always step on the brake.
Switch off the engine before leaving the
vehicle. Have the system checked as
soon as possible.
Pinch protection system of the power
windows malfunctioning Have the system checked.
Pinch protection system of the electric
glass roof malfunctioning Have the system checked.
Cruise control deactivated:
> Driving stability control systems are
active or
> parking brake is applied or
> the vehicle has not achieved a
speed of 20 mph or 30 km/h or
> engaged gear is not suitable for the
speed being driven
Cruise control system failed You ca n continue your journey. Have
the system checked.
Active Cruise Co ntrol deactivated:
> Driving stability control systems are
active or
> parking brake is applied or
> the vehicle has not achieved a
speed of 20 mph or 30 km/h or
> engaged gear is not suitable for the
speed being driven or Keep a safe distance.
> Radar sensor dirty Clean the radar sensor, refer to
page75.
Active Cruise Control fa iled Keep a safe distance.
Have the system checked.
12Cause What to do
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

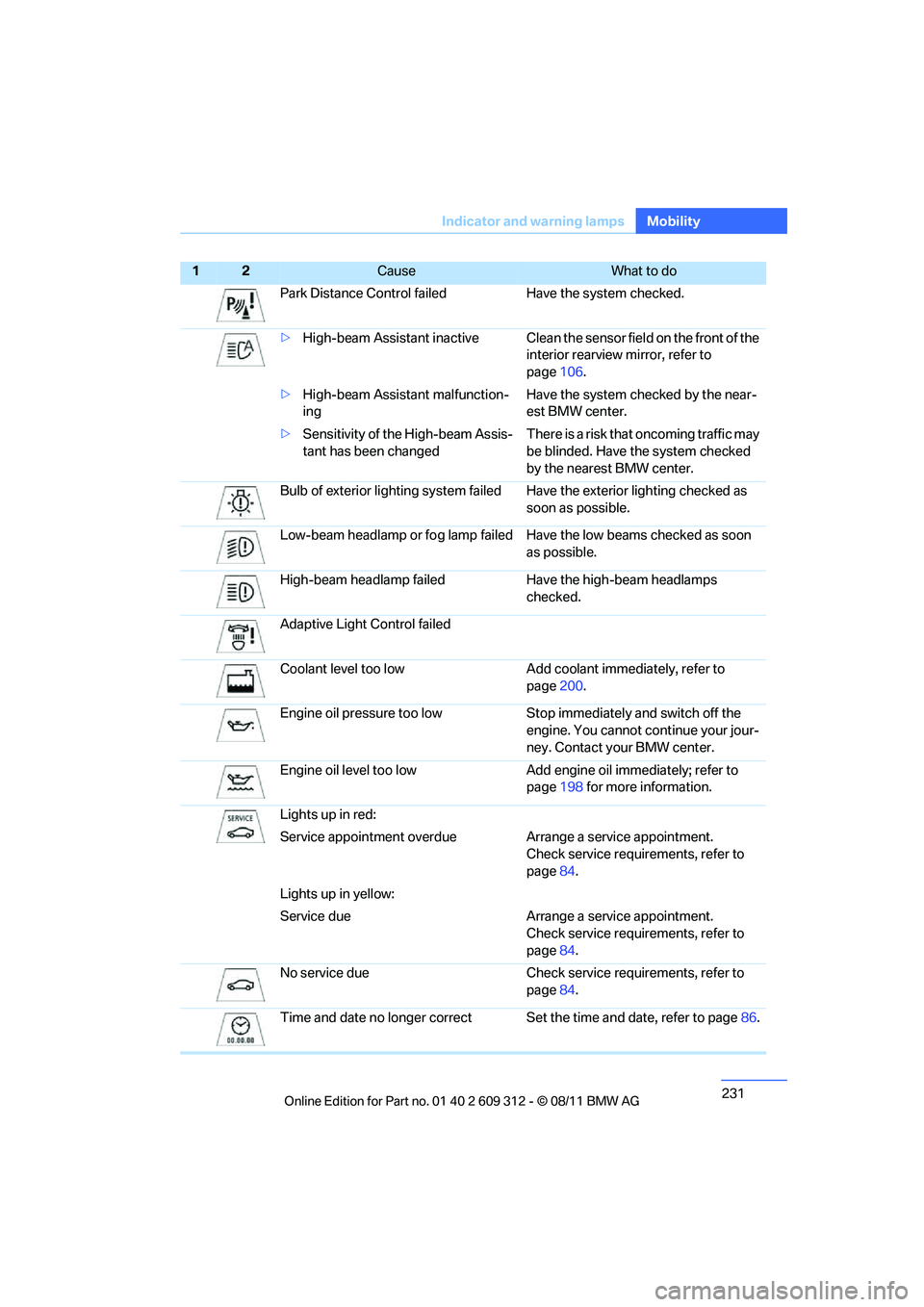

231
Indicator and warning lamps
Mobility
Park Distance Control faile
d Have the system checked.
> High-beam Assistant inactive Clean the sensor field on the front of the
interior rearview mirror, refer to
page 106.
> High-beam Assistant malfunction-
ing Have the system checked by the near-
est BMW center.
> Sensitivity of the High-beam Assis-
tant has been changed There is a risk that oncoming traffic may
be blinded. Have the system checked
by the nearest BMW center.
Bulb of exterior lighting system failed Have the exterior lighting checked as soon as possible.
Low-beam headlamp or fo g lamp failed Have the low beams checked as soon
as possible.
High-beam headlamp failed Hav e the high-beam headlamps
checked.
Adaptive Light Control failed
Coolant level too low Add coolant immediately, refer to page200.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot co ntinue your jour-
ney. Contact your BMW center.
Engine oil level too low Add engi ne oil immediately; refer to
page 198 for more information.
Lights up in red:
Service appointment overdue Arr ange a service appointment.
Check service requirements, refer to
page 84.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, refer to
page 84.
No service due Check servic e requirements, refer to
page 84.
Time and date no longer correct Set the time and date, refer to page86.
12Cause What to do
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

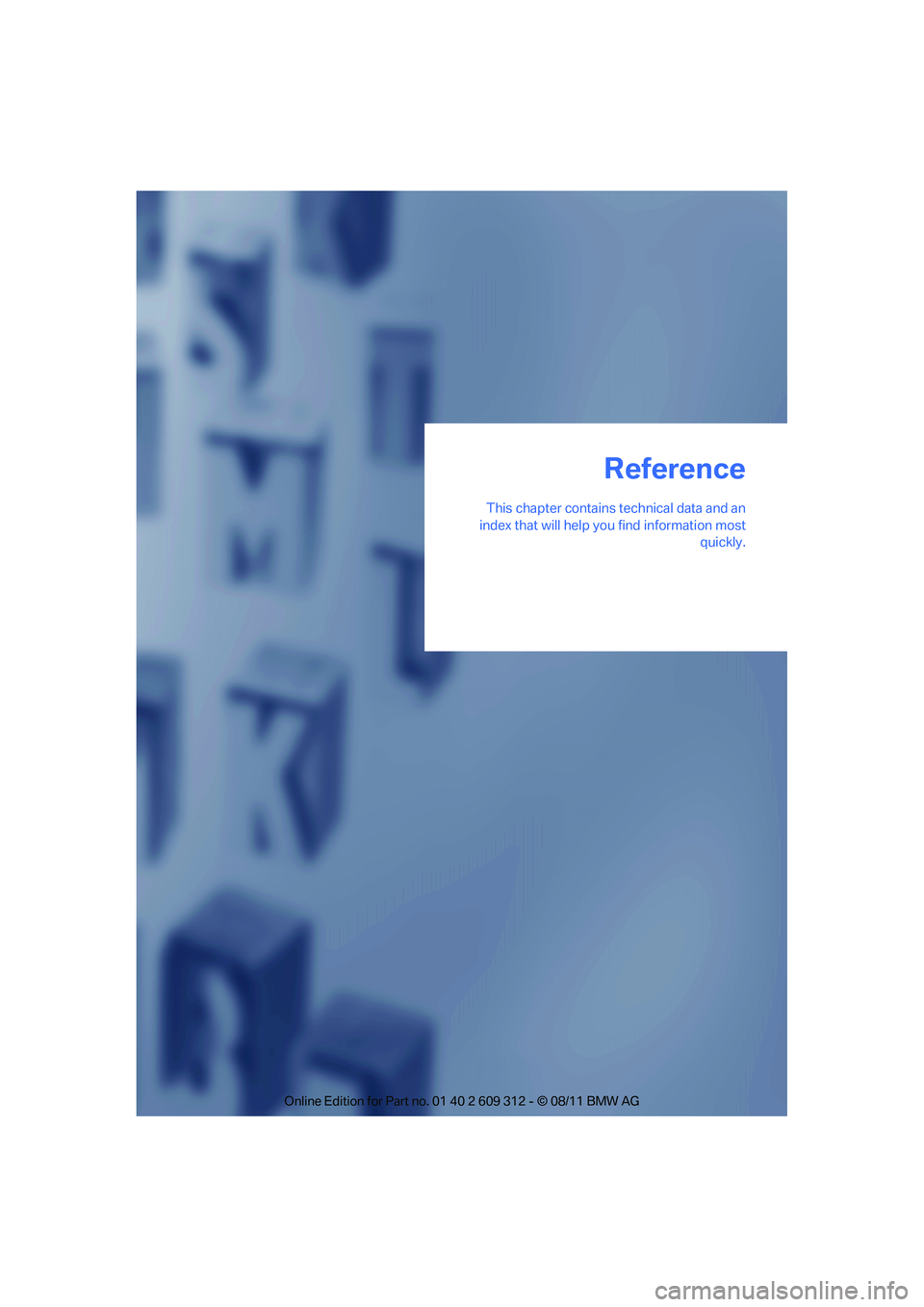

This chapter contains technical data and an
index that will help yo u find information most
quickly.
Reference
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

234
ReferenceTechnical data

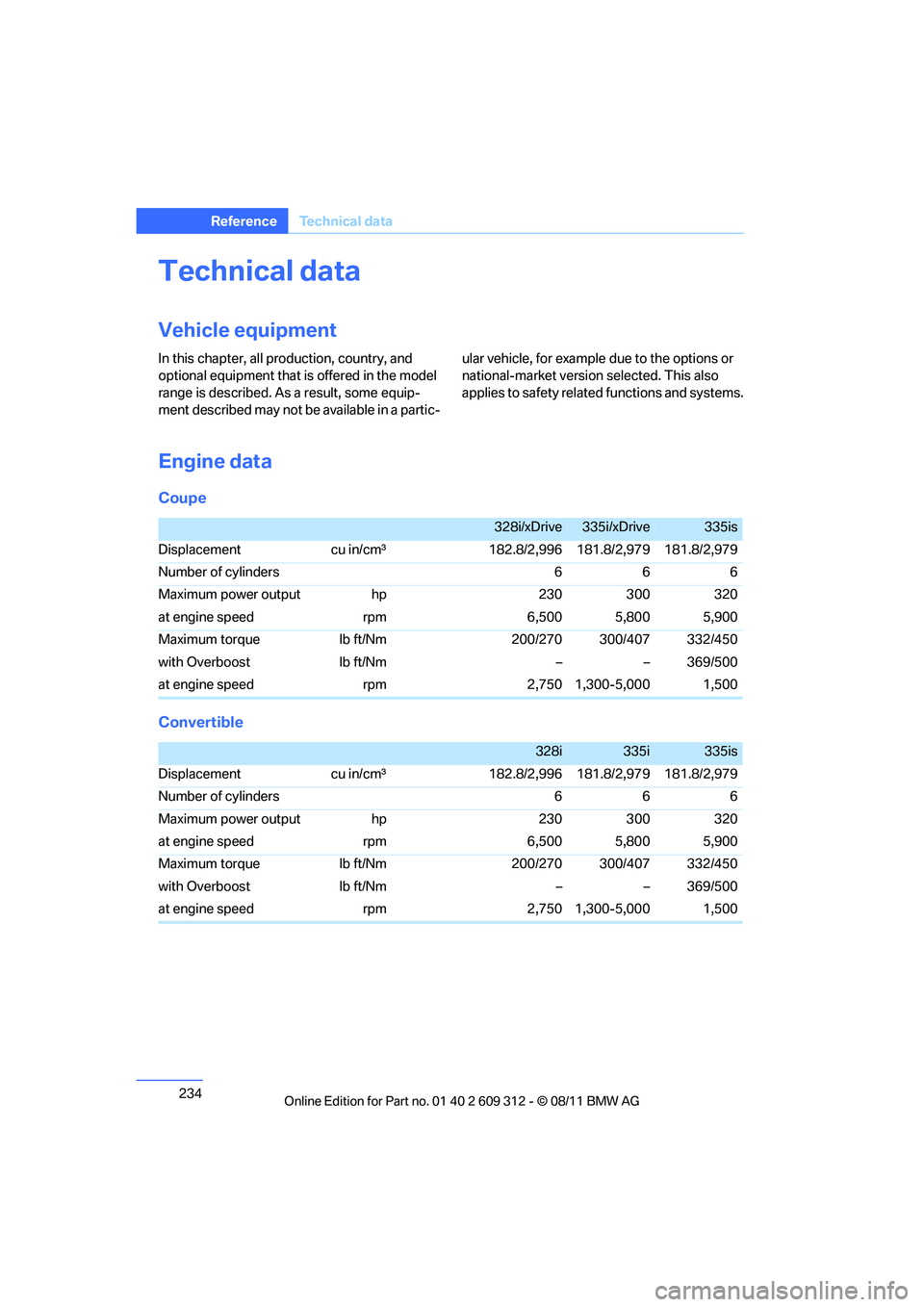

Technical data
Vehicle equipment
In this chapter, all pr oduction, country, and
optional equipment that is offered in the model
range is described. As a result, some equip-
ment described may not be available in a partic- ular vehicle, for example due to the options or
national-market version selected. This also
applies to safety relate
d functions and systems.
Engine data
Coupe
Convertible
328i/xDrive335i/xDrive335is
Displacement cu in/cm μ182.8/2,996 181.8/2,979 181.8/2,979
Number of cylinders 6 6 6
Maximum power output hp 230 300 320
at engine speed rpm 6,500 5,800 5,900
Maximum torque lb ft/Nm 200/270 300/407 332/450
with Overboost lb ft/Nm – – 369/500
at engine speed rpm 2,750 1,300-5,000 1,500
328i335i335is
Displacement cu in/cm μ182.8/2,996 181.8/2,979 181.8/2,979
Number of cylinders 6 6 6
Maximum power output hp 230 300 320
at engine speed rpm 6,500 5,800 5,900
Maximum torque lb ft/Nm 200/270 300/407 332/450
with Overboost lb ft/Nm – – 369/500
at engine speed rpm 2,750 1,300-5,000 1,500
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

235
Te c h n i c a l d a t a
Reference

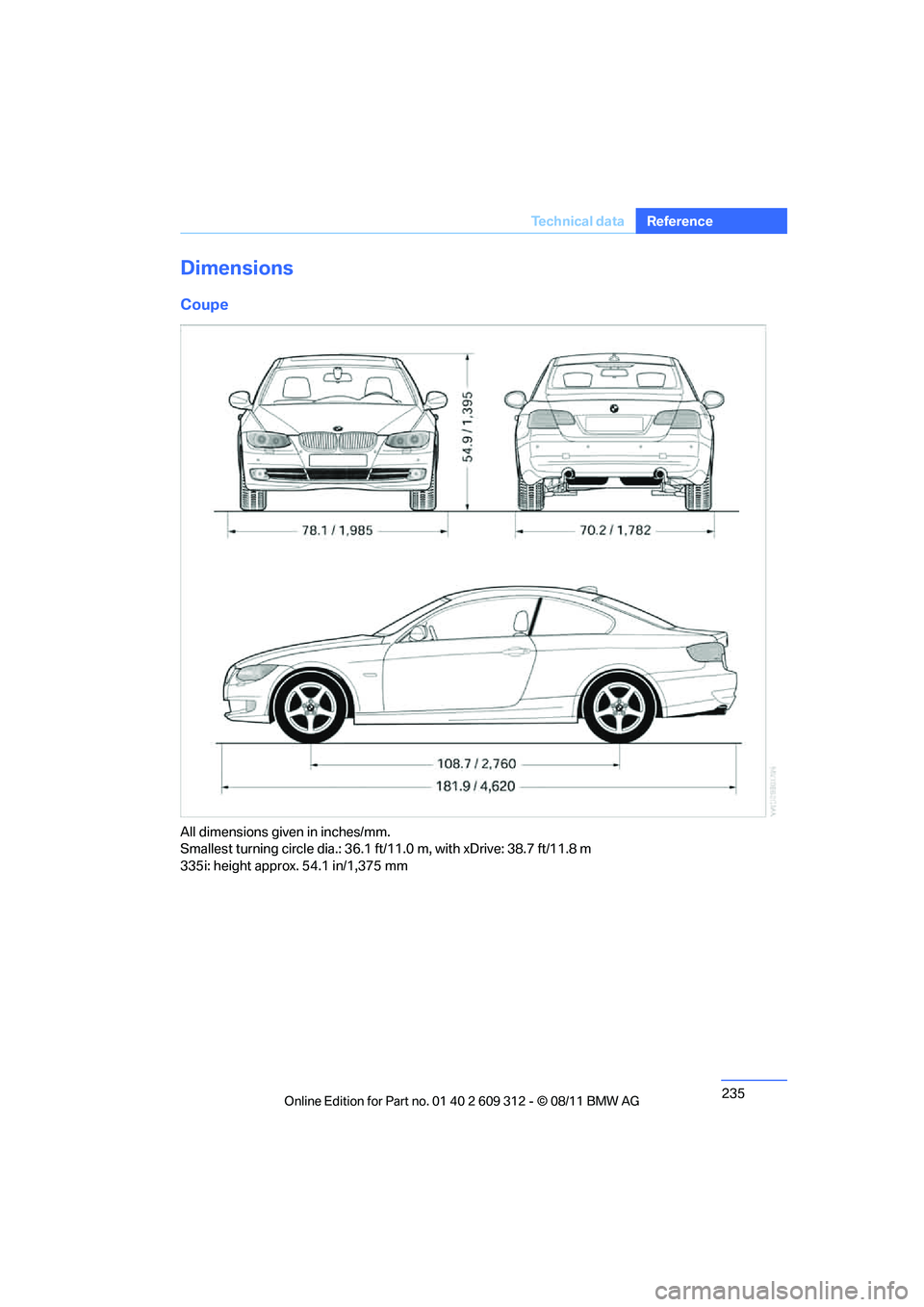

Dimensions
Coupe
All dimensions given in inches/mm.
Smallest turning circle dia.: 36.1 ft/11.0 m, with xDrive: 38.7 ft/11.8 m
335i: height approx. 54.1 in/1,375 mm
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

236
ReferenceTechnical data

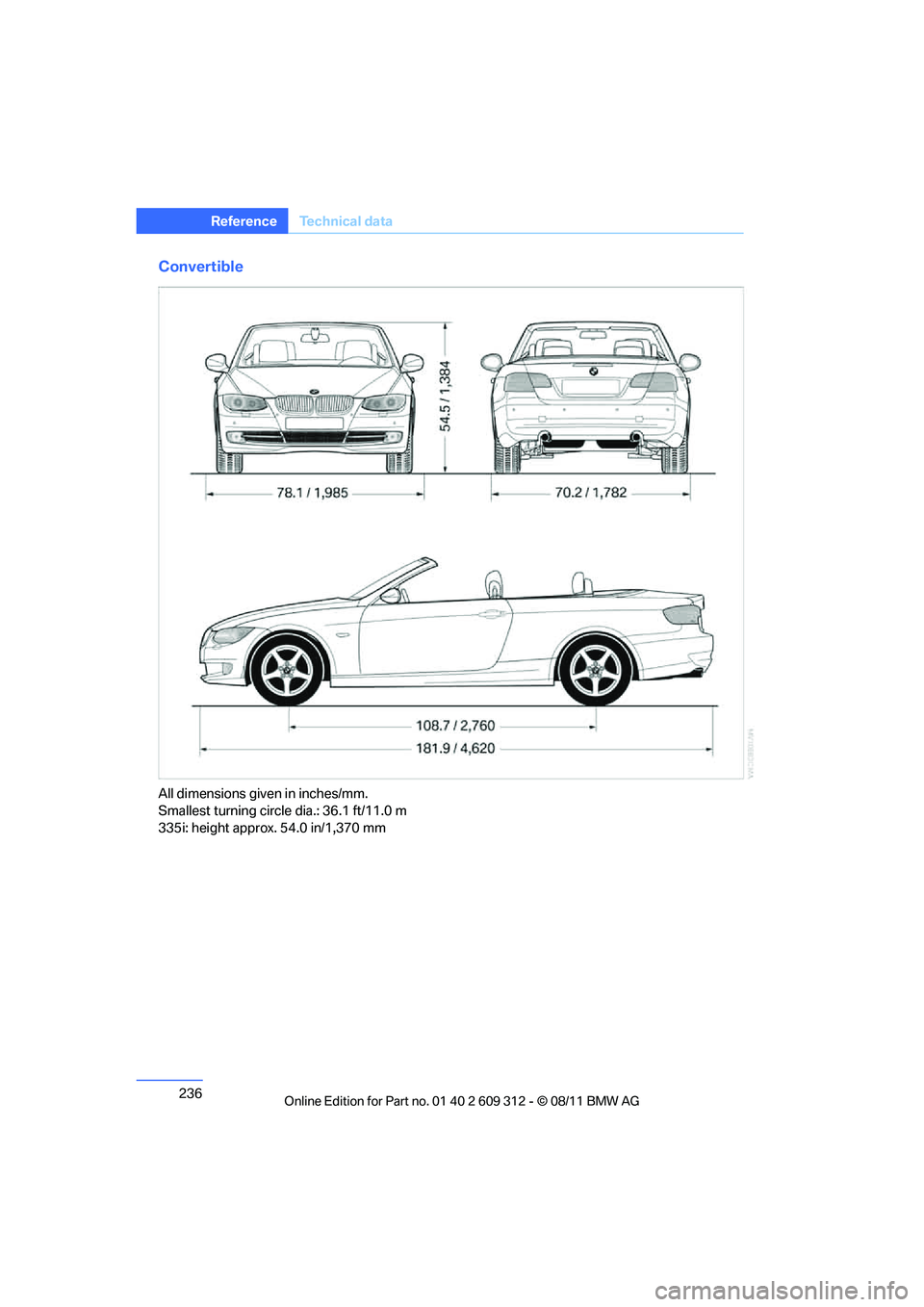

Convertible
All dimensions given in inches/mm.
Smallest turning circle dia.: 36.1 ft/11.0 m
335i: height approx. 54.0 in/1,370 mm
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

237
Te c h n i c a l d a t a
Reference

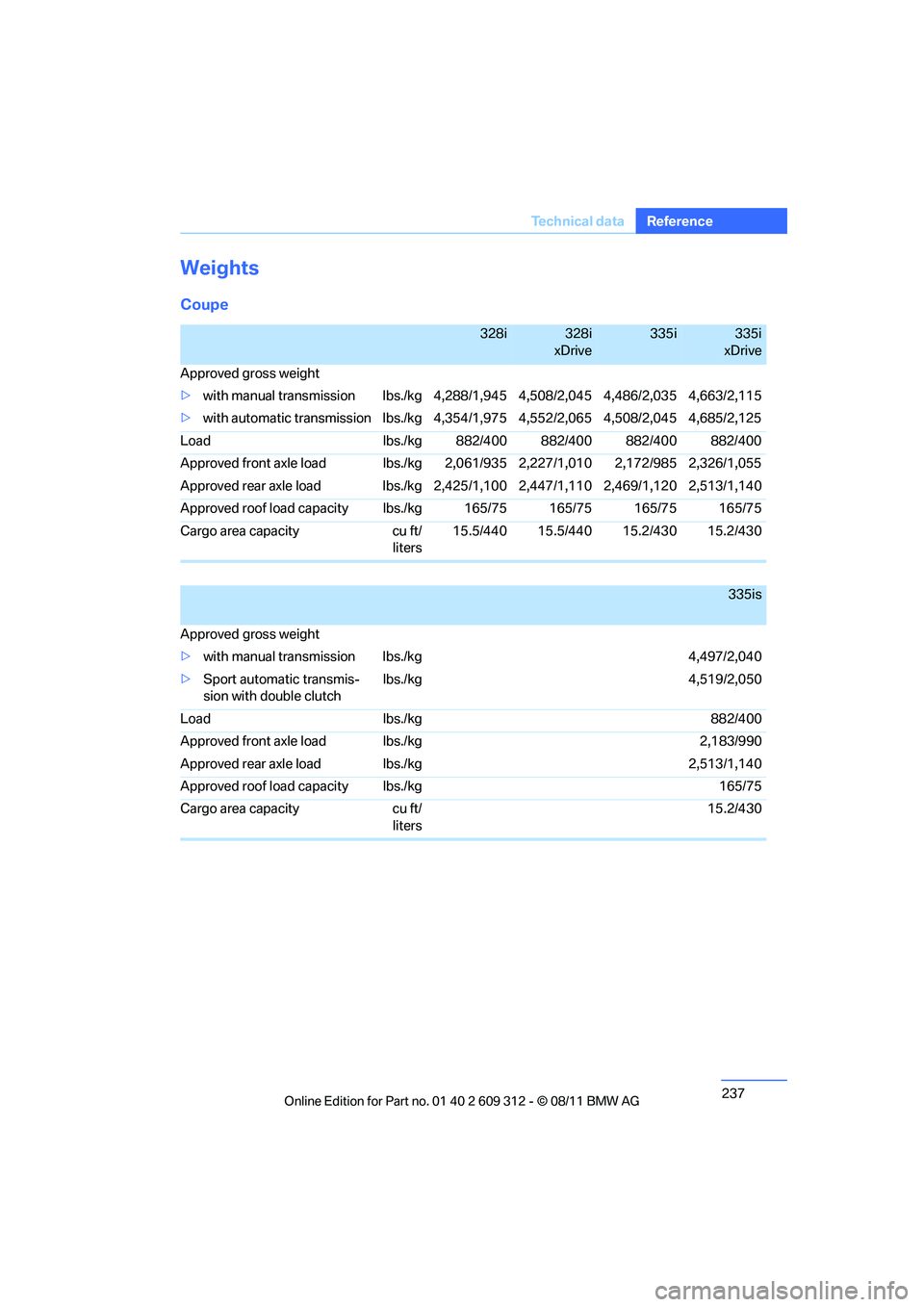

Weights
Coupe
328i328i
xDrive335i335i
xDrive
Approved gross weight
> with manual transmission lbs./kg 4, 288/1,945 4,508/2,045 4,486/2,035 4,663/2,115
> with automatic transmission lbs./kg 4,354/1,975 4,552/2,065 4,508/2,045 4,685/2,125
Load lbs./kg 882/400 882/400 882/400 882/400
Approved front axle load lbs./k g 2,061/935 2,227/1,010 2,172/985 2,326/1,055
Approved rear axle load lbs./kg 2, 425/1,100 2,447/1,110 2,469/1,120 2,513/1,140
Approved roof load capacity lbs./kg 165/75 165/75 165/75 165/75
Cargo area capacity cu ft/ liters15.5/440 15.5/440 15.2/430 15.2/430
335is
Approved gross weight
> with manual transmission lbs./kg 4,497/2,040
> Sport automatic transmis-
sion with double clutch lbs./kg 4,519/2,050
Load lbs./kg 882/400
Approved front axle load lbs./kg 2,183/990
Approved rear axle load lbs./kg 2,513/1,140
Approved roof load capacity lbs./kg 165/75
Cargo area capacity cu ft/ liters 15.2/430
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

238
ReferenceTechnical data

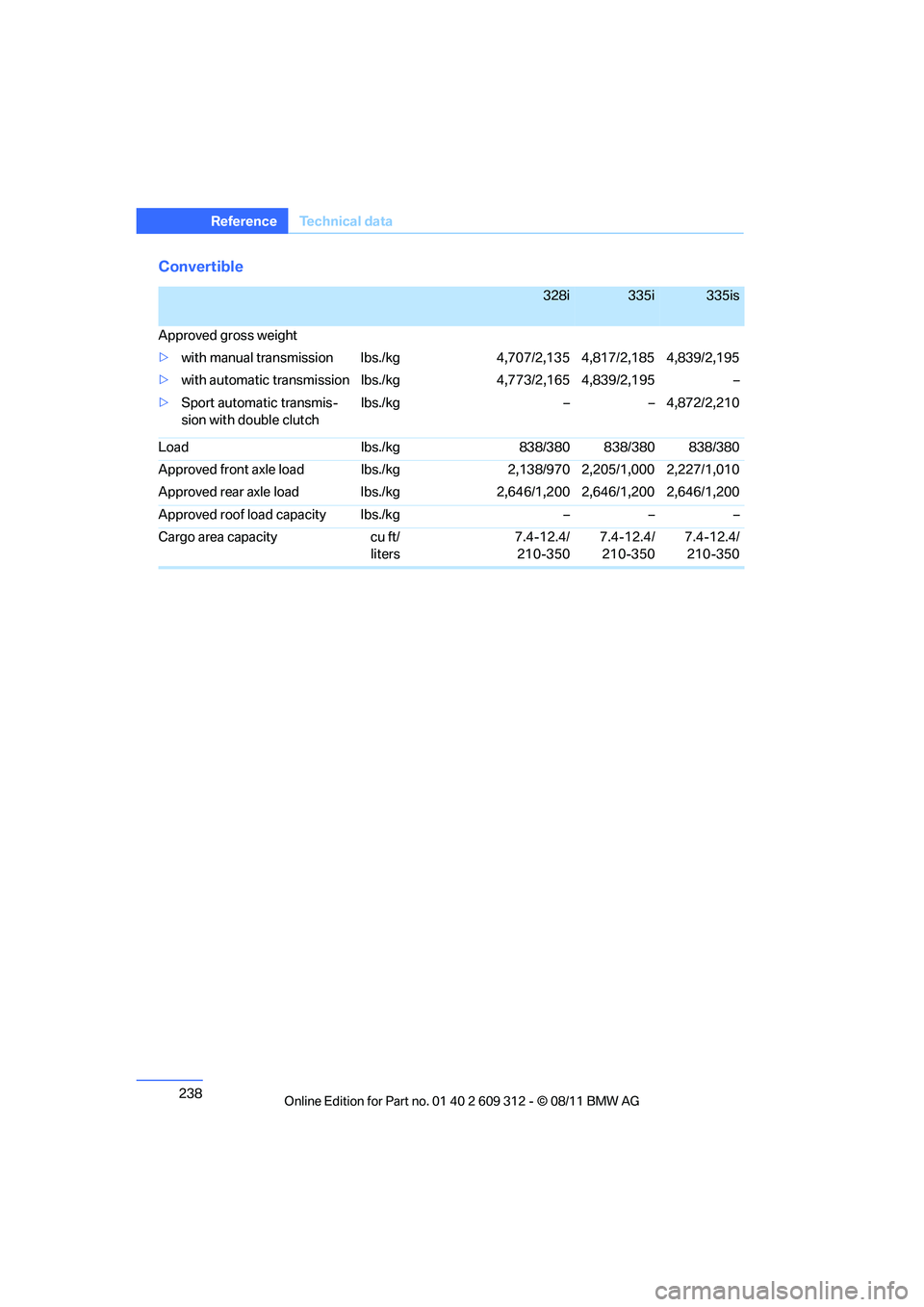

Convertible
328i335i335is
Approved gross weight
> with manual transmission lbs./kg 4,707/2,135 4,817/2,185 4,839/2,195
> with automatic transmission lbs./kg 4,773/2,165 4,839/2,195 –
> Sport automatic transmis-
sion with double clutch lbs./kg – – 4,872/2,210
Load lbs./kg 838/380 838/380 838/380
Approved front axle load lbs./kg 2,138/970 2,205/1,000 2,227/1,010
Approved rear axle load lbs./kg 2,646/1,200 2,646/1,200 2,646/1,200
Approved roof load capacity lbs./kg – – –
Cargo area capacity cu ft/ liters7.4-12.4/
210-350 7.4-12.4/
210-350 7.4-12.4/
210-350
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

239
Te c h n i c a l d a t a
Reference

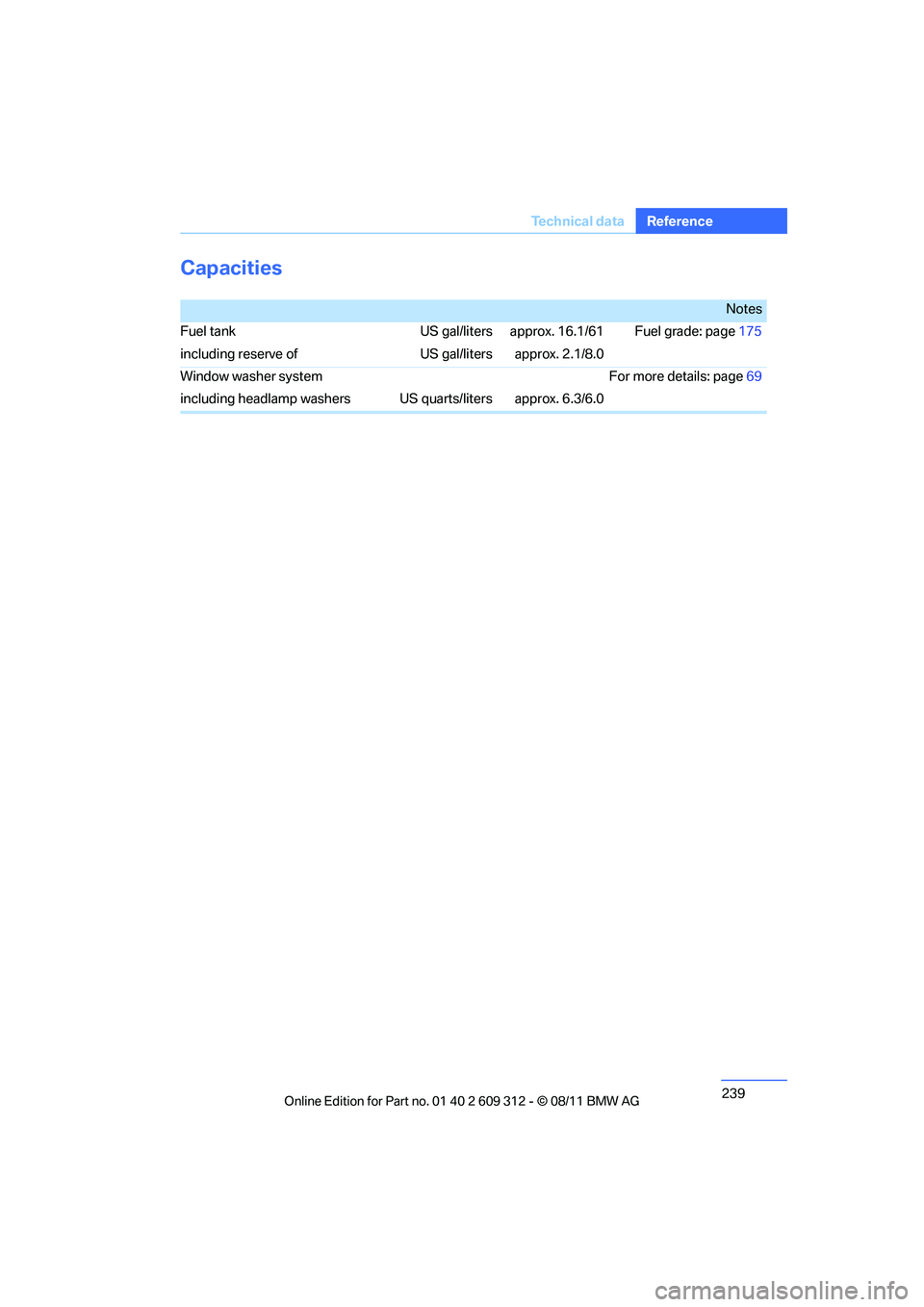

Capacities
Notes
Fuel tank US gal/liters approx. 16.1/61 Fuel grade: page 175
including reserve of US gal/liters approx. 2.1/8.0
Window washer system For more details: page 69
including headlamp washers US quarts/liters approx. 6.3/6.0
