child restraint BMW M3 CONVERTIBLE 2012 Owners Manual

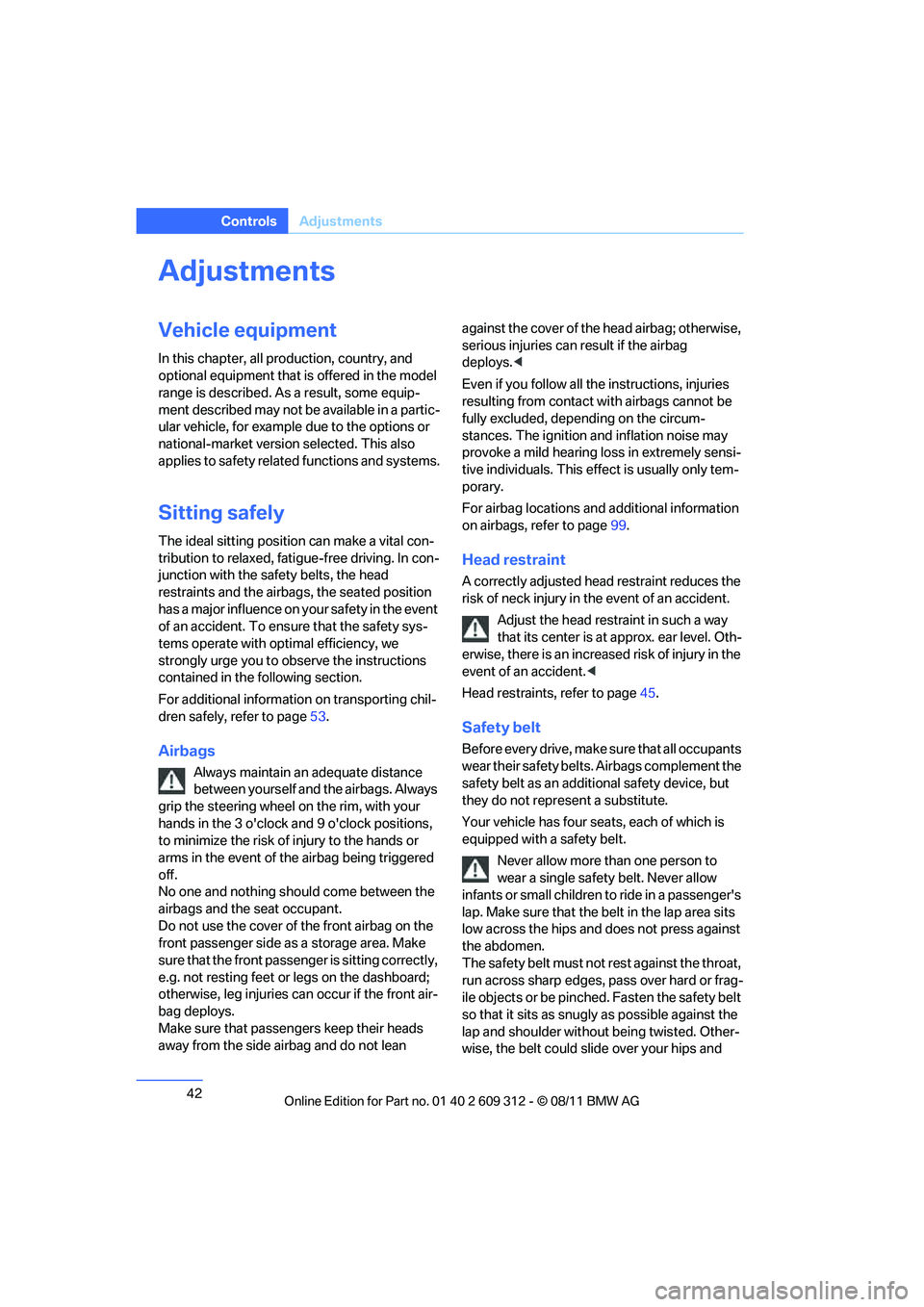

42
ControlsAdjustments
Adjustments
Vehicle equipment
In this chapter, all pr oduction, country, and
optional equipment that is offered in the model
range is described. As a result, some equip-
ment described may not be available in a partic-
ular vehicle, for example due to the options or
national-market version selected. This also
applies to safety related functions and systems.
Sitting safely
The ideal sitting position can make a vital con-
tribution to relaxed, fatigue-free driving. In con-
junction with the safety belts, the head
restraints and the airbags, the seated position
has a major influence on your safety in the event
of an accident. To ensure that the safety sys-
tems operate with optimal efficiency, we
strongly urge you to observe the instructions
contained in the following section.
For additional information on transporting chil-
dren safely, refer to page 53.
Airbags
Always maintain an adequate distance
between yourself and the airbags. Always
grip the steering wheel on the rim, with your
hands in the 3 o'clock and 9 o'clock positions,
to minimize the risk of injury to the hands or
arms in the event of the airbag being triggered
off.
No one and nothing shou ld come between the
airbags and the seat occupant.
Do not use the cover of the front airbag on the
front passenger side as a storage area. Make
sure that the front passeng er is sitting correctly,
e.g. not resting feet or legs on the dashboard;
otherwise, leg injuries ca n occur if the front air-
bag deploys.
Make sure that passengers keep their heads
away from the side airbag and do not lean against the cover of the head airbag; otherwise,
serious injuries can result if the airbag
deploys.
<
Even if you follow all the instructions, injuries
resulting from contact with airbags cannot be
fully excluded, depending on the circum-
stances. The ignition and inflation noise may
provoke a mild hearing loss in extremely sensi-
tive individuals. This e ffect is usually only tem-
porary.
For airbag locations and additional information
on airbags, refer to page 99.
Head restraint
A correctly adjusted head restraint reduces the
risk of neck injury in the event of an accident.
Adjust the head restraint in such a way
that its center is at approx. ear level. Oth-
erwise, there is an increase d risk of injury in the
event of an accident. <
Head restraints, refer to page 45.
Safety belt
Before every drive, make sure that all occupants
wear their safety belts. Airbags complement the
safety belt as an additi onal safety device, but
they do not repres ent a substitute.
Your vehicle has four seats, each of which is
equipped with a safety belt.
Never allow more than one person to
wear a single safety belt. Never allow
infants or small children to ride in a passenger's
lap. Make sure that the be lt in the lap area sits
low across the hips and does not press against
the abdomen.
The safety belt must not rest against the throat,
run across sharp edges, pass over hard or frag-
ile objects or be pinched. Fasten the safety belt
so that it sits as snugly as possible against the
lap and shoulder without being twisted. Other-
wise, the belt could slide over your hips and
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

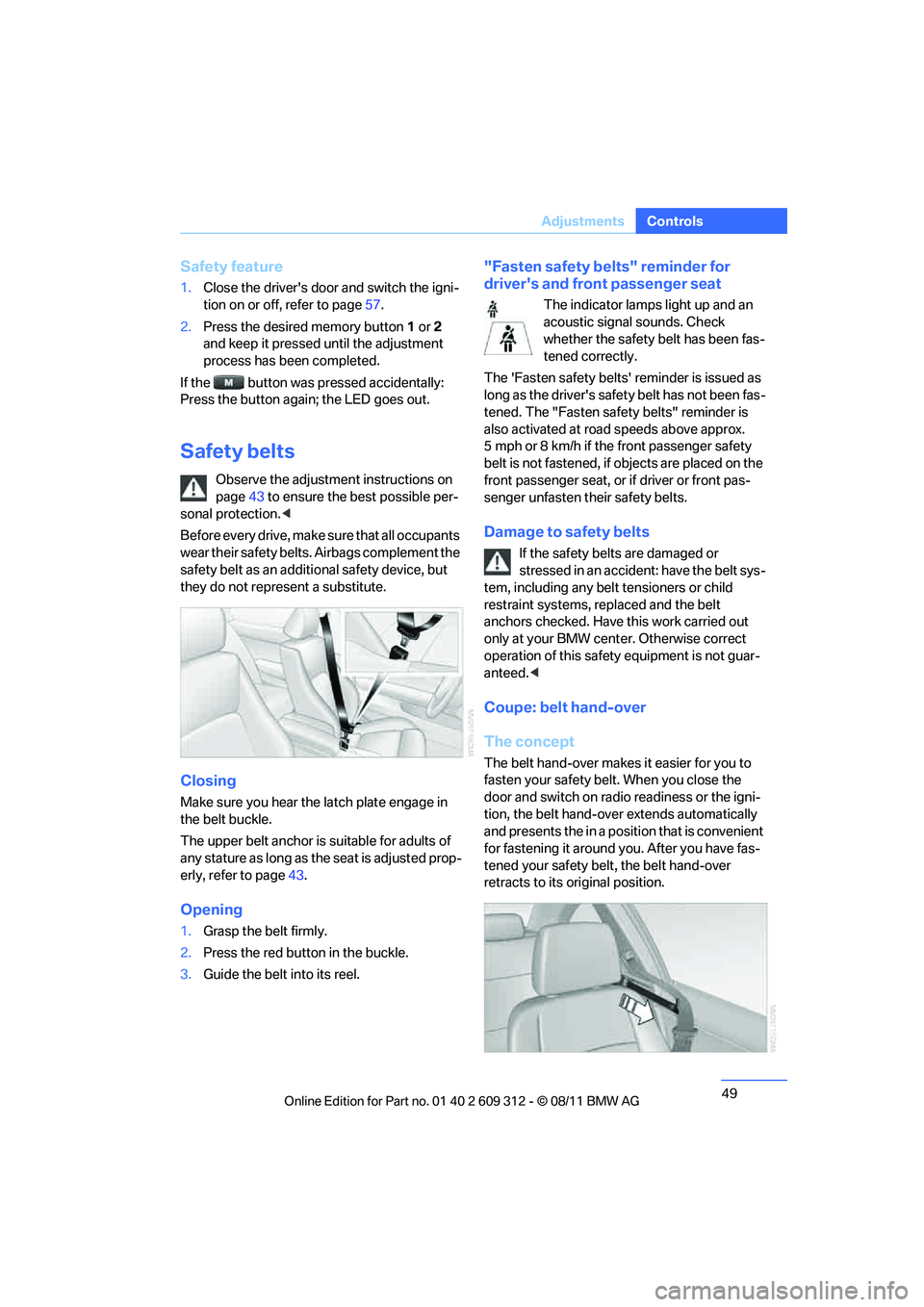

49
Adjustments
Controls
Safety feature
1.
Close the driver's door and switch the igni-
tion on or off, refer to page 57.
2. Press the desired memory button 1 or 2
and keep it pressed until the adjustment
process has been completed.
If the button was pr essed accidentally:
Press the button again; the LED goes out.
Safety belts
Observe the adjustment instructions on
page 43 to ensure the best possible per-
sonal protection. <
Before every drive, make sure that all occupants
wear their safety belts. Airbags complement the
safety belt as an additi onal safety device, but
they do not represent a substitute.
Closing
Make sure you hear the latch plate engage in
the belt buckle.
The upper belt anchor is suitable for adults of
any stature as long as the seat is adjusted prop-
erly, refer to page 43.
Opening
1.Grasp the belt firmly.
2. Press the red button in the buckle.
3. Guide the belt into its reel.
"Fasten safety be lts" reminder for
driver's and fron t passenger seat
The indicator lamps light up and an
acoustic signal sounds. Check
whether the safety belt has been fas-
tened correctly.
The 'Fasten safety belts' reminder is issued as
long as the driver's safe ty belt has not been fas-
tened. The "Fasten safety belts" reminder is
also activated at road speeds above approx.
5 mph or 8 km/h if the front passenger safety
belt is not fastened, if objects are placed on the
front passenger seat, or if driver or front pas-
senger unfasten their safety belts.
Damage to safety belts
If the safety belts are damaged or
stressed in an accident: have the belt sys-
tem, including any belt tensioners or child
restraint systems, replaced and the belt
anchors checked. Have this work carried out
only at your BMW center. Otherwise correct
operation of this safety equipment is not guar-
anteed. <
Coupe: belt hand-over
The concept
The belt hand-over makes it easier for you to
fasten your safety belt. When you close the
door and switch on radio readiness or the igni-
tion, the belt hand-ove r extends automatically
and presents the in a posi tion that is convenient
for fastening it around you. After you have fas-
tened your safety belt , the belt hand-over
retracts to its original position.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

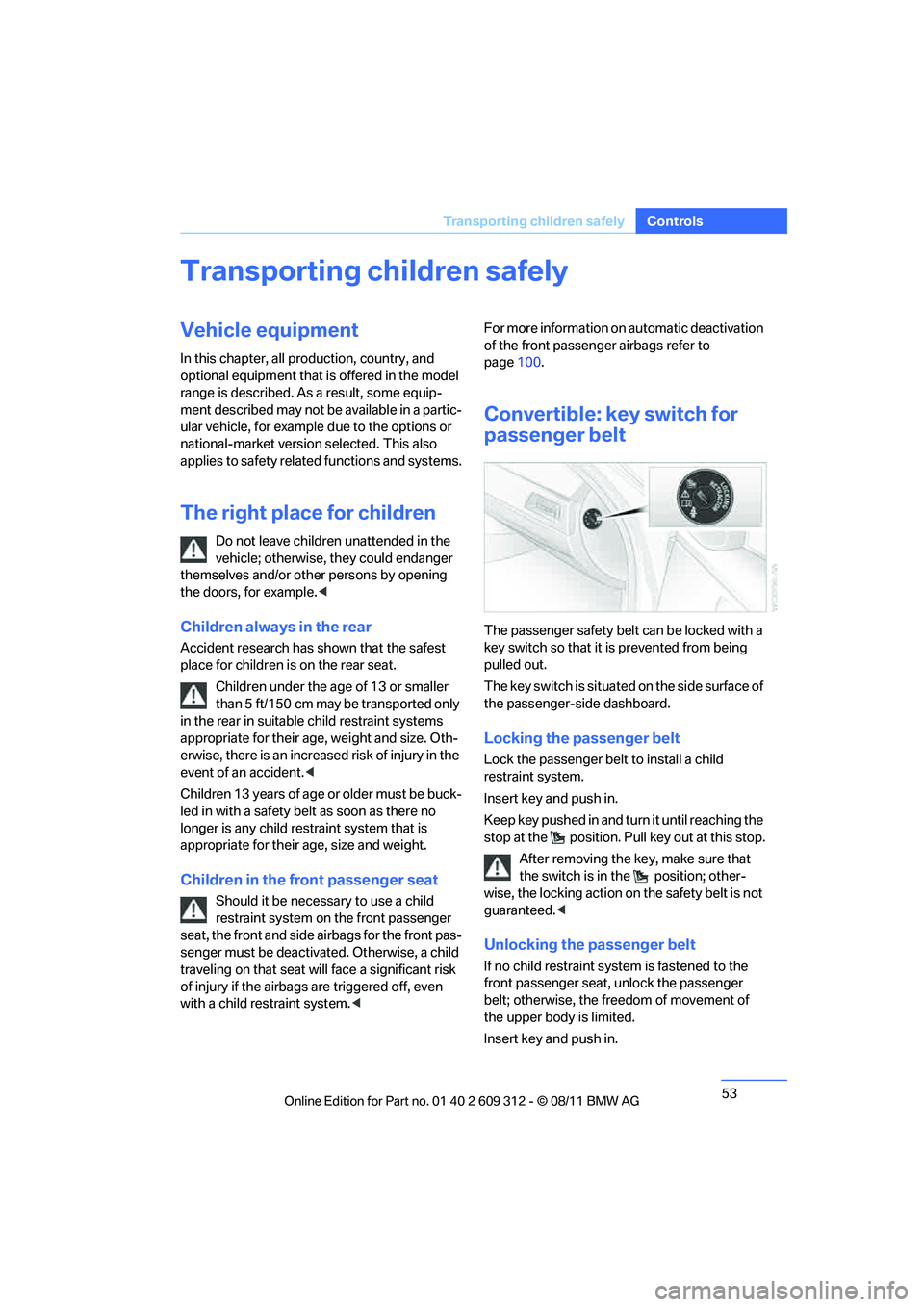

53
Transporting children safely
Controls
Transporting children safely
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. As a result, some equip-
ment described may not be
available in a partic-
ular vehicle, for example due to the options or
national-market version selected. This also
applies to safety related functions and systems.
The right place for children
Do not leave children unattended in the
vehicle; otherwise, they could endanger
themselves and/or other persons by opening
the doors, for example. <
Children always in the rear
Accident research has shown that the safest
place for children is on the rear seat.
Children under the age of 13 or smaller
than 5 ft/150 cm may be transported only
in the rear in suitable child restraint systems
appropriate for their age, weight and size. Oth-
erwise, there is an increased risk of injury in the
event of an accident. <
Children 13 years of age or older must be buck-
led in with a safety belt as soon as there no
longer is any child restraint system that is
appropriate for their age, size and weight.
Children in the fr ont passenger seat
Should it be necessary to use a child
restraint system on the front passenger
seat, the front and side airbags for the front pas-
senger must be deactivated. Otherwise, a child
traveling on that seat will face a significant risk
of injury if the airbags are triggered off, even

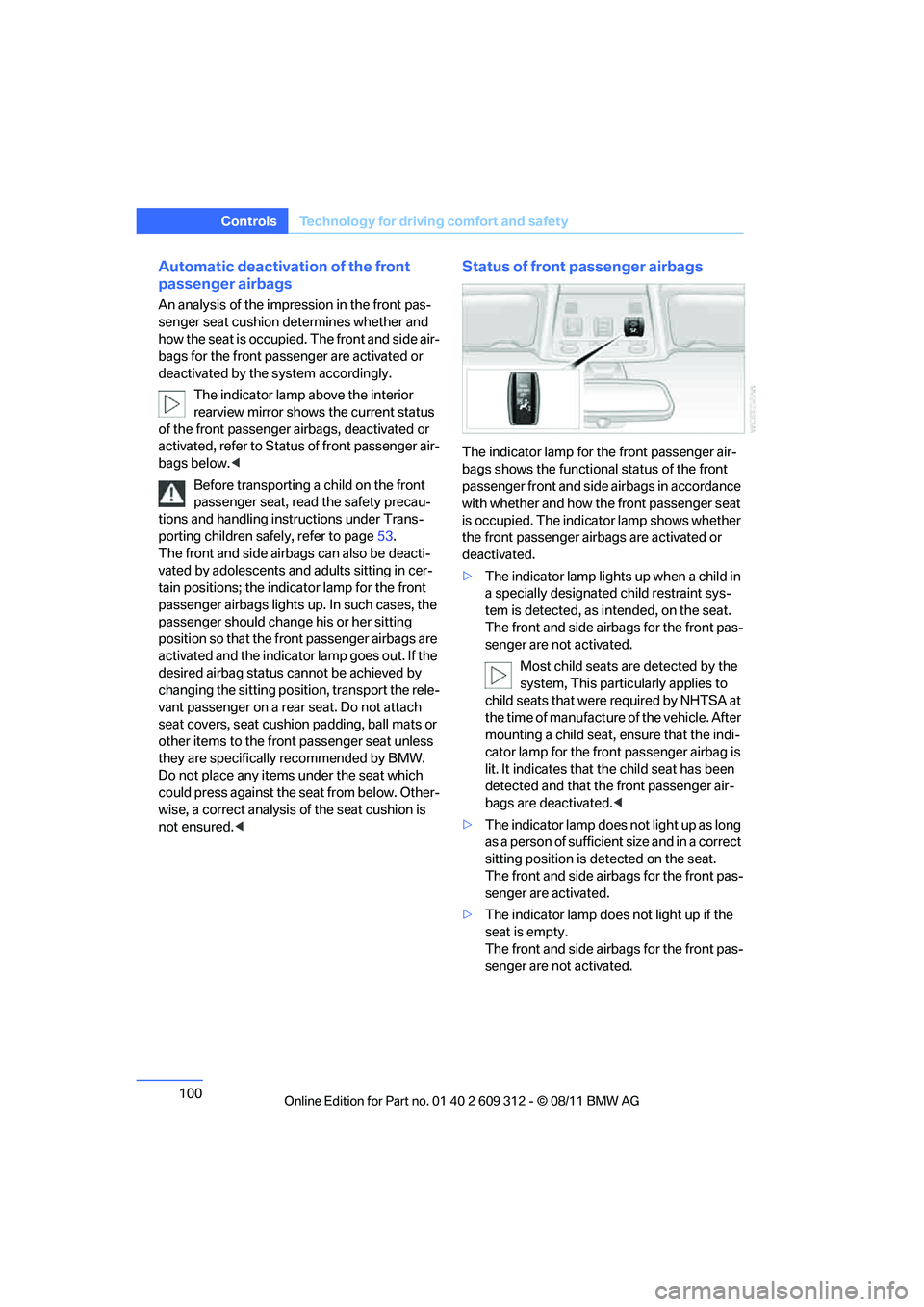

with a child restraint system. automatic deactivation
of the front passenger airbags refer to
page 100.
Convertible: key switch for
passenger belt
The passenger safety belt can be locked with a
key switch so that it is prevented from being
pulled out.
The key switch is situated on the side surface of
the passenger-side dashboard.
Locking the passenger belt
Lock the passenger belt to install a child
restraint system.
Insert key and push in.
Keep key pushed in and tu rn it until reaching the
stop at the position. Pu ll key out at this stop.
After removing the ke y, make sure that
the switch is in the position; other-
wise, the locking action on the safety belt is not
guaranteed. <
Unlocking the passenger belt
If no child restraint system is fastened to the
front passenger seat, unlock the passenger
belt; otherwise, the freedom of movement of
the upper body is limited.
Insert key and push in.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

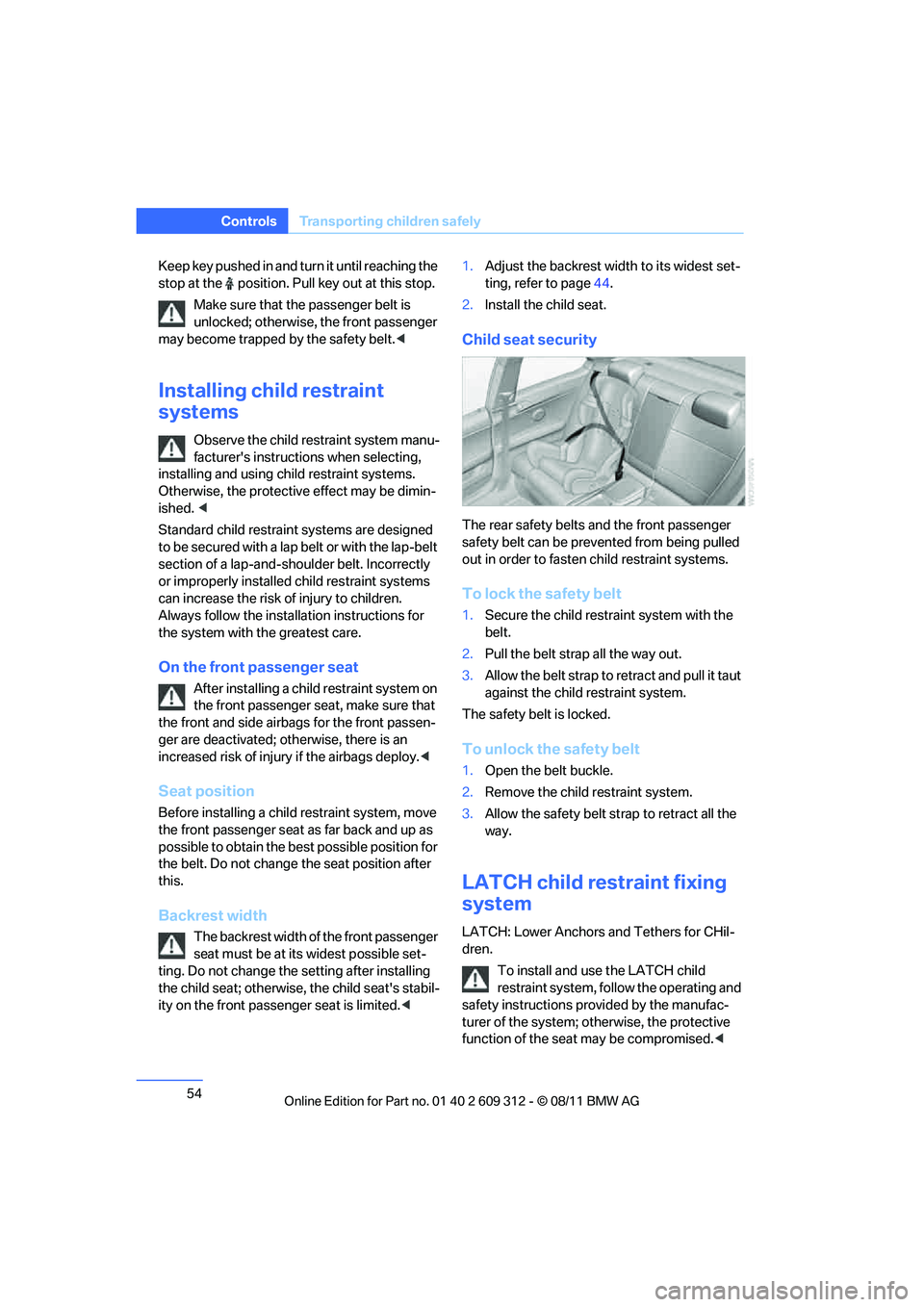

54
ControlsTransporting children safely
Keep key pushed in and turn it until reaching the
stop at the position. Pull key out at this stop.
Make sure that the passenger belt is
unlocked; otherwise, the front passenger
may become trapped by the safety belt.<
Installing child restraint
systems
Observe the child restraint system manu-
facturer's instructio ns when selecting,
installing and using child restraint systems.
Otherwise, the protective effect may be dimin-
ished. <
Standard child restraint systems are designed
to be secured with a lap be lt or with the lap-belt
section of a lap-and-shou lder belt. Incorrectly
or improperly installed child restraint systems
can increase the risk of injury to children.
Always follow the installa tion instructions for
the system with the greatest care.
On the front passenger seat
After installing a child restraint system on
the front passenger seat, make sure that
the front and side airb ags for the front passen-
ger are deactivated; ot herwise, there is an
increased risk of injury if the airbags deploy.<
Seat position
Before installing a child restraint system, move
the front passenger seat as far back and up as
possible to obtain the best possible position for
the belt. Do not change the seat position after
this.
Backrest width
The backrest width of the front passenger
seat must be at its widest possible set-
ting. Do not change the setting after installing
the child seat; otherwise, the child seat's stabil-
ity on the front passenger seat is limited. <1.
Adjust the backrest width to its widest set-
ting, refer to page 44.
2. Install the child seat.
Child seat security
The rear safety belts and the front passenger
safety belt can be prev ented from being pulled
out in order to fasten child restraint systems.
To lock the safety belt
1. Secure the child restraint system with the
belt.
2. Pull the belt strap all the way out.
3. Allow the belt strap to retract and pull it taut
against the child restraint system.
The safety belt is locked.
To unlock the safety belt
1. Open the belt buckle.
2. Remove the child restraint system.
3. Allow the safety belt st rap to retract all the
way.
LATCH child restraint fixing
system
LATCH: Lower Anchors and Tethers for CHil-
dren.
To install and use the LATCH child
restraint system, follow the operating and
safety instructions pr ovided by the manufac-
turer of the system; otherwise, the protective
function of the seat may be compromised. <
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

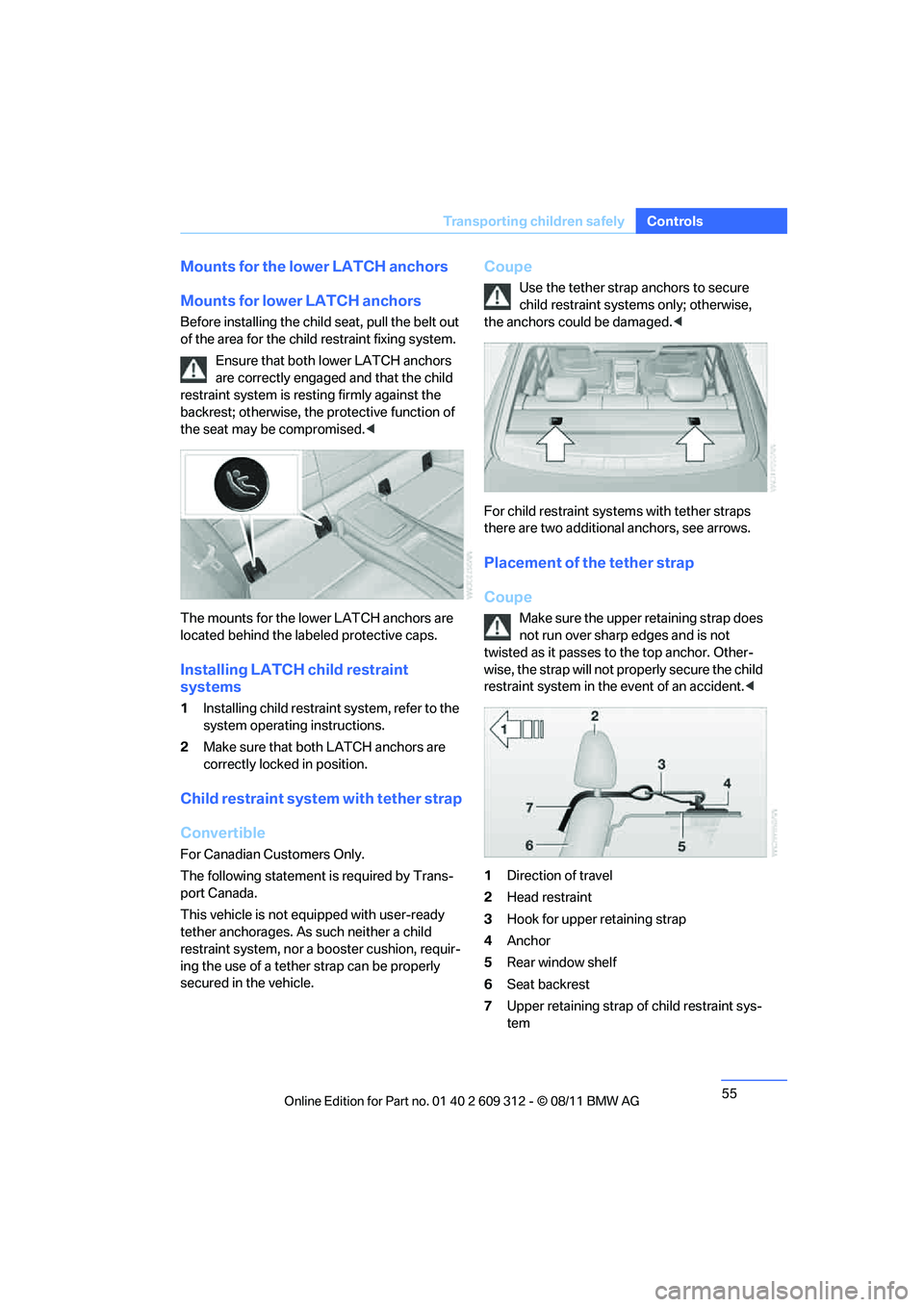

55
Transporting children safely
Controls
Mounts for the lower LATCH anchors
Mounts for lower LATCH anchors
Before installing the child
seat, pull the belt out
of the area for the child restraint fixing system.
Ensure that both lower LATCH anchors
are correctly engaged and that the child
restraint system is resting firmly against the
backrest; otherwise, the protective function of
the seat may be compromised. <
The mounts for the lower LATCH anchors are
located behind the labe led protective caps.
Installing LATCH child restraint
systems
1Installing child restrain t system, refer to the
system operating instructions.
2 Make sure that both LATCH anchors are
correctly locked in position.
Child restraint system with tether strap
Convertible
For Canadian Customers Only.
The following statement is required by Trans-
port Canada.
This vehicle is not equipped with user-ready
tether anchorages. As such neither a child
restraint system, nor a booster cushion, requir-
ing the use of a tether strap can be properly
secured in the vehicle.
Coupe
Use the tether strap anchors to secure
child restraint systems only; otherwise,
the anchors could be damaged. <
For child restraint system s with tether straps
there are two additional anchors, see arrows.
Placement of the tether strap
Coupe
Make sure the upper retaining strap does
not run over sharp edges and is not
twisted as it passes to the top anchor. Other-
wise, the strap will not pr operly secure the child
restraint system in the event of an accident. <
1 Direction of travel
2 Head restraint
3 Hook for upper retaining strap
4 Anchor
5 Rear window shelf
6 Seat backrest
7 Upper retaining strap of child restraint sys-
tem
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

56
ControlsTransporting children safely

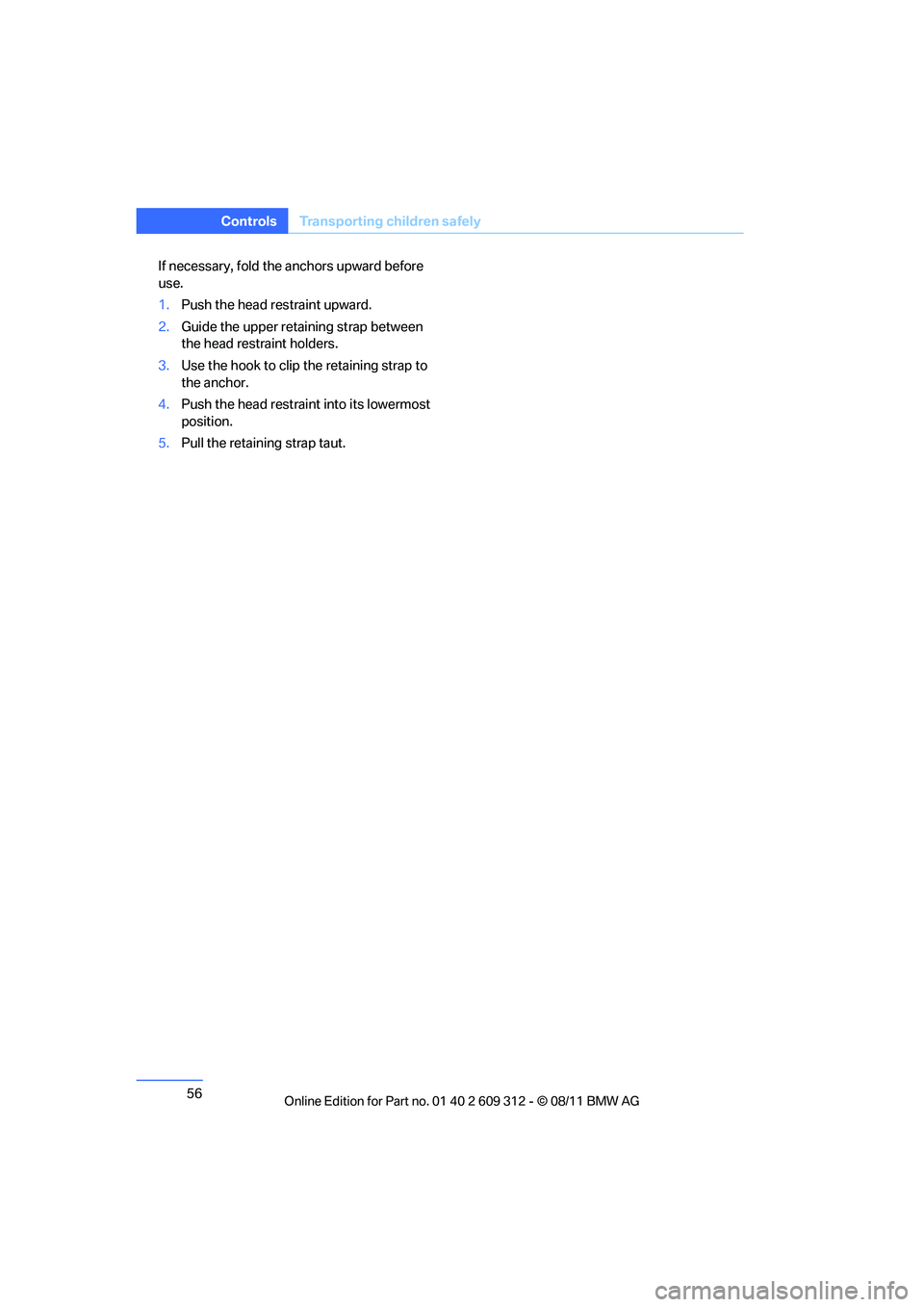

If necessary, fold the anchors upward before
use.
1.Push the head restraint upward.
2. Guide the upper retaining strap between
the head restraint holders.
3. Use the hook to clip the retaining strap to
the anchor.
4. Push the head restraint into its lowermost
position.
5. Pull the retaining strap taut.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

100
ControlsTechnology for driving comfort and safety
Automatic deactivation of the front
passenger airbags
An analysis of the impression in the front pas-
senger seat cushion determines whether and
how the seat is occupied. The front and side air-
bags for the front pass enger are activated or
deactivated by the system accordingly.
The indicator lamp above the interior
rearview mirror shows the current status
of the front passenger airbags, deactivated or
activated, refer to Status of front passenger air-
bags below. <
Before transporting a child on the front
passenger seat, read the safety precau-
tions and handling inst ructions under Trans-
porting children safely, refer to page 53.
The front and side airbags can also be deacti-
vated by adolescents and adults sitting in cer-
tain positions; the indi cator lamp for the front
passenger airbags lights up. In such cases, the
passenger should change his or her sitting
position so that the fr ont passenger airbags are
activated and the indicator lamp goes out. If the
desired airbag status cannot be achieved by
changing the sitting position, transport the rele-
vant passenger on a rear seat. Do not attach
seat covers, seat cushion padding, ball mats or
other items to the front passenger seat unless
they are specifically recommended by BMW.
Do not place any items under the seat which
could press against the seat from below. Other-
wise, a correct analysis of the seat cushion is
not ensured. <
Status of front passenger airbags
The indicator lamp for the front passenger air-
bags shows the functional status of the front
passenger front and side airbags in accordance
with whether and how the front passenger seat
is occupied. The indicator lamp shows whether
the front passenger airbags are activated or
deactivated.
>The indicator lamp light s up when a child in
a specially designated child restraint sys-
tem is detected, as in tended, on the seat.
The front and side airbags for the front pas-
senger are not activated.
Most child seats are detected by the
system, This partic ularly applies to
child seats that were required by NHTSA at
the time of manufacture of the vehicle. After
mounting a child seat, ensure that the indi-
cator lamp for the fron t passenger airbag is
lit. It indicates that th e child seat has been
detected and that the front passenger air-
bags are deactivated. <
> The indicator lamp does not light up as long
as a person of sufficient size and in a correct
sitting position is detected on the seat.
The front and side airbags for the front pas-
senger are activated.
> The indicator lamp does not light up if the
seat is empty.
The front and side airbags for the front pas-
senger are not activated.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

123

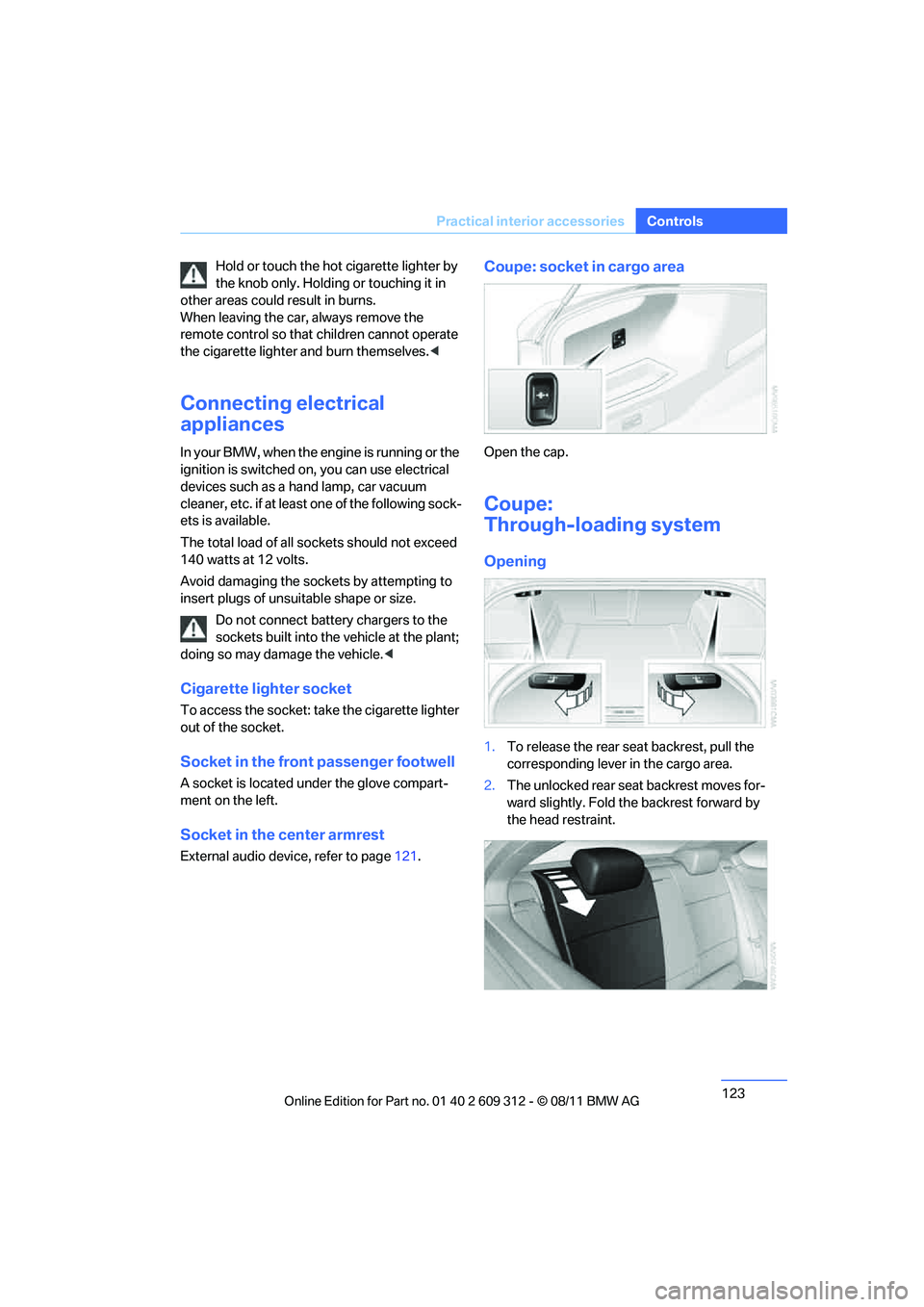

Practical interior accessories
Controls
Hold or touch the hot
cigarette lighter by
the knob only. Holding or touching it in
other areas could result in burns.
When leaving the car, always remove the
remote control so that children cannot operate
the cigarette lighter and burn themselves. <
Connecting electrical
appliances
In your BMW, when the engine is running or the
ignition is switched on, you can use electrical
devices such as a hand lamp, car vacuum
cleaner, etc. if at least one of the following sock-
ets is available.
The total load of all sockets should not exceed
140 watts at 12 volts.
Avoid damaging the sockets by attempting to
insert plugs of unsuitable shape or size.
Do not connect battery chargers to the
sockets built into the vehicle at the plant;
doing so may damage the vehicle. <
Cigarette lighter socket
To access the socket: take the cigarette lighter
out of the socket.
Socket in the front passenger footwell
A socket is located under the glove compart-
ment on the left.
Socket in the center armrest
External audio device, refer to page 121.
Coupe: socket in cargo area
Open the cap.
Coupe:
Through-loading system
Opening
1.To release the rear se at backrest, pull the
corresponding lever in the cargo area.
2. The unlocked rear seat backrest moves for-
ward slightly. Fold the backrest forward by
the head restraint.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

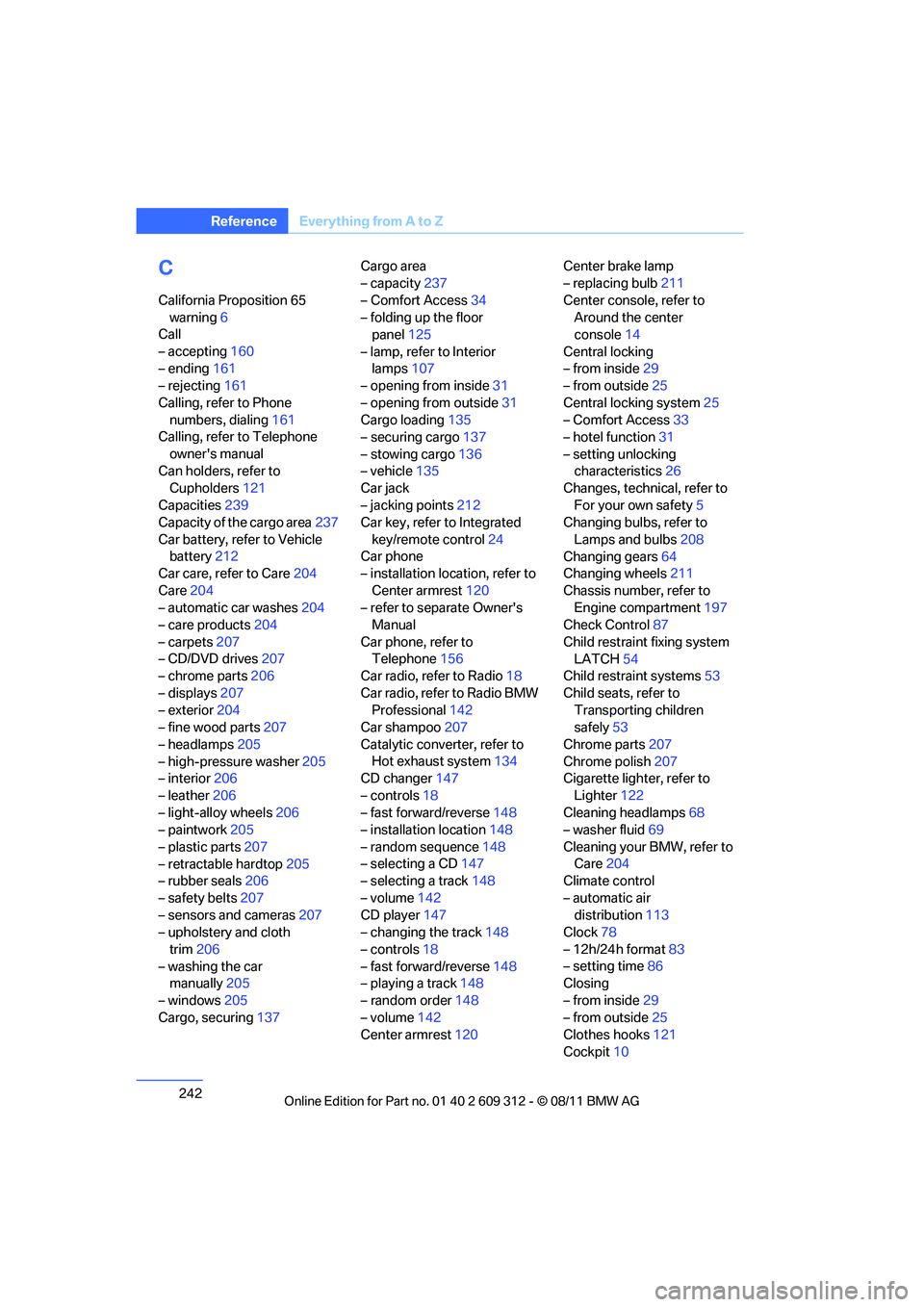

242
ReferenceEverything from A to Z
C
California Proposition 65
warning 6
Call
– accepting 160
– ending 161
– rejecting 161
Calling, refer to Phone numbers, dialing 161
Calling, refer to Telephone
owner's manual
Can holders, refer to Cupholders 121
Capacities 239
Capacity of the cargo area 237
Car battery, refer to Vehicle battery 212
Car care, refer to Care 204
Care 204
– automatic car washes 204
– care products 204
– carpets 207
– CD/DVD drives 207
– chrome parts 206
– displays 207
– exterior 204
– fine wood parts 207
– headlamps 205
– high-pressure washer 205
– interior 206
– leather 206
– light-alloy wheels 206
– paintwork 205
– plastic parts 207
– retractable hardtop 205
– rubber seals 206
– safety belts 207
– sensors and cameras 207
– upholstery and cloth
trim 206
– washing the car manually 205
– windows 205
Cargo, securing 137 Cargo area
– capacity
237
– Comfort Access 34
– folding up the floor panel 125
– lamp, refer to Interior lamps 107
– opening from inside 31
– opening from outside 31
Cargo loading 135
– securing cargo 137
– stowing cargo 136
– vehicle 135
Car jack
– jacking points 212
Ca
r key, refer to Integrated
key/remote control 24
Car phone
– installation location, refer to
Center armrest 120
– refer to separate Owner's Manual
Car phone, refer to Telephone 156
Car radio, refer to Radio 18
Car radio, refer to Radio BMW Professional 142
Car shampoo 207
Catalytic converter, refer to Hot exhaust system 134
CD changer 147
– controls 18
– fast forward/reverse 148
– installation location 148
– random sequence 148
– selecting a CD 147
– selecting a track 148
– volume 142
CD player 147
– changing the track 148
– controls 18
– fast forward/reverse 148
– playing a track 148
– random order 148
– volume 142
Center armrest 120 Center brake lamp
– replacing bulb
211
Center console, refer to Around the center
console 14
Central locking
– from inside 29
– from outside 25
Central locking system 25
– Comfort Access 33
– hotel function 31
– setting unlocking characteristics 26
Changes, technical, refer to
For your own safety 5
Changing bulbs, refer to
Lamps and bulbs 208
Changing gears 64
Changing wheels 211
Chassis number, refer to Engine compartment 197
Check Control 87
Child restraint fixing system LATCH 54
Child restraint systems 53
Child seats, refer to Transporting children
safely 53
Chrome parts 207
Chrome polish 207
Cigarette lighter, refer
to
Lighter 122
Cleaning headlamps 68
– washer fluid 69
Cleaning your BMW, refer to Care 204
Climate control
– automatic air distribution 113
Clock 78
– 12h/24h format 83
– setting time 86
Closing
– from inside 29
– from outside 25
Clothes hooks 121
Cockpit 10
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

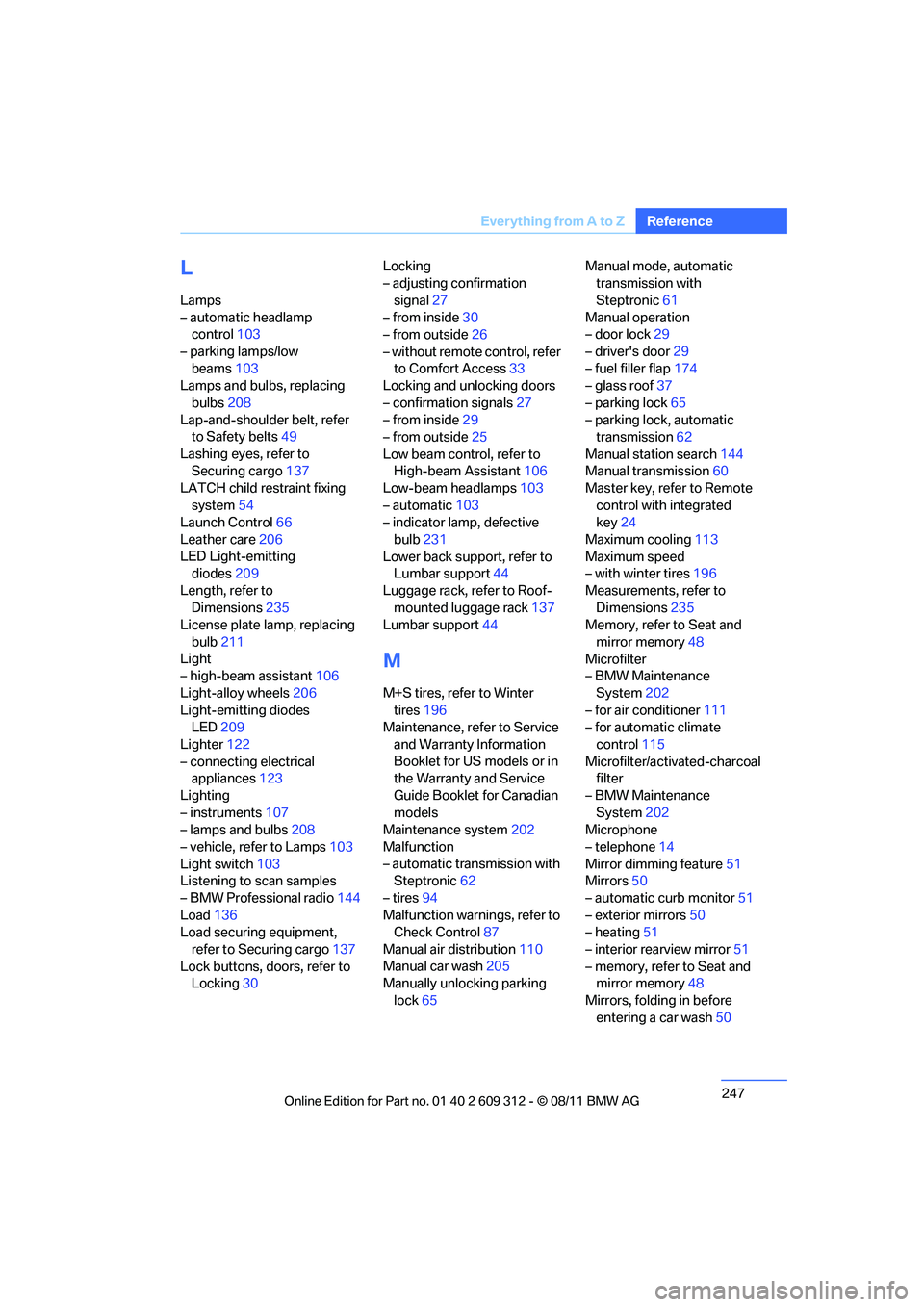

247
Everything from A to Z
Reference
L
Lamps
– automatic headlamp
control 103
– parking lamps/low beams 103
Lamps and bulbs, replacing
bulbs 208
Lap-and-shoulder belt, refer to Safety belts 49
Lashing eyes, refer to Securing cargo 137
LATCH child restraint fixing
system 54
Launch Control 66
Leather care 206
LED Light-emitting diodes 209
Length, refer to Dimensions 235
License plate lamp, replacing
bulb 211
Light
– high-beam assistant 106
Light-alloy wheels 206
Light-emitting diodes LED 209
Lighter 122
– connecting electrical appliances 123
Lighting
– instruments 107
– lamps and bulbs 208
– vehicle, refer to Lamps 103
Light switch 103
Listening to scan samples
– BMW Professional radio 144
Load 136
Load securing equipment,
refer to Securing cargo 137
Lock buttons, doors, refer to Locking 30 Locking
– adjusting confirmation
signal 27
– from inside 30
– from outside 26
– without remote control, refer to Comfort Access 33
Locking and unlocking doors
– confirmation signals 27
– from inside 29
– from outside 25
Low beam control, refer to High-beam Assistant 106
Low-beam headlamps 103
– automatic 103
– indicator lamp, defective
bulb 231
Lower back support, refer to Lumbar support 44
Luggage rack, refer to Roof- mounted luggage rack 137
Lumbar support 44
M
M+S tires, refer to Winter
tires 196
Maintenance, re fer to Service
and Warranty Information
Booklet for US models or in
the Warranty and Service
Guide Booklet for Canadian
models
Maintenance system 202
Malfunction
– automatic transmission with Steptronic 62
– tires 94
Malfunction warnings, refer to Check Control 87
Manual air distribution 110
Manual car wash 205
Manually unlocking parking
lock 65 Manual mode, automatic
transmission with
Steptronic 61
Manual operation
– door lock 29
– driver's door 29
– fuel filler flap 174
– glass roof 37
– parking lock 65
– parking lock, automatic transmission 62
Manual station search 144
Manual transmission 60
Master key, refer to Remote
control with integrated
key 24
Maximum cooling 113
Maximum speed
– with winter tires 196
Measurements, refer to Dimensions 235
Memory, refer to Seat and
mirror memory 48
Microfilter
– BMW Maintenance
System 202
– for air conditioner 111
– for automatic climate
control 115
Microfilter/activated-charcoal filter
– BMW Maintenance System 202
Microphone
– telephone 14
Mirror dimming feature 51
Mirrors 50
– automatic curb monitor 51
– exterior mirrors 50
– heating 51
– interior rearview mirror 51
– memory, refer to Seat and mirror memory 48
Mirrors, folding in before entering a car wash 50
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG
