BMW M3 COUPE 2009 E92 User Guide

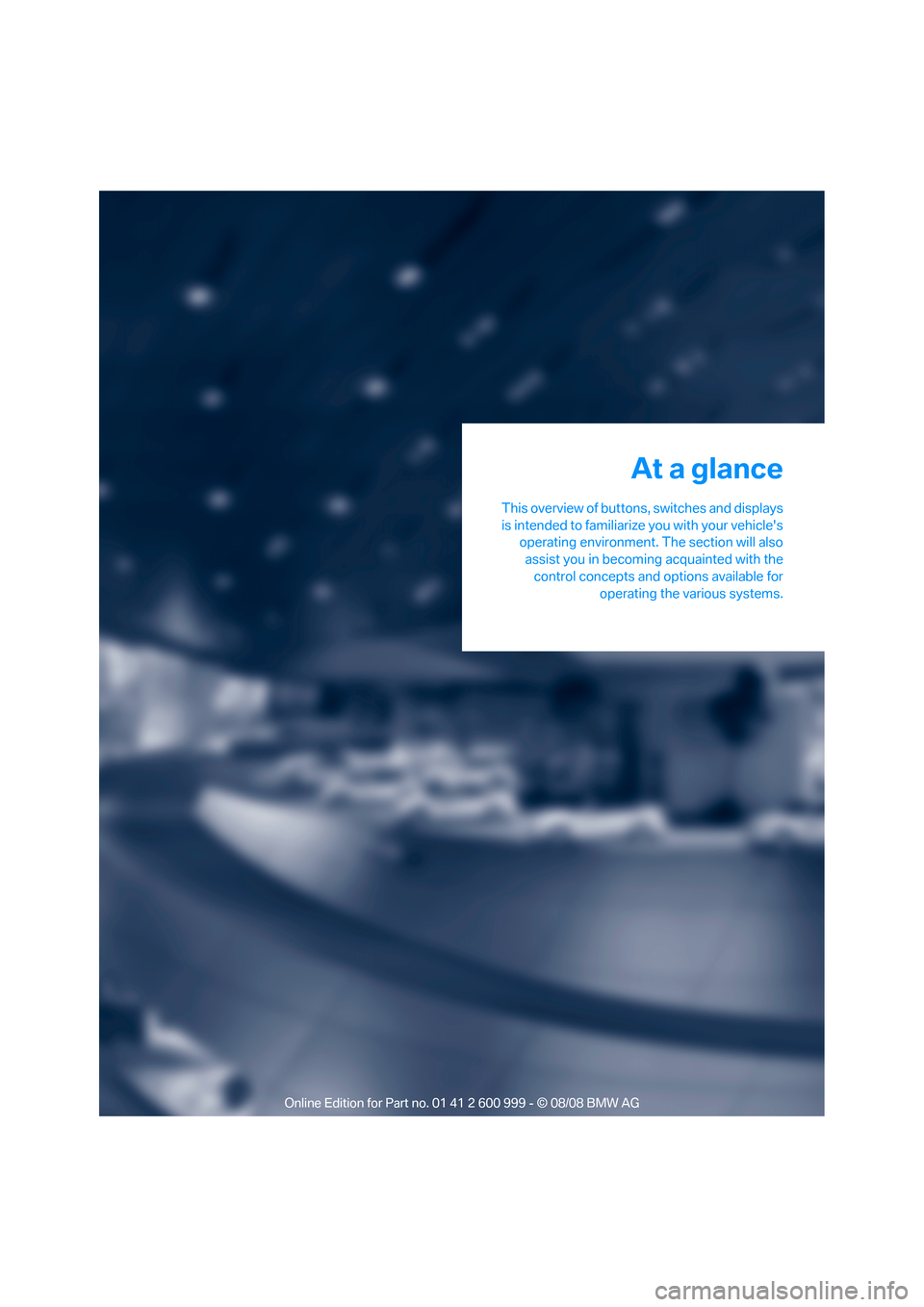

At a glance
This overview of buttons, switches and displays
is intended to familiarize you with your vehicle's
operating environment. The section will also
assist you in becoming acquainted with the
control concepts and options available for
operating the various systems.
At a glance
ba8_E9293M3_cic.book Seite 9 Dienstag, 19. August 2008 12:01 12

Cockpit
10

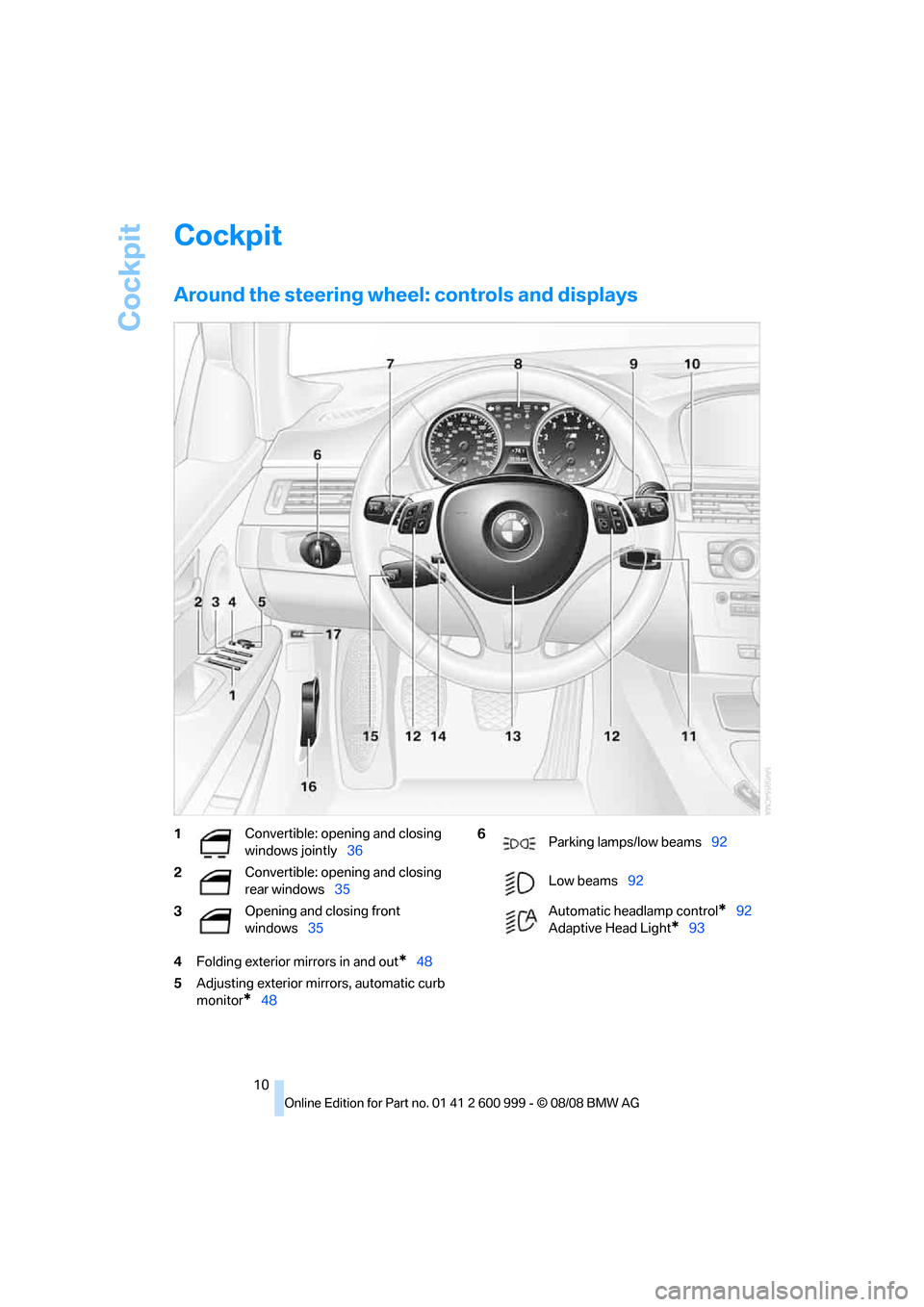

Cockpit
Around the steering wheel: controls and displays
4Folding exterior mirrors in and out*48
5Adjusting exterior mirrors, automatic curb
monitor
*48
1Convertible: opening and closing
windows jointly36
2Convertible: opening and closing
rear windows35
3Opening and closing front
windows356
Parking lamps/low beams92
Low beams92
Automatic headlamp control
*92
Adaptive Head Light
*93
ba8_E9293M3_cic.book Seite 10 Dienstag, 19. August 2008 12:01 12

At a glance
11Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

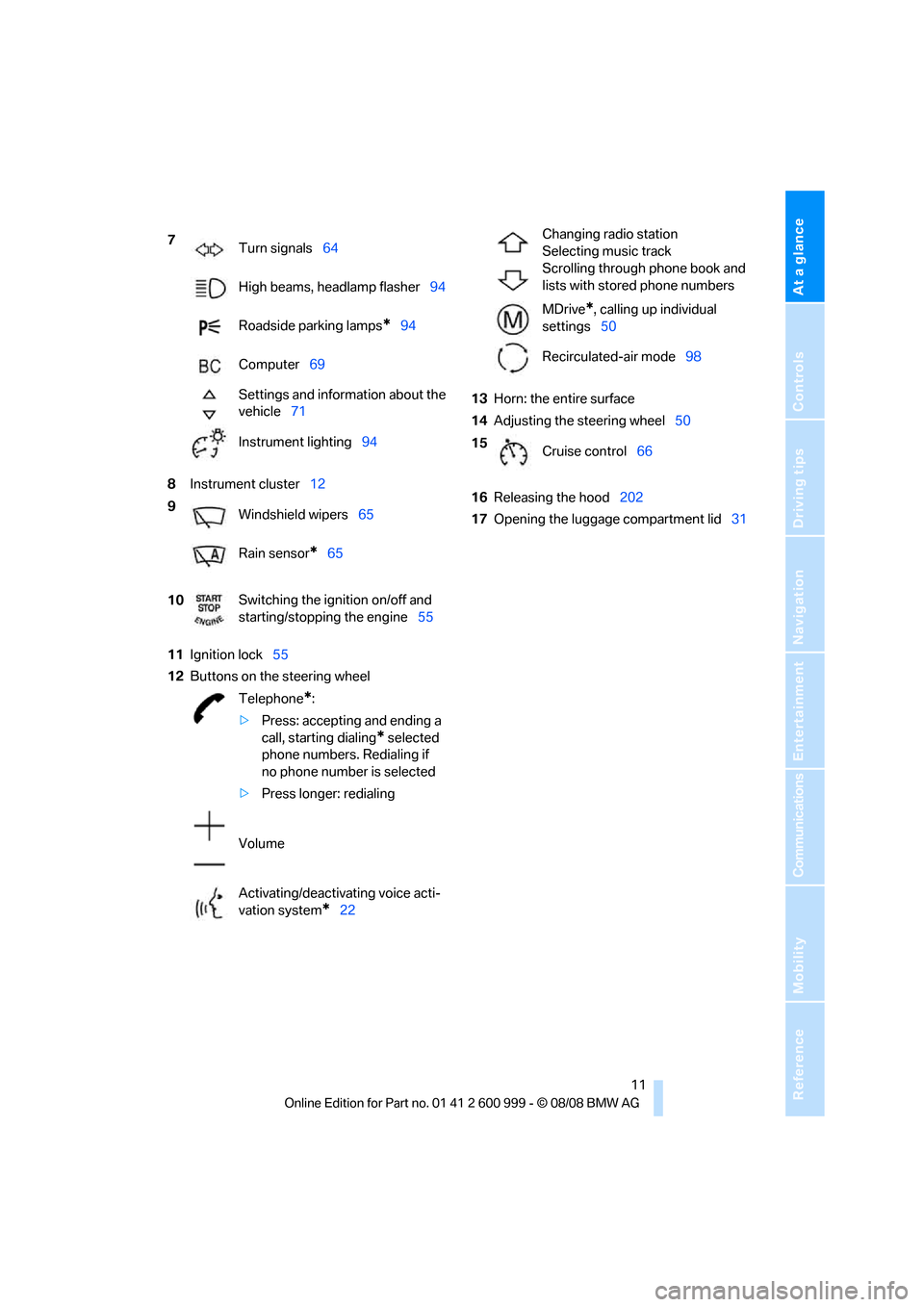

8Instrument cluster12
11Ignition lock55
12Buttons on the steering wheel13Horn: the entire surface
14Adjusting the steering wheel50
16Releasing the hood202
17Opening the luggage compartment lid31 7
Turn signals64
High beams, headlamp flasher94
Roadside parking lamps
*94
Computer69
Settings and information about the
vehicle71
Instrument lighting94
9
Windshield wipers65
Rain sensor
*65
10Switching the ignition on/off and
starting/stopping the engine55
Telephone
*:
>Press: accepting and ending a
call, starting dialing
* selected
phone numbers. Redialing if
no phone number is selected
>Press longer: redialing
Volume
Activating/deactivating voice acti-
vation system
*22
Changing radio station
Selecting music track
Scrolling through phone book and
lists with stored phone numbers
MDrive
*, calling up individual
settings50
Recirculated-air mode98
15
Cruise control66
ba8_E9293M3_cic.book Seite 11 Dienstag, 19. August 2008 12:01 12

Cockpit
12

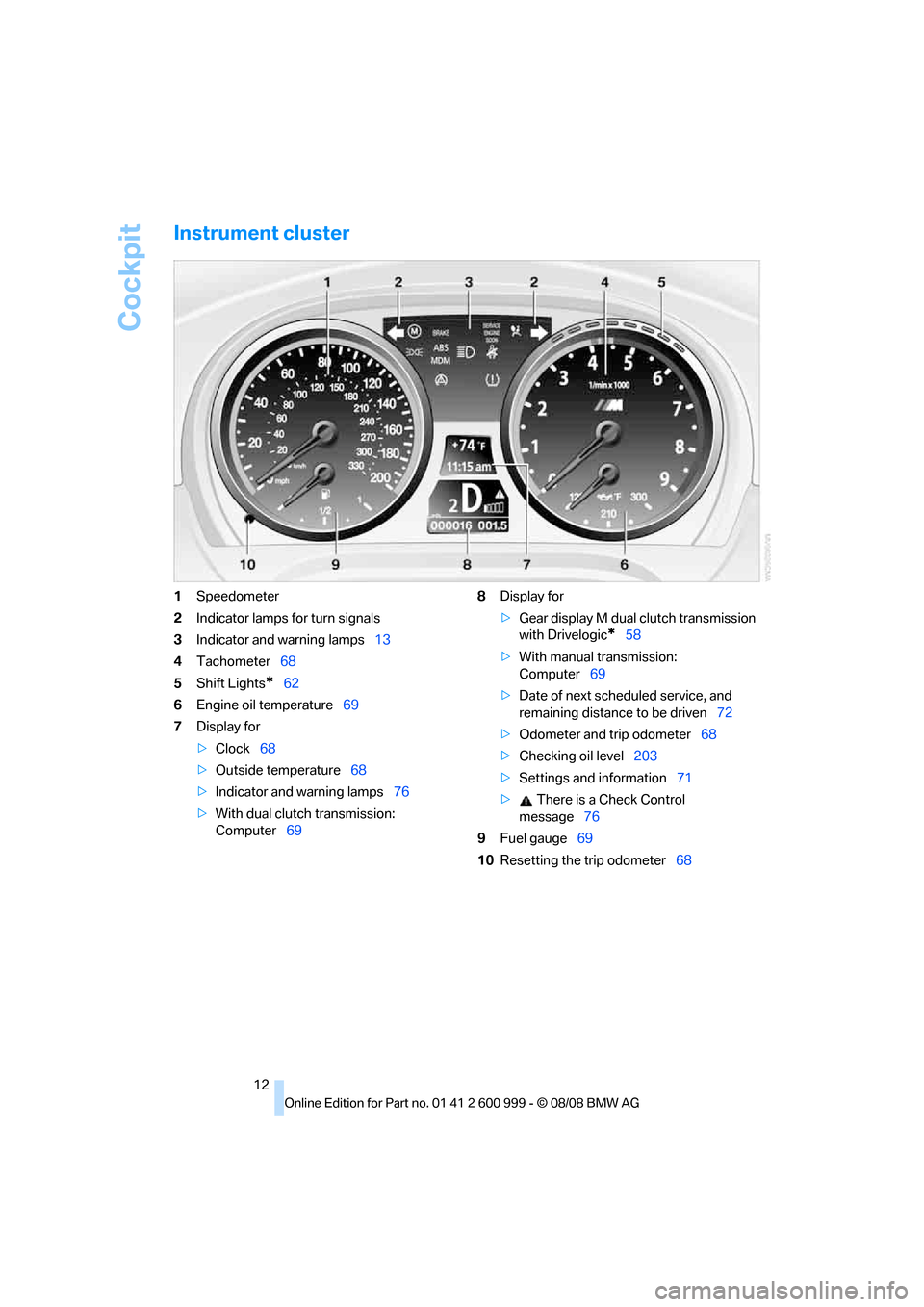

Instrument cluster
1Speedometer
2Indicator lamps for turn signals
3Indicator and warning lamps13
4Tachometer68
5Shift Lights
*62
6Engine oil temperature69
7Display for
>Clock68
>Outside temperature68
>Indicator and warning lamps76
>With dual clutch transmission:
Computer698Display for
>Gear display M dual clutch transmission
with Drivelogic
*58
>With manual transmission:
Computer69
>Date of next scheduled service, and
remaining distance to be driven72
>Odometer and trip odometer68
>Checking oil level203
>Settings and information71
> There is a Check Control
message76
9Fuel gauge69
10Resetting the trip odometer68
ba8_E9293M3_cic.book Seite 12 Dienstag, 19. August 2008 12:01 12

At a glance
13Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

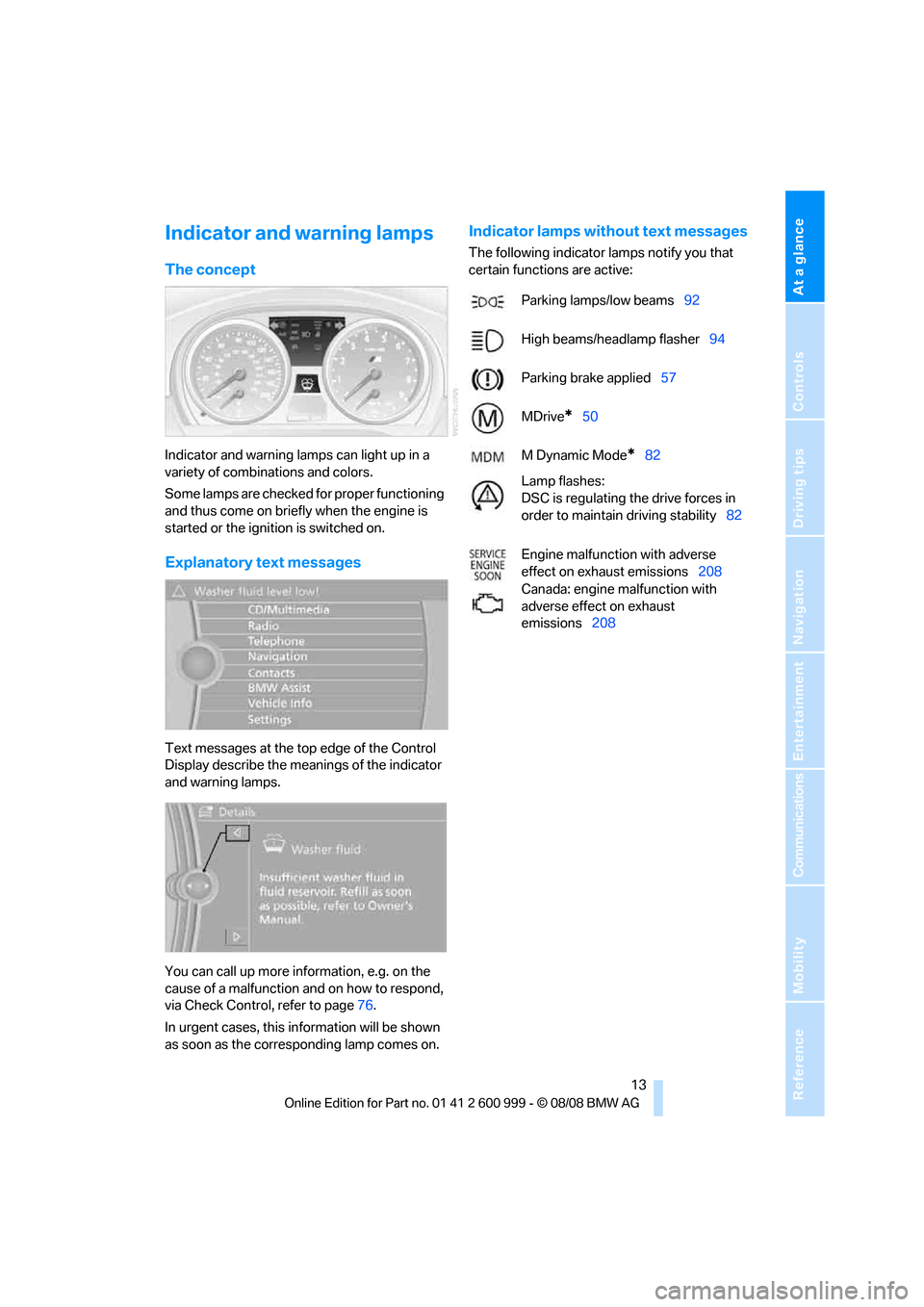

Indicator and warning lamps
The concept
Indicator and warning lamps can light up in a
variety of combinations and colors.
Some lamps are checked for proper functioning
and thus come on briefly when the engine is
started or the ignition is switched on.
Explanatory text messages
Text messages at the top edge of the Control
Display describe the meanings of the indicator
and warning lamps.
You can call up more information, e.g. on the
cause of a malfunction and on how to respond,
via Check Control, refer to page76.
In urgent cases, this information will be shown
as soon as the corresponding lamp comes on.
Indicator lamps without text messages
The following indicator lamps notify you that
certain functions are active:
Parking lamps/low beams92
High beams/headlamp flasher94
Parking brake applied57
MDrive
*50
M Dynamic Mode
*82
Lamp flashes:
DSC is regulating the drive forces in
order to maintain driving stability82
Engine malfunction with adverse
effect on exhaust emissions208
Canada: engine malfunction with
adverse effect on exhaust
emissions208
ba8_E9293M3_cic.book Seite 13 Dienstag, 19. August 2008 12:01 12

Cockpit
14

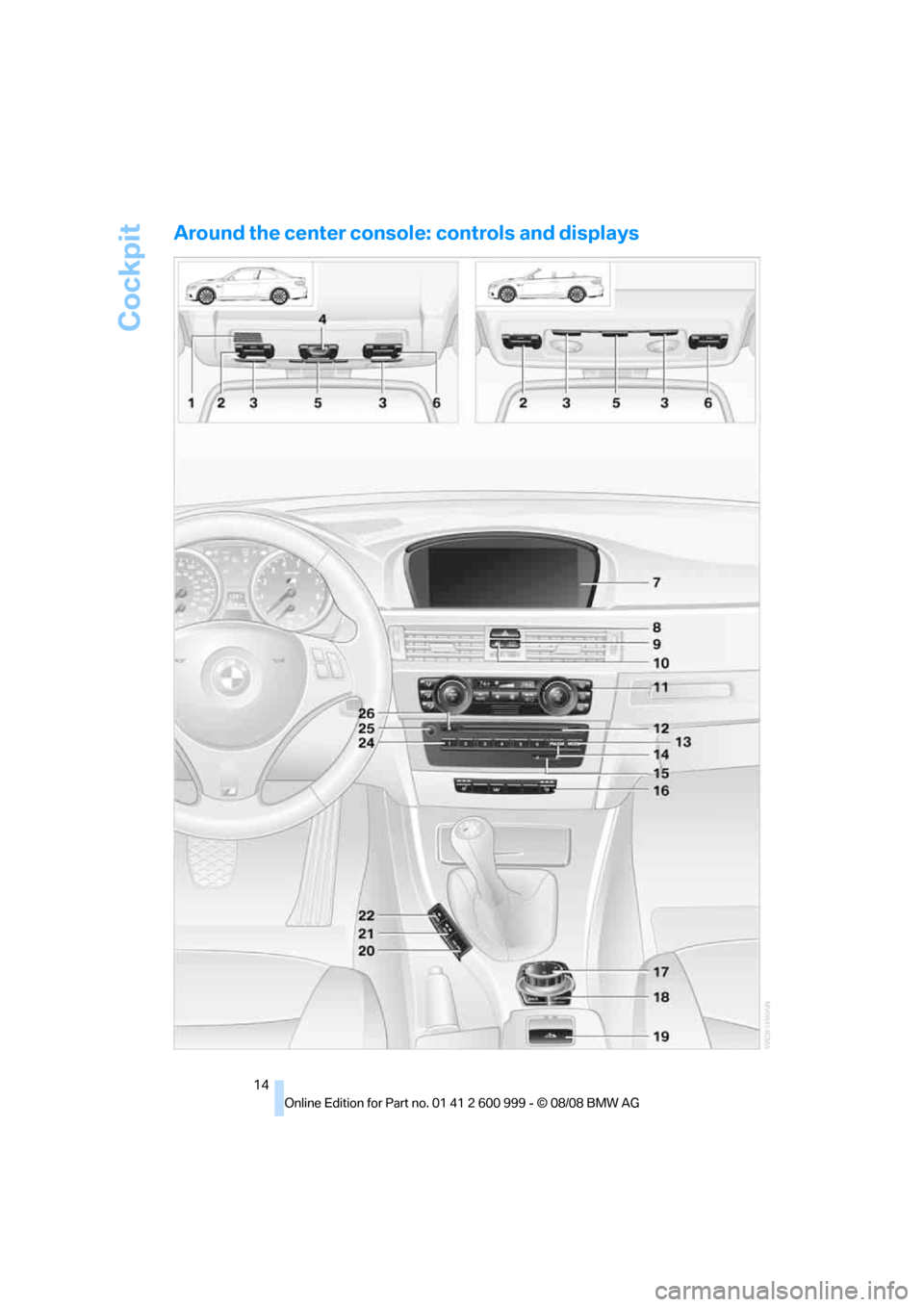

Around the center console: controls and displays
ba8_E9293M3_cic.book Seite 14 Dienstag, 19. August 2008 12:01 12

At a glance
15Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

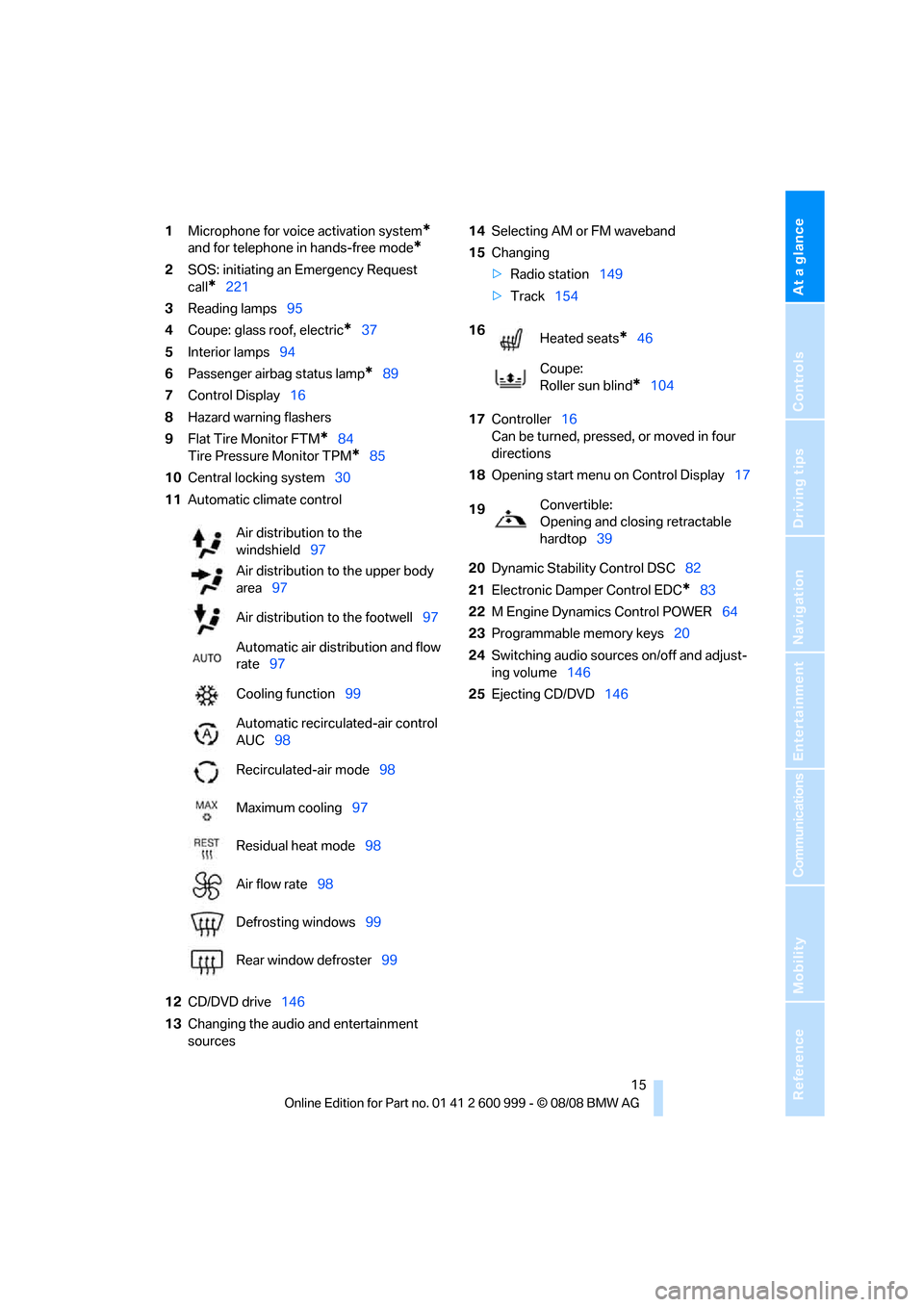

1Microphone for voice activation system*
and for telephone in hands-free mode*
2SOS: initiating an Emergency Request
call
*221
3Reading lamps95
4Coupe: glass roof, electric
*37
5Interior lamps94
6Passenger airbag status lamp
*89
7Control Display16
8Hazard warning flashers
9Flat Tire Monitor FTM
*84
Tire Pressure Monitor TPM
*85
10Central locking system30
11Automatic climate control
12CD/DVD drive146
13Changing the audio and entertainment
sources14Selecting AM or FM waveband
15Changing
>Radio station149
>Track154
17Controller16
Can be turned, pressed, or moved in four
directions
18Opening start menu on Control Display17
20Dynamic Stability Control DSC82
21Electronic Damper Control EDC
*83
22M Engine Dynamics Control POWER64
23Programmable memory keys20
24Switching audio sources on/off and adjust-
ing volume146
25Ejecting CD/DVD146 Air distribution to the
windshield97
Air distribution to the upper body
area97
Air distribution to the footwell97
Automatic air distribution and flow
rate97
Cooling function99
Automatic recirculated-air control
AUC98
Recirculated-air mode98
Maximum cooling97
Residual heat mode98
Air flow rate98
Defrosting windows99
Rear window defroster99
16
Heated seats*46
Coupe:
Roller sun blind
*104
19Convertible:
Opening and closing retractable
hardtop39
ba8_E9293M3_cic.book Seite 15 Dienstag, 19. August 2008 12:01 12

iDrive
16
iDrive
iDrive integrates the functions of a large num-
ber of switches. This allows these functions to
be operated from a single central position. The
following section provides an introduction to basic menu navigation. The control of the indi-
vidual functions is described in connection with
the relevant equipment.
Controls
1Control Display
2Controller with buttons
You can use the buttons to open the menus
directly. The controller can be used to
select the menu items and create settings.
>Move in four directions, arrow3
>Turn, arrow 4
>Push, arrow 5
Operate the controller only when traffic
and road conditions allow this, to avoid
endangering the car's occupants and other
road users by being distracted.<
ba8_E9293M3_cic.book Seite 16 Dienstag, 19. August 2008 12:01 12

At a glance
17Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

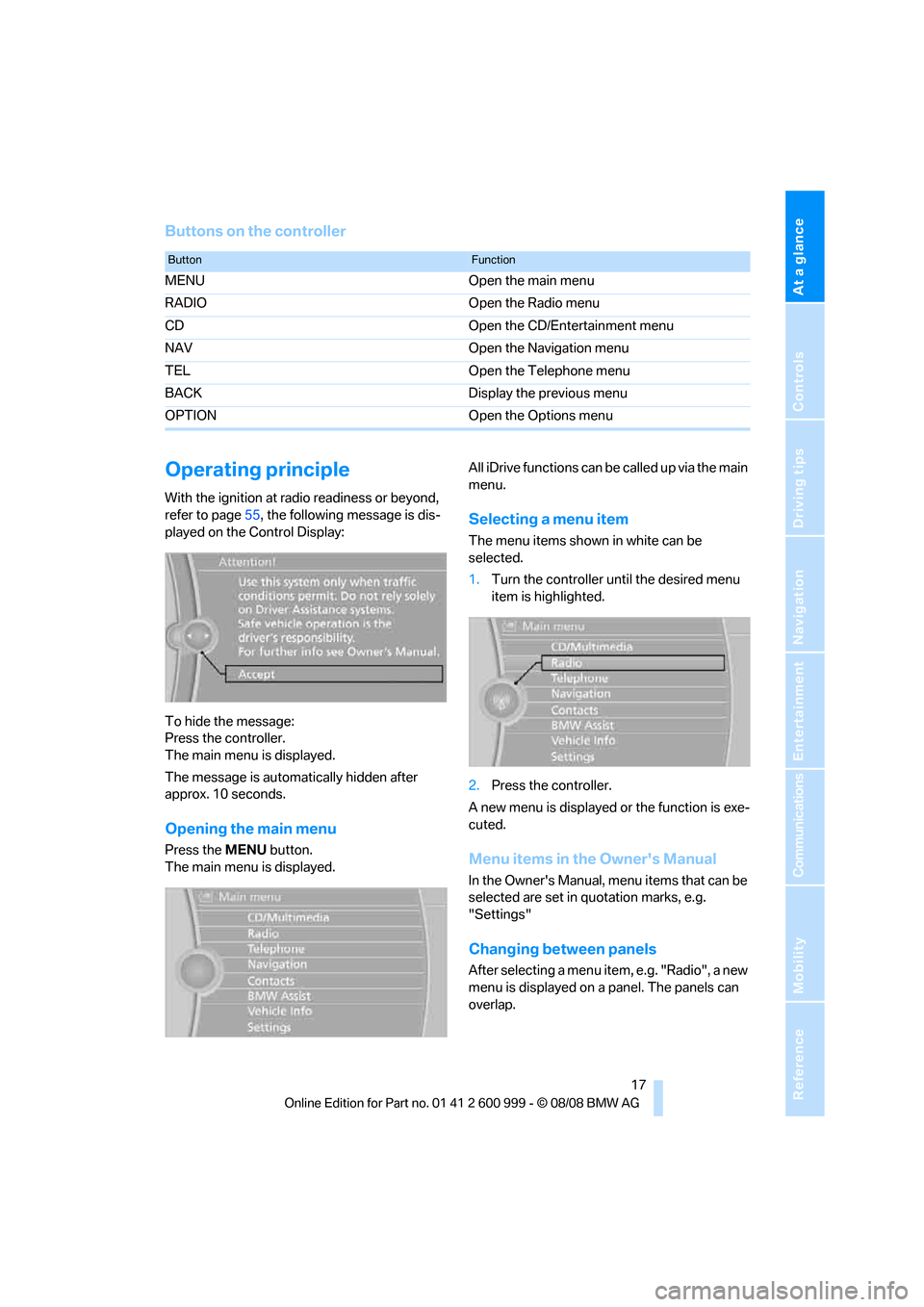

Buttons on the controller
Operating principle
With the ignition at radio readiness or beyond,
refer to page55, the following message is dis-
played on the Control Display:
To hide the message:
Press the controller.
The main menu is displayed.
The message is automatically hidden after
approx. 10 seconds.
Opening the main menu
Press the MENU button.
The main menu is displayed.All iDrive functions can be called up via the main
menu.
Selecting a menu item
The menu items shown in white can be
selected.
1.Turn the controller until the desired menu
item is highlighted.
2.Press the controller.
A new menu is displayed or the function is exe-
cuted.
Menu items in the Owner's Manual
In the Owner's Manual, menu items that can be
selected are set in quotation marks, e.g.
"Settings"
Changing between panels
After selecting a menu item, e.g. "Radio", a new
menu is displayed on a panel. The panels can
overlap.
ButtonFunction
MENU Open the main menu
RADIO Open the Radio menu
CD Open the CD/Entertainment menu
NAV Open the Navigation menu
TEL Open the Telephone menu
BACK Display the previous menu
OPTION Open the Options menu
ba8_E9293M3_cic.book Seite 17 Dienstag, 19. August 2008 12:01 12

iDrive
18 Move the controller to the left or right to change
between the panels.
White arrows pointing to the left or right indi-
cate that additional panels can be opened.
Open the Options menu
Press the OPTION button.
The "Options" menu is displayed.
Additional options: move the controller to the
right repeatedly until the "Options" menu
appears.
The "Options" menu contains the following:
>Screen settings, refer to page19.
>Control options for the selected menu.
Adjusting settings
1.Select a field.
2.Turn the controller until the desired setting
is displayed.
3.Press the controller to confirm the setting.
The scroll bar on the right side indicates
whether additional menu items or set-
tings can be selected that are currently not vis-
ible.<
Example: setting the clock
1.Press the MENU button.
The main menu is displayed.
2.Turn the controller until "Settings" is high-
lighted, and then press the controller.
3.Turn the controller until "Time/Date" is
highlighted, and then press the controller.
