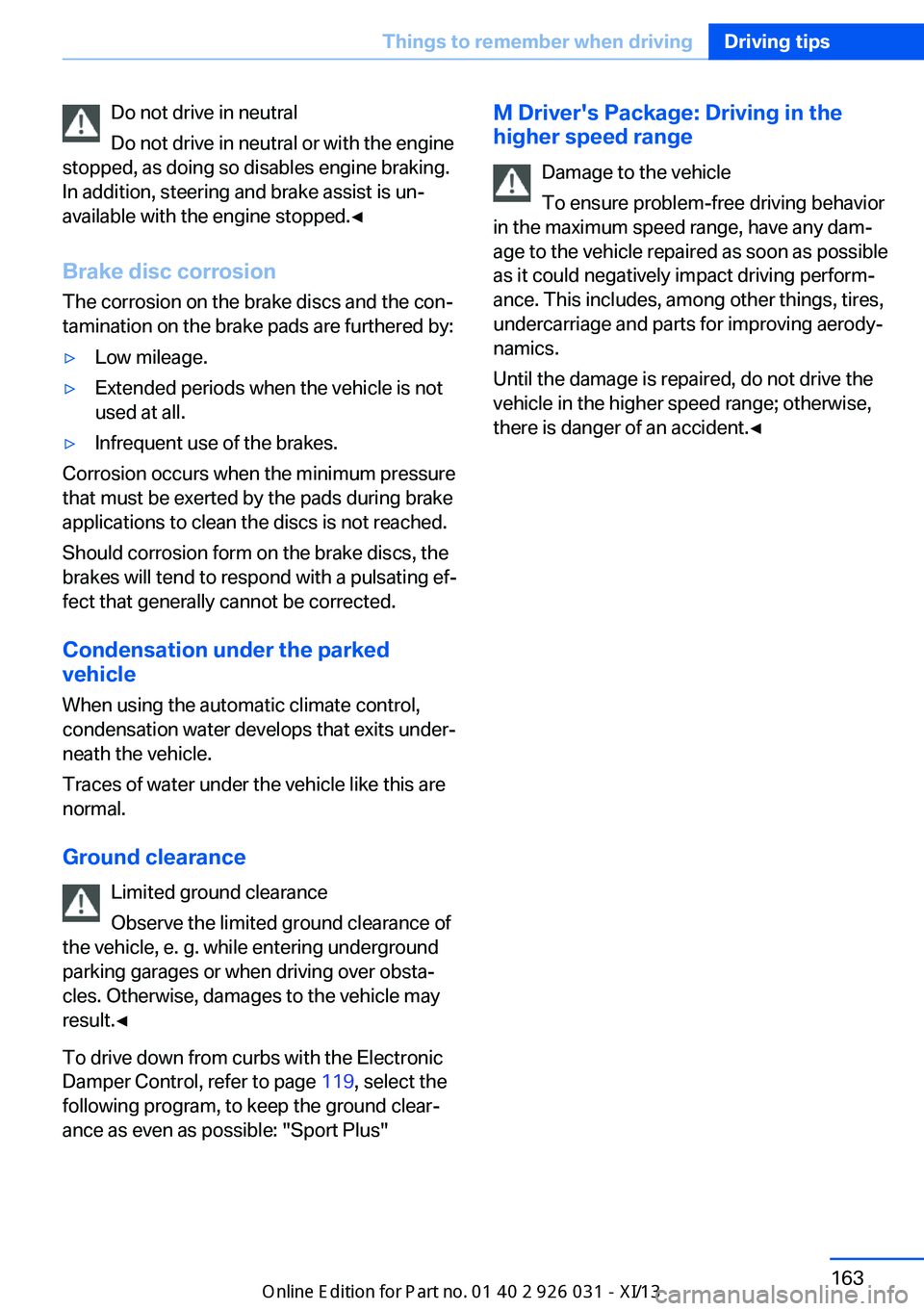

ground clearance BMW M5 SEDAN 2013 Owners Manual

Do not drive in neutral
Do not drive in neutral or with the engine
stopped, as doing so disables engine braking.
In addition, steering and brake assist is un‐
available with the engine stopped.◀
Brake disc corrosion The corrosion on the brake discs and the con‐
tamination on the brake pads are furthered by:▷Low mileage.▷Extended periods when the vehicle is not
used at all.▷Infrequent use of the brakes.
Corrosion occurs when the minimum pressure
that must be exerted by the pads during brake
applications to clean the discs is not reached.
Should corrosion form on the brake discs, the
brakes will tend to respond with a pulsating ef‐
fect that generally cannot be corrected.
Condensation under the parked
vehicle
When using the automatic climate control,
condensation water develops that exits under‐
neath the vehicle.
Traces of water under the vehicle like this are
normal.
Ground clearance Limited ground clearance
Observe the limited ground clearance of
the vehicle, e. g. while entering underground
parking garages or when driving over obsta‐
cles. Otherwise, damages to the vehicle may
result.◀
To drive down from curbs with the Electronic
Damper Control, refer to page 119, select the
following program, to keep the ground clear‐
ance as even as possible: "Sport Plus"
M Driver's Package: Driving in the
higher speed range
Damage to the vehicle
To ensure problem-free driving behavior
in the maximum speed range, have any dam‐
age to the vehicle repaired as soon as possible
as it could negatively impact driving perform‐
ance. This includes, among other things, tires,
undercarriage and parts for improving aerody‐ namics.
Until the damage is repaired, do not drive the
vehicle in the higher speed range; otherwise,
there is danger of an accident.◀Seite 163Things to remember when drivingDriving tips163
Online Edition for Part no. 01 40 2 909 953 - VI/13

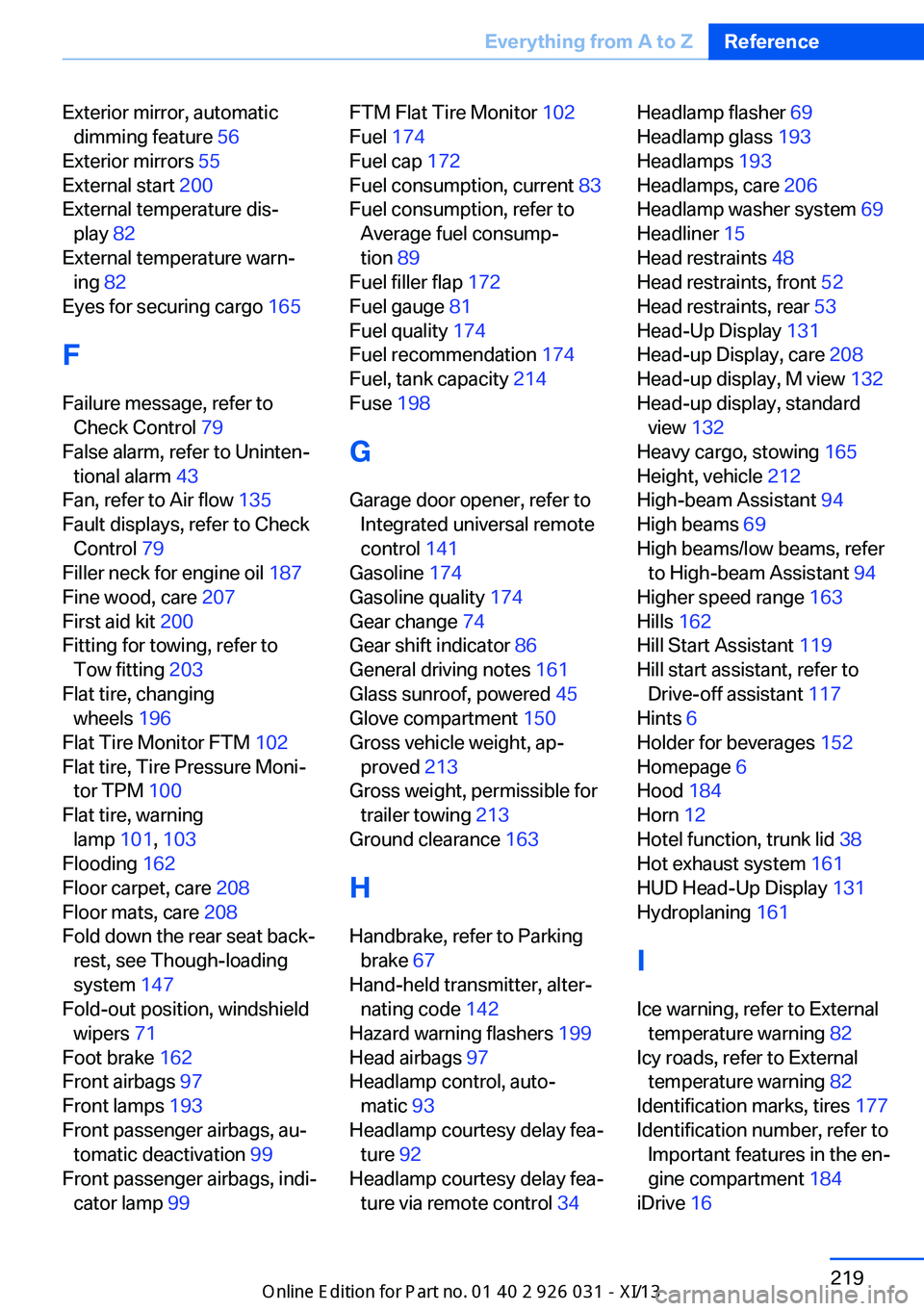

Exterior mirror, automaticdimming feature 56
Exterior mirrors 55
External start 200
External temperature dis‐ play 82
External temperature warn‐ ing 82
Eyes for securing cargo 165
F
Failure message, refer to Check Control 79
False alarm, refer to Uninten‐ tional alarm 43
Fan, refer to Air flow 135
Fault displays, refer to Check Control 79
Filler neck for engine oil 187
Fine wood, care 207
First aid kit 200
Fitting for towing, refer to Tow fitting 203
Flat tire, changing wheels 196
Flat Tire Monitor FTM 102
Flat tire, Tire Pressure Moni‐ tor TPM 100
Flat tire, warning lamp 101, 103
Flooding 162
Floor carpet, care 208
Floor mats, care 208
Fold down the rear seat back‐ rest, see Though-loading
system 147
Fold-out position, windshield wipers 71
Foot brake 162
Front airbags 97
Front lamps 193
Front passenger airbags, au‐ tomatic deactivation 99
Front passenger airbags, indi‐ cator lamp 99 FTM Flat Tire Monitor 102
Fuel 174
Fuel cap 172
Fuel consumption, current 83
Fuel consumption, refer to Average fuel consump‐
tion 89
Fuel filler flap 172
Fuel gauge 81
Fuel quality 174
Fuel recommendation 174
Fuel, tank capacity 214
Fuse 198
G
Garage door opener, refer to Integrated universal remote
control 141
Gasoline 174
Gasoline quality 174
Gear change 74
Gear shift indicator 86
General driving notes 161
Glass sunroof, powered 45
Glove compartment 150
Gross vehicle weight, ap‐ proved 213
Gross weight, permissible for trailer towing 213
Ground clearance 163
H
Handbrake, refer to Parking brake 67
Hand-held transmitter, alter‐ nating code 142
Hazard warning flashers 199
Head airbags 97
Headlamp control, auto‐ matic 93
Headlamp courtesy delay fea‐ ture 92
Headlamp courtesy delay fea‐ ture via remote control 34 Headlamp flasher 69
Headlamp glass 193
Headlamps 193
Headlamps, care 206
Headlamp washer system 69
Headliner 15
Head restraints 48
Head restraints, front 52
Head restraints, rear 53
Head-Up Display 131
Head-up Display, care 208
Head-up display, M view 132
Head-up display, standard view 132
Heavy cargo, stowing 165
Height, vehicle 212
High-beam Assistant 94
High beams 69
High beams/low beams, refer to High-beam Assistant 94
Higher speed range 163
Hills 162
Hill Start Assistant 119
Hill start assistant, refer to Drive-off assistant 117
Hints 6
Holder for beverages 152
Homepage 6
Hood 184
Horn 12
Hotel function, trunk lid 38
Hot exhaust system 161
HUD Head-Up Display 131
Hydroplaning 161
I Ice warning, refer to External temperature warning 82
Icy roads, refer to External temperature warning 82
Identification marks, tires 177
Identification number, refer to Important features in the en‐
gine compartment 184
iDrive 16 Seite 219Everything from A to ZReference219
Online Edition for Part no. 01 40 2 909 953 - VI/13
