BMW M6 2008 E63 User Guide
Manufacturer: BMW, Model Year: 2008, Model line: M6, Model: BMW M6 2008 E63Pages: 262, PDF Size: 8.86 MB

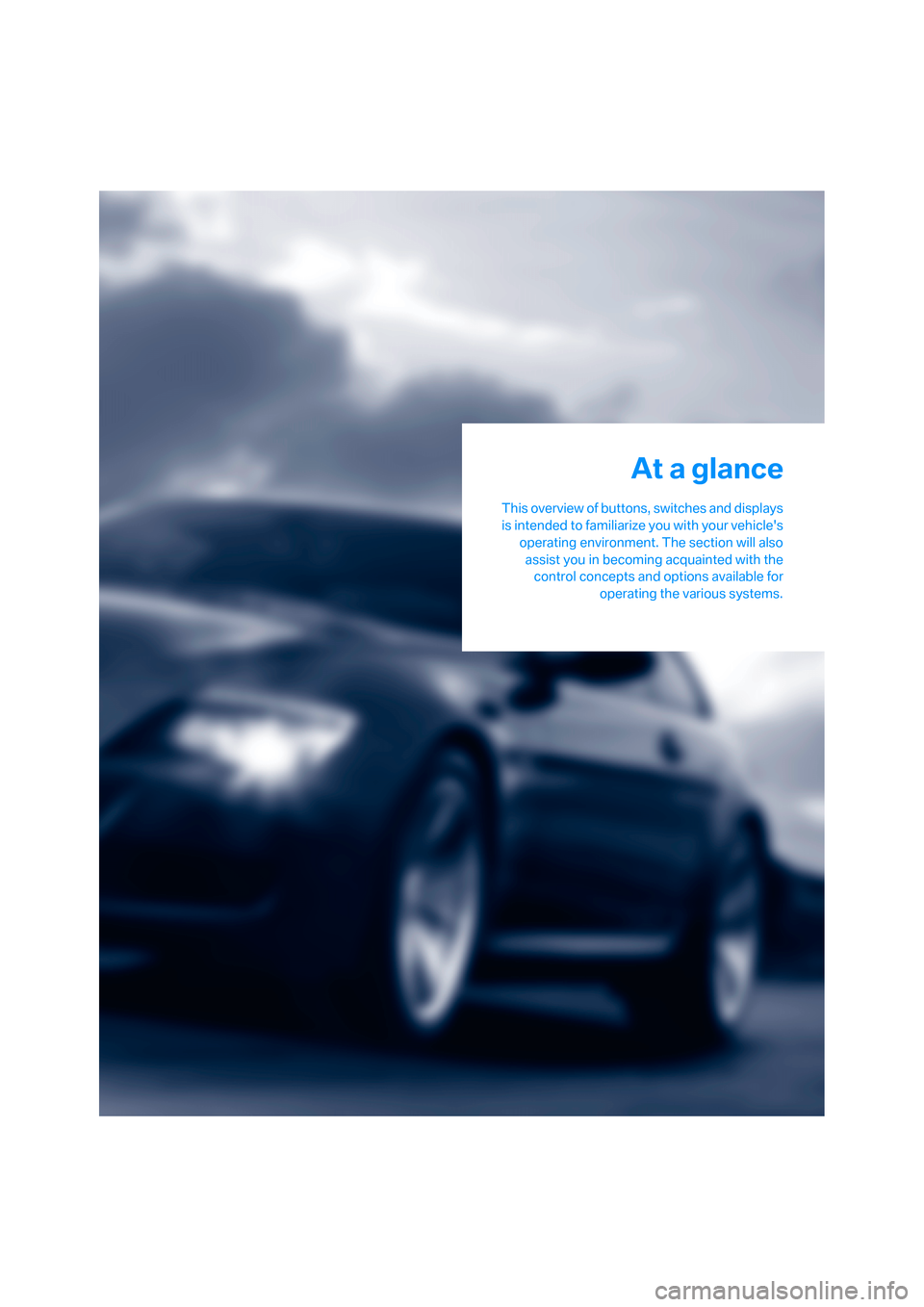

Page 11 of 262
At a glance
This overview of buttons, switches and displays
is intended to familiarize you with your vehicle's
operating environment. The section will also
assist you in becoming acquainted with the
control concepts and options available for
operating the various systems.
At a glance

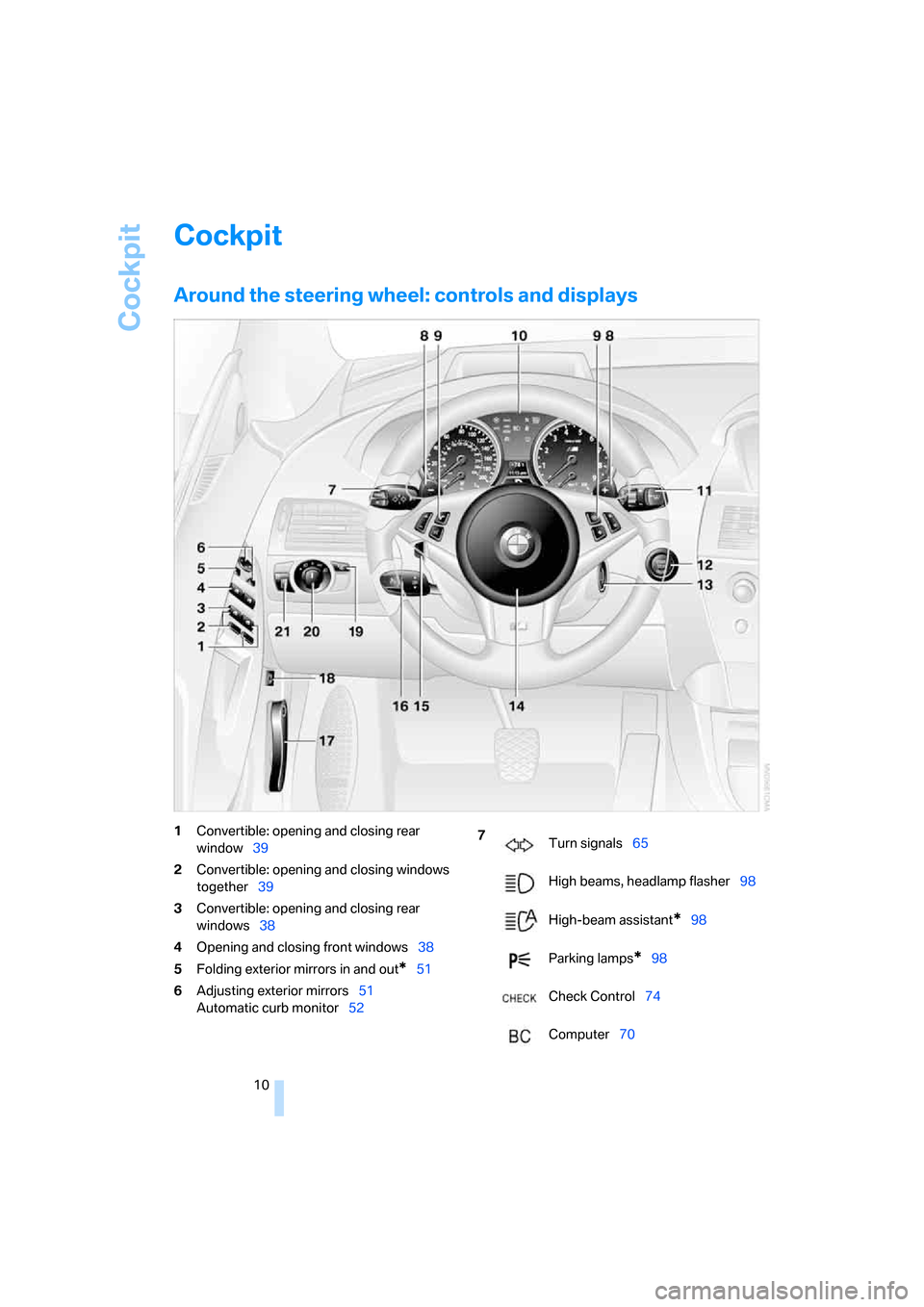

Page 12 of 262
Cockpit
10
Cockpit
Around the steering wheel: controls and displays
1Convertible: opening and closing rear
window39
2Convertible: opening and closing windows
together39
3Convertible: opening and closing rear
windows38
4Opening and closing front windows38
5Folding exterior mirrors in and out
*51
6Adjusting exterior mirrors51
Automatic curb monitor52
7
Turn signals65
High beams, headlamp flasher98
High-beam assistant
*98
Parking lamps
*98
Check Control74
Computer70
Page 13 of 262
At a glance
11Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
8Shift paddles63
9Buttons on steering wheel
10Instrument cluster12
13Ignition lock59
14Horn, entire surface17Releasing hood208
Mobile phone
*176
>Press: accepting and ending
call, starting dialing
* for
selected phone number and
redialing if no phone number is
selected
>Press and hold: redialing
Volume
Activating/deactivating voice
command system
* 23
Changing radio station154
Selecting music track165
Scrolling in phone book and in
lists with stored phone numbers
MDrive, call up individual
settings53
Individually programmable53
11
Windshield wipers66
Rain sensor66
12Starting/stopping engine and
switching ignition on/off 59
15
Steering wheel heater
*52
Steering wheel adjustment52
16
Cruise control67
18Opening luggage compartment
lid34
19
Head-Up Display
*93
20
Parking lamps96
Low beams96
Welcome lamps96
Automatic headlamp control*96
Daytime running lamps
*97
Welcome lamps96
Adaptive Head Light
*98
High-beam assistant
*98
21
Instrument lighting100

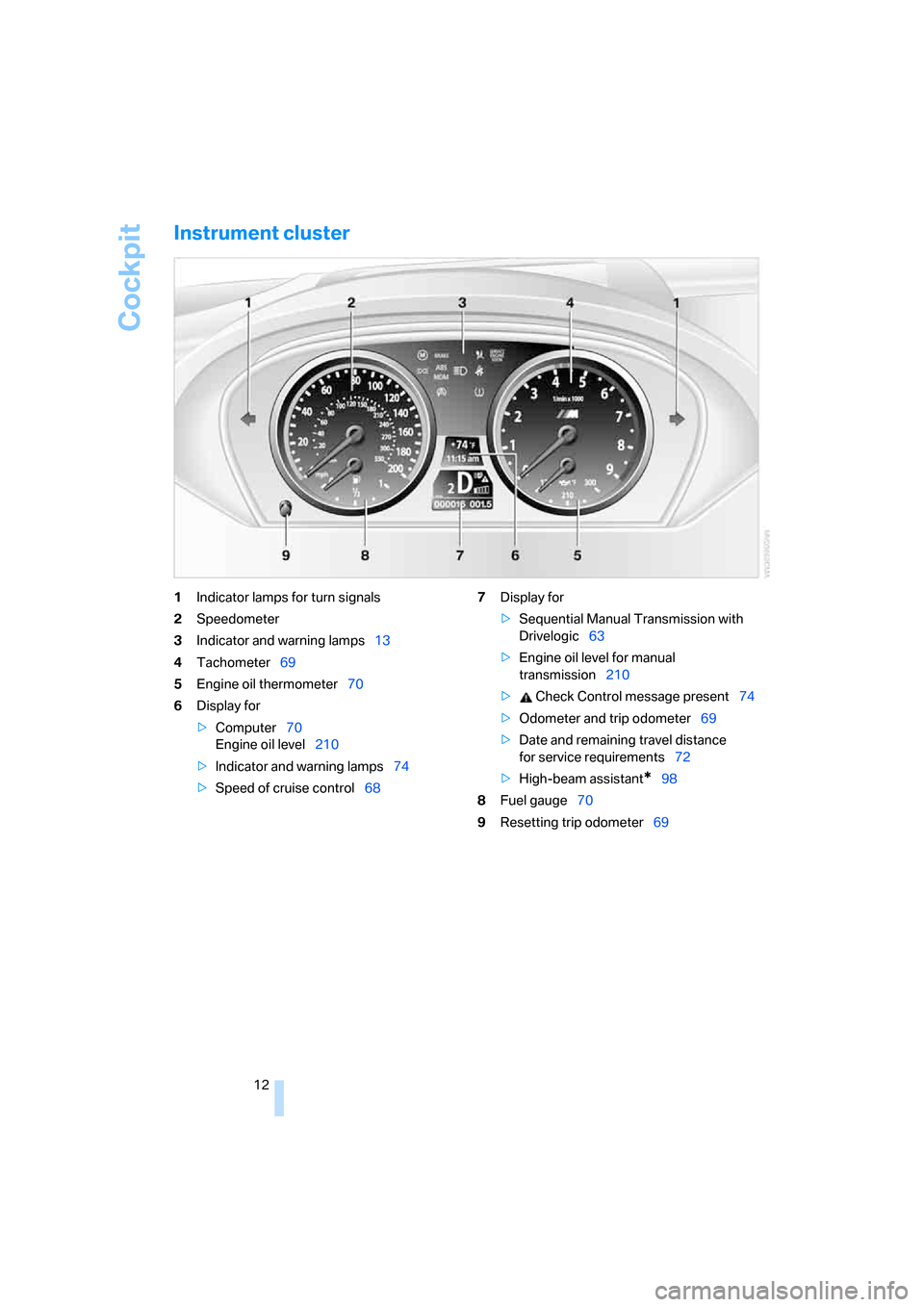

Page 14 of 262
Cockpit
12
Instrument cluster
1Indicator lamps for turn signals
2Speedometer
3Indicator and warning lamps13
4Tachometer69
5Engine oil thermometer70
6Display for
>Computer70
Engine oil level210
>Indicator and warning lamps74
>Speed of cruise control687Display for
>Sequential Manual Transmission with
Drivelogic63
>Engine oil level for manual
transmission210
> Check Control message present74
>Odometer and trip odometer69
>Date and remaining travel distance
for service requirements72
>High-beam assistant
*98
8Fuel gauge70
9Resetting trip odometer69

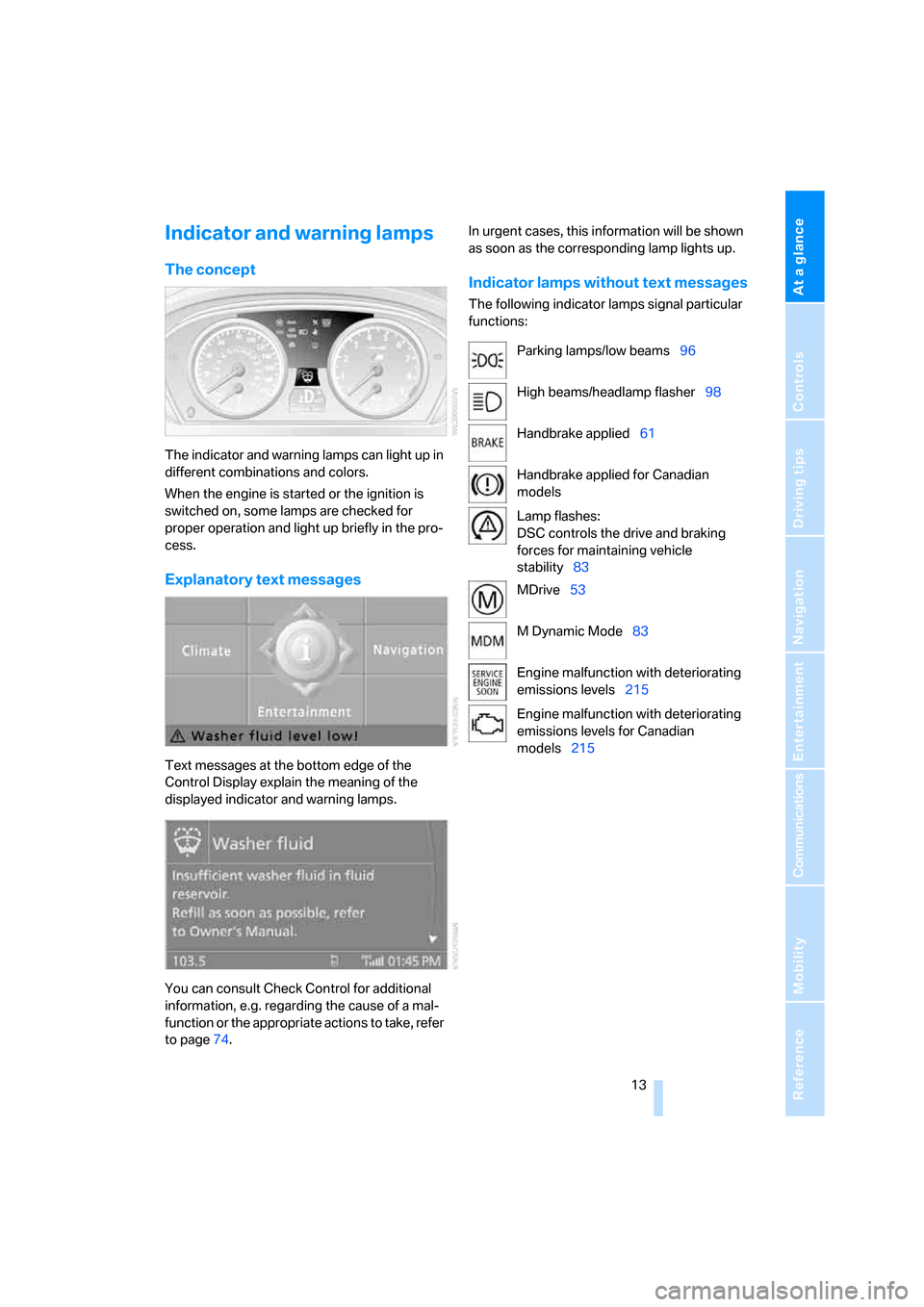

Page 15 of 262
At a glance
13Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Indicator and warning lamps
The concept
The indicator and warning lamps can light up in
different combinations and colors.
When the engine is started or the ignition is
switched on, some lamps are checked for
proper operation and light up briefly in the pro-
cess.
Explanatory text messages
Text messages at the bottom edge of the
Control Display explain the meaning of the
displayed indicator and warning lamps.
You can consult Check Control for additional
information, e.g. regarding the cause of a mal-
function or the appropriate actions to take, refer
to page74.In urgent cases, this information will be shown
as soon as the corresponding lamp lights up.
Indicator lamps without text messages
The following indicator lamps signal particular
functions:
Parking lamps/low beams96
High beams/headlamp flasher98
Handbrake applied61
Handbrake applied for Canadian
models
Lamp flashes:
DSC controls the drive and braking
forces for maintaining vehicle
stability83
MDrive53
M Dynamic Mode83
Engine malfunction with deteriorating
emissions levels215
Engine malfunction with deteriorating
emissions levels for Canadian
models215
Page 16 of 262
Cockpit
14
Around the center console: controls and displays
Page 17 of 262
At a glance
15Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
1Microphone for hands-free mode for
telephone
*
and voice command system*23
Convertible: microphone on steering
column
2Reading lamps100
3SOS: initiating an emergency request224
4Interior lamps100
5Passenger airbag status lamp91
6Control Display16
7Hazard warning flashers
8Central locking system32
9Automatic climate control101
10Changing
>radio station165 165
>track165 165
11Ejecting
>navigation DVD
*124
>audio CD165 165
12Programmable memory/direct selection
buttons2113Drive for navigation DVD in Professional
*
navigation system124
14Drive for audio CDs165 165
15Entertainment sound output on/off
and adjusting volume165 165
17Bracket for cup holder
*111
18Controller16
Turn, press or move horizontally in four
directions
19Opening start menu on Control Display17
20Drivelogic of Sequential Manual
Transmission63
21EDC Electronic Damper Control for
Sequential Manual Transmission85
22DSC Dynamic Stability Control for
Sequential Manual Transmission83
23M Engine Dynamic Control POWER for
Sequential Manual Transmission64
24EDC Electronic Damper Control for
manual transmission
*85
25MDM
>M Dynamic Mode for manual
transmission
*83
>Switching DSC on and off in manual
transmission
*84 Temperature setting,
left/right101
Automatic air distribution and
volume102
Cooling function104
AUC Automatic recirculated-air
control/recirculated-air mode104
Maximum cooling104
Residual heat mode105
Switching off automatic climate
control105
Air volume103
Defrosting windows and removing
condensation103
Rear window defroster101
16
Heated seats51
PDC Park Distance Control
*81
Flat Tire Monitor86
Convertible: opening the convert-
ible top41
Convertible: closing the convertible
top41

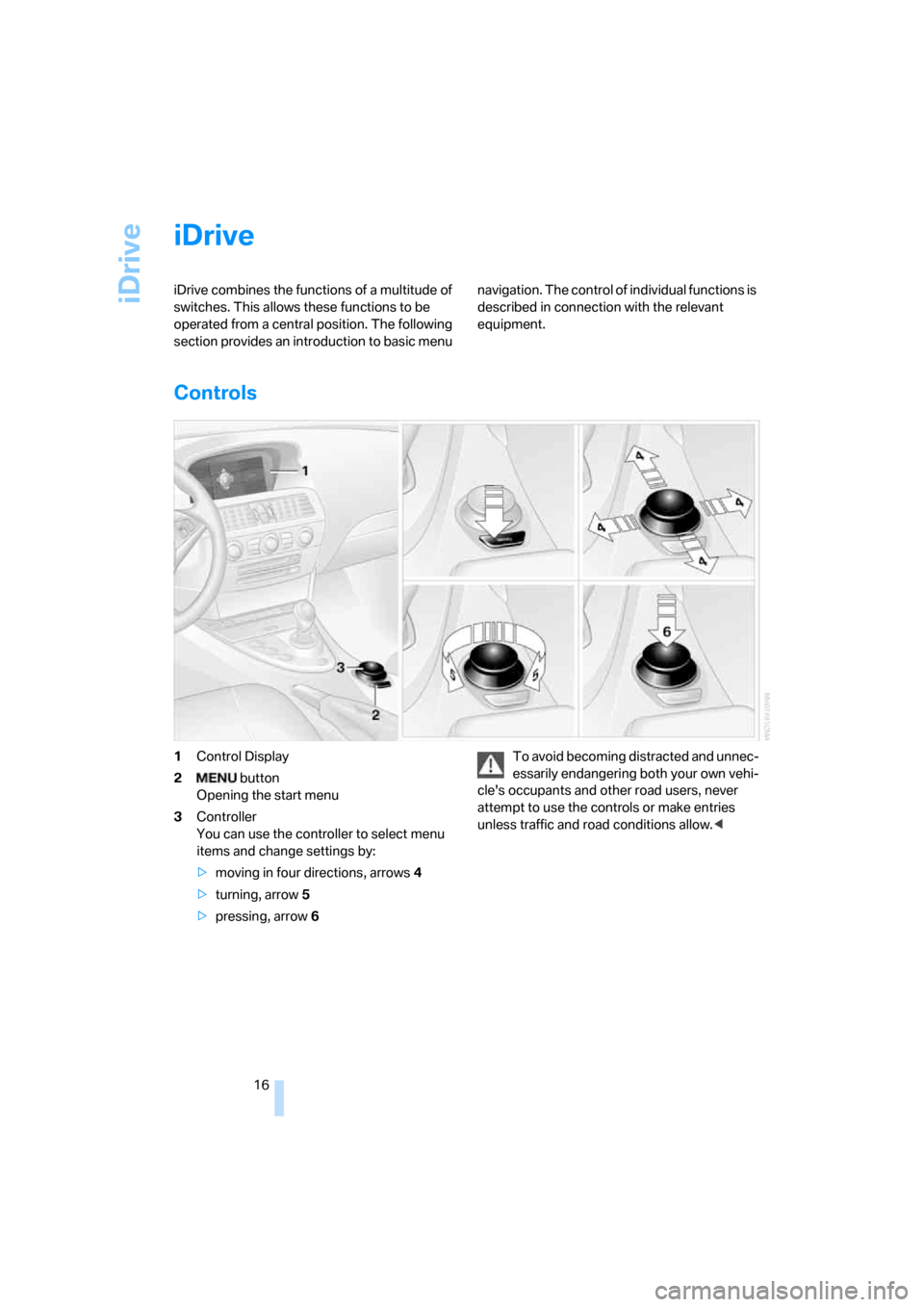

Page 18 of 262
iDrive
16
iDrive
iDrive combines the functions of a multitude of
switches. This allows these functions to be
operated from a central position. The following
section provides an introduction to basic menu navigation. The control of individual functions is
described in connection with the relevant
equipment.
Controls
1Control Display
2 button
Opening the start menu
3Controller
You can use the controller to select menu
items and change settings by:
>moving in four directions, arrows4
>turning, arrow5
>pressing, arrow6To avoid becoming distracted and unnec-
essarily endangering both your own vehi-
cle's occupants and other road users, never
attempt to use the controls or make entries
unless traffic and road conditions allow.<

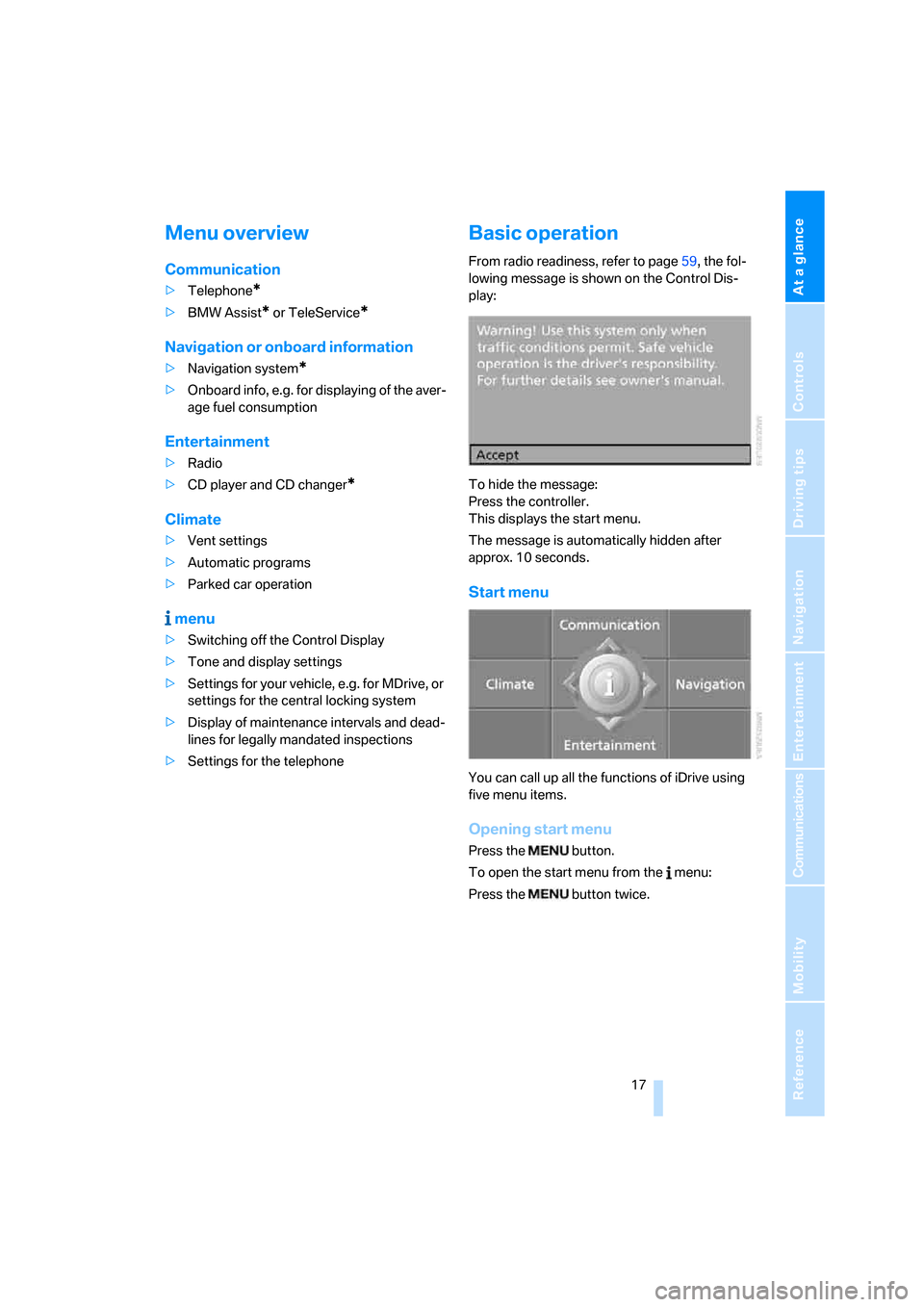

Page 19 of 262
At a glance
17Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Menu overview
Communication
>Telephone*
>BMW Assist* or TeleService*
Navigation or onboard information
>Navigation system*
>Onboard info, e.g. for displaying of the aver-
age fuel consumption
Entertainment
>Radio
>CD player and CD changer
*
Climate
>Vent settings
>Automatic programs
>Parked car operation
menu
>Switching off the Control Display
>Tone and display settings
>Settings for your vehicle, e.g. for MDrive, or
settings for the central locking system
>Display of maintenance intervals and dead-
lines for legally mandated inspections
>Settings for the telephone
Basic operation
From radio readiness, refer to page59, the fol-
lowing message is shown on the Control Dis-
play:
To hide the message:
Press the controller.
This displays the start menu.
The message is automatically hidden after
approx. 10 seconds.
Start menu
You can call up all the functions of iDrive using
five menu items.
Opening start menu
Press the button.
To open the start menu from the menu:
Press the button twice.

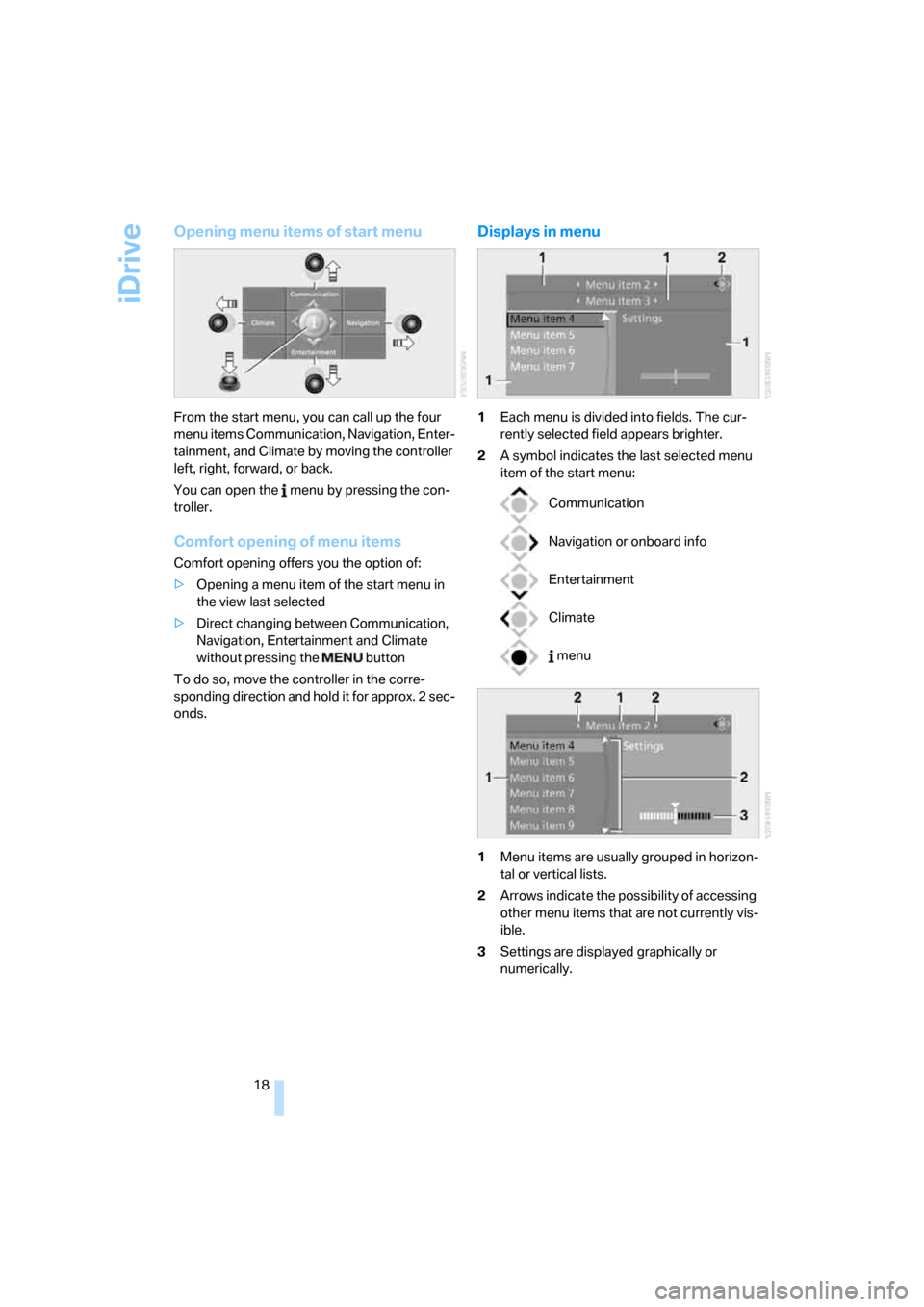

Page 20 of 262
iDrive
18
Opening menu items of start menu
From the start menu, you can call up the four
menu items Communication, Navigation, Enter-
tainment, and Climate by moving the controller
left, right, forward, or back.
You can open the menu by pressing the con-
troller.
Comfort opening of menu items
Comfort opening offers you the option of:
>Opening a menu item of the start menu in
the view last selected
>Direct changing between Communication,
Navigation, Entertainment and Climate
without pressing the button
To do so, move the controller in the corre-
sponding direction and hold it for approx. 2 sec-
onds.
Displays in menu
1Each menu is divided into fields. The cur-
rently selected field appears brighter.
2A symbol indicates the last selected menu
item of the start menu:
1Menu items are usually grouped in horizon-
tal or vertical lists.
2Arrows indicate the possibility of accessing
other menu items that are not currently vis-
ible.
3Settings are displayed graphically or
numerically.
Communication
Navigation or onboard info
Entertainment
Climate
menu
