jacking points BMW M6 2008 E63 Owner's Manual

Mobility
221Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

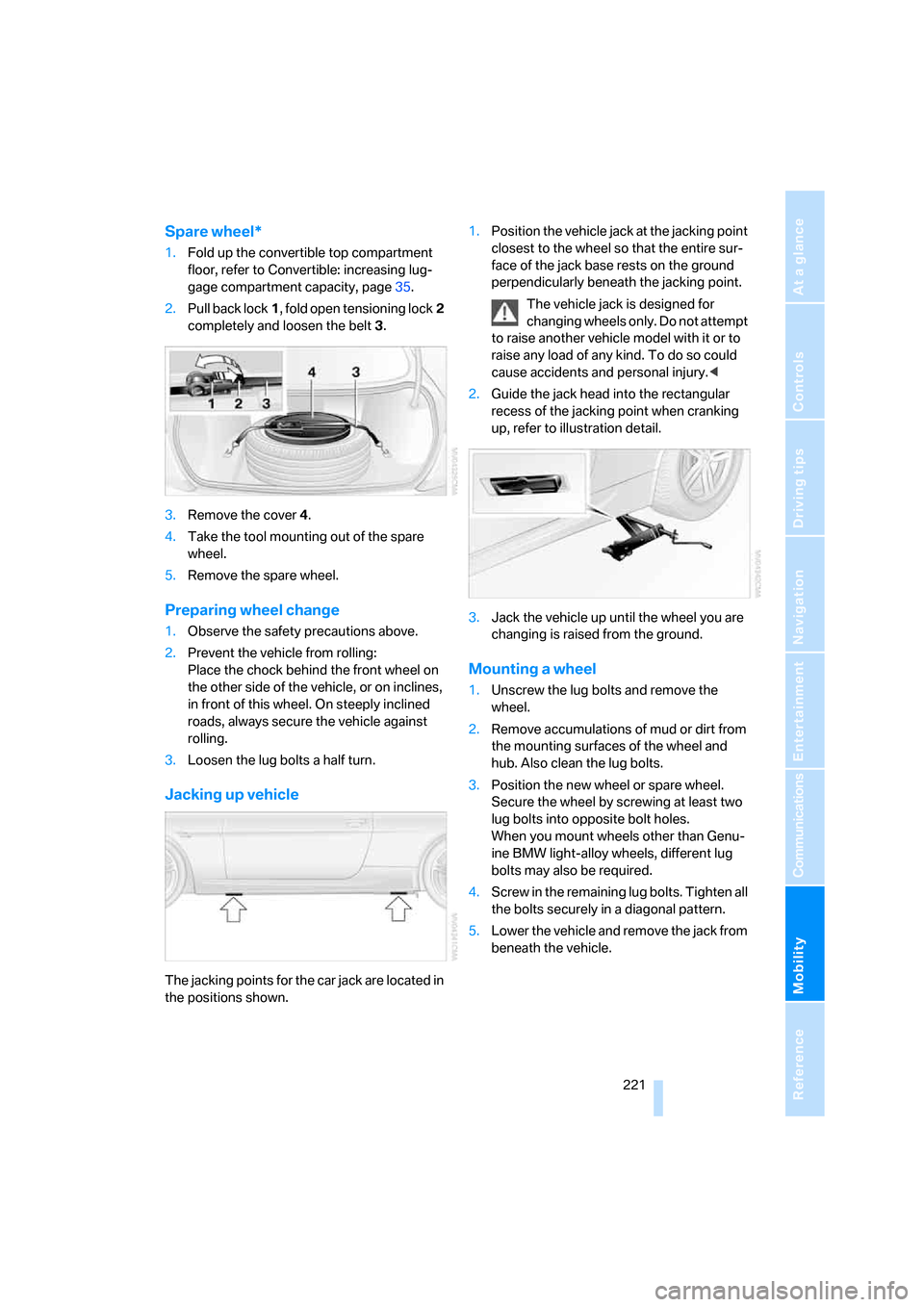

Spare wheel*
1.Fold up the convertible top compartment
floor, refer to Convertible: increasing lug-
gage compartment capacity, page35.
2.Pull back lock1, fold open tensioning lock2
completely and loosen the belt3.
3.Remove the cover4.
4.Take the tool mounting out of the spare
wheel.
5.Remove the spare wheel.
Preparing wheel change
1.Observe the safety precautions above.
2.Prevent the vehicle from rolling:
Place the chock behind the front wheel on
the other side of the vehicle, or on inclines,
in front of this wheel. On steeply inclined
roads, always secure the vehicle against
rolling.
3.Loosen the lug bolts a half turn.
Jacking up vehicle
The jacking points for the car jack are located in
the positions shown.1.Position the vehicle jack at the jacking point
closest to the wheel so that the entire sur-
face of the jack base rests on the ground
perpendicularly beneath the jacking point.
The vehicle jack is designed for
changing wheels only. Do not attempt
to raise another vehicle model with it or to
raise any load of any kind. To do so could
cause accidents and personal injury.<
2.Guide the jack head into the rectangular
recess of the jacking point when cranking
up, refer to illustration detail.
3.Jack the vehicle up until the wheel you are
changing is raised from the ground.
Mounting a wheel
1.Unscrew the lug bolts and remove the
wheel.
2.Remove accumulations of mud or dirt from
the mounting surfaces of the wheel and
hub. Also clean the lug bolts.
3.Position the new wheel or spare wheel.
Secure the wheel by screwing at least two
lug bolts into opposite bolt holes.
When you mount wheels other than Genu-
ine BMW light-alloy wheels, different lug
bolts may also be required.
4.Screw in the remaining lug bolts. Tighten all
the bolts securely in a diagonal pattern.
5.Lower the vehicle and remove the jack from
beneath the vehicle.

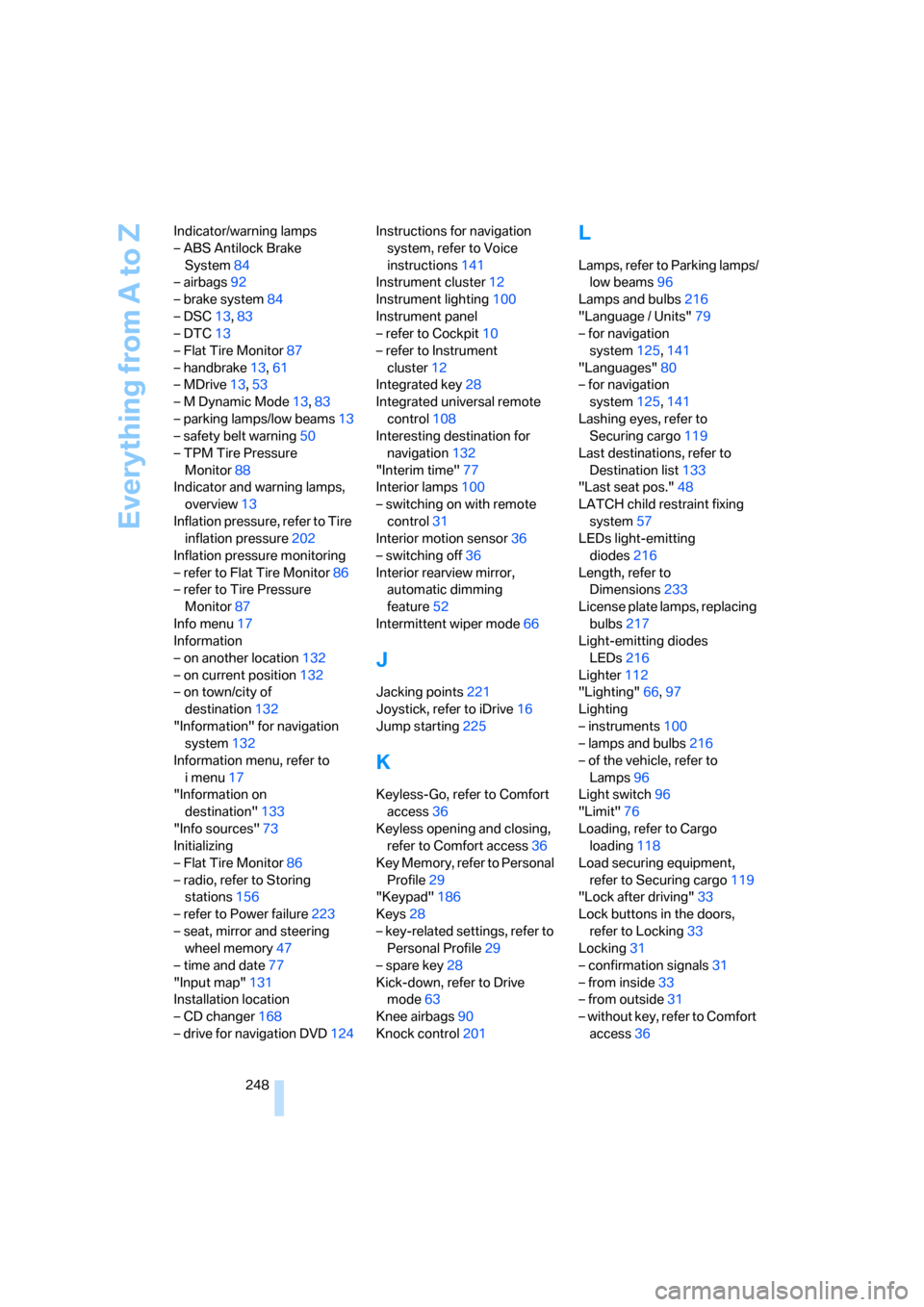

Everything from A to Z
248 Indicator/warning lamps
– ABS Antilock Brake
System84
– airbags92
– brake system84
– DSC13,83
– DTC13
– Flat Tire Monitor87
– handbrake13,61
– MDrive13,53
– M Dynamic Mode13,83
– parking lamps/low beams13
– safety belt warning50
– TPM Tire Pressure
Monitor88
Indicator and warning lamps,
overview13
Inflation pressure, refer to Tire
inflation pressure202
Inflation pressure monitoring
– refer to Flat Tire Monitor86
– refer to Tire Pressure
Monitor87
Info menu17
Information
– on another location132
– on current position132
– on town/city of
destination132
"Information" for navigation
system132
Information menu, refer to
imenu17
"Information on
destination"133
"Info sources"73
Initializing
– Flat Tire Monitor86
– radio, refer to Storing
stations156
– refer to Power failure223
– seat, mirror and steering
wheel memory47
– time and date77
"Input map"131
Installation location
– CD changer168
– drive for navigation DVD124Instructions for navigation
system, refer to Voice
instructions141
Instrument cluster12
Instrument lighting100
Instrument panel
– refer to Cockpit10
– refer to Instrument
cluster12
Integrated key28
Integrated universal remote
control108
Interesting destination for
navigation132
"Interim time"77
Interior lamps100
– switching on with remote
control31
Interior motion sensor36
– switching off36
Interior rearview mirror,
automatic dimming
feature52
Intermittent wiper mode66
J
Jacking points221
Joystick, refer to iDrive16
Jump starting225
K
Keyless-Go, refer to Comfort
access36
Keyless opening and closing,
refer to Comfort access36
Key Memory, refer to Personal
Profile29
"Keypad"186
Keys28
– key-related settings, refer to
Personal Profile29
– spare key28
Kick-down, refer to Drive
mode63
Knee airbags90
Knock control201
L
Lamps, refer to Parking lamps/
low beams96
Lamps and bulbs216
"Language / Units"79
– for navigation
system125,141
"Languages"80
– for navigation
system125,141
Lashing eyes, refer to
Securing cargo119
Last destinations, refer to
Destination list133
"Last seat pos."48
LATCH child restraint fixing
system57
LEDs light-emitting
diodes216
Length, refer to
Dimensions233
License plate lamps, replacing
bulbs217
Light-emitting diodes
LEDs216
Lighter112
"Lighting"66,97
Lighting
– instruments100
– lamps and bulbs216
– of the vehicle, refer to
Lamps96
Light switch96
"Limit"76
Loading, refer to Cargo
loading118
Load securing equipment,
refer to Securing cargo119
"Lock after driving"33
Lock buttons in the doors,
refer to Locking33
Locking31
– confirmation signals31
– from inside33
– from outside31
– without key, refer to Comfort
access36

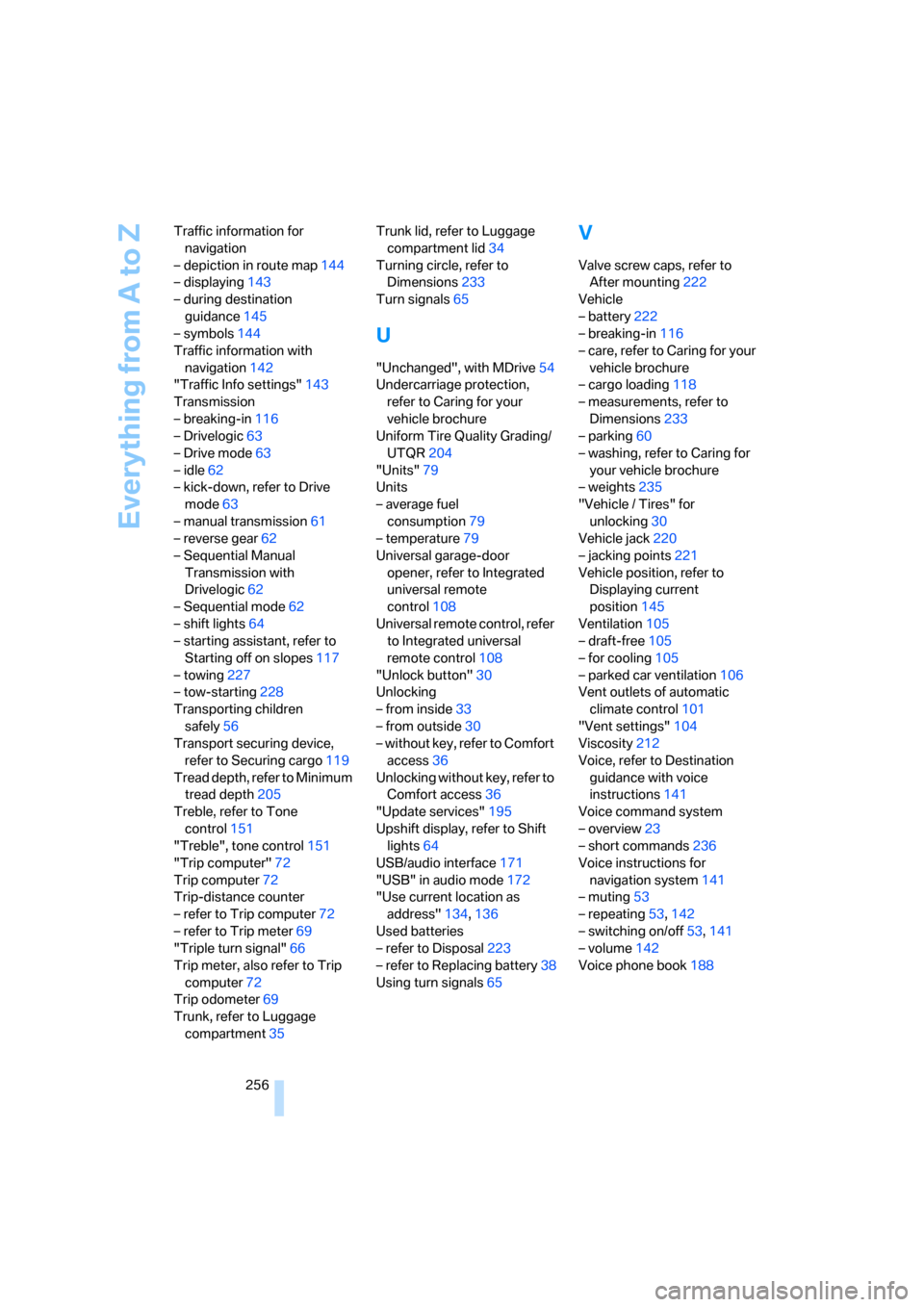

Everything from A to Z
256 Traffic information for
navigation
– depiction in route map144
– displaying143
– during destination
guidance145
– symbols144
Traffic information with
navigation142
"Traffic Info settings"143
Transmission
– breaking-in116
– Drivelogic63
– Drive mode63
– idle62
– kick-down, refer to Drive
mode63
– manual transmission61
– reverse gear62
– Sequential Manual
Transmission with
Drivelogic62
– Sequential mode62
– shift lights64
– starting assistant, refer to
Starting off on slopes117
– towing227
– tow-starting228
Transporting children
safely56
Transport securing device,
refer to Securing cargo119
Tread depth, refer to Minimum
tread depth205
Treble, refer to Tone
control151
"Treble", tone control151
"Trip computer"72
Trip computer72
Trip-distance counter
– refer to Trip computer72
– refer to Trip meter69
"Triple turn signal"66
Trip meter, also refer to Trip
computer72
Trip odometer69
Trunk, refer to Luggage
compartment35Trunk lid, refer to Luggage
compartment lid34
Turning circle, refer to
Dimensions233
Turn signals65
U
"Unchanged", with MDrive54
Undercarriage protection,
refer to Caring for your
vehicle brochure
Uniform Tire Quality Grading/
UTQR204
"Units"79
Units
– average fuel
consumption79
– temperature79
Universal garage-door
opener, refer to Integrated
universal remote
control108
Universal remote control, refer
to Integrated universal
remote control108
"Unlock button"30
Unlocking
– from inside33
– from outside30
– without key, refer to Comfort
access36
Unlocking without key, refer to
Comfort access36
"Update services"195
Upshift display, refer to Shift
lights64
USB/audio interface171
"USB" in audio mode172
"Use current location as
address"134,136
Used batteries
– refer to Disposal223
– refer to Replacing battery38
Using turn signals65
V
Valve screw caps, refer to
After mounting222
Vehicle
– battery222
– breaking-in116
– care, refer to Caring for your
vehicle brochure
– cargo loading118
– measurements, refer to
Dimensions233
– parking60
– washing, refer to Caring for
your vehicle brochure
– weights235
"Vehicle / Tires" for
unlocking30
Vehicle jack220
– jacking points221
Vehicle position, refer to
Displaying current
position145
Ventilation105
– draft-free105
– for cooling105
– parked car ventilation106
Vent outlets of automatic
climate control101
"Vent settings"104
Viscosity212
Voice, refer to Destination
guidance with voice
instructions141
Voice command system
– overview23
– short commands236
Voice instructions for
navigation system141
– muting53
– repeating53,142
– switching on/off53,141
– volume142
Voice phone book188
