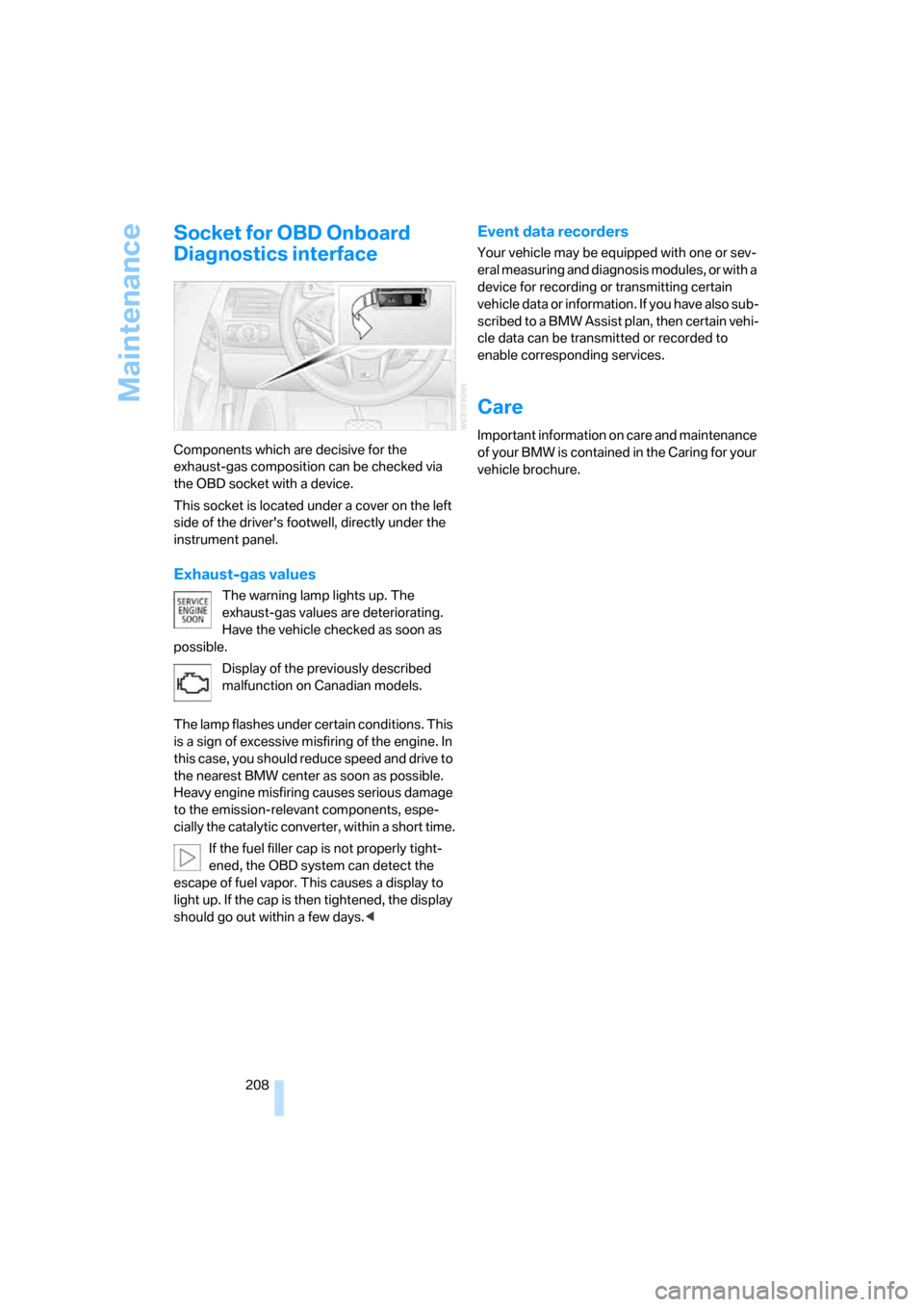

Maintenance
208
Socket for OBD Onboard
Diagnostics interface
Components which are decisive for the
exhaust-gas composition can be checked via
the OBD socket with a device.
This socket is located under a cover on the left
side of the driver's footwell, directly under the
instrument panel.
Exhaust-gas values
The warning lamp lights up. The
exhaust-gas values are deteriorating.
Have the vehicle checked as soon as
possible.
Display of the previously described
malfunction on Canadian models.
The lamp flashes under certain conditions. This
is a sign of excessive misfiring of the engine. In
this case, you should reduce speed and drive to
the nearest BMW center as soon as possible.
Heavy engine misfiring causes serious damage
to the emission-relevant components, espe-
cially the catalytic converter, within a short time.
If the fuel filler cap is not properly tight-
ened, the OBD system can detect the
escape of fuel vapor. This causes a display to
light up. If the cap is then tightened, the display
should go out within a few days.<
Event data recorders
Your vehicle may be equipped with one or sev-
eral measuring and diagnosis modules, or with a
device for recording or transmitting certain
vehicle data or information. If you have also sub-
scribed to a BMW Assist plan, then certain vehi-
cle data can be transmitted or recorded to
enable corresponding services.
Care
Important information on care and maintenance
of your BMW is contained in the Caring for your
vehicle brochure.

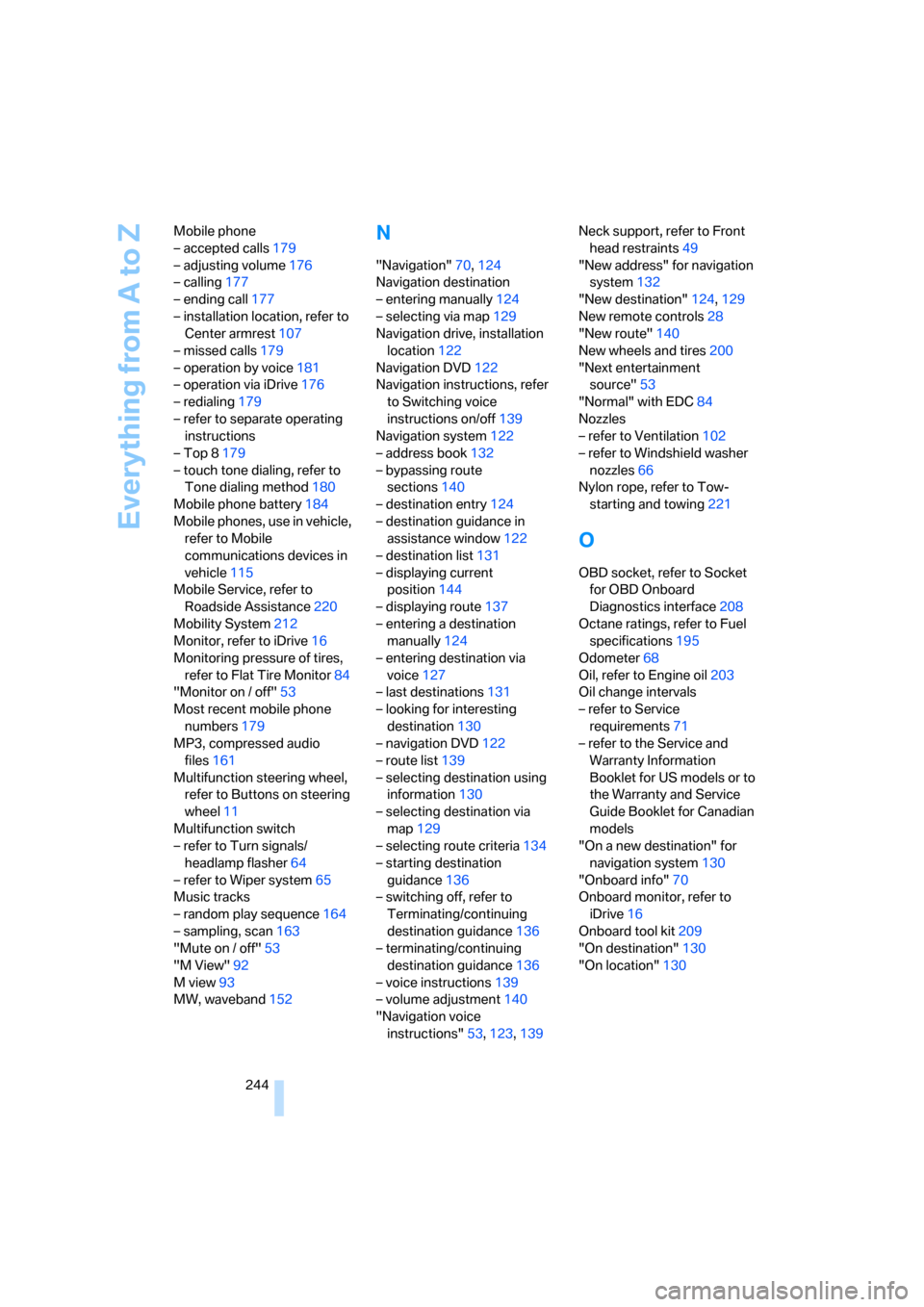

Everything from A to Z
244 Mobile phone
– accepted calls179
– adjusting volume176
– calling177
– ending call177
– installation location, refer to
Center armrest107
– missed calls179
– operation by voice181
– operation via iDrive176
– redialing179
– refer to separate operating
instructions
– Top 8179
– touch tone dialing, refer to
Tone dialing method180
Mobile phone battery184
Mobile phones, use in vehicle,
refer to Mobile
communications devices in
vehicle115
Mobile Service, refer to
Roadside Assistance220
Mobility System212
Monitor, refer to iDrive16
Monitoring pressure of tires,
refer to Flat Tire Monitor84
"Monitor on / off"53
Most recent mobile phone
numbers179
MP3, compressed audio
files161
Multifunction steering wheel,
refer to Buttons on steering
wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher64
– refer to Wiper system65
Music tracks
– random play sequence164
– sampling, scan163
"Mute on / off"53
"M View"92
M view93
MW, waveband152
N
"Navigation"70,124
Navigation destination
– entering manually124
– selecting via map129
Navigation drive, installation
location122
Navigation DVD122
Navigation instructions, refer
to Switching voice
instructions on/off139
Navigation system122
– address book132
– bypassing route
sections140
– destination entry124
– destination guidance in
assistance window122
– destination list131
– displaying current
position144
– displaying route137
– entering a destination
manually124
– entering destination via
voice127
– last destinations131
– looking for interesting
destination130
– navigation DVD122
– route list139
– selecting destination using
information130
– selecting destination via
map129
– selecting route criteria134
– starting destination
guidance136
– switching off, refer to
Terminating/continuing
destination guidance136
– terminating/continuing
destination guidance136
– voice instructions139
– volume adjustment140
"Navigation voice
instructions"53,123,139Neck support, refer to Front
head restraints49
"New address" for navigation
system132
"New destination"124,129
New remote controls28
"New route"140
New wheels and tires200
"Next entertainment
source"53
"Normal" with EDC84
Nozzles
– refer to Ventilation102
– refer to Windshield washer
nozzles66
Nylon rope, refer to Tow-
starting and towing221
O
OBD socket, refer to Socket
for OBD Onboard
Diagnostics interface208
Octane ratings, refer to Fuel
specifications195
Odometer68
Oil, refer to Engine oil203
Oil change intervals
– refer to Service
requirements71
– refer to the Service and
Warranty Information
Booklet for US models or to
the Warranty and Service
Guide Booklet for Canadian
models
"On a new destination" for
navigation system130
"Onboard info"70
Onboard monitor, refer to
iDrive16
Onboard tool kit209
"On destination"130
"On location"130
