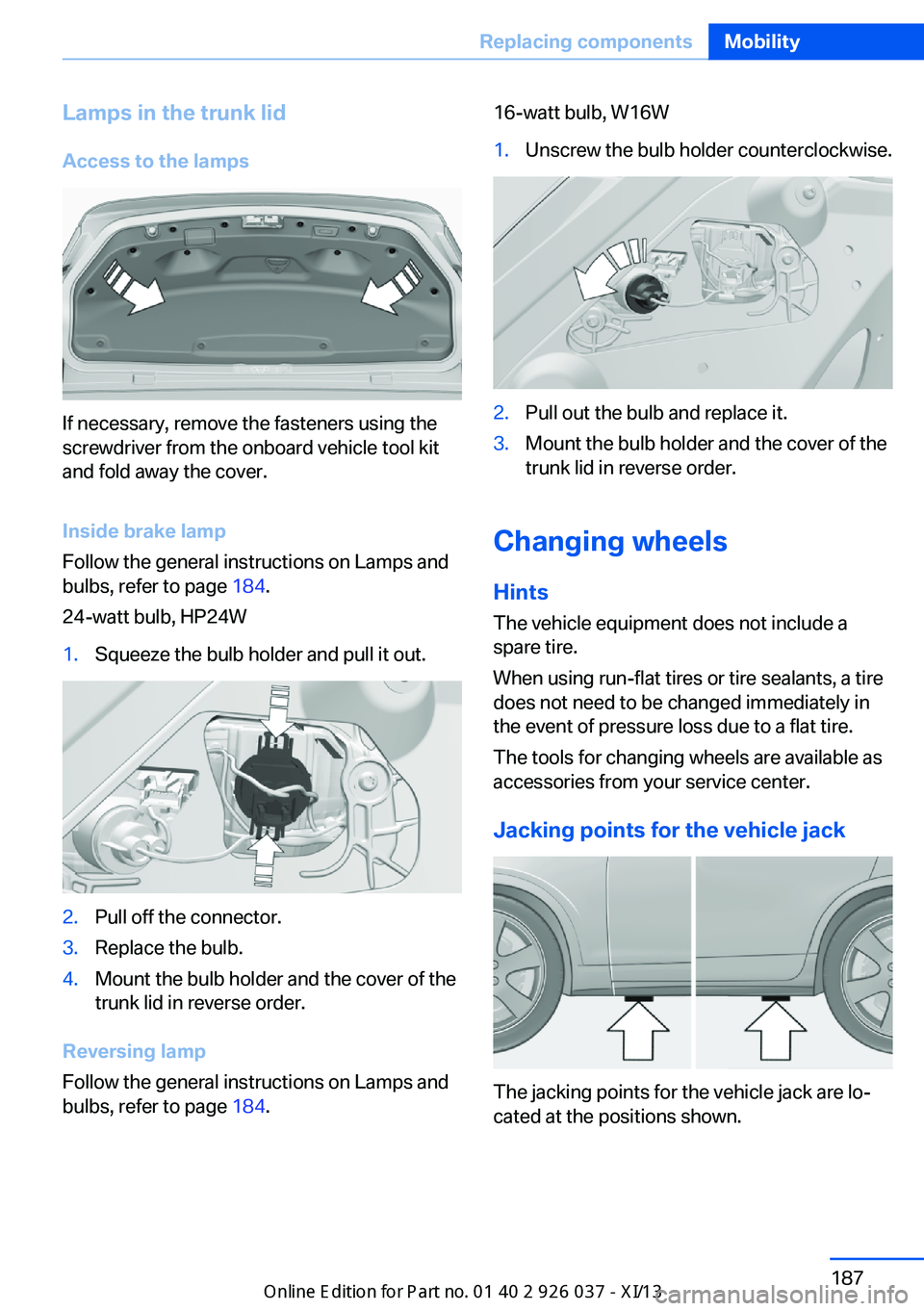

Page 191 of 222
Lamps in the trunk lidAccess to the lamps
If necessary, remove the fasteners using the
screwdriver from the onboard vehicle tool kit
and fold away the cover.
Inside brake lamp
Follow the general instructions on Lamps and
bulbs, refer to page 184.
24-watt bulb, HP24W
1.Squeeze the bulb holder and pull it out.2.Pull off the connector.3.Replace the bulb.4.Mount the bulb holder and the cover of the
trunk lid in reverse order.
Reversing lamp
Follow the general instructions on Lamps and
bulbs, refer to page 184.
16-watt bulb, W16W1.Unscrew the bulb holder counterclockwise.2.Pull out the bulb and replace it.3.Mount the bulb holder and the cover of the
trunk lid in reverse order.
Changing wheels
Hints
The vehicle equipment does not include a
spare tire.
When using run-flat tires or tire sealants, a tire
does not need to be changed immediately in
the event of pressure loss due to a flat tire.
The tools for changing wheels are available as
accessories from your service center.
Jacking points for the vehicle jack
The jacking points for the vehicle jack are lo‐
cated at the positions shown.
Seite 187Replacing componentsMobility187
Online Edition for Part no. 01 40 2 910 746 - VI/13

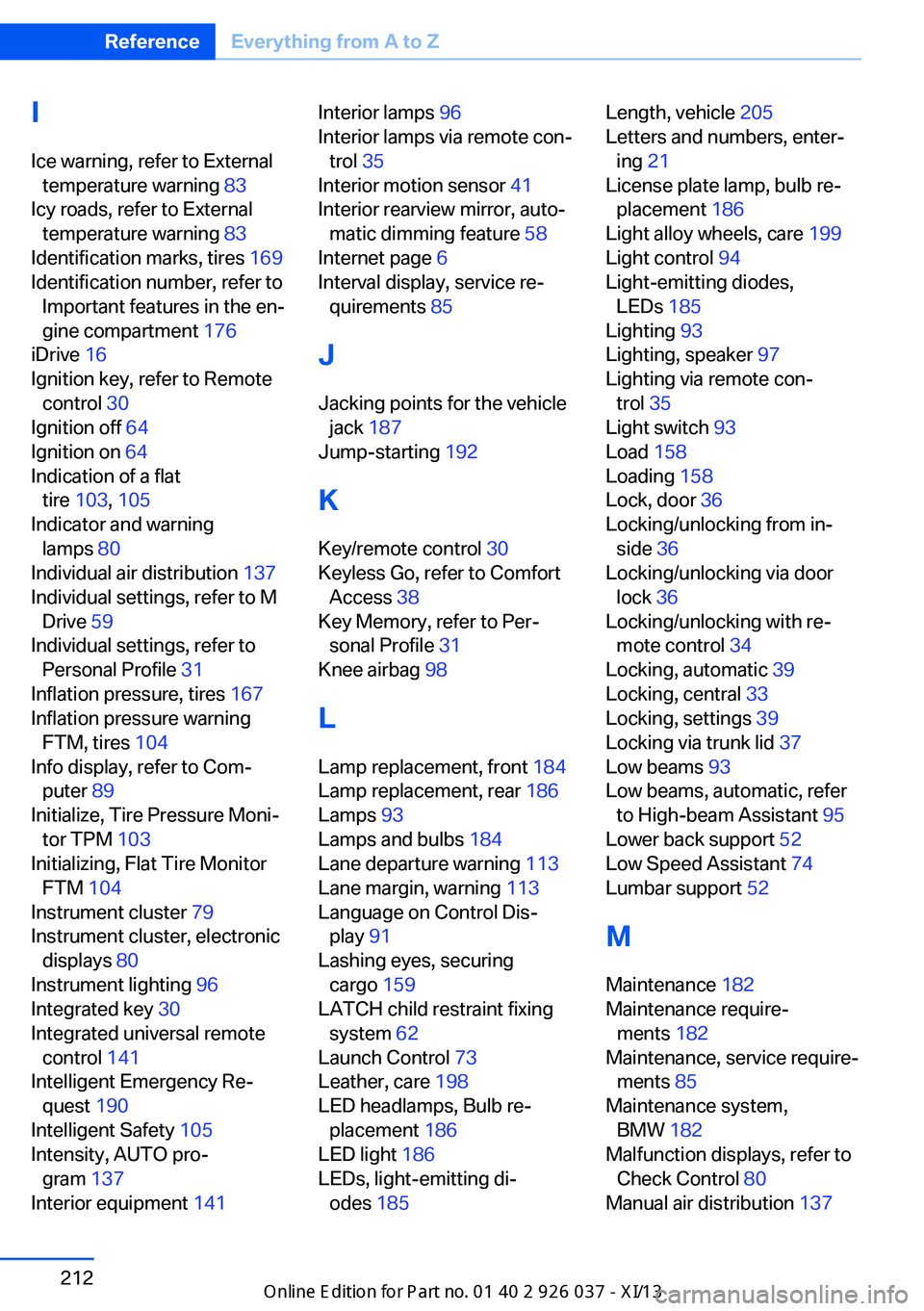

Page 216 of 222
IIce warning, refer to External temperature warning 83
Icy roads, refer to External temperature warning 83
Identification marks, tires 169
Identification number, refer to Important features in the en‐
gine compartment 176
iDrive 16
Ignition key, refer to Remote control 30
Ignition off 64
Ignition on 64
Indication of a flat tire 103 , 105
Indicator and warning lamps 80
Individual air distribution 137
Individual settings, refer to M Drive 59
Individual settings, refer to Personal Profile 31
Inflation pressure, tires 167
Inflation pressure warning FTM, tires 104
Info display, refer to Com‐ puter 89
Initialize, Tire Pressure Moni‐ tor TPM 103
Initializing, Flat Tire Monitor FTM 104
Instrument cluster 79
Instrument cluster, electronic displays 80
Instrument lighting 96
Integrated key 30
Integrated universal remote control 141
Intelligent Emergency Re‐ quest 190
Intelligent Safety 105
Intensity, AUTO pro‐ gram 137
Interior equipment 141 Interior lamps 96
Interior lamps via remote con‐ trol 35
Interior motion sensor 41
Interior rearview mirror, auto‐ matic dimming feature 58
Internet page 6
Interval display, service re‐ quirements 85
J Jacking points for the vehicle jack 187
Jump-starting 192
K
Key/remote control 30
Keyless Go, refer to Comfort Access 38
Key Memory, refer to Per‐ sonal Profile 31
Knee airbag 98
L
Lamp replacement, front 184
Lamp replacement, rear 186
Lamps 93
Lamps and bulbs 184
Lane departure warning 113
Lane margin, warning 113
Language on Control Dis‐ play 91
Lashing eyes, securing cargo 159
LATCH child restraint fixing system 62
Launch Control 73
Leather, care 198
LED headlamps, Bulb re‐ placement 186
LED light 186
LEDs, light-emitting di‐ odes 185 Length, vehicle 205
Letters and numbers, enter‐ ing 21
License plate lamp, bulb re‐ placement 186
Light alloy wheels, care 199
Light control 94
Light-emitting diodes, LEDs 185
Lighting 93
Lighting, speaker 97
Lighting via remote con‐ trol 35
Light switch 93
Load 158
Loading 158
Lock, door 36
Locking/unlocking from in‐ side 36
Locking/unlocking via door lock 36
Locking/unlocking with re‐ mote control 34
Locking, automatic 39
Locking, central 33
Locking, settings 39
Locking via trunk lid 37
Low beams 93
Low beams, automatic, refer to High-beam Assistant 95
Lower back support 52
Low Speed Assistant 74
Lumbar support 52
M
Maintenance 182
Maintenance require‐ ments 182
Maintenance, service require‐ ments 85
Maintenance system, BMW 182
Malfunction displays, refer to Check Control 80
Manual air distribution 137 Seite 212ReferenceEverything from A to Z212
Online Edition for Part no. 01 40 2 910 746 - VI/13
