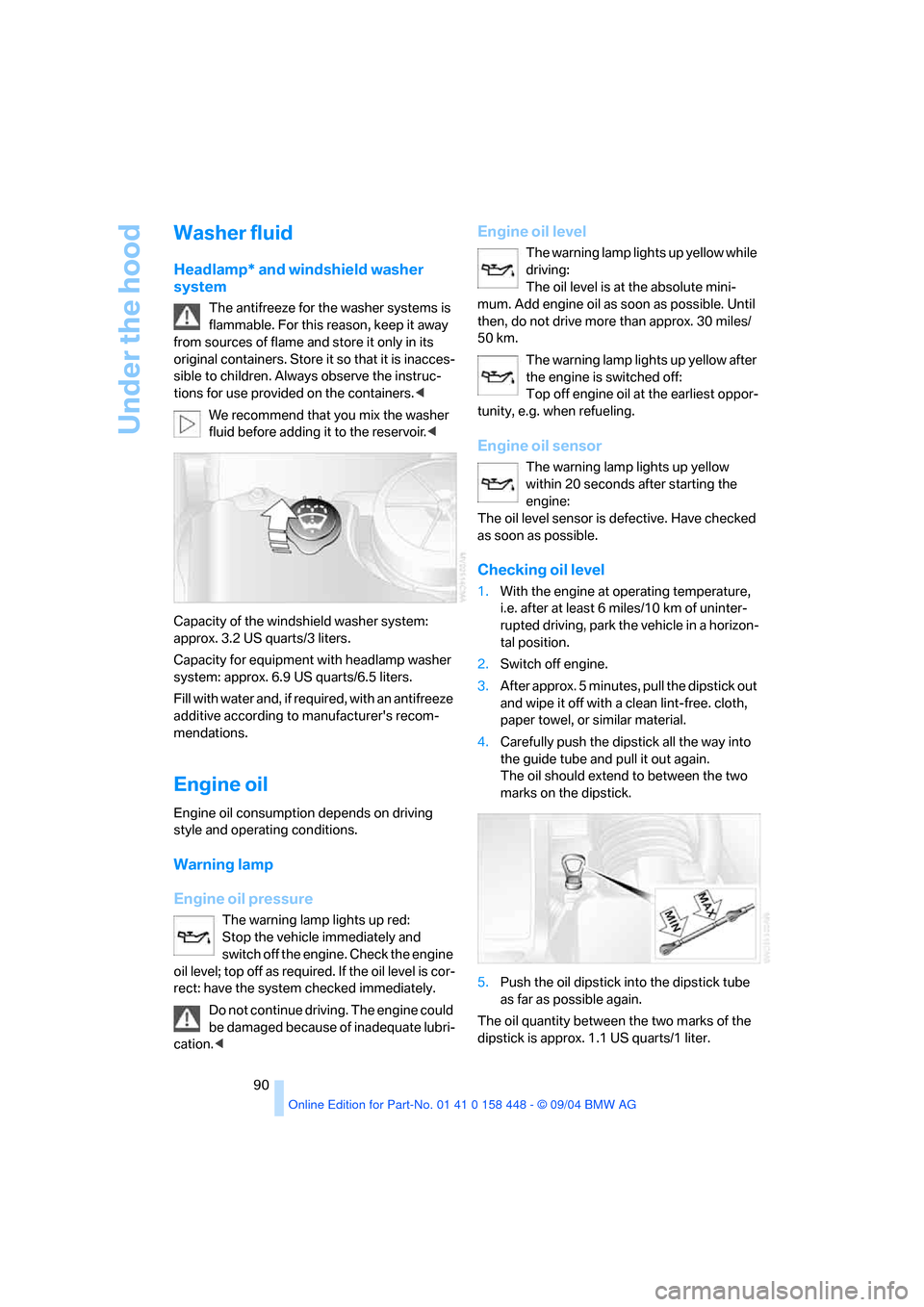

Under the hood
90
Washer fluid
Headlamp* and windshield washer
system
The antifreeze for the washer systems is
flammable. For this reason, keep it away
from sources of flame and store it only in its
original containers. Store it so that it is inacces-
sible to children. Always observe the instruc-
tions for use provided on the containers.<
We recommend that you mix the washer
fluid before adding it to the reservoir.<
Capacity of the windshield washer system:
approx. 3.2 US quarts/3 liters.
Capacity for equipment with headlamp washer
system: approx. 6.9 US quarts/6.5 liters.
Fill with water and, if required, with an antifreeze
additive according to manufacturer's recom-
mendations.
Engine oil
Engine oil consumption depends on driving
style and operating conditions.
Warning lamp
Engine oil pressure
The warning lamp lights up red:
Stop the vehicle immediately and
switch off the engine. Check the engine
oil level; top off as required. If the oil level is cor-
rect: have the system checked immediately.
Do not continue driving. The engine could
be damaged because of inadequate lubri-
cation.<
Engine oil level
The warning lamp lights up yellow while
driving:
The oil level is at the absolute mini-
mum. Add engine oil as soon as possible. Until
then, do not drive more than approx. 30 miles/
50 km.
The warning lamp lights up yellow after
the engine is switched off:
Top off engine oil at the earliest oppor-
tunity, e.g. when refueling.
Engine oil sensor
The warning lamp lights up yellow
within 20 seconds after starting the
engine:
The oil level sensor is defective. Have checked
as soon as possible.
Checking oil level
1.With the engine at operating temperature,
i.e. after at least 6 miles/10 km of uninter-
rupted driving, park the vehicle in a horizon-
tal position.
2.Switch off engine.
3.After approx. 5 minutes, pull the dipstick out
and wipe it off with a clean lint-free. cloth,
paper towel, or similar material.
4.Carefully push the dipstick all the way into
the guide tube and pull it out again.
The oil should extend to between the two
marks on the dipstick.
5.Push the oil dipstick into the dipstick tube
as far as possible again.
The oil quantity between the two marks of the
dipstick is approx. 1.1 US quarts/1 liter.

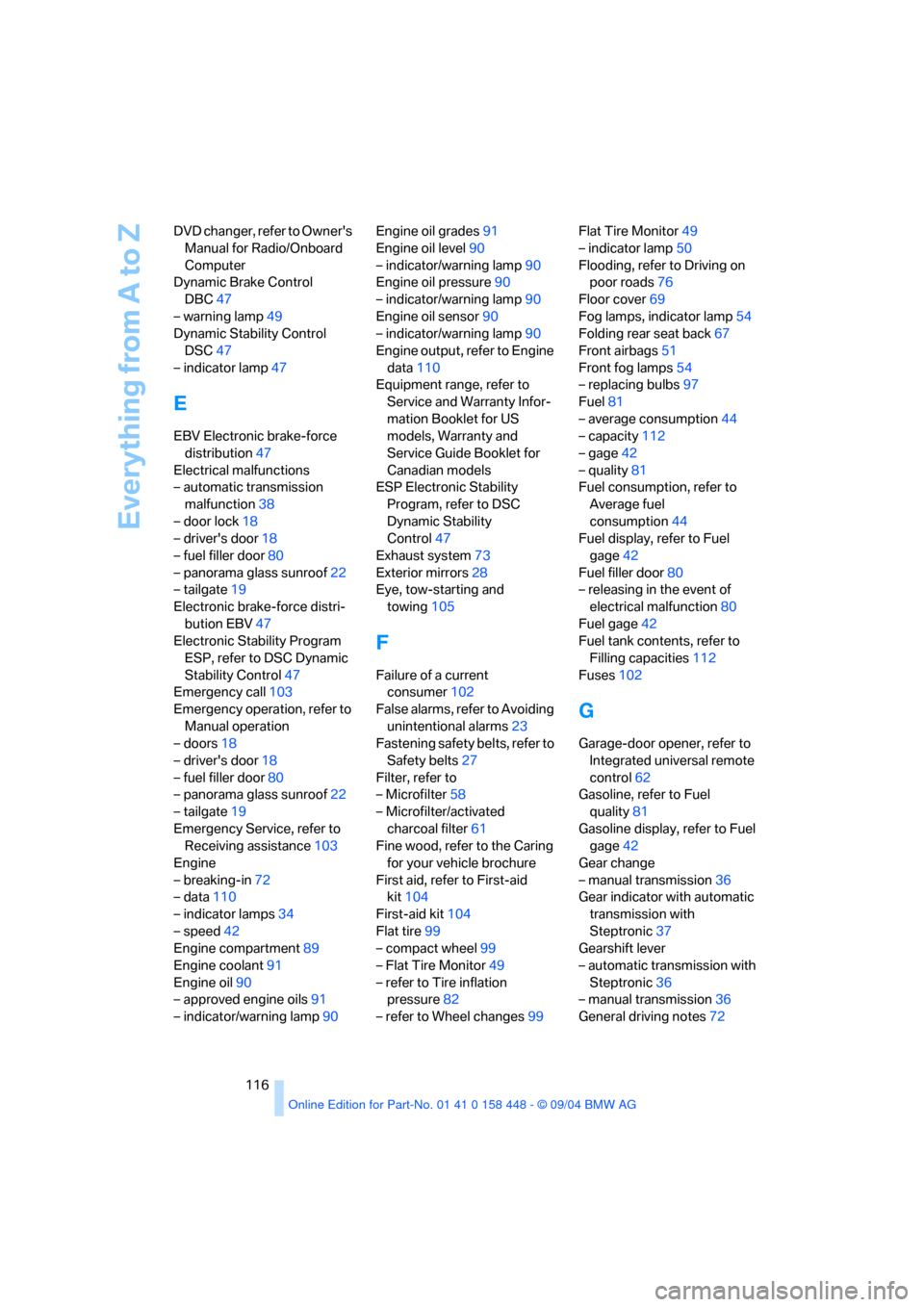

Everything from A to Z
116 DVD changer, refer to Owner's
Manual for Radio/Onboard
Computer
Dynamic Brake Control
DBC47
– warning lamp49
Dynamic Stability Control
DSC47
– indicator lamp47
E
EBV Electronic brake-force
distribution47
Electrical malfunctions
– automatic transmission
malfunction38
– door lock18
– driver's door18
– fuel filler door80
– panorama glass sunroof22
– tailgate19
Electronic brake-force distri-
bution EBV47
Electronic Stability Program
ESP, refer to DSC Dynamic
Stability Control47
Emergency call103
Emergency operation, refer to
Manual operation
– doors18
– driver's door18
– fuel filler door80
– panorama glass sunroof22
– tailgate19
Emergency Service, refer to
Receiving assistance103
Engine
– breaking-in72
– data110
– indicator lamps34
– speed42
Engine compartment89
Engine coolant91
Engine oil90
– approved engine oils91
– indicator/warning lamp90Engine oil grades91
Engine oil level90
– indicator/warning lamp90
Engine oil pressure90
– indicator/warning lamp90
Engine oil sensor90
– indicator/warning lamp90
Engine output, refer to Engine
data110
Equipment range, refer to
Service and Warranty Infor-
mation Booklet for US
models, Warranty and
Service Guide Booklet for
Canadian models
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control47
Exhaust system73
Exterior mirrors28
Eye, tow-starting and
towing105
F
Failure of a current
consumer102
False alarms, refer to Avoiding
unintentional alarms23
Fastening safety belts, refer to
Safety belts27
Filter, refer to
– Microfilter58
– Microfilter/activated
charcoal filter61
Fine wood, refer to the Caring
for your vehicle brochure
First aid, refer to First-aid
kit104
First-aid kit104
Flat tire99
– compact wheel99
– Flat Tire Monitor49
– refer to Tire inflation
pressure82
– refer to Wheel changes99Flat Tire Monitor49
– indicator lamp50
Flooding, refer to Driving on
poor roads76
Floor cover69
Fog lamps, indicator lamp54
Folding rear seat back67
Front airbags51
Front fog lamps54
– replacing bulbs97
Fuel81
– average consumption44
– capacity112
– gage42
– quality81
Fuel consumption, refer to
Average fuel
consumption44
Fuel display, refer to Fuel
gage42
Fuel filler door80
– releasing in the event of
electrical malfunction80
Fuel gage42
Fuel tank contents, refer to
Filling capacities112
Fuses102
G
Garage-door opener, refer to
Integrated universal remote
control62
Gasoline, refer to Fuel
quality81
Gasoline display, refer to Fuel
gage42
Gear change
– manual transmission36
Gear indicator with automatic
transmission with
Steptronic37
Gearshift lever
– automatic transmission with
Steptronic36
– manual transmission36
General driving notes72

Reference
At a glance
Controls
Driving tips
Mobility

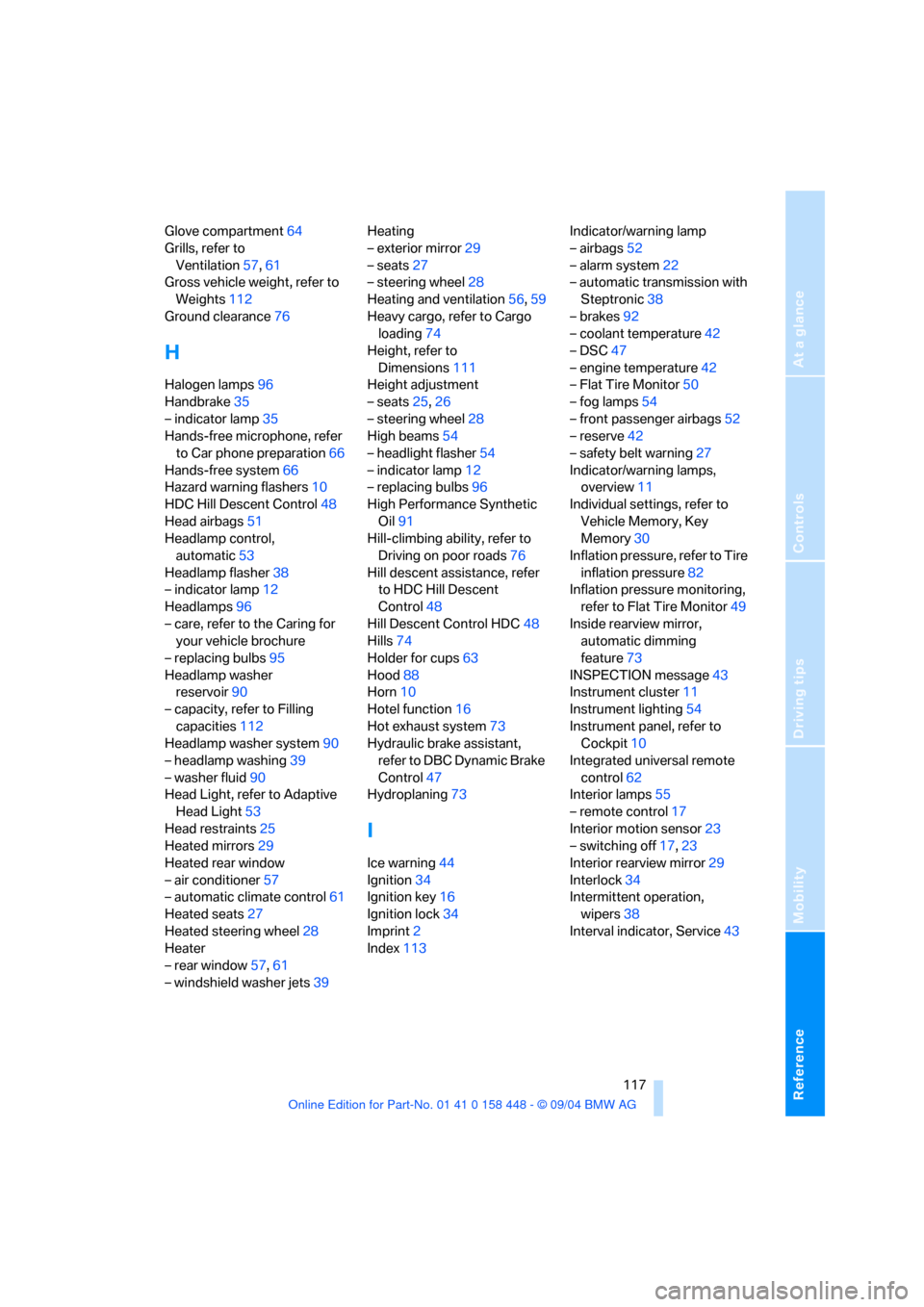

117
Glove compartment64
Grills, refer to
Ventilation57,61
Gross vehicle weight, refer to
Weights112
Ground clearance76
H
Halogen lamps96
Handbrake35
– indicator lamp35
Hands-free microphone, refer
to Car phone preparation66
Hands-free system66
Hazard warning flashers10
HDC Hill Descent Control48
Head airbags51
Headlamp control,
automatic53
Headlamp flasher38
– indicator lamp12
Headlamps96
– care, refer to the Caring for
your vehicle brochure
– replacing bulbs95
Headlamp washer
reservoir90
– capacity, refer to Filling
capacities112
Headlamp washer system90
– headlamp washing39
– washer fluid90
Head Light, refer to Adaptive
Head Light53
Head restraints25
Heated mirrors29
Heated rear window
– air conditioner57
– automatic climate control61
Heated seats27
Heated steering wheel28
Heater
– rear window57,61
– windshield washer jets39Heating
– exterior mirror29
– seats27
– steering wheel28
Heating and ventilation56,59
Heavy cargo, refer to Cargo
loading74
Height, refer to
Dimensions111
Height adjustment
– seats25,26
– steering wheel28
High beams54
– headlight flasher54
– indicator lamp12
– replacing bulbs96
High Performance Synthetic
Oil91
Hill-climbing ability, refer to
Driving on poor roads76
Hill descent assistance, refer
to HDC Hill Descent
Control48
Hill Descent Control HDC48
Hills74
Holder for cups63
Hood88
Horn10
Hotel function16
Hot exhaust system73
Hydraulic brake assistant,
refer to DBC Dynamic Brake
Control47
Hydroplaning73
I
Ice warning44
Ignition34
Ignition key16
Ignition lock34
Imprint2
Index113Indicator/warning lamp
– airbags52
– alarm system22
– automatic transmission with
Steptronic38
– brakes92
– coolant temperature42
– DSC47
– engine temperature42
– Flat Tire Monitor50
– fog lamps54
– front passenger airbags52
– reserve42
– safety belt warning27
Indicator/warning lamps,
overview11
Individual settings, refer to
Vehicle Memory, Key
Memory30
Inflation pressure, refer to Tire
inflation pressure82
Inflation pressure monitoring,
refer to Flat Tire Monitor49
Inside rearview mirror,
automatic dimming
feature73
INSPECTION message43
Instrument cluster11
Instrument lighting54
Instrument panel, refer to
Cockpit10
Integrated universal remote
control62
Interior lamps55
– remote control17
Interior motion sensor23
– switching off17,23
Interior rearview mirror29
Interlock34
Intermittent operation,
wipers38
Interval indicator, Service43

Reference
At a glance
Controls
Driving tips
Mobility

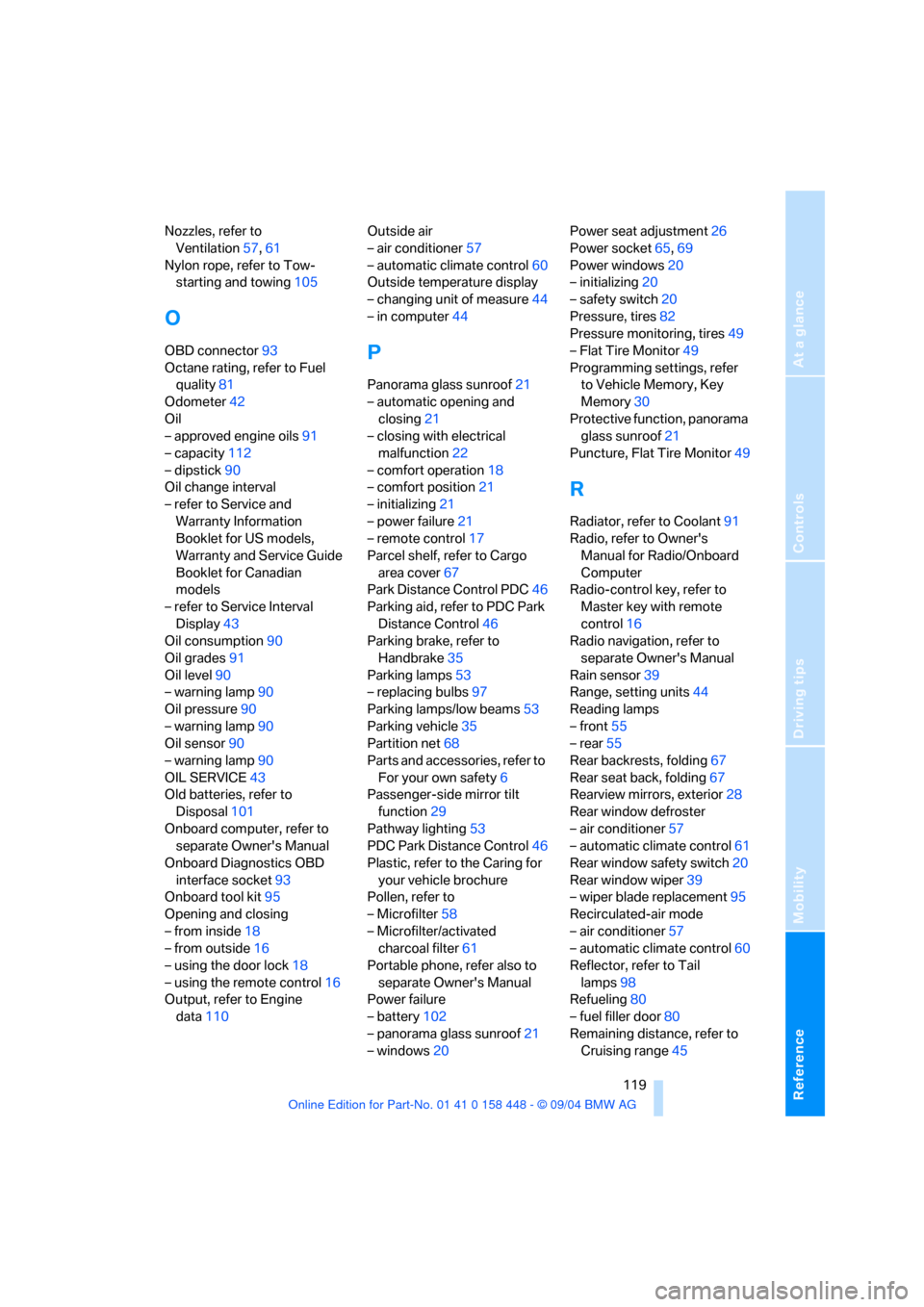

119
Nozzles, refer to
Ventilation57,61
Nylon rope, refer to Tow-
starting and towing105
O
OBD connector93
Octane rating, refer to Fuel
quality81
Odometer42
Oil
– approved engine oils91
– capacity112
– dipstick90
Oil change interval
– refer to Service and
Warranty Information
Booklet for US models,
Warranty and Service Guide
Booklet for Canadian
models
– refer to Service Interval
Display43
Oil consumption90
Oil grades91
Oil level90
– warning lamp90
Oil pressure90
– warning lamp90
Oil sensor90
– warning lamp90
OIL SERVICE43
Old batteries, refer to
Disposal101
Onboard computer, refer to
separate Owner's Manual
Onboard Diagnostics OBD
interface socket93
Onboard tool kit95
Opening and closing
– from inside18
– from outside16
– using the door lock18
– using the remote control16
Output, refer to Engine
data110Outside air
– air conditioner57
– automatic climate control60
Outside temperature display
– changing unit of measure44
– in computer44P
Panorama glass sunroof21
– automatic opening and
closing21
– closing with electrical
malfunction22
– comfort operation18
– comfort position21
– initializing21
– power failure21
– remote control17
Parcel shelf, refer to Cargo
area cover67
Park Distance Control PDC46
Parking aid, refer to PDC Park
Distance Control46
Parking brake, refer to
Handbrake35
Parking lamps53
– replacing bulbs97
Parking lamps/low beams53
Parking vehicle35
Partition net68
Parts and accessories, refer to
For your own safety6
Passenger-side mirror tilt
function29
Pathway lighting53
PDC Park Distance Control46
Plastic, refer to the Caring for
your vehicle brochure
Pollen, refer to
– Microfilter58
– Microfilter/activated
charcoal filter61
Portable phone, refer also to
separate Owner's Manual
Power failure
– battery102
– panorama glass sunroof21
– windows20Power seat adjustment26
Power socket65,69
Power windows20
– initializing20
– safety switch20
Pressure, tires82
Pressure monitoring, tires49
– Flat Tire Monitor49
Programming settings, refer
to Vehicle Memory, Key
Memory30
Protective function, panorama
glass sunroof21
Puncture, Flat Tire Monitor49
R
Radiator, refer to Coolant91
Radio, refer to Owner's
Manual for Radio/Onboard
Computer
Radio-control key, refer to
Master key with remote
control16
Radio navigation, refer to
separate Owner's Manual
Rain sensor39
Range, setting units44
Reading lamps
– front55
– rear55
Rear backrests, folding67
Rear seat back, folding67
Rearview mirrors, exterior28
Rear window defroster
– air conditioner57
– automatic climate control61
Rear window safety switch20
Rear window wiper39
– wiper blade replacement95
Recirculated-air mode
– air conditioner57
– automatic climate control60
Reflector, refer to Tail
lamps98
Refueling80
– fuel filler door80
Remaining distance, refer to
Cruising range45

Reference
At a glance
Controls
Driving tips
Mobility
121
Steering wheel with
buttons12
Steptronic36
Storage compartments64,65
Storage package65
Storage package nets65
Storage space, refer to Cargo
area67
Storing desired speed, refer to
Cruise control40
Storing seat position, refer to
Seat and mirror memory26
Storing tires86
Straps, refer to Cargo
loading74
Supply reservoirs, washer
systems90
Switches, refer to Cockpit10
Switching off engine35
Symbols4
T
Table of contents3
Tachometer42
Tailgate19
– closing19
– emergency operation19
– emergency operation, refer
to Manual unlocking19
– opening, remote control17
– opening from outside19
– remote control17
– unlocking manually19
Tailgate lamp, replacing
bulbs98
Tail lamps98
– indicator lamp, defective
lamp53
– replacing bulbs98
Tank capacity112
Technical data110
Technical modifications6
Telephone, refer to separate
Owner's Manual
Temperature
– air conditioner57
– automatic climate control60Temperature, tires85
Temperature display
– ice warning44
– outside temperature44
– setting units44
Temperature gage42
Tempomat, refer to Cruise
control40
The right wheels and tires86
Thigh support
adjustment25,26
Three-point safety belt27
Tightening torque of the lug
bolts, refer to After
mounting101
Tilt alarm sensor
– remote control17
– switching off17
Tilt function, passenger-side
mirror29
Tire inflation pressures82
Tires
– age84
– breaking-in72
– changing86
– changing, refer to Wheel
changes99
– condition85
– damage85
– DOT Quality Grades84
– flat99
– inflation pressure82
– inflation pressure table83
– size, refer to The right
wheels and tires86
– storage86
– temperature85
– traction84
– tread85
– tread wear84
– tread wear indicator, refer to
Tire tread85
– Uniform Tire Quality
Grading84
– winter tires86
Tools, refer to Onboard tool
kit95Torque
– engine110
– lug bolts101
Tow bar105
Tow fitting105
Towing105
– with automatic
transmission105
Towing eye105
Towing the vehicle105
Tow rope106
Tow sockets for tow
fitting105
Tow-starting105
Track width, refer to
Dimensions111
Traction84
Traction aid, refer to DSC47
Traction control, refer to DSC
Dynamic Stability
Control47
Transmission
– automatic transmission with
Steptronic36
– manual transmission36
Transmission locking
mechanism, refer to
PParking37
Transmission malfunction,
refer to Malfunction38
Transporting children
safely31
Transport securing device,
refer to Securing cargo75
Tread depth, refer to Tire
tread85
Tread wear84
Tread wear indicator in tire,
refer to Tire tread85
Trip-distance counter, refer to
Trip odometer42
Trip odometer42
Trunk19
– capacity112
– opening from outside19
– refer to Cargo area67
Trunk lid, refer to Tailgate19
Turning circle, refer to
Dimensions111
