X3 2.5i
X3 3.0iOwner's Manual for Vehicle
Congratulations, and thank you for choosing a BMW.
Thorough familiarity with your vehicle will provide you with
enhanced control and security when you drive it. We therefore
have this request:
Please take the time to read this Owner's Manual and familiarize
yourself with the information that we have compiled for you
before starting off in your new vehicle. It contains important data
and instructions intended to assist you in gaining maximum use
and satisfaction from your BMW's unique range of technical fea-
tures. The manual also contains information on maintenance
designed to enhance operating safety and contribute to main-
taining the value of your BMW throughout an extended service
life.
This manual is supplemented by a Service and Warranty Informa-
tion Booklet for US models or a Warranty and Service Guide
Booklet for Canadian models.
We wish you an enjoyable driving experience.
BMW AG

Reference
At a glance
Controls
Driving tips
Mobility
Contents
The fastest way to find specific topics is to use
the index, refer to page118.
Using this Owner's Manual
4Notes
7Reporting safety defects
At a glance
10Cockpit
Controls
18Opening and closing
26Adjustments
33Transporting children safely
36Driving
43Everything under control
47Technology for comfort, convenience
and safety
56Lamps
59Air conditioner
65Practical interior accessories
Driving tips
76Things to remember when driving
Mobility
84Refueling
86Wheels and tires
92Under the hood
97Maintenance
99Replacing components
107Giving and receiving assistance
Reference
114Technical data
118Everything from A to Z

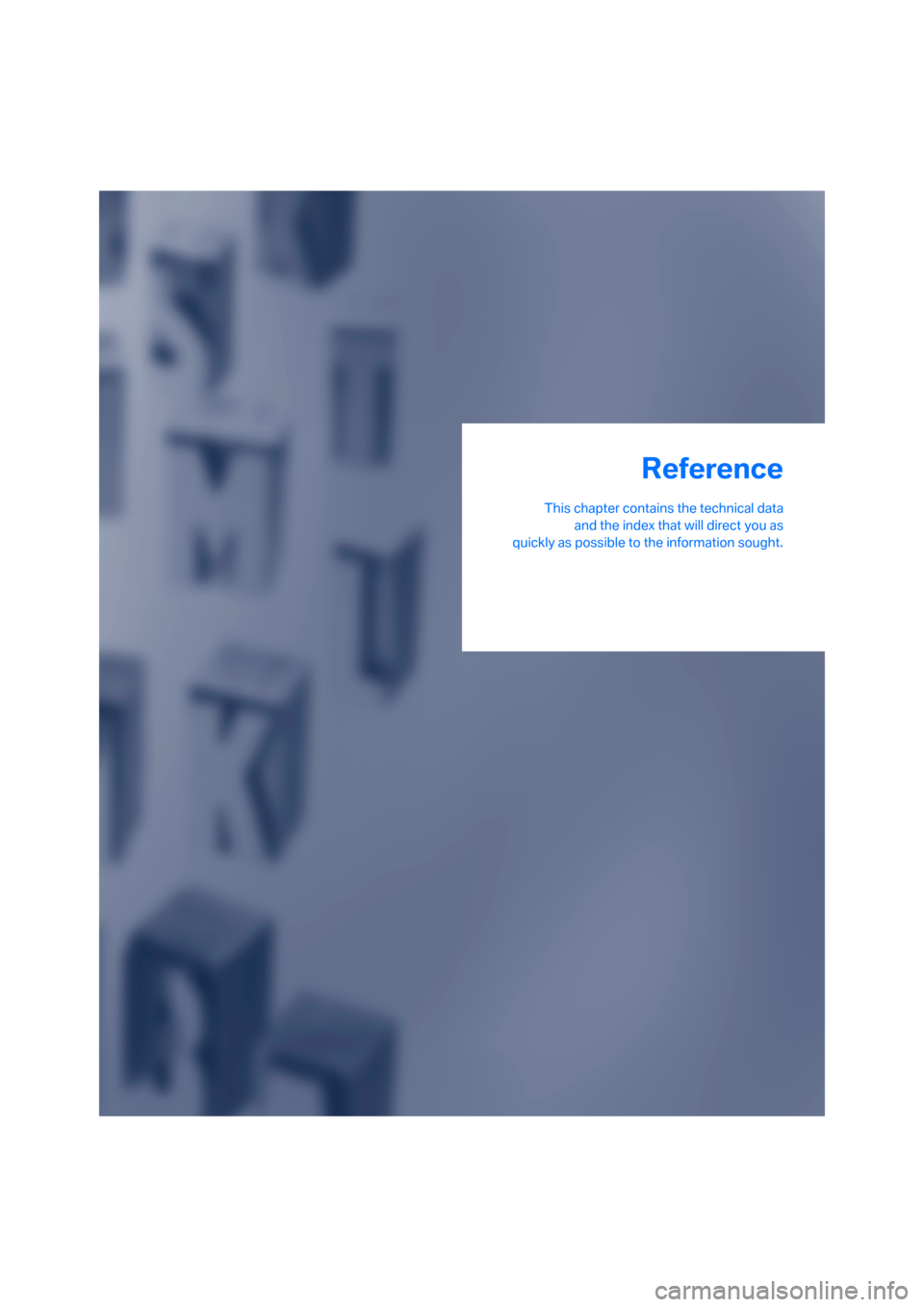

Reference
This chapter contains the technical data
and the index that will direct you as
quickly as possible to the information sought.
Reference

Technical data
114
Technical data
Engine specifications
X3 2.5iX3 3.0i
Displacement
Number of cylinderscu in/cmµ152.2/2,494
6181.8/2,979
6
Maximum output
at engine speedhp
rpm184
6,000225
5,900
Maximum torque
at engine speedIb ft/Nm
rpm175/237
3,500214/290
3,500
An engine performance test is authorized only on an appropriate chassis dynamometer.

Technical data
116
Weights
Capacities
X3 2.5iX3 3.0i
Curb weight
with manual transmission
with automatic transmissionlbs./kg
lbs./kg4,001/1,815
4,045/1,8354,023/1,825
4,067/1,845
Approved gross vehicle weight
with manual transmission
with automatic transmissionlbs./kg
lbs./kg4,993/2,265
5,049/2,2905,049/2,290
5,104/2,315
Payload
with manual transmission
with automatic transmissionlbs./kg
lbs./kg992/450
1,003/4551,025/465
1,036/470
Approved front axle load lbs./kg 2,425/1,100 2,425/1,100
Approved rear axle load lbs./kg 2,756/1,250 2,778/1,260
Approved roof load capacity lbs./kg 165/75 165/75
Cargo area capacity cu ft/l 71/2,011 71/2,011
Never exceed either the approved axle loads or the gross vehicle weight.
Notes
Fuel tank
Reserve gal./liters
gal./litersapprox. 17.7/67
approx. 2/8Fuel specification:
page85
Windshield washer/
headlamp washer systemquarts/liters approx. 3.2/3.0
approx. 6.9/6.5For details: page41
Engine oil and filter change quarts/liters approx. 6.6/6.2 For details: page94

Reference
At a glance
Controls
Driving tips
Mobility
119
Belts, refer to Safety belts29
Beverage holder, refer to Cup
holders66
Blower, refer to
– Air volume60
– Air volume, adjusting
manually63
BMW maintenance system97
Bottle holder, refer to Cup
holders66
Brake fluid96
– level96
– warning lamp96
Brake force display53
Brake lamps
– brake force display53
– indicator lamp, defective
bulb12,56
– replacing bulbs102
Brake light, refer to Brake
lamps102
Brake pads96
– breaking-in76
– warning lamp96
Brake pedal, refer to Safe
braking78
Brake rotors
– brake system76
– breaking-in76
Brakes78,96
– ABS48,78
– brake fluid96
– brake pads96
– breaking-in76
– handbrake37
– indicator/warning lamp12
Brake system96
– brake fluid96
– brake pads96
– breaking-in76
– disk brakes78
– warning lamp96
Brake wear warning
– refer to Brake pads96
– warning lamp96
Breakdown service, refer to
Receiving assistance107
Breaking-in76Bulb replacement, refer to
Lamps and bulbs99
Buttons on steering wheel13
C
California law
– Event Data Recorders98
– Proposition 65 Warning6
Calling, refer to telephone
Owner's Manual
Can holder, refer to Cup
holders66
Capacities116
Capacity, cargo area116
Car care, refer to Caring for
your vehicle brochure
Car-care products, refer to
Caring for your vehicle
brochure
Care, refer to Caring for your
vehicle brochure
Cargo, securing79
Cargo area21,70
– capacity116
– cover71
– emergency operation, refer
to Opening manually21
– enlarging70
– floor cover72
– folding rear seat backrest70
– lashing eyes73
– lid, refer to Liftgate21
– opening from outside21
– opening with remote
control19
– power socket69
Cargo loading78
– load79
– securing cargo79
– stowing cargo79
– vehicle78
Caring for artificial leather,
refer to Caring for your
vehicle brochure
Caring for carpet, refer to
Caring for your vehicle
brochureCaring for leather, refer to
Caring for your vehicle
brochure
Caring for plastic, refer to
Caring for your vehicle
brochure
Caring for vehicle finish, refer
to Caring for your vehicle
brochure
Car keys, refer to Key set18
Car phone, refer to separate
Owner's Manual
Car phone preparation69
Car radio, refer to Owner's
Manual for Radio/Onboard
Computer
Car wash77
– refer to Caring for your
vehicle brochure
Cassette operation, refer to
Owner's Manual for Radio/
Onboard Computer
CD operation, refer to Owner's
Manual for Radio/Onboard
Computer
Cellphone, refer to separate
Owner's Manual
Central locking system18
– interior20
Changes, technical, refer to
For your own safety6
Changing a wheel103
Changing gears
– automatic transmission with
Steptronic39
– manual transmission38
Changing wheels89
Charge-current indicator
lamp12,105
Charging battery106
Check Gas Cap, warning
lamp12,84
Checking oil level94
Child's seat, refer to Child
restraint systems33
Child-restraint fixing system
LATCH34

Everything from A to Z
120 Child restraint systems33
– installing33
– with tether strap34
Child-safety locks35
Child seat security33
Chock103
Chrome parts, care, refer to
Caring for your vehicle
brochure
Cigarette lighter68
Circulation of air, refer to
Recirculated-air
mode60,63
Cleaning, vehicle, refer to
Caring for your vehicle
brochure
Cleaning rear window41
Cleaning windows,
reservoir41
Clock44,45
– 12 or 24 hour mode45
– setting, also refer to Owner's
Manual for Radio/Onboard
Computer
– setting time44
Closing
– from inside20
– from outside19
Clothes hooks68
Clutch76
– breaking-in76
Cockpit10
Cold start, refer to Starting
engine36
Combination of wheel/tire90
Compact wheel, wheel
changes103
Compartments, refer to
Storage compartments67
Compartments in cargo area,
refer to Behind side trim
panel72
Computer45
– also refer to Owner's Manual
for Onboard Computer
– functions45
Condensation, refer to When
the vehicle is parked77Connecting car vacuum
cleaner, refer to Connecting
electrical devices69
Connecting electrical
devices69
Consumption, refer to
Average fuel
consumption46
Consumption indicator, refer
to Fuel gauge43
Controls, refer to Cockpit10
Convenience operation
– from outside20
– panorama glass sunroof20
– windows20
Coolant95
– level
95
– temperature gauge44
– warning lamp95
Cooling, refer to
Temperature60,63
Cruise control41
– buttons on steering
wheel13
– indicator lamp42
Cruising range46
Cup holders66
Curb weight, refer to
Weights116
Cylinders, refer to Engine
data114
D
Dashboard lighting, refer to
Instrument lighting58
Dashboard system, refer to
Cockpit10
Data, technical114
– dimensions115
– engine114
– filling capacities116
– weights116
Daytime running lamps56
DBC Dynamic Brake
Control48
– warning lamp50
Deactivating front passenger
airbags33,54Defective lamp56
Defects7
Defrosting windows60,63
– air conditioner60
– automatic climate control63
Defrosting windows and
removing condensation
– air conditioner60
– automatic climate control63
Defrost position, refer to
Defrosting windows60,63
Digital clock44
Dimensions115
Dimming mirror77
Dipstick, engine oil94
Directional indicators, refer to
Turn signals39
Disk brakes78
Displacement, refer to Engine
data114
Display illumination, refer to
Instrument lighting58
Display lighting, refer to
Instrument lighting58
Displays, refer to Instrument
cluster11
Disposal, vehicle battery106
Disposal of the vehicle, refer
to Caring for your vehicle
brochure
Distance warning, refer to
PDC Park Distance
Control47
Door keys18
Door lock20
Doors
– locking and unlocking from
inside20
– locking and unlocking from
outside19
– manual operation20
– unlocking and locking,
acknowledgment
signals19,
20
DOT Quality Grades88
Draft-free ventilation61,64
Driving lamps, refer to Parking
lamps/low beams56

Everything from A to Z
126 Selector lever interlock, refer
to Shiftlock38
Selector-lever positions,
automatic transmission38
Service, refer to Receiving
assistance107
Service and warranty7
Service Engine Soon36,98
Service Interval Display44,97
Setting interior
temperature60,63
Shifting gears with automatic
transmission with
Steptronic39
Shiftlock38
Side airbags53
Side tilt, permissible80
Side turn signals, bulb
replacement101
Signal horn, refer to Horn10
Sitting safely26
– with airbags26
– with head restraint26
– with safety belt26
Ski bag69
Smokers' package, refer to
Ashtray68
Snow chains91
Socket, refer to Cigarette
lighter socket69
Soft drink can holder, refer to
Cup holders66
SOS, refer to Initiating an
emergency call107
Spare fuses106
Spare key18
Spare wheel, refer to Compact
wheel103
Speed
– with compact wheel105
– with winter tires90
Speedometer11
– refer to Instrument
cluster11
Split rear backrest, refer to
Enlarging cargo area70
Sport program, automatic
transmission with
Steptronic39Sports seat28
Stability control, refer to
Driving stability control
systems48
Starting, refer to Starting
engine36
Starting difficulties
– at very low temperatures37
– jump starting
108
Starting engine36
Status of passenger
airbags54
Status of this Owner's Manual
at time of printing5
Steering lock36
Steering wheel10,13
– adjustment31
– buttons on steering
wheel13
– heater31
– lock36
Steering wheel with
buttons13
Steptronic38
Storage compartments67
Storage package68
Storage package nets68
Storage space, refer to Cargo
area70
Storing desired speed, refer to
Cruise control41
Storing seat position, refer to
Seat and mirror memory29
Storing tires90
Straps, refer to Cargo
loading78
Sunroof, refer to Panorama
glass sunroof23
Supply reservoirs, washer
systems41
Switches, refer to Cockpit10
Switching cooling function on/
off60,63
Switching off engine37
Symbols4
T
Tachometer43
Tail lamps102
– indicator lamp, defective
bulb56
– replacing bulbs102
Tank capacity116
Technical data114
Technical modifications6
Telephone, refer to separate
Owner's Manual
Temperature
– air conditioner60
– automatic climate control63
Temperature, tires89
Temperature display
– outside temperature45
– outside temperature
warning45
– setting units45
Temperature gauge44
Temperature of coolant, refer
to Coolant thermometer44
Temperature warning45
Tempomat, refer to Cruise
control41
The individual vehicle5
The right wheels and tires90
Thigh support adjustment28
Three point safety belts29
Tightening torque of lug bolts,
refer to After mounting105
Tilt alarm sensor
– remote control19
– switching off19,25
Tilt function, passenger-side
mirror31
Tire inflation pressure
monitoring, refer to Tire
Pressure Monitor52
Tire inflation pressures86
– restoring86
Tire Pressure Monitor52
– malfunction warnings52
– resetting system52
– system limitations52
– warning lamp52
