Page 7 of 53
Quality Certification I will be performed by your
authorized BMW SAV center and certified on the
following page.
The performance of certain subsequent mainte-
nance elements, as required by the BMW New
SAV Limited Warranty, will be specified at inter-
vals computed by the BMW Service Interval Indi-
cator as follows:
– Oil Service: Engine oil should be changed with the engine at operating temperature.
Note: Change oil at least once a year.
All 2006 BMW X3s are factory-filled with BMW
High Performance Synthetic oils. At the time of
the printing of this booklet, the following oils
are strongly recommended and approved by
BMW:
• BMW High Performance 5W-30 Synthetic Oil
(BMW part number 07 51 0 017 866)
• Mobil 1 5W-30
• Mobil 1 5W-40
BMW is evaluating various synthetic oils for
inclusion in our list of recommended motor oils.
For the most current list of synthetic oils,
please contact your authorized BMW SAV cen-
ter, or call BMW of North America, LLC. at 1
800 831-1117. You can also obtain this infor-
mation from our website, www.bmwusa.com.
BMW recommends that you check your engine
oil level whenever you add fuel to your vehicle. If
you need to add oil between oil changes and
are unable to obtain BMW High Performance
Synthetic Oil, Mobil 1 or another special oil on
the list, use a synthetic oil with an API rating of
SJ or higher.
– Inspection I: Major vehicle maintenance as specified in the following pages under Inspec-
tion I.
– Inspection II: Additional major vehicle mainte- nance as specified in the following pages under
Inspection II.
The following maintenance elements must be
performed at the mileage/time stated (time
intervals begin from the vehicle’s production
date): – Brake Fluid Service: Change brake fluid every
two years.
– Oxygen Sensor Service: The oxygen sensor deteriorates strictly on a mileage basis and
must therefore be replaced every 100,000
miles to maximize vehicle fuel economy and
minimize exhaust pollution. The replacement of
the oxygen sensor is required under the terms
of the applicable BMW emission system war-
ranties.
– Spark Plug Service: The X3 is equipped with platinum-tipped spark plugs. These allow a
longer service life than conventional plugs.
Replace spark plugs every 100,000 miles.
– Automatic Transmission Service: Change ATF every 100,000 miles.
The engine coolant has a lifetime rating and does
not need to be changed.
Please see your authorized BMW SAV center for
the most current information.
For your convenience, you may also wish to have
your authorized BMW SAV center perform any
necessary operations to fulfill any state inspec-
tion requirements in your area concurrent with
the maintenance elements specified above dur-
ing other repairs.
Make sure that confirmation of maintenance
work is always entered in this SAV Service and
Warranty Information Booklet. You may need this
for any warranty claims that become necessary,
and later on as evidence that your SAV has been
given the correct and regular maintenance that
justifies its resale or trade-in value.
BMW has applied the most modern technologi-
cal advances not only to the design and produc-
tion of your SAV, but also to computing of the
optimum maintenance interval for your type of
operations and driving style. Your authorized
BMW SAV center has made a substantial invest-
ment in unique BMW special service tools to
enable his BMW factory trained service techni-
cians to perform quality repairs on your BMW in
minimal time. He/she looks forward to serving
your every service need and to help maximize
your satisfaction with your BMW, its longevity,
and resale value.
3
Page 9 of 53
Engine Oil Service
Engine CompartmentX3 3.0i
Change oil and oil filter while engine is at normal operating temperature. We
recommend BMW High Performance Synthetic Oil, p/n 07 51 0 017 866. •
Reset service interval indicator. •
Replace microfilter. •
Check overall thickness of front and rear disc brake pads using special tool. If
replacement is necessary: Examine brake disc surfaces. Clean brake pad contact points
in calipers. Grease wheel centering hubs. Check thickness of parking brake linings only
when replacing rear pads. •
Check parking brake actuation. Adjust if necessary. •
5
Page 10 of 53
Inspection I
Only those items of inspection work which apply to your vehicle will be performed. This list is subject to
amendment.
Undercarriage X3 3.0i
Change oil and oil filter while engine is at normal operating temperature. We
recommend BMW High Performance Synthetic Oil, p/n 07 51 0 017 866. •
Check transmission for leaks. •
Check transfer case for leaks. •
Change oil in transfer case only if prompted by diagnostic short-test. •
Check rear axle for leaks. •
Check front axle differential for leaks. •
Half-shafts: Check for leaks at flexible boots. •
Visually check fuel tank, lines and connections for leaks. •
Check condition, position, and mounting of exhaust system. Examine for leaks. •
Check power steering system for leaks. Check power steering fluid level; add fluid if
necessary. •
Check steering for absence of play, condition of suspension track rods, front axle joints,
steering linkage and joint disc. •
Check overall thickness of front and rear disc brake pads using special tool. If
replacement is necessary: Examine brake disc surfaces. Clean brake pad contact points
in calipers. Grease wheel centering hubs. Check thickness of parking brake linings only
when replacing rear brake pads. •
Check brake system connections and lines for leaks, damage and incorrect positioning. •
Check parking brake actuation. Adjust if necessary. •
Check all tire pressures (including spare). Correct if necessary. Check condition of tires
(outer surface [left/right]), tread wear and pattern; in case of uneven tread wear, readjust
wheel alignment if requested (invoice separately). •
Inspect entire body according to terms of rust performation limited warranty. (Must be
performed at least every two years). •
6
Page 11 of 53
Inspection I
Engine CompartmentX3 3.0i
Read out diagnostic system. •
Check engine cooling system/heater hose connections for leaks. Check coolant level
and antifreeze protection level. Add coolant if required. •
Check windshield washer fluid level and antifreeze protection. Fill up and/or correct if
required. •
Check air conditioner for operation. •
Replace microfilter. (Note: reduce replacement interval in dusty operating conditions.) •
Reset service interval indicator. •
Body/Electrical
Check battery state-of-charge indicator and charge if required. •
Check lighting system, i.e.: headlights, foglights, parking, back-up, license plate, interior
(including map reading lights), glove box, flashlight, illuminated makeup mirrors,
luggage compartment/area lights. •
Check instrument panel and dashboard illumination. •
Check all warning/indicator lights, check control. •
Check turn signals, hazard warning flashers, brake lights, horns, headlight dimmer and
flasher switch. •
Check wipers and washer system(s); wiper blades, washer jet positions. •
Check condition and function of safety belts. •
Visually examine all SRS airbag units for torn covers, obvious damage or attachment of
decals, decorations or accessories. •
Check central locking/double lock. •
Check operation of all latches. •
Check heater/air conditioner blower, rear window defogger. •
Check rear view mirrors. •
Final Inspection
Road test with check of brakes, suspension, steering, clutch/manual transmission or
automatic transmission. •
7
Page 12 of 53
Inspection II
Includes all items listed under Inspection I, and the following checks and maintenance operations.
Engine CompartmentX3 3.0i
Replace air cleaner element. (Note: Reduce replacement interval in dusty operating
conditions). •
Brake Fluid Service
Replace brake fluid every 2 years (time interval begins from the vehicle’s production
date). •
Oxygen Sensor Service
Replace Oxygen Sensor every 100,000 miles.
•
Spark Plug Service
Replace spark plugs every 100,000 miles. •
Automatic Transmission Service
Replace ATF every 100,000 miles. •
8
Page 40 of 53

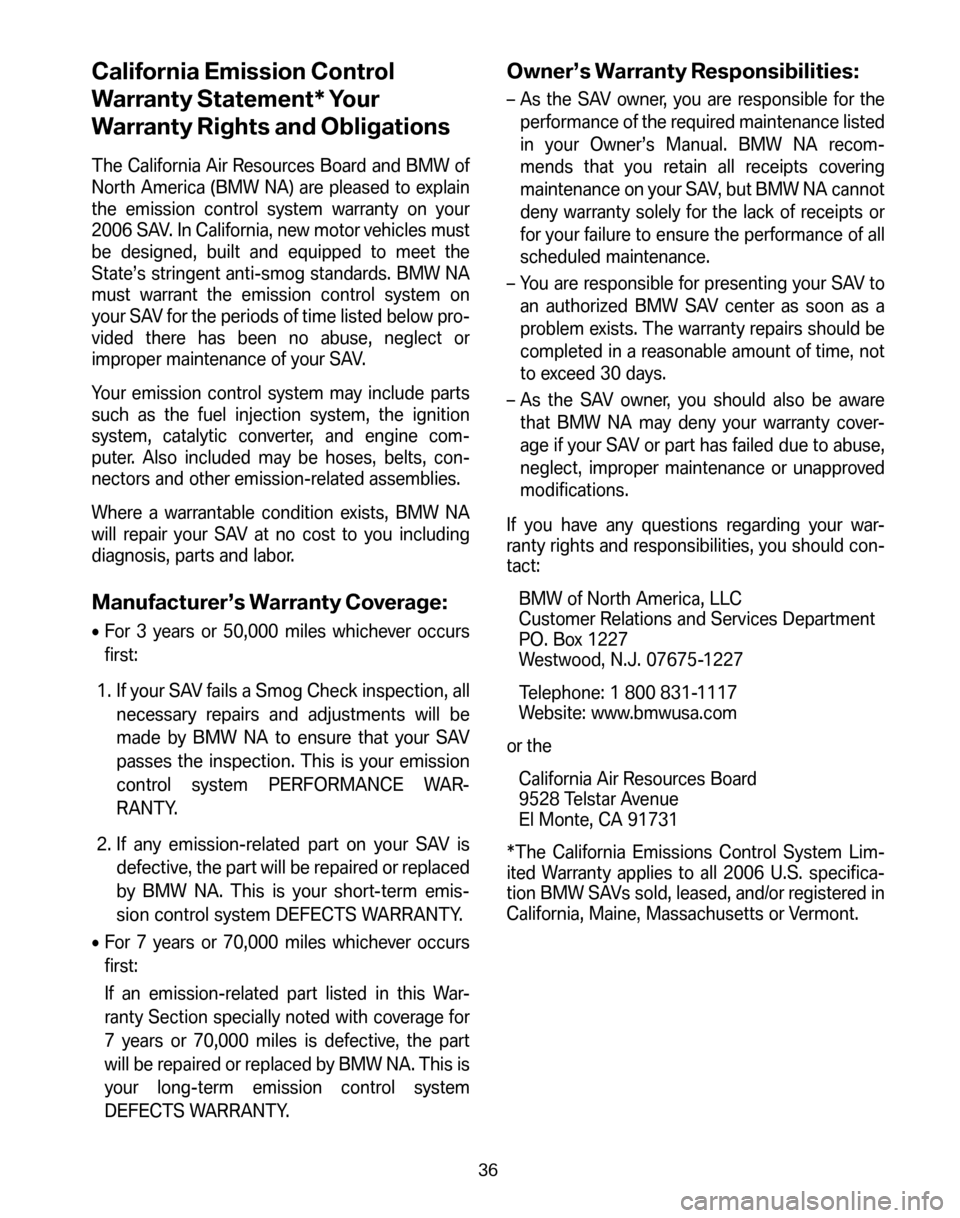

California Emission Control
Warranty Statement* Your
Warranty Rights and Obligations
The California Air Resources Board and BMW of
North America (BMW NA) are pleased to explain
the emission control system warranty on your
2006 SAV. In California, new motor vehicles must
be designed, built and equipped to meet the
State’s stringent anti-smog standards. BMW NA
must warrant the emission control system on
your SAV for the periods of time listed below pro-
vided there has been no abuse, neglect or
improper maintenance of your SAV.
Your emission control system may include parts
such as the fuel injection system, the ignition
system, catalytic converter, and engine com-
puter. Also included may be hoses, belts, con-
nectors and other emission-related assemblies.
Where a warrantable condition exists, BMW NA
will repair your SAV at no cost to you including
diagnosis, parts and labor.
Manufacturer’s Warranty Coverage:
• For 3 years or 50,000 miles whichever occurs
first:
1. If your SAV fails a Smog Check inspection, all
necessary repairs and adjustments will be
made by BMW NA to ensure that your SAV
passes the inspection. This is your emission
control system PERFORMANCE WAR-
RANTY.
2. If any emission-related part on your SAV is defective, the part will be repaired or replaced
by BMW NA. This is your short-term emis-
sion control system DEFECTS WARRANTY.
• For 7 years or 70,000 miles whichever occurs
first:
If an emission-related part listed in this War-
ranty Section specially noted with coverage for
7 years or 70,000 miles is defective, the part
will be repaired or replaced by BMW NA. This is
your long-term emission control system
DEFECTS WARRANTY.
Owner’s Warranty Responsibilities:
– As the SAV owner, you are responsible for the
performance of the required maintenance listed
in your Owner’s Manual. BMW NA recom-
mends that you retain all receipts covering
maintenance on your SAV, but BMW NA cannot
deny warranty solely for the lack of receipts or
for your failure to ensure the performance of all
scheduled maintenance.
– You are responsible for presenting your SAV to an authorized BMW SAV center as soon as a
problem exists. The warranty repairs should be
completed in a reasonable amount of time, not
to exceed 30 days.
– As the SAV owner, you should also be aware that BMW NA may deny your warranty cover-
age if your SAV or part has failed due to abuse,
neglect, improper maintenance or unapproved
modifications.
If you have any questions regarding your war-
ranty rights and responsibilities, you should con-
tact: BMW of North America, LLC
Customer Relations and Services Department
PO. Box 1227
Westwood, N.J. 07675-1227
Telephone: 1 800 831-1117
Website: www.bmwusa.com
or the California Air Resources Board
9528 Telstar Avenue
El Monte, CA 91731
*The California Emissions Control System Lim-
ited Warranty applies to all 2006 U.S. specifica-
tion BMW SAVs sold, leased, and/or registered in
California, Maine, Massachusetts or Vermont.
36
