height adjustment BMW X3 3.0I 2005 E83 Owner's Manual

Reference
At a glance
Controls
Driving tips
Mobility
25

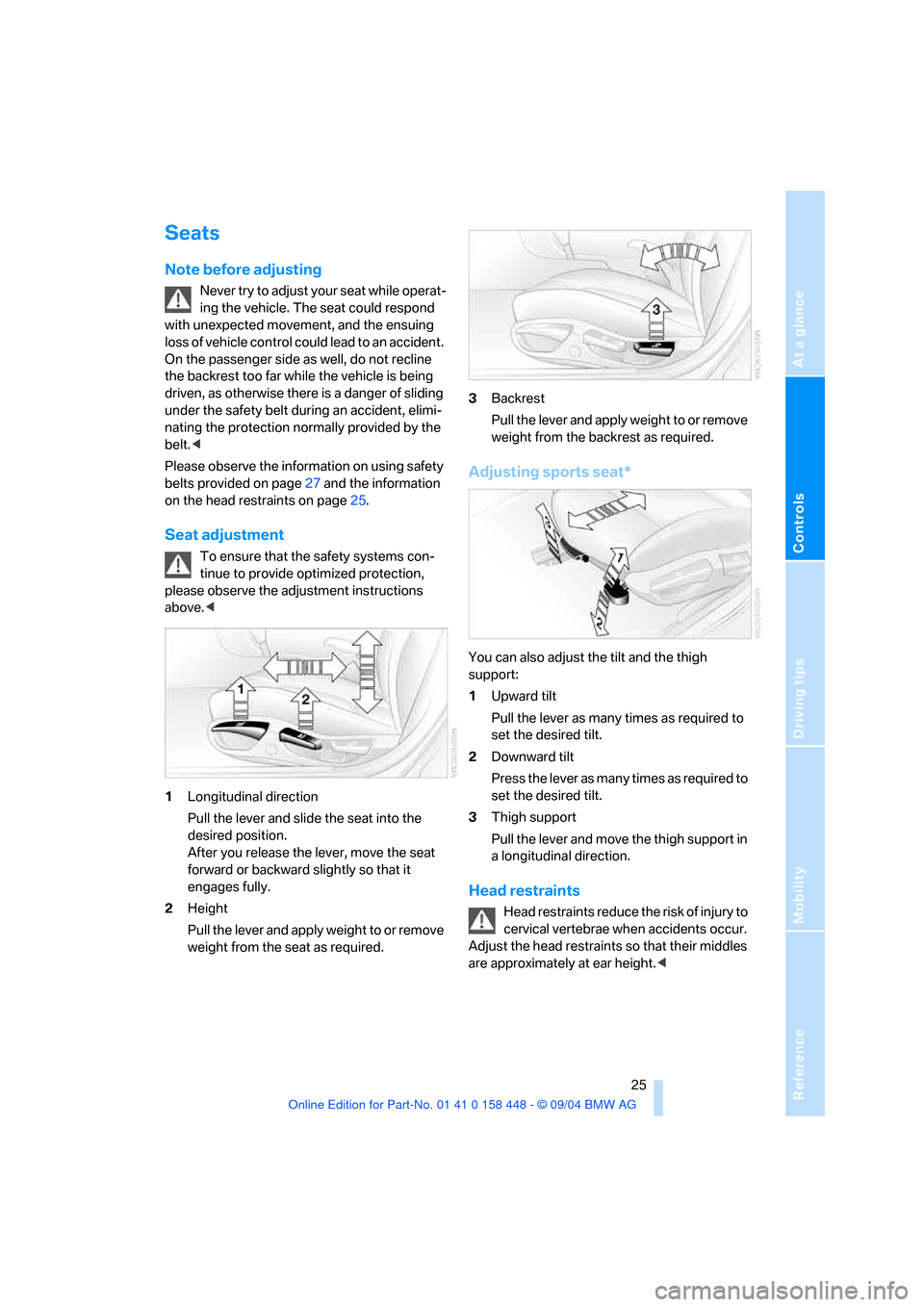

Seats
Note before adjusting
Never try to adjust your seat while operat-
ing the vehicle. The seat could respond
with unexpected movement, and the ensuing
loss of vehicle control could lead to an accident.
On the passenger side as well, do not recline
the backrest too far while the vehicle is being
driven, as otherwise there is a danger of sliding
under the safety belt during an accident, elimi-
nating the protection normally provided by the
belt.<
Please observe the information on using safety
belts provided on page27 and the information
on the head restraints on page25.
Seat adjustment
To ensure that the safety systems con-
tinue to provide optimized protection,
please observe the adjustment instructions
above.<
1Longitudinal direction
Pull the lever and slide the seat into the
desired position.
After you release the lever, move the seat
forward or backward slightly so that it
engages fully.
2Height
Pull the lever and apply weight to or remove
weight from the seat as required.3Backrest
Pull the lever and apply weight to or remove
weight from the backrest as required.
Adjusting sports seat*
You can also adjust the tilt and the thigh
support:
1Upward tilt
Pull the lever as many times as required to
set the desired tilt.
2Downward tilt
Press the lever as many times as required to
set the desired tilt.
3Thigh support
Pull the lever and move the thigh support in
a longitudinal direction.
Head restraints
Head restraints reduce the risk of injury to
cervical vertebrae when accidents occur.
Adjust the head restraints so that their middles
are approximately at ear height.<

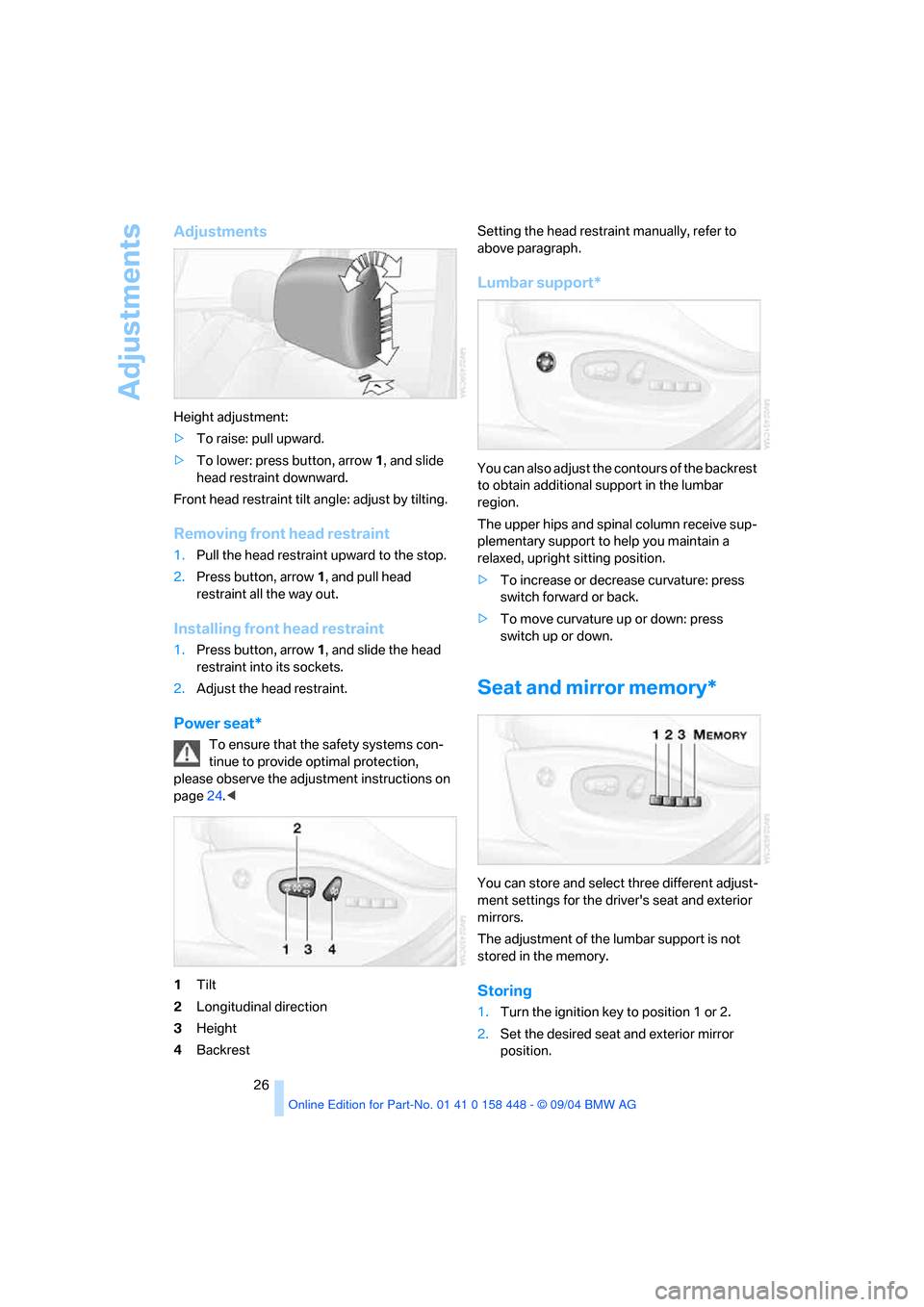

Adjustments
26
Adjustments
Height adjustment:
>To raise: pull upward.
>To lower: press button, arrow 1, and slide
head restraint downward.
Front head restraint tilt angle: adjust by tilting.
Removing front head restraint
1.Pull the head restraint upward to the stop.
2.Press button, arrow 1, and pull head
restraint all the way out.
Installing front head restraint
1.Press button, arrow1, and slide the head
restraint into its sockets.
2.Adjust the head restraint.
Power seat*
To ensure that the safety systems con-
tinue to provide optimal protection,
please observe the adjustment instructions on
page24.<
1Tilt
2Longitudinal direction
3Height
4Backrest Setting the head restraint manually, refer to
above paragraph.
Lumbar support*
You can also adjust the contours of the backrest
to obtain additional support in the lumbar
region.
The upper hips and spinal column receive sup-
plementary support to help you maintain a
relaxed, upright sitting position.
>To increase or decrease curvature: press
switch forward or back.
>To move curvature up or down: press
switch up or down.
Seat and mirror memory*
You can store and select three different adjust-
ment settings for the driver's seat and exterior
mirrors.
The adjustment of the lumbar support is not
stored in the memory.
Storing
1.Turn the ignition key to position 1 or 2.
2.Set the desired seat and exterior mirror
position.

Adjustments

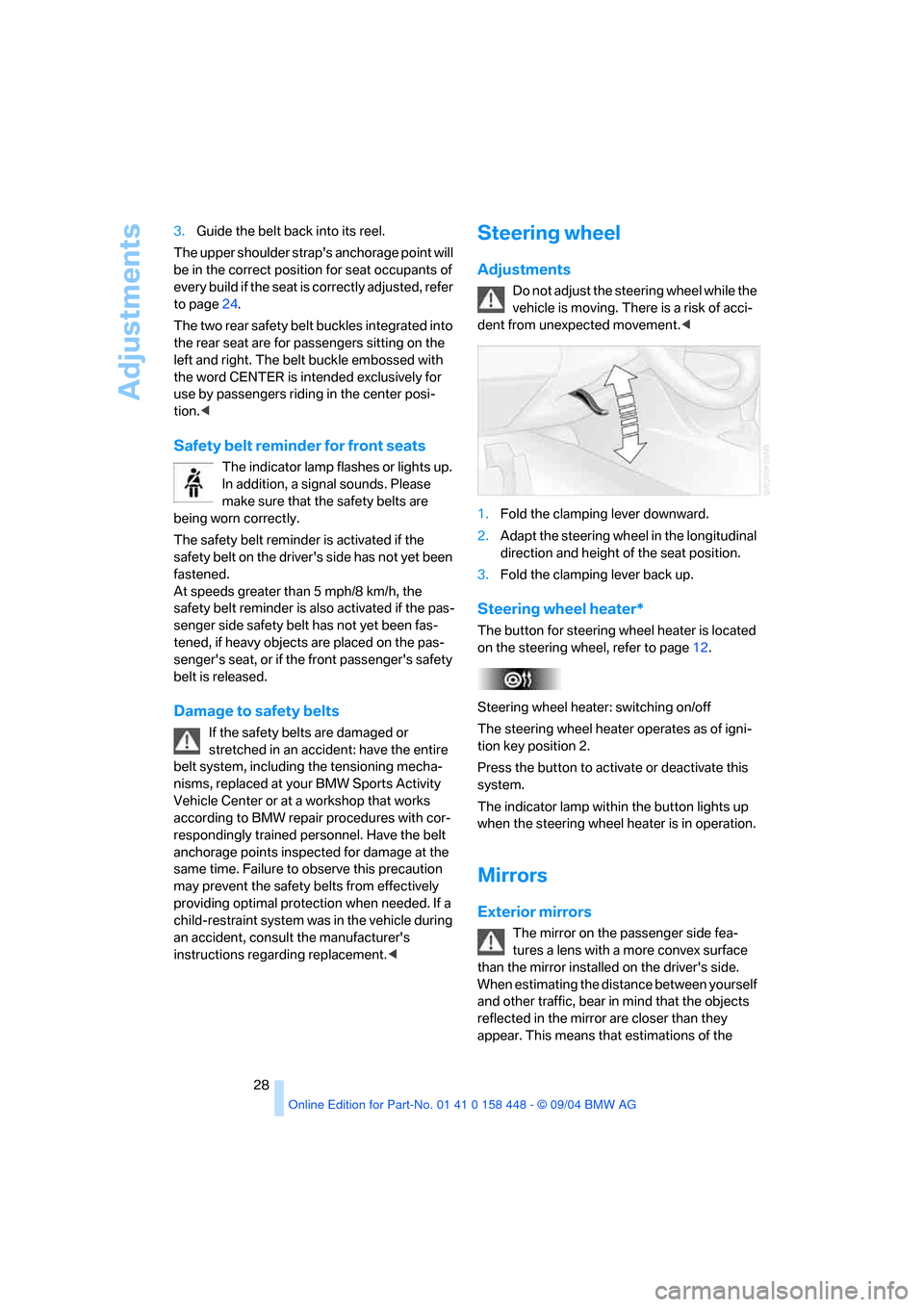

28 3.Guide the belt back into its reel.
The upper shoulder strap's anchorage point will
be in the correct position for seat occupants of
every build if the seat is correctly adjusted, refer
to page24.
The two rear safety belt buckles integrated into
the rear seat are for passengers sitting on the
left and right. The belt buckle embossed with
the word CENTER is intended exclusively for
use by passengers riding in the center posi-
tion.<
Safety belt reminder for front seats
The indicator lamp flashes or lights up.
In addition, a signal sounds. Please
make sure that the safety belts are
being worn correctly.
The safety belt reminder is activated if the
safety belt on the driver's side has not yet been
fastened.
At speeds greater than 5 mph/8 km/h, the
safety belt reminder is also activated if the pas-
senger side safety belt has not yet been fas-
tened, if heavy objects are placed on the pas-
senger's seat, or if the front passenger's safety
belt is released.
Damage to safety belts
If the safety belts are damaged or
stretched in an accident: have the entire
belt system, including the tensioning mecha-
nisms, replaced at your BMW Sports Activity
Vehicle Center or at a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel. Have the belt
anchorage points inspected for damage at the
same time. Failure to observe this precaution
may prevent the safety belts from effectively
providing optimal protection when needed. If a
child-restraint system was in the vehicle during
an accident, consult the manufacturer's
instructions regarding replacement.<
Steering wheel
Adjustments
Do not adjust the steering wheel while the
vehicle is moving. There is a risk of acci-
dent from unexpected movement.<
1.Fold the clamping lever downward.
2.Adapt the steering wheel in the longitudinal
direction and height of the seat position.
3.Fold the clamping lever back up.
Steering wheel heater*
The button for steering wheel heater is located
on the steering wheel, refer to page12.
Steering wheel heater: switching on/off
The steering wheel heater operates as of igni-
tion key position 2.
Press the button to activate or deactivate this
system.
The indicator lamp within the button lights up
when the steering wheel heater is in operation.
Mirrors
Exterior mirrors
The mirror on the passenger side fea-
tures a lens with a more convex surface
than the mirror installed on the driver's side.
When estimating the distance between yourself
and other traffic, bear in mind that the objects
reflected in the mirror are closer than they
appear. This means that estimations of the

Reference
At a glance
Controls
Driving tips
Mobility
117
Glove compartment64
Grills, refer to
Ventilation57,61
Gross vehicle weight, refer to
Weights112
Ground clearance76
H
Halogen lamps96
Handbrake35
– indicator lamp35
Hands-free microphone, refer
to Car phone preparation66
Hands-free system66
Hazard warning flashers10
HDC Hill Descent Control48
Head airbags51
Headlamp control,
automatic53
Headlamp flasher38
– indicator lamp12
Headlamps96
– care, refer to the Caring for
your vehicle brochure
– replacing bulbs95
Headlamp washer
reservoir90
– capacity, refer to Filling
capacities112
Headlamp washer system90
– headlamp washing39
– washer fluid90
Head Light, refer to Adaptive
Head Light53
Head restraints25
Heated mirrors29
Heated rear window
– air conditioner57
– automatic climate control61
Heated seats27
Heated steering wheel28
Heater
– rear window57,61
– windshield washer jets39Heating
– exterior mirror29
– seats27
– steering wheel28
Heating and ventilation56,59
Heavy cargo, refer to Cargo
loading74
Height, refer to
Dimensions111
Height adjustment
– seats25,26
– steering wheel28
High beams54
– headlight flasher54
– indicator lamp12
– replacing bulbs96
High Performance Synthetic
Oil91
Hill-climbing ability, refer to
Driving on poor roads76
Hill descent assistance, refer
to HDC Hill Descent
Control48
Hill Descent Control HDC48
Hills74
Holder for cups63
Hood88
Horn10
Hotel function16
Hot exhaust system73
Hydraulic brake assistant,
refer to DBC Dynamic Brake
Control47
Hydroplaning73
I
Ice warning44
Ignition34
Ignition key16
Ignition lock34
Imprint2
Index113Indicator/warning lamp
– airbags52
– alarm system22
– automatic transmission with
Steptronic38
– brakes92
– coolant temperature42
– DSC47
– engine temperature42
– Flat Tire Monitor50
– fog lamps54
– front passenger airbags52
– reserve42
– safety belt warning27
Indicator/warning lamps,
overview11
Individual settings, refer to
Vehicle Memory, Key
Memory30
Inflation pressure, refer to Tire
inflation pressure82
Inflation pressure monitoring,
refer to Flat Tire Monitor49
Inside rearview mirror,
automatic dimming
feature73
INSPECTION message43
Instrument cluster11
Instrument lighting54
Instrument panel, refer to
Cockpit10
Integrated universal remote
control62
Interior lamps55
– remote control17
Interior motion sensor23
– switching off17,23
Interior rearview mirror29
Interlock34
Intermittent operation,
wipers38
Interval indicator, Service43
