wipers BMW X3 3.0I 2005 E83 Owner's Manual

Driving
38 To use the automatic function again, move the
selector lever to the right into position D.
Malfunction
The warning lamp lights up. A malfunc-
tion has occurred in the transmission
system. Avoid heavy loads.
While it will still remain possible to move the
selector lever to any desired position, the trans-
mission will revert to its default mode with only
a limited number of forward gears.
Have the system checked as soon as possible.
Information on towing and jump starting, refer
to page105.
Turn signals/headlamp
flasher
1High beams
2Headlamp flasher
3Turn signals
Atypically rapid flashing of the indicator
lamp indicates that a turn signal bulb has
gone out. After the ignition is switched off,
make sure that the roadside parking lamps have
not been left on.<
Signaling briefly
Press lever to resistance point and hold for as
long as you wish to signal.
Washer/wiper system/
rain sensor*
0Wipers retracted
1Intermittent or rain sensor operation
2Normal wiper speed
3Fast wipe
4Brief wipe
5Select interval time or set sensitivity of rain
sensor
Fold-out position
The right wiper is partially concealed by the
hood.
To move the wipers into a vertical position:
1.Switch on wipers in lever position 1.
2.When the wipers are approximately vertical,
move the ignition key to position 0.
For changing the wiper blades, refer to page95.
Fold the wipers back down onto the wind-
shield before you turn the ignition key to
p o s i t i o n 1 o r 2 a g a i n . I f y o u d o n o t , t h e y c o u l d b e
damaged.<
Intermittent mode
Not on vehicles with rain sensor.
You can set the wipe interval to four stages with
the serrated dial 5.
In addition, the wipe interval is varied automati-
cally depending on road speed.

Reference
At a glance
Controls
Driving tips
Mobility
39
Rain sensor*
The rain sensor automatically controls wiper
operation as a function of the rain intensity. It is
positioned on the windshield, directly in front of
the inside rearview mirror.
Deactivate the rain sensor when passing
through an automatic car wash. Failure to
do so could result in damage caused by undes-
ired wiper activation.<
Activating
As of ignition key position 1 move the lever to
position1. The wipers travel once across the
windshield, regardless of the weather condi-
tions.
You can leave the lever permanently in posi-
tion 1 and then only need to activate the rain
sensor as of ignition key position 1. To do so:
>Briefly turn the serrated dial 5 or
>clean the windshield 1, refer to next section
Adjusting sensitivity
Turn the serrated dial 5.
Deactivating
Switch lever to position 0.
Normal wiper speed
The system switches automatically to intermit-
tent mode when the vehicle is not moving, not
on vehicles with rain sensor.
Fast wipe
The wipers operate at normal speed when the
vehicle is not moving, not on vehicles with rain
sensor.
Cleaning windshield, rear window and
headlamps*
0Wipers retracted
1Cleaning windshield and headlamps
2Rear window wiper intermittent mode
3Cleaning rear window
Do not use the washers if there is any
danger that the fluid will freeze on the
windshield. If you do so, your vision could be
obscured. To avoid freezing, use a washer fluid
antifreeze, refer to page90. Do not use the
washers when the reservoir is empty. This
could cause damage to the washer pump.<
Cleaning windshield
The system sprays washer fluid against the
windshield and activates the wipers for a brief
period.
The windshield washer nozzles are automati-
cally heated as of ignition key position 2.
Cleaning headlamps*
When the vehicle lighting system is switched
on, the headlamps are cleaned at regular and
appropriate intervals.
Rear window wiper
Rear window wiper in intermittent mode. When
reverse gear is engaged, the wiper operates
continuously.
You can also program the interval:
1.Briefly move the wiper lever from position 0
to position 2.
2.Wait for desired interval; maximum of
30 seconds.

Reference
At a glance
Controls
Driving tips
Mobility
95

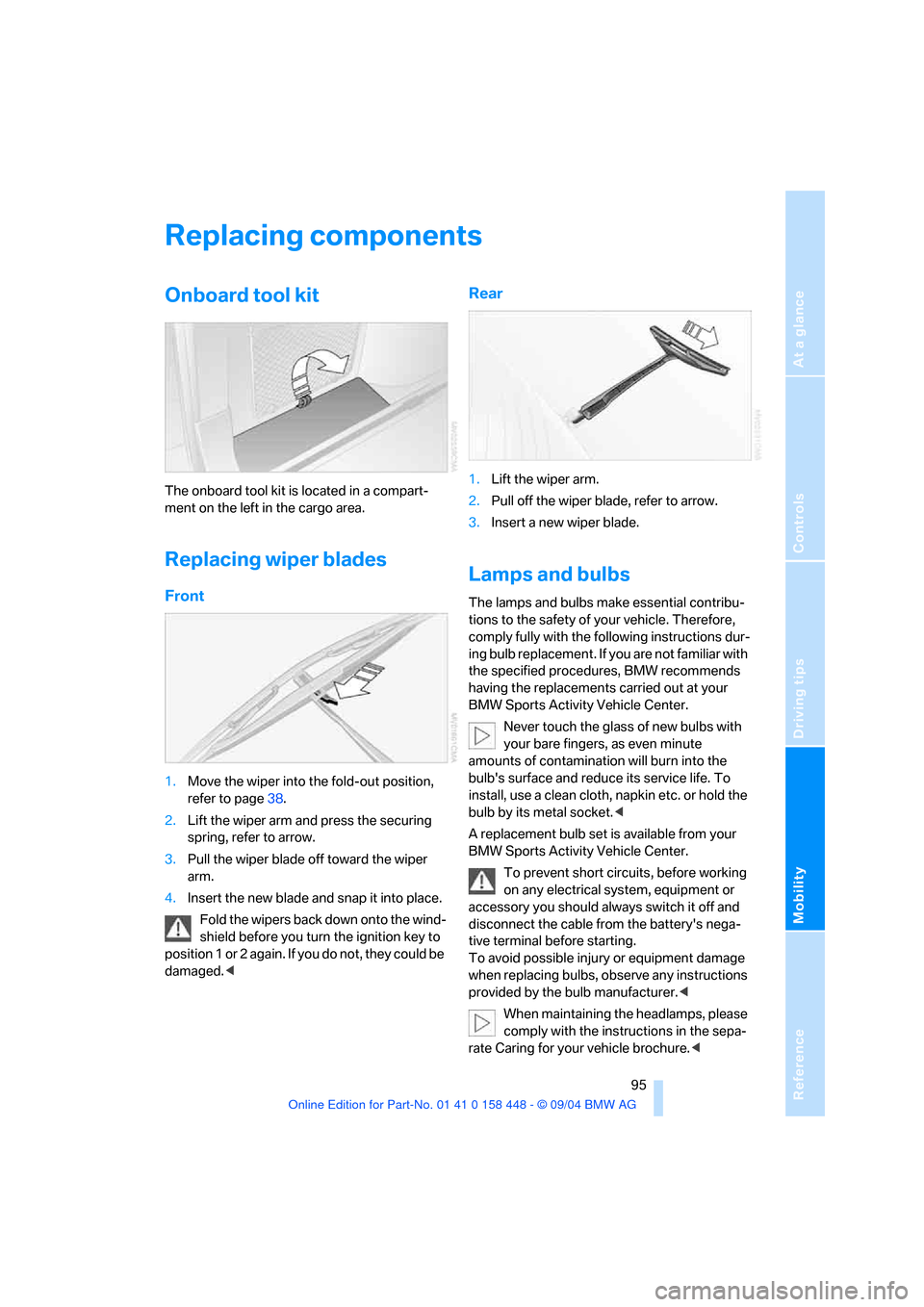

Replacing components
Onboard tool kit
The onboard tool kit is located in a compart-
ment on the left in the cargo area.
Replacing wiper blades
Front
1.Move the wiper into the fold-out position,
refer to page38.
2.Lift the wiper arm and press the securing
spring, refer to arrow.
3.Pull the wiper blade off toward the wiper
arm.
4.Insert the new blade and snap it into place.
Fold the wipers back down onto the wind-
shield before you turn the ignition key to
p o s i t i o n 1 o r 2 a g a i n . I f y o u d o n o t , t h e y c o u l d b e
damaged.<
Rear
1.Lift the wiper arm.
2.Pull off the wiper blade, refer to arrow.
3.Insert a new wiper blade.
Lamps and bulbs
The lamps and bulbs make essential contribu-
tions to the safety of your vehicle. Therefore,
comply fully with the following instructions dur-
ing bulb replacement. If you are not familiar with
the specified procedures, BMW recommends
having the replacements carried out at your
BMW Sports Activity Vehicle Center.
Never touch the glass of new bulbs with
your bare fingers, as even minute
amounts of contamination will burn into the
bulb's surface and reduce its service life. To
install, use a clean cloth, napkin etc. or hold the
bulb by its metal socket.<
A replacement bulb set is available from your
BMW Sports Activity Vehicle Center.
To prevent short circuits, before working
on any electrical system, equipment or
accessory you should always switch it off and
disconnect the cable from the battery's nega-
tive terminal before starting.
To avoid possible injury or equipment damage
when replacing bulbs, observe any instructions
provided by the bulb manufacturer.<
When maintaining the headlamps, please
comply with the instructions in the sepa-
rate Caring for your vehicle brochure.<

Reference
At a glance
Controls
Driving tips
Mobility
117
Glove compartment64
Grills, refer to
Ventilation57,61
Gross vehicle weight, refer to
Weights112
Ground clearance76
H
Halogen lamps96
Handbrake35
– indicator lamp35
Hands-free microphone, refer
to Car phone preparation66
Hands-free system66
Hazard warning flashers10
HDC Hill Descent Control48
Head airbags51
Headlamp control,
automatic53
Headlamp flasher38
– indicator lamp12
Headlamps96
– care, refer to the Caring for
your vehicle brochure
– replacing bulbs95
Headlamp washer
reservoir90
– capacity, refer to Filling
capacities112
Headlamp washer system90
– headlamp washing39
– washer fluid90
Head Light, refer to Adaptive
Head Light53
Head restraints25
Heated mirrors29
Heated rear window
– air conditioner57
– automatic climate control61
Heated seats27
Heated steering wheel28
Heater
– rear window57,61
– windshield washer jets39Heating
– exterior mirror29
– seats27
– steering wheel28
Heating and ventilation56,59
Heavy cargo, refer to Cargo
loading74
Height, refer to
Dimensions111
Height adjustment
– seats25,26
– steering wheel28
High beams54
– headlight flasher54
– indicator lamp12
– replacing bulbs96
High Performance Synthetic
Oil91
Hill-climbing ability, refer to
Driving on poor roads76
Hill descent assistance, refer
to HDC Hill Descent
Control48
Hill Descent Control HDC48
Hills74
Holder for cups63
Hood88
Horn10
Hotel function16
Hot exhaust system73
Hydraulic brake assistant,
refer to DBC Dynamic Brake
Control47
Hydroplaning73
I
Ice warning44
Ignition34
Ignition key16
Ignition lock34
Imprint2
Index113Indicator/warning lamp
– airbags52
– alarm system22
– automatic transmission with
Steptronic38
– brakes92
– coolant temperature42
– DSC47
– engine temperature42
– Flat Tire Monitor50
– fog lamps54
– front passenger airbags52
– reserve42
– safety belt warning27
Indicator/warning lamps,
overview11
Individual settings, refer to
Vehicle Memory, Key
Memory30
Inflation pressure, refer to Tire
inflation pressure82
Inflation pressure monitoring,
refer to Flat Tire Monitor49
Inside rearview mirror,
automatic dimming
feature73
INSPECTION message43
Instrument cluster11
Instrument lighting54
Instrument panel, refer to
Cockpit10
Integrated universal remote
control62
Interior lamps55
– remote control17
Interior motion sensor23
– switching off17,23
Interior rearview mirror29
Interlock34
Intermittent operation,
wipers38
Interval indicator, Service43

Everything from A to Z
122 Turn signals38
– indicator lamp12
– replacing bulbs97
Turn signals, side, replacing
bulbs97
U
Undercarriage protection,
refer to the Caring for your
vehicle brochure
Units44
– outside temperature44
Universal garage-door
opener, refer to Integrated
universal remote control62
Universal portable phone
preparation, refer to
separate Owner's Manual
Universal remote control62
Unlocking
– from inside18
– from outside16
– hood88
Upholstery care, refer to the
Caring for your vehicle
brochure
V
Valve
– insert101
– screw cap101
Vehicle
– battery101
– breaking-in72
– care, refer to the Caring for
your vehicle brochure
– cargo loading74
– decommissioning, refer to
the Caring for your vehicle
brochure
– dimensions111
– parking35
– washing, refer to the Caring
for your vehicle brochure
– weights112
Vehicle battery101Vehicle jack99
– jacking points100
Vehicle jacking points100
Vehicle Memory30
Ventilation57,61
– draft-free58,61
Viscosity91
Voice control, refer to
separate Owner's Manual
W
Warning and indicator
lamps11
Warning triangle103
Warranty, refer to Service and
Warranty Information
Booklet for US models,
Warranty and Service Guide
Booklet for Canadian
models93
Warranty and service7
Washer fluid90
Washer fluid reservoir
– capacity, refer to Filling
capacities112
– refer to Windshield/
headlamp washer
system90
Weights112
Wheel/tire combination86
Wheelbase, refer to
Dimensions111
Wheel bolt, wrench99
Wheel changes, compact
wheel99
Wheels and tires86
Width, refer to
Dimensions111
Windows20
– convenience operation18
– safety switch20
Windshield washer
reservoir90
– capacity, refer to Filling
capacities112
Windshield washer system
– washer/wiper system38
– washer fluid90Windshield wiper blade
replacement95
Windshield wipers, refer to
Washer/wiper system38
Winter tires86
– changing99
– condition85
– storage86
Wiper blade replacement95
Wiper system38,90
Wood decor, refer to Fine
wood parts
Working in the engine
compartment88
Wrenches, refer to Onboard
tool kit95
X
xDrive48
Xenon lamps97
– replacing bulbs97
