BMW X3 3.0I 2007 E83 Owner's Manual
Manufacturer: BMW, Model Year: 2007, Model line: X3 3.0I, Model: BMW X3 3.0I 2007 E83Pages: 139, PDF Size: 4.74 MB
Page 121 of 139
Reference
This chapter contains technical data and the
index that will direct you as quickly as possible
to the information you seek.
Reference
Page 122 of 139

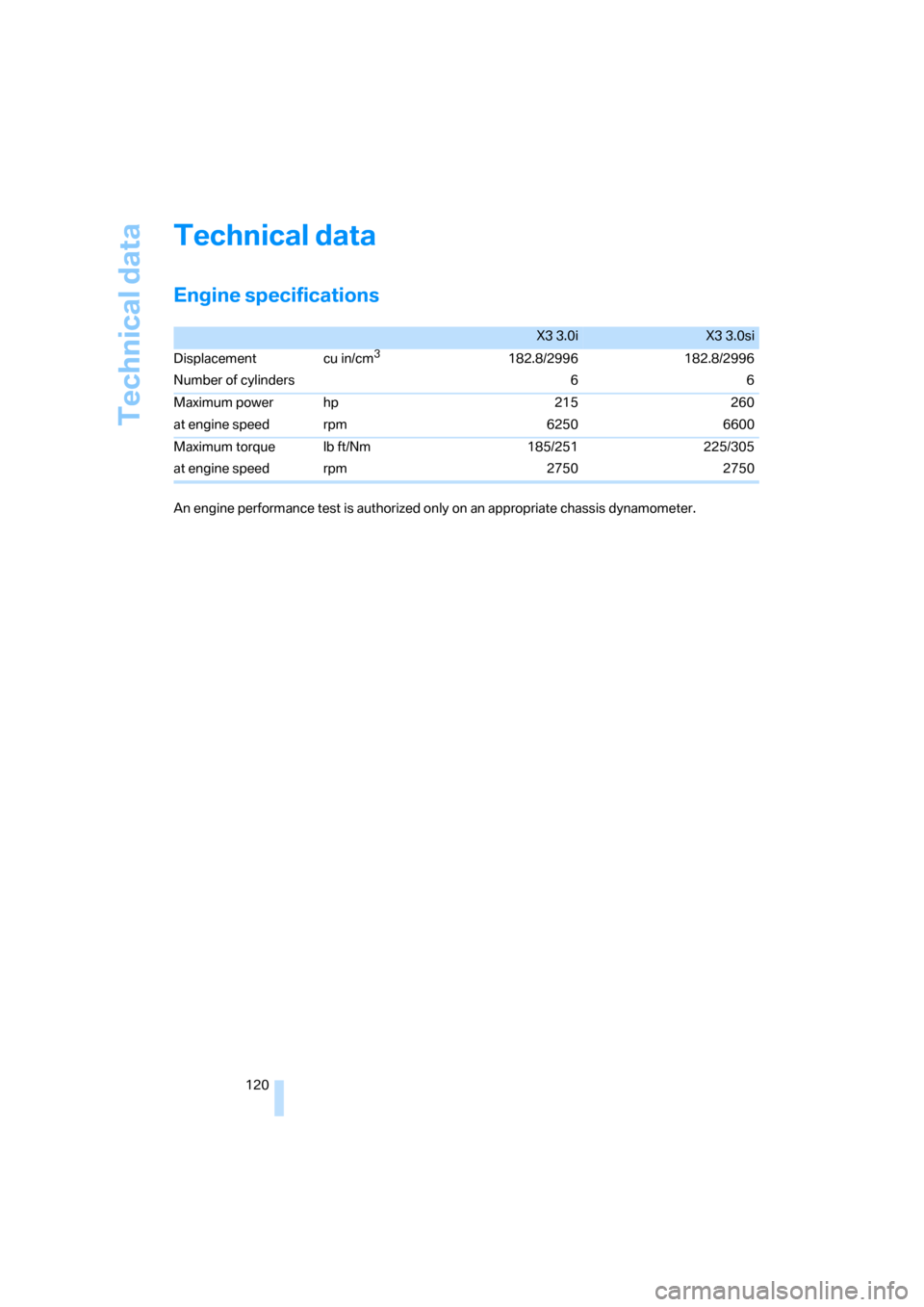

Technical data
120
Technical data
Engine specifications
X3 3.0iX3 3.0si
Displacement
Number of cylinderscu in/cm
3182.8/2996
6182.8/2996
6
Maximum power
at engine speedhp
rpm215
6250260
6600
Maximum torque
at engine speedIb ft/Nm
rpm185/251
2750225/305
2750
An engine performance test is authorized only on an appropriate chassis dynamometer.
Page 123 of 139
Reference
At a glance
Controls
Driving tips
Mobility
121

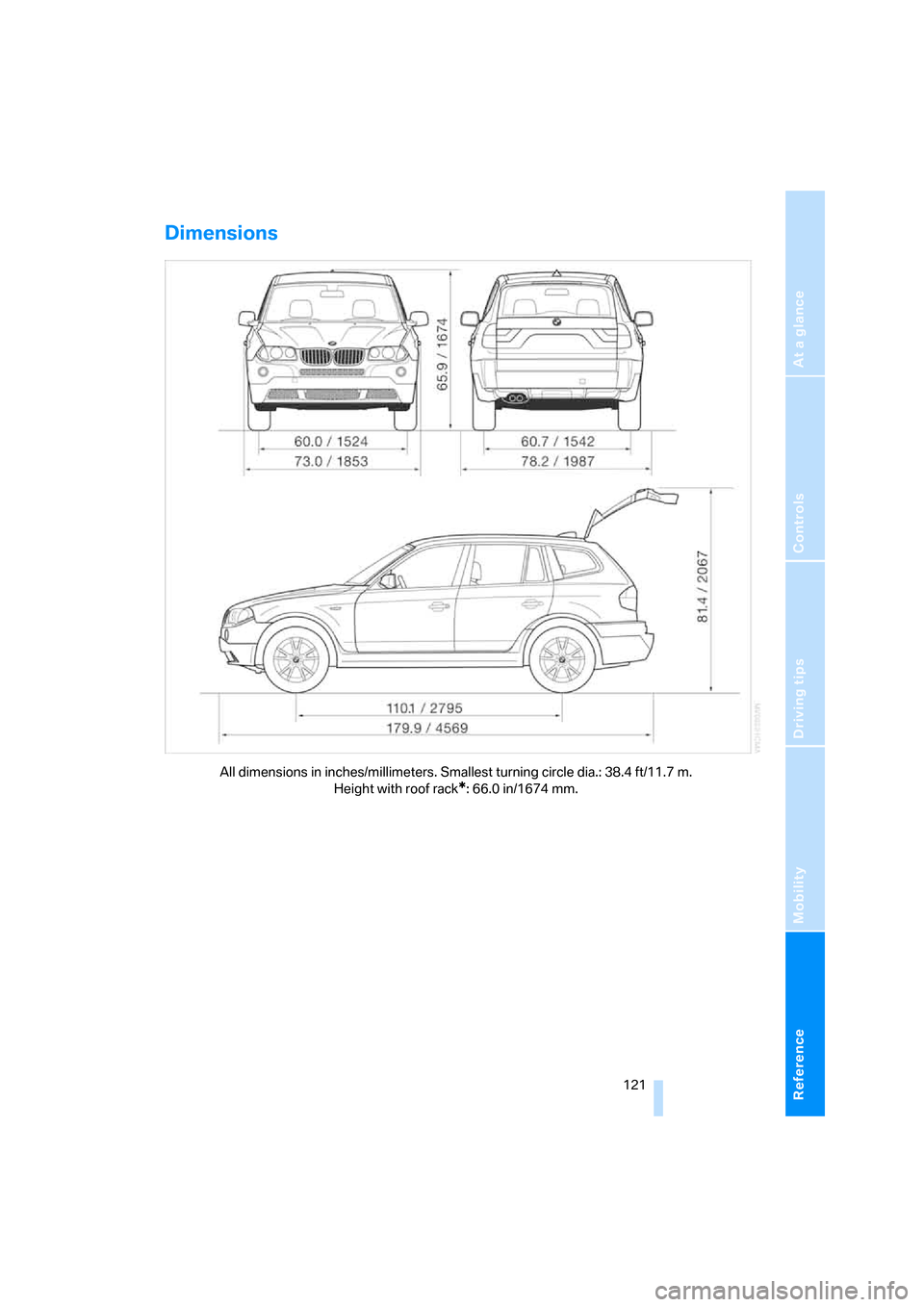

Dimensions
All dimensions in inches/millimeters. Smallest turning circle dia.: 38.4 ft/11.7 m.
Height with roof rack
*: 66.0 in/1674 mm.
Page 124 of 139
Technical data
122

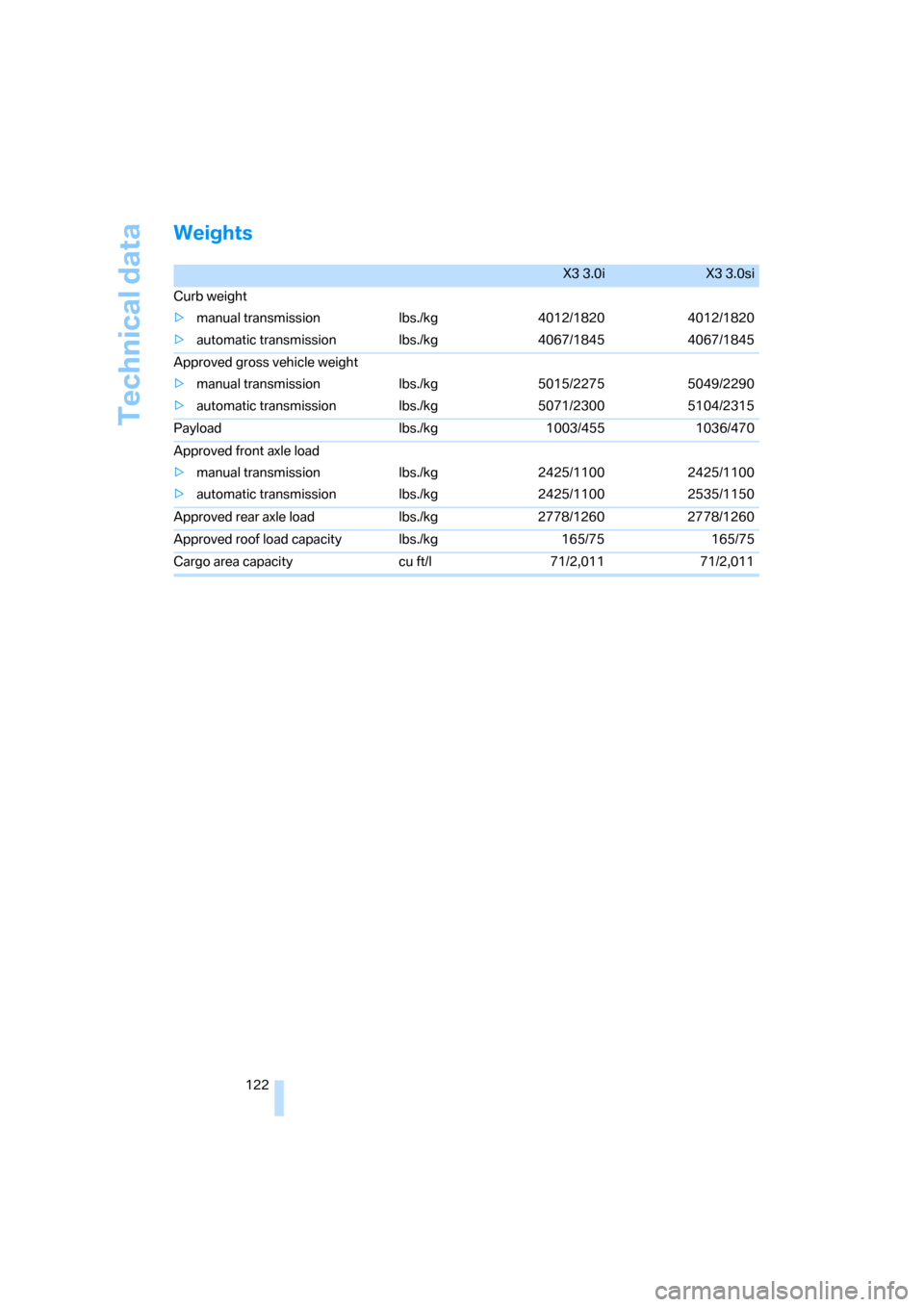

Weights
X3 3.0iX3 3.0si
Curb weight
>manual transmission
>automatic transmissionlbs./kg
lbs./kg4012/1820
4067/18454012/1820
4067/1845
Approved gross vehicle weight
>manual transmission
>automatic transmissionlbs./kg
lbs./kg5015/2275
5071/23005049/2290
5104/2315
Payload lbs./kg 1003/455 1036/470
Approved front axle load
>manual transmission
>automatic transmissionlbs./kg
lbs./kg2425/1100
2425/11002425/1100
2535/1150
Approved rear axle load lbs./kg 2778/1260 2778/1260
Approved roof load capacity lbs./kg 165/75 165/75
Cargo area capacity cu ft/l 71/2,011 71/2,011
Page 125 of 139
Reference
At a glance
Controls
Driving tips
Mobility
123

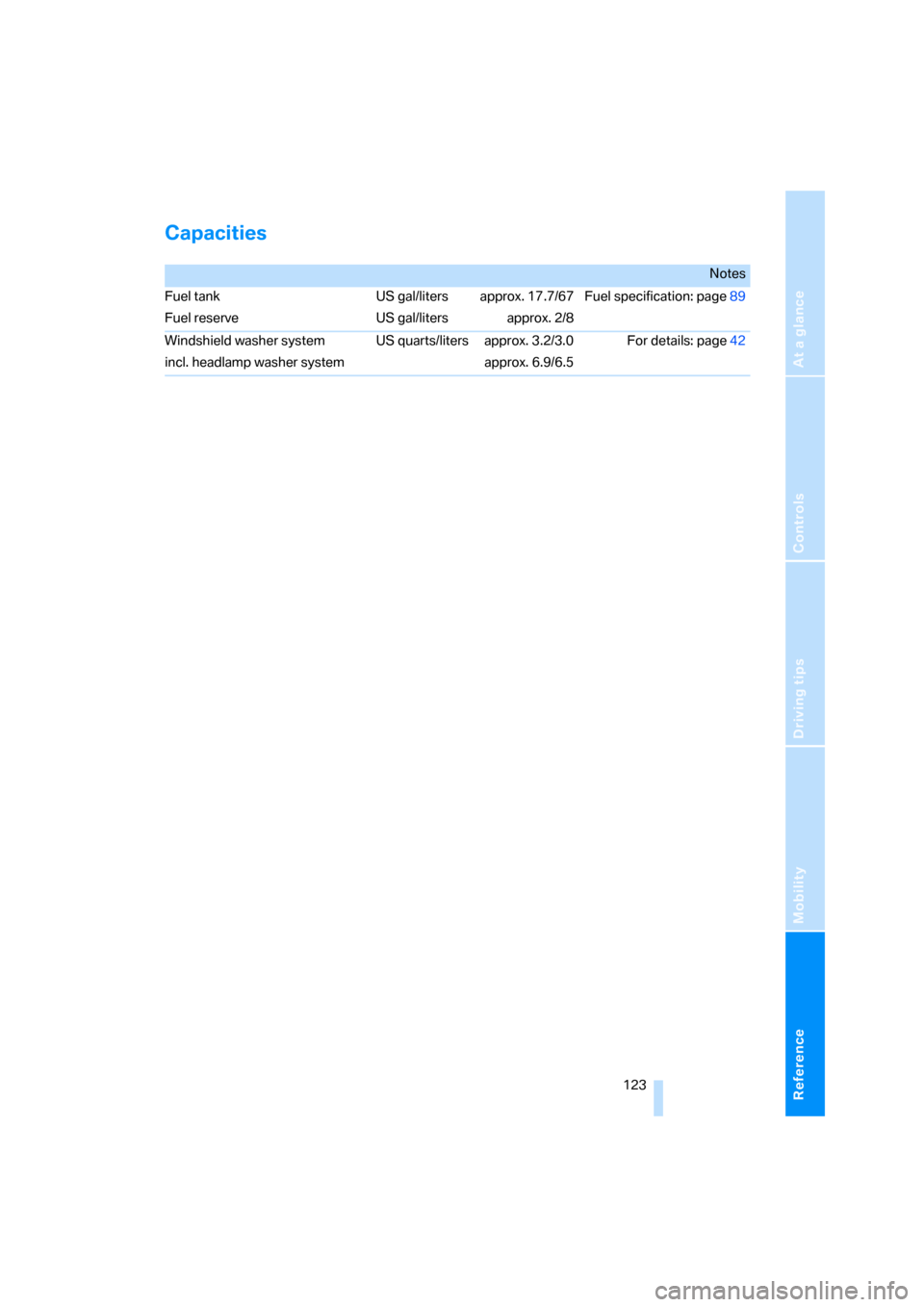

Capacities
Notes
Fuel tank
Fuel reserve US gal/liters
US gal/litersapprox. 17.7/67
approx. 2/8Fuel specification: page89
Windshield washer system
incl. headlamp washer systemUS quarts/liters approx. 3.2/3.0
approx. 6.9/6.5For details: page42
Page 126 of 139

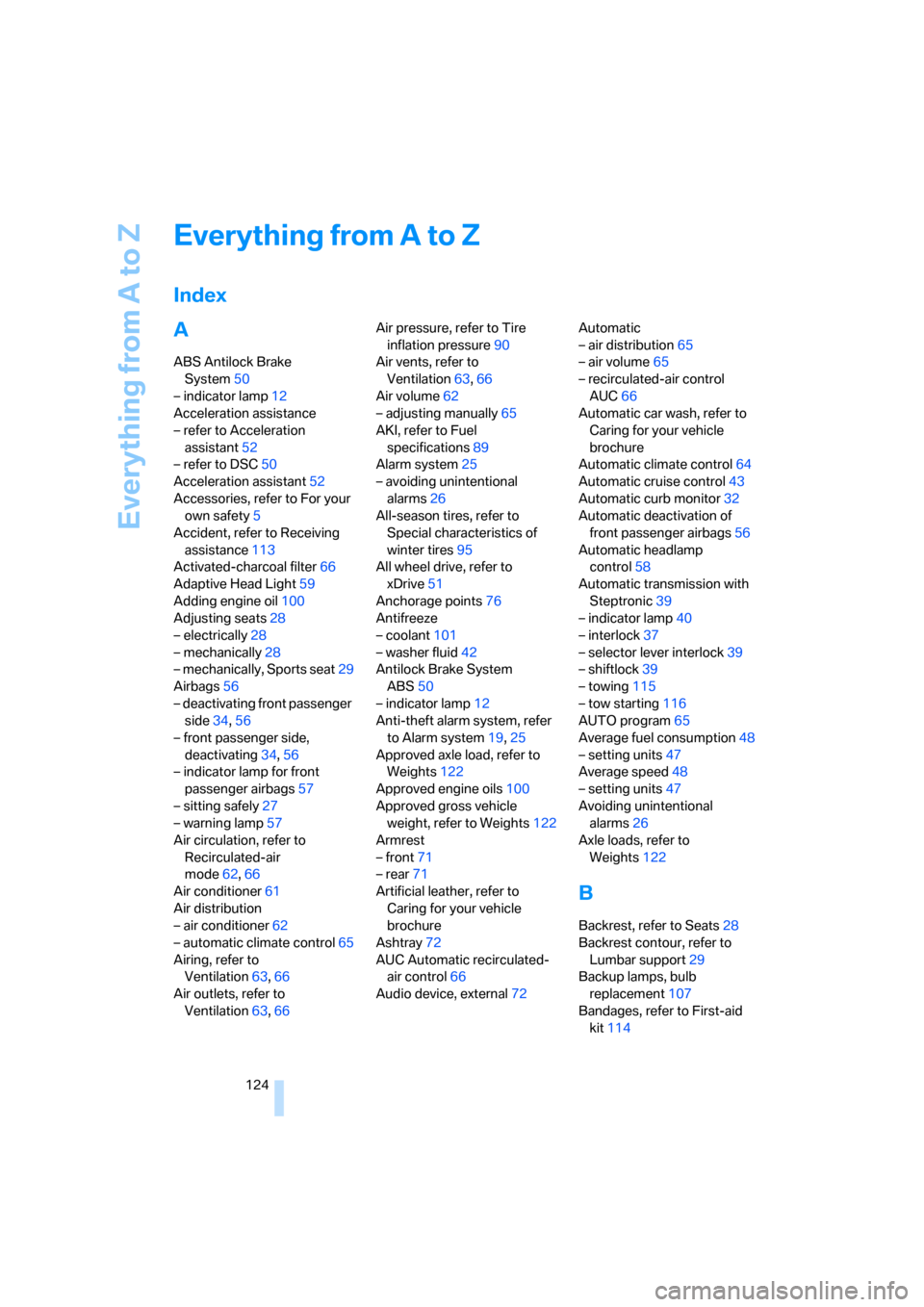

Everything from A to Z
124
Everything from A to Z
Index
A
ABS Antilock Brake
System50
– indicator lamp12
Acceleration assistance
– refer to Acceleration
assistant52
– refer to DSC50
Acceleration assistant52
Accessories, refer to For your
own safety5
Accident, refer to Receiving
assistance113
Activated-charcoal filter66
Adaptive Head Light59
Adding engine oil100
Adjusting seats28
– electrically28
– mechanically28
– mechanically, Sports seat29
Airbags56
– deactivating front passenger
side34,56
– front passenger side,
deactivating34,56
– indicator lamp for front
passenger airbags57
– sitting safely27
– warning lamp57
Air circulation, refer to
Recirculated-air
mode62,66
Air conditioner61
Air distribution
– air conditioner62
– automatic climate control65
Airing, refer to
Ventilation63,66
Air outlets, refer to
Ventilation63,66Air pressure, refer to Tire
inflation pressure90
Air vents, refer to
Ventilation63,66
Air volume62
– adjusting manually65
AKI, refer to Fuel
specifications89
Alarm system25
– avoiding unintentional
alarms26
All-season tires, refer to
Special characteristics of
winter tires95
All wheel drive, refer to
xDrive51
Anchorage points76
Antifreeze
– coolant101
– washer fluid42
Antilock Brake System
ABS50
– indicator lamp12
Anti-theft alarm system, refer
to Alarm system19,25
Approved axle load, refer to
Weights122
Approved engine oils100
Approved gross vehicle
weight, refer to Weights122
Armrest
– front71
– rear71
Artificial leather, refer to
Caring for your vehicle
brochure
Ashtray72
AUC Automatic recirculated-
air control66
Audio device, external72Automatic
– air distribution65
– air volume65
– recirculated-air control
AUC66
Automatic car wash, refer to
Caring for your vehicle
brochure
Automatic climate control64
Automatic cruise control43
Automatic curb monitor32
Automatic deactivation of
front passenger airbags56
Automatic headlamp
control58
Automatic transmission with
Steptronic39
– indicator lamp40
– interlock37
– selector lever interlock39
– shiftlock39
– towing115
– tow starting116
AUTO program65
Average fuel consumption48
– setting units47
Average speed48
– setting units47
Avoiding unintentional
alarms26
Axle loads, refer to
Weights122
B
Backrest, refer to Seats28
Backrest contour, refer to
Lumbar support29
Backup lamps, bulb
replacement107
Bandages, refer to First-aid
kit114
Page 127 of 139
Reference
At a glance
Controls
Driving tips
Mobility
125
Bar, towing116
Battery111
– charging111
– disposal111
– indicator lamp12
– jump starting114
– power failure111
– remote control18
– warning lamp111
Belts, refer to Safety belts31
Beverage holder, refer to Cup
holders70
Blower, refer to
– Air volume62
– Air volume, adjusting
manually65
BMW homepage4
BMW maintenance
system102
Bottle holder, refer to Cup
holders70
Brake assistant50
– warning lamp52
Brake fluid101
– level101
– warning lamp101
Brake force display55
Brake lamps107
– indicator lamp, defective
bulb12,58
– replacing bulbs107
– two-stage55
Brake pads82
– breaking-in80
– warning lamp82
Brake pedal, refer to Safe
braking81
Brake rotors
– brake system80
– breaking-in80
Brakes81,101
– ABS50,81
– brake fluid101
– brake pads82
– breaking-in80
– handbrake38
– indicator/warning lamp12Brake system101
– brake fluid101
– brake pads82
– breaking-in80
– disk brakes82
– warning lamp101
Brake wear warning
– refer to Brake pads82
– warning lamp101
Breakdown service, refer to
Receiving assistance113
Breaking-in80
Bulb replacement, refer to
Lamps and bulbs104
Buttons on steering wheel13
C
California law
– Event Data Recorders103
– Proposition 65 Warning5
Calling, refer to telephone
Owner's Manual
Can holder, refer to Cup
holders70
Capacities123
Capacity, Cargo area122
Car care, refer to Caring for
your vehicle brochure
Car care products, refer to
Caring for your vehicle
brochure
Care, refer to Caring for your
vehicle brochure
Cargo, securing83
Cargo area22,74
– capacity122
– cover75
– emergency release, refer to
Opening manually22
– enlarging74
– floor cover76
– foldable rear backrest74
– hatch, refer to Liftgate22
– lashing eyes76
– opening from outside22
– opening with remote
control20
– power socket72Cargo loading82
– load83
– securing cargo83
– stowing cargo83
– vehicle82
Caring for artificial leather,
refer to Caring for your
vehicle brochure
Caring for carpet, refer to
Caring for your vehicle
brochure
Caring for leather, refer to
Caring for your vehicle
brochure
Caring for plastic, refer to
Caring for your vehicle
brochure
Caring for vehicle finish, refer
to Caring for your vehicle
brochure
Car keys, refer to Key set18
Car phone, refer to separate
Owner's Manual
Car phone preparation73
Car radio, refer to Owner's
Manual for Radio/Onboard
Computer
Car wash81
– refer to Caring for your
vehicle brochure
Cassette operation, refer to
Owner's Manual for Radio/
Onboard Computer
CD operation, refer to Owner's
Manual for Radio/Onboard
Computer
Cellphone, refer to separate
operating instructions
Central locking system19
– interior21
Changes, technical, refer to
For your own safety5
Changing a wheel108
Changing gears
– automatic transmission with
Steptronic40
– manual transmission39
Changing wheels94
Page 128 of 139
Everything from A to Z
126 Charge-current indicator
lamp12,111
Check Gas Cap, warning
lamp12,88
Child's seat, refer to Child
restraint systems34
Child restraint fixing system
LATCH35
Child restraint systems34
– installing34
– with tether strap35
Child-safety locks36
Child seat security34
Chock109
Chrome parts, care, refer to
Caring for your vehicle
brochure
Cigarette lighter72
Circulation of air, refer to
Recirculated-air
mode62,66
Cleaning, vehicle, refer to
Caring for your vehicle
brochure
Cleaning rear window42
Clock46,47
– 12 or 24 hour mode47
– setting, also refer to Owner's
Manual for Radio/Onboard
Computer
– setting time46
Closing
– from inside21
– with the remote control19
Clothes hooks71
Clutch80
– breaking-in80
Cockpit10
Cold start, refer to Starting
engine37
Combination of wheel/tire95
Compact wheel, wheel
changes109
Compartments, refer to
Storage compartments71
Compartments in cargo area,
refer to Behind side trim
panel76Compass, digital68
Computer47
– also refer to Owner's Manual
for Onboard Computer
– functions47
Condensation, refer to When
the vehicle is parked81
Confirmation signal for
locking/unlocking
vehicle19,21
Connecting car vacuum
cleaner, refer to Connecting
electrical devices72
Connecting electrical
devices72
Consumption, refer to
Average fuel
consumption48
Consumption indicator, refer
to Fuel gauge45
Controls, refer to Cockpit10
Convenience operation
– from outside21
– panorama glass sunroof21
– windows21
Coolant101
– level101
– temperature gauge46
– warning lamp101
Cooling, refer to
Temperature62,65
Copyright2
Correct wheels and tires95
Cruise control43
– buttons on steering
wheel13
– indicator lamp43
Cruising range48
Cup holders70
Curb weight, refer to
Weights122
Cylinders, refer to Engine
data120
D
Dashboard lighting, refer to
Instrument lighting60
Dashboard system, refer to
Cockpit10
Data, technical120
– dimensions121
– engine120
– filling capacities123
– weights122
Daytime running lamps58
Deactivating front passenger
airbags34,56
Defective lamp58
Defects7
Defrosting windows62,65
– air conditioner62
– automatic climate control65
Defrosting windows and
removing condensation
– air conditioner62
– automatic climate control65
Defrost position, refer to
Defrosting windows62,65
Digital clock46
Digital compass68
Dimensions121
Dimming mirror33
Directional indicators, refer to
Turn signals40
Disk brakes82
Displacement, refer to Engine
data120
Display illumination, refer to
Instrument lighting60
Display lighting, refer to
Instrument lighting60
Displays, refer to Instrument
cluster11
Disposal, vehicle battery111
Disposal of the vehicle, refer
to Caring for your vehicle
brochure
Distance warning, refer to
PDC Park Distance
Control49
Door keys18
Page 129 of 139
Reference
At a glance
Controls
Driving tips
Mobility
127
Door lock21
Doors
– locking and unlocking from
inside21
– manual operation21
– unlocking and locking,
confirmation signals19,21
DOT Quality Grades93
Draft-free ventilation63,66
Driving lamps, refer to Parking
lamps/low beams58
Driving notes80
Driving on poor roads84
Driving stability control
systems50
Driving through water84
Driving tips, refer to Driving
instructions80
Drying air, refer to Switching
cooling function on/
off62,65
DSC Dynamic Stability
Control50
– indicator lamp51
DTC Dynamic Traction
Control51
– indicator lamps51
DVD changer, refer to Owner's
Manual for Radio/Onboard
Computer
Dynamic Stability Control
DSC50
– indicator lamp51
Dynamic Traction Control
DTC51
– indicator lamps51
E
Electrical malfunctions
– automatic transmission
malfunction40
– door lock21
– driver's door21
– fuel filler door88
– liftgate22
– panorama glass sunroof25
Electronic brake-force
distribution50Electronic Stability Program,
refer to DSC Dynamic
Stability Control50
Emergency call113
Emergency operation, refer to
Manual operation
– doors21
– driver's door21
– fuel filler door88
– liftgate22
– panorama glass sunroof25
Emergency Service, refer to
Receiving assistance113
Engine
– breaking-in80
– data120
– indicator lamps37
– overheated, refer to Coolant
thermometer46
– speed45
– starting37
– switching off38
Engine compartment98
Engine coolant101
Engine coolant
temperature46
Engine oil99
– additives, refer to Approved
engine oils100
– approved engine oils100
– electronic oil level control99
– indicator/warning lamp99
– possible displays99
– required oil grades100
– specifications, also refer to
Approved engine oils100
Engine oil grades100
Engine oil level, indicator/
warning lamp99
Engine oil pressure99
– indicator/warning lamp99
Engine output, refer to Engine
data120
Equipment package, refer to
Service and Warranty
Information Booklet for
US models, Warranty and
Service Guide Booklet for
Canadian modelsESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control50
Exhaust system81
Exterior mirrors
32
– automatically dimming33
External audio device72
Eye, tow starting and
towing115
F
Failure of electrical
accessories112
False alarms, refer to Avoiding
unintentional alarms26
Fastening safety belts, refer to
Safety belts31
Filter, refer to
– Microfilter63
– Microfilter/activated
charcoal filter66
First-aid kit114
Flat tire108
– compact wheel109
– Flat Tire Monitor53
– refer to Tire inflation
pressure90
– refer to Wheel changes108
– Tire Pressure Monitor54
Flat Tire Monitor53
– indicator lamp53
– initializing system53
– snow chains96
– system limits53
– warning errors53
Flooding, refer to Driving
through water81
Floor cover76
Fog lamps, indicator lamp59
Folding rear seat back74
Four wheel drive, refer to
xDrive51
Front airbags56
Front fog lamps59
– replacing bulbs107
Page 130 of 139
Everything from A to Z
128 Front passenger airbags
– automatic deactivation56
– status57
Fuel89
– average consumption48
– capacity123
– gauge45
– quality89
Fuel cap88
Fuel display, refer to Fuel
gauge45
Fuel filler door88
– releasing in the event of
electrical malfunction88
Fuel gauge45
Fuel tank contents, refer to
Filling capacities123
Full preparation package
mobile phone, refer to
separate Owner's Manual
Fuses112
G
Garage-door opener, refer to
Integrated universal remote
control67
Gasoline
– refer to Fuel quality89
– refer to Fuel
specifications89
Gasoline display, refer to Fuel
gauge45
Gear indicator in automatic
transmission with
Steptronic39
Gearshift lever, manual
transmission39
General driving notes80
Glove compartment70
Grills, refer to
Ventilation63,66
Gross vehicle weight, refer to
Weights122
Ground clearance84
H
Halogen lamps105
Handbrake38
– indicator lamp38
Hands-free microphone73
– refer to Car phone
preparation73
Hazard warning flashers10
HDC Hill Descent Control51
Head airbags56
Headlamp flasher40
– indicator lamp12
Headlamps105
– care, refer to Caring for your
vehicle brochure
– control, automatic58
– replacing bulbs104
Headlamp washer reservoir
– capacity, refer to Filling
capacities123
– refer to Washer fluid42
Headlamp washer system
– headlamp washing42
– washer fluid42
Head Light, refer to Adaptive
Head Light59
Head restraints29
– installing, front30
– removing, front30
– sitting safely27
Heated mirrors32
Heated rear window
– air conditioner62
– automatic climate control66
Heated seats30
Heated steering wheel33
Heater
– rear window62,66
– windshield washer jets42
Heating
– exterior mirror32
– seats30
– steering wheel33
Heating and ventilation61,64
Heavy cargo, refer to Cargo
loading82
Height, refer to
Dimensions121Height adjustment
– seats28
– steering wheel33
High beams59
– headlamp flasher59
– indicator lamp12
– replacing bulbs106
High Performance Synthetic
Oil100
Hill-climbing ability, refer to
Driving on poor roads
84
Hill Descent Control HDC51
Hills82
Holder for beverages70
Hood97
Horn10
Hotel function18
Hot exhaust system81
Hydraulic brake assistant,
refer to Brake assistant50
Hydroplaning81
I
Icy conditions, refer to
Outside temperature
warning47
Ignition37
Ignition key18
Ignition key positions, refer to
Ignition lock37
Ignition lock37
Imprint2
Indicator/warning lamp
– airbags57
– alarm system25
– automatic transmission with
Steptronic40
– brakes101
– coolant temperature46
– DSC51
– engine temperature46
– Flat Tire Monitor53
– fog lamps59
– front passenger airbags57
– reserve45
– safety belt warning31
– Tire Pressure Monitor54
