Page 11 of 144

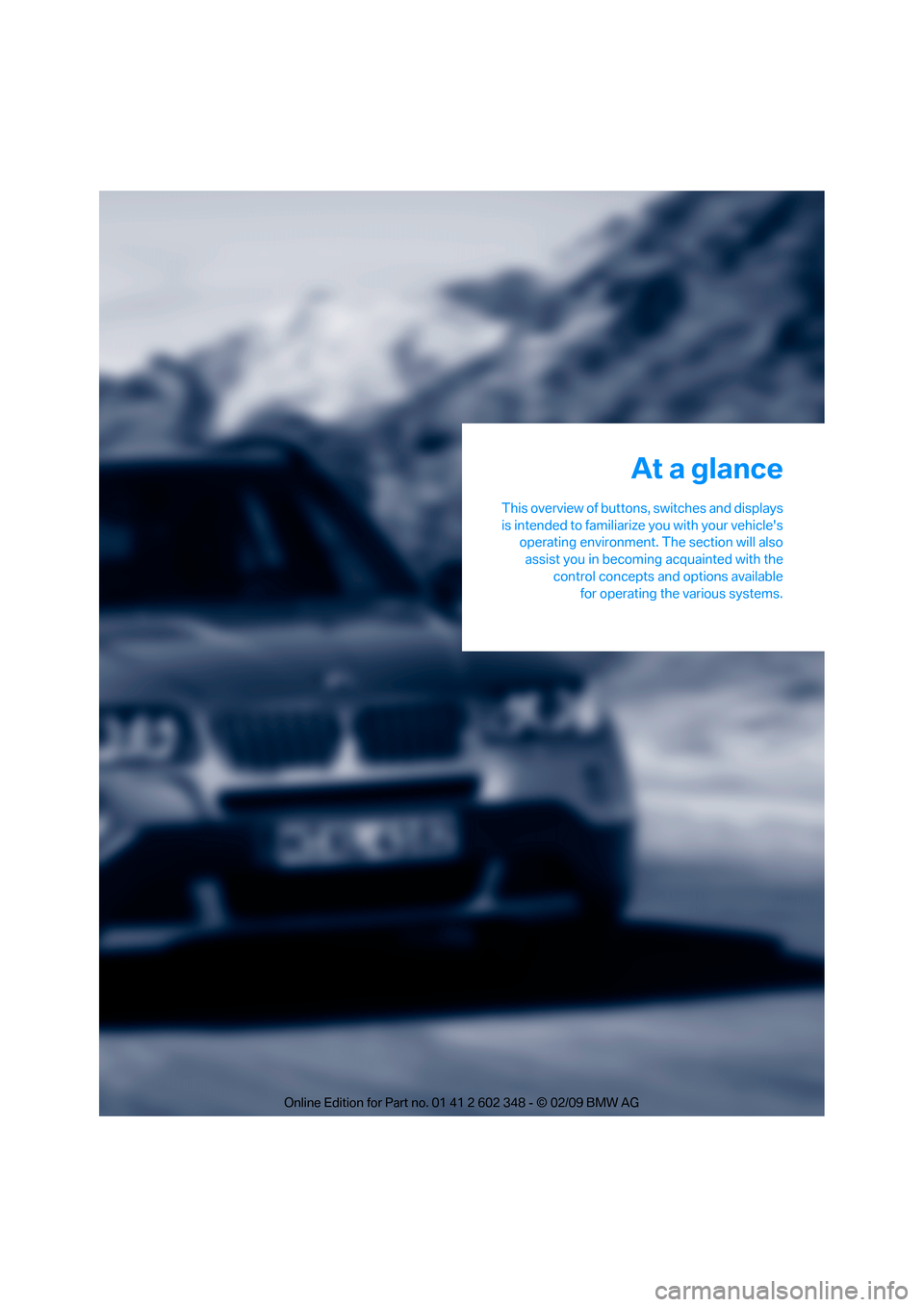

At a glance
This overview of buttons, switches and displays
is intended to familiarize you with your vehicle's
operating environment. The section will also
assist you in becoming acquainted with the
control concepts and options available
for operating the various systems.
At a glance
Page 12 of 144

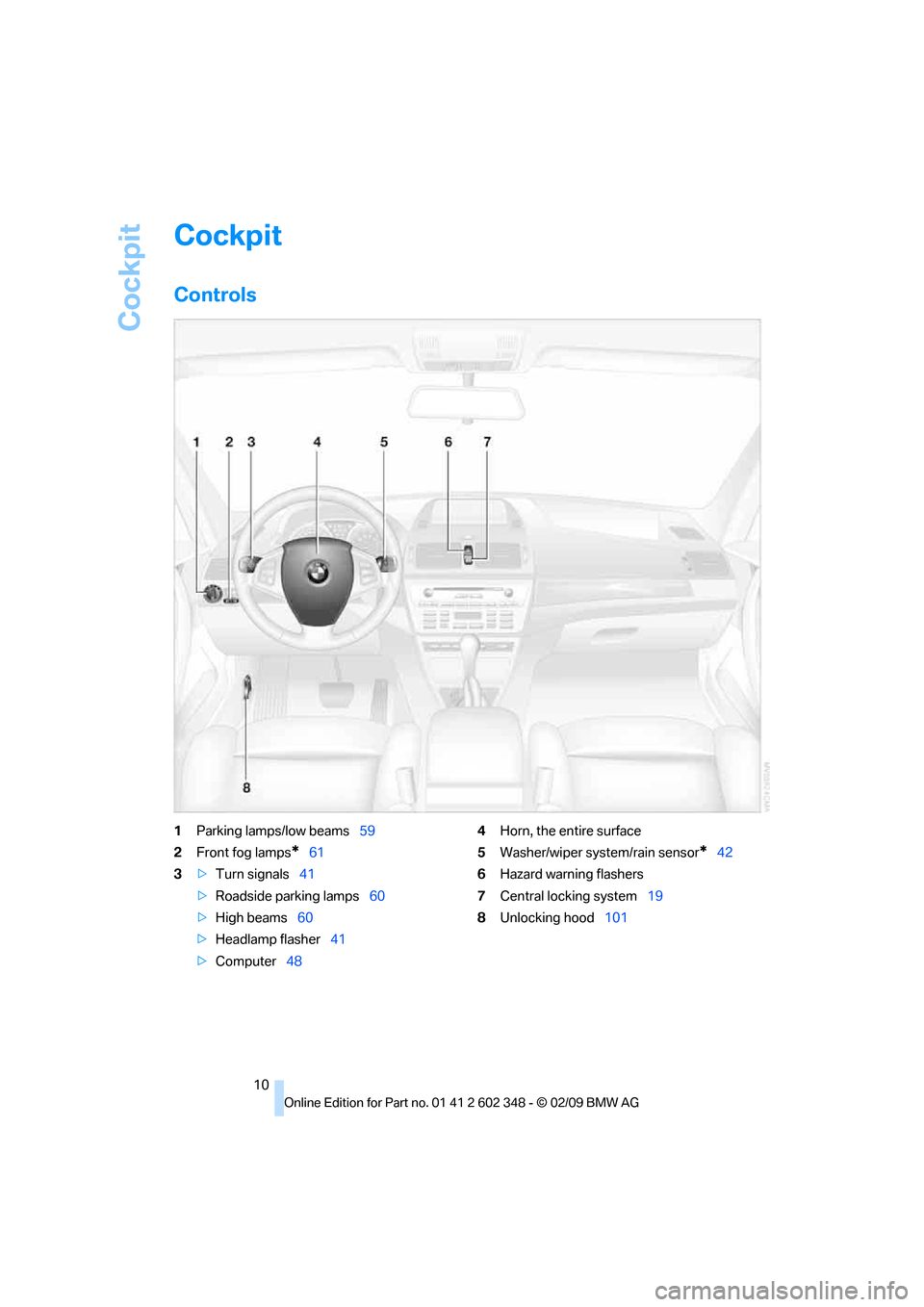

Cockpit
10
Cockpit
Controls
1Parking lamps/low beams59
2Front fog lamps
*61
3>Turn signals41
>Roadside parking lamps60
>High beams60
>Headlamp flasher41
>Computer484Horn, the entire surface
5Washer/wiper system/rain sensor*42
6Hazard warning flashers
7Central locking system19
8Unlocking hood101
Page 13 of 144
At a glance
Controls
Driving tips
Mobility Reference
11

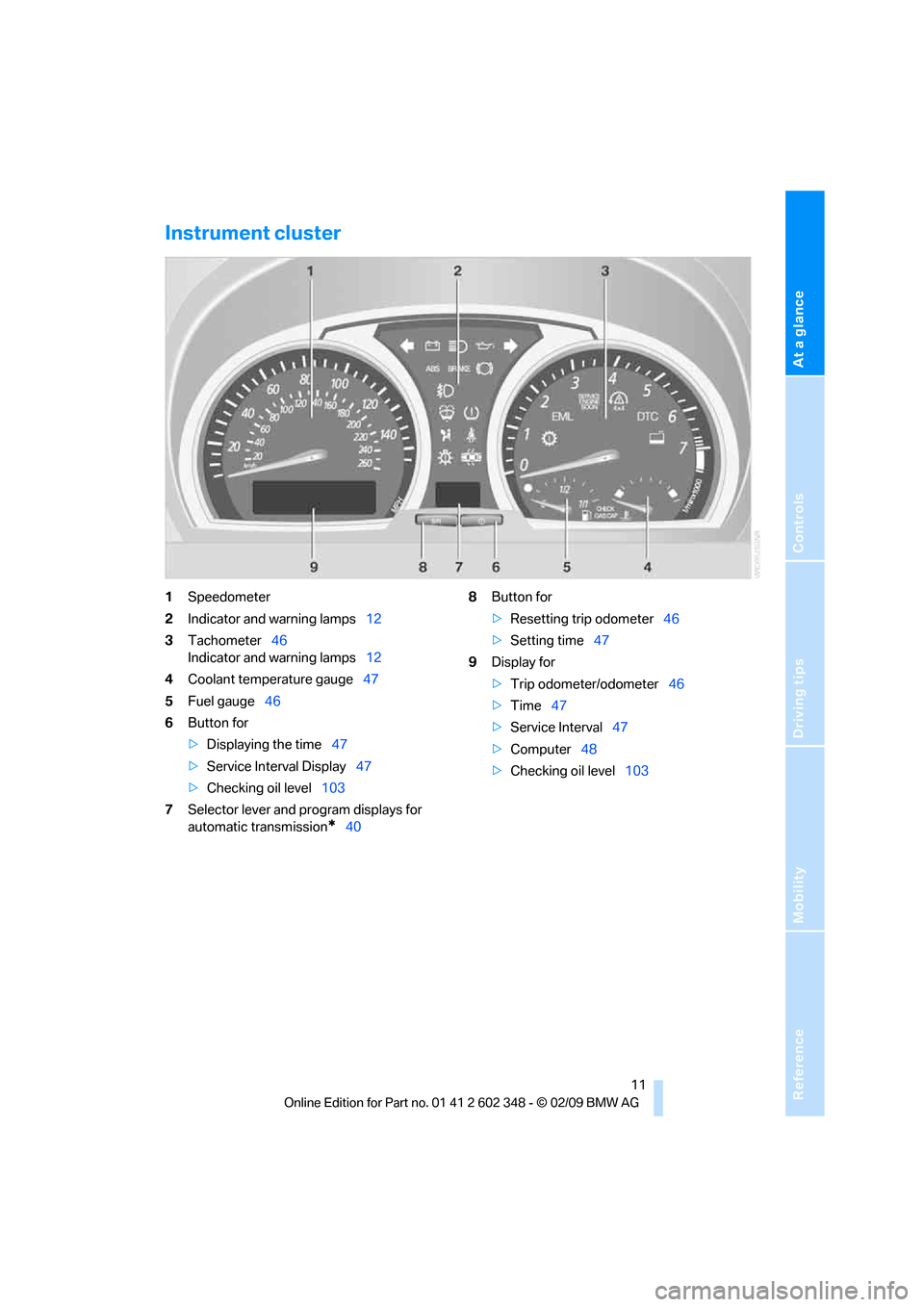

Instrument cluster
1Speedometer
2Indicator and warning lamps12
3Tachometer46
Indicator and warning lamps12
4Coolant temperature gauge47
5Fuel gauge46
6Button for
>Displaying the time47
>Service Interval Display47
>Checking oil level103
7Selector lever and program displays for
automatic transmission
*408Button for
>Resetting trip odometer46
>Setting time47
9Display for
>Trip odometer/odometer46
>Time47
>Service Interval47
>Computer48
>Checking oil level103
Page 14 of 144
Cockpit
12
Indicator and warning lamps
Technology that monitors itself
Indicator and warning lamps that are identified
with
+ are checked for proper function each
time you turn the ignition key. They each light
up once for different periods of time.
When a malfunction occurs in a monitored sys-
tem, the corresponding lamp will either fail to go
out when the engine is started, or it will come on
again during normal driving. Detailed informa-
tion is provided on the specified pages.
Battery charge current
+118
Headlamp flasher41
High beams60
Engine oil
+103
Driving stability control systems/
ABS Antilock Brake System
+51
ABS Antilock Brake System/chassis
control system for Canadian models
Brake system
+
With handbrake released53, 105
With handbrake engaged39
With other warning lamps53
Brake warning lamp for Canadian
models
Brake pads
+85
Please fasten safety belts
+32
Airbags
+57
Front fog lamps61
Automatic transmission +40
Turn signals41
DSC Dynamic Stability Control/
xDrive
+ 51, 52
DTC Dynamic Traction Control
+52
Service Engine Soon
+107
Service Engine Soon warning lamp for
Canadian models.
Check Gas Cap
* +92
Engine electronics
+38
Topping off washer fluid43
Coolant low105
Flat Tire Monitor
* +54
Tire Pressure Monitor
* +55
Lamp defective59
Cruise control44
Door or liftgate open
Page 15 of 144
At a glance
Controls
Driving tips
Mobility Reference
13

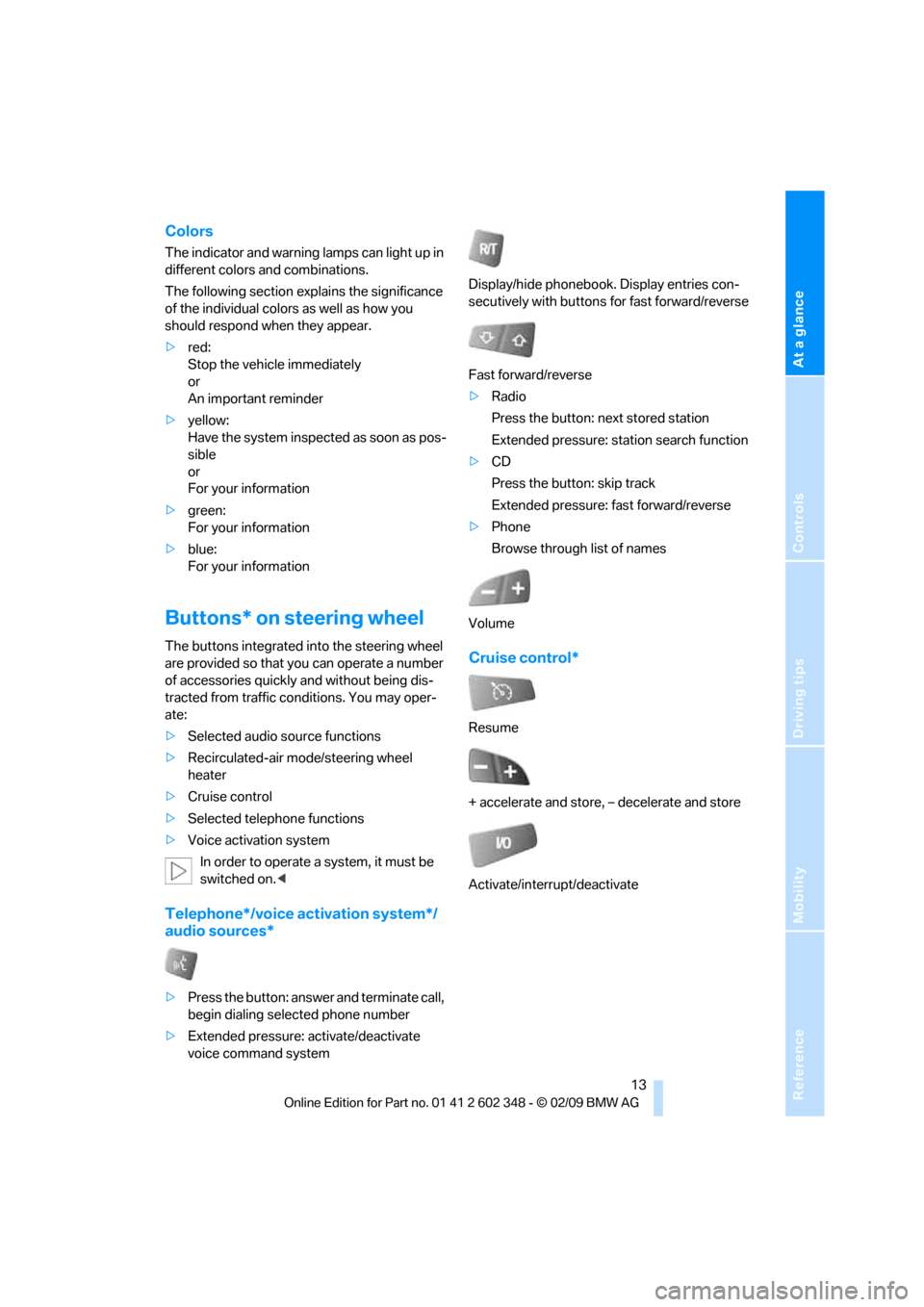

Colors
The indicator and warning lamps can light up in
different colors and combinations.
The following section explains the significance
of the individual colors as well as how you
should respond when they appear.
>red:
Stop the vehicle immediately
or
An important reminder
>yellow:
Have the system inspected as soon as pos-
sible
or
For your information
>green:
For your information
>blue:
For your information
Buttons* on steering wheel
The buttons integrated into the steering wheel
are provided so that you can operate a number
of accessories quickly and without being dis-
tracted from traffic conditions. You may oper-
ate:
>Selected audio source functions
>Recirculated-air mode/steering wheel
heater
>Cruise control
>Selected telephone functions
>Voice activation system
In order to operate a system, it must be
switched on.<
Telephone*/voice activation system*/
audio sources*
>Press the button: answer and terminate call,
begin dialing selected phone number
>Extended pressure: activate/deactivate
voice command systemDisplay/hide phonebook. Display entries con-
secutively with buttons for fast forward/reverse
Fast forward/reverse
>Radio
Press the button: next stored station
Extended pressure: station search function
>CD
Press the button: skip track
Extended pressure: fast forward/reverse
>Phone
Browse through list of names
Volume
Cruise control*
Resume
+ accelerate and store, – decelerate and store
Activate/interrupt/deactivate
Page 16 of 144
Cockpit
14

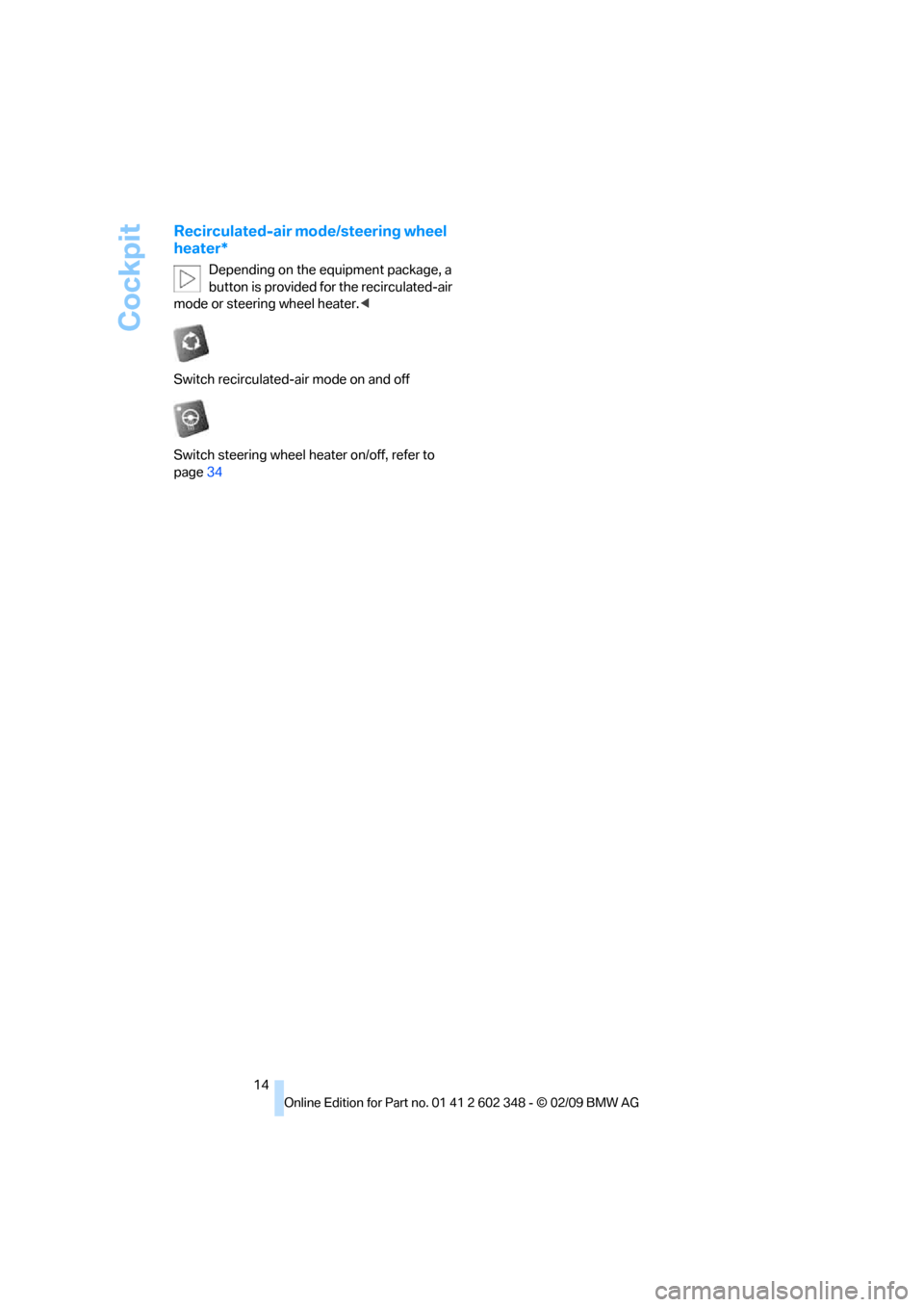

Recirculated-air mode/steering wheel
heater*
Depending on the equipment package, a
button is provided for the recirculated-air
mode or steering wheel heater.<
Switch recirculated-air mode on and off
Switch steering wheel heater on/off, refer to
page34
Page 17 of 144
At a glance
Controls
Driving tips
Mobility Reference
15

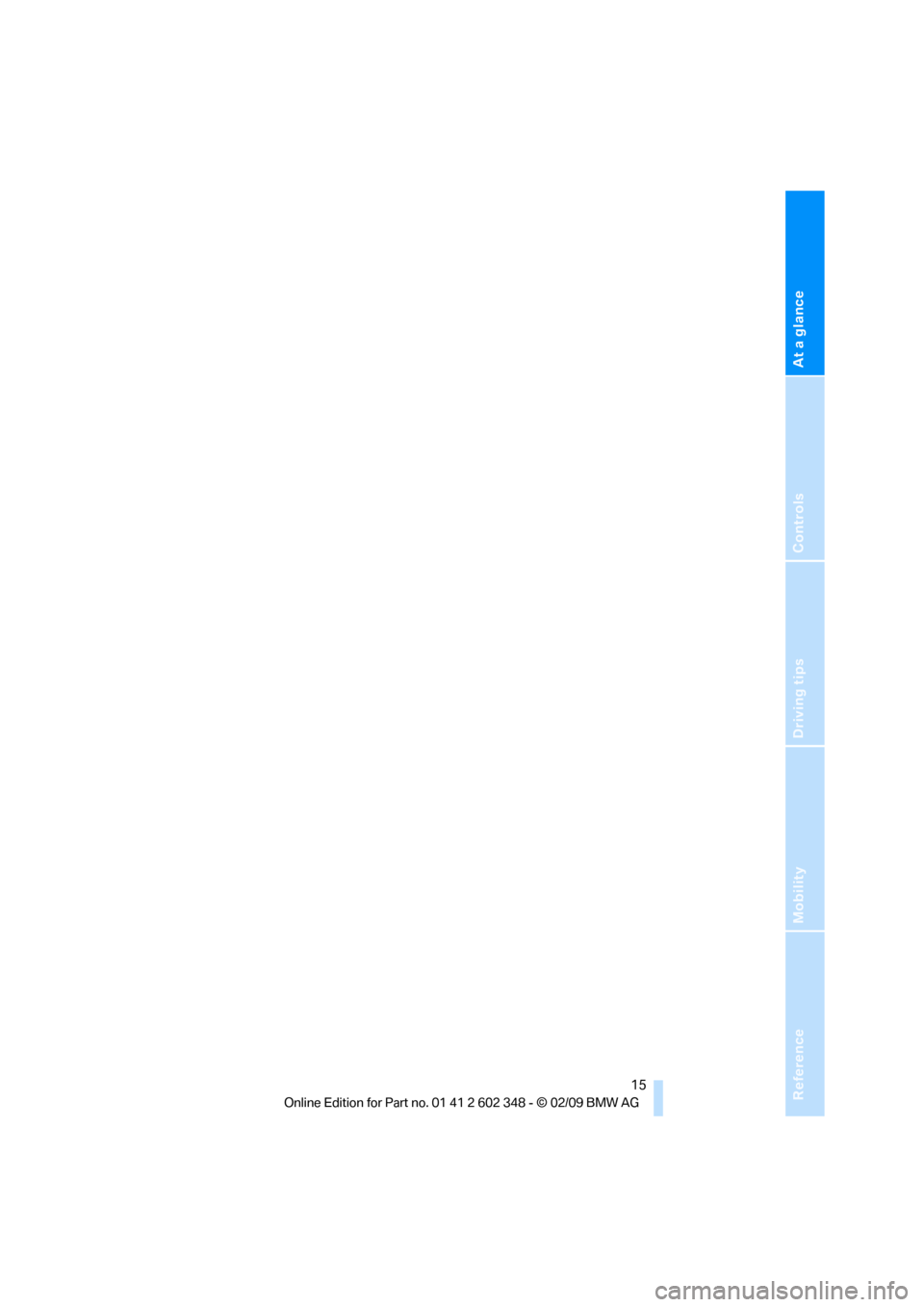

Page 18 of 144
Page 19 of 144

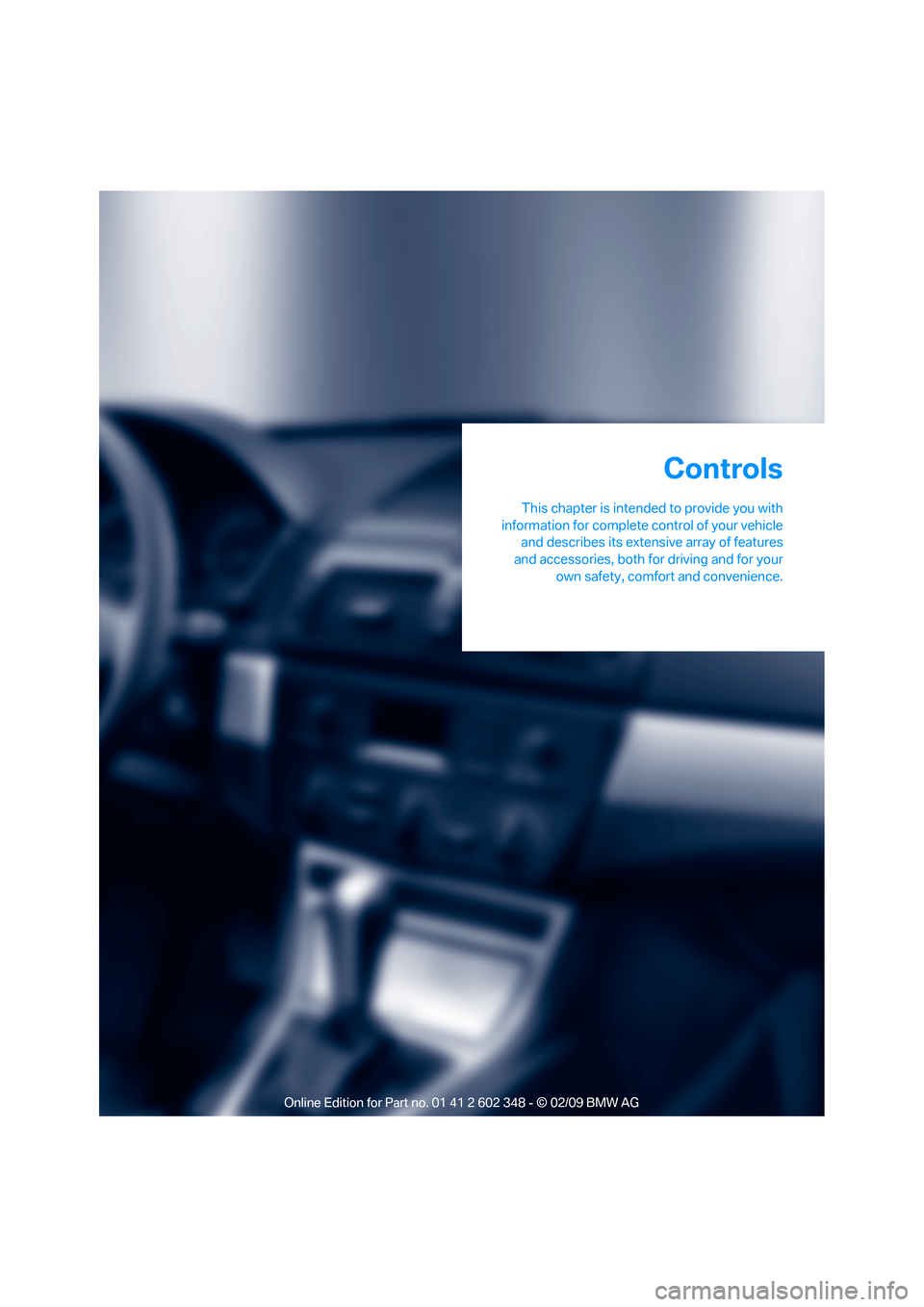

Controls
This chapter is intended to provide you with
information for complete control of your vehicle
and describes its extensive array of features
and accessories, both for driving and for your
own safety, comfort and convenience.
Controls
Page 20 of 144

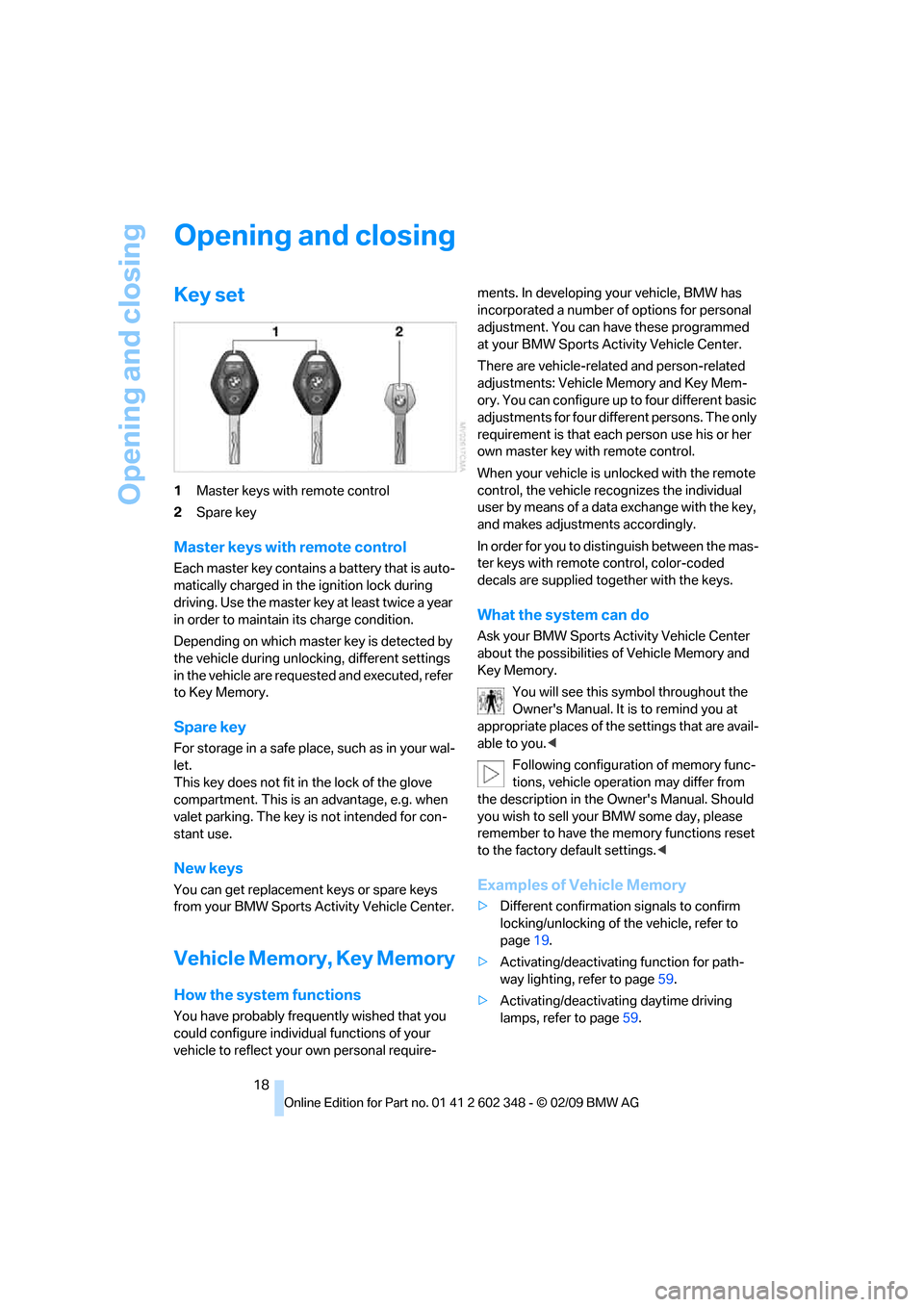

Opening and closing
18
Opening and closing
Key set
1Master keys with remote control
2Spare key
Master keys with remote control
Each master key contains a battery that is auto-
matically charged in the ignition lock during
driving. Use the master key at least twice a year
in order to maintain its charge condition.
Depending on which master key is detected by
the vehicle during unlocking, different settings
in the vehicle are requested and executed, refer
to Key Memory.
Spare key
For storage in a safe place, such as in your wal-
let.
This key does not fit in the lock of the glove
compartment. This is an advantage, e.g. when
valet parking. The key is not intended for con-
stant use.
New keys
You can get replacement keys or spare keys
from your BMW Sports Activity Vehicle Center.
Vehicle Memory, Key Memory
How the system functions
You have probably frequently wished that you
could configure individual functions of your
vehicle to reflect your own personal require-ments. In developing your vehicle, BMW has
incorporated a number of options for personal
adjustment. You can have these programmed
at your BMW Sports Activity Vehicle Center.
There are vehicle-related and person-related
adjustments: Vehicle Memory and Key Mem-
ory. You can configure up to four different basic
adjustments for four different persons. The only
requirement is that each person use his or her
own master key with remote control.
When your vehicle is unlocked with the remote
control, the vehicle recognizes the individual
user by means of a data exchange with the key,
and makes adjustments accordingly.
In order for you to distinguish between the mas-
ter keys with remote control, color-coded
decals are supplied together with the keys.
What the system can do
Ask your BMW Sports Activity Vehicle Center
about the possibilities of Vehicle Memory and
Key Memory.
You will see this symbol throughout the
Owner's Manual. It is to remind you at
appropriate places of the settings that are avail-
able to you.<
Following configuration of memory func-
tions, vehicle operation may differ from
the description in the Owner's Manual. Should
you wish to sell your BMW some day, please
remember to have the memory functions reset
to the factory default settings.<
Examples of Vehicle Memory
>Different confirmation signals to confirm
locking/unlocking of the vehicle, refer to
page19.
>Activating/deactivating function for path-
way lighting, refer to page59.
>Activating/deactivating daytime driving
lamps, refer to page59.
