Page 8 of 64
ZKE - 8
WINDSHIELD WASHING:
Pulling the Windshield Wiper Switch rearward closes the “wash” contact providing a
switched ground input to the GM. The GM activates the windshield washer pump directly
via a power output final stage transistor.
HEADLIGHT WASHING:
When the headlights are on, the headlight
washer pump is activated with the first
activation of the windshield washer pump.
The GM recognizes headlights on via K bus
signalling.
Within the same “on” cycle (ignition key has
not been switched off), it is only activated
again after five successive windshield washer
cycles.
The GM provides a ground on the headlight
washer relay control circuit providing pump
operation. The relay is located in the e-box.
The X5 uses three separate washer pumps
which are all easily accessible on the 5.3 liter
washer fluid reservoir located in the engine
compartment.
GM III
HEADLIGHT WASHER
RELAY
HEADLIGHT
WASHER
PUMP
WINDSHIELD
WASHER
PUMP
TAILGATE
WASHER
PUMP

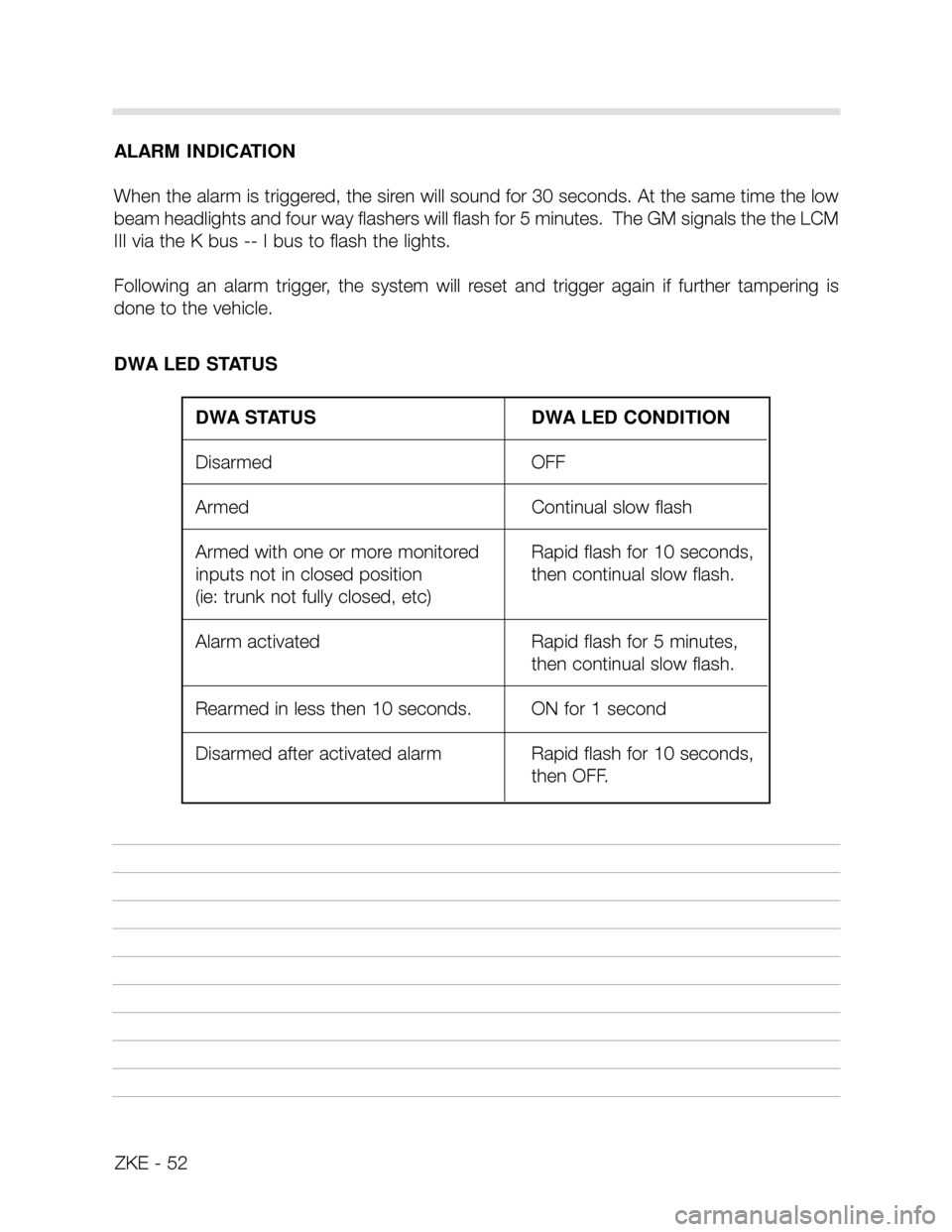

Page 52 of 64
ZKE - 52
ALARM INDICATION
When the alarm is triggered, the siren will sound for 30 seconds. At the same time the low
beam headlights and four way flashers will flash for 5 minutes. The GM signals the the LCM
III via the K bus -- I bus to flash the lights.
Following an alarm trigger, the system will reset and trigger again if further tampering is
done to the vehicle.
DWA LED STATUS
DWA STATUS DWA LED CONDITION
Disarmed OFF
Armed Continual slow flash
Armed with one or more monitored Rapid flash for 10 seconds,
inputs not in closed position then continual slow flash.
(ie: trunk not fully closed, etc)
Alarm activated Rapid flash for 5 minutes,
then continual slow flash.
Rearmed in less then 10 seconds. ON for 1 second
Disarmed after activated alarm Rapid flash for 10 seconds,
then OFF.
