Giving and receiving assistance

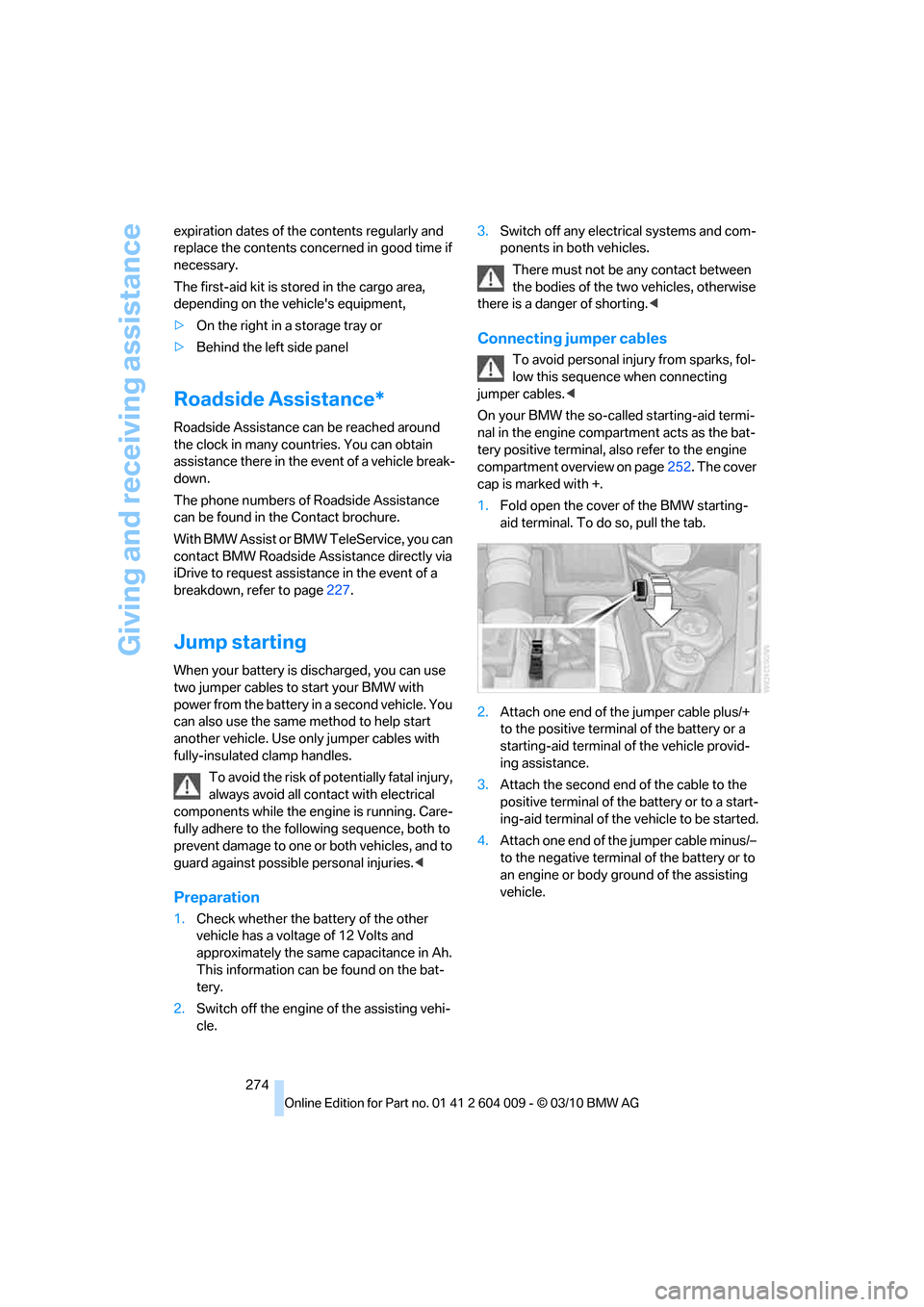

274 expiration dates of the contents regularly and
replace the contents concerned in good time if
necessary.
The first-aid kit is stored in the cargo area,
depending on the vehicle's equipment,
>On the right in a storage tray or
>Behind the left side panel
Roadside Assistance*
Roadside Assistance can be reached around
the clock in many countries. You can obtain
assistance there in the event of a vehicle break-
down.
The phone numbers of Roadside Assistance
can be found in the Contact brochure.
With BMW Assist or BMW TeleService, you can
contact BMW Roadside Assistance directly via
iDrive to request assistance in the event of a
breakdown, refer to page227.
Jump starting
When your battery is discharged, you can use
two jumper cables to start your BMW with
power from the battery in a second vehicle. You
can also use the same method to help start
another vehicle. Use only jumper cables with
fully-insulated clamp handles.
To avoid the risk of potentially fatal injury,
always avoid all contact with electrical
components while the engine is running. Care-
fully adhere to the following sequence, both to
prevent damage to one or both vehicles, and to
guard against possible personal injuries.<
Preparation
1.Check whether the battery of the other
vehicle has a voltage of 12 Volts and
approximately the same capacitance in Ah.
This information can be found on the bat-
tery.
2.Switch off the engine of the assisting vehi-
cle.3.Switch off any electrical systems and com-
ponents in both vehicles.
There must not be any contact between
the bodies of the two vehicles, otherwise
there is a danger of shorting.<
Connecting jumper cables
To avoid personal injury from sparks, fol-
low this sequence when connecting
jumper cables.<
On your BMW the so-called starting-aid termi-
nal in the engine compartment acts as the bat-
tery positive terminal, also refer to the engine
compartment overview on page252. The cover
cap is marked with +.
1.Fold open the cover of the BMW starting-
aid terminal. To do so, pull the tab.
2.Attach one end of the jumper cable plus/+
to the positive terminal of the battery or a
starting-aid terminal of the vehicle provid-
ing assistance.
3.Attach the second end of the cable to the
positive terminal of the battery or to a start-
ing-aid terminal of the vehicle to be started.
4.Attach one end of the jumper cable minus/–
to the negative terminal of the battery or to
an engine or body ground of the assisting
vehicle.

Reference 293
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Automatic climate control
– automatic air
distribution117,121
– in rear121
– switching off120,122
– ventilation in rear120
– with 2-zone control117
– with 4-zone control121
Automatic climate control in
rear
– activating on Control
Display121
– deactivating on Control
Display121
Automatic closing of doors,
refer to Automatic soft
closing30
Automatic curb monitor52
Automatic garage door
opener124
Automatic headlamps
– refer to High-beam
Assistant113
Automatic Hold61
– activating61
– deactivating61
– parking61
Automatic lighting
– refer to Automatic headlamp
control111
– refer to Daytime driving
lamps112
– refer to Interior lamps115
– refer to Pathway lighting112
Automatic low-beams, refer to
High-beam Assistant113
Automatic recirculated-air
control AUC119
Automatic Service
Request230
Automatic soft closing30
Automatic transmission with
Steptronic63
– deactivating selector lever
interlock64
– kickdown64
– with Comfort Access36AUTO program of the
automatic climate
control117,121
AUX-IN connection128,192
Available services230
Average fuel consumption78
– setting units86
Average speed, refer to
Computer78
Avoiding highways for
navigation158
Avoiding unintentional
alarms35
Axle weights, refer to
Weights283
B
Backrest contour, refer to
Lumbar support44
Backrests, refer to Seats43
Backrest width adjustment44
Backup lamps, replacing
bulbs264,266
Band-aids, refer to First-aid
kit273
Base plate for telephone or
mobile phone
– refer to Snap-in adapter222
Bass, tone setting168
Battery
– charging270
– jump starting274
– power failure270
Battery, refer to Vehicle
battery270
Battery disposal
– remote control with Comfort
Access37
– vehicle battery270
Battery for mobile phone223
Battery replacement
– remote control for DVD
system in rear198
– remote control with Comfort
Access37
Belts, refer to Safety belts48
Beverage holder, refer to
Cupholders128Blower, refer to Air
volume118,122
Bluetooth, activating/
deactivating214
BMW Assist,
activating228,230
BMW Advanced Diesel236
BMW Assist226
BMW homepage4
BMW maintenance
system256
BMW Search228
BMW TeleService226
BMW website4
Bottle holder, refer to
Cupholders128
Brake assistant95
Brake force display106
Brake lamps
– brake force display106
– replacing bulbs264,266
Brake pedal, refer to Braking
safely140
Brake rotors140
Brakes
– ABS Antilock Brake
System95
– brake assistant95
– brake force display106
– breaking-in138
– CBC Cornering Brake
Control95
– electronic brake-force
distribution95
– parking brake60
– refer to Braking safely140
– warning lamp13
Brake system138
– brake pads138
– breaking-in138
– disc brakes140
Braking safely140
Breakdown
– Flat Tire Monitor99
Breakdown, transporting your
vehicle275
Breakdown services, refer to
Roadside Assistance274
Breaking-in brake pads138

Everything from A - Z
294 Breaking-in rear axle
differential138
Break-in period138
Brightness
– of Control Display86
– on Head-up Display109
Button for starting engine58
Buttons on steering wheel11
C
Calibrating driver's seat49
California Proposition 65
Warning6
Call
– accepting215
– ending216
– rejecting216
Calling, refer to Phone
numbers, dialing216
Calling, refer to the telephone
owner's manual
Camera
– refer to Rear view camera93
– refer to Top View90
Camera, Side View93
Can holder, refer to
Cupholders128
Capacities284
Capacity of cargo area283
Car battery, refer to Vehicle
battery270Care258
– car-care products258
– carpets260
– car washes258
– CD/DVD-player261
– chrome components259
– displays260
– exterior258
– fine wooden
components260
– hand washing259
– headlamps259
– high-pressure cleaning
jets259
– interior260
– leather260
– light-alloy wheels259
– paint259
– plastic components260
– rubber gaskets259
– running boards260
– safety belts260
– sensors and cameras260
– upholstery materials and
cloth-covered paneling260
– windows259
Cargo
– refer to Loading140
– securing142
– securing with ski bag135
Cargo area
– capacity283
– emergency actuation, refer
to Manually opening or
closing34
– emergency operation, refer
to Opening manually31
– expanding132
– opening
33
– opening/closing, refer to
Liftgate30,33
– opening/closing, refer to
Tailgate32
– opening from inside31
– opening from outside31
– opening with remote
control28
Cargo area, refer to Cargo
area131Cargo area cover, refer to
Luggage compartment
roller cover131
Caring for the vehicle
finish259
Car key, refer to Keys/remote
control26
Car phone
– installation location, refer to
Center armrest, front128
– refer to separate operating
instructions
Car phone, refer to
Telephone212
Car radio, refer to Radio171
Car wash258
– before driving in59
– with Comfort Access36
Car washes258
Catalytic converter, refer to
Hot exhaust system139
CBC Cornering Brake
Control95
CBS Condition Based
Service256
CD, audio playback180
CD, refer to Playing audio
tracks, DVD system in
rear202
CD/DVD changer
– magazine, loading183
CD-/DVD player in rear197
CD changer179,183
– controls168
– fast forward/reverse181
– random play sequence180
– selecting a track180
– switching on/off168
– tone control168
– volume168
CD player179
– controls168
– fast forward/reverse181
– random play sequence180
– selecting a track180
– switching on/off168
– tone control168
– volume168

Reference 295
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Cell phone
– refer to Mobile phone
Center armrest
– front128
– rear131
Center brake lamp265,268
Center console14
Central locking system27
– Comfort Access35
– from inside vehicle30
Changes, technical, refer to
For your own safety5
Changes, technical, refer to
Parts and accessories5
Changing gears
– using shift paddles64
Changing language on
Control Display86
Changing tires249
Changing trips157
Changing units of measure on
Control Display86
Changing wheels268
Check Control82
Checking the air pressure,
refer to Tire inflation
pressure239
Children, transporting54
Child restraint devices54
Child restraint fixing system
LATCH55
Child restraint systems54
Child-safety locks57
Child seats54
Chime, refer to Check
Control82
Cigarette lighter, refer to
Lighter130
Cleaning your BMW, refer to
Care258
Clock76
– 12h/24h mode85
– setting time85
Closing
– from inside30
– using remote control28
Closing fuel filler cap234
Clothes hooks128
Cockpit10Cold start, refer to Starting
engine59
Combination instrument, refer
to Instrument panel12
Comfort Access35
– observe in car wash36
– replacing battery37
Comfort area, refer to Around
the center console14
Comfort start, refer to Starting
engine59
Compact wheel
– inflation pressure241
– wheel change268
Compartment for remote
control, refer to Ignition
lock58
Compartments, refer to
Storage compartments128
Compass, digital125
Computer78
– displaying information78
– opening via iDrive79
Concierge service227
Condition Based Service
CBS256
Confirmation signals,
adjusting for locking and
unlocking28
Connecting car vacuum
cleaner, refer to Connecting
electrical devices130
Connecting headphones197
Consumption, refer to
Average fuel
consumption78
Consumption indicator
– energy control77
Consumption statistics, refer
to Average fuel
consumption78
Contacts
– creating224
Control Center, refer to
iDrive16
Control Display, refer to
iDrive16
– setting brightness86
– switching on/off19Controller, refer to iDrive16
Controls, refer to Cockpit10
Controls DVD system in
rear196
Convenient opening and
closing
– glass sunroof28,29
– glass sunroof with Comfort
Access36
– windows28,29
– windows with Comfort
Access36
– with Comfort Access36
Coolant255
– checking level255
– temperature77
Cooling, maximum119
Copyright2
Cornering Brake Control
CBC95
Country codes DVD181
Courtesy lamps, refer to
Interior lamps115
Cradle for telephone or mobile
phone128
Criteria for route158
Cruise control67
– active cruise control68
Cruising range78
Cupholders128
Current playback
– external devices194
– of music collection189
Customer Relations229
Cylinders, refer to Engine
data280
D
Dashboard, refer to
Cockpit10
Dashboard lighting, refer to
Instrument lighting115
Data280
– capacities284
– dimensions281
– engine280
– technical data280
– weights283

Reference 297
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
DVD video181
Dynamic destination
guidance159
Dynamic Performance
Control97
Dynamic Stability Control
DSC95
Dynamic Traction, refer to
Dynamic Traction
Control96
Dynamic Traction Control
DTC96
E
Easy entry/exit53
Eject button, refer to Buttons
on the CD/DVD player168
Electrical malfunction
– door lock29
– driver's door29
– fuel filler flap234
– liftgate31
– parking brake62
Electric seat43
Electric steering wheel
adjustment53
Electronic brake-force
distribution95
Electronic oil level check253
Emergency operation, refer to
Manual operation
– door lock29
– driver's door29
– fuel filler flap234
– liftgate31
Emergency request273
Emergency services, refer to
Roadside Assistance274Engine
– breaking-in138
– data280
– oil temperature77
– overheated, refer to Coolant
temperature77
– speed280
– starting59
– starting, with Comfort
Access36
– switching off59
Engine compartment252
Engine coolant255
Engine oil
– adding254
– additives, refer to Approved
engine oils255
– approved engine oil255
– checking oil level253
– electronic oil level check253
– temperature77
Engine oil temperature77
Engine output, refer to Engine
data280
Engine speed280
Engine starting, refer to
Starting engine59
Entering special destinations
by name153
Entertainment sound output
on/off168
Entry map for destination154
Equalizer, tone setting169
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control95
Exhaust system, refer to Hot
exhaust system139
Extended connectivity of the
music player in the mobile
phone192Exterior mirrors51
– adjusting51
– automatic dimming
feature52
– automatic heating51
– folding in and out51
– tilting down passenger-side
exterior mirror52
External audio device128
External devices
– random sequence194
Eye for tow-starting and
towing, refer to Tow
fitting276
F
Failure messages, refer to
Check Control82
False alarm, refer to Avoiding
unintentional alarms35
Fastening safety belts, refer to
Safety belts48
– warning lamp48
Fastest route for
navigation158
Fast forward
– CD changer181
– CD player181
Fault displays, refer to Check
Control82
Filler neck for washer fluid67
First aid, refer to First-aid
kit273
First-aid kit273
Fixing system, adaptive133
Flashing during locking/
unlocking, refer to Setting
confirmation signals28
Flat tire
– changing wheels268
– compact wheel268
– Flat Tire Monitor99
– run-flat tires100,103,249
– TPM Tire Pressure
Monitor101
Flat Tire Monitor FTM99
Fluid reservoir, refer to Filler
neck for washer fluid67

Everything from A - Z
300 LATCH child restraint fixing
system55
Leather care260
LEDs light-emitting
diodes263
Length, refer to
Dimensions281
License plate lamp, replacing
bulbs265,268
Liftgate30,33
– adjusting opening
height31,33
– automatic operation31
– closing31,33
– locking and unlocking from
inside30
– manually opening or
closing34
– opening33
– opening from inside31
– opening from outside31
– opening manually31
Light
– refer to High-beam
Assistant113
Light-emitting diodes
LEDs263
Lighter130
Lighter socket130
Lighting
– instruments115
– lamps and bulbs262
– of the vehicle, refer to
Lamps111
Light switch111
Load141
Loading140
– securing cargo142
– stowing cargo142
– vehicle140
Load securing equipment,
refer to Securing cargo142
Lock buttons in the doors,
refer to Locking30Locking
– from inside30
– setting confirmation
signals28
– using remote control28
– without key, refer to Comfort
Access35
Locking and unlocking doors
– from inside30
– setting confirmation
signals28
Locking without key, refer to
Comfort Access
35
Low beams111
– automatic111
Lower back support, refer to
Lumbar support44
Low-sulfur diesel235
Lug bolts269
– tightening torque, refer to
After mounting270
– wrench269
Luggage compartment
capacity, refer to Cargo area
capacity283
Luggage compartment roller
cover131
Luggage rack, refer to Roof-
mounted luggage rack143
Lumbar support44
M
M+S tires, refer to Winter
tires250
Main menu, iDrive17
Maintenance
– refer to Service and
Warranty Information
Booklet for US models256
– refer to Warranty and
Service Guide Booklet for
Canadian models256
Maintenance, refer to Service
requirements79
Maintenance system256Malfunction
– door lock29
– driver's door29
– fuel filler flap234
– liftgate31
– parking brake62
Malfunction warnings, refer to
Check Control82
Manual air distribution118
Manual mode, automatic
transmission with
Steptronic64
Manual operation
– door lock29
– driver's door29
– fuel filler flap234
Manual operation, Side
View92
Map display160
Map for navigation
– changing scale161
– entering destination154
Master key, refer to Keys/
remote control26
Maximum cooling119
Maximum speed
– for winter tires250
– with compact wheel270
Memory, refer to Seat, mirror
and steering wheel
memory44
Menus, refer to iDrive16
Messages218
Messages from the concierge
service219
Microfilter121
Microphone
– for mobile phone14
– for telephone14
– for voice activation
system14
Mirror dimming feature52

Everything from A - Z
302 Oil
– additives, refer to Approved
engine oils255
– approved engine oils255
– consumption, refer to
Checking engine oil
level253
– level253
– refilling, refer to Adding
engine oil254
Oil change interval, refer to
Service requirements79
Onboard computer, refer to
iDrive16
Onboard toolkit262
Opening and closing
– Comfort Access35
– from inside30
– panoramic glass sunroof39
– using remote control28
– using the door lock29
Operation on poor roads143
Options, selecting for
navigation158
Orientation menu, refer to
Main menu17
Output, refer to Engine
data280
Outside air, refer to AUC
Automatic recirculated-air
control119
Outside temperature
display76
– changing units of
measure86
Outside temperature
warning76
Overheating of engine, refer to
Coolant thermometer77
Overview
– radio control168
P
Panic mode28
Panoramic glass sunroof38
– power failure40
– raising, opening, closing39
Park Distance Control PDC88Parked-car ventilation122
– preselecting activation
times123
– switching on and off
directly122
Parking
– vehicle59
Parking aid
– refer to PDC Park Distance
Control88
– refer to Rear view camera93
Parking assistance
– refer to Top View90
Parking assistant, refer to
PDC Park Distance
Control88
Parking brake60
– Automatic Hold61
– indicator lamp13
– releasing manually60
– releasing manually in case of
an electrical malfunction62
– setting manually60
Parking brake, indicator
lamp13
Parking lamps111
Parking with Automatic
Hold61
Particulate filter, refer to
Diesel particulate filter139
Parts and accessories5
Passenger-side exterior
mirror, tilting down52
Pathway lighting112
Paying attention to speed250
PDC Park Distance Control88
Personal Profile26
Phone book215
Phone numbers
– dialing216
Pinch protection system
– glass sunroof, electric40
– panoramic glass sunroof39
– power windows38
Plasters, refer to First-aid
kit273
Playing videos, DVD system in
rear199Plug-in unit for remote
control, refer to Ignition
lock58
Postal code, entering for
navigation150
Power failure270
Power windows, refer to
Windows37
Preglowing, refer to Diesel
engine
59
Preselecting activation times
of parked-car
ventilation123
Pressure, tires239
Pressure monitoring of tires
– refer to TPM Tire Pressure
Monitor101
Protective function, refer to
Pinch protection system
– glass sunroof, electric40
– panoramic glass sunroof39
– windows38
R
Radio
– controls168
– HD Radio172
– satellite radio174
– storing stations171
– switching on/off168
– tone control168
– volume168
– waveband, selecting171
Radio key, refer to Keys/
remote control26
Radio position, refer to Radio
readiness58
Radio readiness58
– switched off58
– switched on58
– with Comfort Access36
Rain sensor66
Random sequence
– external devices194
– music collection190
Reading lamps115

Everything from A - Z
304 Runflat System Component
RSC, refer to Run-flat
tires249
Run-flat tires249
– driving with a damaged
tire100,103
– flat tire100,103
– inflation pressure100,103
– new wheels and tires249
– replacing249
– tire inflation pressure239
S
Safety5
Safety belts48
– damage49
– sitting safely42
– warning lamp48
Safety belt tensioners
– refer to Airbags107
– refer to Safety belts48
Safety systems
– ABS Antilock Brake
System95
– airbags107
– driving stability control
systems95
– DSC Dynamic Stability
Control95
– safety belts48
Safety tires, refer to Run-flat
tires249
Satellite radio174
– channel, activating or
deactivating174
– channel, selecting175
– channel, storing175
– favorites176
– time shift176
– Traffic Jump177
Screen, refer to iDrive16
Screw thread for tow
fitting276
SDARS, refer to Satellite
radio174
Seat heating49,50Seats43
– adjusting43
– adjusting electrically43
– adjusting manually43
– backrest width44
– heating49,50
– in rear47
– lumbar support44
– memory, refer to Seat, mirror
and steering wheel
memory44
– 2nd row seats47
– shoulder support44
– sitting safely42
– storing the setting44
– thigh support43,44
– 3rd row seats48
– ventilation, refer to Active
seat ventilation and Seat
heating50
2nd row seats47
Securing load
– refer to Securing cargo142
– with ski bag, refer to
Securing cargo135
Selecting a detour164
Selecting new scale for
navigation161
Selector lever, automatic
transmission with
Steptronic63
Selector lever lock, refer to
Reverse gear64
Self-leveling suspension99
Service, refer to Roadside
Assistance274
Service and Warranty
Information Booklet for
US models256
Service interval indicator, refer
to Service requirements79
Service Request229
Service requirements79
– also refer to CBS Condition
Based Service256
Service status230Settings
– changing on Control
Display85
– clock, 12h/24h mode85
– configuring, refer to
Personal Profile26
– DVD182
– language86
Settings for the map
display161
Setting speed limit84
Setting time, refer to
Preselecting activation
times123
Shifting, automatic
transmission with
Steptronic64
Shift paddles64
Short commands of the voice
activation system285
Short route in navigation, refer
to Selecting route158
Shoulder support44
Shuffled, refer to Random
– CD changer180
– CD player180
Side airbags107
Side marker lamps, replacing
bulbs264
Side View92
Signal horn, refer to Horn10
Sitting safely42
– with airbags42
– with head restraint42
– with safety belts42
Ski bag134
Slide show, refer to Displaying
images204
Sliding/tilt sunroof, refer to
Glass sunroof, electric
40
Sliding/tilt sunroof, refer to
Panoramic glass sunroof38
Slope assistant, refer to Drive-
off assistant99
Smokers' package, refer to
Ashtray129
Snap-in adapter
– inserting/removing222
– use212

Reference 305
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Snow chains250
Socket for Onboard
Diagnostics interface257
Socket for remote control,
refer to Ignition lock58
Sockets, refer to Connecting
electrical devices130
Soft closure aid, refer to
Automatic soft closing30
Soot particle filter, refer to
Diesel particulate filter139
SOS, refer to
Initiating an emergency
request273
Spare fuses271
Spare remote control26
Spare wheel, refer to
Changing wheels268
Spare wheel, refer to Compact
wheel268
Special destinations152
Special oils, refer to Approved
engine oils255
Specified oil grades, refer to
Approved engine oils255
Speed
– with compact wheel270
– with winter tires250
Speed display, refer to
Speedometer12
Speed limit detection,
computer78
Speed limit warning, refer to
Speed limit84
Speedometer12
Speed Volume169
Split screen, refer to Control
Display, switching on/off19
Split screen content, refer to
Display for split screen
content, selecting19
Sport program, automatic
transmission with
Steptronic64
Stability control, refer to
Driving stability control
systems95
Start/Stop button58Starting, refer to Starting
engine59
Starting assistance, refer to
Jump starting274
Starting difficulties, jump
starting274
Starting off on slopes, refer to
Drive-off assistant99
State/province, for
navigation149
Station, selecting
– radio171
Status of this Owner's Manual
at time of printing5
Steam cleaners259
Steering wheel
– adjusting52
– automatic adjustment, refer
to Steering wheel
memory44
– buttons on steering
wheel11
– easy entry/exit53
– heating53
– memory44
Steering with variable ratio,
refer to Active steering105
Steptronic, refer to Sport
program and manual mode
M/S64
Storage compartments128
Stored trip, calling up157
Storing a destination in the
address book151
Storing a trip156
Storing sitting position, refer
to Seat, mirror and steering
wheel memory44
Storing tires250
Storing vehicle261
Storing your vehicle261
Street, entering,
navigation150
Summer tires, refer to Wheels
and tires239
Surround169
Surround View90
SVCD181
SW, waveband171Switches, refer to Cockpit10
Switching cooling function on
and off119
Switching off
– engine59
Switching on
– audio168
– CD changer168
– CD player168
– radio168
Swiveling headlamps, refer to
Adaptive Light Control112
Symbols4
– indicator/warning lamps13
– status information19
T
Tachometer77
Tailgate32
Tail lamps264,266
– replacing bulbs264,266
Tank contents, refer to
Capacities284
Target cursor for
navigation154
Technical alterations, refer to
For your own safety5
Technical data280
Telephone212
– voice commands219
Telephone, refer to separate
operating instructions
Teleservice Diagnosis228
Teleservice Help228
Temperature
– changing units of
measure86
– refer to Coolant
temperature77
– setting for automatic climate
control118,121
Temperature display
– outside temperature76
– setting units86
– temperature warning76
Temperature warning76
Tempomat, refer to Cruise
control67

Reference 307
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Unlocking
– from inside30
– liftgate28
– setting behavior28
– using remote control28
– without key, refer to Comfort
Access35
Unlocking and locking doors
– using remote control28
Unlocking without key, refer to
Comfort Access35
Updating the navigation
data148
USB audio interface192
Used batteries
– refer to Disposal270
– refer to Replacing battery37
V
Valve screw caps, refer to
After mounting270
VCD181
Vehicle
– battery270
– breaking-in138
– loading140
– measurements, refer to
Dimensions281
– parking59
– storing261
– weights283
Vehicle care, refer to Care258
Vehicle jack269
– jacking points269
Ventilation120
– draft-free120
– in the rear120
– rear automatic climate
control122
– 3rd row seats120
– while stationary122
Vents, refer to Ventilation120
Vents of the automatic climate
control116
Video menu181
Video playback181Voice, refer to Destination
guidance through voice
instructions160
Voice activation system22
– short commands285
Voice commands
– telephone219
Voice instructions for
navigation system160
– repeating160
– switching on/off160
– volume160
Voice phone book221
Volume168
– audio sources168
– mobile phone215
– voice instructions160
Volume balance, tone
setting169
Volume of warning tones87
W
Warning lamps, refer to
Indicator and warning
lamps13
Warning messages, refer to
Check Control82
Warning tone, volume87
Warning triangle273
Warranty and Service Guide
Booklet for Canadian
models256
Washer/wiper system65
– rain sensor66
– washer fluid67
– windshield washer
nozzles66
Washer fluid67
– capacity of the reservoir67
Washing the car258
Water on roads, refer to
Driving through water140
Water penetration259
Waveband for radio171
Wear indicators in tires, refer
to Minimum tread depth248
Website4
Weights283Wheel/tire combination, refer
to New wheels and tires249
Wheel/tire damage248
Wheelbase, refer to
Dimensions281
Wheels and tires239
Width, refer to
Dimensions281
Windows37
– convenient opening and
closing28
– convenient opening and
closing from outside29
– convenient opening and
closing with Comfort
Access36
– opening, closing37
– pinch protection system38
– safety switch38
Windshield
– cleaning, refer to Washer/
wiper system65
– defrosting, refer to
Defrosting windows118
– displays, refer to Head-up
Display109
Windshield washer system
– refer to Washer/wiper
system65
– windshield washer
nozzles66
Windshield wipers, refer to
Washer/wiper system65
– replacing wiper blades262
Winter diesel235
Winter tires250
– storage250
Word matching principle for
navigation157
Working in the engine
compartment251
Wrenches/screwdrivers, refer
to Onboard toolkit262
X
xDrive97
Xenon lamps263,265
– bulb changing263,265
