dimensions BMW X5 3.0I 2005 E53 Owner's Manual

7n
OverviewControlsMaintenanceRepairsDataIndex
Technical data
Index
Engine specifications178
Dimensions179
Weights180
Capacities181Everything from A to Z184
Notes

49n
OverviewControlsMaintenanceRepairsDataIndex

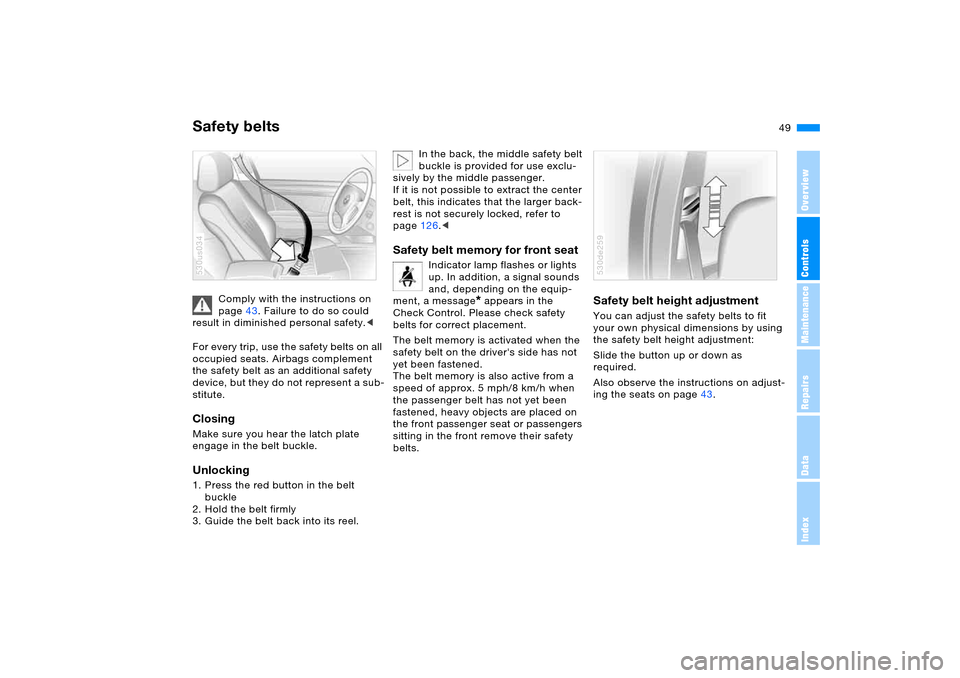

Safety belts
Comply with the instructions on
page43. Failure to do so could
result in diminished personal safety.<
For every trip, use the safety belts on all
occupied seats. Airbags complement
the safety belt as an additional safety
device, but they do not represent a sub-
stitute.
Closing Make sure you hear the latch plate
engage in the belt buckle.Unlocking1. Press the red button in the belt
buckle
2. Hold the belt firmly
3. Guide the belt back into its reel.530us034
In the back, the middle safety belt
buckle is provided for use exclu-
sively by the middle passenger.
If it is not possible to extract the center
belt, this indicates that the larger back-
rest is not securely locked, refer to
page126.<
Safety belt memory for front seat
Indicator lamp flashes or lights
up. In addition, a signal sounds
and, depending on the equip-
ment, a message
* appears in the
Check Control. Please check safety
belts for correct placement.
The belt memory is activated when the
safety belt on the driver's side has not
yet been fastened.
The belt memory is also active from a
speed of approx. 5 mph/8 km/h when
the passenger belt has not yet been
fastened, heavy objects are placed on
the front passenger seat or passengers
sitting in the front remove their safety
belts.
Safety belt height adjustment You can adjust the safety belts to fit
your own physical dimensions by using
the safety belt height adjustment:
Slide the button up or down as
required.
Also observe the instructions on adjust-
ing the seats on page43.530de259

146n

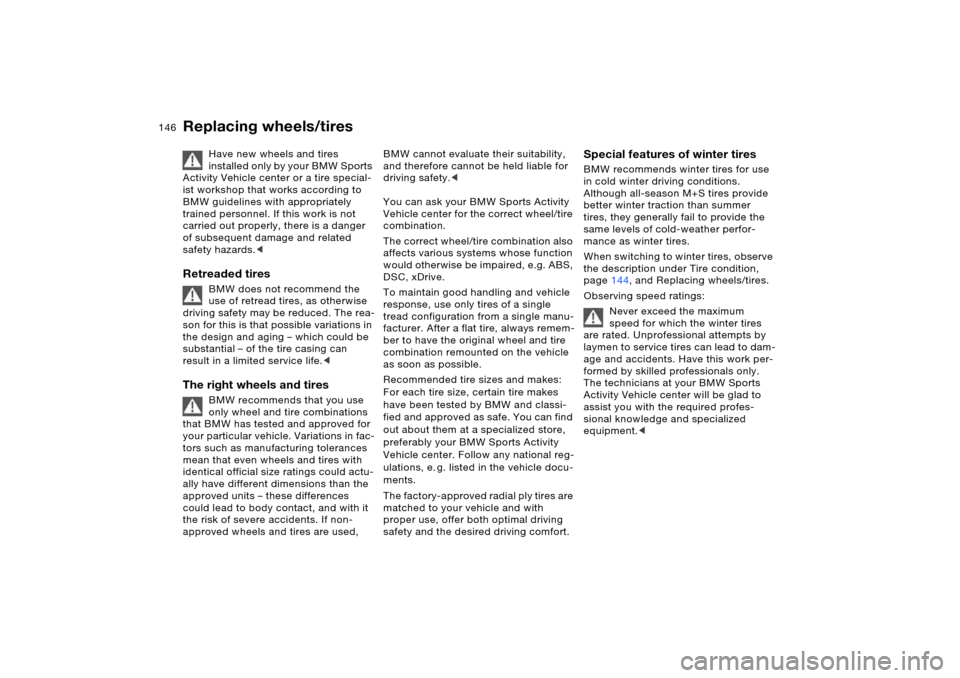

Replacing wheels/tires
Have new wheels and tires
installed only by your BMW Sports
Activity Vehicle center or a tire special-
ist workshop that works according to
BMW guidelines with appropriately
trained personnel. If this work is not
carried out properly, there is a danger
of subsequent damage and related
safety hazards.<
Retreaded tires
BMW does not recommend the
use of retread tires, as otherwise
driving safety may be reduced. The rea-
son for this is that possible variations in
the design and aging – which could be
substantial – of the tire casing can
result in a limited service life.<
The right wheels and tires
BMW recommends that you use
only wheel and tire combinations
that BMW has tested and approved for
your particular vehicle. Variations in fac-
tors such as manufacturing tolerances
mean that even wheels and tires with
identical official size ratings could actu-
ally have different dimensions than the
approved units – these differences
could lead to body contact, and with it
the risk of severe accidents. If non-
approved wheels and tires are used,
BMW cannot evaluate their suitability,
and therefore cannot be held liable for
driving safety.<
You can ask your BMW Sports Activity
Vehicle center for the correct wheel/tire
combination.
The correct wheel/tire combination also
affects various systems whose function
would otherwise be impaired, e.g. ABS,
DSC, xDrive.
To maintain good handling and vehicle
response, use only tires of a single
tread configuration from a single manu-
facturer. After a flat tire, always remem-
ber to have the original wheel and tire
combination remounted on the vehicle
as soon as possible.
Recommended tire sizes and makes:
For each tire size, certain tire makes
have been tested by BMW and classi-
fied and approved as safe. You can find
out about them at a specialized store,
preferably your BMW Sports Activity
Vehicle center. Follow any national reg-
ulations, e. g. listed in the vehicle docu-
ments.
The factory-approved radial ply tires are
matched to your vehicle and with
proper use, offer both optimal driving
safety and the desired driving comfort.
Special features of winter tires BMW recommends winter tires for use
in cold winter driving conditions.
Although all-season M+S tires provide
better winter traction than summer
tires, they generally fail to provide the
same levels of cold-weather perfor-
mance as winter tires.
When switching to winter tires, observe
the description under Tire condition,
page144, and Replacing wheels/tires.
Observing speed ratings:
Never exceed the maximum
speed for which the winter tires
are rated. Unprofessional attempts by
laymen to service tires can lead to dam-
age and accidents. Have this work per-
formed by skilled professionals only.
The technicians at your BMW Sports
Activity Vehicle center will be glad to
assist you with the required profes-
sional knowledge and specialized
equipment.<

179n
OverviewControlsMaintenanceRepairsDataIndex

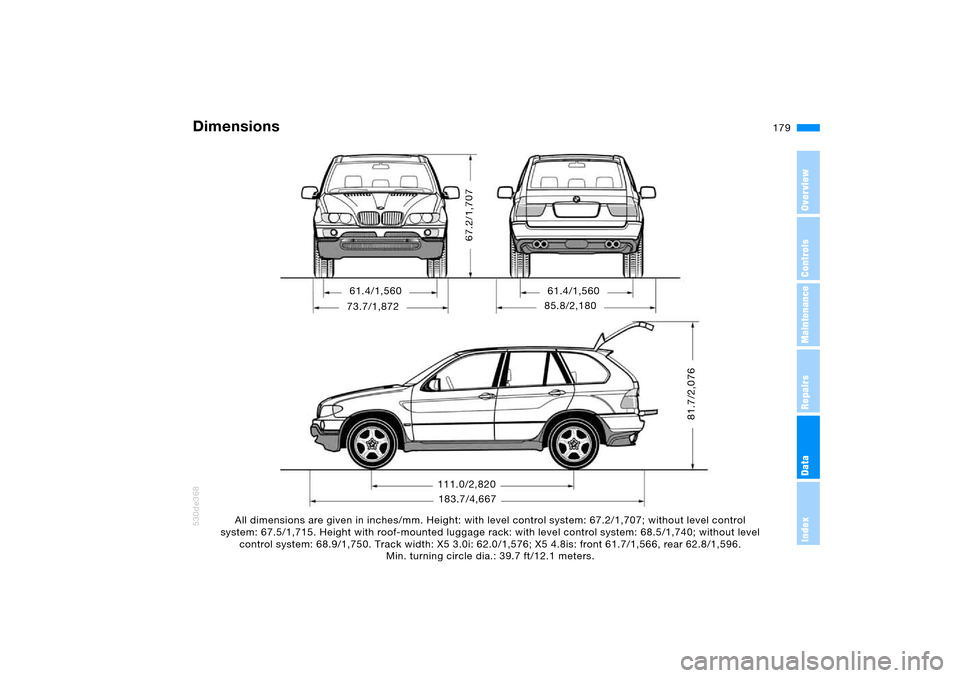

Dimensions
530de210530de368
All dimensions are given in inches/mm. Height: with level control system: 67.2/1,707; without level control
system: 67.5/1,715. Height with roof-mounted luggage rack: with level control system: 68.5/1,740; without level
control system: 68.9/1,750. Track width: X5 3.0i: 62.0/1,576; X5 4.8is: front 61.7/1,566, rear 62.8/1,596.
Min. turning circle dia.: 39.7 ft/12.1 meters.
73.7/1,872
85.8/2,180
61.4/1,560
61.4/1,560
111.0/2,820183.7/4,667
67.2/1,707
81.7/2,076

Everything from A to Z
187n
OverviewControlsMaintenanceRepairsDataIndex
Coolant152
level152
temperature gage79
warning lamp79
Coolant temperature
gage79
Cooling, maximum113
Cooling, refer to
Air conditioning108,113
Temperature108,112
Copyright4
Cornering light, refer to
Adaptive Head Light104
Correct tires
wheel/tire
replacement146
winter tires146
Courtesy lighting106
Cruise control74
buttons on steering
wheel23
indicator lamp22
Cruising range83,90
Cup holders121
Curb weight, refer to
Weights180
Current consumption, refer
to Energy control77
Cylinders, refer to Engine
data178D
Dashboard lighting, refer to
Instrument lighting105
Dashboard, refer to
Cockpit14
Data, technical178
dimensions179
engine178
filling capacities181
weights180
Date
also refer to Owner's
Manual for Onboard
Computer
calling up85
changing85
Daytime driving lamps103
DBC Dynamic Brake
Control94
indicator lamp21
Deactivating the alarm in an
emergency92
Defective lamp159
Defrost position, refer to
Defrosting
windows109,112
Defrosting
windows109,112
air conditioner109
automatic climate
control112Defrosting windows and
removing condensation
air conditioner109
automatic climate
control112
Defrosting windshield, refer
to Defrosting
windows109,112
Digital clock85
also refer to Owner's
Manual for Onboard
Computer
Dimensions179
Dipstick, engine oil150
Directional indicators, refer
to Turn signals70
Disc brakes140
Displacement, refer to
Engine specifications178
Display lighting, refer to
Instrument lighting105
Display, refer to Instrument
cluster15,17,18
Disposal, vehicle battery168
Distance to destination89
Distance warning, refer to
PDC Park Distance
Control93
Divided rear seat backrest,
refer to Folding rear seat
back126
Door keys30Door lock33
DOT Quality Grades143
Draft-free
ventilation109,114
Driving lamps, refer to
Parking lamps/low
beams103
Driving notes
breaking-in136
driving hints137,138
Driving on poor roads138
Driving stability control95
Driving your X5138
Dry air, refer to Air
conditioning108,113
DSC Dynamic Stability
Control95
warning lamp22
DVD changer, refer to
Owner's Manual for Radio/
Onboard Computer
Dynamic Brake Control
DBC94
indicator lamp21
Dynamic Stability Control
DSC95
warning lamp22

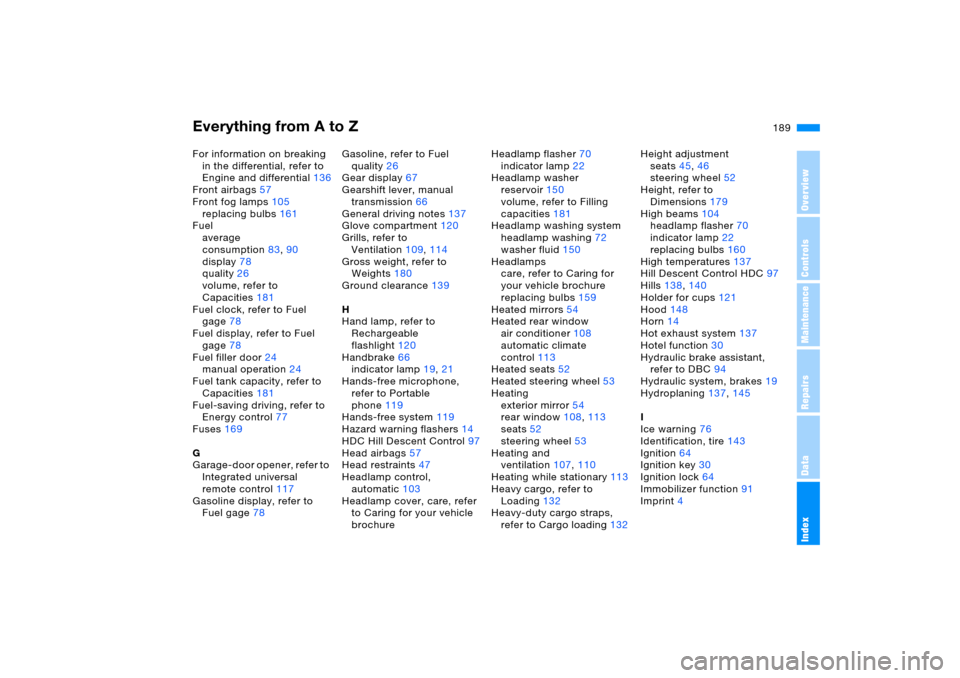

Everything from A to Z
189n
OverviewControlsMaintenanceRepairsDataIndex
For information on breaking
in the differential, refer to
Engine and differential136
Front airbags57
Front fog lamps105
replacing bulbs161
Fuel
average
consumption83,90
display78
quality26
volume, refer to
Capacities181
Fuel clock, refer to Fuel
gage78
Fuel display, refer to Fuel
gage78
Fuel filler door24
manual operation24
Fuel tank capacity, refer to
Capacities181
Fuel-saving driving, refer to
Energy control77
Fuses169
G
Garage-door opener, refer to
Integrated universal
remote control117
Gasoline display, refer to
Fuel gage78Gasoline, refer to Fuel
quality26
Gear display67
Gearshift lever, manual
transmission66
General driving notes137
Glove compartment120
Grills, refer to
Ventilation109,114
Gross weight, refer to
Weights180
Ground clearance139
H
Hand lamp, refer to
Rechargeable
flashlight120
Handbrake66
indicator lamp19,21
Hands-free microphone,
refer to Portable
phone119
Hands-free system119
Hazard warning flashers14
HDC Hill Descent Control97
Head airbags57
Head restraints47
Headlamp control,
automatic103
Headlamp cover, care, refer
to Caring for your vehicle
brochureHeadlamp flasher70
indicator lamp22
Headlamp washer
reservoir150
volume, refer to Filling
capacities181
Headlamp washing system
headlamp washing72
washer fluid150
Headlamps
care, refer to Caring for
your vehicle brochure
replacing bulbs159
Heated mirrors54
Heated rear window
air conditioner108
automatic climate
control113
Heated seats52
Heated steering wheel53
Heating
exterior mirror54
rear window108,113
seats52
steering wheel53
Heating and
ventilation107,110
Heating while stationary113
Heavy cargo, refer to
Loading132
Heavy-duty cargo straps,
refer to Cargo loading132Height adjustment
seats45,46
steering wheel52
Height, refer to
Dimensions179
High beams104
headlamp flasher70
indicator lamp22
replacing bulbs160
High temperatures137
Hill Descent Control HDC97
Hills138,140
Holder for cups121
Hood148
Horn14
Hot exhaust system137
Hotel function30
Hydraulic brake assistant,
refer to DBC94
Hydraulic system, brakes19
Hydroplaning137,145
I
Ice warning76
Identification, tire143
Ignition64
Ignition key30
Ignition lock64
Immobilizer function91
Imprint4

Everything from A to ZIndependent ventilation116
activating/deactivating
switch-on times87
also refer to Owner's
Manual for Onboard
Computer
entering switch-on
times87
switching on and off
directly87
Indicating
elements15,17,18
Indicator lighting, refer to
Instrument lighting105
Indicator/warning lamp
airbags59
alarm system38
automatic transmission
with Steptronic69
brakes153
coolant temperature79
DSC95
engine temperature79
fasten safety belts49
Flat Tire Monitor102
front fog lamps105
reserve78
self-leveling
suspension98
Indicator/warning lamps,
overview19Individual air distribution112
Individual settings, refer to
Vehicle Memory, Key
Memory63
Inflation pressure
monitoring, refer to Flat
Tire Monitor101
Inflation pressure, tires141
INSPECTION79
Instrument cluster15,17,18
Instrument lighting105
Instrument panel, refer to
Cockpit14
Integrated universal remote
control117
Interface socket for Onboard
Diagnostics155
Interior lamps105
remote control31
Interior mirror, automatic
dimming feature138
Interior motion sensor39
switching off31,39
Interior rearview mirror55
compass55
Interlock, refer to Locking
steering64
Intermittent operation of
wipers71,73J
Jacking points167
Jump starting171
Jumpering, refer to Jump
starting171
K
Key Memory63
Keys30
Kick-down68
L
Lamps and bulbs159
Lamps, refer to Parking
lamps/low beams103
Lashing eyes, refer to
Securing load132
LATCH child-restraint fixing
system62
LEDs light-emitting
diodes163
Length, refer to
Dimensions179
License plate lamp
replacing bulbs162
Liftgate35
emergency operation,
refer to Unlocking
manually35
opening, remote
control31
remote control31Liftgate/tailgate
emergency operation,
refer to Unlocking
manually35,36
opening from inside35
opening from outside35
unlocking manually35,36
Light switch103
Light-alloy wheels, care,
refer to Caring for your
vehicle brochure
Light-emitting diodes
LEDs163
Lighter122,123
Lighting of instruments105
Lights on warning103
Limit88
Limit speed, refer to Speed
limit88
Load, refer to Cargo
loading131
Lock buttons, doors, refer to
Locking34
Locking
from inside34
from outside31
Locking and unlocking doors
from inside34
from outside31
Locking, vehicle
from inside34
from outside31

Everything from A to Z
191n
OverviewControlsMaintenanceRepairsDataIndex
Low beams103
automatic103
replacing bulbs159
Lower back support, refer to
Lumbar support46
Low-fuel indicator lamp,
refer to Fuel gage78
Lug bolts167
torque168
Luggage compartment
capacity180
cover, refer to Roll-up
cover126
lamps, refer to Cargo area
lamps106
opening from inside35
opening from outside35
opening, with remote
control31
opening/closing, refer to
Liftgate35
opening/closing, refer to
Tailgate36
refer to Cargo area126
Luggage compartment lid,
refer to
Liftgate35
Tailgate36
Luggage compartment
net37Luggage rack, refer to Roof-
mounted luggage rack133
Luggage straps37
Lumbar support46
M
M+S tires, refer to Winter
tires146
Maintenance system154
Maintenance, refer to
Service Interval Display79
Malfunction
automatic transmission
with Steptronic69
door lock33
fuel filler door24
liftgate35
panorama glass
sunroof42
tailgate36
Manual operation
door lock33
driver's door33
fuel filler door24
liftgate35
panorama glass
sunroof42
tailgate36
Manual transmission66
Master key30
with remote control30
Maximum cooling113Maximum roof weight180
Maximum speed with winter
tires146
Measurements, refer to
Dimensions179
Mechanical key, refer to
Door and ignition key30
Mechanical seats45
Memo86
Memory, refer to
Seat, mirror and steering
wheel memory50
Vehicle Memory, Key
Memory63
Microfilter
air conditioner109
automatic climate
control115
Microphone for telephone,
refer to Telephone119
MID Multi-Information
Display84
Mirror dimming feature138
Mirrors54
automatic curb monitor51
mirror heating54
mirror memory, refer to
Seat, mirror and steering
wheel memory50
Mobile phone, refer to
separate Owner's ManualMobile Service, refer to
Roadside Assistance170
Multifunction steering wheel,
refer to Buttons on
steering wheel23
Multifunction switch
turn signals/headlamp
flasher70
washer/wiper system71
Multi-Information Display
MID84
N
Navigation system, refer to
Owner's Manual for
Onboard Computer/Radio
and Navigation System
Neck support, refer to Head
restraints47
Nozzles, refer to
Ventilation109,114
Nylon rope, refer to Tow-
starting and towing174

Everything from A to Z
195n
OverviewControlsMaintenanceRepairsDataIndex
Telephone119
Telephone provisions, refer
to Hands-free telephone
operation119
Telephone, refer to separate
Owner's Manual
Temperature
air conditioner108
automatic climate
control112
Temperature display
ice warning76
interior temperature112
outside
temperature76,83
setting the units76,83
Tempomat, refer to Cruise
control.74
Thigh support adjustment45
Third brake lamp
refer to Center brake
lamp162
replacing bulbs162
Three-point seat belt, refer to
Safety belts49
Tightening torque of lug
bolts168
Tilt alarm sensor
remote control31
switching off39Tilt function, passenger-side
mirror51
Time of arrival90
Timer, refer to Stopwatch86
Tire Identification
Number143
Tire inflation pressure,
producing141
Tire pressure monitoring,
refer to Flat Tire
Monitor101
Tire Quality Grading143
Tires
age143
breaking-in136
changing146,163
condition144
damage144
DOT Quality Grades143
flat163
inflation pressure141
size143
storage147
traction144
tread145
tread wear143
Uniform Tire Quality
Grading143
wear indicators, refer to
Tire tread145
winter tires146Tools, refer to Onboard tool
kit158
Torque
engine178
lug bolts168
Tow bar173
Tow fitting172
Tow sockets for tow
fitting173
Towing the vehicle172,173
with automatic
transmission173
Tow-rope174
Tow-starting172
Track width, refer to
Dimensions179
Traction144
Traction aid, refer to DSC
Dynamic Stability
Control95
Traction control, refer to
DSC Dynamic Stability
Control95
Transmission
automatic transmission
with Steptronic67
manual transmission66
Transmission fault, refer to
Malfunction69
Transmission lockout, refer
to P Park68Transport securing device,
refer to Securing
cargo132
Transporting children
safely59
Tread depth, refer to Tire
tread145
Tread wear143
Trip odometer76
Trip-distance counter, refer
to Trip odometer76
Trunk
opening from the inside35
opening from the
outside35
opening, with remote
control31
Trunk lamps, refer to Cargo
area lamps106
Trunk lid, refer to
Liftgate35
Tailgate36
Turn signals70
indicator lamp22
replacing bulbs160,161
Turn signals, side
replacing bulbs160
Turning circle, refer to
Dimensions179
TV function, refer to Owner's
Manual for Onboard
Computer

Everything from A to ZTV set, refer to Owner's
Manual for Onboard
Computer
Two-axle self-leveling
suspension
display99
lowering100
raising100
U
Underbody protection, refer
to Caring for your vehicle
brochure
Uniform Tire Quality
Grading143
Units,
temperature76,83,112
Universal garage door
control, refer to Integrated
universal remote
control117
Universal portable phone
preparation, refer to
separate Owner's Manual
Universal remote control117
Unlocking
from inside34
from outside31
hood148
Use antifreeze150,152V
Vacuum cleaner,
connecting, refer to
Power socket122
Power sockets129
Valve
inserts168
screw caps168
Vehicle
battery168
breaking-in136
care, refer to Caring for
your vehicle brochure
cargo loading131
measurements, refer to
Dimensions179
parking65
storage, refer to Caring for
your vehicle brochure
washing, refer to Caring for
your vehicle brochure
weight180
Vehicle jack165
jacking points167
Vehicle Memory63
Ventilation109,114
Ventilation in the rear109
Ventilation while parked116
Viscosity152
Voice command system23
Voice control, refer to
separate Owner's ManualW
Warning and indicator
lamps19
Warning triangle24
Warnings, refer to Check
Control80
Warranty10
refer also to Service and
Warranty Information
Booklet for US models or
Warranty and Service
Guide Booklet for
Canadian models
Warranty and Service Guide
Booklet for Canadian
models154
Washer fluid150
Washer fluid reservoir,
content181
Washer jets, refer to
Windshield washer
nozzles72
Washer reservoir, refer to
Windshield and Headlamp
washing system150
Waste container, refer to
Ashtray122
Water on roads, flooding138
Wear indicators in the tires,
refer to Tire tread145
Weights180
Wheel bolts, wrench164Wheel/tire combinations146
Wheelbase, refer to
Dimensions179
Width, refer to
Dimensions179
Windows39
convenience operation33
safety switch40
Windshield cleaner reservoir
volume, refer to Filling
capacities181
Windshield washer fluid
reservoir150
Windshield washer
nozzles72
Windshield washer system,
washer/wiper system71
Windshield washer, washer
fluid150
Windshield washing72
reservoir150
Windshield wiper blades
care, refer to Caring for
your vehicle brochure
replacement158
Windshield wipers, refer to
Wiper/washer system71
Winter tires146
changing146
condition144
storage147
