BMW X5 3.0I 2006 E53 User Guide

11n
OverviewControlsMaintenanceRepairsDataIndex

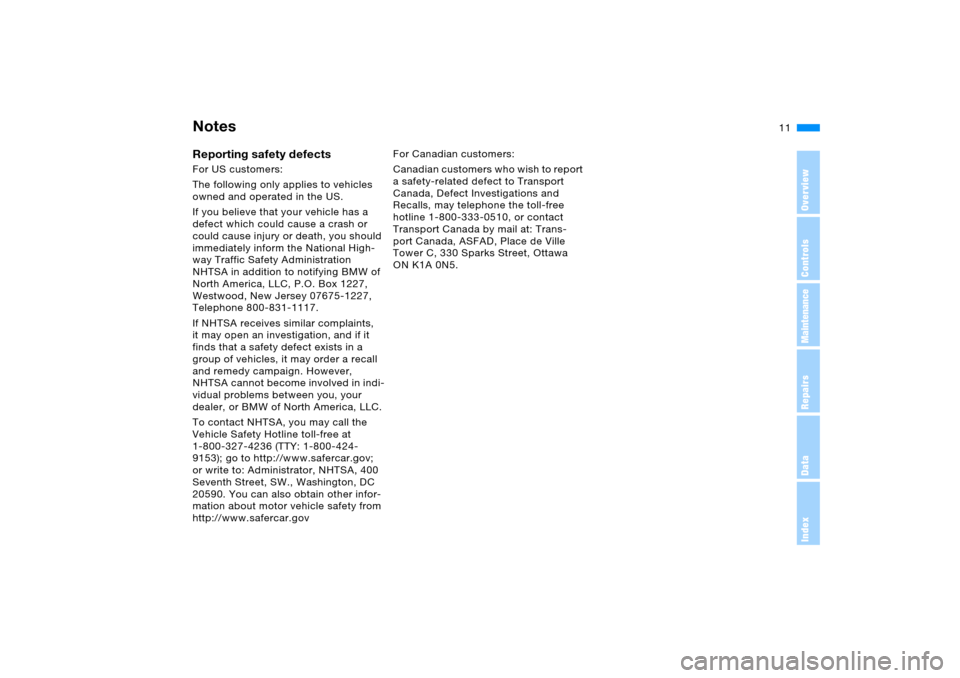

Reporting safety defects For US customers:
The following only applies to vehicles
owned and operated in the US.
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National High-
way Traffic Safety Administration
NHTSA in addition to notifying BMW of
North America, LLC, P.O. Box 1227,
Westwood, New Jersey 07675-1227,
Telephone 800-831-1117.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in indi-
vidual problems between you, your
dealer, or BMW of North America, LLC.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-800-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov;
or write to: Administrator, NHTSA, 400
Seventh Street, SW., Washington, DC
20590. You can also obtain other infor-
mation about motor vehicle safety from
http://www.safercar.govFor Canadian customers:
Canadian customers who wish to report
a safety-related defect to Transport
Canada, Defect Investigations and
Recalls, may telephone the toll-free
hotline 1-800-333-0510, or contact
Transport Canada by mail at: Trans-
port Canada, ASFAD, Place de Ville
Tower C, 330 Sparks Street, Ottawa
ON K1A 0N5.Notes

12n

13n
OverviewControlsMaintenanceRepairsDataIndex

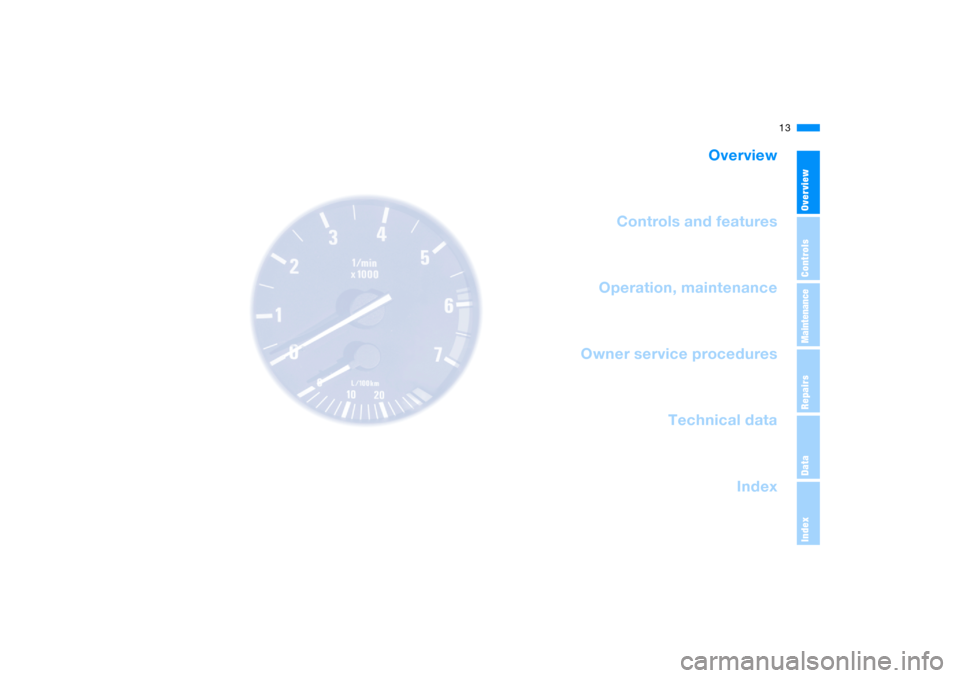

Overview
Controls and features
Operation, maintenance
Owner service procedures
Index Technical data
Overview

14n

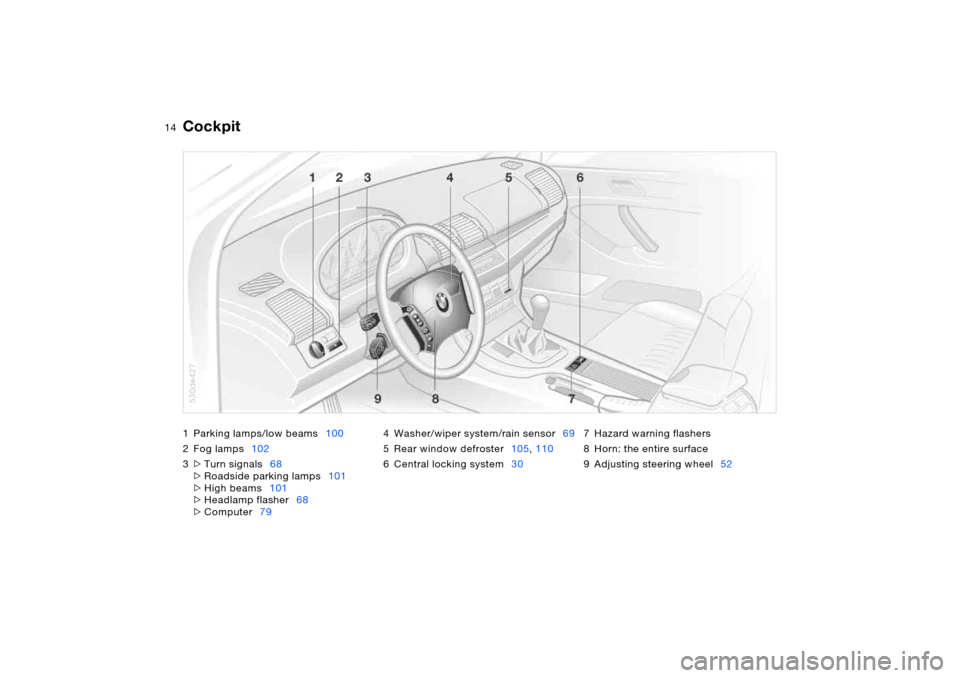

1 Parking lamps/low beams100
2Fog lamps102
3>Turn signals68
>Roadside parking lamps101
>High beams101
>Headlamp flasher68
>Computer794 Washer/wiper system/rain sensor69
5Rear window defroster105, 110
6 Central locking system307 Hazard warning flashers
8 Horn: the entire surface
9 Adjusting steering wheel52
Cockpit
530de427

15n
OverviewControlsMaintenanceRepairsDataIndex

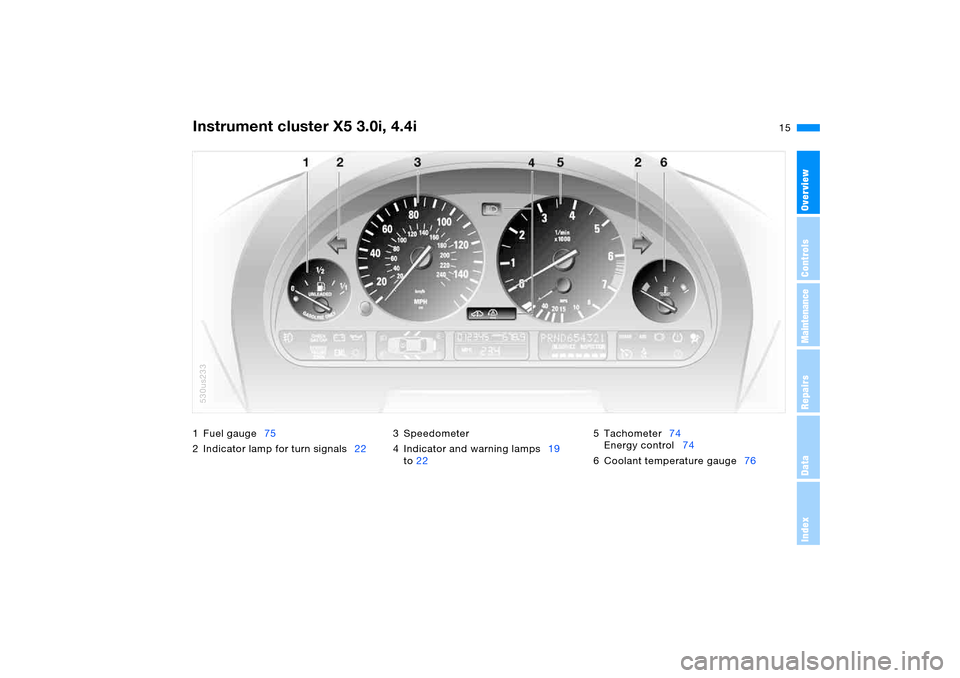

1 Fuel gauge75
2 Indicator lamp for turn signals223 Speedometer
4 Indicator and warning lamps19
to225 Tachometer74
Energy control74
6 Coolant temperature gauge76Instrument cluster X5 3.0i, 4.4i
530us233

16n

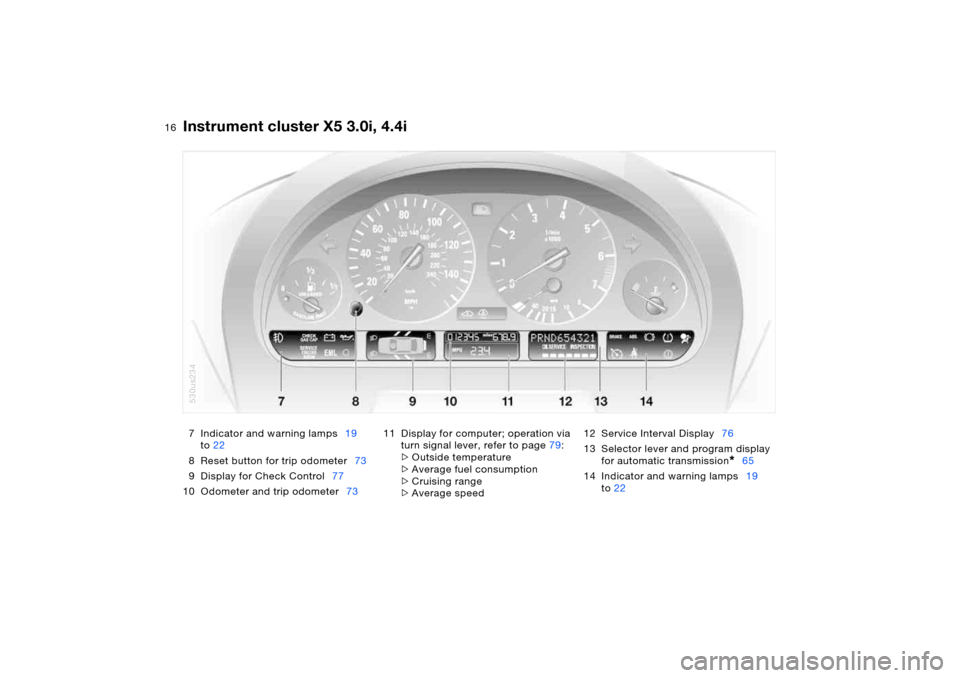

Instrument cluster X5 3.0i, 4.4i 7 Indicator and warning lamps19
to22
8 Reset button for trip odometer73
9 Display for Check Control77
10 Odometer and trip odometer7311 Display for computer; operation via
turn signal lever, refer to page79:
>Outside temperature
>Average fuel consumption
>Cruising range
>Average speed12 Service Interval Display76
13 Selector lever and program display
for automatic transmission
*
65
14 Indicator and warning lamps19
to22
530us234

17n
OverviewControlsMaintenanceRepairsDataIndex

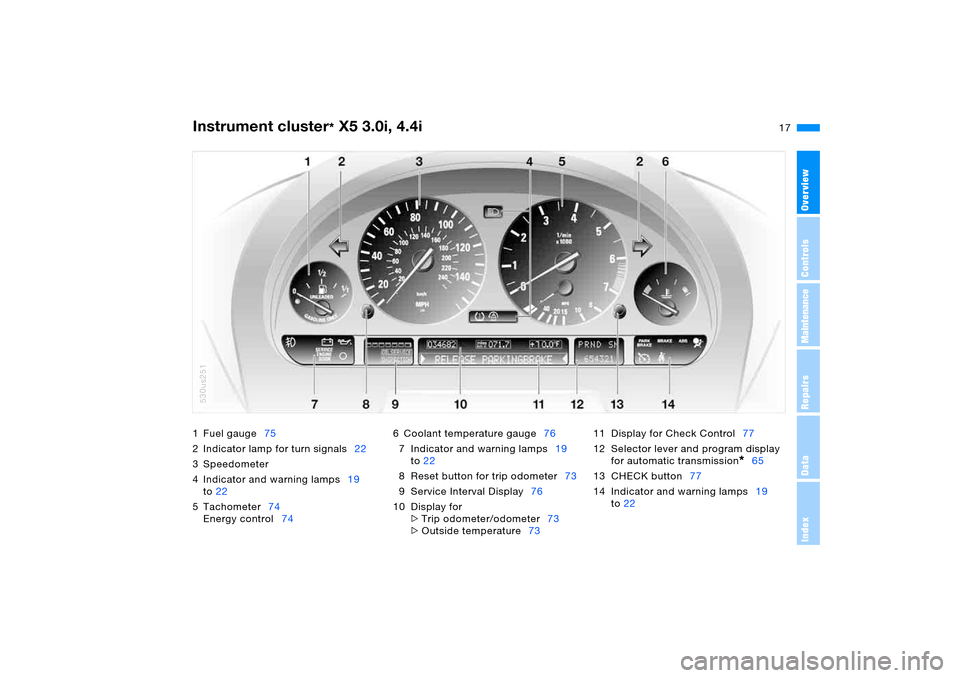

Instrument cluster
* X5 3.0i, 4.4i
1 Fuel gauge75
2 Indicator lamp for turn signals22
3 Speedometer
4 Indicator and warning lamps19
to22
5 Tachometer74
Energy control746 Coolant temperature gauge76
7 Indicator and warning lamps19
to22
8 Reset button for trip odometer73
9 Service Interval Display76
10 Display for
>Trip odometer/odometer73
>Outside temperature7311 Display for Check Control77
12 Selector lever and program display
for automatic transmission
*
65
13 CHECK button77
14 Indicator and warning lamps19
to22
530us251

18n

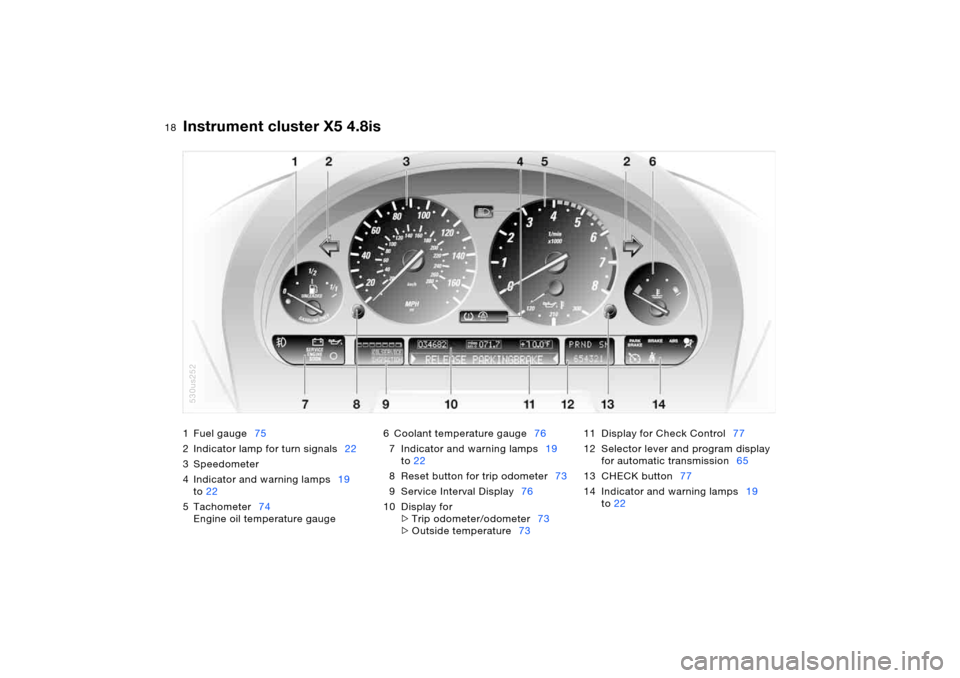

Instrument cluster X5 4.8is 1 Fuel gauge75
2 Indicator lamp for turn signals22
3 Speedometer
4 Indicator and warning lamps19
to22
5 Tachometer74
Engine oil temperature gauge6 Coolant temperature gauge76
7 Indicator and warning lamps19
to22
8 Reset button for trip odometer73
9 Service Interval Display76
10 Display for
>Trip odometer/odometer73
>Outside temperature7311 Display for Check Control77
12 Selector lever and program display
for automatic transmission65
13 CHECK button77
14 Indicator and warning lamps19
to22
530us252

19n
OverviewControlsMaintenanceRepairsDataIndex

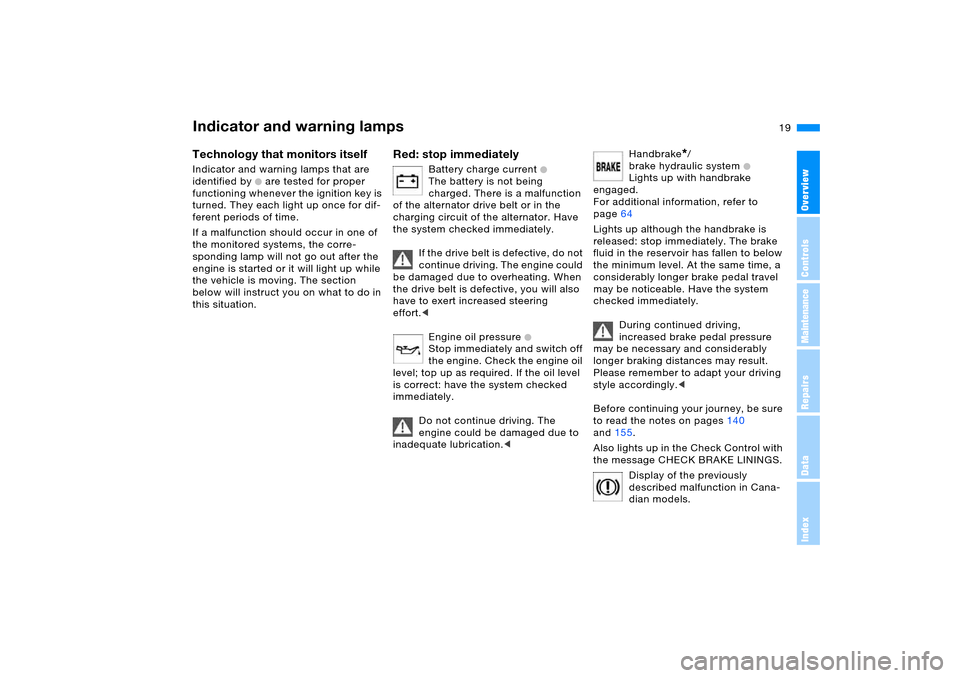

Indicator and warning lamps Technology that monitors itself Indicator and warning lamps that are
identified by
+ are tested for proper
functioning whenever the ignition key is
turned. They each light up once for dif-
ferent periods of time.
If a malfunction should occur in one of
the monitored systems, the corre-
sponding lamp will not go out after the
engine is started or it will light up while
the vehicle is moving. The section
below will instruct you on what to do in
this situation.
Red: stop immediately
Battery charge current
+
The battery is not being
charged. There is a malfunction
of the alternator drive belt or in the
charging circuit of the alternator. Have
the system checked immediately.
If the drive belt is defective, do not
continue driving. The engine could
be damaged due to overheating. When
the drive belt is defective, you will also
have to exert increased steering
effort.<
Engine oil pressure
+
Stop immediately and switch off
the engine. Check the engine oil
level; top up as required. If the oil level
is correct: have the system checked
immediately.
Do not continue driving. The
engine could be damaged due to
inadequate lubrication.<
Handbrake
*/
brake hydraulic system
+
Lights up with handbrake
engaged.
For additional information, refer to
page64
Lights up although the handbrake is
released: stop immediately. The brake
fluid in the reservoir has fallen to below
the minimum level. At the same time, a
considerably longer brake pedal travel
may be noticeable. Have the system
checked immediately.
During continued driving,
increased brake pedal pressure
may be necessary and considerably
longer braking distances may result.
Please remember to adapt your driving
style accordingly.<
Before continuing your journey, be sure
to read the notes on pages140
and155.
Also lights up in the Check Control with
the message CHECK BRAKE LININGS.
Display of the previously
described malfunction in Cana-
dian models.

20n

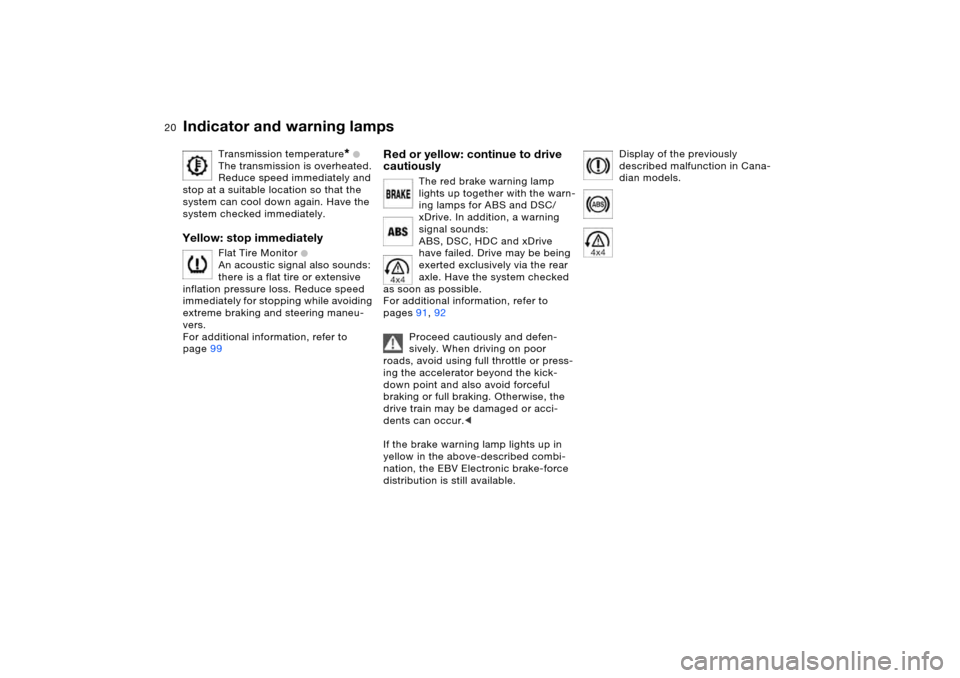

Indicator and warning lamps
Transmission temperature
* +
The transmission is overheated.
Reduce speed immediately and
stop at a suitable location so that the
system can cool down again. Have the
system checked immediately.
Yellow: stop immediately
Flat Tire Monitor
+
An acoustic signal also sounds:
there is a flat tire or extensive
inflation pressure loss. Reduce speed
immediately for stopping while avoiding
extreme braking and steering maneu-
vers.
For additional information, refer to
page99
Red or yellow: continue to drive
cautiously
The red brake warning lamp
lights up together with the warn-
ing lamps for ABS and DSC/
xDrive. In addition, a warning
signal sounds:
ABS, DSC, HDC and xDrive
have failed. Drive may be being
exerted exclusively via the rear
axle. Have the system checked
as soon as possible.
For additional information, refer to
pages91, 92
Proceed cautiously and defen-
sively. When driving on poor
roads, avoid using full throttle or press-
ing the accelerator beyond the kick-
down point and also avoid forceful
braking or full braking. Otherwise, the
drive train may be damaged or acci-
dents can occur.<
If the brake warning lamp lights up in
yellow in the above-described combi-
nation, the EBV Electronic brake-force
distribution is still available.
Display of the previously
described malfunction in Cana-
dian models.
