Page 10 of 202
10n
NotesBMW cannot test every product on the
market to determine whether it can be
used on a BMW safely and without risk
to either the vehicle, its operation, or its
occupants.
Genuine BMW Parts, BMW Accessories
and other products approved by BMW,
together with professional advice on
using these items, are available from all
BMW Sports Activity Vehicle centers.
Installation and operation of non-BMW
approved accessories such as alarms,
radios, amplifiers, radar detectors,
wheels, suspension components, brake
dust shields, telephones – including
operation of any mobile phone from
within the vehicle without using an
externally mounted antenna – or trans-
ceiver equipment such as CBs, walkie-
talkies, ham radios or similar accesso-
ries, may cause extensive damage to
the vehicle, compromise its safety,
interfere with the vehicle's electrical
system or affect the validity of the BMW
Limited Warranty. Refer to your BMW
Sports Activity Vehicle center for addi-
tional information.< Maintenance, replacement, or
repair of the emission control
devices and systems may be performed
by any automotive repair establishment
or individual using any certified auto-
motive part.<
Symbol on vehicle parts
Indicates that you should consult
the relevant section of this
Owner's Manual for information on a
particular part or assembly.
Service and WarrantyThis manual is supplemented by a Ser-
vice and Warranty Information Booklet
for US models or a Warranty and Ser-
vice Guide Booklet for Canadian mod-
els.
We recommend that you read this pub-
lication thoroughly.
Your BMW is covered by the following
warranties:
>New Vehicle Limited Warranty
>Rust Perforation Limited Warranty
>Federal Emissions System Defect
Warranty
>Federal Emissions Performance
Warranty
>California Emissions Control System
Limited Warranty
Detailed information about these war-
ranties is listed in the Service and War-
ranty Information Booklet for US mod-
els or in the Warranty and Service
Guide Booklet for Canadian models.
Page 23 of 202
23n
OverviewControlsMaintenanceRepairsDataIndex

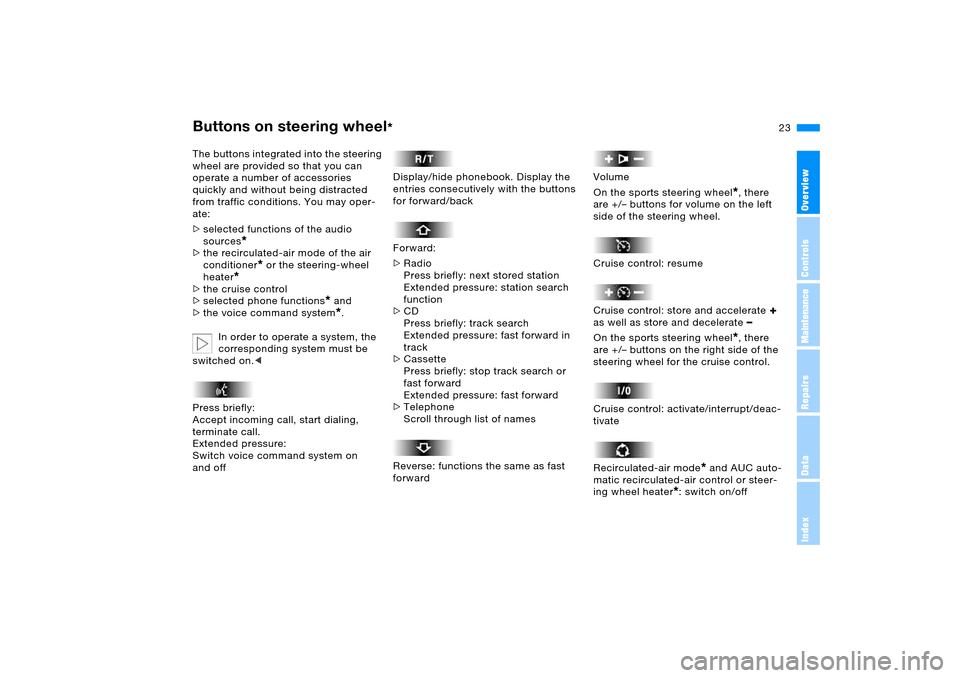

Buttons on steering wheel
*
The buttons integrated into the steering
wheel are provided so that you can
operate a number of accessories
quickly and without being distracted
from traffic conditions. You may oper-
ate:
>selected functions of the audio
sources
*
>the recirculated-air mode of the air
conditioner
* or the steering-wheel
heater
*
>the cruise control
>selected phone functions
* and
>the voice command system*.
In order to operate a system, the
corresponding system must be
switched on.<
Press briefly:
Accept incoming call, start dialing,
terminate call.
Extended pressure:
Switch voice command system on
and off
Display/hide phonebook. Display the
entries consecutively with the buttons
for forward/back
Forward:
>Radio
Press briefly: next stored station
Extended pressure: station search
function
>CD
Press briefly: track search
Extended pressure: fast forward in
track
>Cassette
Press briefly: stop track search or
fast forward
Extended pressure: fast forward
>Telephone
Scroll through list of names
Reverse: functions the same as fast
forward
Volume
On the sports steering wheel
*, there
are +/– buttons for volume on the left
side of the steering wheel.
Cruise control: resume
Cruise control: store and accelerate
+
as well as store and decelerate
–
On the sports steering wheel
*, there
are +/– buttons on the right side of the
steering wheel for the cruise control.
Cruise control: activate/interrupt/deac-
tivate
Recirculated-air mode
* and AUC auto-
matic recirculated-air control or steer-
ing wheel heater
*: switch on/off
Page 32 of 202
32n

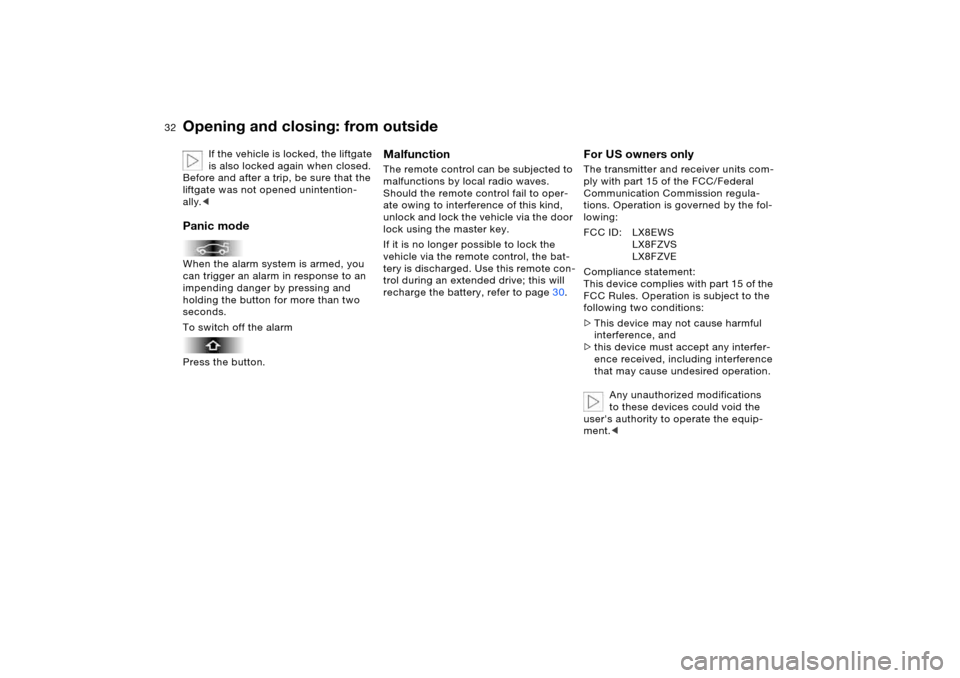

Opening and closing: from outside
If the vehicle is locked, the liftgate
is also locked again when closed.
Before and after a trip, be sure that the
liftgate was not opened unintention-
ally.<
Panic modeWhen the alarm system is armed, you
can trigger an alarm in response to an
impending danger by pressing and
holding the button for more than two
seconds.
To switch off the alarm
Press the button.
Malfunction The remote control can be subjected to
malfunctions by local radio waves.
Should the remote control fail to oper-
ate owing to interference of this kind,
unlock and lock the vehicle via the door
lock using the master key.
If it is no longer possible to lock the
vehicle via the remote control, the bat-
tery is discharged. Use this remote con-
trol during an extended drive; this will
recharge the battery, refer to page30.
For US owners onlyThe transmitter and receiver units com-
ply with part 15 of the FCC/Federal
Communication Commission regula-
tions. Operation is governed by the fol-
lowing:
FCC ID: LX8EWS
LX8FZVS
LX8FZVE
Compliance statement:
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
>This device may not cause harmful
interference, and
>this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Any unauthorized modifications
to these devices could void the
user's authority to operate the equip-
ment.<
Page 81 of 202
81n
OverviewControlsMaintenanceRepairsDataIndex
MID Multi-Information Display Central display The MID is used for centralized display
and operation for the following onboard
systems:
>Digital clock, e.g. time display, date
>Audio systems: radio, cassette, CD
>Computer, e.g. fuel consumption,
cruising range
>Telephone, e.g. dialing
You will find notes and instructions for
operating the digital clock and the com-
puter on the following pages. Please
refer to the separate Owner's Manuals
for operating the audio systems, the
telephone and the onboard computer.
Any unrealistic numerical entries
will not be accepted.
All stored data will be lost if the power
supply is interrupted. Time display,
switch-on times for parked car ventila-
tion, distance and cruise control speed
limit may have to be reset once the
power supply has been reestablished.<
1 Function button for audio systems
2 Function button for the telephone
3 LED for parked car ventilation
>remains on if switch-on time is
active
>flashes while operating
4 Function button for the digital clock
and computer
5 Indicator display for the various
onboard systems390us705
6 Display for the entry and request but-
tons. Depending on the operating
mode, the functions and options that
can be selected with the buttons are
displayed here
7 Entry and request buttons for operat-
ing the various onboard systems
Page 188 of 202
Everything from A to ZCargo area124
capacity182
cover, refer to Roll-up
cover125
emergency operation,
refer to Unlocking
manually35,36
enlarging124
floor cover127
lamps103
lid, refer to Liftgate/
tailgate35,36
opening, remote control31
opening/closing, refer to
Liftgate35
opening/closing, refer to
Tailgate36
opening from inside35
opening from outside35
Cargo-area partition net125
Cargo bay, refer to Cargo
area124
Cargo floor, pull-out128
Cargo loading130
Caring for leather, refer to
Caring for your vehicle
brochure
Caring for the carpet, refer to
Caring for your vehicle
brochure
Car keys, refer to Keys30Car phone, refer to separate
Owner's Manual
Car phone provision116
Car radio, refer to Owner's
Manual for Radio/Onboard
Computer
Car wash, refer to Caring for
your vehicle brochure
Cassette operation, refer to
Owner's Manual for Radio/
Onboard Computer
CD changer, refer to Owner's
Manual for Radio/Onboard
Computer
CD operation, refer to
Owner's Manual for Radio/
Onboard Computer
Center armrest, refer to
Storage
compartments119
Center brake lamp, replacing
bulbs164
Central locking system30
interior34
Changes, technical, refer to
For your own safety9
Changing a wheel165
Changing gears with
automatic transmission
with Steptronic66
Changing tires145Changing wheels
compact wheel167
spare wheel167
Charge-current indicator
lamp19
Charging battery171
CHECK button77
Check Control77
Child's seat, refer to Child-
restraint systems57
Child-restraint fixing system
LATCH59
Child-restraint systems57
Child-safety locks60
Chocks166
Chrome parts, care, refer to
Caring for your vehicle
brochure
Cigarette lighter121,122
Cigarette lighter socket, refer
to Socket121
Circulation of air, refer to
Recirculated-air
mode105,110
Cleaning, vehicle, refer to
Caring for your vehicle
brochure
Cleaning rear window71
Climate control in the rear
passenger area111Clock82
12 or 24-hour mode82
hour signal83
setting82
setting, also refer to
Owner's Manual for Radio/
Onboard Computer
setting time and date82
Closing
from inside34
from outside31
Clothes hooks120
Clutch136
breaking-in136
Cockpit14
Code
activating88
deactivating89
establishing88
Cold starting, refer to
Starting engine63
Combination of wheels/
tires148
Comfort seat46
Comfort starting, refer to
Starting engine63
Compact Disc operation,
refer to Owner's Manual
for Radio/Onboard
Computer
Compact wheel, changing
wheels167
Page 190 of 202
Everything from A to ZDivided rear seat backrest,
refer to Folding rear seat
back124
Door keys30
Door lock33
DOT Quality Grades145
Draft-free
ventilation106,111
Driving lamps, refer to
Parking lamps/low
beams100
Driving notes
breaking-in136
driving hints137,138
Driving on poor roads138
Driving stability control92
Driving tips, refer to Driving
notes137
Driving your X5138
Dry air, refer to Air
conditioning105,110
DSC Dynamic Stability
Control92
warning lamp22
DVD changer, refer to
Owner's Manual for Radio/
Onboard Computer
Dynamic Brake Control
DBC91
indicator lamp21Dynamic Stability Control
DSC92
warning lamp22
E
EBV Electronic brake-force
distribution91
Electrical defect
liftgate35
tailgate36
Electrical malfunction
automatic transmission
with Steptronic67
door lock33
driver's door33
fuel filler door24
panorama glass roof42
Electric steering wheel
adjustment52
Electronic brake-force distri-
bution EBV91
Electronic Stability Program
ESP, refer to DSC Dynamic
Stability Control92
Emergency call173
Emergency operation, refer
to Manual operation
driver's door33
fuel filler door24
liftgate35
panorama glass roof42
tailgate36Emergency Service, refer to
Roadside Assistance173
Energy-conscious driving,
refer to Energy control74
Energy control74
Engine
breaking-in136
data180
electronic circuitry22
overheated, refer to
Coolant temperature
gauge76
speed74
starting62
switching off63
Engine compartment151
Engine coolant154
Engine oil152
additives, refer to
Specified engine oils153
filling capacity183
indicator/warning lamp19
specified engine oils153
Engine oil level152
indicator/warning lamp21
Engine oil pressure,
indicator/warning lamp19
Engine oil temperature
gauge75
Engine output, refer to
Engine specifications180Engine overheating, refer to
Coolant temperature
gauge76
Engine specifications180
Engine speed, refer to
Engine specifications180
Environmentally friendly
driving, refer to Energy
control74
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control92
Event Data Recorders157
Exhaust system137
Extended immobilizer
function88
Exterior mirrors53
automatic dimming
feature138
folding in and out54
External air, automatic
climate control110
F
Failure messages, refer to
Check Control77
Failure of a current
consumer172
False alarms, refer to
Avoiding unintentional
alarms39

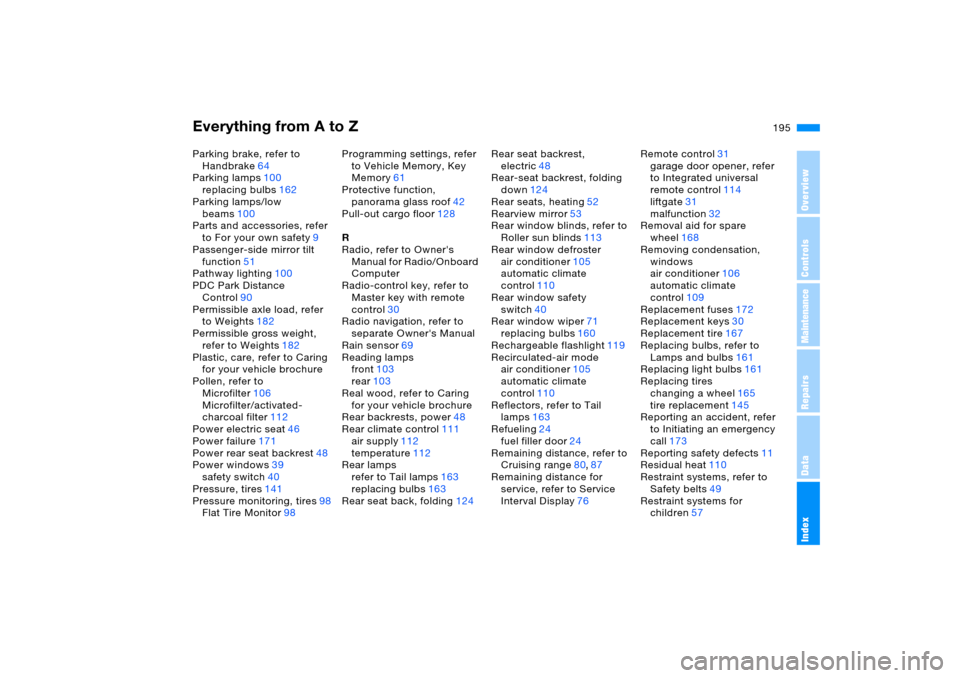

Page 195 of 202
Everything from A to Z
195n
OverviewControlsMaintenanceRepairsDataIndex
Parking brake, refer to
Handbrake64
Parking lamps100
replacing bulbs162
Parking lamps/low
beams100
Parts and accessories, refer
to For your own safety9
Passenger-side mirror tilt
function51
Pathway lighting100
PDC Park Distance
Control90
Permissible axle load, refer
to Weights182
Permissible gross weight,
refer to Weights182
Plastic, care, refer to Caring
for your vehicle brochure
Pollen, refer to
Microfilter106
Microfilter/activated-
charcoal filter112
Power electric seat46
Power failure171
Power rear seat backrest48
Power windows39
safety switch40
Pressure, tires141
Pressure monitoring, tires98
Flat Tire Monitor98Programming settings, refer
to Vehicle Memory, Key
Memory61
Protective function,
panorama glass roof42
Pull-out cargo floor128
R
Radio, refer to Owner's
Manual for Radio/Onboard
Computer
Radio-control key, refer to
Master key with remote
control30
Radio navigation, refer to
separate Owner's Manual
Rain sensor69
Reading lamps
front103
rear103
Real wood, refer to Caring
for your vehicle brochure
Rear backrests, power48
Rear climate control111
air supply112
temperature112
Rear lamps
refer to Tail lamps163
replacing bulbs163
Rear seat back, folding124Rear seat backrest,
electric48
Rear-seat backrest, folding
down124
Rear seats, heating
52
Rearview mirror53
Rear window blinds, refer to
Roller sun blinds113
Rear window defroster
air conditioner105
automatic climate
control110
Rear window safety
switch40
Rear window wiper71
replacing bulbs160
Rechargeable flashlight119
Recirculated-air mode
air conditioner105
automatic climate
control110
Reflectors, refer to Tail
lamps163
Refueling24
fuel filler door24
Remaining distance, refer to
Cruising range80,87
Remaining distance for
service, refer to Service
Interval Display76Remote control31
garage door opener, refer
to Integrated universal
remote control114
liftgate31
malfunction32
Removal aid for spare
wheel168
Removing condensation,
windows
air conditioner106
automatic climate
control109
Replacement fuses172
Replacement keys30
Replacement tire167
Replacing bulbs, refer to
Lamps and bulbs161
Replacing light bulbs161
Replacing tires
changing a wheel165
tire replacement145
Reporting an accident, refer
to Initiating an emergency
call173
Reporting safety defects11
Residual heat110
Restraint systems, refer to
Safety belts49
Restraint systems for
children57
