Code garage BMW X5 3.0Si 2010 E70 Owner's Manual

Controls
115Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility

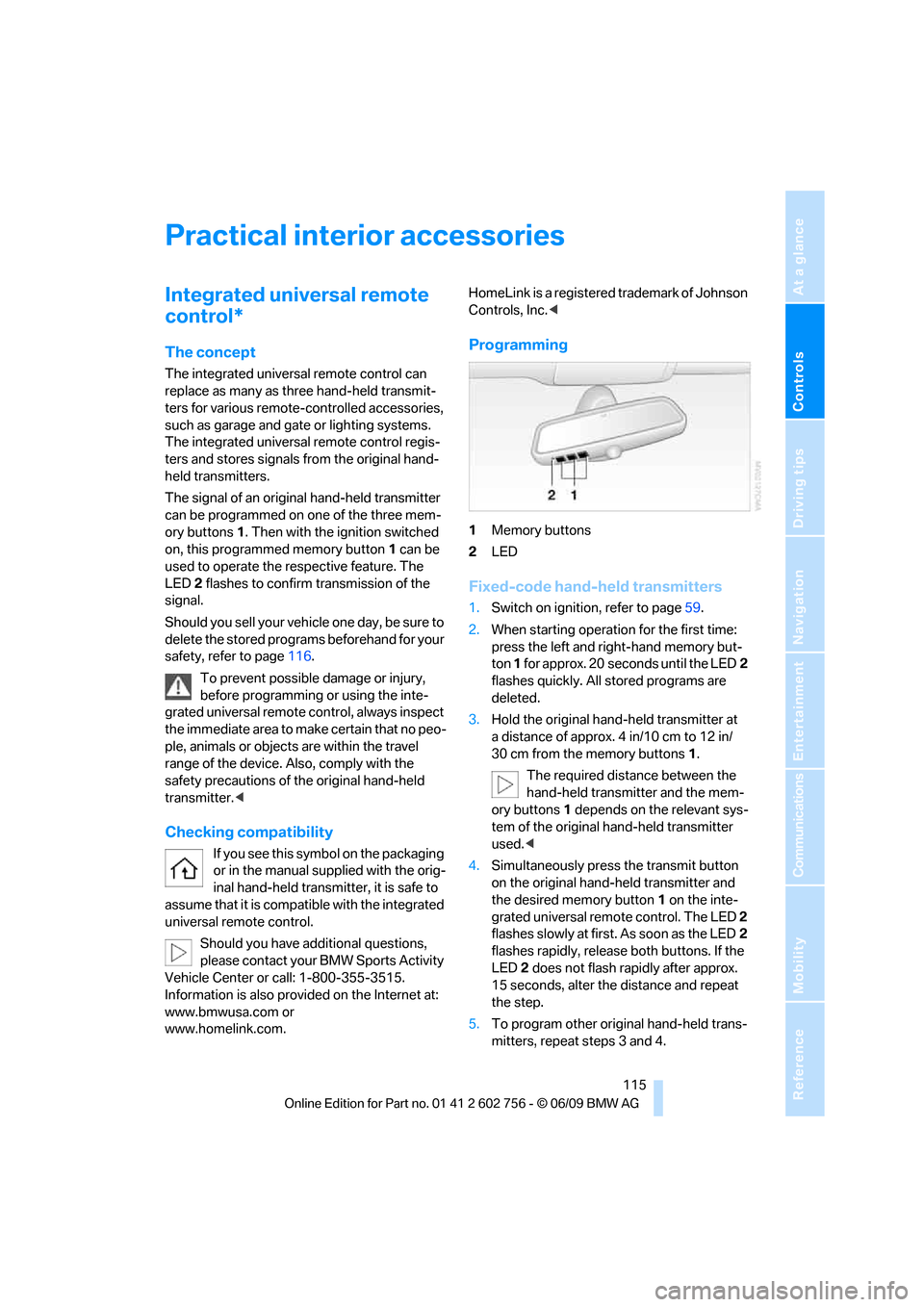

Practical interior accessories
Integrated universal remote
control*
The concept
The integrated universal remote control can
replace as many as three hand-held transmit-
ters for various remote-controlled accessories,
such as garage and gate or lighting systems.
The integrated universal remote control regis-
ters and stores signals from the original hand-
held transmitters.
The signal of an original hand-held transmitter
can be programmed on one of the three mem-
ory buttons1. Then with the ignition switched
on, this programmed memory button1 can be
used to operate the respective feature. The
LED2 flashes to confirm transmission of the
signal.
Should you sell your vehicle one day, be sure to
delete the stored programs beforehand for your
safety, refer to page116.
To prevent possible damage or injury,
before programming or using the inte-
grated universal remote control, always inspect
the immediate area to make certain that no peo-
ple, animals or objects are within the travel
range of the device. Also, comply with the
safety precautions of the original hand-held
transmitter.<
Checking compatibility
If you see this symbol on the packaging
or in the manual supplied with the orig-
inal hand-held transmitter, it is safe to
assume that it is compatible with the integrated
universal remote control.
Should you have additional questions,
please contact your BMW Sports Activity
Vehicle Center or call: 1-800-355-3515.
Information is also provided on the Internet at:
www.bmwusa.com or
www.homelink.com.HomeLink is a registered trademark of Johnson
Controls, Inc.<
Programming
1Memory buttons
2LED
Fixed-code hand-held transmitters
1.Switch on ignition, refer to page59.
2.When starting operation for the first time:
press the left and right-hand memory but-
ton 1 for approx. 20 seconds until the LED2
flashes quickly. All stored programs are
deleted.
3.Hold the original hand-held transmitter at
a distance of approx. 4 in/10 cm to 12 in/
30 cm from the memory buttons1.
The required distance between the
hand-held transmitter and the mem-
ory buttons1 depends on the relevant sys-
tem of the original hand-held transmitter
used.<
4.Simultaneously press the transmit button
on the original hand-held transmitter and
the desired memory button1 on the inte-
grated universal remote control. The LED 2
flashes slowly at first. As soon as the LED2
flashes rapidly, release both buttons. If the
LED2 does not flash rapidly after approx.
15 seconds, alter the distance and repeat
the step.
5.To program other original hand-held trans-
mitters, repeat steps 3 and 4.
ba8_e70ag.book Seite 115 Freitag, 5. Juni 2009 11:42 11

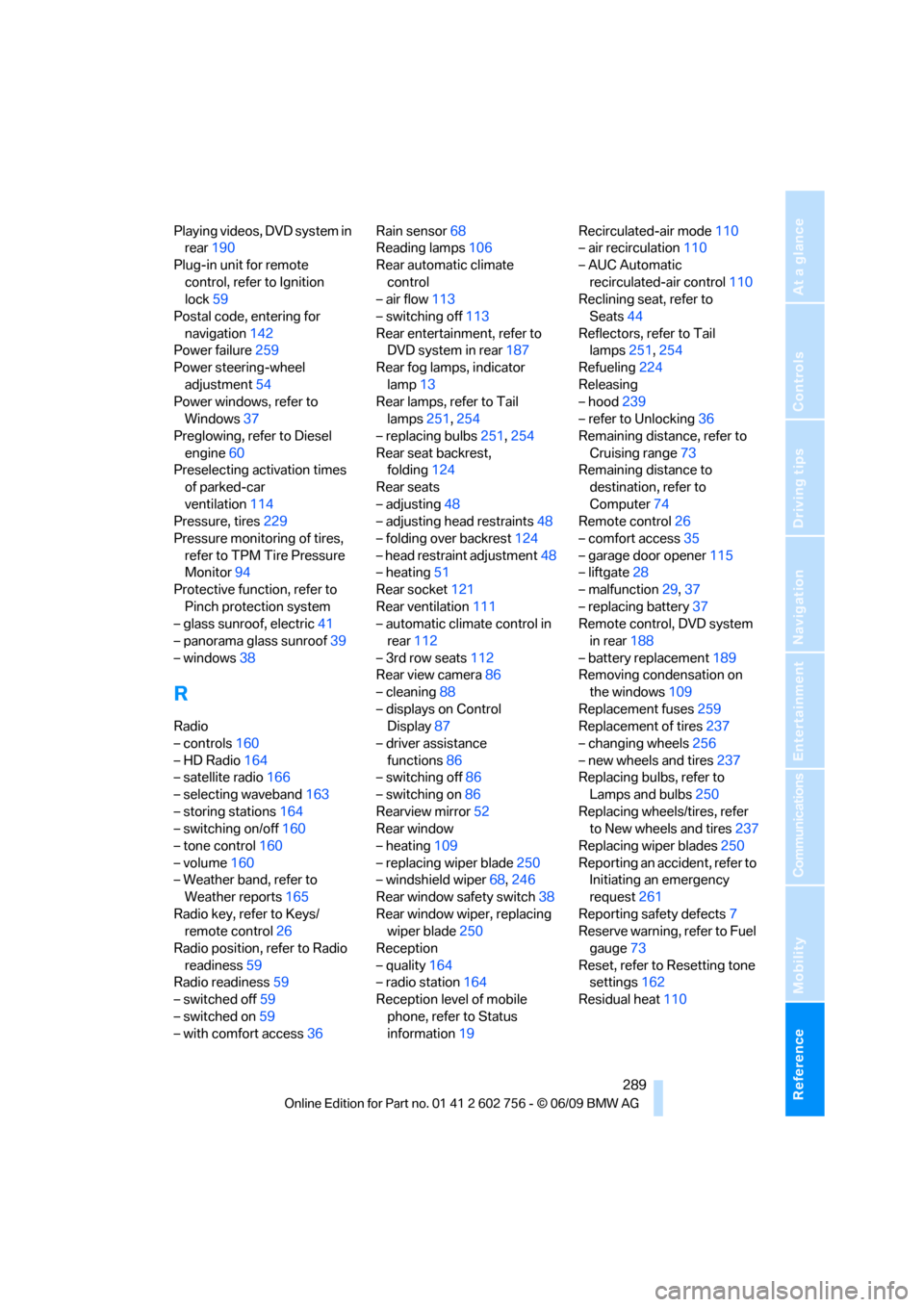

Reference 289
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Playing videos, DVD system in
rear190
Plug-in unit for remote
control, refer to Ignition
lock59
Postal code, entering for
navigation142
Power failure259
Power steering-wheel
adjustment54
Power windows, refer to
Windows37
Preglowing, refer to Diesel
engine60
Preselecting activation times
of parked-car
ventilation114
Pressure, tires229
Pressure monitoring of tires,
refer to TPM Tire Pressure
Monitor94
Protective function, refer to
Pinch protection system
– glass sunroof, electric41
– panorama glass sunroof39
– windows38
R
Radio
– controls160
– HD Radio164
– satellite radio166
– selecting waveband163
– storing stations164
– switching on/off160
– tone control160
– volume160
– Weather band, refer to
Weather reports165
Radio key, refer to Keys/
remote control26
Radio position, refer to Radio
readiness59
Radio readiness59
– switched off59
– switched on59
– with comfort access36Rain sensor68
Reading lamps106
Rear automatic climate
control
– air flow113
– switching off113
Rear entertainment, refer to
DVD system in rear187
Rear fog lamps, indicator
lamp13
Rear lamps, refer to Tail
lamps251,254
– replacing bulbs251,254
Rear seat backrest,
folding124
Rear seats
– adjusting48
– adjusting head restraints48
– folding over backrest124
– head restraint adjustment48
– heating51
Rear socket121
Rear ventilation111
– automatic climate control in
rear112
– 3rd row seats112
Rear view camera86
– cleaning88
– displays on Control
Display87
– driver assistance
functions86
– switching off86
– switching on86
Rearview mirror52
Rear window
– heating109
– replacing wiper blade
250
– windshield wiper68,246
Rear window safety switch38
Rear window wiper, replacing
wiper blade250
Reception
– quality164
– radio station164
Reception level of mobile
phone, refer to Status
information19Recirculated-air mode110
– air recirculation110
– AUC Automatic
recirculated-air control110
Reclining seat, refer to
Seats44
Reflectors, refer to Tail
lamps251,254
Refueling224
Releasing
– hood239
– refer to Unlocking36
Remaining distance, refer to
Cruising range73
Remaining distance to
destination, refer to
Computer74
Remote control26
– comfort access35
– garage door opener115
– liftgate28
– malfunction29,37
– replacing battery37
Remote control, DVD system
in rear188
– battery replacement189
Removing condensation on
the windows109
Replacement fuses259
Replacement of tires237
– changing wheels256
– new wheels and tires237
Replacing bulbs, refer to
Lamps and bulbs250
Replacing wheels/tires, refer
to New wheels and tires237
Replacing wiper blades250
Reporting an accident, refer to
Initiating an emergency
request261
Reporting safety defects7
Reserve warning, refer to Fuel
gauge73
Reset, refer to Resetting tone
settings162
Residual heat110
ba8_e70ag.book Seite 289 Freitag, 5. Juni 2009 11:42 11
