BMW X5 4.4I 2002 Owners Manual

171n
OverviewControlsMaintenanceRepairsDataIndex

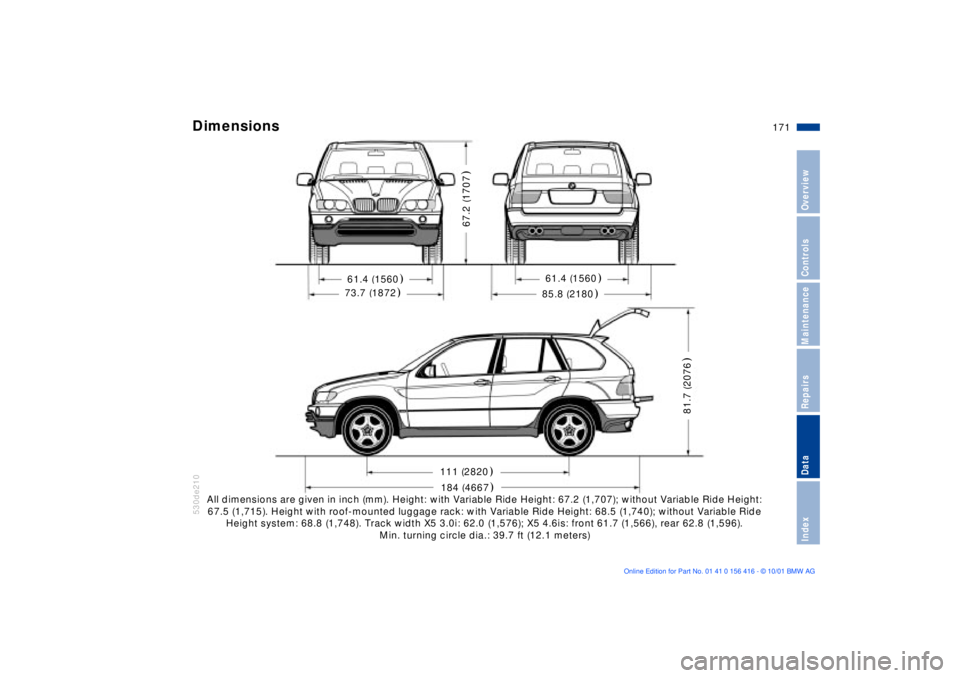

Dimensions
530de210530de210All dimensions are given in inch (mm). Height: with Variable Ride Height: 67.2 (1,707); without Variable Ride Height:
67.5 (1,715). Height with roof-mounted luggage rack: with Variable Ride Height: 68.5 (1,740); without Variable Ride
Height system: 68.8 (1,748). Track width X5 3.0i: 62.0 (1,576); X5 4.6is: front 61.7 (1,566), rear 62.8 (1,596).
Min. turning circle dia.: 39.7 ft (12.1 meters)
73.7 (1872
)
85.8 (2180
)
61.4 (1560
)
61.4 (1560
)
111 (2820
)
184 (4667
)
67.2 (1707)
81.7 (2076)

172n
Weights BMW X5 3.0i BMW X5 4.4i BMW X5 4.6is
Curb weight (with one person, ready for operation, full tank of fuel, options not included)
with manual transmission
with automatic transmission Ibs (kg)
Ibs (kg)4533 (2056)
4586 (2080) Ð
4824 (2188) Ð
4824 (2188)
Approved gross vehicle weight
with manual transmission
with automatic transmission Ibs (kg)
Ibs (kg)6005 (2724)
6005 (2724) Ð
6005 (2724) Ð
6005 (2724)
Approved front axle load Ibs (kg)
2787 (1264) 2787 (1264) 2787 (1264)
Approved rear axle load Ibs (kg) 3307 (1500) 3307 (1500) 3307 (1500)
Approved roof load capacity Ibs (kg) 220 (100)
Never exceed either the approved axle loads or the gross vehicle weight .
Cargo area capacity cu ft (l) 16.4 Ð 54.4 (465 Ð 1540) Ð according to DIN
69.04 (1955) Ð according to SAE

173n
OverviewControlsMaintenanceRepairsDataIndex
Capacities
Notes
Fuel tank
Reserve gal. (liters)
gal. (liters)approx. 24.6 (approx. 93)
approx. 2.0 (approx. 8) Ð
BMW X5 3.0i
approx. 2.5 (approx. 10) Ð
BMW X5 4.4i, 4.6isFuel specification: page 25
Windshield washer system
with headlamp washer system quarts (liters) approx. 8.2 (approx. 7.8) For details: page 143
Cooling system including
heater circuit quarts (liters) 11.1 (10.5) Ð BMW X5 3.0i
13.7 (13.0) Ð BMW X5 4.4i, 4.6isFor details: page 145
Engine oil and filter change quarts (liters) 8.0 (7.5) Ð BMW X5 3.0i
8.5 (8.0) Ð BMW X5 4.4i, 4.6is"BMW High Performance
Synthetic Oil"
For details: page 144
Manual and automatic transmission,
transfer box and differential Ð Ð Lifetime fluid, no fluid
change required

174n

175n
OverviewControlsMaintenanceRepairsDataIndex
Overview
Controls and features
Operation, maintenance
Owner service procedures
Index Technical data
Index

Everything from A to ZAABS (Antilock Brake
System)19, 134
Accessories10
Activated-charcoal
filter111
Adaptive brake light99
Adding
brake fluid146t
coolant145t
engine oil143t
washer fluid143t
Adjusting
head restraints47
mirrors53
seats44
steering wheel52
thigh support45
Air conditioner103
Air distribution104, 108
Air outlets103, 106
Air supply104, 108
Airbags19, 55
Alarm system39
Antifreeze145
Antilock Brake System
(ABS)19, 134
Anti-theft system32
Approved gross vehicle
weight172
Aquaplaning134, 136Arrival time88
Ashtray
front118
rear119
AUC (Automatic
recirculated-air
control)109
Automatic climate
control106
removing condensation
from the windows108
Automatic cruise control71
Automatic curb monitor51
Automatic dimming
exterior rearview
mirrors54
interior rearview mirror54
Automatic headlight
control100
Automatic recirculated-air
control (AUC)109
Automatic steering wheel
adjustment52
Automatic transmission with
Steptronic66
Average fuel
consumption80
Average speed80, 89
Avoiding unintentional
alarms40t
Axle loads172
BBackup lamps65
bulb replacement155t
Battery162
charge162
discharged164t
Battery charge indicator
lamp18
Belts49
Beverage holder117
Blower104, 108
BMW comfort seat46
BMW High Performance
Synthetic Oil144
BMW Maintenance
System147
BMW sports seat45
BMW Universal
Transmitter113
Brake fluid146
Brake lamps
bulb replacement155t
Brake light, adaptive99
Brake system135
brake fluid146
brake fluid level135
brake pads indicator20
disc brakes135
hydraulic system
indicator18
malfunctions135tBreak-in procedures132
Bulbs and lamps153
CCalifornia Proposition
65 Warning148
Can holder, refer to
beverage holder117
Capacities173
Car care, refer to the "Caring
for your vehicle" manual
Car wash systems, refer to
the "Caring for your
vehicle" manual
Care of upholstery materials,
refer to the "Caring for your
vehicle" manual
Cargo area38, 122
capacity172
cover122
lamps102
Cargo floor, pull-out126
Cargo loading127
Cellular phone117
Center (high-mount) brake
lamp156
Central locking system30
button35
Changing a wheel157t
CHECK button77

Everything from A to Z
177n
OverviewControlsMaintenanceRepairsDataIndex
Check Control77
Check tire pressures26t
Checking
engine oil level144
Child's seat58
Child-restraint systems58
Child-safety locks60
Cigarette lighter
front118
rear119
socket119t
Clean the windshield70
Climate control in the rear
passenger area110
Clock83
refer also to the Owner's
Manual for the Onboard
Computer
Cockpit14
Code89
activating89
deactivating89
selecting89
Comfort seat46
Compartments116
Computer80, 82, 86
refer also to the Owner's
Manual for the Onboard
Computer
remote control90Configuring individual
settings via Vehicle and
Key Memory61
Consumption, fuel88
Convenience operation of
windows and sliding/tilt
sunroof31
Convenience starting
feature63
Coolant145
temperature gauge76
Copyright notice4
Correct sitting posture44
seat adjustment44
Cruise control71
Cruising range80, 88
Cup holder117
Curb weight172
DData link connector for On-
board Diagnostics149
Date
calling up83
changing83
refer also to the Owner's
Manual for the Onboard
Computer
Daytime driving lamp100
DBC (Dynamic Brake
Control)20, 93Deactivating the interior
motion
sensor33t, 40t
Deep water133
Defrosting the
windows105t, 108t
Digital clock83
refer also to the Owner's
Manual for the Onboard
Computer
Dimensions171
Dipstick, engine oil144t
Disc brakes135
Displacement170
Display lighting101
Displays15, 17
Disposal
used batteries162
used oil144t
Distance from
destination87
Distance warning91
Divided rear backrest122
Door keys30
Doors
manual operation31
remote control33
unlocking and locking31
DOT Quality Grades137
Drink holder, refer to
beverage holder117
Driving notes134Driving through water133
Driving your BMW X5133
DSC (Dynamic Stability
Control)20, 92
Dynamic Brake Control
(DBC)20, 93
Dynamic Stability Control
(DSC)20, 92
EElectric power seat46
Electric power windows40
Electrical malfunction
liftgate36t
sliding/tilt sunroof43t
tailgate38t
Elements of operation14
Emergency operation
doors31t
liftgate36t
sliding/tilt sunroof43t
tailgate38t
Energy Control75
Engine
output170
power rating170
specifications170
Engine compartment
essentials142
Engine coolant145

Everything from A to ZEngine oil143t, 144
consumption143
grades144
level19
pressure18
Estimated time of arrival88
Exterior mirrors53
Exterior rearview mirrors,
automatic dimming
feature54FFailure of an electrical
accessory163t
Filling the windshield washer
reservoir143t
First-aid kit23t
Fittings, tow-starting and
towing166t
Flashlight116
Flat tire99, 136, 157t
Fog lamps101
bulb replacement155t
Folding rear backrest122
Footbrake135
Front area lighting102
Front fog lamps101
Front seat adjustment44Frost protection,
radiator145
Fuel25
capacity173
display75
gauge75
quality25
specifications25
Fuel consumption88
average88
Fuel filler door24
electrical malfunction24
Fuses163t
GGarage-door opener113
Gasoline25
General driving notes134
Glasses compartment118
Glove compartment116
Gross vehicle weight172
Ground clearance133HHandbrake64
Hands-free system117
Hazard warning flashers14
Hazard warning triangle23HDC (Hill Descent
Control)94
Head restraints47
Headlamp covers,
care154t
Headlamp flasher69
Headlamp washer
system70, 143
Heated seats51
Heated steering wheel53
Heating and
ventilation103, 106
Heating while stopped110
Heavy cargo127
Height171
Height adjustment
seats46
steering wheel52
High beams21, 101
bulb replacement153t
High-mount brake lamp156
Hill Descent Control
(HDC)94
Holder for cans, refer to
beverage holder117
Hood141t
Hood release141t
Hydraulic Brake Assistant
refer to DBC20
IIce warning74
Identification, tires139
Ignition key30
Ignition lock62
Imprint4
Independent ventilation
system85, 112
switching on and off85
Indicator lamps18
Inflation pressures,
tires136
monitoring98
INSPECTION76
Instrument cluster15, 17
Instrument lighting101
Instrument panel15, 17
Intensive cleaning
system70
Interior lamps102
remote control33
Interior mirror54
Interior motion sensor40
Interior rearview mirror,
automatic dimming
feature54
Interlock62
Intermittent wipe69

Everything from A to Z
179n
OverviewControlsMaintenanceRepairsDataIndex
JJack157, 158, 160
Jump-starting164tKKey Memory61
Keys30
Keys with radio remote
control30
Kickdown mode67LLamps and bulbs153
Lashing eyes38, 127
LATCH child-restraint
system60
Lead-free gasoline25
Length171
License plate lamps
bulb replacement156t
Liftgate36
opening from the
inside36
radio control operation33
release following an
electrical
malfunction36t, 38t
Lighter118
LIGHTS ON warning100
Load-securing devices127
Louvers103, 106Low beams100
automatic100
bulb replacement153t
Low-fuel warning lamp75
Lug bolts160
Lug wrench157t
Luggage net38
Luggage straps38
Lumbar support46
MM+S radial tires140
Maintenance76t, 147t
Maintenance System147
Malfunction displays77t
Manual operation
doors31t
fuel filler door24
liftgate36t
sliding/tilt sunroof43t
tailgate38t
Manual transmission65
Master key30
Maximum cooling109
Mechanical seat45
Memory50
driver's seat50
mirrors50
steering wheel50
Messages concerning
system malfunctions77Microfilter105, 111
MID (Multi-Information
Display)82
digital clock83
Mirror defrosting53
Mirror memory50
Mirrors53
Modifications,
technical10, 148
Monitoring inflation
pressure, tires98
Moonroof42
Multifunction buttons,
steering wheel22
Multi-Information Display
(MID)82
digital clock83
NNavigation system, refer to
the separate Owner's
ManualOOBD interface socket149
Odometer74
Oil
additives144
consumption144t
dipstick144t
grades144Oil change interval, refer to
the Service and Warranty
Information Booklet (US
models) or to the Warranty
and Service Guide Booklet
(Canadian models)
Oil level19
indicator lamp19
Oil pressure, indicator
lamp18
OILSERVICE76
Onboard computer, refer to
the separate Owner's
Manual
Onboard Diagnostic (OBD)
system149
Onboard tool kit152t
Opening and closing
from the inside35
from the outside31
using the key31
using the remote
control32
Outlets, ventilation103, 106
Outside temperature
display74
in the computer80

Everything from A to ZPPark Distance Control
(PDC)91
Parking aid91
Parking brake19, 64
Parking lamps100
Passenger side mirror tilt
function51
PDC (Park Distance
Control)91
"Please fasten safety belt"
warning lamp19
Poor driving conditions133
Power loss
sliding/tilt sunroof43t
Power outlets
flashlight125t
other appliances125t
vacuum cleaner125t
Power rating170
Power rear-seat
backrests48
Power windows40
safety switch41
Pull-out cargo floor126RRain sensor69
RDC (Tire Pressure
Monitor)98
warning lamp18, 20Reading lamps102
Rear backrests, folding
down122
Rear lamps155t
Rear passenger area climate
control110
Rear seats, power48
Rear window
defroster104, 109
Rear window wiper71
blade replacement152t
Rear-seat backrest, folding
down122
Rear-seat backrests,
power48
Rearview mirror53
Rechargeable flashlight116
Recirculated-air
mode104, 109
Reclining seat44
Refueling24, 183
Releasing
hood141t
tailgate following an
electrical
malfunction38t
Reminder signal (Memo)84
Remote control32
computer90
Removal aid for the spare
wheel159tRemoving condensation
from the
windows105t, 108t
Replacing
antifreeze, radiator145t
bulbs153t
fuses163t
tires137t
windshield wiper
blades152t
Reporting Safety Defects11
Reservoir, washer
system143t
Residual heat107, 110
Restraint systems58
Reverse65
Rims139
Roof load capacity172
Roof-mounted luggage
rack128
SSafety belts49
height adjustment49
Safety Defects, reporting11
Safety lock buttons35
Seat adjustment44
Seat belts49
Seat, electric power46
Seat heating51
Seat, mechanical45Seat memory50
Seat, mirror and steering
wheel memory50
Securing cargo38, 127
Selector lever, automatic
transmission66
Service and Warranty
Information Booklet (US
models)147
Service Engine Soon
indicator lamp20
Service Interval
Display76, 147
Set temperature108t
Shiftlock66
Shoulder support47
Side airbags55
Side Impact Head Protection
System55
Side lamps100
bulb replacement154t
Sitting correctly44
Ski bag120
Sliding/tilt sunroof42
closing following an
electrical
malfunction43t
convenience operation31
power loss43t
remote control33
Snow chains140
