101n
OverviewControlsMaintenanceRepairsDataIndex

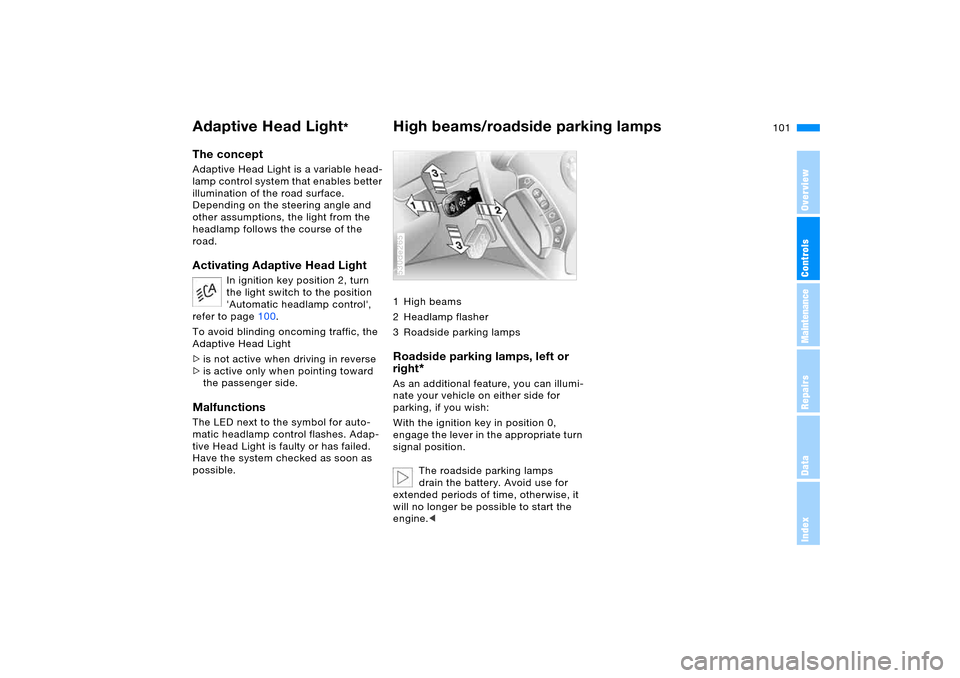

Adaptive Head Light
*
High beams/roadside parking lamps
The concept Adaptive Head Light is a variable head-
lamp control system that enables better
illumination of the road surface.
Depending on the steering angle and
other assumptions, the light from the
headlamp follows the course of the
road.Activating Adaptive Head Light
In ignition key position 2, turn
the light switch to the position
'Automatic headlamp control',
refer to page100.
To avoid blinding oncoming traffic, the
Adaptive Head Light
>is not active when driving in reverse
>is active only when pointing toward
the passenger side.
MalfunctionsThe LED next to the symbol for auto-
matic headlamp control flashes. Adap-
tive Head Light is faulty or has failed.
Have the system checked as soon as
possible.
1High beams
2Headlamp flasher
3 Roadside parking lamps Roadside parking lamps, left or
right
*
As an additional feature, you can illumi-
nate your vehicle on either side for
parking, if you wish:
With the ignition key in position 0,
engage the lever in the appropriate turn
signal position.
The roadside parking lamps
drain the battery. Avoid use for
extended periods of time, otherwise, it
will no longer be possible to start the
engine.<530de265

155n
OverviewControlsMaintenanceRepairsDataIndex

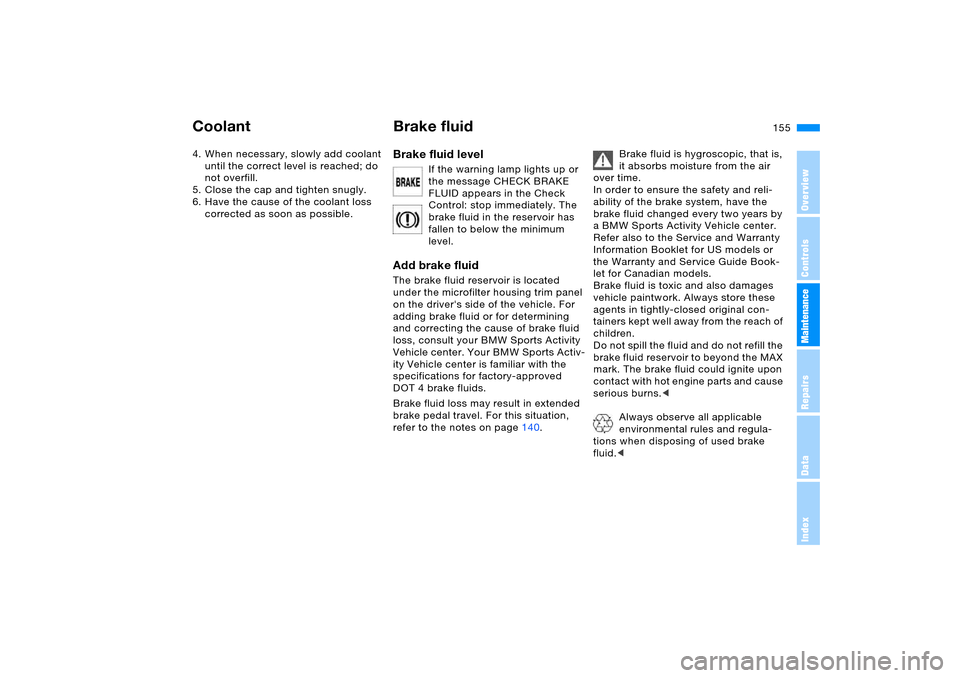

Coolant Brake fluid4. When necessary, slowly add coolant
until the correct level is reached; do
not overfill.
5. Close the cap and tighten snugly.
6. Have the cause of the coolant loss
corrected as soon as possible.
Brake fluid level
If the warning lamp lights up
or
the message CHECK BRAKE
FLUID appears in the Check
Control: stop immediately. The
brake fluid in the reservoir has
fallen to below the minimum
level.
Add brake fluid The brake fluid reservoir is located
under the microfilter housing trim panel
on the driver's side of the vehicle. For
adding brake fluid or for determining
and correcting the cause of brake fluid
loss, consult your BMW Sports Activity
Vehicle center. Your BMW Sports Activ-
ity Vehicle center is familiar with the
specifications for factory-approved
DOT 4 brake fluids.
Brake fluid loss may result in extended
brake pedal travel. For this situation,
refer to the notes on page140.
Brake fluid is hygroscopic, that is,
it absorbs moisture from the air
over time.
In order to ensure the safety and reli-
ability of the brake system, have the
brake fluid changed every two years by
a BMW Sports Activity Vehicle center.
Refer also to the Service and Warranty
Information Booklet for US models or
the Warranty and Service Guide Book-
let for Canadian models.
Brake fluid is toxic and also damages
vehicle paintwork. Always store these
agents in tightly-closed original con-
tainers kept well away from the reach of
children.
Do not spill the fluid and do not refill the
brake fluid reservoir to beyond the MAX
mark. The brake fluid could ignite upon
contact with hot engine parts and cause
serious burns.<
Always observe all applicable
environmental rules and regula-
tions when disposing of used brake
fluid.<

157n
OverviewControlsMaintenanceRepairsDataIndex
OBD interface socketThe interface socket for the Onboard
Diagnostics is located on the left of the
driver's side at the bottom of the instru-
ment cluster and under a cover. The
cover has the letters OBD on it.
The purpose of the OBD system is to
ensure proper operation of the emission
control system for the vehicle's lifetime.
The system monitors emission-related
components and systems for deteriora-
tion and malfunction.
An illuminated indicator lamp
informs you of the need for ser-
vice, not of the need to stop the
vehicle. However, the systems should
be checked by your BMW Sports Activ-
ity Vehicle center at the earliest possi-
ble opportunity. 530us105
Display of the previously
described malfunction in Cana-
dian models.
Under certain conditions, the indicator
lamp will blink or flash. This indicates a
rather severe level of engine misfire.
When this occurs, you should reduce
speed and consult the nearest BMW
Sports Activity Vehicle center as soon
as possible. Severe engine misfire over
only a short period of time can seriously
damage emission control components,
especially the catalytic converter.
When the filler cap is not properly
tightened, the OBD system can
detect the vapor leak and the indicator
lamp will light up. If the filler cap is sub-
sequently tightened, the indicator lamp
should extinguish within a few days.<
Event Data Recorders Your vehicle may be equipped with one
or more sensing and diagnostic mod-
ules or a recording device capable of
recording or transmitting certain vehicle
data or information. In addition, if you
have a Subscription Service Agree-
ment for the BMW Assist system, cer-
tain vehicle information may be trans-
mitted or recorded in order to provide
such services.

Everything from A to ZCargo area124
capacity182
cover, refer to Roll-up
cover125
emergency operation,
refer to Unlocking
manually35,36
enlarging124
floor cover127
lamps103
lid, refer to Liftgate/
tailgate35,36
opening, remote control31
opening/closing, refer to
Liftgate35
opening/closing, refer to
Tailgate36
opening from inside35
opening from outside35
Cargo-area partition net125
Cargo bay, refer to Cargo
area124
Cargo floor, pull-out128
Cargo loading130
Caring for leather, refer to
Caring for your vehicle
brochure
Caring for the carpet, refer to
Caring for your vehicle
brochure
Car keys, refer to Keys30Car phone, refer to separate
Owner's Manual
Car phone provision116
Car radio, refer to Owner's
Manual for Radio/Onboard
Computer
Car wash, refer to Caring for
your vehicle brochure
Cassette operation, refer to
Owner's Manual for Radio/
Onboard Computer
CD changer, refer to Owner's
Manual for Radio/Onboard
Computer
CD operation, refer to
Owner's Manual for Radio/
Onboard Computer
Center armrest, refer to
Storage
compartments119
Center brake lamp, replacing
bulbs164
Central locking system30
interior34
Changes, technical, refer to
For your own safety9
Changing a wheel165
Changing gears with
automatic transmission
with Steptronic66
Changing tires145Changing wheels
compact wheel167
spare wheel167
Charge-current indicator
lamp19
Charging battery171
CHECK button77
Check Control77
Child's seat, refer to Child-
restraint systems57
Child-restraint fixing system
LATCH59
Child-restraint systems57
Child-safety locks60
Chocks166
Chrome parts, care, refer to
Caring for your vehicle
brochure
Cigarette lighter121,122
Cigarette lighter socket, refer
to Socket121
Circulation of air, refer to
Recirculated-air
mode105,110
Cleaning, vehicle, refer to
Caring for your vehicle
brochure
Cleaning rear window71
Climate control in the rear
passenger area111Clock82
12 or 24-hour mode82
hour signal83
setting82
setting, also refer to
Owner's Manual for Radio/
Onboard Computer
setting time and date82
Closing
from inside34
from outside31
Clothes hooks120
Clutch136
breaking-in136
Cockpit14
Code
activating88
deactivating89
establishing88
Cold starting, refer to
Starting engine63
Combination of wheels/
tires148
Comfort seat46
Comfort starting, refer to
Starting engine63
Compact Disc operation,
refer to Owner's Manual
for Radio/Onboard
Computer
Compact wheel, changing
wheels167

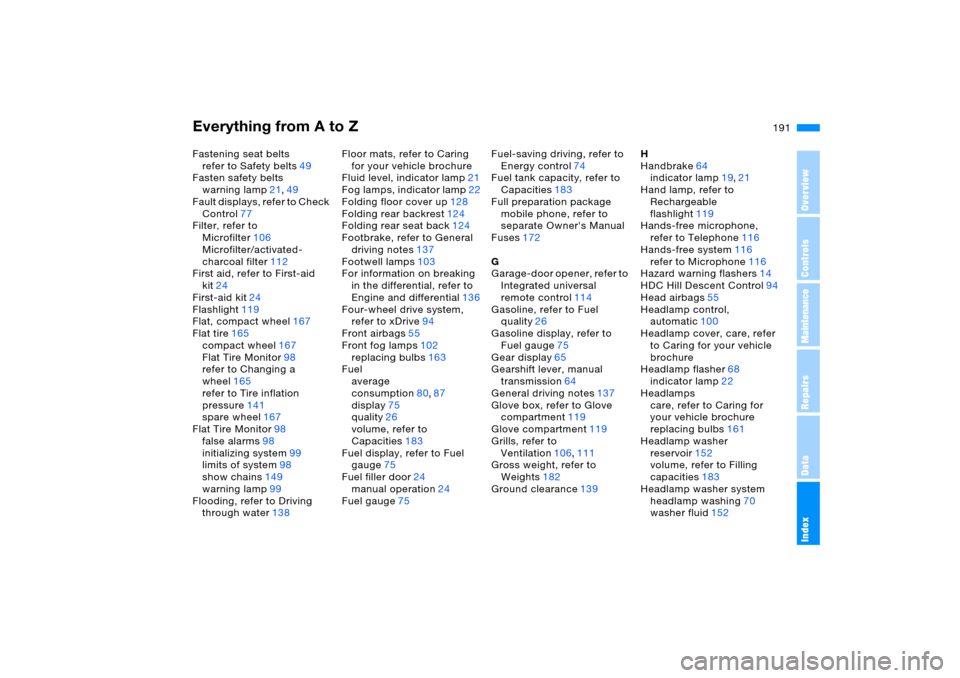

Everything from A to Z
191n
OverviewControlsMaintenanceRepairsDataIndex
Fastening seat belts
refer to Safety belts49
Fasten safety belts
warning lamp21,49
Fault displays, refer to Check
Control77
Filter, refer to
Microfilter106
Microfilter/activated-
charcoal filter112
First aid, refer to First-aid
kit24
First-aid kit24
Flashlight119
Flat, compact wheel167
Flat tire165
compact wheel167
Flat Tire Monitor98
refer to Changing a
wheel165
refer to Tire inflation
pressure141
spare wheel167
Flat Tire Monitor98
false alarms98
initializing system99
limits of system98
show chains149
warning lamp99
Flooding, refer to Driving
through water138Floor mats, refer to Caring
for your vehicle brochure
Fluid level, indicator lamp21
Fog lamps, indicator lamp22
Folding floor cover up128
Folding rear backrest124
Folding rear seat back124
Footbrake, refer to General
driving notes137
Footwell lamps103
For information on breaking
in the differential, refer to
Engine and differential136
Four-wheel drive system,
refer to xDrive94
Front airbags55
Front fog lamps102
replacing bulbs163
Fuel
average
consumption80,87
display75
quality26
volume, refer to
Capacities183
Fuel display, refer to Fuel
gauge75
Fuel filler door24
manual operation24
Fuel gauge75Fuel-saving driving, refer to
Energy control74
Fuel tank capacity, refer to
Capacities183
Full preparation package
mobile phone, refer to
separate Owner's Manual
Fuses172
G
Garage-door opener, refer to
Integrated universal
remote control114
Gasoline, refer to Fuel
quality26
Gasoline display, refer to
Fuel gauge75
Gear display65
Gearshift lever, manual
transmission64
General driving notes137
Glove box, refer to Glove
compartment119
Glove compartment119
Grills, refer to
Ventilation106,111
Gross weight, refer to
Weights182
Ground clearance139H
Handbrake64
indicator lamp19,21
Hand lamp, refer to
Rechargeable
flashlight119
Hands-free microphone,
refer to Telephone116
Hands-free system116
refer to Microphone116
Hazard warning flashers14
HDC Hill Descent Control94
Head airbags55
Headlamp control,
automatic100
Headlamp cover, care, refer
to Caring for your vehicle
brochure
Headlamp flasher68
indicator lamp22
Headlamps
care, refer to Caring for
your vehicle brochure
replacing bulbs161
Headlamp washer
reservoir152
volume, refer to Filling
capacities183
Headlamp washer system
headlamp washing70
washer fluid152
