Page 14 of 272

Cockpit
12
Instrument cluster
1Indicator lamps for turn signals
2Speedometer
3Indicator and warning lamps13
4Tachometer68
5Energy Control68
6Display for
>Clock/date67
>Outside temperature67
>Indicator and warning lamps74
>Speed of cruise control
*647Display for
>Odometer and trip odometer67
>Computer69
>Date and remaining travel distance
for service requirements71
>Automatic transmission positions59
>HDC Hill Descent Control85
> Check Control message present74
>Adaptive Drive
*86
8Fuel gauge68
9Resetting trip odometer67
Displaying service requirement67
Page 95 of 272

Controls
93Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility
Activity Vehicle Center or a workshop that
works according to BMW repair procedures
with correspondingly trained personnel and has
the required explosives licenses. Unprofes-
sional attempts to service the system could
lead to failure in an emergency or undesired air-
bag activation, either of which could result in
personal injury.<
Warnings and information on the airbags is also
provided on the sun visors.
Automatic deactivation of front
passenger airbags
The occupation of the seat is detected by eval-
uating the impression on the occupied seat sur-
face of the front passenger seat. The front and
side airbags on the front passenger side are
activated or deactivated accordingly by the sys-
tem.
The current status of the front passenger
airbags, i.e. deactivated or activated, is
indicated by the indicator lamp over the interior
rearview mirror, refer to Operating state of front
passenger airbags in the following.<
Before transporting a child on the front
passenger seat, observe the safety infor-
mation and handling instructions under Trans-
porting children safely, refer to page52.
The front and side airbags on the front passen-
ger side can be deactivated for teenagers and
adults in certain sitting positions; then the indi-
cator lamp for the front passenger airbags lights
up. In these cases, change the sitting position
so that the front passenger airbags are acti-
vated and the indicator lamp goes out. If the
desired status cannot be produced by changing
the sitting position, transport the correspond-
ing person on the rear seat. Do not fit seat cov-
ers, seat cushion padding, ball mats or other
items onto the front passenger seat unless they
are specifically recommended by BMW. Do not
lay objects under the seat which could press
against the seat from below. Otherwise a cor-
rect evaluation of the occupied seat surface
cannot be ensured.<
Operating state of front passenger
airbags
Depending on the vehicle's equipment, the
arrangement of the switches and indicator
lamps may differ somewhat.
The indicator lamp for the front passenger air-
bags indicates the operating status of the front
and side airbags on the front passenger side
depending on the seat occupation. The indica-
tor lamp shows whether the front passenger
airbags are activated or deactivated.
>The indicator lamp lights up when a child in
a child restraint system intended for the
purpose is properly detected on the seat.
The front and side airbags on the front pas-
senger side are not activated.
>The indicator lamp does not light up when,
for example, a correctly seated person of
sufficient height is detected on the seat.
The front and side airbags on the front pas-
senger side are activated.
>The indicator lamp does not light up when
the seat is empty.
However, the front and side airbags on the
front passenger side are not activated.

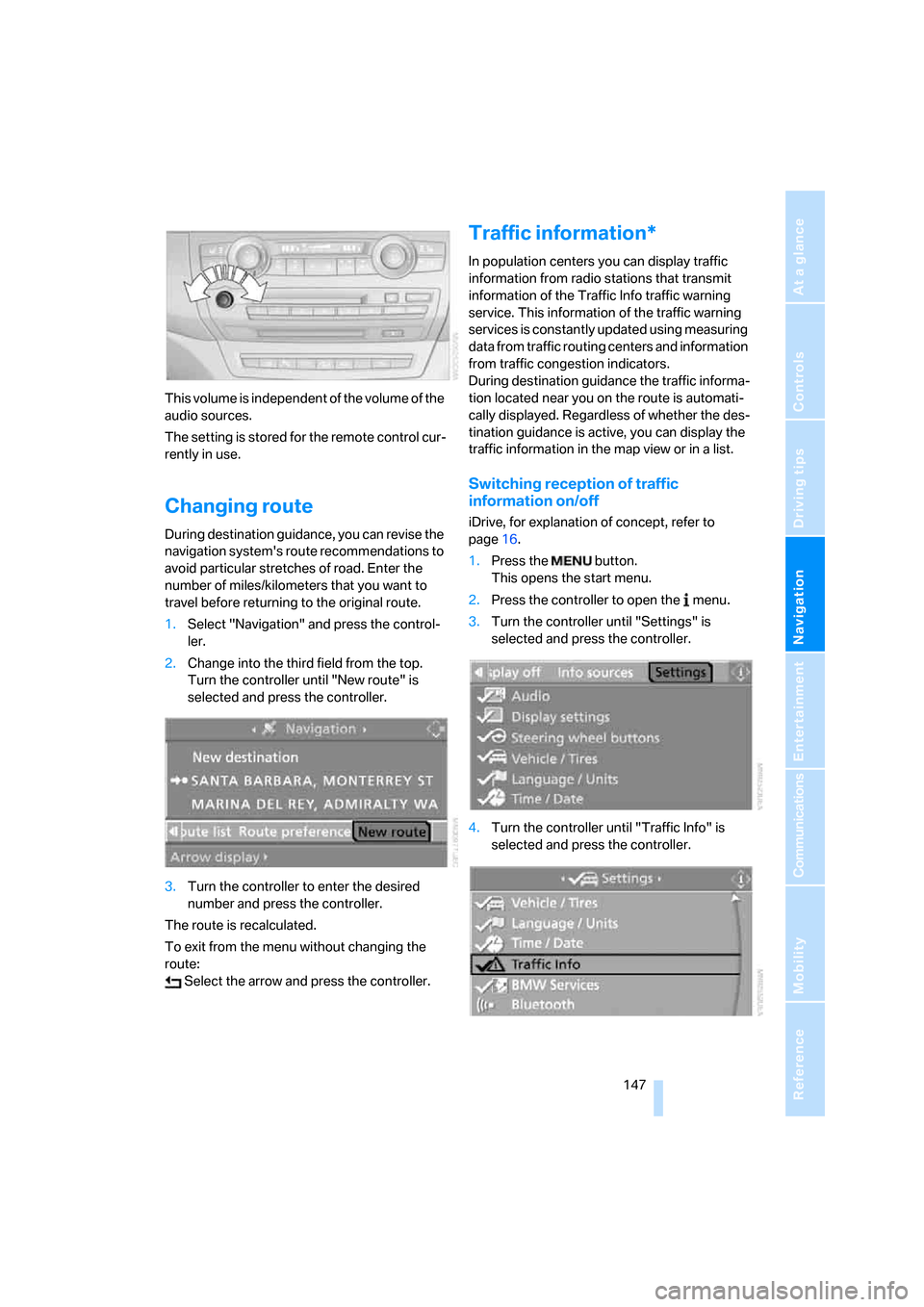

Page 149 of 272

Navigation
Driving tips
147Reference
At a glance
Controls
Communications
Entertainment
Mobility
This volume is independent of the volume of the
audio sources.
The setting is stored for the remote control cur-
rently in use.
Changing route
During destination guidance, you can revise the
navigation system's route recommendations to
avoid particular stretches of road. Enter the
number of miles/kilometers that you want to
travel before returning to the original route.
1.Select "Navigation" and press the control-
ler.
2.Change into the third field from the top.
Turn the controller until "New route" is
selected and press the controller.
3.Turn the controller to enter the desired
number and press the controller.
The route is recalculated.
To exit from the menu without changing the
route:
Select the arrow and press the controller.
Traffic information*
In population centers you can display traffic
information from radio stations that transmit
information of the Traffic Info traffic warning
service. This information of the traffic warning
services is constantly updated using measuring
data from traffic routing centers and information
from traffic congestion indicators.
During destination guidance the traffic informa-
tion located near you on the route is automati-
cally displayed. Regardless of whether the des-
tination guidance is active, you can display the
traffic information in the map view or in a list.
Switching reception of traffic
information on/off
iDrive, for explanation of concept, refer to
page16.
1.Press the button.
This opens the start menu.
2.Press the controller to open the menu.
3.Turn the controller until "Settings" is
selected and press the controller.
4.Turn the controller until "Traffic Info" is
selected and press the controller.

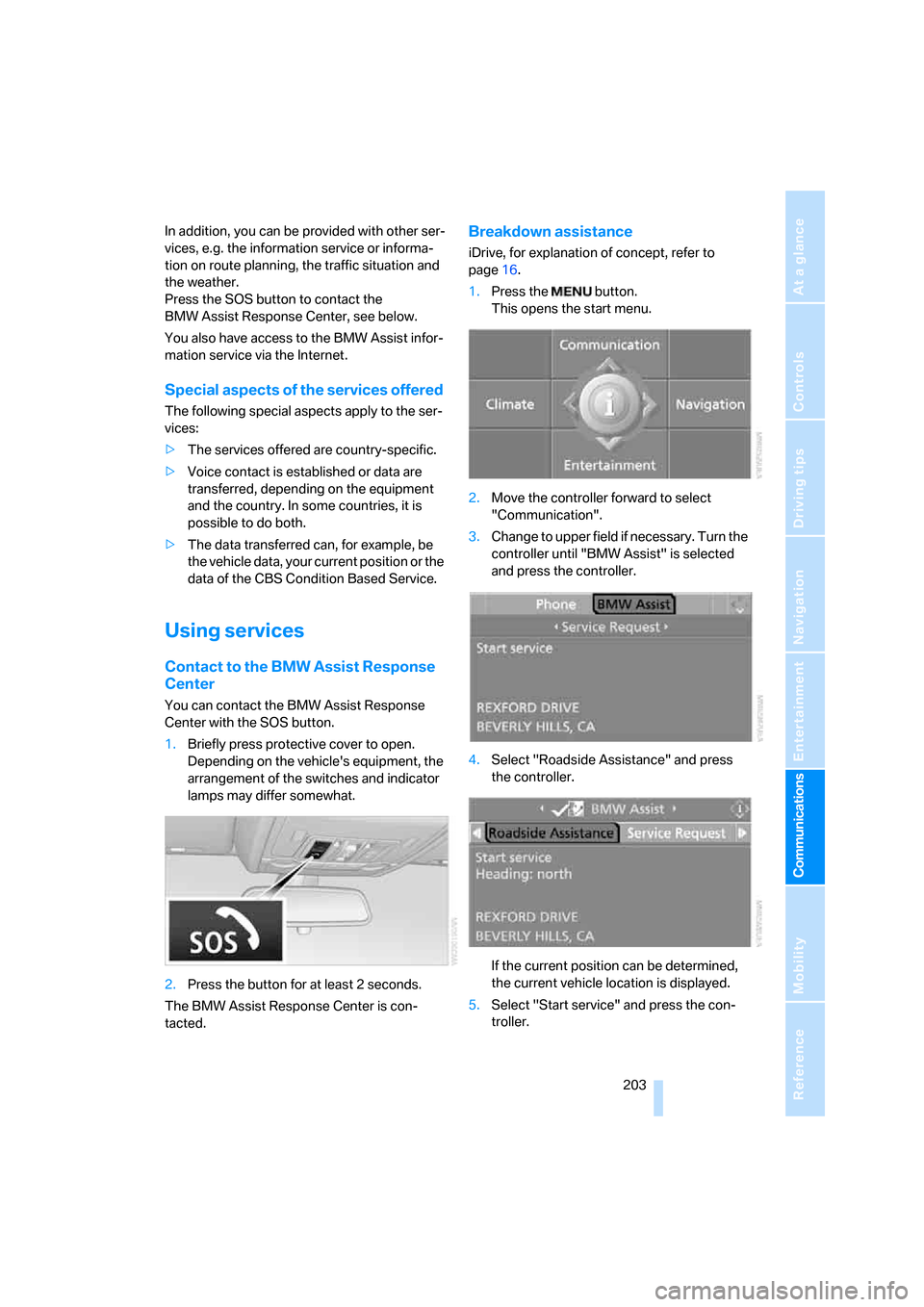

Page 205 of 272

203
Entertainment
Reference
At a glance
Controls
Driving tips Communications
Navigation
Mobility
In addition, you can be provided with other ser-
vices, e.g. the information service or informa-
tion on route planning, the traffic situation and
the weather.
Press the SOS button to contact the
BMW Assist Response Center, see below.
You also have access to the BMW Assist infor-
mation service via the Internet.
Special aspects of the services offered
The following special aspects apply to the ser-
vices:
>The services offered are country-specific.
>Voice contact is established or data are
transferred, depending on the equipment
and the country. In some countries, it is
possible to do both.
>The data transferred can, for example, be
the vehicle data, your current position or the
data of the CBS Condition Based Service.
Using services
Contact to the BMW Assist Response
Center
You can contact the BMW Assist Response
Center with the SOS button.
1.Briefly press protective cover to open.
Depending on the vehicle's equipment, the
arrangement of the switches and indicator
lamps may differ somewhat.
2.Press the button for at least 2 seconds.
The BMW Assist Response Center is con-
tacted.
Breakdown assistance
iDrive, for explanation of concept, refer to
page16.
1.Press the button.
This opens the start menu.
2.Move the controller forward to select
"Communication".
3.Change to upper field if necessary. Turn the
controller until "BMW Assist" is selected
and press the controller.
4.Select "Roadside Assistance" and press
the controller.
If the current position can be determined,
the current vehicle location is displayed.
5.Select "Start service" and press the con-
troller.
Page 257 of 272

Reference 255
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Displays on the windshield,
refer to Head-Up Display94
Disposal
– battery of remote control
with comfort access37
– remote control battery174
– vehicle battery234
Distance, refer to
Computer69
"Distance to dest."70
Distance to destination, refer
to Computer69
Distance warning, refer to
PDC Park Distance
Control80
Door entry lighting100
Door key, refer to Keys/
remote control28
Door lock31
Door locking, confirmation
signals31
"Door locks"30,31,72
Doors
– manual operation32
– remote control30
DOT Quality Grades218
Draft-free ventilation106
Drinks holder, refer to Cup
holders114
"Driver's door only"30
Driver's seat, calibrating46
"Driver's seat climate"48
Driving lamps, refer to Parking
lamps/low beams97
Driving on poor roads126
Driving route, refer to
Displaying route144
Driving stability control
systems84
Driving through water123
Driving tips, refer to General
driving notes122
Dry air, refer to Cooling
function104
DSC Dynamic Stability
Control84
– indicator lamp13,84DTC Dynamic Traction
Control85
– activating85
– indicator lamp13,85
"DVD" DVD system in
rear174
"DVD format" for DVD system
in rear177
DVD for navigation130
DVD system in rear172
– CD/DVD player
173
– connecting headphones173
– controls172
– displaying images from CD/
DVD181
– DVD country codes174
– external device183
– information on CD/DVD
player182
– playing audio tracks from
CD/DVD178
– playing video from CD/
DVD174
– remote control173
– switching on/off174
Dynamic Brake Control
DBC84
"Dynamic route" for
navigation142
Dynamic Stability Control
DSC84
Dynamic Traction Control
DTC85
E
Easy entry/exit50
Electrical malfunction
– door lock32
– driver's door32
– fuel filler door212
– liftgate33
– panorama glass sunroof39
Electric steering wheel
adjustment49
Electronic brake-force
distribution84Electronic oil level check223
Emergency call236
Emergency operation, refer to
Manual operation
– door lock32
– driver's door32
– fuel filler door212
– liftgate33
– panorama glass sunroof39
– transmission lock, automatic
transmission61
Emergency services, refer to
Roadside Assistance237
"Enable services"208
"End call"194
Energy-conscious driving,
refer to Energy Control68
Energy Control68
Engine
– breaking-in122
– data242
– overheated, refer to Coolant
temperature68
– speed242
– starting56
– starting, comfort access36
– starting difficulties57
– switching off57
Engine compartment223
Engine coolant225
Engine oil
– adding224
– additives, refer to Approved
engine oils224
– approved engine oil224
– checking oil level223
– electronic oil level check223
"Engine oil level"224
Engine output, refer to Engine
data242
Engine overheating, refer to
Coolant temperature68
Engine speed242
Engine starting, refer to
Starting engine56
"Enter address"132
Page 265 of 272

Reference 263
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
"Scan"
– for DVD system in rear179
– sampling stations with
radio159
– sampling tracks with CD167
Scan
– CD changer167
– CD player167
– radio159
"Scan all"
– for DVD system in rear180
– in audio mode167
"Scan directory"
– for DVD system in rear180
– in audio mode167
Screen, refer to iDrive16
"Screen brightness" for DVD
system in rear176
Screw thread for tow
fitting238
SDARS, refer to Satellite
radio162
"Seat heater distribution"47
Seats41
– adjusting41
– comfort seat41
– heating47
– lumbar support42
– memory, refer to Seat, mirror
and steering wheel
memory42
– sitting safely40
– storing the setting42
– thigh support41
– ventilation, refer to Active
seat ventilation47
2nd row seats44
Securing load
– refer to Securing cargo125
– with ski bag, refer to
Securing cargo119
"Select as
destination"138,206
"Select current speed"76
Selecting audio source154
Selecting country for
navigation132Selecting frequency
manually159
Selecting menu items19
Selecting new scale for
navigation145
Selector lever, automatic
transmission with
Steptronic60
Selector lever lock, refer to
Reverse gear60
Self-leveling suspension87
Separation net116
"Service"72
,204,223
Service, refer to Roadside
Assistance237
Service and Warranty
Information Booklet for
US models226
Service interval indicator, refer
to Service requirements71
"Service notification"204
"Service Request"196,204
"Service
requirements"72,204,224
Service requirements71
– also refer to CBS Condition
Based Service226
"Service Status"208
"Set date"78
"Set" on trip computer70
"Set service date"73
"Set time"77
"Settings"206,207
Settings
– changing on Control
Display77
– clock, 12h/24h mode78
– configuring, refer to
Personal Profile28
"Settings" for unlocking30
Setting speed limit76
Setting time, refer to
Preselecting activation
times109
"SET" with rear
entertainment175Shifting, automatic
transmission with
Steptronic61
Short commands of voice
command system245
Shortest route in navigation,
refer to Selecting route141
"Short route" for
navigation141
Shoulder support41
"Show current position"137
"Show destination
position"137
Shuffled, refer to Random
– CD changer168
– CD player168
Side airbags92
Side marker lamps, replacing
bulbs229
Signal horn, refer to Horn10
Sitting safely40
– with airbags40
– with head restraint40
– with safety belts40
Ski bag118
Slide show, refer to Displaying
images181
Sliding/tilt sunroof, refer to
Panorama glass sunroof38
Slope assistant, refer to
Starting assistant123
Smokers' package, refer to
Ashtray114
Snow chains221
Socket for Onboard
Diagnostics interface227
Socket for remote control,
refer to Ignition lock56
Sockets, refer to Connecting
electrical devices115
Song search, refer to
Sampling tracks167
SOS, refer to Initiating an
emergency call236
Spare fuses234
Spare key28
– adapter28
Page 266 of 272

Everything from A to Z

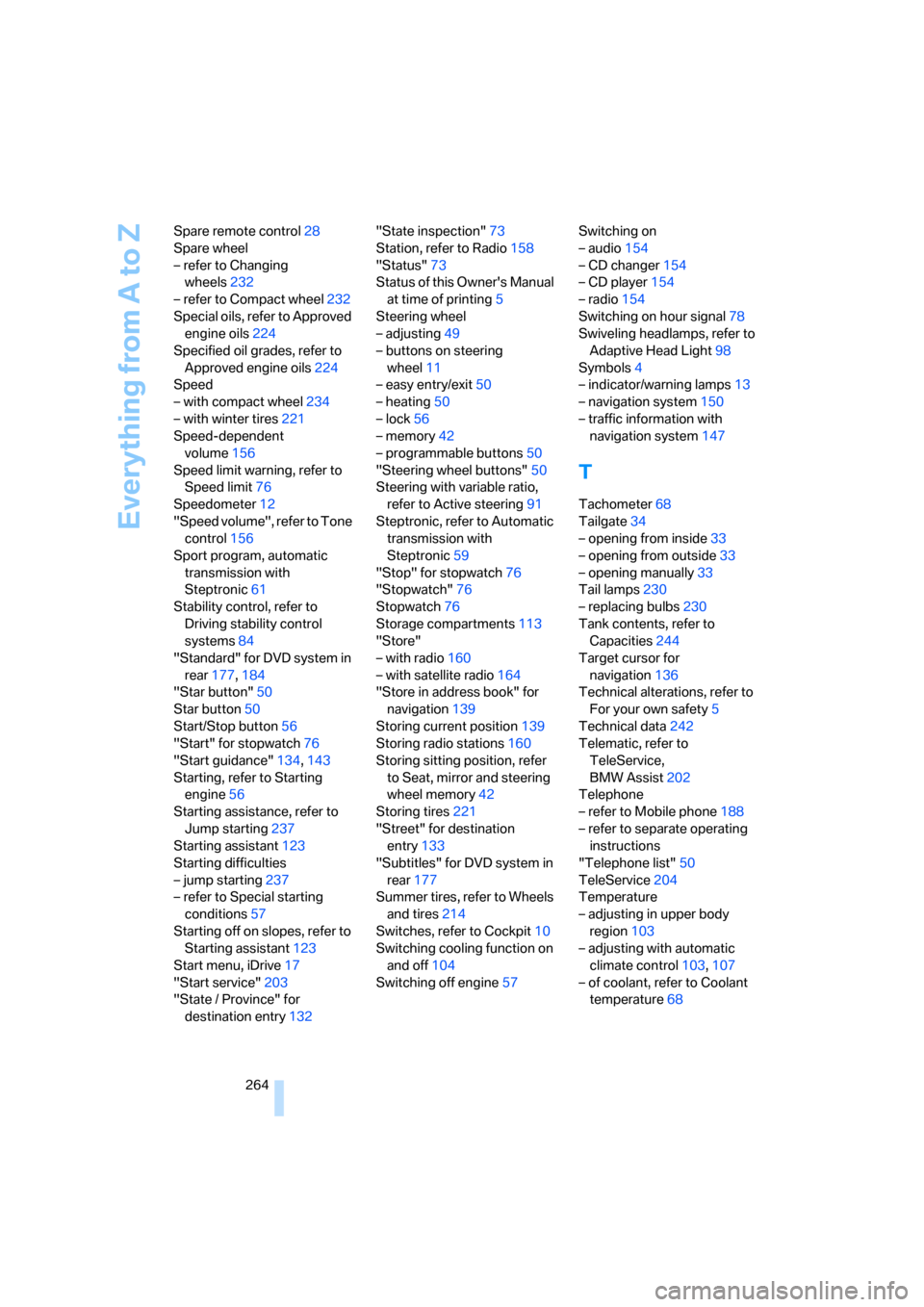

264 Spare remote control28
Spare wheel
– refer to Changing
wheels232
– refer to Compact wheel232
Special oils, refer to Approved
engine oils224
Specified oil grades, refer to
Approved engine oils224
Speed
– with compact wheel234
– with winter tires221
Speed-dependent
volume156
Speed limit warning, refer to
Speed limit76
Speedometer12
"Speed volume", refer to Tone
control156
Sport program, automatic
transmission with
Steptronic61
Stability control, refer to
Driving stability control
systems84
"Standard" for DVD system in
rear177,184
"Star button"50
Star button50
Start/Stop button56
"Start" for stopwatch76
"Start guidance"134,143
Starting, refer to Starting
engine56
Starting assistance, refer to
Jump starting237
Starting assistant123
Starting difficulties
– jump starting237
– refer to Special starting
conditions57
Starting off on slopes, refer to
Starting assistant123
Start menu, iDrive17
"Start service"203
"State / Province" for
destination entry132"State inspection"73
Station, refer to Radio158
"Status"73
Status of this Owner's Manual
at time of printing5
Steering wheel
– adjusting49
– buttons on steering
wheel11
– easy entry/exit50
– heating50
– lock56
– memory42
– programmable buttons50
"Steering wheel buttons"50
Steering with variable ratio,
refer to Active steering91
Steptronic, refer to Automatic
transmission with
Steptronic59
"Stop" for stopwatch76
"Stopwatch"76
Stopwatch76
Storage compartments113
"Store"
– with radio160
– with satellite radio164
"Store in address book" for
navigation139
Storing current position139
Storing radio stations160
Storing sitting position, refer
to Seat, mirror and steering
wheel memory42
Storing tires221
"Street" for destination
entry133
"Subtitles" for DVD system in
rear177
Summer tires, refer to Wheels
and tires214
Switches, refer to Cockpit10
Switching cooling function on
and off104
Switching off engine57Switching on
– audio154
– CD changer154
– CD player154
– radio154
Switching on hour signal78
Swiveling headlamps, refer to
Adaptive Head Light98
Symbols4
– indicator/warning lamps13
– navigation system150
– traffic information with
navigation system147
T
Tachometer68
Tailgate34
– opening from inside33
– opening from outside33
– opening manually33
Tail lamps230
– replacing bulbs230
Tank contents, refer to
Capacities244
Target cursor for
navigation136
Technical alterations, refer to
For your own safety5
Technical data242
Telematic, refer to
TeleService,
BMW Assist202
Telephone
– refer to Mobile phone188
– refer to separate operating
instructions
"Telephone list"50
TeleService204
Temperature
– adjusting in upper body
region103
– adjusting with automatic
climate control103,107
– of coolant, refer to Coolant
temperature68
Page 267 of 272

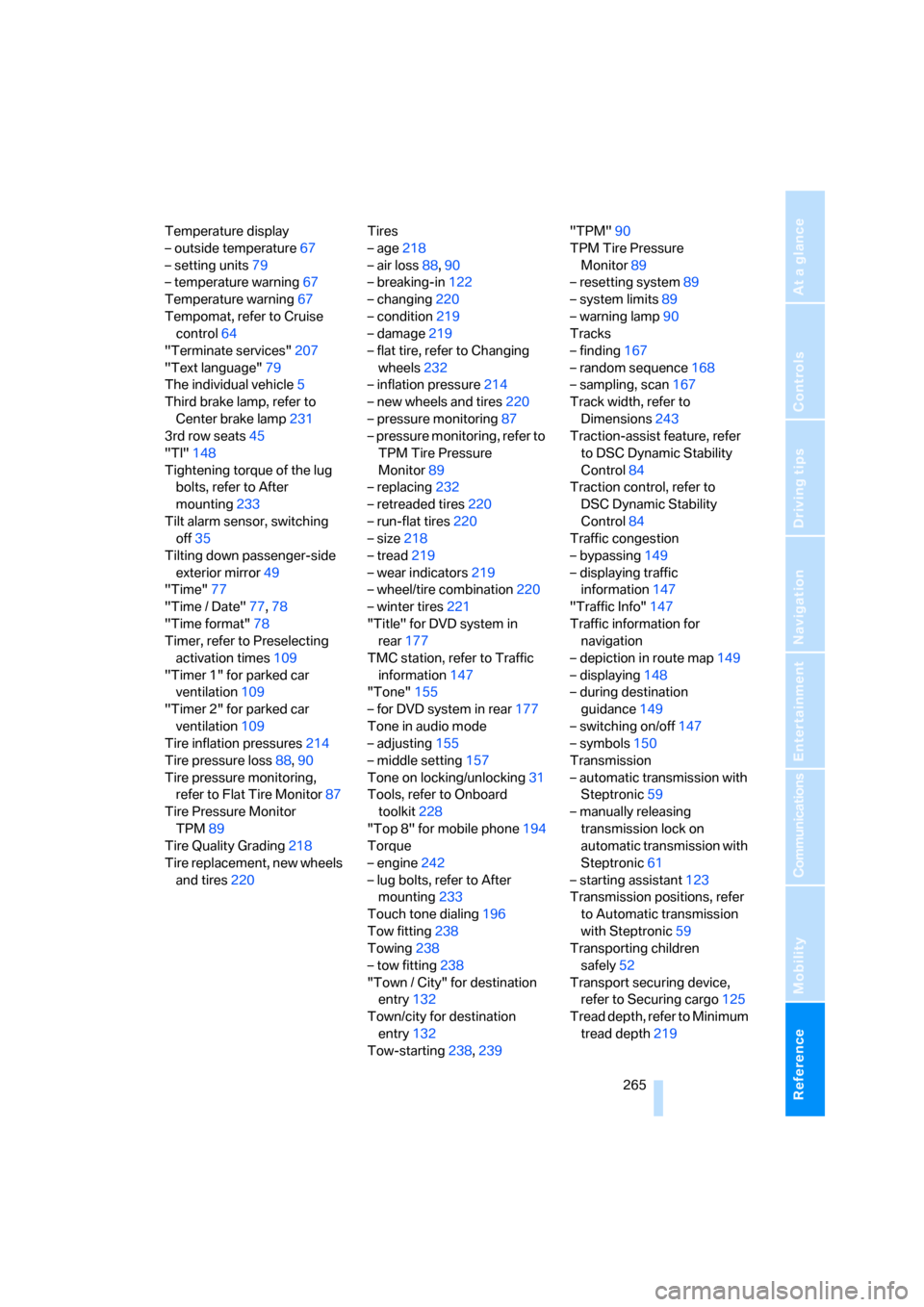

Reference 265
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Temperature display
– outside temperature67
– setting units79
– temperature warning67
Temperature warning67
Tempomat, refer to Cruise
control64
"Terminate services"207
"Text language"79
The individual vehicle5
Third brake lamp, refer to
Center brake lamp231
3rd row seats45
"TI"148
Tightening torque of the lug
bolts, refer to After
mounting233
Tilt alarm sensor, switching
off35
Tilting down passenger-side
exterior mirror49
"Time"77
"Time / Date"77,78
"Time format"78
Timer, refer to Preselecting
activation times109
"Timer 1" for parked car
ventilation109
"Timer 2" for parked car
ventilation109
Tire inflation pressures214
Tire pressure loss88,90
Tire pressure monitoring,
refer to Flat Tire Monitor87
Tire Pressure Monitor
TPM89
Tire Quality Grading218
Tire replacement, new wheels
and tires220Tires
– age218
– air loss88,90
– breaking-in122
– changing220
– condition219
– damage219
– flat tire, refer to Changing
wheels232
– inflation pressure214
– new wheels and tires220
– pressure monitoring87
– pressure monitoring, refer to
TPM Tire Pressure
Monitor89
– replacing232
– retreaded tires220
– run-flat tires
220
– size218
– tread219
– wear indicators219
– wheel/tire combination220
– winter tires221
"Title" for DVD system in
rear177
TMC station, refer to Traffic
information147
"Tone"155
– for DVD system in rear177
Tone in audio mode
– adjusting155
– middle setting157
Tone on locking/unlocking31
Tools, refer to Onboard
toolkit228
"Top 8" for mobile phone194
Torque
– engine242
– lug bolts, refer to After
mounting233
Touch tone dialing196
Tow fitting238
Towing238
– tow fitting238
"Town / City" for destination
entry132
Town/city for destination
entry132
Tow-starting238,239"TPM"90
TPM Tire Pressure
Monitor89
– resetting system89
– system limits89
– warning lamp90
Tracks
– finding167
– random sequence168
– sampling, scan167
Track width, refer to
Dimensions243
Traction-assist feature, refer
to DSC Dynamic Stability
Control84
Traction control, refer to
DSC Dynamic Stability
Control84
Traffic congestion
– bypassing149
– displaying traffic
information147
"Traffic Info"147
Traffic information for
navigation
– depiction in route map149
– displaying148
– during destination
guidance149
– switching on/off147
– symbols150
Transmission
– automatic transmission with
Steptronic59
– manually releasing
transmission lock on
automatic transmission with
Steptronic61
– starting assistant123
Transmission positions, refer
to Automatic transmission
with Steptronic59
Transporting children
safely52
Transport securing device,
refer to Securing cargo125
Tread depth, refer to Minimum
tread depth219
Page 268 of 272

Everything from A to Z
266 Treble, refer to Tone
control155
"Treble / Bass" for DVD
system in rear177
"Trip computer"70
Trip computer70
Trip-distance counter, refer to
Trip odometer67
"Triple turn signal"63
Trip odometer67
Turning circle, refer to
Dimensions243
Turn signals62
– indicator lamp12
– replacing bulbs229
U
Underbody protection, refer to
Caring for your vehicle
brochure
Uniform Tire Quality Grading/
UTQR218
"Units"79
Units
– average fuel
consumption79
– temperature79
Universal garage-door
opener, refer to Integrated
universal remote
control110
Universal remote control110
"Unlock button"30
Unlocking
– from inside32
– from outside30
– without key, refer to Comfort
access35
Unlocking without key, refer to
Comfort access35
"Unlock rear menu" for DVD
system in rear172
"Update services"206
Used batteries
– refer to Disposal234
– refer to Replacing battery37
V
Valve screw caps, refer to
After mounting233
Vehicle
– battery234
– breaking-in122
– care227
– care, refer to Caring for your
vehicle brochure
– decommissioning, refer to
Caring for your vehicle
brochure
– loading124
– measurements, refer to
Dimensions243
– parking57
– washing, refer to Caring for
your vehicle brochure
– weights244
"Vehicle / Tires" for
unlocking30
Vehicle jack232
– jacking points233
Vehicle position, refer to
Displaying current
position150
Ventilation105
– draft-free106
– in the rear106
– rear automatic climate
control108
– 3rd row seats106
– while stationary108
Vent outlets of automatic
climate control101
Vents, refer to Ventilation105
"Vent settings"104
"Video settings" for DVD
system in rear176
Voice, refer to Voice
instructions for navigation
system146
Voice command system23
– short commands245Voice instructions for
navigation system146
– muting51,146
– repeating51,146
– switching on/off51,146
– volume146
Voice phone book199
Volume
– mobile phone192
– setting speed-
dependent156
– voice instructions146
Volume distribution in audio
mode
– front/rear156
– right/left156
Volume of warning tones79
W
Warning lamps, refer to
Indicator and warning
lamps13
Warning messages, refer to
Check Control74
Warning tone, volume79
Warning triangle236
Warranty and Service Guide
Booklet for Canadian
models226
Washer/wiper system63
– rain sensor63
– washer fluid64
– windshield washer
nozzles64
Washer fluid64
– capacity of the reservoir64
Washer fluid reservoir64
Washing the vehicle, also refer
to Caring for your vehicle
brochure
Water on roads, refer to
Driving through water123
Waveband for radio158
"WB"155,161
Wear indicators in tires, refer
to Minimum tread depth219
Weather Band161
Website4
