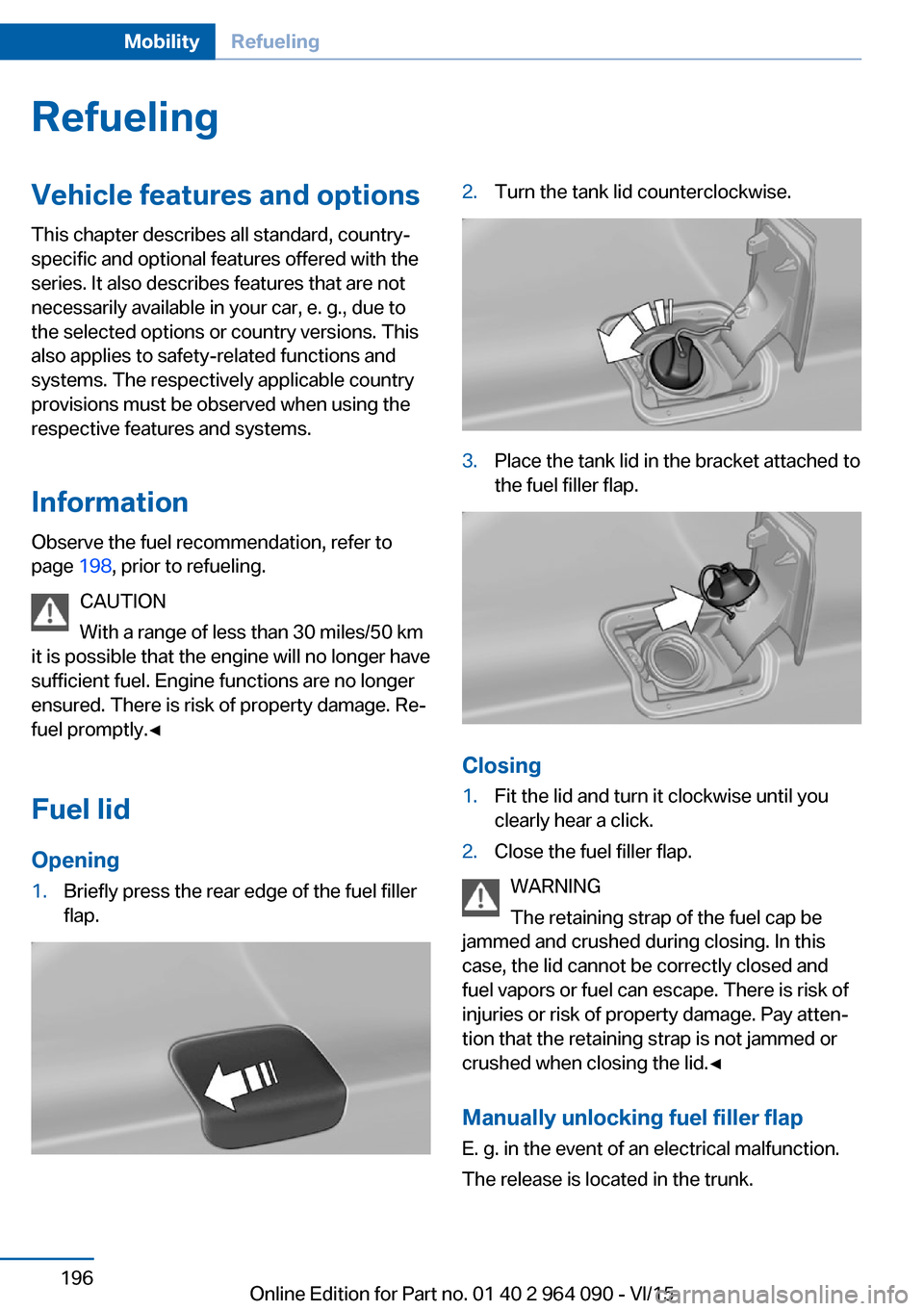

fuel cap BMW X5M 2016 F85 Owner's Manual

RefuelingVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
Information Observe the fuel recommendation, refer to
page 198, prior to refueling.
CAUTION
With a range of less than 30 miles/50 km
it is possible that the engine will no longer have
sufficient fuel. Engine functions are no longer
ensured. There is risk of property damage. Re‐
fuel promptly.◀
Fuel lidOpening1.Briefly press the rear edge of the fuel filler
flap.2.Turn the tank lid counterclockwise.3.Place the tank lid in the bracket attached to
the fuel filler flap.
Closing
1.Fit the lid and turn it clockwise until you
clearly hear a click.2.Close the fuel filler flap.
WARNING
The retaining strap of the fuel cap be
jammed and crushed during closing. In this
case, the lid cannot be correctly closed and
fuel vapors or fuel can escape. There is risk of
injuries or risk of property damage. Pay atten‐
tion that the retaining strap is not jammed or
crushed when closing the lid.◀
Manually unlocking fuel filler flapE. g. in the event of an electrical malfunction.
The release is located in the trunk.
Seite 196MobilityRefueling196
Online Edition for Part no. 01 40 2 964 090 - VI/15

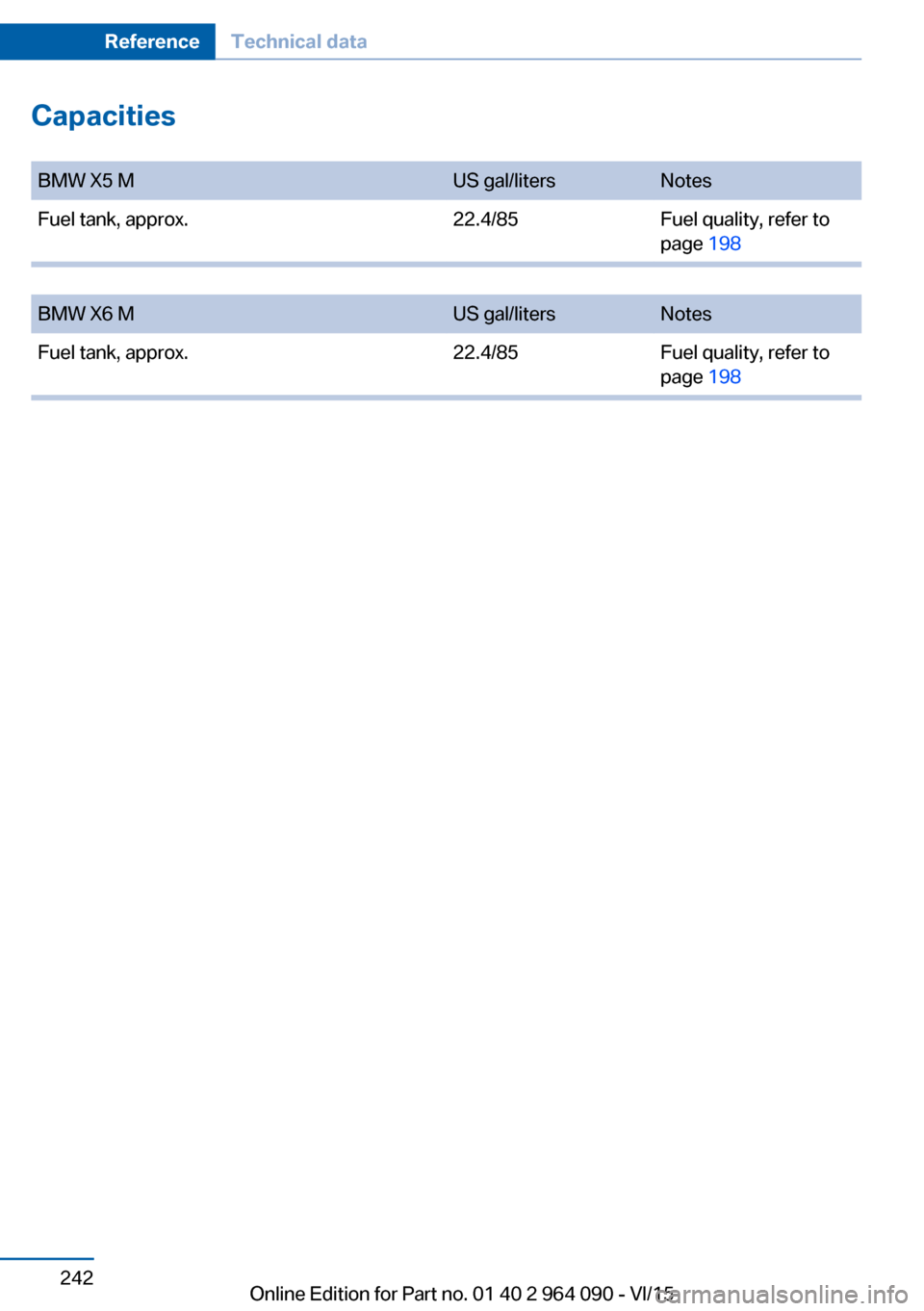

Capacities
BMW X5 MUS gal/litersNotesFuel tank, approx.22.4/85Fuel quality, refer to
page 198

BMW X6 MUS gal/litersNotesFuel tank, approx.22.4/85Fuel quality, refer to
page 198Seite 242ReferenceTechnical data242
Online Edition for Part no. 01 40 2 964 090 - VI/15

Engine start during malfunc‐tion 35
Engine start, jump-start‐ ing 229
Engine start, refer to Starting the engine 70
Engine stop 70
Engine temperature 91
Entering a car wash 233
Equipment, interior 162
Error displays, see Check Control 87
ESP Electronic Stability Pro‐ gram, see DSC 134
Exchanging wheels/tires 204
Exhaust system 185
Exterior mirror, automatic dimming feature 62
Exterior mirrors 61
External start 229
External temperature dis‐ play 91
External temperature warn‐ ing 91
Eyes for securing cargo 189
F
Failure message, see Check Control 87
False alarm, see Unintentional alarm 48
Fan, see Air flow 157
Filler neck for engine oil 214
Fine wood, care 235
First-aid kit 229
Fitting for towing, see Tow fit‐ ting 232
Flat tire, changing wheels 223
Flat Tire Monitor FTM 115
Flat tire, repairing 206
Flat tire, Tire Pressure Moni‐ tor TPM 112
Flat tire, warning lamp 113, 115 Flooding 185
Floor carpet, care 236
Floor mats, care 236
Folding back rear seat back‐ rests 169, 171
Fold-out position, wiper 79
Foot brake 185
Front airbags 109
Front center armrest 174
Front cupholder 176
Front-end collision warning with City Braking func‐
tion 117
Front fog lamps, , LED, bulb replacement 223
Front fog lights 107
Front lights 222
Front-seat passenger airbags, automatic deactivation 111
Front-seat passenger airbags, indicator lamp 111
Front seats 53
FTM Flat Tire Monitor 115
Fuel 198
Fuel consumption, see Aver‐ age fuel consumption 97
Fuel filler flap 196
Fuel gauge 91
Fuel lid 196
Fuel quality 198
Fuel recommendation 198
Fuel, tank capacity 242
Fuse 226
G
Garage door opener, see Uni‐ versal Integrated Remote
Control 162
Gasoline 198
Gear change 82
Gear shift indicator 95
General driving notes 184
Glare shield 164
Glasses compartment 175
Glass sunroof, powered 50 Glass sunroof, refer to Panor‐
amic glass sunroof 50
Glove compartment 173
Gross vehicle weight, ap‐ proved 241
Ground clearance 186
H
Handbrake, see Parking brake 73
Hand-held transmitter, alter‐ nating code 163
Hazard warning flashers 228
HDC Hill Descent Con‐ trol 136
Head airbags 109
Headlight control, auto‐ matic 105
Headlight courtesy delay fea‐ ture 105
Headlight flasher 77
Headlight glass 222
Headlights 222
Headlights, care 234
Head restraints 53
Head restraints, front 58
Head restraints, rear 59
Head-up Display 101
Head-up Display, care 236
Head-up display, M view 101
Head-up display, standard view 101
Heavy cargo, stowing 189
High-beam Assistant 106
High beams 77
High beams/low beams, see High-beam Assistant 106
Hill Descent Control HDC 136
Hills 186
Hill start assistant, see Drive- off assistant 132
Holder for beverages 176
Homepage 6
Hood 211 Seite 247Everything from A to ZReference247
Online Edition for Part no. 01 40 2 964 090 - VI/15

Operating concept, iDrive 18
Optional equipment, standard equipment 7
Outside air, refer to Auto‐ matic recirculated-air con‐
trol 157
Overheating of engine, see Coolant temperature 91
Own Safety 7
P Paint, vehicle 234
Panoramic glass sunroof 50
Parallel parking assistant 151
Park Distance Control PDC 142
Parked-car ventilation 160
Parked vehicle, condensa‐ tion 186
Parking aid, see PDC 142
Parking assistant 151
Parking brake 73
Parking lights 104
Parking with Automatic Hold 74
Parts and accessories 7
Passenger side mirror, tilting downward 61
Pathway lines, rearview cam‐ era 146
PDC Park Distance Con‐ trol 142
Pedestrian detection, see Night Vision 122
Pedestrian warning with city braking function 120
Personal Profile 35
Personal Profile, exporting profiles 36
Pinch protection system, glass sunroof 51
Pinch protection system, win‐ dows 49
Plastic, care 235
Power failure 226 Power sunroof, glass 50
Power windows 48
Prescribed engine oil types 215
Pressure, tire air pres‐ sure 200
Pressure warning FTM, tires 115
Preventing Auto Start Stop 72
Profile, see Personal Pro‐ file 35
Programmable memory but‐ tons, iDrive 24
Protective function, glass sunroof 51
Protective function, win‐ dows 49
Push-and-turn switch, see Controller 19
R Radiator fluid 216
Radio-operated key, see Re‐ mote control 34
Radio ready state 69
Radio, see user's manual for Navigation, Entertainment
and Communication
Rain sensor 78
Rear automatic climate con‐ trol 159
Rear center armrest 175
Rear cooler 167
Rear drink holder 176
Rear lights 223
Rear seats 56
Rearview camera 145
Rearview mirror 61
Rear window defroster 158
Recirculated-air mode 157
Recommended fuel grade 198
Recommended tire brands 205 Refueling 196
Remaining range 92
Remote control/key 34
Remote control, malfunc‐ tion 39
Remote control, univer‐ sal 162
Replacement fuse 226
Replacing parts 220
Replacing wheels/tires 204
Reporting safety malfunc‐ tions 10
RES button, see Cruise con‐ trol 140
Reserve warning, see Range 92
Reset, Tire Pressure Monitor TPM 113
Residual heat, automatic cli‐ mate control 157
Retaining straps, securing cargo 189
Retreaded tires 205
Roadside parking lights 105
Roller sunblinds 50
RON recommended fuel grade 198
Roofliner 17
Roof load capacity 241
Roof-mounted luggage rack 190
Rope for tow-starting/ towing 231
Rubber components, care 235
S Safe braking 185
Safety belt reminder for driv‐ er's seat and front passen‐
ger seat 57
Safety belts 56
Safety belts, care 236
Safety Package, see Active Protection 130 Seite 250ReferenceEverything from A to Z250
Online Edition for Part no. 01 40 2 964 090 - VI/15
