ground clearance BMW X5M 2016 F85 Owner's Manual

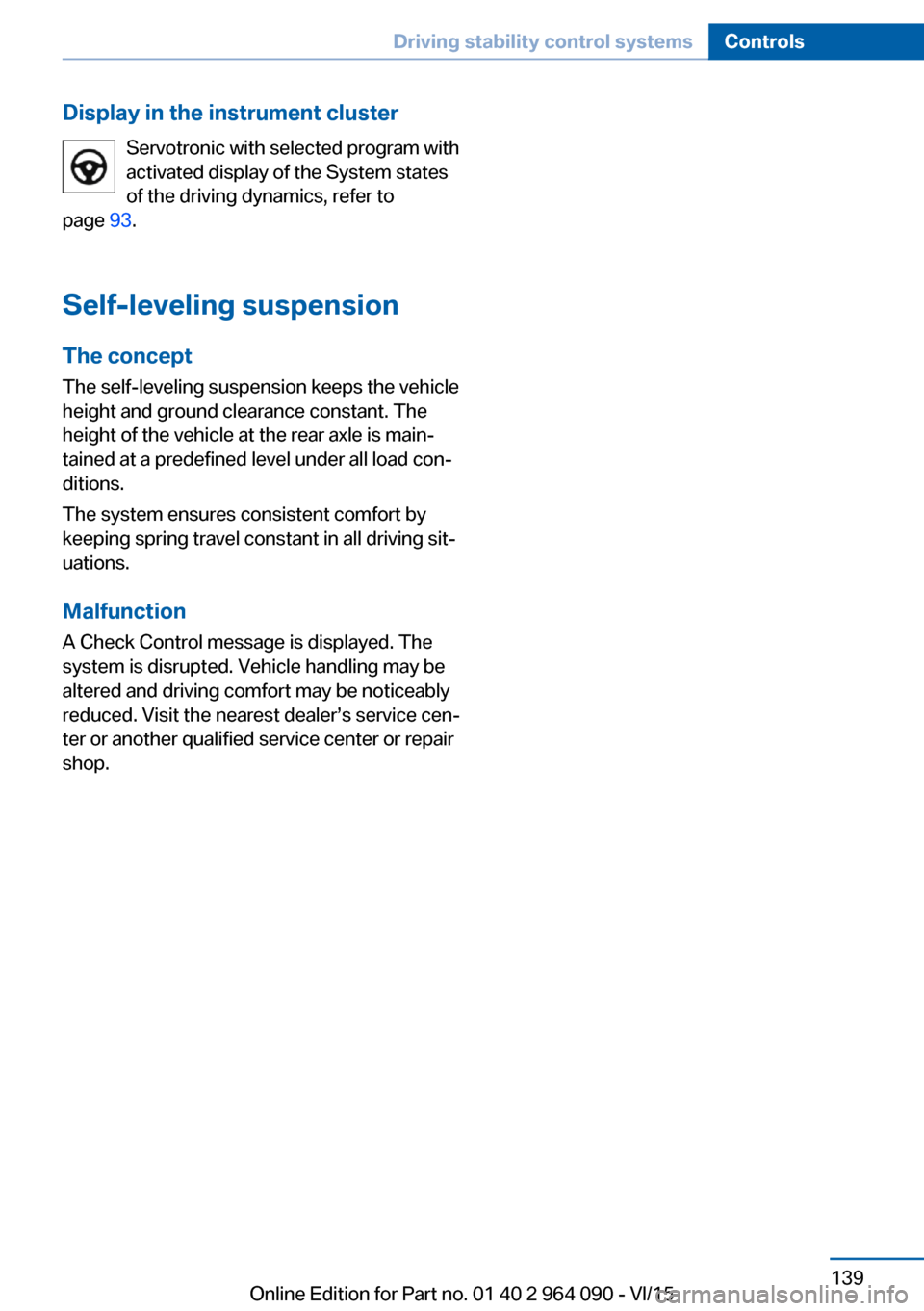

Display in the instrument clusterServotronic with selected program with
activated display of the System states
of the driving dynamics, refer to
page 93.
Self-leveling suspension The concept
The self-leveling suspension keeps the vehicle
height and ground clearance constant. The
height of the vehicle at the rear axle is main‐
tained at a predefined level under all load con‐
ditions.
The system ensures consistent comfort by
keeping spring travel constant in all driving sit‐
uations.
Malfunction A Check Control message is displayed. Thesystem is disrupted. Vehicle handling may be
altered and driving comfort may be noticeably
reduced. Visit the nearest dealer’s service cen‐
ter or another qualified service center or repair
shop.Seite 139Driving stability control systemsControls139
Online Edition for Part no. 01 40 2 964 090 - VI/15

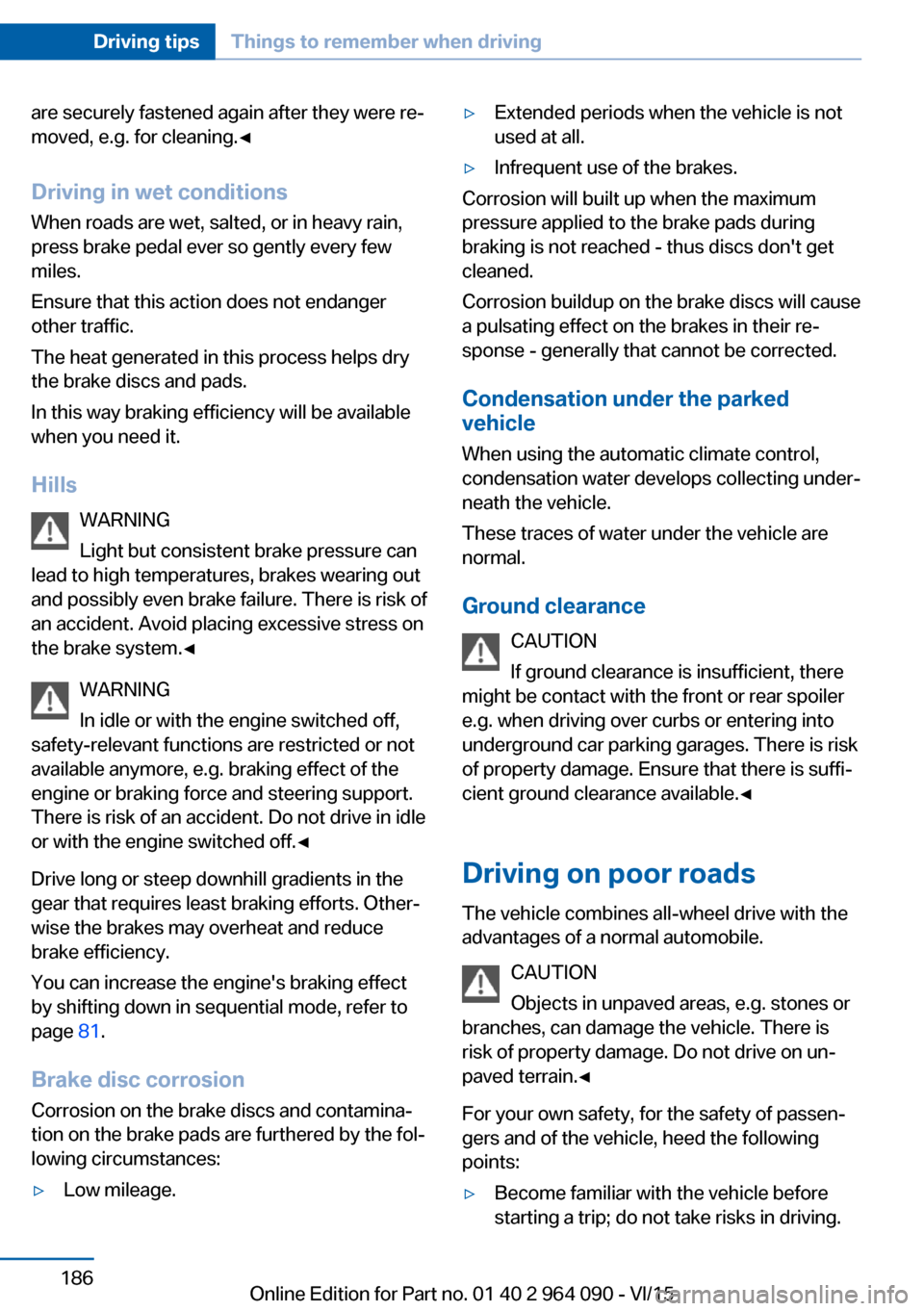

are securely fastened again after they were re‐
moved, e.g. for cleaning.◀
Driving in wet conditions
When roads are wet, salted, or in heavy rain,
press brake pedal ever so gently every few
miles.
Ensure that this action does not endanger
other traffic.
The heat generated in this process helps dry
the brake discs and pads.
In this way braking efficiency will be available
when you need it.
Hills WARNING
Light but consistent brake pressure can
lead to high temperatures, brakes wearing out
and possibly even brake failure. There is risk of
an accident. Avoid placing excessive stress on
the brake system.◀
WARNING
In idle or with the engine switched off,
safety-relevant functions are restricted or not
available anymore, e.g. braking effect of the
engine or braking force and steering support.
There is risk of an accident. Do not drive in idle
or with the engine switched off.◀
Drive long or steep downhill gradients in the
gear that requires least braking efforts. Other‐
wise the brakes may overheat and reduce
brake efficiency.
You can increase the engine's braking effect
by shifting down in sequential mode, refer to
page 81.
Brake disc corrosion Corrosion on the brake discs and contamina‐
tion on the brake pads are furthered by the fol‐
lowing circumstances:▷Low mileage.▷Extended periods when the vehicle is not
used at all.▷Infrequent use of the brakes.
Corrosion will built up when the maximum
pressure applied to the brake pads during
braking is not reached - thus discs don't get
cleaned.
Corrosion buildup on the brake discs will cause
a pulsating effect on the brakes in their re‐
sponse - generally that cannot be corrected.
Condensation under the parked
vehicle
When using the automatic climate control,
condensation water develops collecting under‐
neath the vehicle.
These traces of water under the vehicle are
normal.
Ground clearance CAUTION
If ground clearance is insufficient, there
might be contact with the front or rear spoiler
e.g. when driving over curbs or entering into
underground car parking garages. There is risk
of property damage. Ensure that there is suffi‐
cient ground clearance available.◀
Driving on poor roads The vehicle combines all-wheel drive with the
advantages of a normal automobile.
CAUTION
Objects in unpaved areas, e.g. stones or
branches, can damage the vehicle. There is
risk of property damage. Do not drive on un‐
paved terrain.◀
For your own safety, for the safety of passen‐
gers and of the vehicle, heed the following
points:
▷Become familiar with the vehicle before
starting a trip; do not take risks in driving.Seite 186Driving tipsThings to remember when driving186
Online Edition for Part no. 01 40 2 964 090 - VI/15

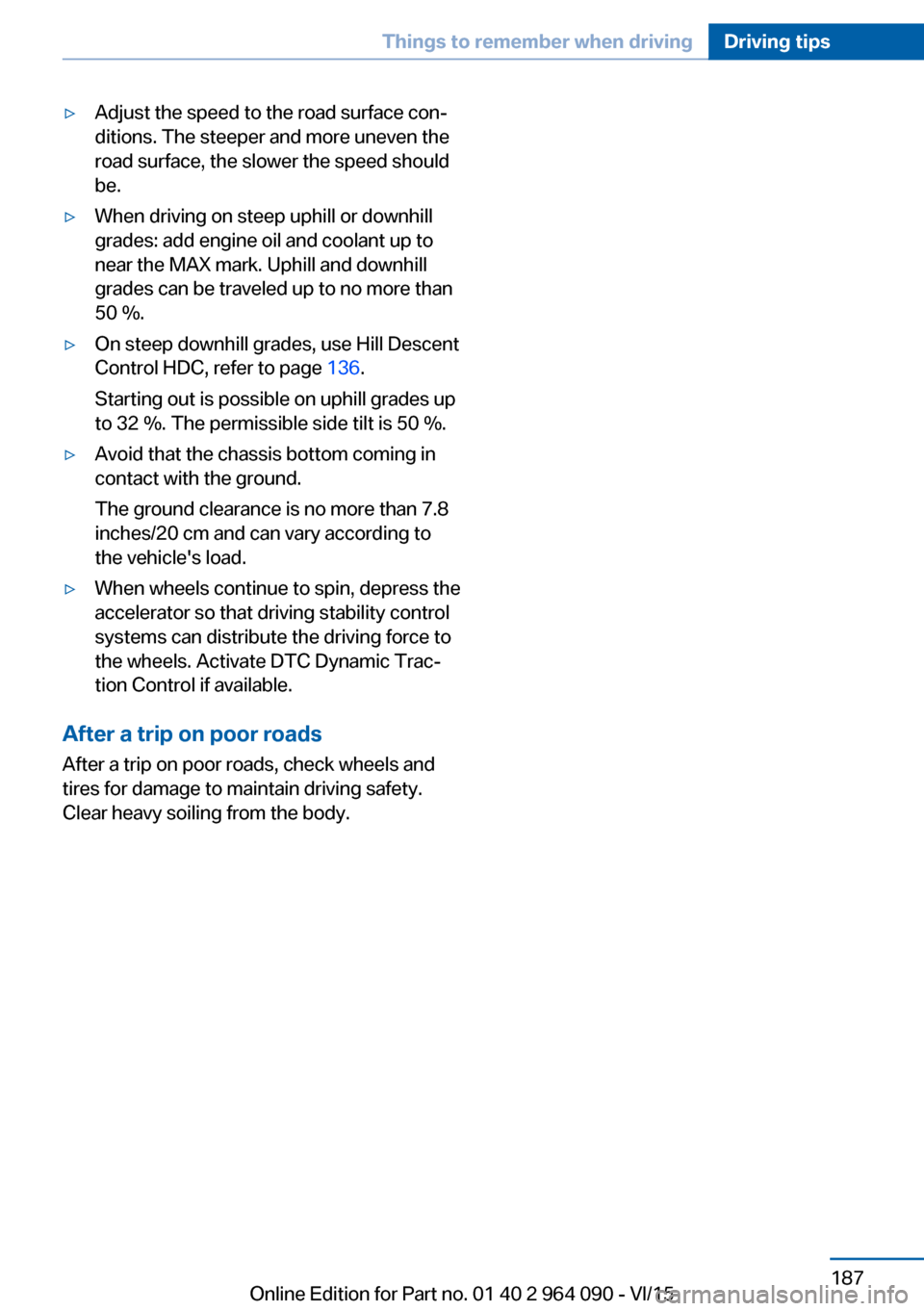

▷Adjust the speed to the road surface con‐
ditions. The steeper and more uneven the
road surface, the slower the speed should
be.▷When driving on steep uphill or downhill
grades: add engine oil and coolant up to
near the MAX mark. Uphill and downhill
grades can be traveled up to no more than
50 %.▷On steep downhill grades, use Hill Descent
Control HDC, refer to page 136.
Starting out is possible on uphill grades up
to 32 %. The permissible side tilt is 50 %.▷Avoid that the chassis bottom coming in
contact with the ground.
The ground clearance is no more than 7.8
inches/20 cm and can vary according to
the vehicle's load.▷When wheels continue to spin, depress the
accelerator so that driving stability control
systems can distribute the driving force to
the wheels. Activate DTC Dynamic Trac‐
tion Control if available.
After a trip on poor roads
After a trip on poor roads, check wheels and
tires for damage to maintain driving safety.
Clear heavy soiling from the body.
Seite 187Things to remember when drivingDriving tips187
Online Edition for Part no. 01 40 2 964 090 - VI/15

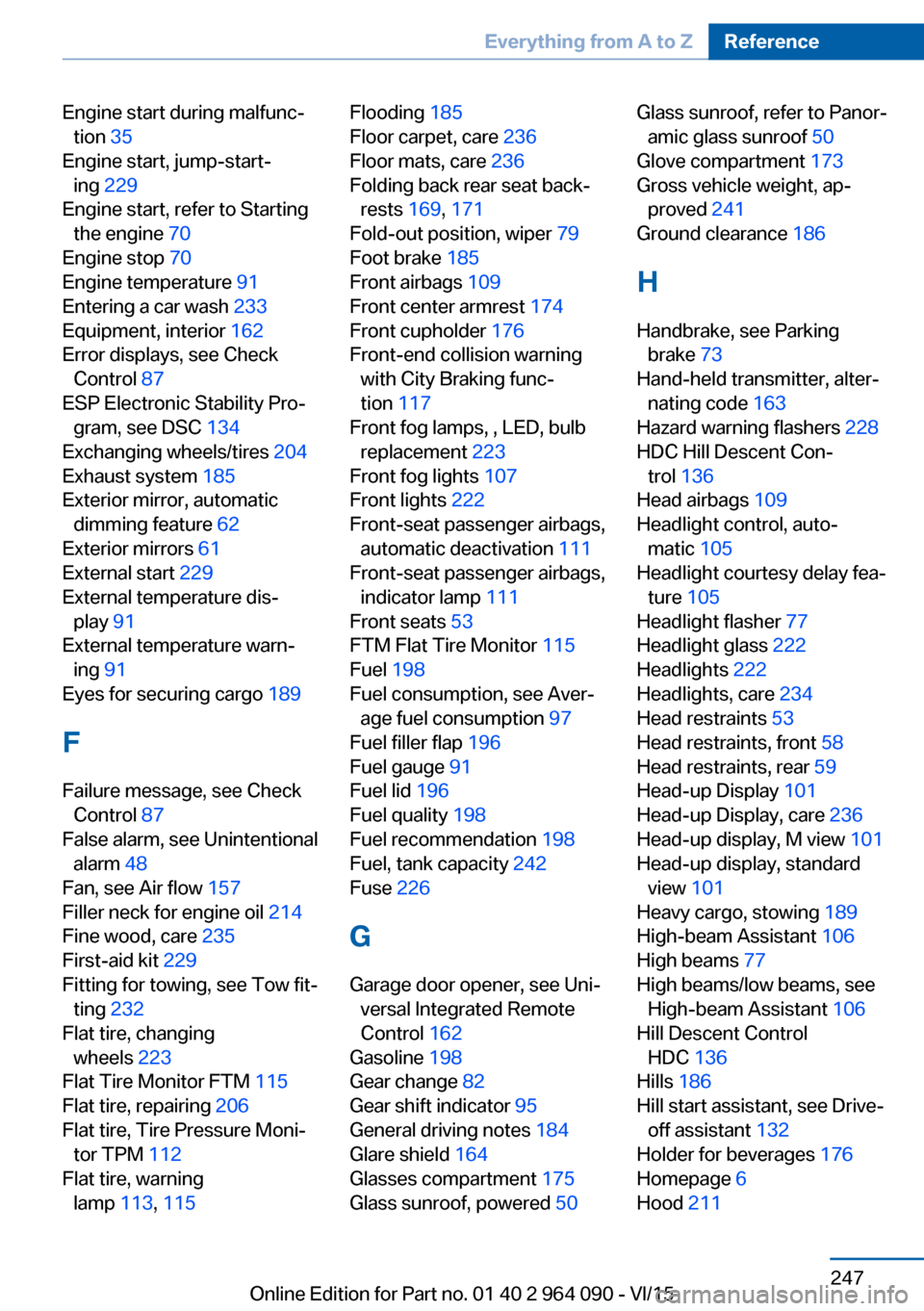

Engine start during malfunc‐tion 35
Engine start, jump-start‐ ing 229
Engine start, refer to Starting the engine 70
Engine stop 70
Engine temperature 91
Entering a car wash 233
Equipment, interior 162
Error displays, see Check Control 87
ESP Electronic Stability Pro‐ gram, see DSC 134
Exchanging wheels/tires 204
Exhaust system 185
Exterior mirror, automatic dimming feature 62
Exterior mirrors 61
External start 229
External temperature dis‐ play 91
External temperature warn‐ ing 91
Eyes for securing cargo 189
F
Failure message, see Check Control 87
False alarm, see Unintentional alarm 48
Fan, see Air flow 157
Filler neck for engine oil 214
Fine wood, care 235
First-aid kit 229
Fitting for towing, see Tow fit‐ ting 232
Flat tire, changing wheels 223
Flat Tire Monitor FTM 115
Flat tire, repairing 206
Flat tire, Tire Pressure Moni‐ tor TPM 112
Flat tire, warning lamp 113, 115 Flooding 185
Floor carpet, care 236
Floor mats, care 236
Folding back rear seat back‐ rests 169, 171
Fold-out position, wiper 79
Foot brake 185
Front airbags 109
Front center armrest 174
Front cupholder 176
Front-end collision warning with City Braking func‐
tion 117
Front fog lamps, , LED, bulb replacement 223
Front fog lights 107
Front lights 222
Front-seat passenger airbags, automatic deactivation 111
Front-seat passenger airbags, indicator lamp 111
Front seats 53
FTM Flat Tire Monitor 115
Fuel 198
Fuel consumption, see Aver‐ age fuel consumption 97
Fuel filler flap 196
Fuel gauge 91
Fuel lid 196
Fuel quality 198
Fuel recommendation 198
Fuel, tank capacity 242
Fuse 226
G
Garage door opener, see Uni‐ versal Integrated Remote
Control 162
Gasoline 198
Gear change 82
Gear shift indicator 95
General driving notes 184
Glare shield 164
Glasses compartment 175
Glass sunroof, powered 50 Glass sunroof, refer to Panor‐
amic glass sunroof 50
Glove compartment 173
Gross vehicle weight, ap‐ proved 241
Ground clearance 186
H
Handbrake, see Parking brake 73
Hand-held transmitter, alter‐ nating code 163
Hazard warning flashers 228
HDC Hill Descent Con‐ trol 136
Head airbags 109
Headlight control, auto‐ matic 105
Headlight courtesy delay fea‐ ture 105
Headlight flasher 77
Headlight glass 222
Headlights 222
Headlights, care 234
Head restraints 53
Head restraints, front 58
Head restraints, rear 59
Head-up Display 101
Head-up Display, care 236
Head-up display, M view 101
Head-up display, standard view 101
Heavy cargo, stowing 189
High-beam Assistant 106
High beams 77
High beams/low beams, see High-beam Assistant 106
Hill Descent Control HDC 136
Hills 186
Hill start assistant, see Drive- off assistant 132
Holder for beverages 176
Homepage 6
Hood 211 Seite 247Everything from A to ZReference247
Online Edition for Part no. 01 40 2 964 090 - VI/15
