BMW X5M 2017 Owners Manual

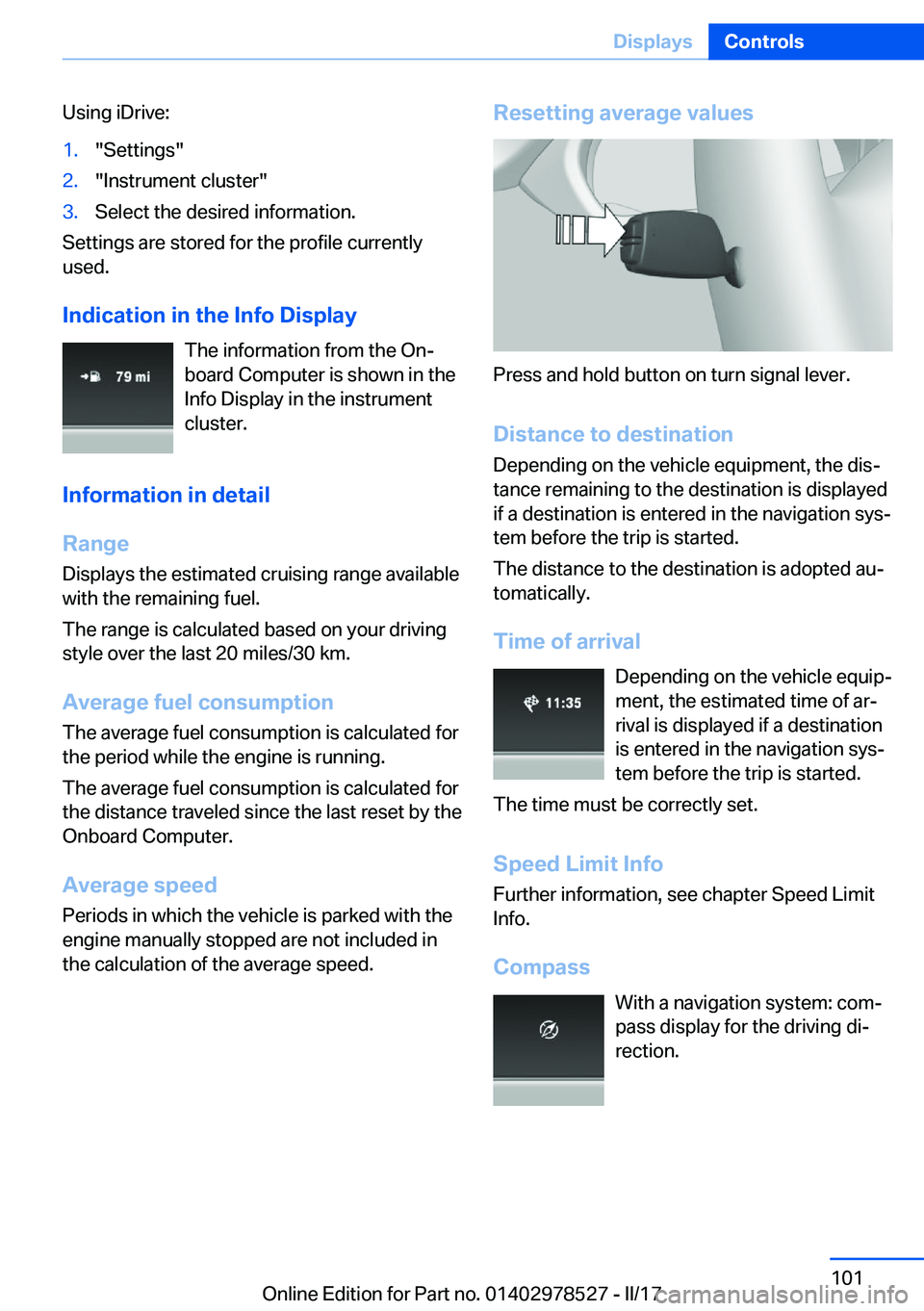

Using iDrive:1."Settings"2."Instrument cluster"3.Select the desired information.
Settings are stored for the profile currentlyused.
Indication
in
the
Info
Display The information from the Onjboard Computer is shown in the
Info Display in the instrument
cluster.
Information
in
detail
Range
Displays the estimated cruising range available with the remaining fuel.
The range is calculated based on your driving style over the last 20 miles/30 km.
Average
fuel
consumption
The average fuel consumption is calculated for
the period while the engine is running.
The average fuel consumption is calculated for
the distance traveled since the last reset by the Onboard Computer.
Average
speed
Periods in which the vehicle is parked with the
engine manually stopped are not included in
the calculation of the average speed.
Resetting
average
values
Press and hold button on turn signal lever.
Distance
to
destination
Depending on the vehicle equipment, the disj
tance remaining to the destination is displayed
if a destination is entered in the navigation sysj tem before the trip is started.
The distance to the destination is adopted auj
tomatically.
Time
of
arrival Depending on the vehicle equipj
ment, the estimated time of arj
rival is displayed if a destination is entered in the navigation sysj
tem before the trip is started.
The time must be correctly set.
Speed
Limit
Info
Further information, see chapter Speed Limit
Info.
Compass With a navigation system: comj
pass display for the driving dij
rection.
Seite 101DisplaysControls101
Online Edition for Part no. 01402978527 - II/17

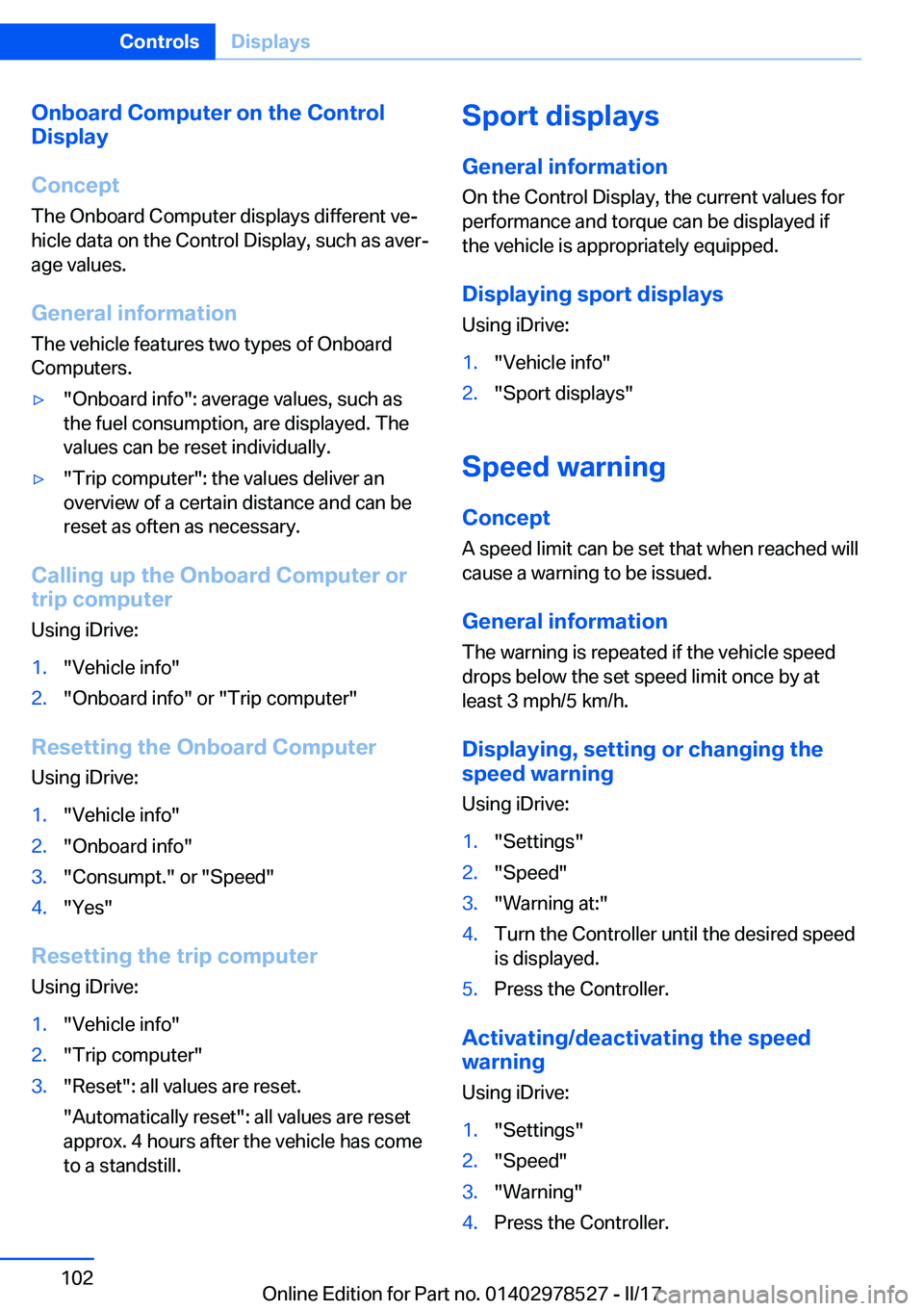

Onboard
Computer
on
the
Control
Display
Concept
The Onboard Computer displays different vej hicle data on the Control Display, such as averj
age values.
General
information
The vehicle features two types of Onboard
Computers.'y"Onboard info": average values, such as
the fuel consumption, are displayed. The values can be reset individually.'y"Trip computer": the values deliver an
overview of a certain distance and can be reset as often as necessary.
Calling
up
the
Onboard
Computer
or
trip
computer
Using iDrive:
1."Vehicle info"2."Onboard info" or "Trip computer"
Resetting
the
Onboard
Computer Using iDrive:
1."Vehicle info"2."Onboard info"3."Consumpt." or "Speed"4."Yes"
Resetting
the
trip
computer Using iDrive:
1."Vehicle info"2."Trip computer"3."Reset": all values are reset.
"Automatically reset": all values are reset
approx. 4 hours after the vehicle has come to a standstill.Sport
displays
General
information
On the Control Display, the current values for performance and torque can be displayed ifthe vehicle is appropriately equipped.
Displaying
sport
displays
Using iDrive:1."Vehicle info"2."Sport displays"
Speed
warning
Concept
A speed limit can be set that when reached will cause a warning to be issued.
General
information
The warning is repeated if the vehicle speed drops below the set speed limit once by atleast 3 mph/5 km/h.
Displaying,
setting
or
changing
the
speed
warning
Using iDrive:
1."Settings"2."Speed"3."Warning at:"4.Turn the Controller until the desired speedis displayed.5.Press the Controller.
Activating/deactivating
the
speed
warning
Using iDrive:
1."Settings"2."Speed"3."Warning"4.Press the Controller.Seite 102ControlsDisplays102
Online Edition for Part no. 01402978527 - II/17

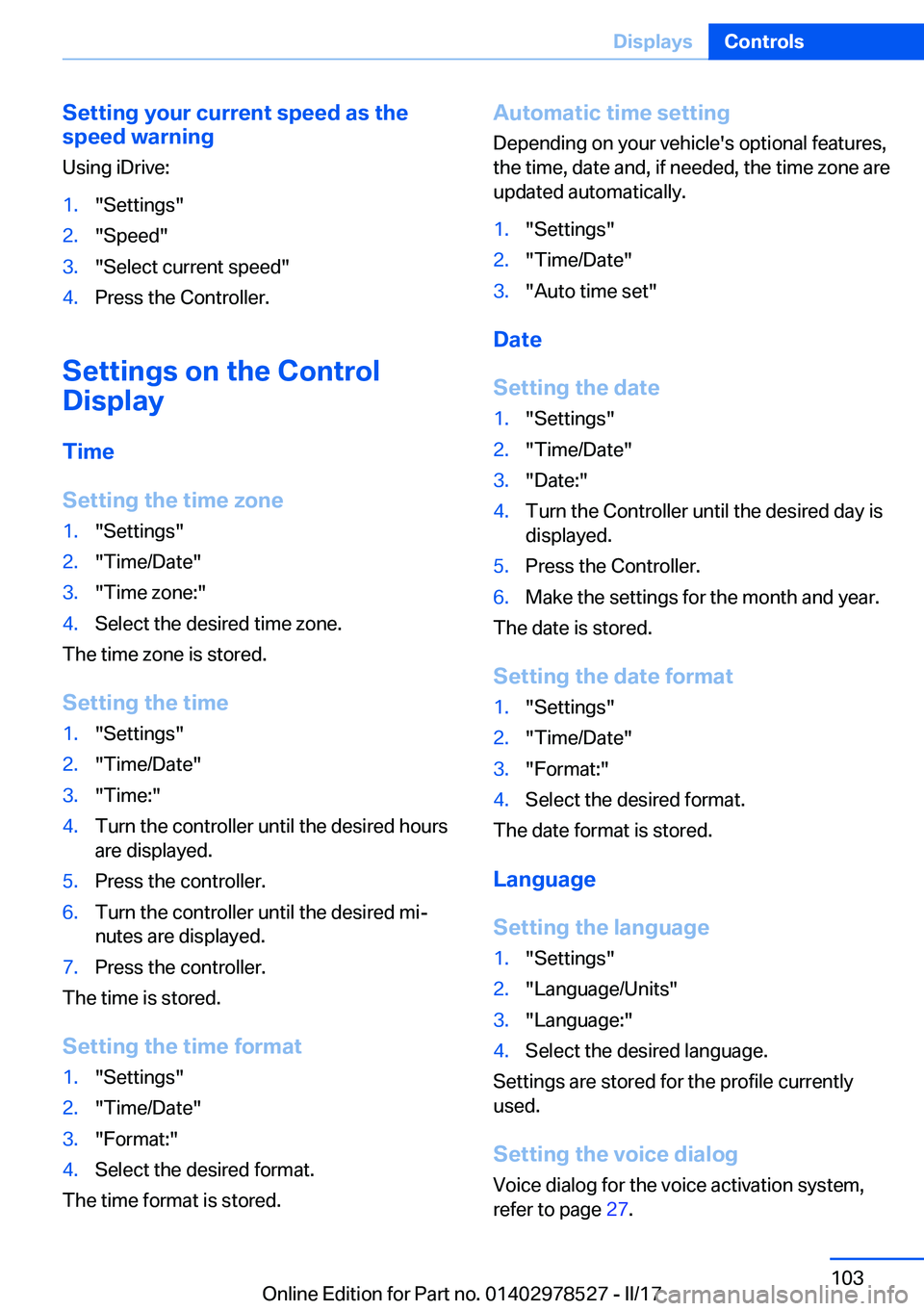

Setting
your
current
speed
as
the
speed
warning
Using iDrive:1."Settings"2."Speed"3."Select current speed"4.Press the Controller.
Settings
on
the
Control
Display
Time
Setting
the
time
zone
1."Settings"2."Time/Date"3."Time zone:"4.Select the desired time zone.
The time zone is stored.
Setting
the
time
1."Settings"2."Time/Date"3."Time:"4.Turn the controller until the desired hours are displayed.5.Press the controller.6.Turn the controller until the desired mijnutes are displayed.7.Press the controller.
The time is stored.
Setting
the
time
format
1."Settings"2."Time/Date"3."Format:"4.Select the desired format.
The time format is stored.
Automatic
time
setting Depending on your vehicle's optional features,
the time, date and, if needed, the time zone are
updated automatically.1."Settings"2."Time/Date"3."Auto time set"
Date
Setting
the
date
1."Settings"2."Time/Date"3."Date:"4.Turn the Controller until the desired day is
displayed.5.Press the Controller.6.Make the settings for the month and year.
The date is stored.
Setting
the
date
format
1."Settings"2."Time/Date"3."Format:"4.Select the desired format.
The date format is stored.
Language
Setting
the
language
1."Settings"2."Language/Units"3."Language:"4.Select the desired language.
Settings are stored for the profile currently used.
Setting
the
voice
dialog
Voice dialog for the voice activation system,
refer to page 27.
Seite 103DisplaysControls103
Online Edition for Part no. 01402978527 - II/17

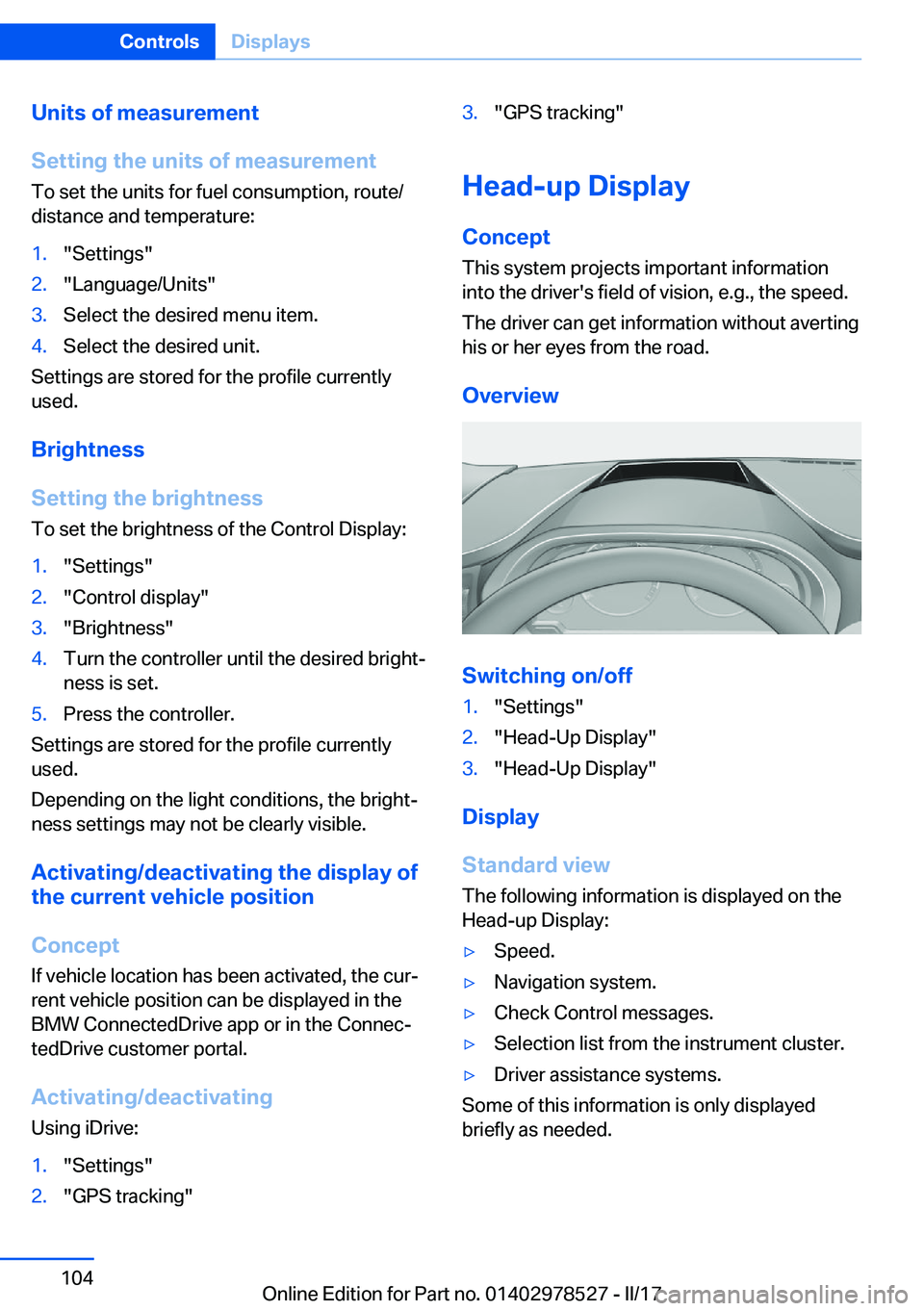

Units
of
measurement
Setting
the
units
of
measurement
To set the units for fuel consumption, route/
distance and temperature:1."Settings"2."Language/Units"3.Select the desired menu item.4.Select the desired unit.
Settings are stored for the profile currently used.
Brightness
Setting
the
brightness To set the brightness of the Control Display:
1."Settings"2."Control display"3."Brightness"4.Turn the controller until the desired brightjness is set.5.Press the controller.
Settings are stored for the profile currentlyused.
Depending on the light conditions, the brightj
ness settings may not be clearly visible.
Activating/deactivating
the
display
of
the
current
vehicle
position
Concept
If vehicle location has been activated, the curj
rent vehicle position can be displayed in the
BMW ConnectedDrive app or in the Connecj
tedDrive customer portal.
Activating/deactivating
Using iDrive:
1."Settings"2."GPS tracking"3."GPS tracking"
Head-up
Display
Concept
This system projects important information
into the driver's field of vision, e.g., the speed.
The driver can get information without averting
his or her eyes from the road.
Overview
Switching
on/off
1."Settings"2."Head-Up Display"3."Head-Up Display"
Display
Standard
view The following information is displayed on theHead-up Display:
'ySpeed.'yNavigation system.'yCheck Control messages.'ySelection list from the instrument cluster.'yDriver assistance systems.
Some of this information is only displayed briefly as needed.
Seite 104ControlsDisplays104
Online Edition for Part no. 01402978527 - II/17

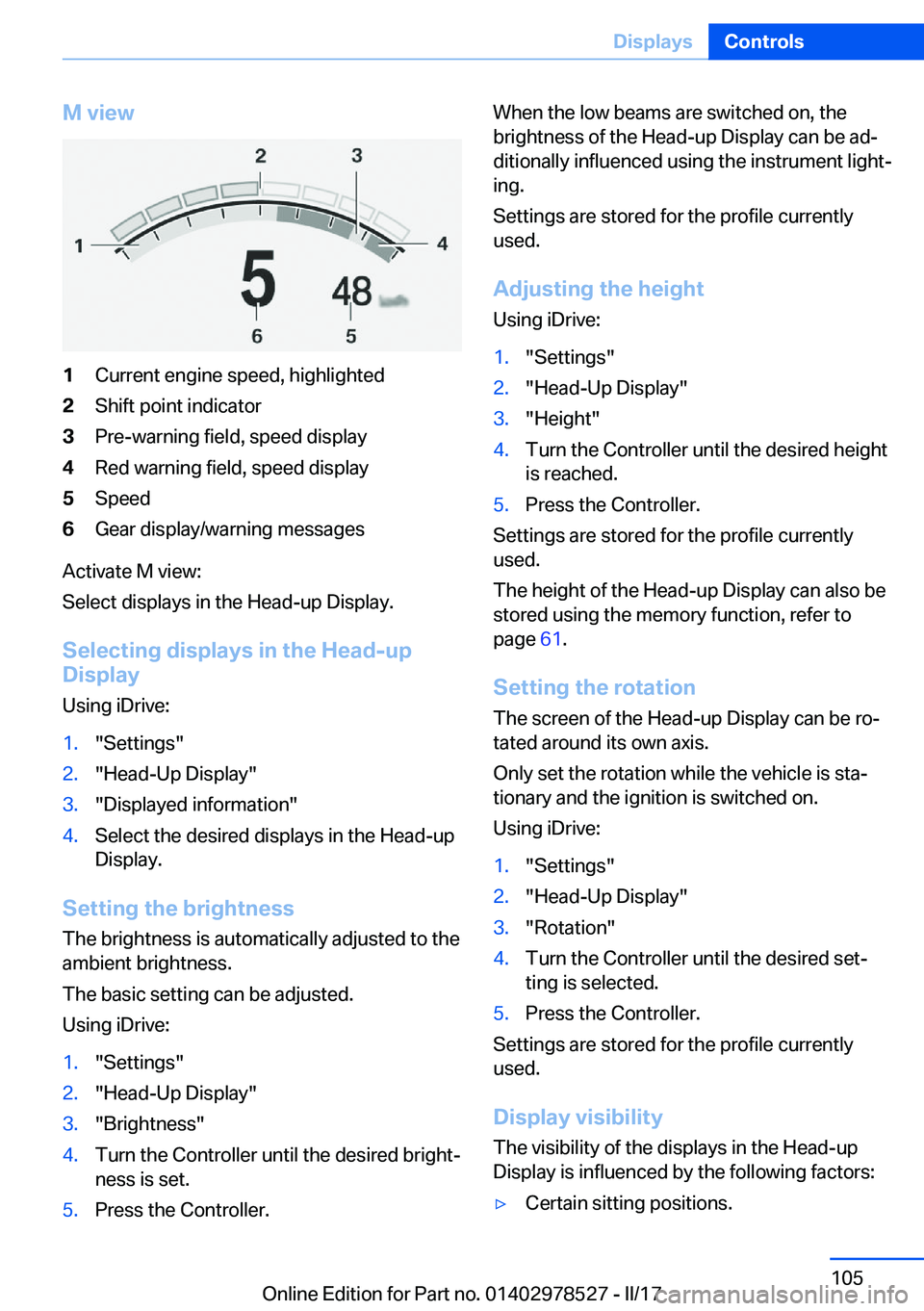

M
view1Current engine speed, highlighted2Shift point indicator3Pre-warning field, speed display4Red warning field, speed display5Speed6Gear display/warning messages
Activate M view:
Select displays in the Head-up Display.
Selecting
displays
in
the
Head-upDisplay
Using iDrive:
1."Settings"2."Head-Up Display"3."Displayed information"4.Select the desired displays in the Head-up Display.
Setting
the
brightness
The brightness is automatically adjusted to the
ambient brightness.
The basic setting can be adjusted. Using iDrive:
1."Settings"2."Head-Up Display"3."Brightness"4.Turn the Controller until the desired brightjness is set.5.Press the Controller.When the low beams are switched on, the
brightness of the Head-up Display can be adj
ditionally influenced using the instrument lightj ing.
Settings are stored for the profile currently used.
Adjusting
the
height
Using iDrive:1."Settings"2."Head-Up Display"3."Height"4.Turn the Controller until the desired height
is reached.5.Press the Controller.
Settings are stored for the profile currently used.
The height of the Head-up Display can also be
stored using the memory function, refer to
page 61.
Setting
the
rotation
The screen of the Head-up Display can be roj
tated around its own axis.
Only set the rotation while the vehicle is staj
tionary and the ignition is switched on.
Using iDrive:
1."Settings"2."Head-Up Display"3."Rotation"4.Turn the Controller until the desired setj ting is selected.5.Press the Controller.
Settings are stored for the profile currentlyused.
Display
visibility The visibility of the displays in the Head-up
Display is influenced by the following factors:
'yCertain sitting positions.Seite 105DisplaysControls105
Online Edition for Part no. 01402978527 - II/17

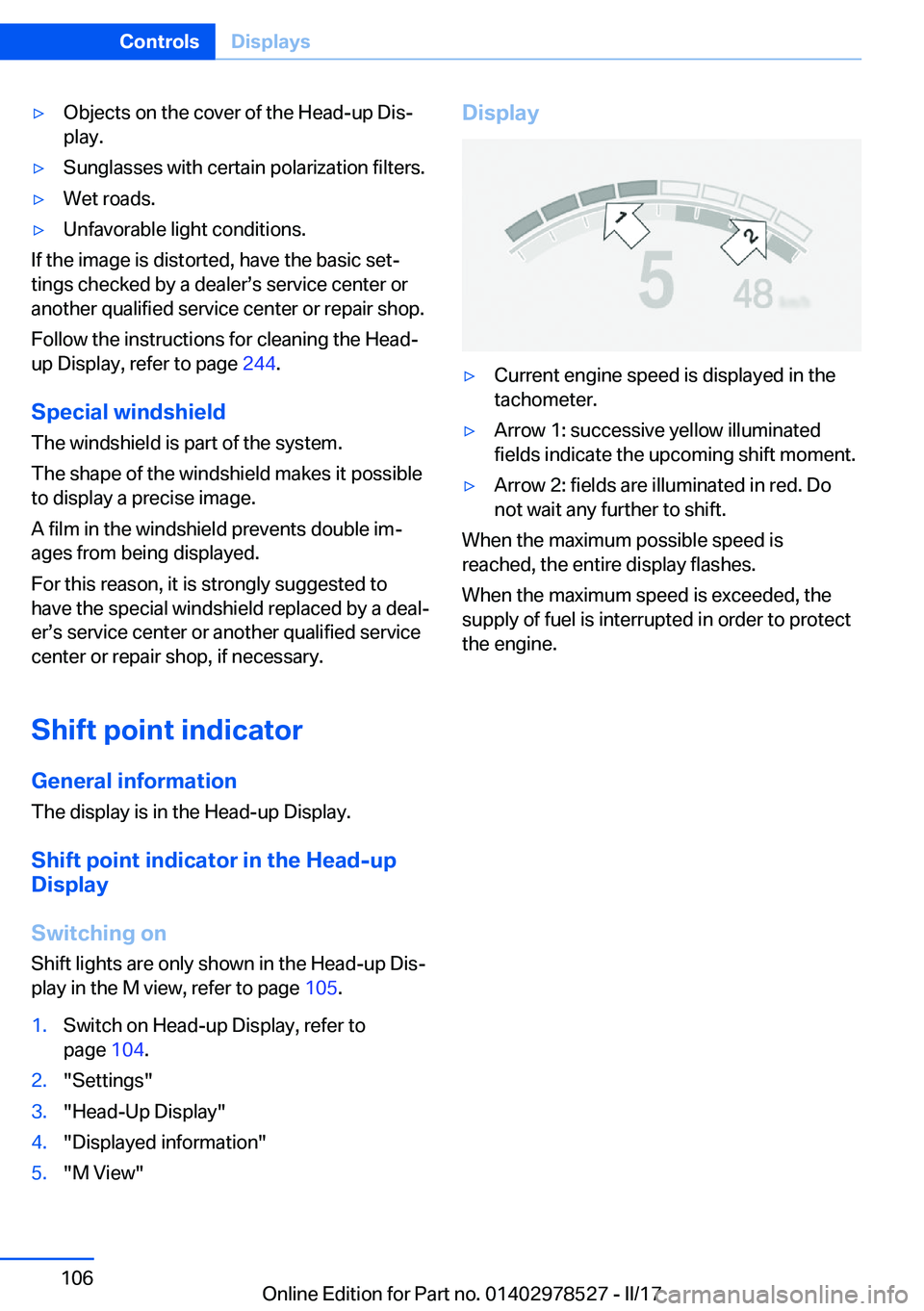

'yObjects on the cover of the Head-up Disj
play.'ySunglasses with certain polarization filters.'yWet roads.'yUnfavorable light conditions.
If the image is distorted, have the basic setj tings checked by a dealerss service center or
another qualified service center or repair shop.
Follow the instructions for cleaning the Head- up Display, refer to page 244.
Special
windshield The windshield is part of the system.
The shape of the windshield makes it possible
to display a precise image.
A film in the windshield prevents double imj
ages from being displayed.
For this reason, it is strongly suggested to have the special windshield replaced by a dealj
erss service center or another qualified service
center or repair shop, if necessary.
Shift
point
indicator
General
information
The display is in the Head-up Display.
Shift
point
indicator
in
the
Head-up
Display
Switching
on Shift lights are only shown in the Head-up Disjplay in the M view, refer to page 105.
1.Switch on Head-up Display, refer to
page 104.2."Settings"3."Head-Up Display"4."Displayed information"5."M View"Display'yCurrent engine speed is displayed in the
tachometer.'yArrow 1: successive yellow illuminated
fields indicate the upcoming shift moment.'yArrow 2: fields are illuminated in red. Do
not wait any further to shift.
When the maximum possible speed is
reached, the entire display flashes.
When the maximum speed is exceeded, the
supply of fuel is interrupted in order to protect
the engine.
Seite 106ControlsDisplays106
Online Edition for Part no. 01402978527 - II/17

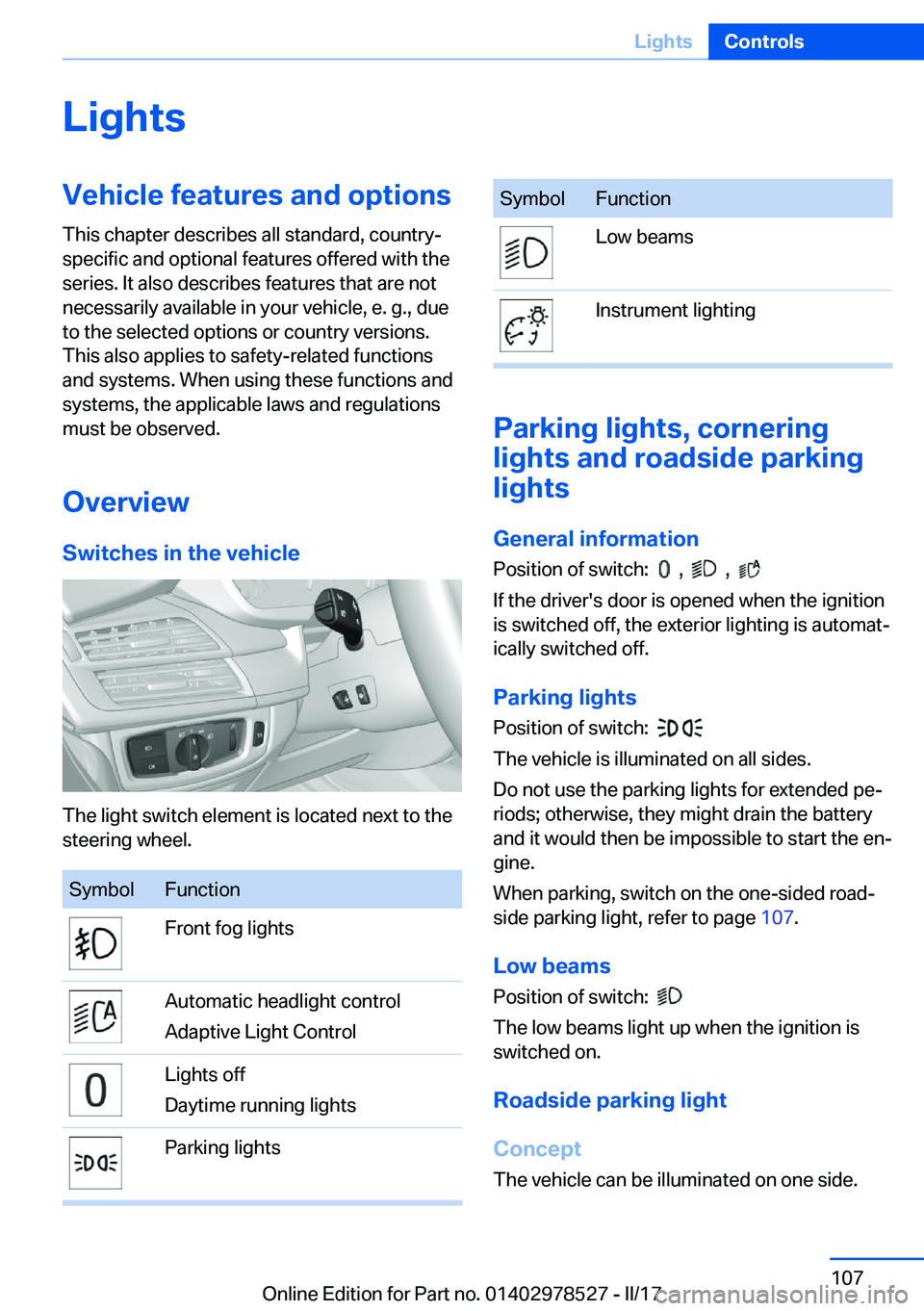

LightsVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Overview Switches
in
the
vehicle
The light switch element is located next to the
steering wheel.
SymbolFunctionFront fog lightsAutomatic headlight control
Adaptive Light ControlLights off
Daytime running lightsParking lightsSymbolFunctionLow beamsInstrument lighting
Parking
lights,
cornering
lights
and
roadside
parking
lights
General
information Position of switch:
, ,
If the driver's door is opened when the ignition is switched off, the exterior lighting is automatj
ically switched off.
Parking
lights
Position of switch:

The vehicle is illuminated on all sides.
Do not use the parking lights for extended pej
riods; otherwise, they might drain the battery
and it would then be impossible to start the enj
gine.
When parking, switch on the one-sided roadj
side parking light, refer to page 107.
Low
beams
Position of switch:

The low beams light up when the ignition is
switched on.
Roadside
parking
light
Concept
The vehicle can be illuminated on one side.
Seite 107LightsControls107
Online Edition for Part no. 01402978527 - II/17

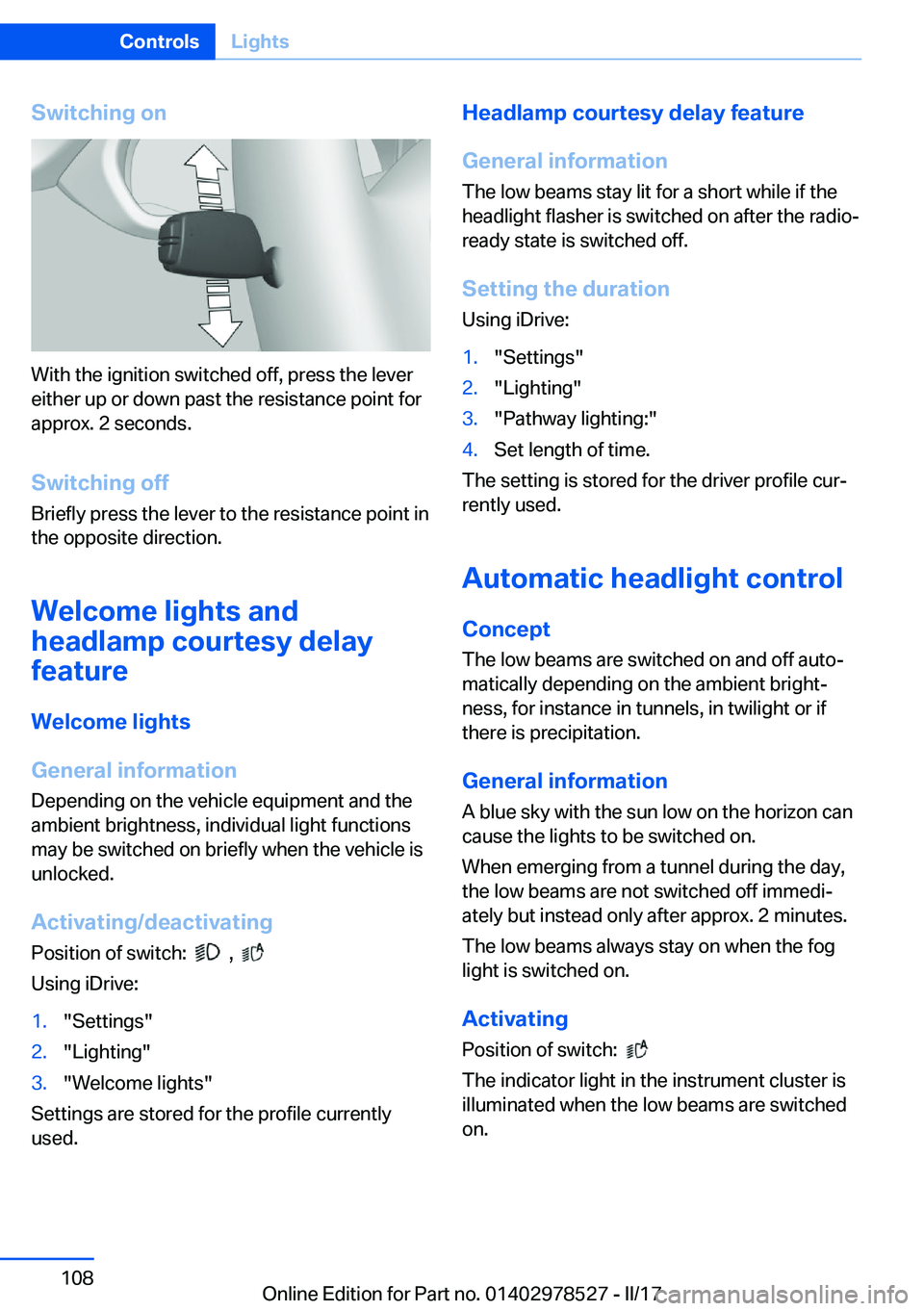

Switching
on
With the ignition switched off, press the lever
either up or down past the resistance point for approx. 2 seconds.
Switching
off Briefly press the lever to the resistance point in
the opposite direction.
Welcome
lights
and
headlamp
courtesy
delay
feature
Welcome
lights
General
information Depending on the vehicle equipment and the
ambient brightness, individual light functions
may be switched on briefly when the vehicle is unlocked.
Activating/deactivating
Position of switch:
,
Using iDrive:
1."Settings"2."Lighting"3."Welcome lights"
Settings are stored for the profile currently used.
Headlamp
courtesy
delay
feature
General
information
The low beams stay lit for a short while if the
headlight flasher is switched on after the radio-
ready state is switched off.
Setting
the
duration Using iDrive:1."Settings"2."Lighting"3."Pathway lighting:"4.Set length of time.
The setting is stored for the driver profile curj
rently used.
Automatic
headlight
control Concept
The low beams are switched on and off autoj matically depending on the ambient brightj
ness, for instance in tunnels, in twilight or if there is precipitation.
General
information
A blue sky with the sun low on the horizon can
cause the lights to be switched on.
When emerging from a tunnel during the day,
the low beams are not switched off immedij
ately but instead only after approx. 2 minutes.
The low beams always stay on when the fog
light is switched on.
Activating Position of switch:

The indicator light in the instrument cluster is
illuminated when the low beams are switched
on.
Seite 108ControlsLights108
Online Edition for Part no. 01402978527 - II/17

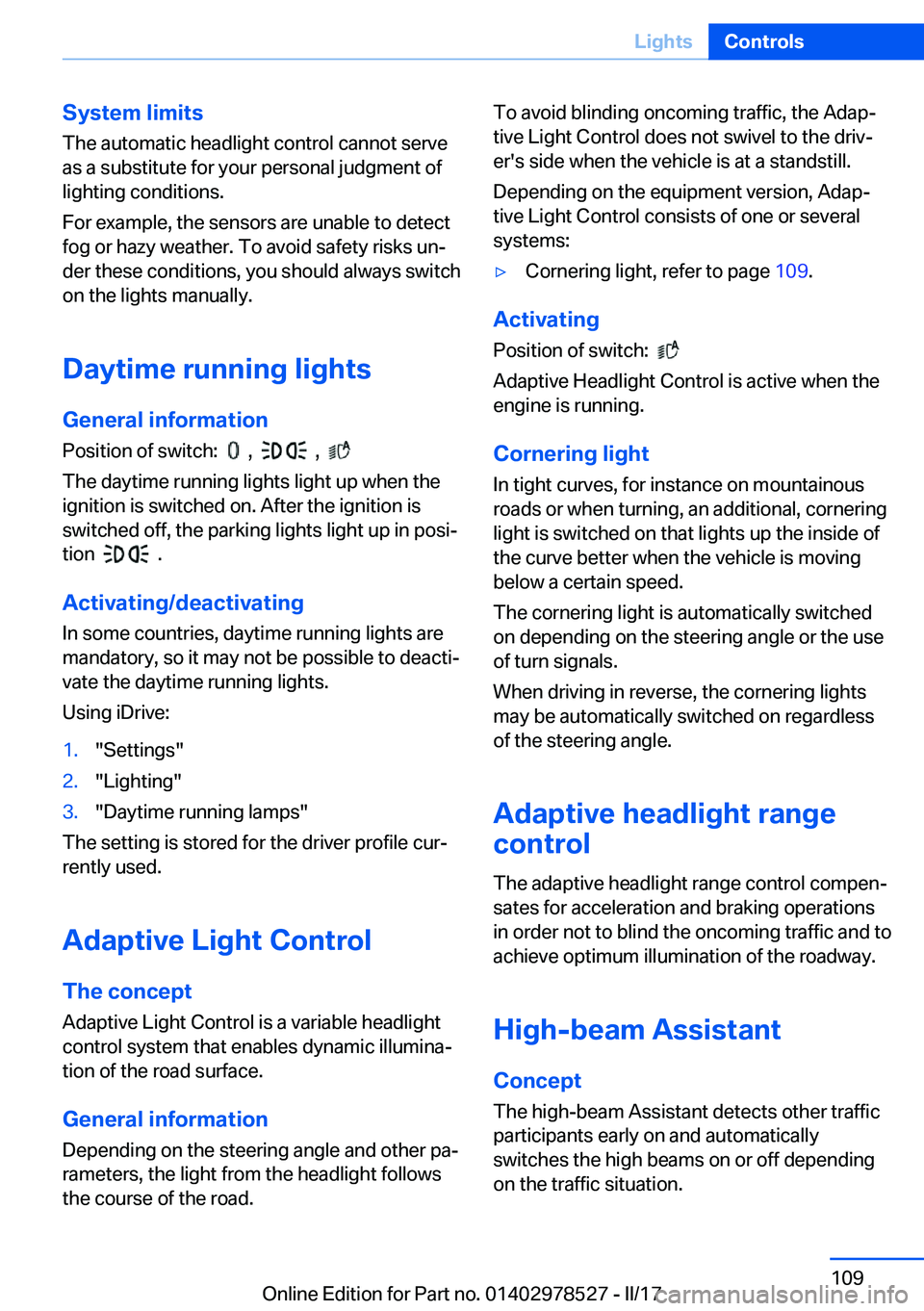

System
limits
The automatic headlight control cannot serve
as a substitute for your personal judgment of
lighting conditions.
For example, the sensors are unable to detect
fog or hazy weather. To avoid safety risks unj
der these conditions, you should always switch
on the lights manually.
Daytime
running
lights
General
information Position of switch:
, ,
The daytime running lights light up when the
ignition is switched on. After the ignition is
switched off, the parking lights light up in posij
tion
.
Activating/deactivating In some countries, daytime running lights are
mandatory, so it may not be possible to deactij
vate the daytime running lights.
Using iDrive:
1."Settings"2."Lighting"3."Daytime running lamps"
The setting is stored for the driver profile curj
rently used.
Adaptive
Light
Control The
conceptAdaptive Light Control is a variable headlight
control system that enables dynamic illuminaj
tion of the road surface.
General
information
Depending on the steering angle and other paj
rameters, the light from the headlight follows the course of the road.
To avoid blinding oncoming traffic, the Adapj
tive Light Control does not swivel to the drivj er's side when the vehicle is at a standstill.
Depending on the equipment version, Adapj
tive Light Control consists of one or several systems:'yCornering light, refer to page 109.
Activating
Position of switch:

Adaptive Headlight Control is active when the
engine is running.
Cornering
light In tight curves, for instance on mountainous
roads or when turning, an additional, cornering
light is switched on that lights up the inside of
the curve better when the vehicle is moving
below a certain speed.
The cornering light is automatically switched
on depending on the steering angle or the use
of turn signals.
When driving in reverse, the cornering lights
may be automatically switched on regardless of the steering angle.
Adaptive
headlight
range
control
The adaptive headlight range control compenj
sates for acceleration and braking operations
in order not to blind the oncoming traffic and to
achieve optimum illumination of the roadway.
High-beam
Assistant
Concept
The high-beam Assistant detects other traffic participants early on and automatically
switches the high beams on or off depending
on the traffic situation.
Seite 109LightsControls109
Online Edition for Part no. 01402978527 - II/17

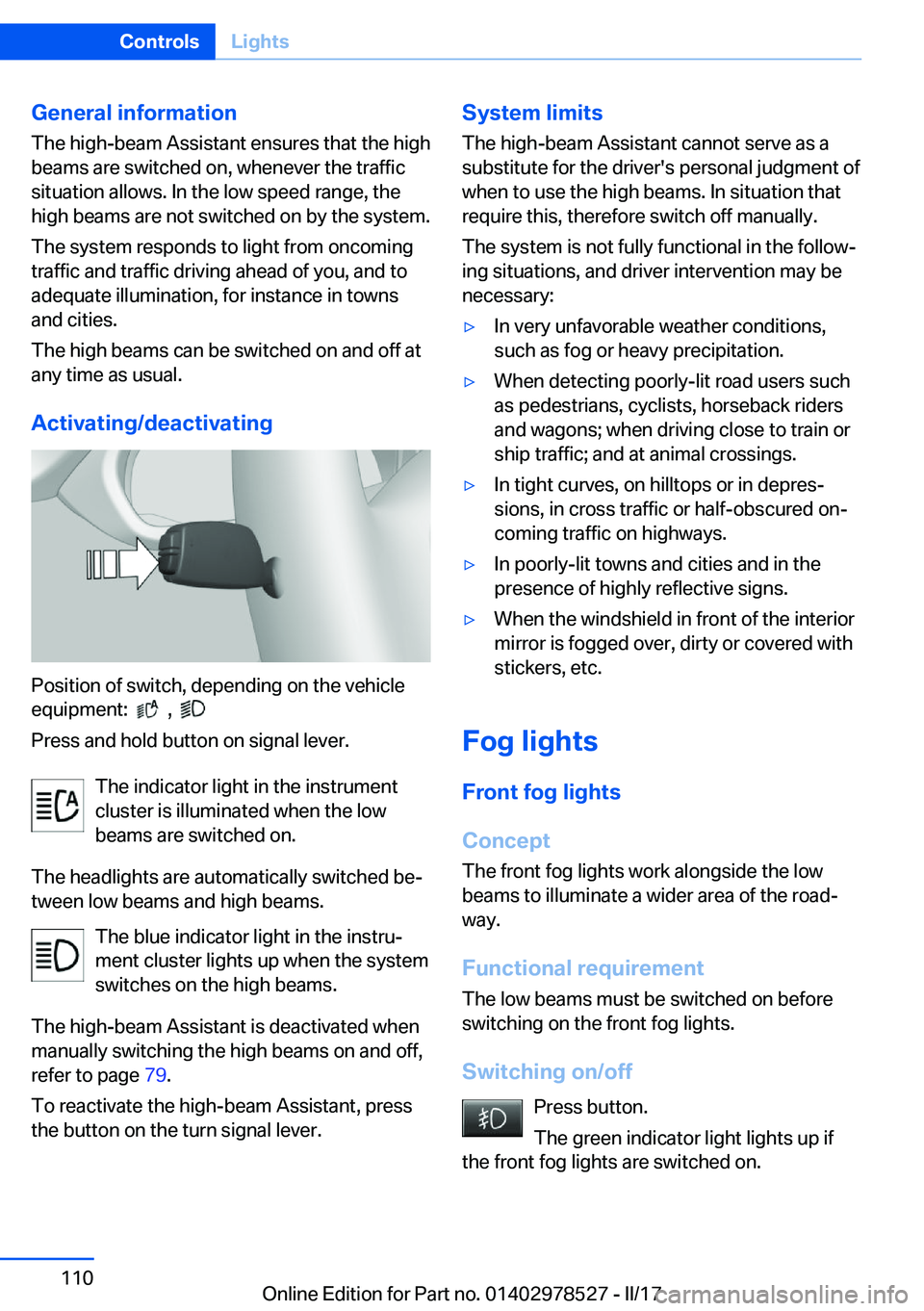

General
information
The high-beam Assistant ensures that the high beams are switched on, whenever the traffic
situation allows. In the low speed range, the high beams are not switched on by the system.
The system responds to light from oncoming
traffic and traffic driving ahead of you, and to
adequate illumination, for instance in towns
and cities.
The high beams can be switched on and off at any time as usual.
Activating/deactivating
Position of switch, depending on the vehicle
equipment:
,
Press and hold button on signal lever.
The indicator light in the instrument
cluster is illuminated when the low
beams are switched on.
The headlights are automatically switched bej tween low beams and high beams.
The blue indicator light in the instruj
ment cluster lights up when the system
switches on the high beams.
The high-beam Assistant is deactivated when
manually switching the high beams on and off,
refer to page 79.
To reactivate the high-beam Assistant, press
the button on the turn signal lever.
System
limits
The high-beam Assistant cannot serve as a
substitute for the driver's personal judgment of
when to use the high beams. In situation that
require this, therefore switch off manually.
The system is not fully functional in the followj
ing situations, and driver intervention may be
necessary:'yIn very unfavorable weather conditions,
such as fog or heavy precipitation.'yWhen detecting poorly-lit road users such
as pedestrians, cyclists, horseback riders
and wagons; when driving close to train or ship traffic; and at animal crossings.'yIn tight curves, on hilltops or in depresj
sions, in cross traffic or half-obscured onj coming traffic on highways.'yIn poorly-lit towns and cities and in thepresence of highly reflective signs.'yWhen the windshield in front of the interior
mirror is fogged over, dirty or covered with stickers, etc.
Fog
lights
Front
fog
lights
Concept
The front fog lights work alongside the low
beams to illuminate a wider area of the roadj
way.
Functional
requirement
The low beams must be switched on before switching on the front fog lights.
Switching
on/off Press button.
The green indicator light lights up if
the front fog lights are switched on.
Seite 110ControlsLights110
Online Edition for Part no. 01402978527 - II/17
