BMW X6 2014 F16 Owner's Manual

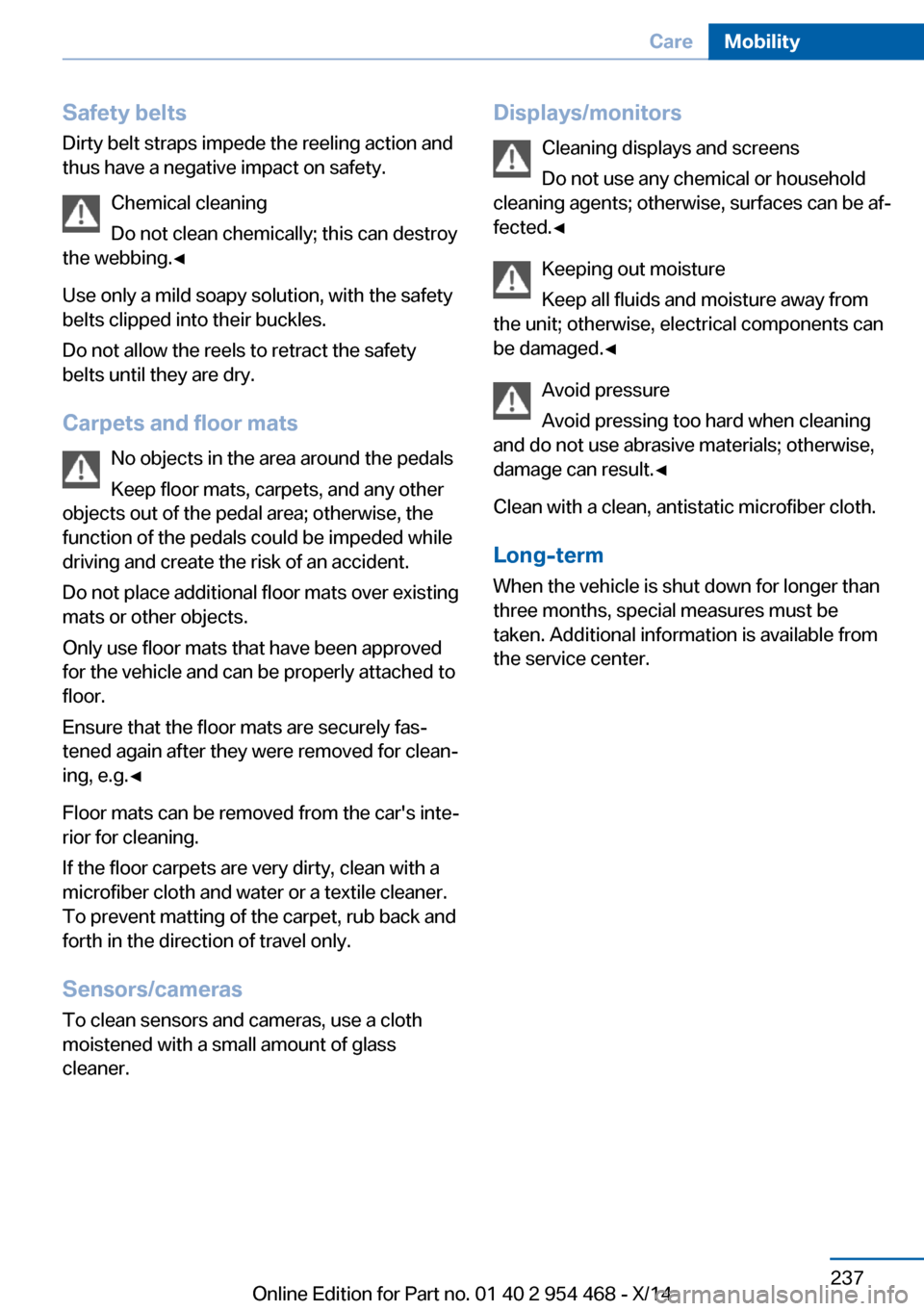

Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Chemical cleaning
Do not clean chemically; this can destroy
the webbing.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the reels to retract the safety
belts until they are dry.
Carpets and floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the pedal area; otherwise, the
function of the pedals could be impeded while
driving and create the risk of an accident.
Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved
for the vehicle and can be properly attached to
floor.
Ensure that the floor mats are securely fas‐
tened again after they were removed for clean‐
ing, e.g.◀
Floor mats can be removed from the car's inte‐
rior for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner.
To prevent matting of the carpet, rub back and
forth in the direction of travel only.
Sensors/cameras
To clean sensors and cameras, use a cloth
moistened with a small amount of glass
cleaner.Displays/monitors
Cleaning displays and screens
Do not use any chemical or household
cleaning agents; otherwise, surfaces can be af‐
fected.◀
Keeping out moisture
Keep all fluids and moisture away from
the unit; otherwise, electrical components can
be damaged.◀
Avoid pressure
Avoid pressing too hard when cleaning
and do not use abrasive materials; otherwise,
damage can result.◀
Clean with a clean, antistatic microfiber cloth.
Long-term
When the vehicle is shut down for longer than
three months, special measures must be
taken. Additional information is available from
the service center.Seite 237CareMobility237
Online Edition for Part no. 01 40 2 954 468 - X/14

Online Edition for Part no. 01 40 2 954 468 - X/14

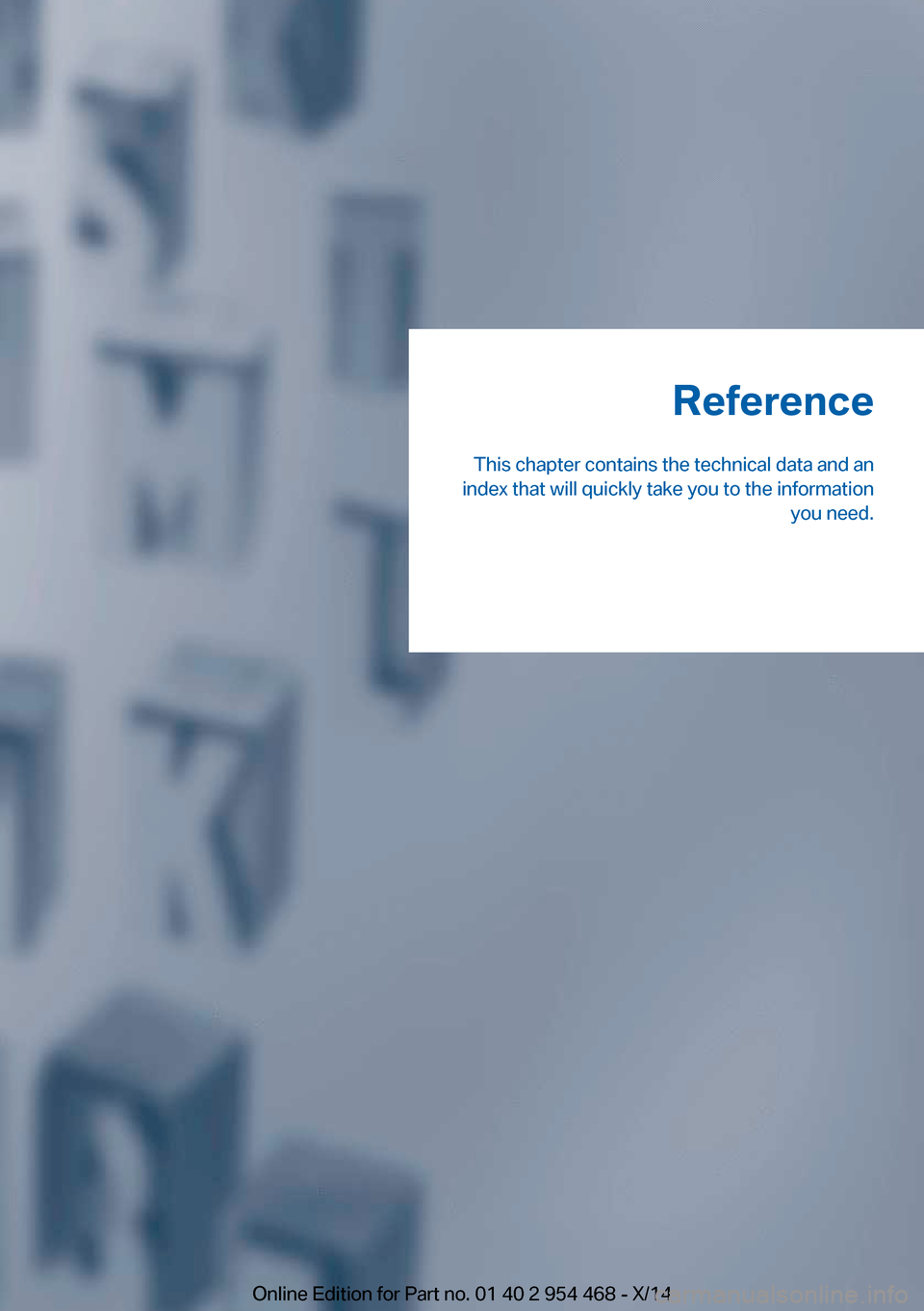

Reference
This chapter contains the technical data and an
index that will quickly take you to the information you need.Online Edition for Part no. 01 40 2 954 468 - X/14

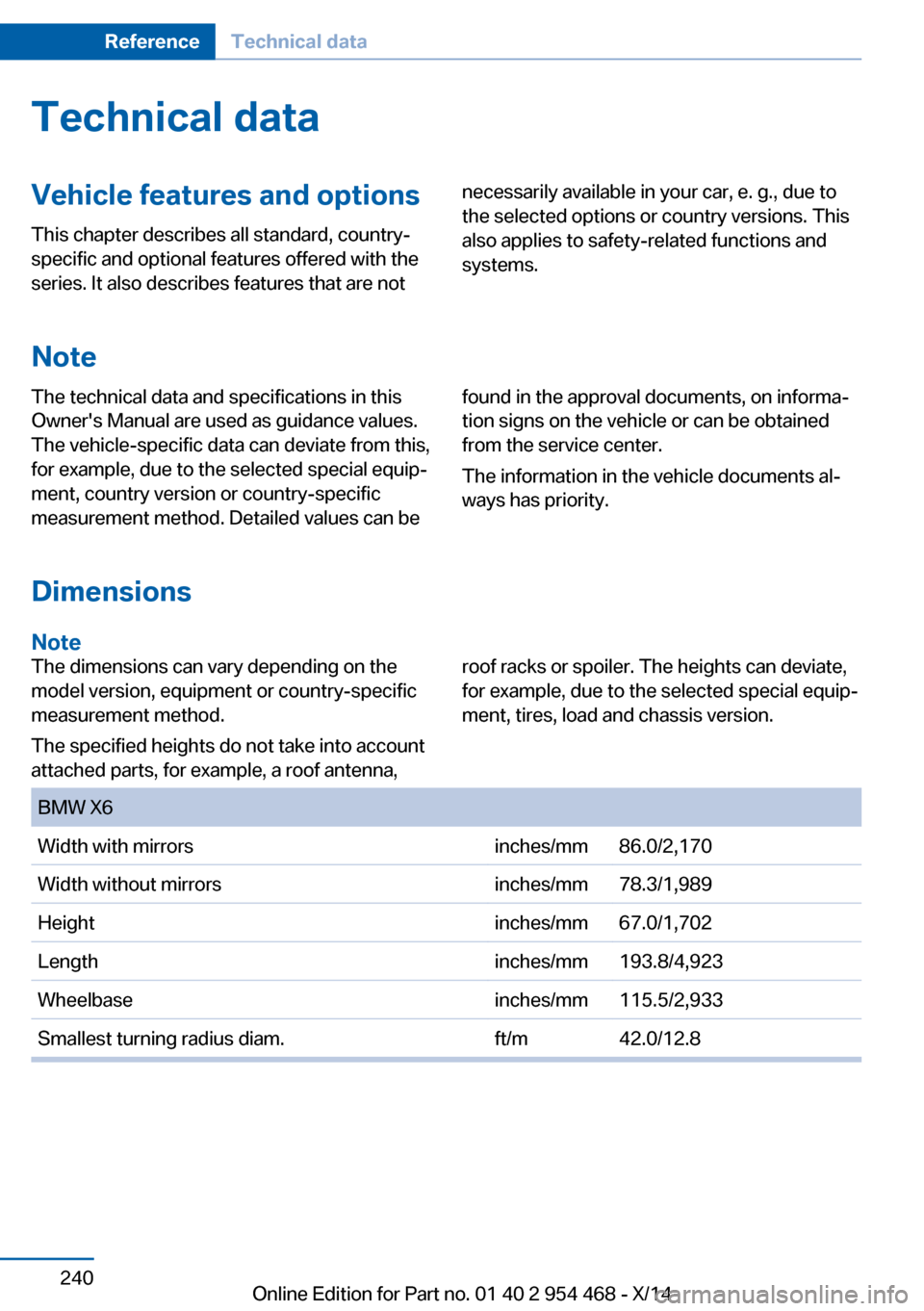

Technical dataVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are notnecessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
Note
The technical data and specifications in this
Owner's Manual are used as guidance values.
The vehicle-specific data can deviate from this,
for example, due to the selected special equip‐
ment, country version or country-specific
measurement method. Detailed values can befound in the approval documents, on informa‐
tion signs on the vehicle or can be obtained
from the service center.
The information in the vehicle documents al‐
ways has priority.
Dimensions
Note
The dimensions can vary depending on the
model version, equipment or country-specific
measurement method.
The specified heights do not take into account
attached parts, for example, a roof antenna,roof racks or spoiler. The heights can deviate,
for example, due to the selected special equip‐
ment, tires, load and chassis version. BMW X6Width with mirrorsinches/mm86.0/2,170Width without mirrorsinches/mm78.3/1,989Heightinches/mm67.0/1,702Lengthinches/mm193.8/4,923Wheelbaseinches/mm115.5/2,933Smallest turning radius diam.ft/m42.0/12.8Seite 240ReferenceTechnical data240
Online Edition for Part no. 01 40 2 954 468 - X/14

Seite 241Technical dataReference241
Online Edition for Part no. 01 40 2 954 468 - X/14

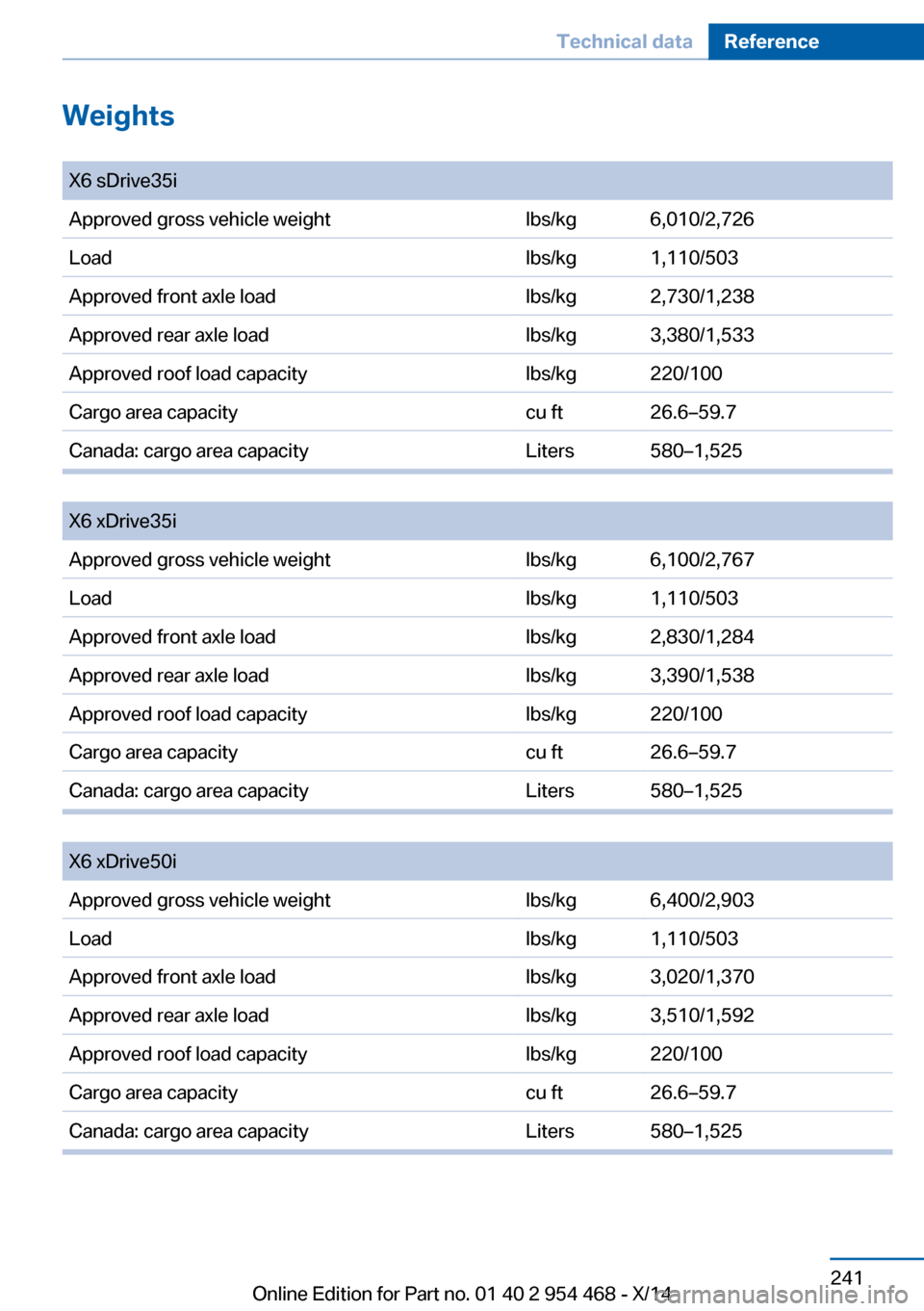

Weights
X6 sDrive35iApproved gross vehicle weightlbs/kg6,010/2,726Loadlbs/kg1,110/503Approved front axle loadlbs/kg2,730/1,238Approved rear axle loadlbs/kg3,380/1,533Approved roof load capacitylbs/kg220/100Cargo area capacitycu ftCanada: cargo area capacityLiters580–1,525

X6 xDrive35iApproved gross vehicle weightlbs/kg6,100/2,767Loadlbs/kg1,110/503Approved front axle loadlbs/kg2,830/1,284Approved rear axle loadlbs/kg3,390/1,538Approved roof load capacitylbs/kg220/100Cargo area capacitycu ftCanada: cargo area capacityLiters580–1,525

X6 xDrive50iApproved gross vehicle weightlbs/kg6,400/2,903Loadlbs/kg1,110/503Approved front axle loadlbs/kg3,020/1,370Approved rear axle loadlbs/kg3,510/1,592Approved roof load capacitylbs/kg220/100Cargo area capacitycu ftCanada: cargo area capacityLiters580–1,52526.6–59.726.6–59.726.6–59.7

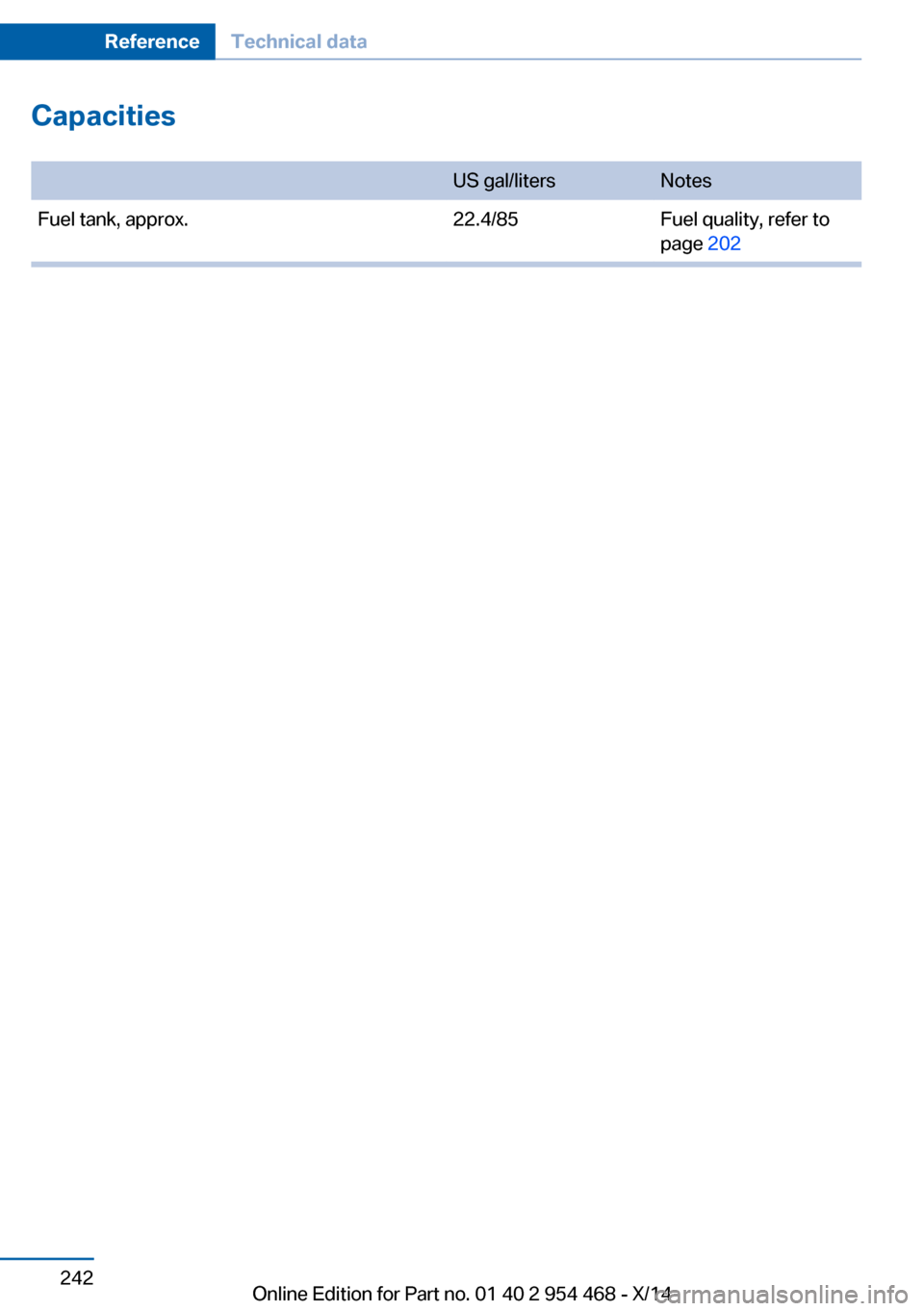

Capacities
US gal/litersNotesFuel tank, approx.22.4/85Fuel quality, refer to
page 202Seite 242ReferenceTechnical data242
Online Edition for Part no. 01 40 2 954 468 - X/14

Seite 243Technical dataReference243
Online Edition for Part no. 01 40 2 954 468 - X/14

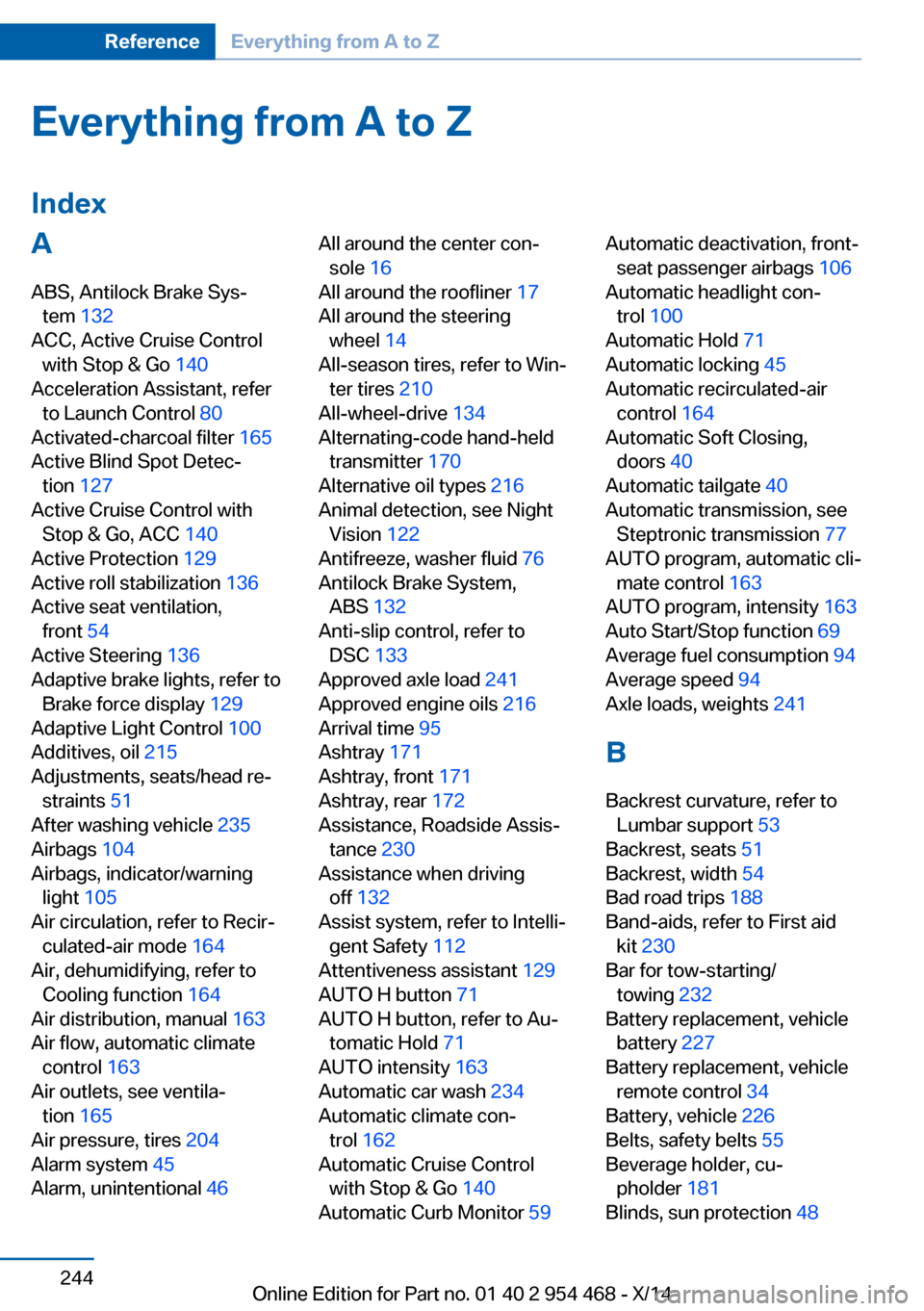

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 132
ACC, Active Cruise Control with Stop & Go 140
Acceleration Assistant, refer to Launch Control 80
Activated-charcoal filter 165
Active Blind Spot Detec‐ tion 127
Active Cruise Control with Stop & Go, ACC 140
Active Protection 129
Active roll stabilization 136
Active seat ventilation, front 54
Active Steering 136
Adaptive brake lights, refer to Brake force display 129
Adaptive Light Control 100
Additives, oil 215
Adjustments, seats/head re‐ straints 51
After washing vehicle 235
Airbags 104
Airbags, indicator/warning light 105
Air circulation, refer to Recir‐ culated-air mode 164
Air, dehumidifying, refer to Cooling function 164
Air distribution, manual 163
Air flow, automatic climate control 163
Air outlets, see ventila‐ tion 165
Air pressure, tires 204
Alarm system 45
Alarm, unintentional 46 All around the center con‐
sole 16
All around the roofliner 17
All around the steering wheel 14
All-season tires, refer to Win‐ ter tires 210
All-wheel-drive 134
Alternating-code hand-held transmitter 170
Alternative oil types 216
Animal detection, see Night Vision 122
Antifreeze, washer fluid 76
Antilock Brake System, ABS 132
Anti-slip control, refer to DSC 133
Approved axle load 241
Approved engine oils 216
Arrival time 95
Ashtray 171
Ashtray, front 171
Ashtray, rear 172
Assistance, Roadside Assis‐ tance 230
Assistance when driving off 132
Assist system, refer to Intelli‐ gent Safety 112
Attentiveness assistant 129
AUTO H button 71
AUTO H button, refer to Au‐ tomatic Hold 71
AUTO intensity 163
Automatic car wash 234
Automatic climate con‐ trol 162
Automatic Cruise Control with Stop & Go 140
Automatic Curb Monitor 59 Automatic deactivation, front-
seat passenger airbags 106
Automatic headlight con‐ trol 100
Automatic Hold 71
Automatic locking 45
Automatic recirculated-air control 164
Automatic Soft Closing, doors 40
Automatic tailgate 40
Automatic transmission, see Steptronic transmission 77
AUTO program, automatic cli‐ mate control 163
AUTO program, intensity 163
Auto Start/Stop function 69
Average fuel consumption 94
Average speed 94
Axle loads, weights 241
B Backrest curvature, refer to Lumbar support 53
Backrest, seats 51
Backrest, width 54
Bad road trips 188
Band-aids, refer to First aid kit 230
Bar for tow-starting/ towing 232
Battery replacement, vehicle battery 227
Battery replacement, vehicle remote control 34
Battery, vehicle 226
Belts, safety belts 55
Beverage holder, cu‐ pholder 181
Blinds, sun protection 48 Seite 244ReferenceEverything from A to Z244
Online Edition for Part no. 01 40 2 954 468 - X/14

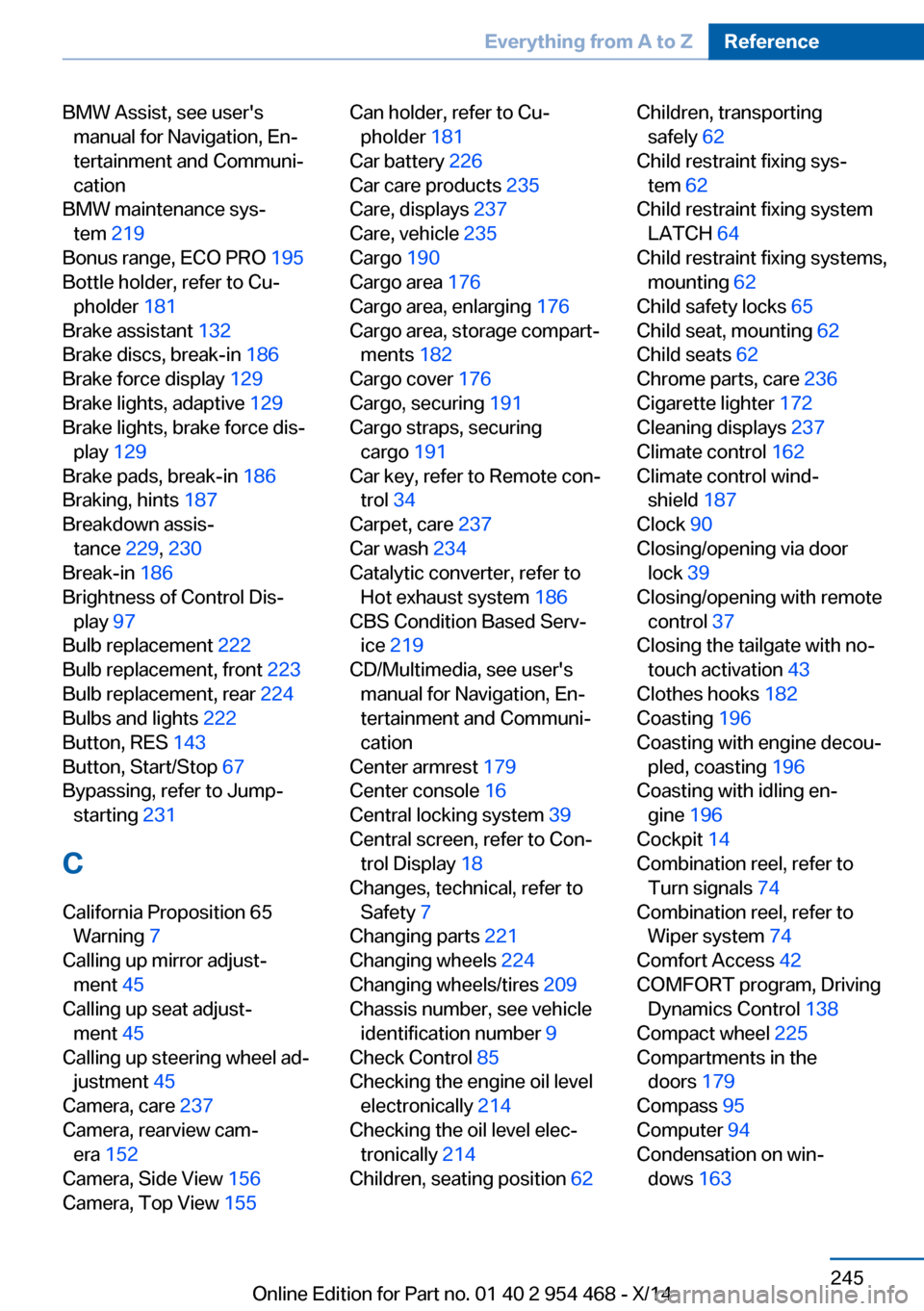

BMW Assist, see user'smanual for Navigation, En‐
tertainment and Communi‐
cation
BMW maintenance sys‐ tem 219
Bonus range, ECO PRO 195
Bottle holder, refer to Cu‐ pholder 181
Brake assistant 132
Brake discs, break-in 186
Brake force display 129
Brake lights, adaptive 129
Brake lights, brake force dis‐ play 129
Brake pads, break-in 186
Braking, hints 187
Breakdown assis‐ tance 229, 230
Break-in 186
Brightness of Control Dis‐ play 97
Bulb replacement 222
Bulb replacement, front 223
Bulb replacement, rear 224
Bulbs and lights 222
Button, RES 143
Button, Start/Stop 67
Bypassing, refer to Jump- starting 231
C
California Proposition 65 Warning 7
Calling up mirror adjust‐ ment 45
Calling up seat adjust‐ ment 45
Calling up steering wheel ad‐ justment 45
Camera, care 237
Camera, rearview cam‐ era 152
Camera, Side View 156
Camera, Top View 155 Can holder, refer to Cu‐
pholder 181
Car battery 226
Car care products 235
Care, displays 237
Care, vehicle 235
Cargo 190
Cargo area 176
Cargo area, enlarging 176
Cargo area, storage compart‐ ments 182
Cargo cover 176
Cargo, securing 191
Cargo straps, securing cargo 191
Car key, refer to Remote con‐ trol 34
Carpet, care 237
Car wash 234
Catalytic converter, refer to Hot exhaust system 186
CBS Condition Based Serv‐ ice 219
CD/Multimedia, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
Center armrest 179
Center console 16
Central locking system 39
Central screen, refer to Con‐ trol Display 18
Changes, technical, refer to Safety 7
Changing parts 221
Changing wheels 224
Changing wheels/tires 209
Chassis number, see vehicle identification number 9
Check Control 85
Checking the engine oil level electronically 214
Checking the oil level elec‐ tronically 214
Children, seating position 62 Children, transporting
safely 62
Child restraint fixing sys‐ tem 62
Child restraint fixing system LATCH 64
Child restraint fixing systems, mounting 62
Child safety locks 65
Child seat, mounting 62
Child seats 62
Chrome parts, care 236
Cigarette lighter 172
Cleaning displays 237
Climate control 162
Climate control wind‐ shield 187
Clock 90
Closing/opening via door lock 39
Closing/opening with remote control 37
Closing the tailgate with no- touch activation 43
Clothes hooks 182
Coasting 196
Coasting with engine decou‐ pled, coasting 196
Coasting with idling en‐ gine 196
Cockpit 14
Combination reel, refer to Turn signals 74
Combination reel, refer to Wiper system 74
Comfort Access 42
COMFORT program, Driving Dynamics Control 138
Compact wheel 225
Compartments in the doors 179
Compass 95
Computer 94
Condensation on win‐ dows 163 Seite 245Everything from A to ZReference245
Online Edition for Part no. 01 40 2 954 468 - X/14

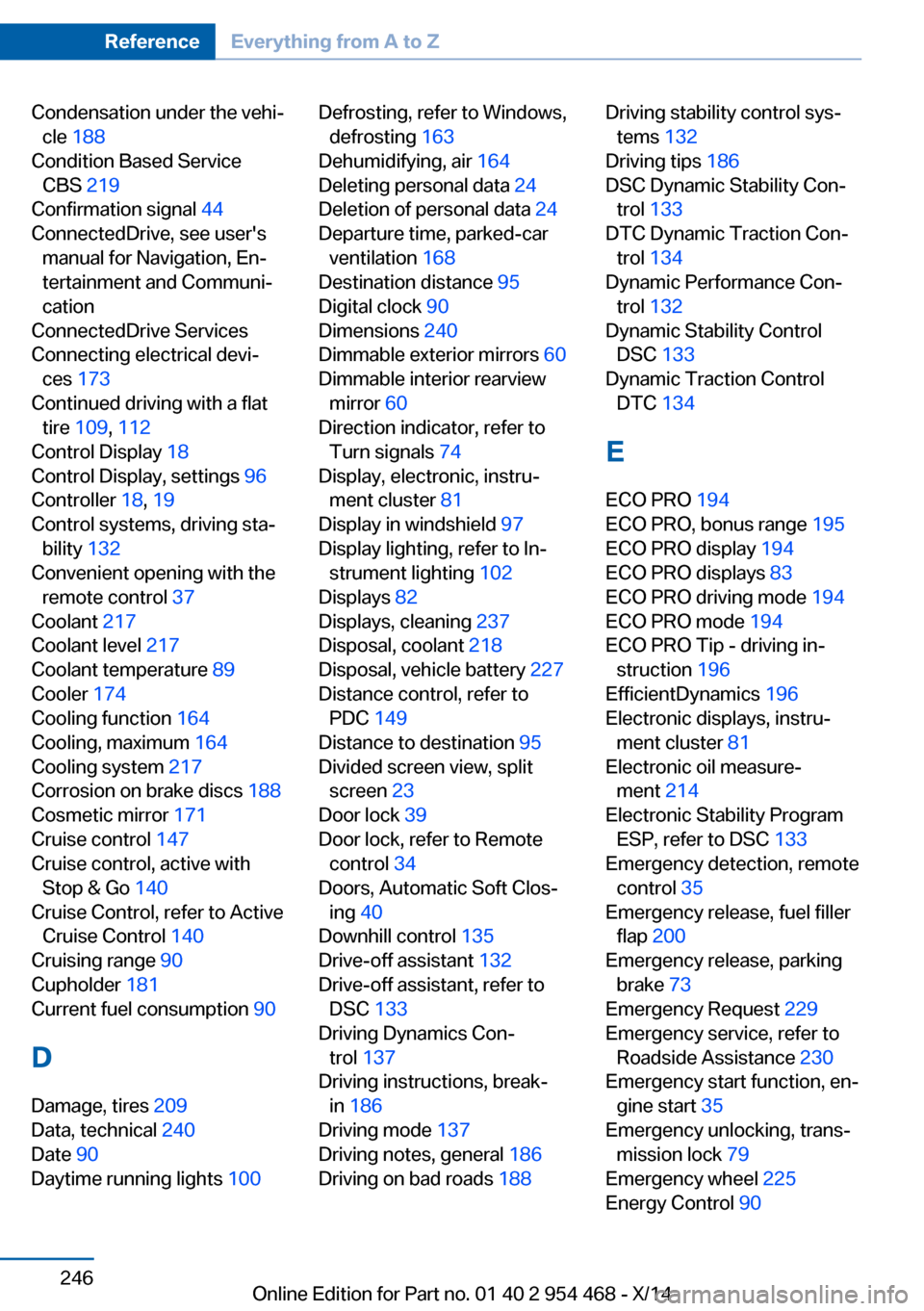

Condensation under the vehi‐cle 188
Condition Based Service CBS 219
Confirmation signal 44
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Connecting electrical devi‐ ces 173
Continued driving with a flat tire 109 , 112
Control Display 18
Control Display, settings 96
Controller 18, 19
Control systems, driving sta‐ bility 132
Convenient opening with the remote control 37
Coolant 217
Coolant level 217
Coolant temperature 89
Cooler 174
Cooling function 164
Cooling, maximum 164
Cooling system 217
Corrosion on brake discs 188
Cosmetic mirror 171
Cruise control 147
Cruise control, active with Stop & Go 140
Cruise Control, refer to Active Cruise Control 140
Cruising range 90
Cupholder 181
Current fuel consumption 90
D
Damage, tires 209
Data, technical 240
Date 90
Daytime running lights 100 Defrosting, refer to Windows,
defrosting 163
Dehumidifying, air 164
Deleting personal data 24
Deletion of personal data 24
Departure time, parked-car ventilation 168
Destination distance 95
Digital clock 90
Dimensions 240
Dimmable exterior mirrors 60
Dimmable interior rearview mirror 60
Direction indicator, refer to Turn signals 74
Display, electronic, instru‐ ment cluster 81
Display in windshield 97
Display lighting, refer to In‐ strument lighting 102
Displays 82
Displays, cleaning 237
Disposal, coolant 218
Disposal, vehicle battery 227
Distance control, refer to PDC 149
Distance to destination 95
Divided screen view, split screen 23
Door lock 39
Door lock, refer to Remote control 34
Doors, Automatic Soft Clos‐ ing 40
Downhill control 135
Drive-off assistant 132
Drive-off assistant, refer to DSC 133
Driving Dynamics Con‐ trol 137
Driving instructions, break- in 186
Driving mode 137
Driving notes, general 186
Driving on bad roads 188 Driving stability control sys‐
tems 132
Driving tips 186
DSC Dynamic Stability Con‐ trol 133
DTC Dynamic Traction Con‐ trol 134
Dynamic Performance Con‐ trol 132
Dynamic Stability Control DSC 133
Dynamic Traction Control DTC 134
E ECO PRO 194
ECO PRO, bonus range 195
ECO PRO display 194
ECO PRO displays 83
ECO PRO driving mode 194
ECO PRO mode 194
ECO PRO Tip - driving in‐ struction 196
EfficientDynamics 196
Electronic displays, instru‐ ment cluster 81
Electronic oil measure‐ ment 214
Electronic Stability Program ESP, refer to DSC 133
Emergency detection, remote control 35
Emergency release, fuel filler flap 200
Emergency release, parking brake 73
Emergency Request 229
Emergency service, refer to Roadside Assistance 230
Emergency start function, en‐ gine start 35
Emergency unlocking, trans‐ mission lock 79
Emergency wheel 225
Energy Control 90 Seite 246ReferenceEverything from A to Z246
Online Edition for Part no. 01 40 2 954 468 - X/14
