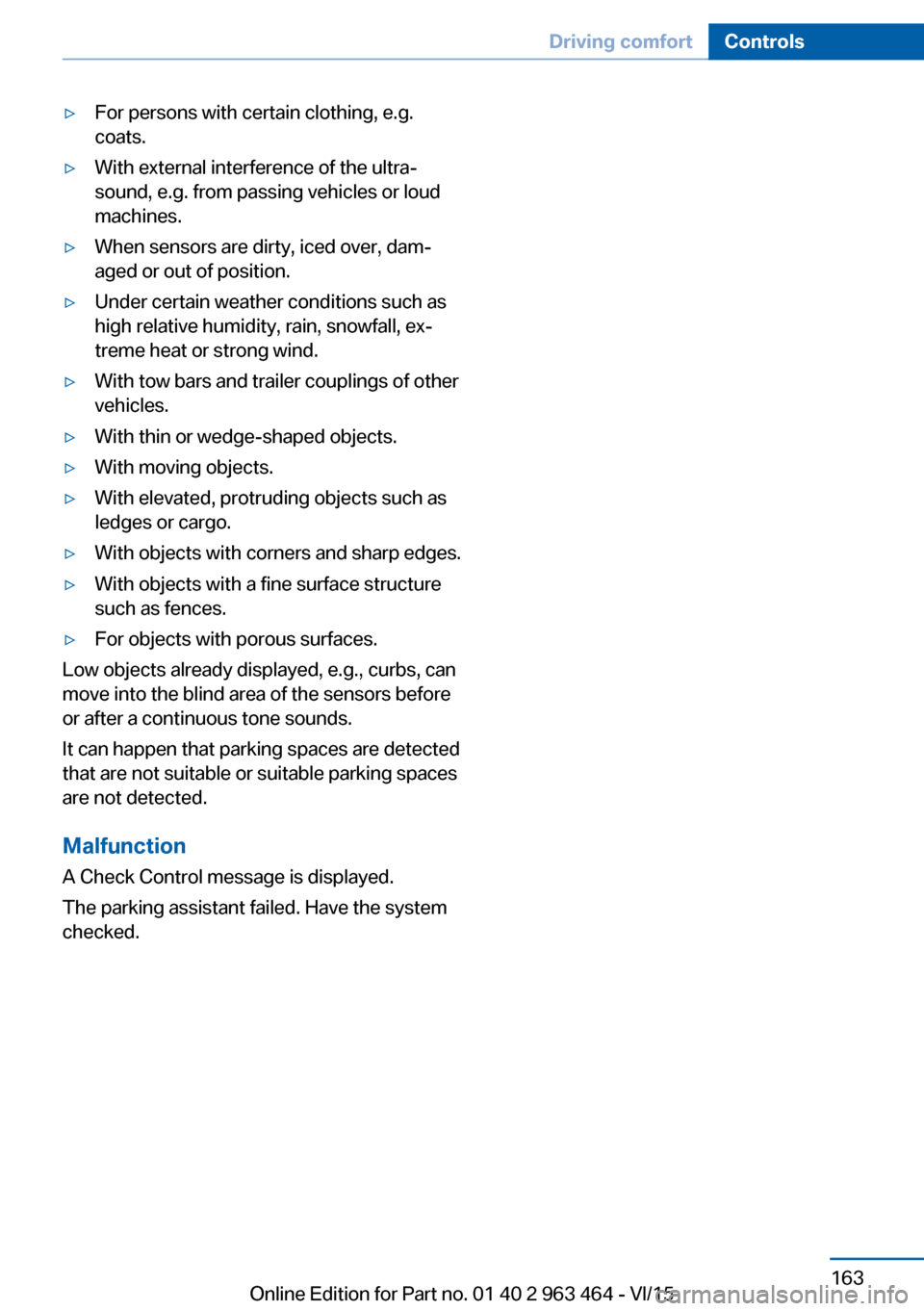

▷For persons with certain clothing, e.g.
coats.▷With external interference of the ultra‐
sound, e.g. from passing vehicles or loud
machines.▷When sensors are dirty, iced over, dam‐
aged or out of position.▷Under certain weather conditions such as
high relative humidity, rain, snowfall, ex‐
treme heat or strong wind.▷With tow bars and trailer couplings of other
vehicles.▷With thin or wedge-shaped objects.▷With moving objects.▷With elevated, protruding objects such as
ledges or cargo.▷With objects with corners and sharp edges.▷With objects with a fine surface structure
such as fences.▷For objects with porous surfaces.
Low objects already displayed, e.g., curbs, can
move into the blind area of the sensors before
or after a continuous tone sounds.
It can happen that parking spaces are detected
that are not suitable or suitable parking spaces
are not detected.
Malfunction
A Check Control message is displayed.
The parking assistant failed. Have the system
checked.
Seite 163Driving comfortControls163
Online Edition for Part no. 01 40 2 963 464 - VI/15

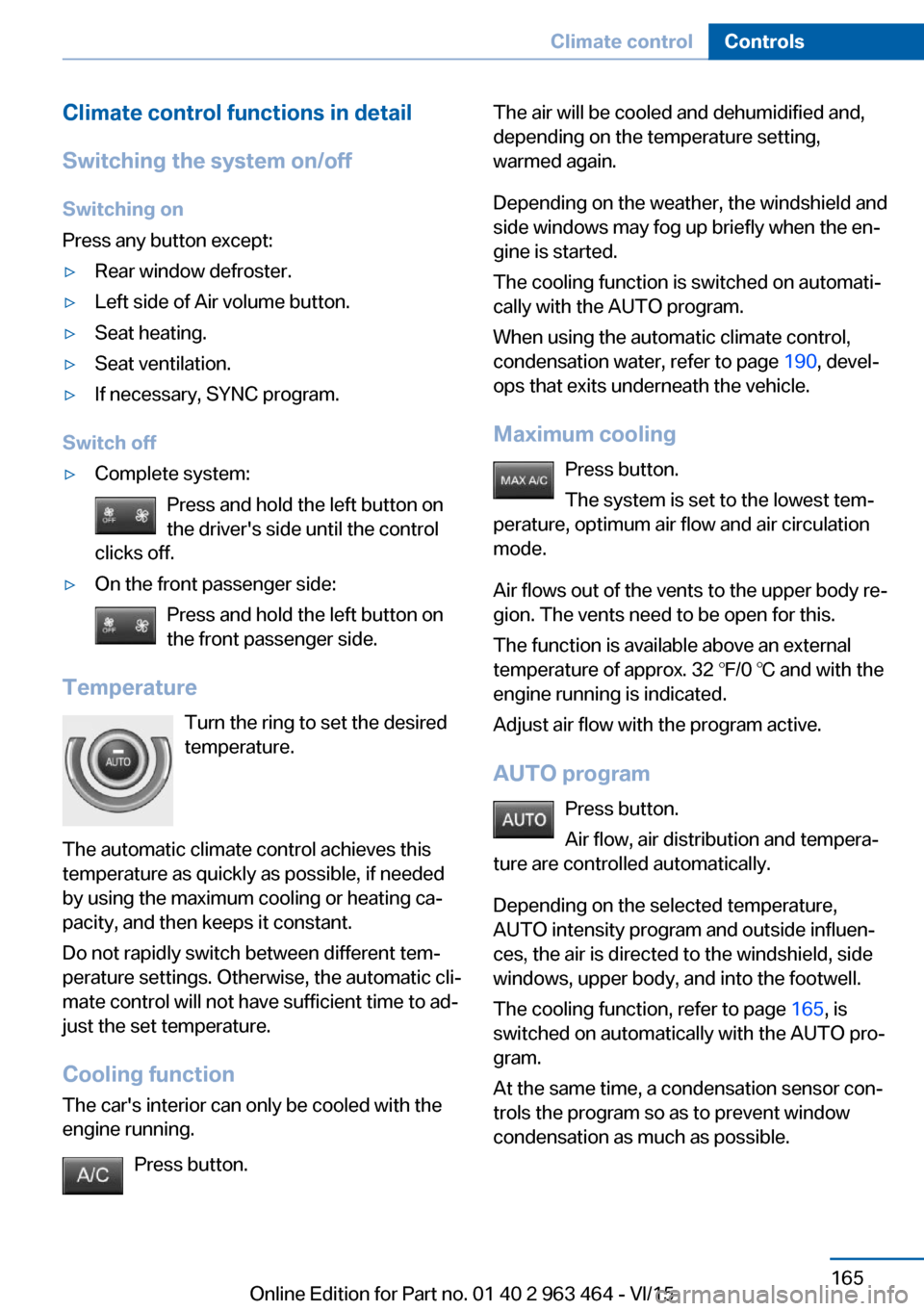

Climate control functions in detail
Switching the system on/off
Switching on
Press any button except:▷Rear window defroster.▷Left side of Air volume button.▷Seat heating.▷Seat ventilation.▷If necessary, SYNC program.
Switch off
▷Complete system: Press and hold the left button on
the driver's side until the control
clicks off.▷On the front passenger side:
Press and hold the left button on
the front passenger side.
Temperature
Turn the ring to set the desired
temperature.
The automatic climate control achieves this
temperature as quickly as possible, if needed
by using the maximum cooling or heating ca‐
pacity, and then keeps it constant.
Do not rapidly switch between different tem‐
perature settings. Otherwise, the automatic cli‐
mate control will not have sufficient time to ad‐
just the set temperature.
Cooling function
The car's interior can only be cooled with the
engine running.
Press button.
The air will be cooled and dehumidified and,
depending on the temperature setting,
warmed again.
Depending on the weather, the windshield and
side windows may fog up briefly when the en‐
gine is started.
The cooling function is switched on automati‐
cally with the AUTO program.
When using the automatic climate control,
condensation water, refer to page 190, devel‐
ops that exits underneath the vehicle.
Maximum cooling Press button.
The system is set to the lowest tem‐
perature, optimum air flow and air circulation mode.
Air flows out of the vents to the upper body re‐
gion. The vents need to be open for this.
The function is available above an external
temperature of approx. 32 ℉/0 ℃ and with the
engine running is indicated.
Adjust air flow with the program active.
AUTO program Press button.
Air flow, air distribution and tempera‐
ture are controlled automatically.
Depending on the selected temperature,
AUTO intensity program and outside influen‐
ces, the air is directed to the windshield, side
windows, upper body, and into the footwell.
The cooling function, refer to page 165, is
switched on automatically with the AUTO pro‐
gram.
At the same time, a condensation sensor con‐
trols the program so as to prevent window
condensation as much as possible.Seite 165Climate controlControls165
Online Edition for Part no. 01 40 2 963 464 - VI/15

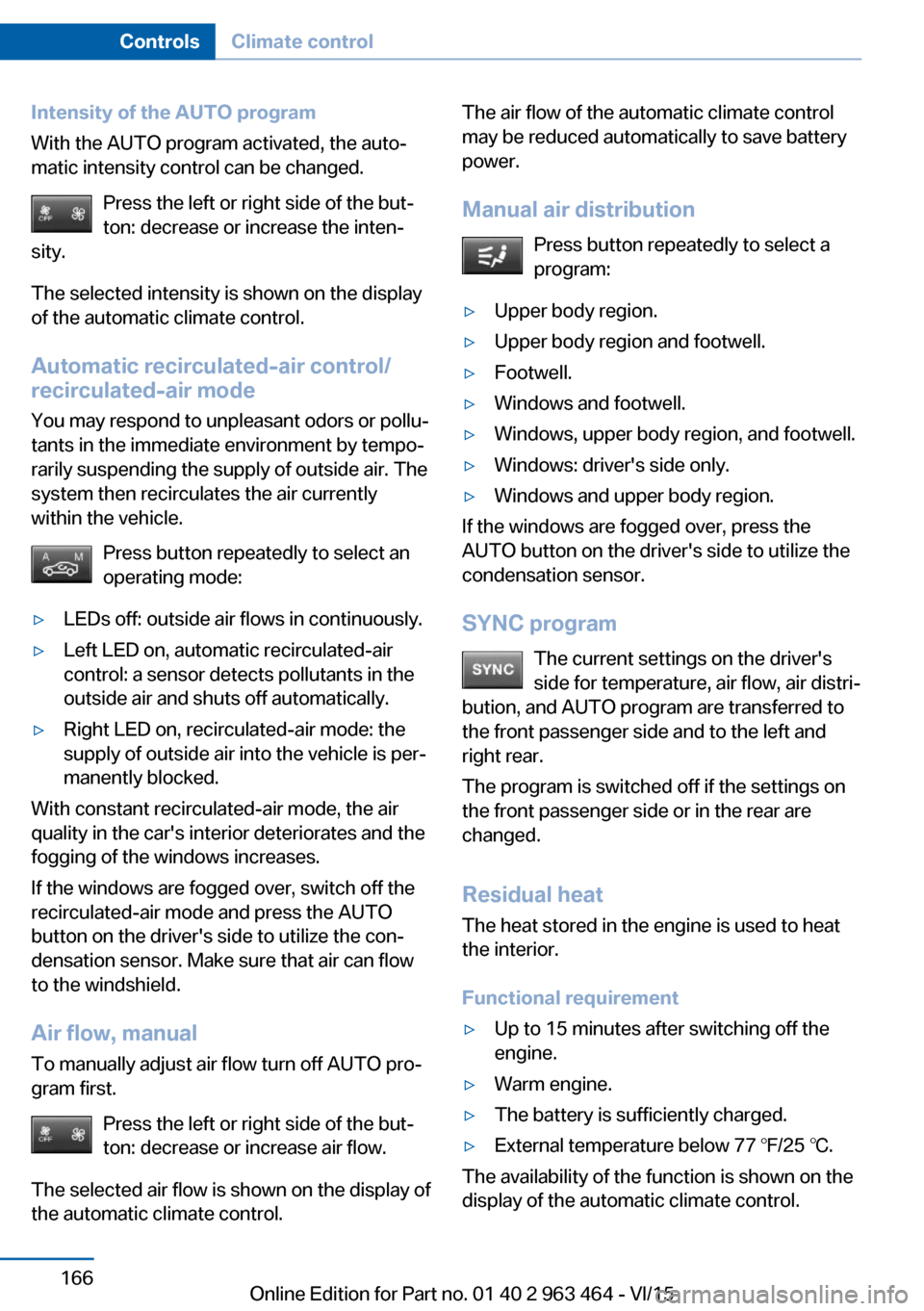

Intensity of the AUTO program
With the AUTO program activated, the auto‐
matic intensity control can be changed.
Press the left or right side of the but‐
ton: decrease or increase the inten‐
sity.
The selected intensity is shown on the display
of the automatic climate control.
Automatic recirculated-air control/
recirculated-air mode
You may respond to unpleasant odors or pollu‐
tants in the immediate environment by tempo‐
rarily suspending the supply of outside air. The
system then recirculates the air currently
within the vehicle.
Press button repeatedly to select an
operating mode:▷LEDs off: outside air flows in continuously.▷Left LED on, automatic recirculated-air
control: a sensor detects pollutants in the
outside air and shuts off automatically.▷Right LED on, recirculated-air mode: the
supply of outside air into the vehicle is per‐
manently blocked.
With constant recirculated-air mode, the air
quality in the car's interior deteriorates and the
fogging of the windows increases.
If the windows are fogged over, switch off the
recirculated-air mode and press the AUTO
button on the driver's side to utilize the con‐
densation sensor. Make sure that air can flow
to the windshield.
Air flow, manual To manually adjust air flow turn off AUTO pro‐
gram first.
Press the left or right side of the but‐
ton: decrease or increase air flow.
The selected air flow is shown on the display of
the automatic climate control.
The air flow of the automatic climate control
may be reduced automatically to save battery
power.
Manual air distribution Press button repeatedly to select a
program:▷Upper body region.▷Upper body region and footwell.▷Footwell.▷Windows and footwell.▷Windows, upper body region, and footwell.▷Windows: driver's side only.▷Windows and upper body region.
If the windows are fogged over, press the
AUTO button on the driver's side to utilize the
condensation sensor.
SYNC program The current settings on the driver's
side for temperature, air flow, air distri‐
bution, and AUTO program are transferred to the front passenger side and to the left and
right rear.
The program is switched off if the settings on
the front passenger side or in the rear are
changed.
Residual heat The heat stored in the engine is used to heat
the interior.
Functional requirement
▷Up to 15 minutes after switching off the
engine.▷Warm engine.▷The battery is sufficiently charged.▷External temperature below 77 ℉/25 ℃.
The availability of the function is shown on the
display of the automatic climate control.
Seite 166ControlsClimate control166
Online Edition for Part no. 01 40 2 963 464 - VI/15

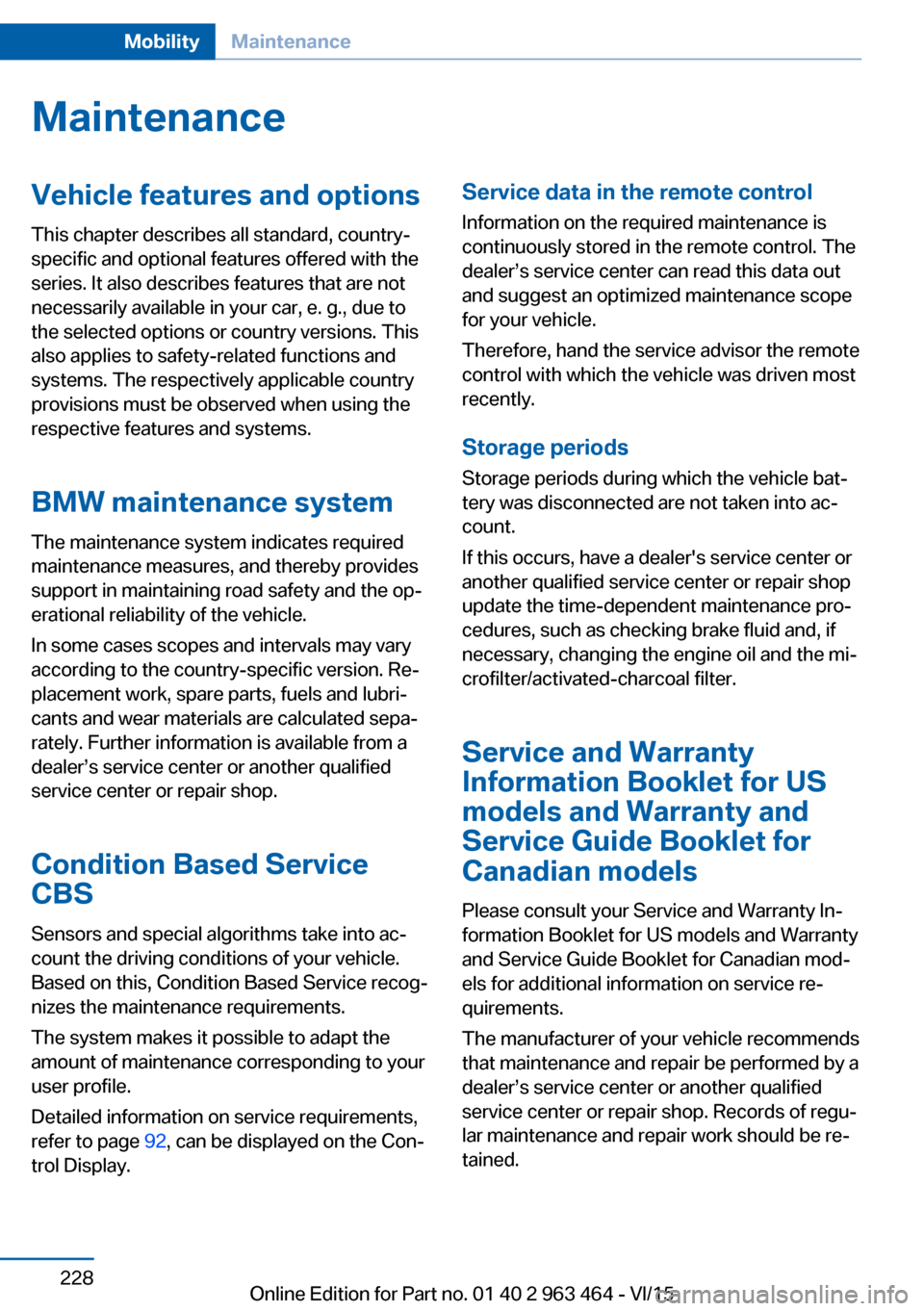

MaintenanceVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
BMW maintenance system The maintenance system indicates required
maintenance measures, and thereby provides
support in maintaining road safety and the op‐
erational reliability of the vehicle.
In some cases scopes and intervals may vary
according to the country-specific version. Re‐
placement work, spare parts, fuels and lubri‐
cants and wear materials are calculated sepa‐
rately. Further information is available from a
dealer’s service center or another qualified
service center or repair shop.
Condition Based ServiceCBS
Sensors and special algorithms take into ac‐
count the driving conditions of your vehicle.
Based on this, Condition Based Service recog‐
nizes the maintenance requirements.
The system makes it possible to adapt the
amount of maintenance corresponding to your
user profile.
Detailed information on service requirements,
refer to page 92, can be displayed on the Con‐
trol Display.Service data in the remote control
Information on the required maintenance is
continuously stored in the remote control. The dealer’s service center can read this data out
and suggest an optimized maintenance scope
for your vehicle.
Therefore, hand the service advisor the remote
control with which the vehicle was driven most
recently.
Storage periods Storage periods during which the vehicle bat‐
tery was disconnected are not taken into ac‐
count.
If this occurs, have a dealer's service center or
another qualified service center or repair shop
update the time-dependent maintenance pro‐
cedures, such as checking brake fluid and, if
necessary, changing the engine oil and the mi‐
crofilter/activated-charcoal filter.
Service and WarrantyInformation Booklet for US
models and Warranty and
Service Guide Booklet for
Canadian models
Please consult your Service and Warranty In‐
formation Booklet for US models and Warranty
and Service Guide Booklet for Canadian mod‐
els for additional information on service re‐
quirements.
The manufacturer of your vehicle recommends
that maintenance and repair be performed by a
dealer’s service center or another qualified
service center or repair shop. Records of regu‐
lar maintenance and repair work should be re‐
tained.Seite 228MobilityMaintenance228
Online Edition for Part no. 01 40 2 963 464 - VI/15

CareVehicle features and optionsThis chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
Car washes General information
Regularly remove foreign objects such as
leaves in the area below the windshield when
the hood is raised.
Wash your vehicle frequently, particularly in
winter. Intense soiling and road salt can dam‐
age the vehicle.
Steam blaster and high-pressure
washer
Information CAUTION
When cleaning with high-pressure wash‐
ers, components can be damaged due to the
pressure or temperatures being too high.
There is risk of property damage. Maintain suf‐
ficient distance and do not spray too long con‐
tinuously. Follow the user's manual for the
high-pressure washer.◀
Distances and temperature▷Maximum temperature: 140 ℉/60 ℃.▷Minimum distance from sensors, cameras,
seals: 12 in/30 cm.▷Minimum distance from glass sunroof:
31.5 inches/80 cm.
Automatic car washes
Information Note the following:
▷Give preference to cloth car washes or
those that use soft brushes in order to
avoid paint damage.▷Make sure that the wheels and tires are not
damaged by the transport mechanisms.▷Fold in the exterior mirrors; otherwise, they
may be damaged, depending on the width
of the vehicle.▷Deactivate the rain sensor, refer to
page 76, to avoid unintentional wiper acti‐
vation.▷In some cases, an unintentional alarm can
be triggered by the interior motion sensor
of the alarm system. Follow the instruc‐
tions on avoiding an unintentional alarm,
refer to page 47.
CAUTION
Too high guide rails in car washes can
damage body parts. There is risk of property
damage. Avoid car washes with guide rails
higher than 4 in/10 cm.◀
Different types of tires CAUTION
The vehicle might be too large for the car
wash. There is risk of property damage. Before
driving into the car wash, make sure that the
vehicle is not too large.◀
Seite 243CareMobility243
Online Edition for Part no. 01 40 2 963 464 - VI/15

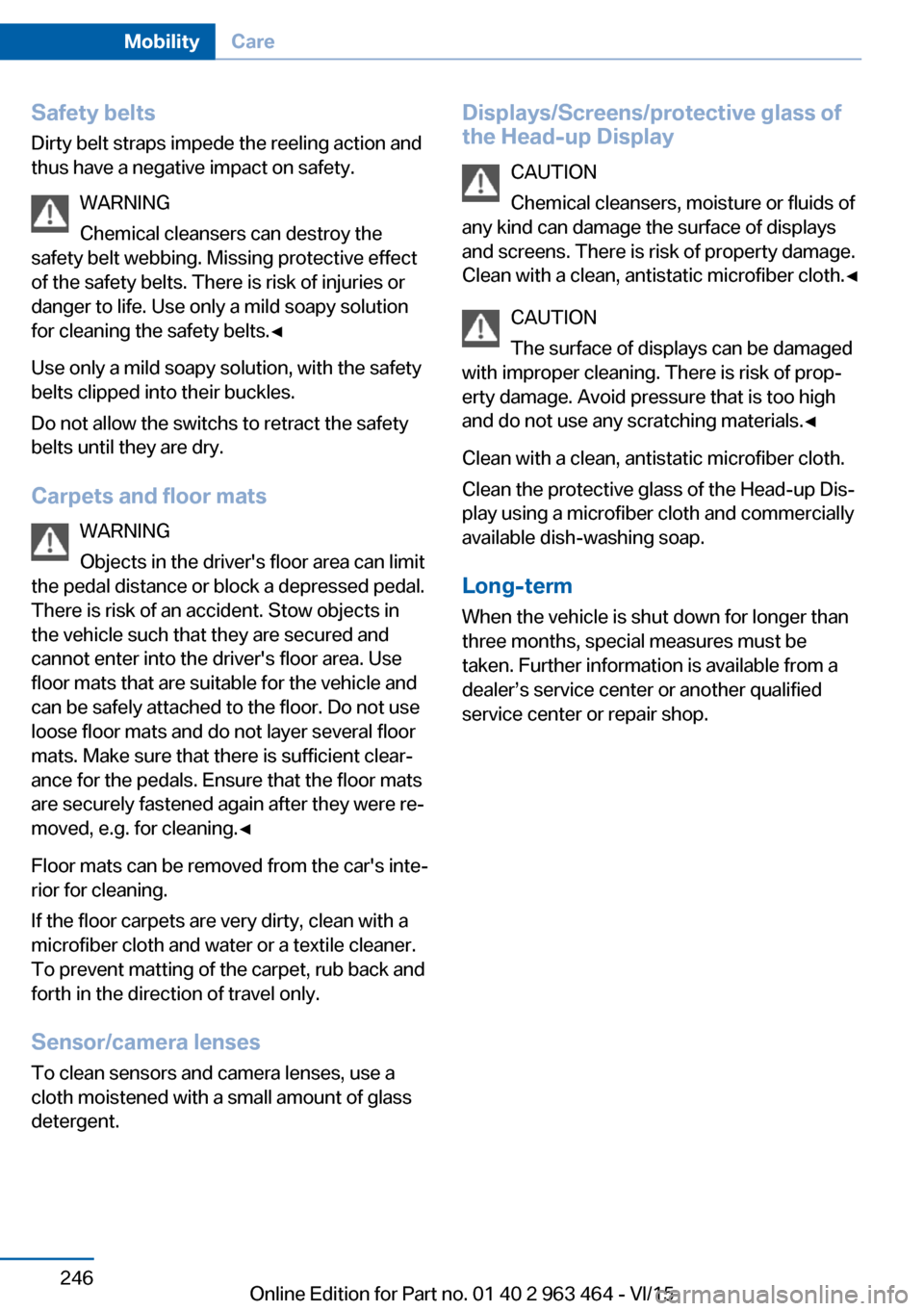

Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
WARNING
Chemical cleansers can destroy the
safety belt webbing. Missing protective effect
of the safety belts. There is risk of injuries or
danger to life. Use only a mild soapy solution
for cleaning the safety belts.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the switchs to retract the safety
belts until they are dry.
Carpets and floor mats WARNING
Objects in the driver's floor area can limit
the pedal distance or block a depressed pedal.
There is risk of an accident. Stow objects in
the vehicle such that they are secured and
cannot enter into the driver's floor area. Use
floor mats that are suitable for the vehicle and
can be safely attached to the floor. Do not use
loose floor mats and do not layer several floor
mats. Make sure that there is sufficient clear‐
ance for the pedals. Ensure that the floor mats
are securely fastened again after they were re‐
moved, e.g. for cleaning.◀
Floor mats can be removed from the car's inte‐
rior for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner.
To prevent matting of the carpet, rub back and
forth in the direction of travel only.
Sensor/camera lenses
To clean sensors and camera lenses, use a
cloth moistened with a small amount of glass
detergent.Displays/Screens/protective glass of
the Head-up Display
CAUTION
Chemical cleansers, moisture or fluids of
any kind can damage the surface of displays
and screens. There is risk of property damage.
Clean with a clean, antistatic microfiber cloth.◀
CAUTION
The surface of displays can be damaged
with improper cleaning. There is risk of prop‐
erty damage. Avoid pressure that is too high
and do not use any scratching materials.◀
Clean with a clean, antistatic microfiber cloth.
Clean the protective glass of the Head-up Dis‐
play using a microfiber cloth and commercially
available dish-washing soap.
Long-term
When the vehicle is shut down for longer than
three months, special measures must be
taken. Further information is available from a
dealer’s service center or another qualified
service center or repair shop.Seite 246MobilityCare246
Online Edition for Part no. 01 40 2 963 464 - VI/15

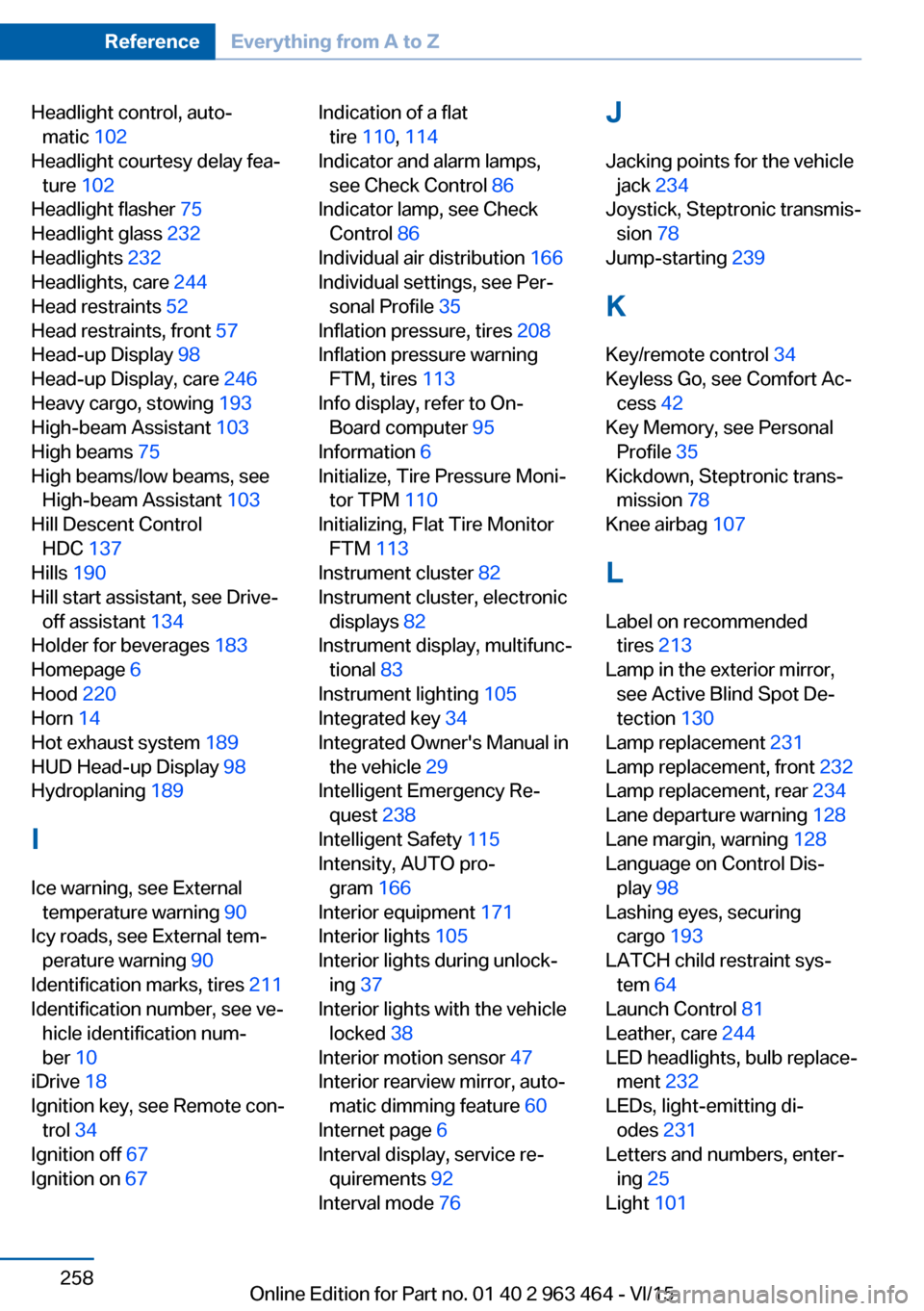

Headlight control, auto‐matic 102
Headlight courtesy delay fea‐ ture 102
Headlight flasher 75
Headlight glass 232
Headlights 232
Headlights, care 244
Head restraints 52
Head restraints, front 57
Head-up Display 98
Head-up Display, care 246
Heavy cargo, stowing 193
High-beam Assistant 103
High beams 75
High beams/low beams, see High-beam Assistant 103
Hill Descent Control HDC 137
Hills 190
Hill start assistant, see Drive- off assistant 134
Holder for beverages 183
Homepage 6
Hood 220
Horn 14
Hot exhaust system 189
HUD Head-up Display 98
Hydroplaning 189
I Ice warning, see External temperature warning 90
Icy roads, see External tem‐ perature warning 90
Identification marks, tires 211
Identification number, see ve‐ hicle identification num‐
ber 10
iDrive 18
Ignition key, see Remote con‐ trol 34
Ignition off 67
Ignition on 67 Indication of a flat
tire 110 , 114
Indicator and alarm lamps, see Check Control 86
Indicator lamp, see Check Control 86
Individual air distribution 166
Individual settings, see Per‐ sonal Profile 35
Inflation pressure, tires 208
Inflation pressure warning FTM, tires 113
Info display, refer to On- Board computer 95
Information 6
Initialize, Tire Pressure Moni‐ tor TPM 110
Initializing, Flat Tire Monitor FTM 113
Instrument cluster 82
Instrument cluster, electronic displays 82
Instrument display, multifunc‐ tional 83
Instrument lighting 105
Integrated key 34
Integrated Owner's Manual in the vehicle 29
Intelligent Emergency Re‐ quest 238
Intelligent Safety 115
Intensity, AUTO pro‐ gram 166
Interior equipment 171
Interior lights 105
Interior lights during unlock‐ ing 37
Interior lights with the vehicle locked 38
Interior motion sensor 47
Interior rearview mirror, auto‐ matic dimming feature 60
Internet page 6
Interval display, service re‐ quirements 92
Interval mode 76 J
Jacking points for the vehicle jack 234
Joystick, Steptronic transmis‐ sion 78
Jump-starting 239
K
Key/remote control 34
Keyless Go, see Comfort Ac‐ cess 42
Key Memory, see Personal Profile 35
Kickdown, Steptronic trans‐ mission 78
Knee airbag 107
L Label on recommended tires 213
Lamp in the exterior mirror, see Active Blind Spot De‐
tection 130
Lamp replacement 231
Lamp replacement, front 232
Lamp replacement, rear 234
Lane departure warning 128
Lane margin, warning 128
Language on Control Dis‐ play 98
Lashing eyes, securing cargo 193
LATCH child restraint sys‐ tem 64
Launch Control 81
Leather, care 244
LED headlights, bulb replace‐ ment 232
LEDs, light-emitting di‐ odes 231
Letters and numbers, enter‐ ing 25
Light 101 Seite 258ReferenceEverything from A to Z258
Online Edition for Part no. 01 40 2 963 464 - VI/15

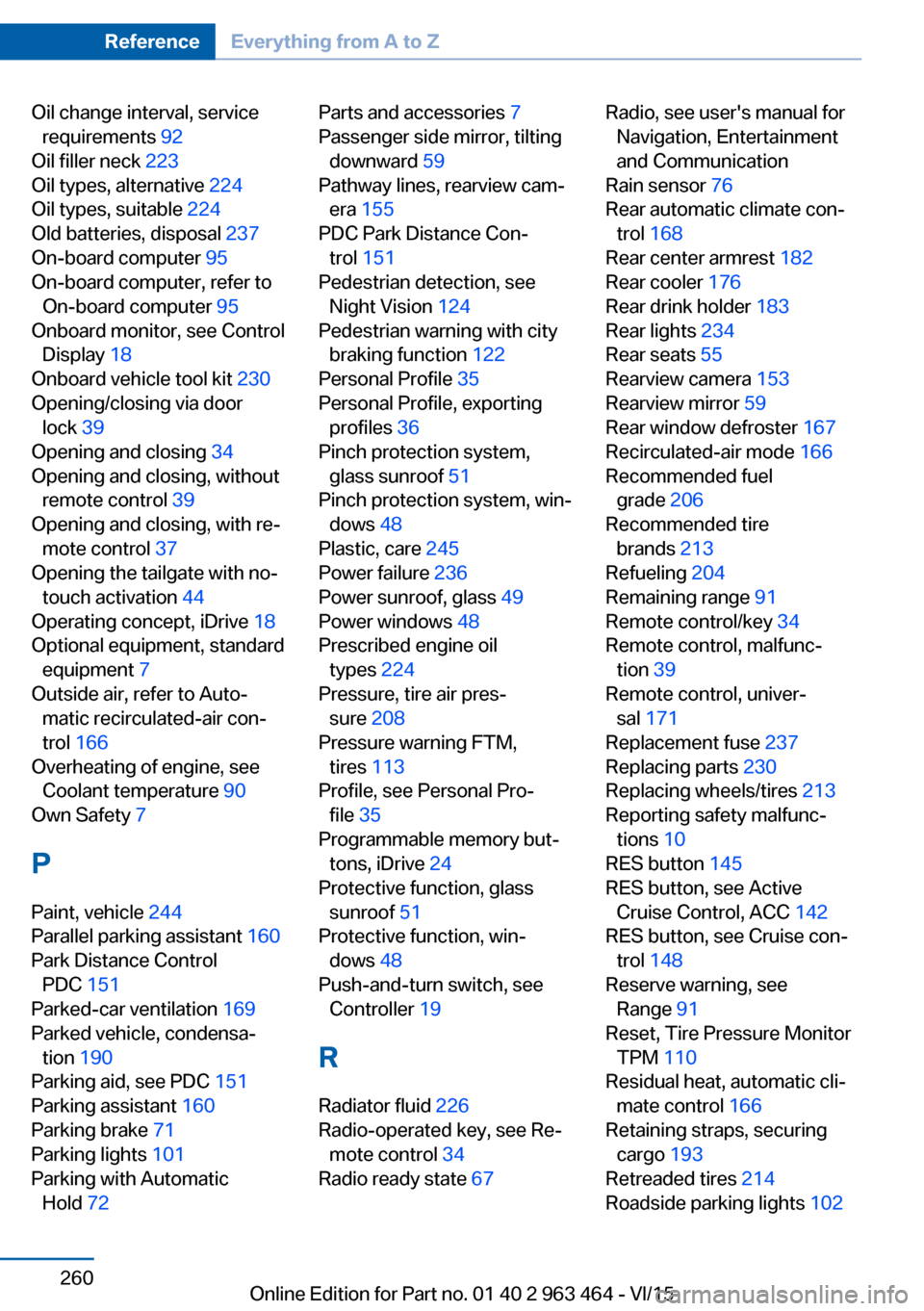

Oil change interval, servicerequirements 92
Oil filler neck 223
Oil types, alternative 224
Oil types, suitable 224
Old batteries, disposal 237
On-board computer 95
On-board computer, refer to On-board computer 95
Onboard monitor, see Control Display 18
Onboard vehicle tool kit 230
Opening/closing via door lock 39
Opening and closing 34
Opening and closing, without remote control 39
Opening and closing, with re‐ mote control 37
Opening the tailgate with no- touch activation 44
Operating concept, iDrive 18
Optional equipment, standard equipment 7
Outside air, refer to Auto‐ matic recirculated-air con‐
trol 166
Overheating of engine, see Coolant temperature 90
Own Safety 7
P Paint, vehicle 244
Parallel parking assistant 160
Park Distance Control PDC 151
Parked-car ventilation 169
Parked vehicle, condensa‐ tion 190
Parking aid, see PDC 151
Parking assistant 160
Parking brake 71
Parking lights 101
Parking with Automatic Hold 72 Parts and accessories 7
Passenger side mirror, tilting downward 59
Pathway lines, rearview cam‐ era 155
PDC Park Distance Con‐ trol 151
Pedestrian detection, see Night Vision 124
Pedestrian warning with city braking function 122
Personal Profile 35
Personal Profile, exporting profiles 36
Pinch protection system, glass sunroof 51
Pinch protection system, win‐ dows 48
Plastic, care 245
Power failure 236
Power sunroof, glass 49
Power windows 48
Prescribed engine oil types 224
Pressure, tire air pres‐ sure 208
Pressure warning FTM, tires 113
Profile, see Personal Pro‐ file 35
Programmable memory but‐ tons, iDrive 24
Protective function, glass sunroof 51
Protective function, win‐ dows 48
Push-and-turn switch, see Controller 19
R Radiator fluid 226
Radio-operated key, see Re‐ mote control 34
Radio ready state 67 Radio, see user's manual for
Navigation, Entertainment
and Communication
Rain sensor 76
Rear automatic climate con‐ trol 168
Rear center armrest 182
Rear cooler 176
Rear drink holder 183
Rear lights 234
Rear seats 55
Rearview camera 153
Rearview mirror 59
Rear window defroster 167
Recirculated-air mode 166
Recommended fuel grade 206
Recommended tire brands 213
Refueling 204
Remaining range 91
Remote control/key 34
Remote control, malfunc‐ tion 39
Remote control, univer‐ sal 171
Replacement fuse 237
Replacing parts 230
Replacing wheels/tires 213
Reporting safety malfunc‐ tions 10
RES button 145
RES button, see Active Cruise Control, ACC 142
RES button, see Cruise con‐ trol 148
Reserve warning, see Range 91
Reset, Tire Pressure Monitor TPM 110
Residual heat, automatic cli‐ mate control 166
Retaining straps, securing cargo 193
Retreaded tires 214
Roadside parking lights 102 Seite 260ReferenceEverything from A to Z260
Online Edition for Part no. 01 40 2 963 464 - VI/15

Roller sunblinds 49
RON recommended fuel grade 206
Roofliner 17
Roof load capacity 251
Roof-mounted luggage rack 194
Rope for tow-starting/ towing 241
RSC Run Flat System Com‐ ponent, see Run-flat
tires 214
Rubber components, care 245
Run-flat tires 214
S Safe braking 189
Safety belt reminder for driv‐ er's seat and front passen‐
ger seat 56
Safety belts 55
Safety belts, care 246
Safety Package, see Active Protection 132
Safety switch, windows 49
Safety systems, airbags 106
Saving fuel 195
Screen, see Control Dis‐ play 18
Screwdriver, see Onboard ve‐ hicle tool kit 230
Screw thread, refer to Screw thread for tow fitting, screw
thread for tow fitting 242
Sealant 215
Seat belts, see Safety belts 55
Seat heating, front 54
Seat heating, rear 55
Seating position for chil‐ dren 62
Seat, mirror, and steering wheel memory 58
Seats 52 Seats, front 52
Seats, rear 55
Seat ventilation, front 54
Selection list in instrument cluster 94
Selector lever, Steptronic transmission 78
Self-leveling suspension, air suspension 138
Self-leveling suspension, malfunction 139
Sensors, care 246
Service and warranty 8
Service requirements, Condi‐ tion Based Service
CBS 228
Service requirements, dis‐ play 92
Services, ConnectedDrive
SET button, see Active Cruise Control, ACC 142
SET button, see Cruise con‐ trol 148
Settings, locking/unlock‐ ing 45
Settings on Control Dis‐ play 97
Settings, storing for seat, mir‐ rors, steering wheel 58
Shift paddles on the steering wheel 80
Shift point indicator 85
Shoulder support 54
Side airbags 106
Side View 158
Signaling, horn 14
Signals when unlocking 45
Sitting safely 52
Size 250
Ski and snowboard bag 179
Slide/tilt glass roof 49
Smoker's package 173
Snow chains 218
Socket, OBD Onboard Diag‐ nostics 229 Sockets, see Connecting
electrical devices 175
SOS button 238
Spare fuse 237
Spare tire, see Emergency wheel 234
Speed, average 95
Speed limit detection, on- board computer 96
Speed limiter, display 93
Speed Limit Information 93
Speed warning 97
Split screen 23
SPORT+ - program, Dynamic Driving Control 140
Sport displays, torque dis‐ play, performance dis‐
play 96
SPORT program, driving dy‐ namics 140
Sport program, transmis‐ sion 79
Stability control systems 134
Start/stop, automatic func‐ tion 69
Start/Stop button 67
Start function during malfunc‐ tion 35
Starting the engine 68
Status control display, tires 110
Status information, iDrive 23
Status of Owner's Manual 7
Steering, Active Steering 138
Steering wheel, adjusting 60
Steering wheel heating 61
Steering wheel memory 58
Steptronic Sport transmis‐ sion, see Steptronic trans‐
mission 78
Steptronic transmission 78
Stopping the engine 68
Storage compartment on the center console 181
Storage compartments 180 Seite 261Everything from A to ZReference261
Online Edition for Part no. 01 40 2 963 464 - VI/15

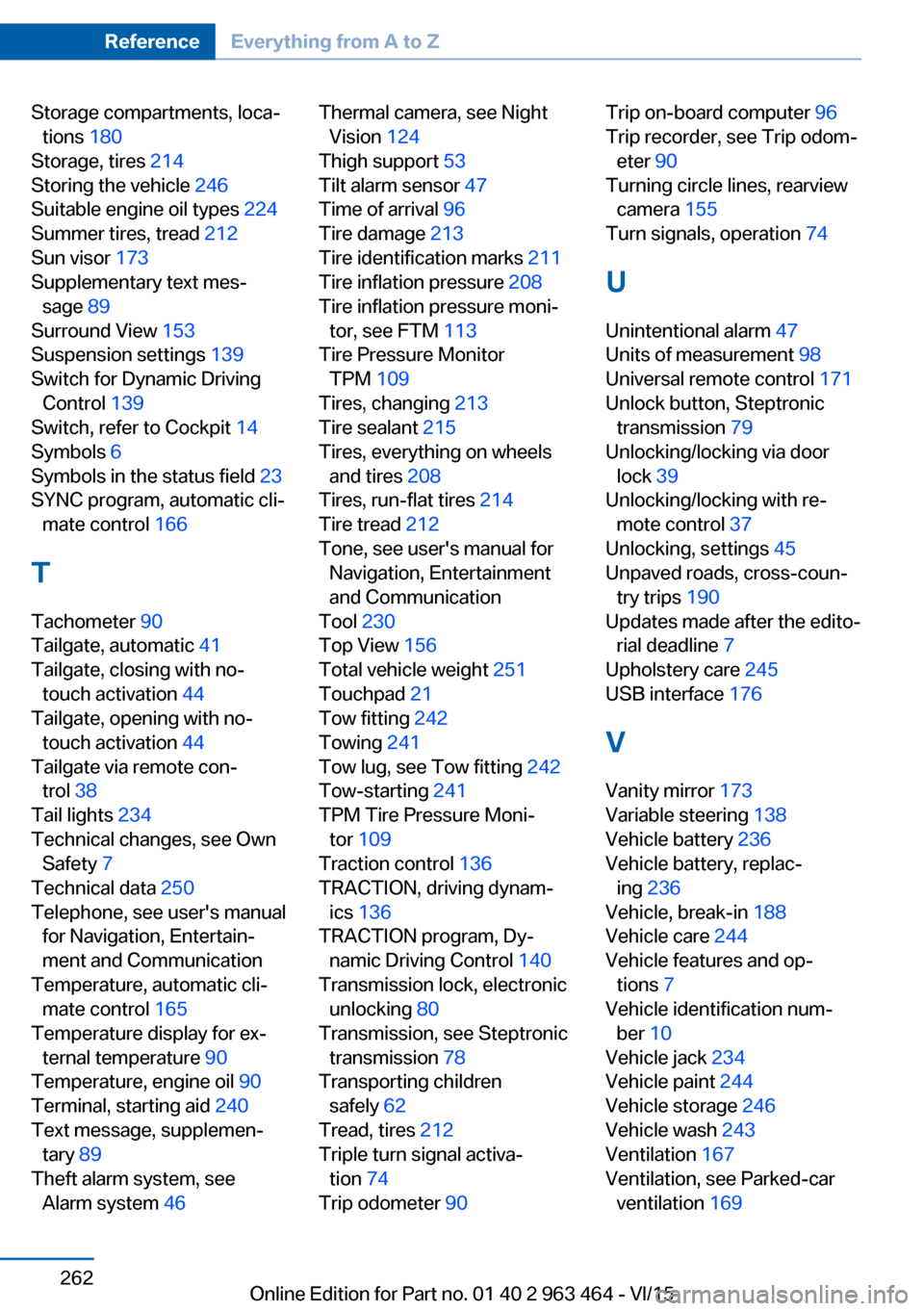

Storage compartments, loca‐tions 180
Storage, tires 214
Storing the vehicle 246
Suitable engine oil types 224
Summer tires, tread 212
Sun visor 173
Supplementary text mes‐ sage 89
Surround View 153
Suspension settings 139
Switch for Dynamic Driving Control 139
Switch, refer to Cockpit 14
Symbols 6
Symbols in the status field 23
SYNC program, automatic cli‐ mate control 166
T Tachometer 90
Tailgate, automatic 41
Tailgate, closing with no- touch activation 44
Tailgate, opening with no- touch activation 44
Tailgate via remote con‐ trol 38
Tail lights 234
Technical changes, see Own Safety 7
Technical data 250
Telephone, see user's manual for Navigation, Entertain‐
ment and Communication
Temperature, automatic cli‐ mate control 165
Temperature display for ex‐ ternal temperature 90
Temperature, engine oil 90
Terminal, starting aid 240
Text message, supplemen‐ tary 89
Theft alarm system, see Alarm system 46 Thermal camera, see Night
Vision 124
Thigh support 53
Tilt alarm sensor 47
Time of arrival 96
Tire damage 213
Tire identification marks 211
Tire inflation pressure 208
Tire inflation pressure moni‐ tor, see FTM 113
Tire Pressure Monitor TPM 109
Tires, changing 213
Tire sealant 215
Tires, everything on wheels and tires 208
Tires, run-flat tires 214
Tire tread 212
Tone, see user's manual for Navigation, Entertainment
and Communication
Tool 230
Top View 156
Total vehicle weight 251
Touchpad 21
Tow fitting 242
Towing 241
Tow lug, see Tow fitting 242
Tow-starting 241
TPM Tire Pressure Moni‐ tor 109
Traction control 136
TRACTION, driving dynam‐ ics 136
TRACTION program, Dy‐ namic Driving Control 140
Transmission lock, electronic unlocking 80
Transmission, see Steptronic transmission 78
Transporting children safely 62
Tread, tires 212
Triple turn signal activa‐ tion 74
Trip odometer 90 Trip on-board computer 96
Trip recorder, see Trip odom‐ eter 90
Turning circle lines, rearview camera 155
Turn signals, operation 74
U Unintentional alarm 47
Units of measurement 98
Universal remote control 171
Unlock button, Steptronic transmission 79
Unlocking/locking via door lock 39
Unlocking/locking with re‐ mote control 37
Unlocking, settings 45
Unpaved roads, cross-coun‐ try trips 190
Updates made after the edito‐ rial deadline 7
Upholstery care 245
USB interface 176
V Vanity mirror 173
Variable steering 138
Vehicle battery 236
Vehicle battery, replac‐ ing 236
Vehicle, break-in 188
Vehicle care 244
Vehicle features and op‐ tions 7
Vehicle identification num‐ ber 10
Vehicle jack 234
Vehicle paint 244
Vehicle storage 246
Vehicle wash 243
Ventilation 167
Ventilation, see Parked-car ventilation 169 Seite 262ReferenceEverything from A to Z262
Online Edition for Part no. 01 40 2 963 464 - VI/15
