fuse BMW Z3M COUPE 1999 E36 Electrical Troubleshooting Manual

BMW NA
ELECTRICAL TROUBLESHOOTING
MANUAL
SERIES 3 – E36/7 (Z3 Roadster, Z3 Coupe,
M Roadster, and M Coupe)
SCHEMATICS MODEL YEAR 1999
0100.0 INDEX
0110.0 INTRODUCTION

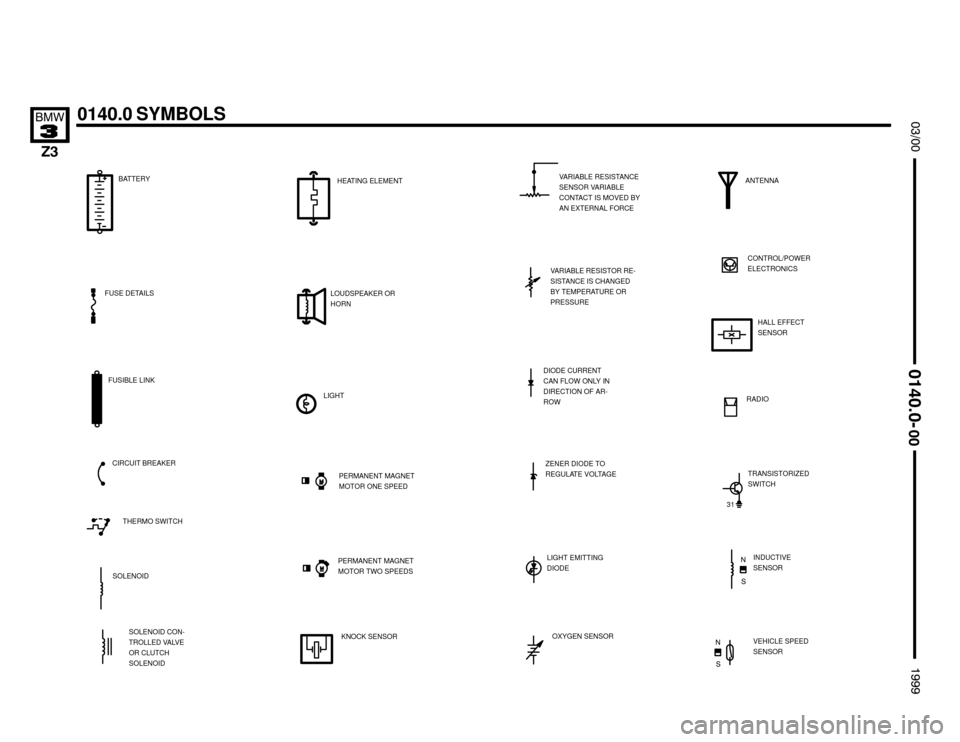

0140.0 SYMBOLS
0670.0POWER DISTRIBUTION CHART 0670.1 FUSE CHART 0670.2 POWER DISTRIBUTION
0670.3 FUSE DETAILS
0670.4 GROUND DISTRIBUTION
0670.5 DATA LINK
1210.17 ENGINE CONTROL SYSTEM
MS41.1 (6–CYLINDER S52)

1210.25
ENGINE CONTROL SYSTEM
MS42.1 (6–CYLINDER M52)
1230.0 CHARGING SYSTEM
1240.0 START
1290.0 E–BOX FAN
2460.2 ELECTRONIC TRANSMISSION
CONTROL (EGS A4S 270R)

3234.0
SUPPLEMENTAL RESTRAINT
SYSTEM (AIR BAG)
3450.1 SLIP CONTROL (ABS/ASC)
3614.0 TIRE INFLATION SYSTEM
5116.0 POWER MIRRORS
5126.0ZKE CENTRAL LOCKING (ZV) 5133.0 ZKE POWER WINDOWS (FH) 5200.0 POWER SEATS 5203.0 HEATED SEATS
5410.5 POWER TILT SUNROOF


5430.2

ELECTRO–HYDRAULIC
CONVERTIBLE TOP
6100.0 CENTRAL BODY ELECTRONICS
(ZKE IV)
6133.0 HORN

6135.1

DRIVE–AWAY PROTECTION
(EWS III)
6160.1 WIPER/WASHER MODULE (WWM)
6167.1 HEADLIGHT WASHER (SRA)
6169.0 WINDSHIELD WASHER JET
HEATERS
6211.0 INSTRUMENT CLUSTER 6213.3 DIGITAL CLOCK 6300.0 LIGHT SWITCH DETAILS
6312.0 HEADLIGHTS/FOG LIGHTS
6313.0 TURN/HAZARD LIGHTS
6314.0 PARK/TAIL/UNDERHOOD LIGHTS
6320.0 LICENSE PLATE/LUGGAGE
COMPARTMENT LIGHTS
6322.0 BACK UP LIGHTS
6325.0 BRAKE LIGHTS
6330.3 INTERIOR LIGHTS
6332.0 INTERIOR ACCESSORIES
6350.0CRASH CONTROL MODULE 6424.0 REAR WINDOW DEFOGGER
6450.6
INTEGRATED HEATING– AND
CLIMATE CONTROL
6510.1 RADIO/HIFI


6561.0

CELLULAR TELEPHONE
(PROVISIONS)
6571.0CRUISE CONTROL (TEMPOMAT) 6575.2 ANTI–THEFT SYSTEM (ALPINE) 6581.3 BOARD COMPUTER (BC – LOW) 7000.0 COMPONENT LOCATION CHART
7100.0 COMPONENT LOCATION VIEWS
8000.0 SPLICE LOCATION VIEWS
8500.0 CONNECTOR VIEWS

0100.0 INDEX














ABS HYDRAULIC UNIT, Y1w 3450.1-01. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR BAG CUT–OFF SWITCH, PASSENGER’S, S559 3234.0-01. . . . . . . . .
AIR BAG GAS GENERATOR, DRIVER’S, G5 3234.0-00. . . . . . . . . . . . . . . .
AIR BAG GAS GENERATOR, LEFT SIDE, G14 3234.0-03. . . . . . . . . . . . . .
AIR BAG GAS GENERATOR, PASSENGER’S, G6 3234.0-01. . . . . . . . . . .
AIR BAG GAS GENERATOR, RIGHT SIDE, G15 3234.0-03. . . . . . . . . . . .
AIR CONDITIONING COMPRESSOR, Y2 6450.6-02. . . . . . . . . . . . . . . . . . .
AIR CONDITIONING COMPRESSOR, Y2 6450.6-06. . . . . . . . . . . . . . . . . . .
AIR CONDITIONING RELAY, MOTRONIC, K33a 6450.6-04. . . . . . . . . . . . .
AIR CONDITIONING/RECIRCULATING SWITCH ASSEMBLY,
S220 6450.6-01. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR CONDITIONING/RECIRCULATING SWITCH ASSEMBLY,
S220 6450.6-05. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR PUMP, Y6133 1210.17-05. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR PUMP, Y6133 1210.25-04. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ANALOG CLOCK, N5 6211.0-05. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ANTENNA AMPLIFIER AM/FM, N8 6510.1-00. . . . . . . . . . . . . . . . . . . . . . . . .
ANTI–THEFT CONTROL MODULE (ALPINE), N12w 6575.2. . . . . . . . . . . .
ANTI–THEFT HORN (ALPINE), H1w 6575.2-01. . . . . . . . . . . . . . . . . . . . . . .
ANTI–THEFT SYSTEM (ALPINE) 6575.2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASC SWITCH, S6 3450.1-03. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASC SWITCH, S6 3450.1-06. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASHTRAY LIGHT, FRONT, E25 6300.0-01. . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASHTRAY LIGHT, FRONT, E25 6332.0-00. . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUTOMATIC TRANSMISSION RANGE SWITCH, S3 2460.2-04. . . . . . . . .
AUXILIARY FAN MOTOR, M9 6450.6-03. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUXILIARY FAN MOTOR, M9 6450.6-07. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUXILIARY FUSE BOX, P95 0670.2-06. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUXILIARY FUSE BOX, P97 0670.2-06. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AUXILIARY THROTTLE POSITION MOTOR (ADS), M93 3450.1-02. . . . . AUXILIARY THROTTLE POSITION SENSOR, R31 3450.1-02. . . . . . . . . . .
AUXILIARY TURN LIGHT, LEFT FRONT, H9 6313.0-02. . . . . . . . . . . . . . . .
AUXILIARY TURN LIGHT, RIGHT FRONT, H8 6313.0-02. . . . . . . . . . . . . . .
B+ JUMP START JUNCTION POINT, G6430 0670.2-00. . . . . . . . . . . . . . . .
B+ JUMP START JUNCTION POINT, G6430 0670.2-05. . . . . . . . . . . . . . . .
B+ JUNCTION POINT E–BOX, G6400 0670.2-01. . . . . . . . . . . . . . . . . . . . . .
B+ JUNCTION POINT, G7512 0670.2-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BACK UP LIGHT, LEFT, H27 6322.0-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BACK UP LIGHT, RIGHT, H28 6322.0-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BACK UP LIGHTS 6322.0-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BATTERY, G1 0670.2-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BATTERY, G1 0670.2-05. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOWER MOTOR, M30 6450.6-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOWER MOTOR, M30 6450.6-04. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOWER RELAY, K4 6450.6-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOWER RELAY, K4 6450.6-04. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOWER RESISTORS, R11 6450.6-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOWER RESISTORS, R11 6450.6-04. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOWER SWITCH, S75 6450.6-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOWER SWITCH, S75 6450.6-04. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BOARD COMPUTER (BC – LOW) 6581.3-00. . . . . . . . . . . . . . . . . . . . . . . . .
BOARD COMPUTER (BC – LOW), A35y 6581.3-00. . . . . . . . . . . . . . . . . . . .
BODY ELECTRONICS CONTROL MODULE (ZKE IV), A104 6100.0. . . . .
BRAKE FLUID LEVEL SWITCH, B18 6211.0-00. . . . . . . . . . . . . . . . . . . . . . .
BRAKE LIGHT SWITCH, S30 6325.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BRAKE LIGHT, LEFT, H24 6325.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BRAKE LIGHT, RIGHT, H31 6325.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BRAKE LIGHTS 6325.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BRAKE PAD SENSOR, LEFT FRONT, B16 6211.0-01. . . . . . . . . . . . . . . . . .
BRAKE PAD SENSOR, RIGHT REAR, B17 6211.0-01. . . . . . . . . . . . . . . . . .

INDEX











\b\b\b

E–BOX FAN 1290.0-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
E –BOX FAN, M6506 1290.0-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
ELECTRICAL COMPRESSOR, M805 3614.0-00 . . . . . . . . . . . . . . . . . . . . . . .
ELECTRO –HYDRAULIC CONVERTIBLE TOP 5430.2 . . . . . . . . . . . . . . . . . .
ELECTRONIC IMMOBILIZER CONTROL MODULE (EWS III), A837 6135.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
ELECTRONIC TRANSMISSION CONTROL (EGS A4S 310R) 2460.2 . . . .
ENGINE CONTROL MODULE (DME), A6000 1210.17 . . . . . . . . . . . . . . . . . .
ENGINE CONTROL MODULE (DME), A6000 1210.25 . . . . . . . . . . . . . . . . . .
ENGINE CONTROL MODULE RELAY, K6300 1210.17-00 . . . . . . . . . . . . . .
ENGINE CONTROL MODULE RELAY, K6300 1210.25-00 . . . . . . . . . . . . . .
ENGINE CONTROL RELAY (ABS/ASC), K94 3450.1-00 . . . . . . . . . . . . . . . .
ENGINE CONTROL SYSTEM MS41.1 (6 –CYLINDER M52) 1210.17 . . . . .
ENGINE CONTROL SYSTEM MS42.1 (6 –CYLINDER M52) 1210.25 . . . . .
ENGINE COOLANT TEMPERATURE SENSOR, B6232 1210.17-02 . . . . . .
ENGINE COOLANT TEMPERATURE SENSOR, B6232 6211.0-03 . . . . . . .
ENGINE COOLANT TEMPERATURE SENSOR, B6236 1210.17-02 . . . . . .
ENGINE COOLANT TEMPERATURE SENSOR, B6236 1210.25-07 . . . . . .
ENGINE HOOD SWITCH, S21w 6575.2-00 . . . . . . . . . . . . . . . . . . . . . . . . . . .
EVAPORATIVE EMISSION VALVE, Y6120 1210.17-05 . . . . . . . . . . . . . . . . .
EVAPORATIVE EMISSION VALVE, Y6120 1210.25-03 . . . . . . . . . . . . . . . . .
EVAPORATOR CONTROLLER, S221 6450.6-01 . . . . . . . . . . . . . . . . . . . . . .
EVAPORATOR CONTROLLER, S221 6450.6-05 . . . . . . . . . . . . . . . . . . . . . .
EVAPORATOR TEMPERATURE SENSOR, B14 6450.6-01 . . . . . . . . . . . . .
EVAPORATOR TEMPERATURE SENSOR, B14 6450.6-05 . . . . . . . . . . . . .
EWS TOROIDAL COIL, L1 6135.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FOG LIGHT RELAY, FRONT, K47 6312.0-00 . . . . . . . . . . . . . . . . . . . . . . . . . .
FOG LIGHT SWITCH, S10 6312.0-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FOG LIGHT, LEFT, E26 6312.0-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FOG LIGHT, RIGHT, E27 6312.0-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FRESH AIR RECIRCULATION MOTOR, M111 6450.6-01
. . . . . . . . . . . . . . .
FRESH AIR RECIRCULATION MOTOR, M111 6450.6-05 . . . . . . . . . . . . . . .
FRONT POWER DISTRIBUTION BOX, FRONT, P90 0670.2 . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 1, Y6101 1210.17-01 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 1, Y6101 1210.25-02 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 2, Y6102 1210.17-01 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 2, Y6102 1210.25-02 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 3, Y6103 1210.17-01 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 3, Y6103 1210.25-02 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 4, Y6104 1210.17-01 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 4, Y6104 1210.25-02 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 5, Y6105 1210.17-01 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 5, Y6105 1210.25-02 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 6, Y6106 1210.17-01 . . . . . . . . . . . . . . . . . .
FUEL INJECTION VALVE, CYL. 6, Y6106 1210.25-02 . . . . . . . . . . . . . . . . . .
FUEL PUMP RELAY, K6301w 1210.17-04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FUEL PUMP RELAY, K6301w 1210.25-06 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FUEL PUMP, M2 1210.17-04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
FUEL PUMP, M2 1210.25-06 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
FUEL SENSOR, B6y 6211.0-02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

FUEL T ANK PRESSURE SENSOR, B65 1210.17-09
. . . . . . . . . . . . . . . . . . .
FUSE CHART 0670.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
FUSE DETAILS 0670.3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
FUSE HOLDER IN E –BOX, P98 0670.2-01 . . . . . . . . . . . . . . . . . . . . . . . . . . .
FUSE HOLDER, P99 0670.2-00 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

GENERATOR, G6509 1230.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
GROUND DISTRIBUTION 0670.4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HARD TOP CONNECTOR 1, E99 6424.0-01 . . . . . . . . . . . . . . . . . . . . . . . . . .
HAZARD FLASHER RELAY, K16 6313.0-00 . . . . . . . . . . . . . . . . . . . . . . . . . . .
HAZARD SWITCH, S18 6313.0-01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



2.5 VI/SW
0110.0 INTRODUCTION











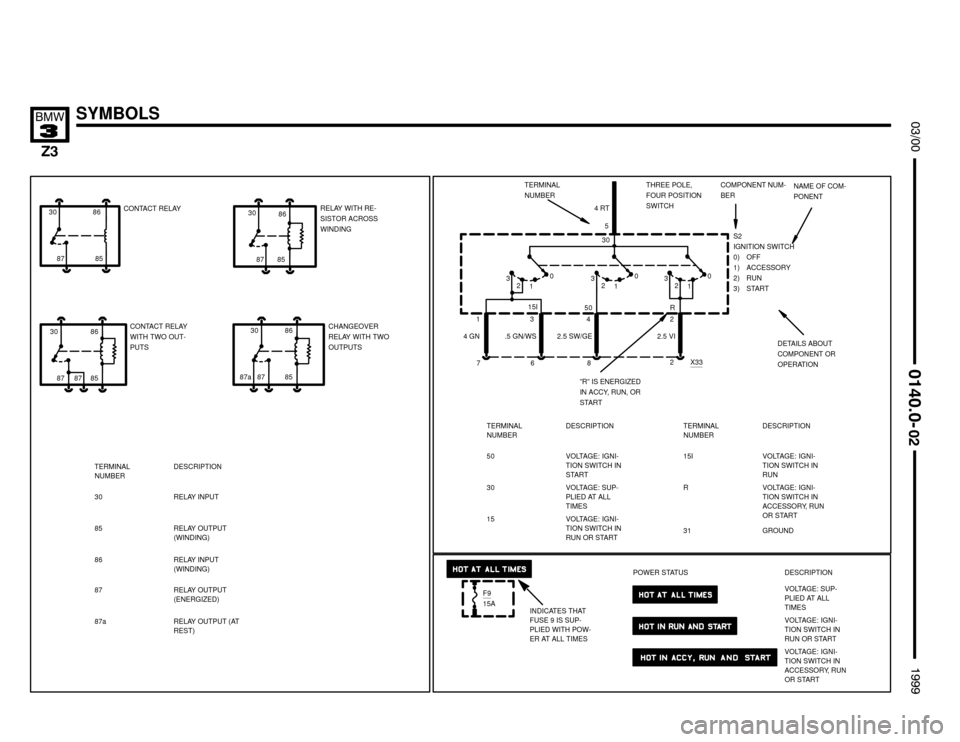

P90
FRONT POWER
DISTRIBUTION
BOXF115A
GROUND
DISTRIBUTION
0670.46160.0-02 2.5 VI/SW 4 8P91
REAR POWER
DISTRIBUTION
BOX
F4430A
X29326
X293
FUSE DETAILS
0670.3
4 VI/SW 86
8530
87
X452
CENTRAL
BODY
ELECTRONICS
(ZKE)
6100.0 K11
WIPER RELAY
FUSE DETAILS
0670.3
X493
Schematics
The schematics divide the entire vehicle electrical system into individual circuits. Interacting
electrical components are shown on one common schematic.
Switches and other components are represented in such a way that their general layout and
function are self–explicit. They are arranged on the sheet such that the current path can be
followed from positive (top) to negative (bottom).
Important: The components and wires are not drawn to scale. For instance, a lead with a length
of over 1m can be shown as a lead that is only a few cm long. To ensure clear arrangement , all
connectors, lines branches and connected components from the fuses to the component and
from the component to ground connection are not shown within the individual cells. If required,
reference can be made to cells 0670.3 Fuse Details and 0670.4 Ground Distribution where all
lines are illustrated with all plug connections, line branches and connected components.
All circuit symbols used are listed and explained in cell 0140.0 Symbols.
In cell 7000.0 Component Location Chart all important connectors, ground points and
components are listed in tabular form. It provides a precise description of the component
locations in the vehicle.
In cell 7100.0 Component Location Views the location of connectors and components which
are difficult to locate are shown in line arts or illustrations. In cell 8000.0 Splice Location Views
all splices are listed in numerical order and illustrations are provided to assist in locating splices
on larger harnesses. In cell 8500.0 Connector Views diagrams of connectors with more than 2
pins are illustrated.

Example
General conventions can be explained based on the following schematic example.






INTRODUCTION







General Conventions
1. Switches and relays are always shown in rest position (e.g. K11).
2. A component shown in a dashed frame signifies that the component is
illustrated only in part (e.g. P90 and P91).
3. A component shown in a completely drawn frame signifies that the
component is illustrated in full (e.g. K11).
4. The dashed line between pin 8 and pin 6 of connector X293 indicates
that both pins belong to connector X293.
5. The dashed line from fuse F1 to pin 8 of connector X293 shows the
positive supply of relay K11. If required, refer to cell 0670.3 Fuse Details at
fuse F1 for the complete line progressing with plug connections, line
branches, wire colors and cross sections.6. The dashed line with an arrow at splice X452 indicates that several wires
lead to splice X452. All lines leading to the connection are illustrated in
cell 6100.0 Central Body Electronics (ZKE). An interrupted line with an
arrow indicates that only this one wire leads to another circuit.
7. The dashed line from pin 4 of connector X293 to ground X493 shows the
ground supply for relay K11. If required, refer to cell 0670.4 Ground
Distribution at ground X493 for the complete line progression with all plug
connections, line branches, wire colors, and cross sections.
8. The interrupted line from splice X452 with an A in the open arrow is
continued on page 6160.0–02.
Termination of wire 4 VI/SW from splice X452 with a wavy line indicates that
the wire is continued on the opposite page.















CIRCUIT BREAKERVARIABLE RESISTANCE
SENSOR VARIABLE
CONTACT IS MOVED BY
AN EXTERNAL FORCE
VARIABLE RESISTOR RE-
SISTANCE IS CHANGED
BY TEMPERATURE OR
PRESSURE
DIODE CURRENT
CAN FLOW ONLY IN
DIRECTION OF AR-
ROW
ZENER DIODE TO
REGULATE VOLTAGE
LIGHT EMITTING
DIODE PERMANENT MAGNET
MOTOR ONE SPEED
PERMANENT MAGNET
MOTOR TWO SPEEDS
SOLENOID
SOLENOID CON-
TROLLED VALVE
OR CLUTCH
SOLENOIDTRANSISTORIZED
SWITCH HEATING ELEMENT
OXYGEN SENSORCONTROL/POWER
ELECTRONICS
RADIO LOUDSPEAKER OR
HORN
LIGHT BATTERY
FUSIBLE LINK
FUSE DETAILS
INDUCTIVE
SENSOR
KNOCK SENSOR
31


VEHICLE SPEED
SENSOR

THERMO SWITCH
HALL EFFECT
SENSOR
ANTENNA
0140.0 SYMBOLS














4 RT
15
4 GN13
.5 GN/WS5
2.5 SW/GE 2.5 VI42
DETAILS ABOUT
COMPONENT OR
OPERATION
”R” IS ENERGIZED
IN ACCY, RUN, OR
START 76 82 X33CONTACT RELAYRELAY WITH RE-
SISTOR ACROSS
WINDINGTERMINAL
NUMBERTHREE POLE,
FOUR POSITION
SWITCHCOMPONENT NUM-
BER
S2
IGNITION SWITCH
0) OFF
1) ACCESSORY
2) RUN
3) START
TERMINAL
NUMBERDESCRIPTION
50 VOLTAGE: IGNI-
TION SWITCH IN
START
VOLTAGE: SUP-
PLIED AT ALL
TIMES
VOLTAGE: IGNI-
TION SWITCH IN
RUN OR START 30
15
15I
50 R30
INDICATES THAT
FUSE 9 IS SUP-
PLIED WITH POW-
ER AT ALL TIMES
CONTACT RELAY
WITH TWO OUT-
PUTSCHANGEOVER
RELAY WITH TWO
OUTPUTS
TERMINAL
NUMBERDESCRIPTION
30 RELAY INPUT
RELAY OUTPUT
(WINDING)
RELAY INPUT
(WINDING)
RELAY OUTPUT
(ENERGIZED)
RELAY OUTPUT (AT
REST) 85
86
87
87a
30 86
87 87 8530 86
87 85 87a
TERMINAL
NUMBERDESCRIPTION
VOLTAGE: IGNI-
TION SWITCH IN
RUN
VOLTAGE: IGNI-
TION SWITCH IN
ACCESSORY, RUN
OR START 15I
R
GROUND 31
POWER STATUS DESCRIPTION
VOLTAGE: SUP-
PLIED AT ALL
TIMES
VOLTAGE: IGNI-
TION SWITCH IN
RUN OR START
VOLTAGE: IGNI-
TION SWITCH IN
ACCESSORY, RUN
OR START
30 86
87 8530
86
87 85
NAME OF COM-
PONENT
F915A
2
10
32
10
32
10
3
SYMBOLS



SYMBOLS










1.5 BR DATA LINK
0670.5 .5 WS/GE
0670.0-030670.0-02
1.5 BRN9
RADIO
THE COMPLETE
WIRE PROGRES-
SION AND FUR-
THER CIRCUITS
CONNECTED TO
GROUND X497 ARE
SHOWN IN CELL
”0670.4 GROUND
DISTRIBUTION” AT
GROUND X497
THE COMPLETE WIRE
PROGRESSION AND
FURTHER CIRCUITS
CONNECTED TO FUSE
18 ARE SHOWN IN CELL
”0670.3 FUSE DETAILS”
AT FUSE 18
CURRENT PATH IS CONTINUED
AS LABELED P90
FRONT POWER
DISTRIBUTION BOX F18
15A
GROUND
DISTRIBUTION
0670.4
N1
ANTI–THEFT
CONTROL MODULE
(DWA) FUSE DETAILS
0670.3A1
GENERAL MODULE
X252
17X332
2
CIRCUIT REF-
ERENCE–A WIRE
WHICH CONNECTS
TO ANOTHER CIRCUIT
A2
INSTRUMENT
CLUSTER
X16
11RXD
ARROW SHOWS
DIRECTION OF
CURRENT FLOW
AND IS REPEATED
WHERE CURRENT
PATH CONTINUES
X497
X1812615
X491

K70
CENTRAL LOCKING
LUGGAGE
COMPARTMENT
LID MOTOR RELAY
(ZV)


K48
LOW BEAM LIGHT
RELAYX45
11 12 13456 78 9
38
37
35
34
33
32
31 42
41
40
39 43 44
FRONT POWER DISTRIBUTION BOX
0670.0 POWER DISTRIBUTION CHART












K2
HORN RELAYK47
FRONT FOG LIGHT
RELAYK16
HAZARD FLASHER
RELAYK4
BLOWER RELAY
K94
ENGINE CONTROL
RELAY (ABS/ASC)K95
VALVE RELAY
(ABS/ASC)K22
HIGH SPEED
RELAYK19
COMPRESSOR
CONTROL RELAYK21
NORMAL SPEED
RELAY X56X44X64X58
X63X18766X18767
X53X51X52
46
45
3612 3 10
14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
FUSES FUSES
X0
K9
UNLOADER RELAY,
TERMINAL 15X1376
M VERSIONS K33a
AIR CONDITIONING
RELAY, MOTRONICX50
** *
*
**
M COUPE
**

*15A


0670.1 FUSE CHART




FUSES 1 TO 29








FUSE NUMBER
12345 10 206 7 8 9 11 12 13 14 15 16 17 18 19 21 22 23 24 25 26 27 28 29
1210.25
1290.0
2460.2
3234.0
30A 10A 30A 15A 30A 20A 5A 30A 7.5A 5A 15A 5A 5A 5A 10A 5A 7.5A20A15A 30A 5A 5A
ENGINE CONTROL SYSTEM MS42.1 (6–CYLINDER M52)
E–BOX FAN
SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG) ELECTRONIC TRANSMISSION CONTROL (EGS A4S 270R)
7.5A 30A 10A 10A30A
5116.0POWER MIRRORS
5133.0
5200.0ZKE POWER WINDOWS (FH)
POWER SEATS
5203.0
6133.0
6160.1HEATED SEATS
HORN
WIPER/WASHER MODULE (WWM) 5126.0ZKE CENTRAL LOCKING (ZV) 3450.1SLIP CONTROL (ABS/ASC) 1230.0CHARGING SYSTEM
6135.1DRIVE–AWAY PROTECTION (EWS III)

























1210.17ENGINE CONTROL SYSTEM MS41.1 (6–CYLINDER S52)









6100.0CENTRAL BODY ELECTRONICS (ZKE IV)



6167.1HEADLIGHT WASHER (SRA)

5430.2ELECTRO–HYDRAULIC CONVERTIBLE TOP


1240.0START

3614.0TIRE INFLATION SYSTEM
5410.5POWER TILT SUNROOF


M VERSIONS *
7.5A











*5A
