engine BMW Z3M COUPE 2000 E36 Electrical Troubleshooting Manual
[x] Cancel search | Manufacturer: BMW, Model Year: 2000, Model line: Z3M COUPE, Model: BMW Z3M COUPE 2000 E36Pages: 382, PDF Size: 4.47 MB
Page 276 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
A837 .
ELECTRONIC IMMOBILIZER CONTROL
MODULE (EWS III) . . . . . . . . . . . . . . . . . . .
LH side of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49-1
A6000 ENGINE CONTROL MODULE (DME) . . . . . rear RH side of engine compartment in E–Box (M VERSIONS) . . . . . . . . . . . . . . . . . 00-1
A6000
ENGINE CONTROL MODULE (DME) . . . . .
rear RH side of engine compartment in E–Box (Z3 VERSIONS) . . . . . . . . . . . . . . . .
47-2
A8500
TRANSMISSION CONTROL MODULE
(EGS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear RH side of engine compartment in E–Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47-1
A9008
CRUISE CONTROL INTERFACE . . . . . . . .
near steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49-1
A19007
THERMAL OIL LEVEL SENSOR (TOENS)
CONTROL MODULE . . . . . . . . . . . . . . . . .
behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50-2
B1 . . . . RIGHT FRONT SPEED SENSOR – ABS . . on RH front wheel, above brake caliper
B2 . . . . LEFT FRONT SPEED SENSOR – ABS . . . on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3
B3 . . . . RIGHT REAR SPEED SENSOR – ABS . . . on RH rear wheel, above brake caliper
B4 . . . .
LEFT REAR SPEED SENSOR – ABS . . . .
on LH rear wheel, above brake caliper
B6y . . . FUEL SENSOR . . . . . . . . . . . . . . . . . . . . . . . . in fuel tank
B8y . . . PRESSURE SWITCH . . . . . . . . . . . . . . . . . . . front RH side of engine compartment
B9 . . . . INTERMEDIATE PRESSURE SWITCH . . . front RH side of engine compartment
B10 . . VEHICLE SPEED SENSOR . . . . . . . . . . . . . on differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-2
B14 . .
EVAPORATOR TEMPERATURE SENSOR
RH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21-2
B16 . . LEFT FRONT BRAKE PAD SENSOR . . . . . on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3
B17 . . RIGHT REAR BRAKE PAD SENSOR . . . . . behind RH rear wheel
B18 . . BRAKE FLUID LEVEL SWITCH . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09-1
B21 . .
ON–BOARD COMPUTER TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
in RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-3
Page 277 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
B59 . . OIL TEMPERATURE GAUGE . . . . . . . . . . . center console
B65 . .
FUEL TANK PRESSURE SENSOR . . . . . . .
under rear storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
07-2
B74 . . TRANSVERSE ACCELERATION SENSOR under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49-2
B75 . . RPM RATE SENSOR . . . . . . . . . . . . . . . . . . . under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49-2
B76 . . PRESSURE SENSOR . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48-1
B78 . . DRIVER’S SIDE IMPACT SENSOR . . . . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-3
B79 . .
PASSENGER’S SIDE IMPACT SENSOR . .
under RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35-1
B211 . . VOLTMETER . . . . . . . . . . . . . . . . . . . . . . . . . . center console
B6203 CRANKSHAFT POSITION/RPM SENSOR rear LH side of engine compartment (M VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . 32-3
B6203 CRANKSHAFT POSITION/RPM SENSOR rear LH side of engine compartment (Z3 VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . 45-1
B6204
CAMSHAFT POSITION SENSOR
(CYLINDER IDENTIFICATION) . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31-3
B6205 INTAKE AIR TEMPERATURE SENSOR . . front LH side of engine compartment (M VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . 34-1
B6205
INTAKE AIR TEMPERATURE SENSOR . .
top center of engine (Z3 VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
45-3
B6207 HOT FILM AIR MASS METER . . . . . . . . . . . LH side of engine compartment (M VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-3
B6207 HOT FILM AIR MASS METER . . . . . . . . . . . LH side of engine compartment (Z3 VERSIONS)
B6209 HALL EFFECT CAMSHAFT SENSOR . . . . front of engine
B6214
CAMSHAFT POSITION SENSOR 1
(INLET) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine
B6224
CAMSHAFT POSITION SENSOR 2
(OUTLET) . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
45-2
B6231 OIL PRESSURE SWITCH . . . . . . . . . . . . . . . lower LH side of engine (M VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-2
B6231
OIL PRESSURE SWITCH . . . . . . . . . . . . . . .
LH side of engine compartment (Z3 VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
43-2
Page 278 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
B6232
ENGINE COOLANT TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine
B6236
ENGINE COOLANT TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44-2
B6238 OIL TEMPERATURE SENSOR . . . . . . . . . . RH side of oil filter (M VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-2
B6238 OIL TEMPERATURE SENSOR . . . . . . . . . . RH side of oil filter (Z3 VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43-2
B6240
KNOCK SENSOR . . . . . . . . . . . . . . . . . . . . . .
LH side of engine (Z3 VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
46-2
B6240 KNOCK SENSOR . . . . . . . . . . . . . . . . . . . . . . top front of engine (M VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-2
B6247 CHARCOAL FILTER SHUT–OFF VALVE . . under LH rear of car . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
B6254 THERMAL OIL LEVEL SWITCH . . . . . . . . . lower LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41-2
B6256
DUAL TEMPERATURE SENSOR
(COOLANT TEMPERATURE) . . . . . . . . .
rear of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32-1
B6279
THERMOSTAT, CHARACTERISTIC MAP
COOLING . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44-3
B9508 PRESSURE SWITCH . . . . . . . . . . . . . . . . . . . front RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-2
B62101
OXYGEN SENSOR I
(IN FRONT OF CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . .
on catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44-1
B62102
OXYGEN SENSOR I
(BEHIND CATALYTIC CONVERTER) . . .
on catalytic converter
B62201
OXYGEN SENSOR II
(IN FRONT OF CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . .
on catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44-1
B62202
OXYGEN SENSOR II
(BEHIND CATALYTIC CONVERTER) . . .
on catalytic converter
Page 279 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
C100 . CONTACT RING . . . . . . . . . . . . . . . . . . . . . . . top of steering column
C101 .
CONTACT RING . . . . . . . . . . . . . . . . . . . . . . .
top of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36-3
D100 . DATA LINK CONNECTOR . . . . . . . . . . . . . . . rear RH side of engine compartment (M VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . 31-1
D100 . DATA LINK CONNECTOR . . . . . . . . . . . . . . . rear LH side of engine compartment (Z3 VERSIONS) . . . . . . . . . . . . . . . . . . . . . . . . . 41-1
D110 . OBD II CONNECTOR . . . . . . . . . . . . . . . . . . . center console right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-3
E7 . . . . LEFT HEADLIGHT . . . . . . . . . . . . . . . . . . . . . front LH side of engine compartment
E8 . . . .
RIGHT HEADLIGHT . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment
E9 . . . . REAR DEFOGGER I . . . . . . . . . . . . . . . . . . . hard top
E11 . . . LEFT HIGH BEAM LIGHT . . . . . . . . . . . . . . . near front LH headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-1
E12 . . RIGHT HIGH BEAM LIGHT . . . . . . . . . . . . . near front RH headlight
E13 . . LEFT LOW BEAM LIGHT . . . . . . . . . . . . . . . near front LH headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-1
E14 . .
RIGHT LOW BEAM LIGHT . . . . . . . . . . . . . .
near front RH headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29-3
E15 . . LEFT PARK LIGHT . . . . . . . . . . . . . . . . . . . . . near front LH headlight
E16 . . LEFT REAR LIGHT ASSEMBLY . . . . . . . . . LH side of body rear end
E17 . . RIGHT REAR LIGHT ASSEMBLY . . . . . . . . RH side of body rear end . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-1
E19 . .
RIGHT PARK LIGHT . . . . . . . . . . . . . . . . . . .
near front RH headlight
E21 . . LEFT FRONT MARKER LIGHT . . . . . . . . . . front of vehicle
E22 . . RIGHT FRONT MARKER LIGHT . . . . . . . . . front of vehicle
E25 . . FRONT ASHTRAY LIGHT . . . . . . . . . . . . . . . center console
E26 . . LEFT FOG LIGHT . . . . . . . . . . . . . . . . . . . . . . under LH front bumper
E27 . .
RIGHT FOG LIGHT . . . . . . . . . . . . . . . . . . . .
under RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13-2
E28 . . FRONT CIGAR LIGHTER . . . . . . . . . . . . . . . center console
Page 280 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
E28a . CIGAR LIGHTER CONNECTION . . . . . . . . TIRE INFLATION SYSTEM
E29 . .
FRONT CIGAR LIGHTER LIGHT . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22-3
E32 . . LUGGAGE COMPARTMENT LIGHT . . . . . . in luggage compartment (ROADSTER)
E32 . . LUGGAGE COMPARTMENT LIGHT . . . . . . in roof panel (COUPE)
E34 . .
FRONT DOME LIGHT/MAP READING
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . .
in roof panel
E43 . . LEFT LICENSE PLATE LIGHT . . . . . . . . . . . underside of luggage compartment lid, near license plate
E44 . . RIGHT LICENSE PLATE LIGHT . . . . . . . . . underside of luggage compartment lid, near license plate
E51 . .
LEFT WASHER JET HEATER . . . . . . . . . . .
on underside of engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37-1
E52 . . RIGHT WASHER JET HEATER . . . . . . . . . . on underside of engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-1
E56 . . DRIVER’S SEATBACK HEATER . . . . . . . . . in top of LH backrest
E57 . . DRIVER’S SEAT HEATER . . . . . . . . . . . . . . . under LH front seat
E58 . . PASSENGER’S SEAT HEATER . . . . . . . . . . underside of RH front seat
E59 . .
PASSENGER’S SEATBACK HEATER . . . .
in top of RH backrest
E82 . .
TRANSMISSION POSITION INDICATOR
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22-1
E96 . . GEAR SHIFT LEVER INDICATOR . . . . . . . center console
E99 . . HARD TOP CONNECTOR 1 . . . . . . . . . . . . . near LH rear wheel well
E105 .
HEAT/A/C CONTROL PANEL
ILLUMINATION . . . . . . . . . . . . . . . . . . . . . .
center of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21-3
E106 .
HEAT/A/C CONTROL PANEL
ILLUMINATION . . . . . . . . . . . . . . . . . . . . . .
center of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21-3
E800 . FRONT LEFT INTERIOR LIGHT . . . . . . . . . near interior rear view mirror
Page 281 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
F97 . . . FUSIBLE LINK . . . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-1
G1 . . .
BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
01-1
G5 . . . DRIVER’S AIR BAG GAS GENERATOR . . behind steering wheel
G6 . . .
PASSENGER’S AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . . . .
behind glove box above
G12 . .
DRIVER’S SIDE PYROTECHNICAL BELT
TENSIONER . . . . . . . . . . . . . . . . . . . . . . . .
in LH front seat belt buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36-2
G13 . .
PASSENGER’S SIDE PYROTECHNICAL
BELT TENSIONER . . . . . . . . . . . . . . . . . . .
in RH front seat belt buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36-2
G14 . . LEFT SIDE AIR BAG GAS GENERATOR . LH front door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-2
G15 . . RIGHT SIDE AIR BAG GAS GENERATOR RH front door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-2
G19 . . BATTERY SAFETY TERMINAL . . . . . . . . . . RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-3
G6400
B+ JUNCTION POINT E–BOX . . . . . . . . . . .
rear RH side of engine compartment in E–Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48-3
G6430 B+ JUMP START JUNCTION POINT . . . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-2
G6509 GENERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-3
G7512 B+ JUNCTION POINT . . . . . . . . . . . . . . . . . . below LH side of dash
H1w . . ANTI–THEFT HORN (ALPINE) . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09-1
H2 . . .
LEFT HORN . . . . . . . . . . . . . . . . . . . . . . . . . . .
under LH front bumper
H3 . . . RIGHT HORN . . . . . . . . . . . . . . . . . . . . . . . . . RH front of wheel well . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2
H4 . . . RIGHT FRONT TURN LIGHT . . . . . . . . . . . . front of vehicle
H7 . . . LEFT FRONT TURN LIGHT . . . . . . . . . . . . . front of vehicle
H8 . . . RIGHT FRONT AUXILIARY TURN LIGHT . front of vehicle
H9 . . .
LEFT FRONT AUXILIARY TURN LIGHT . .
front of vehicle
Page 283 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION

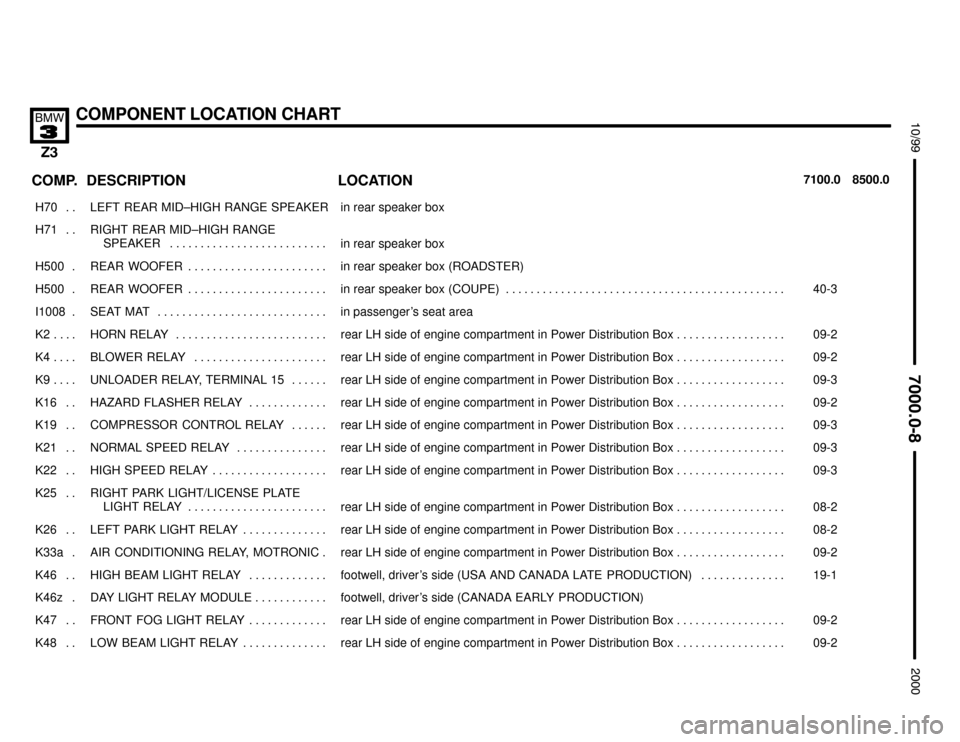

H70 . . LEFT REAR MID–HIGH RANGE SPEAKER in rear speaker box
H71 . .
RIGHT REAR MID–HIGH RANGE
SPEAKER . . . . . . . . . . . . . . . . . . . . . . . . . .
in rear speaker box
H500 .
REAR WOOFER . . . . . . . . . . . . . . . . . . . . . . .
in rear speaker box (ROADSTER)
H500 .
REAR WOOFER . . . . . . . . . . . . . . . . . . . . . . .
in rear speaker box (COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40-3
I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . in passenger’s seat area
K2 . . . . HORN RELAY . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K4 . . . . BLOWER RELAY . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K9 . . . .
UNLOADER RELAY, TERMINAL 15 . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
09-3
K16 . . HAZARD FLASHER RELAY . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K19 . . COMPRESSOR CONTROL RELAY . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K22 . . HIGH SPEED RELAY . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K25 . .
RIGHT PARK LIGHT/LICENSE PLATE
LIGHT RELAY . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
08-2
K26 . .
LEFT PARK LIGHT RELAY . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
08-2
K33a . AIR CONDITIONING RELAY, MOTRONIC . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . . . . footwell, driver’s side (USA AND CANADA LATE PRODUCTION) . . . . . . . . . . . . . . 19-1
K46z . DAY LIGHT RELAY MODULE . . . . . . . . . . . . footwell, driver’s side (CANADA EARLY PRODUCTION)
K47 . .
FRONT FOG LIGHT RELAY . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
09-2
K48 . .
LOW BEAM LIGHT RELAY . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
09-2
Page 284 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION

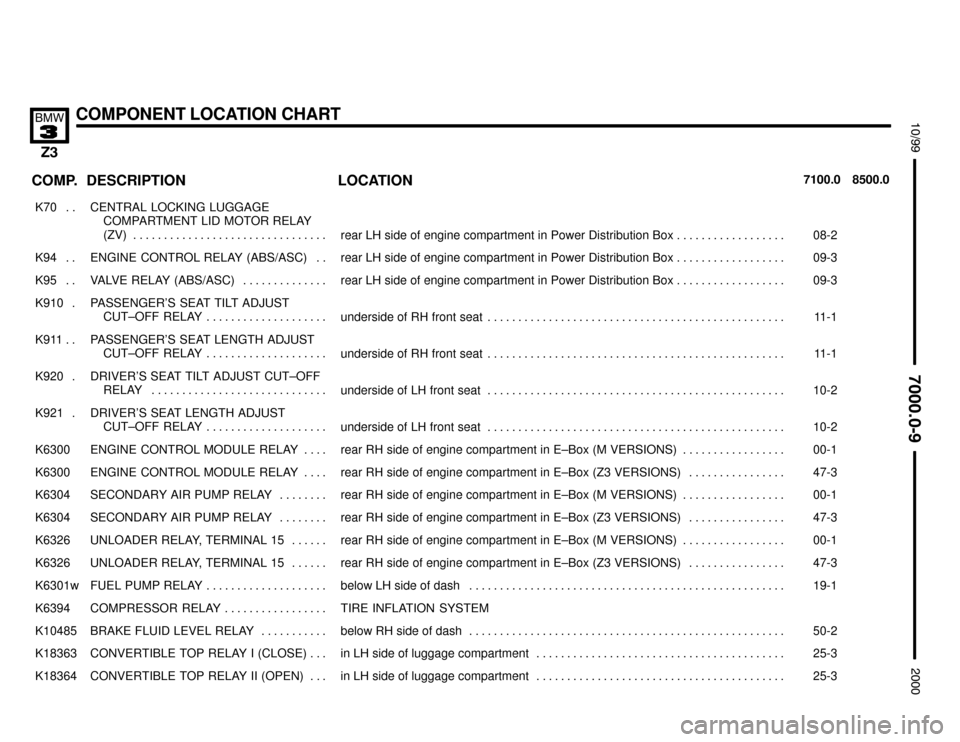

K70 . .
CENTRAL LOCKING LUGGAGE
COMPARTMENT LID MOTOR RELAY
(ZV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
08-2
K94 . . ENGINE CONTROL RELAY (ABS/ASC) . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K95 . . VALVE RELAY (ABS/ASC) . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K910 .
PASSENGER’S SEAT TILT ADJUST
CUT–OFF RELAY . . . . . . . . . . . . . . . . . . . .
underside of RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-1
K911 . .
PASSENGER’S SEAT LENGTH ADJUST
CUT–OFF RELAY . . . . . . . . . . . . . . . . . . . .
underside of RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-1
K920 .
DRIVER’S SEAT TILT ADJUST CUT–OFF
RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
underside of LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-2
K921 .
DRIVER’S SEAT LENGTH ADJUST
CUT–OFF RELAY . . . . . . . . . . . . . . . . . . . .
underside of LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-2
K6300 ENGINE CONTROL MODULE RELAY . . . . rear RH side of engine compartment in E–Box (M VERSIONS) . . . . . . . . . . . . . . . . . 00-1
K6300
ENGINE CONTROL MODULE RELAY . . . .
rear RH side of engine compartment in E–Box (Z3 VERSIONS) . . . . . . . . . . . . . . . .
47-3
K6304 SECONDARY AIR PUMP RELAY . . . . . . . . rear RH side of engine compartment in E–Box (M VERSIONS) . . . . . . . . . . . . . . . . . 00-1
K6304 SECONDARY AIR PUMP RELAY . . . . . . . . rear RH side of engine compartment in E–Box (Z3 VERSIONS) . . . . . . . . . . . . . . . . 47-3
K6326 UNLOADER RELAY, TERMINAL 15 . . . . . . rear RH side of engine compartment in E–Box (M VERSIONS) . . . . . . . . . . . . . . . . . 00-1
K6326 UNLOADER RELAY, TERMINAL 15 . . . . . . rear RH side of engine compartment in E–Box (Z3 VERSIONS) . . . . . . . . . . . . . . . . 47-3
K6301w
FUEL PUMP RELAY . . . . . . . . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-1
K6394 COMPRESSOR RELAY . . . . . . . . . . . . . . . . . TIRE INFLATION SYSTEM
K10485 BRAKE FLUID LEVEL RELAY . . . . . . . . . . . below RH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-2
K18363 CONVERTIBLE TOP RELAY I (CLOSE) . . . in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-3
K18364
CONVERTIBLE TOP RELAY II (OPEN) . . .
in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25-3
Page 285 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
L1 . . . . EWS TOROIDAL COIL . . . . . . . . . . . . . . . . . at ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-3
M2 . . .
FUEL PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . .
in fuel tank
M3 . . . WIPER MOTOR . . . . . . . . . . . . . . . . . . . . . . . rear of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-3
M4 . . . WASHER PUMP . . . . . . . . . . . . . . . . . . . . . . . front RH side of engine compartment on washer fluid reservoir
M7 . . . HEADLIGHT/FOG LIGHT WASHER PUMP front RH side of engine compartment on washer fluid reservoir
M9 . . . AUXILIARY FAN MOTOR . . . . . . . . . . . . . . . behind front grille
M12 . .
DRIVER’S DOOR LOCK MOTOR . . . . . . . .
driver’s door
M13 . . PASSENGER’S DOOR LOCK MOTOR . . . passenger’s door
M16 . . GAS FILLER LOCK MOTOR . . . . . . . . . . . . RH rear wheel well . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-1
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear side of luggage compartment behind trim panel (ROADSTER)
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in lift gate (M COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40-2
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in lift gate (Z3 COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37-2
M21 . . DRIVER’S WINDOW MOTOR . . . . . . . . . . . in driver’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-2
M23 . . PASSENGER’S WINDOW MOTOR . . . . . . . in passenger’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-3
M24y .
TILT SUNROOF MOTOR . . . . . . . . . . . . . . .
in roof panel
M25 . .
CRUISE CONTROL ACTUATOR
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
08-3
M30 . . BLOWER MOTOR . . . . . . . . . . . . . . . . . . . . . rear of engine compartment
M51 . . DRIVER’S SEAT MOVEMENT MOTOR . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1
M51 . . DRIVER’S SEAT MOVEMENT MOTOR . . . under LH front seat (WITH SPORT SEAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
Page 286 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
M52 . . DRIVER’S SEAT HEIGHT MOTOR . . . . . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1
M52 . .
DRIVER’S SEAT HEIGHT MOTOR . . . . . . .
under LH front seat (WITH SPORT SEAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-3
M59 . . PASSENGER’S SEAT HEIGHT MOTOR . . under RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-1
M60 . .
PASSENGER’S SEAT MOVEMENT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
under RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24-1
M93 . .
AUXILIARY THROTTLE POSITION
MOTOR (ADS) . . . . . . . . . . . . . . . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
08-1
M101 . CONVERTIBLE TOP MOTOR . . . . . . . . . . . in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-3
M111 . FRESH AIR RECIRCULATION MOTOR . . . RH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-2
M118 . PRECHARGE PUMP . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48-1
M805 .
ELECTRICAL COMPRESSOR . . . . . . . . . . .
TIRE INFLATION SYSTEM
M6506 E–BOX FAN . . . . . . . . . . . . . . . . . . . . . . . . . . . in E–Box
M6510 STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-2
N5 . . . ANALOG CLOCK . . . . . . . . . . . . . . . . . . . . . . center console
N8 . . . ANTENNA AMPLIFIER AM/FM . . . . . . . . . . in LH side of luggage compartment behind trim panel (ROADSTER)
N8 . . .
ANTENNA AMPLIFIER AM/FM . . . . . . . . . .
in roof panel (COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37-3
N9 . . . RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . center console
N12w .
ANTI–THEFT CONTROL MODULE
(ALPINE) . . . . . . . . . . . . . . . . . . . . . . . . . . .
behind glove box
N17 . . CRASH CONTROL MODULE . . . . . . . . . . . . footwell, driver’s side (M VERSIONS AND Z3 VERSIONS LATE PRODUCTION) . 19-1
N17 . . CRASH CONTROL MODULE . . . . . . . . . . . . footwell, passenger’s side (Z3 VERSIONS EARLY PRODUCTION) . . . . . . . . . . . . . 50-2
N22 . . CD CHANGER . . . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment
N44 . .
SUBWOOFER AMPLIFIER MODULE . . . . .
in LH forward side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41-3
