sensor BMW Z3M COUPE 2000 E36 Electrical Troubleshooting Manual



X6163X6275
X6133
COMPONENT LOCATION VIEWS











D100
DATA LINK
CONNECTOR
Y6133
AIR PUMP


X6150
B6204
CAMSHAFT
POSITION SENSOR
(CYLINDER
IDENTIFICATION)
Y6275
VARIABLE CAM-
SHAFT CONTROL
VALVE 1






X6231X6238
COMPONENT LOCATION VIEWS











B6256
DUAL
TEMPERATURE
SENSOR
(COOLANT
TEMPERATURE)
B6231
OIL PRESSURE
SWITCHB6203
CRANKSHAFT
POSITION/RPM
SENSOR




B6238
OIL TEMPERATURE
SENSOR




X6207X6252X10239
COMPONENT LOCATION VIEWS











B6240
KNOCK SENSORX6203
X6204X6240
B6207
HOT FILM AIR
MASS METER
Y6163
SECONDARY AIR
PUMP VALVER31
AUXILIARY
THROTTLE
POSITION SENSOR
R6252
THROTTLE
POSITION SENSOR





COMPONENT LOCATION VIEWS

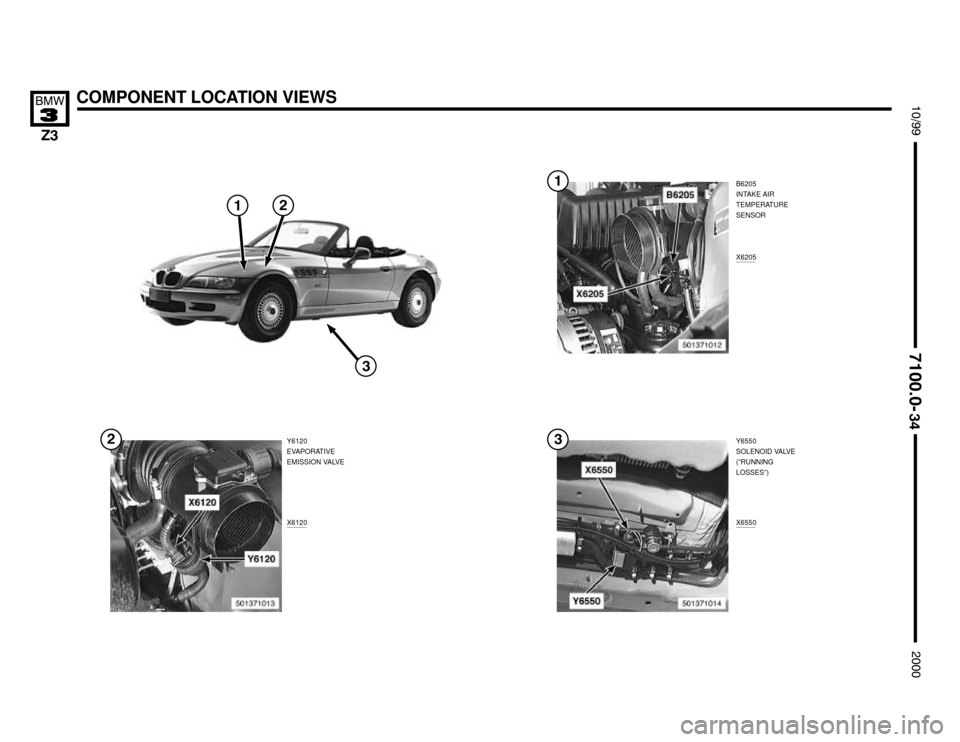

B6205
INTAKE AIR
TEMPERATURE
SENSOR
Y6120
EVAPORATIVE
EMISSION VALVE
X6120
X6205




X6550

Y6550
SOLENOID VALVE
(”RUNNING
LOSSES”)





X1885
X1884
COMPONENT LOCATION VIEWS











B79
PASSENGER’S
SIDE IMPACT
SENSOR
G15
RIGHT SIDE AIR
BAG GAS
GENERATOR


X1886
B78
DRIVER’S SIDE IM-
PACT SENSOR



X6524


X6130
X6120X6231X6238
COMPONENT LOCATION VIEWS











B6231
OIL PRESSURE
SWITCH

Y6130
IDLE SPEED
CONTROL VALVE


B6238
OIL TEMPERATURE
SENSOR
Y6120
EVAPORATIVE
EMISSION VALVE



B62101
OXYGEN SENSOR I
(IN FRONT OF
CATALYTIC
CONVERTER)
X62101
X62201


X6279X6236
COMPONENT LOCATION VIEWS











B6236
ENGINE COOLANT
TEMPERATURE
SENSOR

B6279
THERMOSTAT,
CHARACTERISTIC
MAP COOLING


B62201
OXYGEN SENSOR
II (IN FRONT OF
CATALYTIC
CONVERTER)



B6203
CRANKSHAFT
POSITION/RPM
SENSOR
X6203


X6205X6275X62102X62202
X6224X6276
COMPONENT LOCATION VIEWS











B6224
CAMSHAFT
POSITION SENSOR
2 (OUTLET)B6205
INTAKE AIR
TEMPERATURE
SENSOR


Y6276
VARIABLE CAM-
SHAFT CONTROL
VALVE 2 (OUTLET)Y6275z
VARIABLE CAM-
SHAFT CONTROL
VALVE 1 (INLET)



R6385
THROTTLE
POSITION SEN-
SOR/CRUISE
CONTROL
ACTUATOR
X6385


X6240
COMPONENT LOCATION VIEWS












B6240
KNOCK SENSORA65
DYNAMIC STABIL-
ITY CONTROL UNIT
(DSC)



Y6167
VALVE, INDIVIDUAL
CONTROL INTAKE
SYSTEM


X1746X6167

B76
PRESSURE
SENSORX1656X1747X1748


X6011X6021X6031X89977
COMPONENT LOCATION VIEWS











P98
FUSE HOLDER IN
E–BOXG6400
B+ JUNCTION
POINT E–BOX


X6053X18365X64101X64102

M118
PRECHARGE PUMP


Y16z
PRESSURE TRANS-
MITTER
